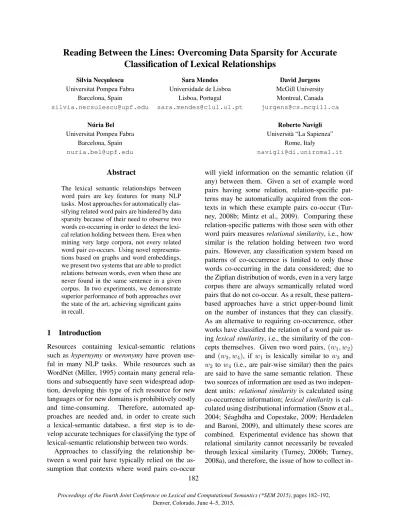

Proceedings of the Fourth Joint Conference on Lexical and Computational Semantics (*SEM 2015), pages 182–192,
Reading Between the Lines: Overcoming Data Sparsity for Accurate
Classification of Lexical Relationships
Silvia Necs¸ulescuUniversitat Pompeu Fabra Barcelona, Spain
silvia.necsulescu@upf.edu
N´uria Bel Universitat Pompeu Fabra
Barcelona, Spain nuria.bel@upf.edu
Sara Mendes Universidade de Lisboa
Lisboa, Portugal sara.mendes@clul.ul.pt
David Jurgens McGill University Montreal, Canada jurgens@cs.mcgill.ca
Roberto Navigli Universit`a “La Sapienza”
Rome, Italy
navigli@di.uniroma1.it
Abstract
The lexical semantic relationships between word pairs are key features for many NLP tasks. Most approaches for automatically clas-sifying related word pairs are hindered by data sparsity because of their need to observe two words co-occurring in order to detect the lexi-cal relation holding between them. Even when mining very large corpora, not every related word pair co-occurs. Using novel representa-tions based on graphs and word embeddings, we present two systems that are able to predict relations between words, even when these are never found in the same sentence in a given corpus. In two experiments, we demonstrate superior performance of both approaches over the state of the art, achieving significant gains in recall.
1 Introduction
Resources containing lexical-semantic relations
such ashypernymy or meronymy have proven
use-ful in many NLP tasks. While resources such as WordNet (Miller, 1995) contain many general rela-tions and subsequently have seen widespread adop-tion, developing this type of rich resource for new languages or for new domains is prohibitively costly and time-consuming. Therefore, automated ap-proaches are needed and, in order to create such a lexical-semantic database, a first step is to de-velop accurate techniques for classifying the type of lexical-semantic relationship between two words.
Approaches to classifying the relationship be-tween a word pair have typically relied on the as-sumption that contexts where word pairs co-occur
will yield information on the semantic relation (if any) between them. Given a set of example word pairs having some relation, relation-specific pat-terns may be automatically acquired from the con-texts in which these example pairs co-occur (Tur-ney, 2008b; Mintz et al., 2009). Comparing these relation-specific patterns with those seen with other
word pairs measuresrelational similarity, i.e., how
similar is the relation holding between two word pairs. However, any classification system based on patterns of co-occurrence is limited to only those words co-occurring in the data considered; due to the Zipfian distribution of words, even in a very large corpus there are always semantically related word pairs that do not co-occur. As a result, these pattern-based approaches have a strict upper-bound limit on the number of instances that they can classify. As an alternative to requiring co-occurrence, other works have classified the relation of a word pair
us-inglexical similarity, i.e., the similarity of the
con-cepts themselves. Given two word pairs, (w1, w2)
and (w3, w4), if w1 is lexically similar to w3 and
w2 tow4 (i.e., are pair-wise similar) then the pairs
are said to have the same semantic relation. These two sources of information are used as two
indepen-dent units: relational similarity is calculated using
co-occurrence information;lexical similarityis
cal-culated using distributional information (Snow et al., 2004; S´eaghdha and Copestake, 2009; Herdadelen and Baroni, 2009), and ultimately these scores are combined. Experimental evidence has shown that relational similarity cannot necessarily be revealed through lexical similarity (Turney, 2006b; Turney, 2008a), and therefore, the issue of how to collect
formation for word pairs that do not co-occur is still an open problem.
We propose two new approaches to representing word pairs in order to accurately classify them as instances of lexical-semantic relations – even when the pair members do not co-occur. The first ap-proach creates a word pair representation based on a graph representation of the corpus created with dependency relations. The graph encodes the dis-tributional behavior of each word in the pair and consequently, patterns of co-occurrence expressing each target relation are extracted from it as relational information. The second approach uses word em-beddings which have been shown to preserve linear regularities among words and pairs of words, there-fore, encoding lexical and relational similarities (Ba-roni et al., 2014), a necessary property for our task. In two experiments comparing with state-of-the-art pattern-based and embedding-based classifiers (Tur-ney, 2008b; Zhila et al., 2013), we demonstrate that our approaches achieve higher accuracy with signif-icantly increased recall.
2 Related work
Initial approaches to the extraction of lexical-semantic relations have relied on hand-crafted lexico-syntactic patterns to identify instances of semantic relations (Hearst, 1992; Widdows and Dorow, 2002; Berland and Charniak, 1999). These manually designed patterns are explicit construc-tions expressing a target semantic relation such as
the pattern X is a Y for the relation ofhypernymy.
However, these approaches are limited because a re-lation may be expressed in many ways, depending on the domain, author, and writing style, which may not match the originally identified patterns. More-over, the identification of high-quality patterns is costly and time-consuming, and must be repeated for each new relation type, domain and language. To overcome these limitations, techniques have been developed for the automatic acquisition of meaning-ful patterns of co-occurrence cueing a single target relation (Snow et al., 2004; Girju et al., 2006; Davi-dov and Rappoport, 2006).
More recent work focuses on methods for the classification of word pairs as instances of several relations at once, based on their relational similarity. This similarity is calculated using a vectorial
rep-resentation for each pair, created by relying on co-occurrence contexts (Turney, 2008b; S´eaghdha and Copestake, 2009; Mintz et al., 2009). These repre-sentations are very sparse due to the scarce contexts where the members of many word pairs co-occur. Moreover, many semantically related word pairs do not co-occur in corpus.
For overcoming these issues, relational similar-ity was combined with lexical similarsimilar-ity calculated based on the distributional information of words (Cederberg and Widdows, 2003; Snow et al., 2004; Turney, 2006a; S´eaghdha and Copestake, 2009; Her-dadelen and Baroni, 2009). However, (Turney, 2006b; Turney, 2008a) showed that relational sim-ilarity cannot be improved using the distributional similarity of words. In contrast with the previous ap-proaches that took into account lexical and relational information as a linear combination of lexical and relational similarity scores, the present work focuses on introducing word pair representations that merge and jointly represent types of information: lexical and relational. In this way, we aim to reduce vector sparseness and to increase the classification recall.
As a first approach, we use a graph to model the distributional behavior of words. Other researchers used graph-based approaches to model corpus in-formation for the extraction of co-hyponyms (Wid-dows and Dorow, 2002), hypernyms (Navigli and Velardi, 2010) or synonyms (Minkov and Cohen, 2012), or for inducing word senses (Di Marco and Navigli, 2013). Navigli and Velardi (2010) have the most similar representation to ours, creating a graph that models only definitional sentences. In contrast, our objective is to create a general repre-sentation of the whole corpus that can be used for classifying instances of several lexical semantic re-lations. The second approach presented in this pa-per, relies on word embeddings to create word pair representations. Extensive experiments have lever-aged word embeddings to find general semantic rela-tions (Mikolov et al., 2013a; Mikolov et al., 2013b; Mikolov et al., 2013c; Levy and Goldberg, 2014b). Nevertheless, only one work has applied word em-beddings for classifying instances of a lexical
se-mantic relation, specifically the relation
hyponymy-hypernymy(Fu et al., 2014). This relation is more
de-pending on the domain of each instance. The present work uses a machine learning approach to discover meaningful information for the semantic relations encoded in the dimensions of the embeddings.
3 Task description
The goal of this work is to classify word pairs as in-stances of lexical-semantic relations. Given a set of
target semantic relations R = {r1, . . . , rn}, and a
set of word pairs W = {(x, y)1, . . . ,(x, y)n}, the
task is to label each word pair(x, y)i with the
rela-tionrj ∈ Rholding between its members and
out-putting a set of tuples((x, y)i, rj). For this task, we
propose two novel representations of word pairs (de-scribed next), which are each used to train a classi-fier. Following, in Section 3.1 and Section 3.2 we describe each representation and then, in Section 3.3, we describe the common classification setup used with both representations.
3.1 Graph-based Representation Model
The present section introduces a novel word pair representation model based on patterns of co-occurrence contexts, and on a graph-based corpus representation created with dependency relations. A word pair is represented as a vector of features set up with the most meaningful patterns of context and filled in with information extracted from the graph representation of the corpus. We refer to systems trained with these graph-based representations as
Graph-basedClassification systEm (GraCE).
The novelty of this system stands in the graph-based representation. Its main advantage is that all the dependency relations of a target word, extracted from different sentences, are incident edges to its corresponding node in the graph. Thus, words that never co-occur in the same context in corpus, are linked in the graph through bridging words: words that appear in a dependency relation with each mem-ber of the pair but in different sentences. With this representation we address the data sparsity issue, aiming to overcome the reported major bottleneck of previous approaches: low recall because informa-tion can only be gathered from co-occurrences in the same sentence of two related words.
Word pair representations are created in three steps:
(1). Corpus representation: the input corpus is represented as a graph;
(2). Feature selection: the input corpus is used to extract meaningful patterns of co-occurrence
for each semantic relationri starting from an
initial set of examplesE;
(3). Word pair representation: the information
acquired in (1) and (2) is used to create
vectorial representations of target word pairs. Next, we present an example of how the graph repre-sentation of the corpus addresses the sparsity prob-lem in distributional data and formally introduce each step of the GraCE algorithm.
Example To illustrate the benefit of acquiring in-formation about a word pair from the graph instead of using co-occurrence information, let us consider that, given the sentences (S1) and (S2) below, we
want to classify the pair(chisel, tool)as an instance
of the relation of hypernymy.
(S1) The students learned how to handle screwdrivers, hammers and other tools.
(S2) The carpenter handles the new chisel.
cre N
N
subj studentN
subj handleV
obj
learnV carpenter
comp subj
chisel obj hammerN obj
obj
toolN s wdriverN mod
conj
[image:3.612.335.487.393.474.2]otherJ conj
Figure 1: Dependency multigraph built from a two sentence corpus using GraCE. See text for details.
The word pair(chisel, tool)has a relation of
hy-pernymy but its members do not co-occur in the same sentence. However, both words occur as
ob-jects of the verb to handle in different sentences,
just like other hypernym word pairs such as
(ham-mer, tool)and(screwdriver, tool)which do co-occur
in the same sentence. This shows thathandleis one
of the contexts shared between these semantically related words that provide information regarding a possible semantic relatedness between them. Lever-aging only the information provided by each sen-tence, as existing pattern-based approaches do, no evidence is acquired regarding the semantic relation
holding betweenchisel andtool. GraCE combines
the graph shown in Figure 1. In this graph, chisel
andtoolare connected by a path passing through the
bridging wordhandlewhich shows that bothchisel
andtool could co-occur in a sentence as objects of
the verb to handle, although they do not in the
ex-ample two-sentence corpus.
Corpus representation The goal of the first step is to generate a graph connecting semantically asso-ciated words using observed dependency relations.
Formally, the corpus is represented as a graph
G = (V, E), where V is a set of POS-tagged
lem-mas in a corpus andE is the set of dependency
re-lations connecting two lemmas from V in the
cor-pus. From each parsed sentence of the corpus, a set of dependency relations linking the words in
it is produced: D = {d1. . . , d|D|}, where d =
(wi, dep, wj) and wi, wj and dep denote POS-tagged lemmas and a dependency relation,
respec-tively. The graphGis created using all the
depen-dency relations fromD.
The output of this step is a multigraph, where two words are connected by the set of edges containing all the dependency relations holding between them in the corpus.
Feature Selection The goal of the second step is to collect features associated with each relation
r from the parsed input corpus. Similarly to the
work of Snow et al. (2004), our features are
pat-terns of co-occurrence contextscreated with
depen-dency paths. For acquiring patterns of co-occurrence
contexts for each relation r, we use the set of
la-beled examplesE, assuming that all the contexts in
which a word pair (x, y)i ∈ E co-occurs provide
information about the relation r holding between
its members. All the dependency paths between x
andy up to three edges are extracted from the
de-pendency graph of each sentence where(x, y)i
co-occur.1 For example,((hammerN, toolN), hyper)
is an instance of the relation of hypernymy. In the dependency graph of sentence (S1), the words
hammerN (hyponym) and toolN (hypernym) are
connected by the dependency pathhammerN ←−−obj
handleV −−→obj toolN. This path is converted into
apattern of co-occurrence contextsby replacing the
seeds in the path with their parts of speech as fol-1Paths with more than three edges commonly connect
semantically-unrelated portions of a sentence and therefore are not beneficial for the purposes of relation classification.
[image:4.612.320.535.70.134.2]attribute XN −−−−−−−−−→prep such as−1 toolN −−−→mod YJ co-hyponymy XN −−−−→obj−1 useV −−→obj YN action XN −−−−→obj−1 useV −−−→conj YV hypernymy XN −−−−−−−−−→prep such as−1 toolN −−−→conj YN meronymy XN −−−−→nn−1 bladeN −−−→conj YN
Table 1: Examples of relation features
lows:N ←−−obj handle
V −−→obj N. Table 1 illustrates
several examples of pattern of co-occurrence con-texts.
For the word pairs vectorial representation, the top 5000 most meaningful patterns are considered in
the final set of patternsPto form a feature space.2
In order to rank the patterns, thetf-idf scoreis
cal-culated for each pattern with respect to each
lexi-cal semantic relation. Here,tf −idf is defined as
maxj(log(uniq(|Rpi,rp|j)+1)∗|R|), wherepiis a pattern of
co-occurrence,uniq(pi, rj)is the number of unique
instances of the relationrj occurring in the pattern
pi and|Rp|is the number of relationsrj whose
ex-ample instances are seen occurring in the patternpi.
Each pattern is then associated with the highesttf-idf
score obtained across all relations.
Word pair representations Using the graph
model G and the set of contextual patterns
auto-matically acquiredP, each word pair(x, y) is
rep-resented as a binary distribution over each pattern
fromP. Rather than using the input corpus to
iden-tify contexts of occurrence for the word pair(x, y)
and match those with the acquired patterns, GraCE
uses paths connectingxandyinG. All the paths
be-tweenxandyup to three edges are extracted from
G. These paths are then matched against the
fea-ture patterns fromPand the word pair(x, y)is
rep-resented as a binary vector encoding non-zero val-ues for all the features matching the pair’s paths
extracted from G, and zero otherwise.3 Because
the graph contains combinations of multiple depen-dency relations, extracted from various sentences, paths not observed in the corpus can be found in the graph.
2Initial experiments tested different amounts of patterns
us-ing held out data and the best results were obtained with the top 5000 patterns.
3Binary weights are used because the feature values are
3.2 Word Embeddings Representations
The present section introduces two word pair repre-sentations based on word embeddings. We refer to a
system based on embeddings asWordEmbeddings
Classification systEm (WECE). An embedding is a
low-dimensional vectorial representation of a word, where the dimensions are latent continuous features and vector components are set to maximize the prob-ability of the contexts in which the target word tends to appear. Since similar words occur in similar contexts the word embeddings learn similar vec-tors for similar words. Moreover, the vector offset of two word embeddings reflect the relation hold-ing between them. For instance, Mikolov et al.
(2013c) give the example thatv(king)−v(man)≈
v(queen)−v(women), wherev(x) is the
embed-ding of the wordx, indicating the vectors are
encod-ing information on the words’ semantic roles. For learning word embeddings, we used the Skip-gram model, improved with techniques of negative sampling and subsampling of frequent words, which achieved the best results for detecting semantically similar words (Mikolov et al., 2013a; Mikolov et al., 2013b). Moreover, for a fair comparison with the GraCE system, developed with dependency re-lations, we also tested the results obtained with a dependency-based Skip-gram model (Levy and Goldberg, 2014a). Words occurring only once in corpus are filtered out and 200-dimensional vectors are learned.
Two embedding-based representations are
consid-ered for a relation: WECEoffset leverages the offset
of the word embeddings, whileWECEconcat
concate-nates the embeddings, both described next.
WECEoffset Representation Mikolov et al.
(2013c) shows that the vectorial representation of words provided by word embeddings captures syntactic and semantic regularities and that each relationship is characterized by a relation specific
vector offset. Word pairs with similar offsets
can be interpreted as word pairs with the same semantic relation. Therefore, given a target word
pair (x, y), the vectorial representation is
calcu-lated from the difference between its vectors, i.e.,
v((x, y)) = v(x)−v(y). Note that this operation
is dependent on the order of the arguments and is therefore potentially able to capture asymmetric
relationships.
WECEconcat Representation A novel word pair
representation is proposed to test if the information encoded directly in the embeddings reflects the se-mantic relation of the word pair.
A word pair is represented by concatenating the vectorial representation of its members. Formally,
given a word pair (x, y), whose members
vecto-rial representations are v(x) = (x1, x2, . . . , xn),
and v(y) = (y1, y2, . . . , yn) respectively, the
vec-torial representation of (x, y) is defined as the
concatenation of v(x) and v(y): v((x, y)) =
(x1, x2, . . . , xn, y1, y2, . . . , yn) Consequently the
length ofv((x, y))is2n, wherenis the dimension
of the embedding space.
3.3 Relation Classification
For both representations, a supervised classifier is
trained. Given a set of tuples E = ((x, y)i, ri)
of example instances for each relation ri ∈ R, a
support vector machine (SVM) multi-class classifier with a radial basis function kernel (Platt, 1999) is trained using WEKA (Hall et al., 2009) to classify each word pair based on its representation provided by a graph-based representation model (Section 3.1) or a word embeddings representation model
(Sec-tion 3.2) forN different lexical relations. The SVM
classifier generates a distribution over relation labels and the highest weighted label is selected as the rela-tion holding between the members of the word pair.
4 Experiments
While several datasets have been created for detect-ing semantic relations between two words in con-text (Hendrickx et al., 2010; Segura-Bedmar et al., 2013), in our work we focus on the classification of word pairs as instances of lexical-semantic relations out of context. The performance of the GraCE and WECE systems is tested across two datasets, focus-ing on their ability to classify instances of specific lexical-semantic relations as well as to provide in-sights into the systems’ generalization capabilities.
4.1 Experimental Setup
two corpora of different sizes: the British National Corpus (BNC), a 100 million-word corpus, and a Wikipedia dump created from 5 million pages and containing 1.5 billion words. The size difference al-lows us to measure the potential impact of increased word co-occurrence on recall. Both corpora were initially parsed with the Stanford dependency parser
in thecollapsed dependencyformat (Manning et al.,
2014).
Embbedings WECEoffset and WECEconcat are implemented based on a bag-of-words (BoW) (Mikolov et al., 2013a) and based on dependency relations (Dep) (Levy and Goldberg, 2014a).
Evaluation We compare each system by reporting precision (P), recall (R) and F1 measure (F).
4.2 Comparison Systems
The two proposed models are compared with two state-of-the-art systems and one baseline system.
PAIRCLASS The PairClass algorithm (Turney,
2008b) provides a state-of-the-art pattern-based ap-proach for extracting and classifying the relation-ship between word pairs and has performed well for
many relation types. Using a set of seed pairs(x, y)
for each relation, PairClass acquires a set of lexical
patterns using the template[0 to 1 words] x [0 to 3
words] y [0 to 1 words]. Using the initial set of
lex-ical patterns extracted from a corpus, additional pat-terns are generated by optionally generalizing each
word to its part of speech. ForNseed pairs, the most
frequentkN patterns are retained. We follow
Tur-ney (2008b) and setk = 20. The patterns retained
are then used as features to train an SVM classifier over the set of possible relation types.
DSZhila & DSLevy Word embeddings have
previ-ously been shown to accurately measure relational similarity; Zhila et al. (2013) demonstrate state-of-the-art performance on SemEval-2012 Task 2 (Jur-gens et al., 2012) which measures word pair similar-ity within a particular semantic relation (i.e., which pairs are most prototypical of a semantic relation). This approach can easily be extended to the
clas-sification setting: Given a target word pair (x, y),
the similarity is computed between(x, y)and each
word pair (x, y)i of a target relation r. The
av-erage of these similarity measurements was taken
as the final score for each relation r.4 Finally, the
word pair is classified as an instance of the rela-tion with the highest associated score. Two types of embeddings are used, (a) the word embeddings produced using the method of Mikolov et al. (2011), which was originally used in Zhila et al. (2013) and (b) the embeddings using the method of Levy and Goldberg (2014a), which include dependency
pars-ing information. We refer to these as DSZhilaand
DSLevy, respectively. The inclusion of this
sys-tem enables comparing the performance impact of using an SVM classifier with our embedding-based pair representations versus classifying instances by comparing the embeddings themselves. We note a DS system represents a minimally-supervised sys-tem whose features are produced in an unsupervised way (i.e., through the embedding process) and are therefore not necessarily tuned for the task of rela-tion classificarela-tion; however, such embeddings have previously been shown to yield state-of-the-art per-formance in other semantic relation tasks (Baroni et al., 2014) and therefore the DS systems are intended to identify potential benefits when adding feature se-lection by means of the SVM in WECE systems.
BASELINE The purported benefit of the GraCE
model is that the graph enables identifying syntac-tic features between pair members that are never ob-served in the corpus, which increases the number of instances that can be classified without sacrificing accuracy. Therefore, to quantify the effect of the graph, we include a baseline system, denoted BL, that uses an identical setup to GraCE but where the feature vector for a word pair is created only from the dependency path features that were observed in the corpus (as opposed to the graph). Unlike the GraCE model which has binary weighting (due to the graph properties), the baseline model’s feature values correspond to the frequencies with which pat-terns occur; following common practice, the values are log-normalized.
4.3 Experiment 1
Both of the proposed approaches rest on the hypoth-esis that the graph or embeddings can enable accu-rate pair classification, even when pairs never co-4Additional experiments showed that using alternate ways
Domain #Co-hypo #Hyper #Mero Animals 8038 (92.4%) 3039 (97.2%) 386 (89.1%) Plants 18972 (95.5%) 1185 (97.4%) 330 (82.4%) Vehicles 530 (82.6%) 189 (97.9%) 455 (100%)
Table 2: Distribution of K&H dataset, with the % of instances which occur in the corpora.
BNC Wikipedia
P R F P R F
P airClass 76.9 4.6 8.7 77.0 11.7 20.4
BL 82.6 7.7 14.2 89.4 16.2 27.5
GraCE 90.7 43.8 59.0 94.0 75.5 83.7
DSZhila 31.6 15.7 21.0 32.8 22.6 26.8
DSLevy 18.7 11.4 14.2 27.7 15.6 20.0
W ECEBoW
offset 96.0 59.1 73.1 96.8 87.7 92.0
W ECEBoW
concat 97.4 60.0 74.2 97.6 89.3 93.2
W ECEoffsetDep 87.9 63.1 73.5 95.4 86.1 90.5
W ECEDep
concat 93.1 64.7 76.4 96.7 88.4 92.4

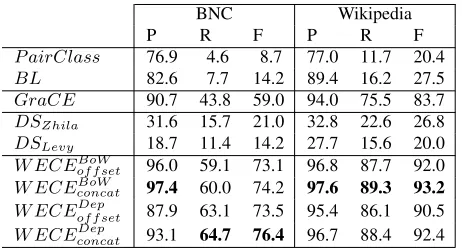

Table 3: Aggregated results obtained for the in-domain setup with the K&H dataset. Detailed results are presented in the Appendix A.
occur in text. Therefore, in the first experiment, we test whether the recall of classification systems is improved when the word pair representation en-codes information about lexical and relational sim-ilarity. As an evaluation dataset, we expand on the dataset of Kozareva and Hovy (2010) (K&H), which was collected from hyponym-hypernym instances from WordNet (Miller, 1995) spanning three
topi-cal domains:animals,plantsandvehicles. Because
our systems are capable of classifying instances with more than one relation at once, we enhance this dataset with instances of two more relation types: co-hyponymy and meronymy. Co-hyponyms are ex-tracted directly from the K&H dataset: two words are co-hyponyms if they have the same direct
ances-tor.5 To avoid including generic nouns, such as
“mi-grator” in the “animal” domain, only leaf nodes are considered. The meronym instances are extracted directly from WordNet. The final dataset excludes multi-word expressions, which were not easily han-dled by any of the tested systems. The total number of instances considered in our experiments is pre-sented in Table 2.
Results Table 3 presents the average of the results
obtained by the systems when tested in-domain in
5y is a direct ancestor of x if there is no other word z which
is hypernym of x and hyponym of y.
a 10-fold cross-validation setup. For thein-domain
setup, only instances from one domain are used for training and testing.
As expected, all the systems gain recall with a larger corpus, like Wikipedia, showing that the recall depends on the size of that corpus when a system ac-quires its distributional information directly from the input corpus and thus is dependent on the word pairs co-occurring. Indeed, in the BNC, only 19.4% of the K&H instances never co-occur, while in Wikipedia –a corpus 15 times larger than BNC– the number of co-occurrences rises only to 30.7%, demonstrat-ing the challenge of classifydemonstrat-ing such pairs. There-fore, the real upper-bound limit for these types of systems is the amount of word pairs co-occurring in the same sentence in the corpus. The recall achieved by GraCE overcomes this limitation of pattern-based systems: 40% and 78.7% of the instances that never co-occur in BNC and in Wikipedia, respectively, are correctly classified by GraCE. This ability causes GraCE to improve the BL performance by 8.1 points in precision and 36.1 points in recall on BNC and 4.6 points in precision and 59.3 in recall on Wikipedia. Given that the BL system is constructed identically to GraCE but without using a graph, these results demonstrate the performance benefit of joining the distributional information of a corpus into a graph-based corpus representation.
Analyzing the false negatives of the GraCE clas-sifier, we observe that even relying on a graph-based corpus representation to extract the distribu-tional information of a word pair, many errors are still caused by the sparsity of their vectorial repre-sentation. For the word pairs that do not co-occur in the same sentence, the GraCE vector representations of correctly-classified pairs have a median of eight non-zero features, indicating that the graph was ben-eficial for still providing evidence of a relationship; in contast, incorrectly-classified pairs had a median of only three non-zero features, suggesting that data sparisity is still major contributor to classification er-ror.
By combining all the distributional information into a denser vector, WECE systems are able to im-prove upon GraCE’s results by an average of 2.9 points in precision and 17.9 points in recall. WECE results see an increase by 62 points in precision and
[image:7.612.71.302.162.287.2]em-beddings, highlighting the importance of the SVM classifier for learning which features of the dings reflect the lexical relation. Although embed-dings have been argued to reflect the semantic or syntactic relations between two words (Mikolov et al., 2013c), our results suggest that additional
ma-chine learning (as done with WECEoffset) is needed
to identify which dimensions of the embeddings ac-curately correspond to specific relationships.
Be-tween the WECE systems, WECEconcat achieves
slightly better results on the K&H dataset.
4.4 Experiment 2
In the first experiment, the proposed systems were compared to test the importance of having a repre-sentation that includes information about lexical and relational similarities for the classifier to generalize and to gain recall. Therefore, as further validation, a second experiment is carried out, where the systems have to classify word pairs from a different domain than the domains in the training set. The objective is to assess the importance of the domain-aware train-ing instances for the classification.
The K&H dataset contains only instances from three domains and is imbalanced between the num-ber of instances across domains and relation types. Therefore, our second experiment tests each method on the BLESS dataset (Baroni and Lenci, 2011), which spans 17 topical domains and includes five relation types, the three in K&H and (a) attributes of concepts, a relation holding between nouns and ad-jectives, and (b) actions performed by/to concepts a relation holding between nouns and verbs. In total, the BLESS dataset contains 14400 positive instances and an equal number of negative instances. This ex-periment measures the generalizability of each sys-tem and tests the capabilities of the syssys-tems for lexical-semantic relation types other than taxonomic relations.
Domain-aware training instances To show the importance of the domain-aware training instances, the average results of the systems obtained for the
in-domainsetup across the BLESS dataset are
com-pared with the average results obtained when the
systems are trainedout-of-domain. For the
out-of-domainsetup, one domain is left out from the
train-ing set and used for testtrain-ing. The experiment was repeated for each domain and the average results are
In-domain Out-of-domain
P R F P R F
P airClass 66.8 35.6 46.4 78.9 43.2 55.8
BL 79.5 51.6 62.6 71.7 40.0 51.4
GraCE 87.7 85.0 86.3 66.2 36.3 46.9
DSZhila 62.1 47.4 53.7 50.7 46.9 48.7
DSLevy 53.0 49.2 51.0 51.1 47.5 49.2
W ECEBoW
offset 90.0 90.9 90.4 68.0 66.9 67.5
W ECEBoW
concat 89.9 91.0 90.4 83.8 57.0 67.8
W ECEDep
offset 85.3 86.5 85.9 68.7 62.3 65.4
[image:8.612.312.542.71.194.2]W ECEDepconcat 85.9 87.0 86.5 78.2 63.8 70.3
Table 4: Aggregated results obtained when systems are tested with the BLESS dataset over BNC.
Figure 2: F1 scores distribution across domains for each proposed system and relation type over BNC corpus.
presented in Table 4. In this experiment, the systems are tested over the BNC corpus to show the
capabil-ities of the systems to classify out-of-domain in a
more reduced corpus.
Results When no examples from a domain are provided, a general significant decrease in perfor-mance is observed. The GraCE perforperfor-mance de-creases 39.4 points in F1, while the WECE systems decrease 20.55 points in average.
The results obtained show that when the instances to be classified are less homogeneous, i.e. when the instances belong to different domains, none of the systems can achieve the level of performance reported for the in-domain setup. These were the expected results for the GraCE system due to the lexical features that it uses and which are domain dependent. However, the WECE systems are also affected by this lack of domaaware training
in-stances. WECEconcat results decrease because
[image:8.612.322.531.246.378.2]When two words belong to two different topical do-mains, their embeddings are less similar and, there-fore, the SVM system cannot learn distinctive fea-tures for each lexical-semantic relation.
In-domain results per relation type In this work we are interested in creating a general approach for the classification of any lexical semantic relation in-stances. Figure 2 shows the box and whisker plot of the results obtained per relation type across domains in the in-domain setup over the BNC corpus.
Discussion The results confirm that the proposed systems achieve satisfactory results across all the relations, the median of the results being around 90 points in F1. The most accurate system is
WECEbow, which supports the assertion by Levy
and Goldberg (2014a) that bag-of-word embeddings should offer superior performance to dependency-based embeddings on task involving semantic rela-tions. Carrying out an error analysis, the lowest re-sults of the WECE systems are obtained in the do-mains with the fewest training instances, making ap-parent that word embedding systems are dependent on the number of training instances. For these do-mains, GraCE achieves better results.
5 Conclusions
In this paper we have presented two systems for clas-sifying the lexical-semantic relation of a word pair. Both are designed to address the challenge of data sparsity, i.e., classifying word pairs whose mem-bers never co-occur, in order to improve classifica-tion recall. The two main contribuclassifica-tions are the word pair vectorial representations, one based on a graph-based corpus representation and the other one graph-based on word embeddings. We have demonstrated that by including information about lexical and relational similarity in the word pair vectorial representation, the recall of our systems increases, overcoming the upper-bound limit of state-of-the-art systems. Fur-thermore, we show that our systems are able to clas-sify target word pairs into multiple lexical seman-tic relation types, beyond the traditional taxonomic types. In future work, we plan to analyze the prop-erties of the instances that can be classified with the GraCE system but not with the WECE systems.
Acknowledgments
The authors gratefully acknowledge the support of the CLARA project (EU-7FP-ITN-238405), the SKATER project (Ministerio de Economia y Com-petitividad, TIN2012-38584-C06-05) and of the MultiJEDI ERC Starting Grant no. 259234.
Appendix
A Full Classifier Results
BNC Wikipedia
P R F P R F
Pair Class
C 84.1 3.6 6.9 92.4 9.3 16.8 H 79.7 10.1 17.9 75.6 26.1 38.8 M 38.6 8.5 14.0 23.9 15.5 18.8 * 76.9 4.6 8.7 77.0 11.7 20.4
BL
C 84.4 5.6 10.4 88.8 13.8 23.9 H 82.4 20.1 32.3 92.7 31.9 47.5 M 69.4 12.8 21.6 77.3 14.5 24.4 * 82.6 7.7 14.2 89.4 16.2 27.5
GraC
E CH 90.9 43.7 59.0 94.2 78.7 85.790.5 48.9 63.5 93.2 67.8 78.5
M 87.5 26.3 40.4 91.8 28.7 43.7 * 90.7 43.8 59.0 94.0 75.5 83.7
DS
C 97.2 8.0 14.8 95.5 11.5 20.5 H 28.2 58.6 38.1 29.1 85.4 43.4 M 8.4 36.4 13.7 8.5 48.0 14.5 * 31.6 15.7 21.0 32.8 22.6 26.8
DS
Dep
C 82.0 2.6 5.0 84.0 5.2 9.8 H 20.7 62.7 31.1 21.8 80.7 34.4 M 5.1 26.1 8.6 11.3 43.6 17.9 * 18.7 11.4 14.2 27.7 15.6 20.0
WEC EB
ow offset
C 95.9 60.4 74.1 96.6 89.7 93.0 H 98.1 56.5 71.7 98.9 85.3 91.6 M 88.6 38.3 53.5 90.8 51.2 65.4 * 96.0 59.1 73.1 96.8 87.7 92.0
WEC EB
ow concat
C 98.2 60.6 74.9 98.5 89.8 93.9 H 96.0 60.1 73.9 97.1 91.3 94.1 M 81.1 45.9 58.7 77.9 68.6 72.9 * 97.4 60.0 74.2 97.6 89.3 93.2
WEC ED
ep offset
C 87.0 66.5 75.4 95.1 88.1 91.5 H 96.6 51.9 67.5 98.1 84.3 90.7 M 83.1 26.4 40.1 88.2 44.7 59.3 * 87.9 63.1 73.5 95.4 86.1 90.5
WEC ED
ep concat
[image:9.612.313.542.223.637.2]References
Marco Baroni and Alessandro Lenci. 2011. How we BLESSed distributional semantic evaluation. In Pro-ceedings of the Workshop on Geometrical Models of
Natural Language Semantics, pages 1–10.
Marco Baroni, Georgiana Dinu, and Germ´an Kruszewski. 2014. Don’t count, predict! a systematic compari-son of context-counting vs. context-predicting seman-tic vectors. InProceedings of ACL.
Matthew Berland and Eugene Charniak. 1999. Finding parts in very large corpora. In Proceedings of ACL, pages 57–64.
Scott Cederberg and Dominic Widdows. 2003. Using LSA and noun coordination information to improve the precision and recall of automatic hyponymy ex-traction. InProceedings of CoNLL, pages 111–118. Dmitry Davidov and Ari Rappoport. 2006. Efficient
un-supervised discovery of word categories using sym-metric patterns and high frequency words. In
Proceed-ings of COLING-ACL, pages 297–304.
Antonio Di Marco and Roberto Navigli. 2013. Cluster-ing and DiversifyCluster-ing Web Search Results with Graph-Based Word Sense Induction. Computational Linguis-tics, 39(3):709–754.
Ruiji Fu, Jiang Guo, Bing Qin, Wanxiang Che, Haifeng Wang, and Ting Liu. 2014. Learning semantic hier-archies via word embeddings. InProceedings of ACL, volume 1.
Roxana Girju, Adriana Badulescu, and Dan I. Moldovan. 2006. Automatic discovery of part-whole relations.
Computational Linguistics, 32(1):83–135.
Mark Hall, Eibe Frank, Geoffrey Holmes, Bernhard Pfahringer, Peter Reutemann, and Ian H. Witten. 2009. The WEKA data mining software: an update.
SIGKDD Explorations Newsletter, 11(1):10–18.
Marti A. Hearst. 1992. Automatic acquisition of hy-ponyms from large text corpora. In Proceedings of
COLING, pages 539–545.
Iris Hendrickx, Su Nam Kim, Zornitsa Kozareva, Preslav Nakov, Diarmuid ´O S´eaghdha, Sebastian Pad´o, Marco Pennacchiotti, Lorenza Romano, and Stan Szpakow-icz. 2010. SemEval-2010 Task 8: Multi-Way Classi-fication of Semantic Relations between Pairs of Nom-inals. InProceedings of the 5th International
Work-shop on Semantic Evaluation, pages 33–38.
Amac¸ Herdadelen and Marco Baroni. 2009. Bagpack: A general framework to represent semantic relations. In
Proceedings of the Workshop on Geometrical Models
of Natural Language Semantics, pages 33–40.
David Jurgens, Peter D Turney, Saif M Mohammad, and Keith J Holyoak. 2012. Semeval-2012 Task 2: Mea-suring degrees of relational similarity. InProceedings
of the Sixth International Workshop on Semantic Eval-uation, pages 356–364.
Zornitsa Kozareva and Eduard H. Hovy. 2010. A semi-supervised method to learn and construct taxonomies using the web. In Proceedings of EMNLP, pages 1110–1118.
Omer Levy and Yoav Goldberg. 2014a. Dependency-based word embeddings. InProceedings of ACL. Omer Levy and Yoav Goldberg. 2014b. Linguistic
regu-larities in sparse and explicit word representations. In
Proceedings of CoNLL.
Christopher D Manning, Mihai Surdeanu, John Bauer, Jenny Finkel, Steven J Bethard, and David McClosky. 2014. The Stanford CoreNLP natural language pro-cessing toolkit. InProceedings of 52nd Annual Meet-ing of the Association for Computational LMeet-inguistics:
System Demonstrations, pages 55–60.
Tomas Mikolov, Anoop Deoras, Daniel Povey, Lukas Burget, and Jan Cernocky. 2011. Strategies for train-ing large scale neural network language models. In
Proceedings of the 2011 IEEE Workshop on
Auto-matic Speech Recognition and Understanding (ASRU),
pages 196–201.
Tomas Mikolov, Kai Chen, Greg Corrado, and Jeffrey Dean. 2013a. Efficient estimation of word represen-tations in vector space. Proceedings of Workshop at ICLR.
Tomas Mikolov, Ilya Sutskever, Kai Chen, Greg S Cor-rado, and Jeff Dean. 2013b. Distributed representa-tions of words and phrases and their compositionality.
InProceedings of NIPS, pages 3111–3119.
Tomas Mikolov, Wen-tau Yih, and Geoffrey Zweig. 2013c. Linguistic regularities in continuous space word representations. InProceedings of HLT-NAACL, pages 746–751.
George A. Miller. 1995. Wordnet: A lexical database for english.Communications of the ACM, 38:39–41. Einat Minkov and William W. Cohen. 2012. Graph
based similarity measures for synonym extraction from parsed text. InProceedings of the Workshop on Graph-based Methods for Natural Language Process-ing, pages 20–24.
Mike Mintz, Steven Bills, Rion Snow, and Dan Juraf-sky. 2009. Distant supervision for relation extraction without labeled data. InProceedings of ACL-CONLL, pages 1003–1011.
Roberto Navigli and Paola Velardi. 2010. Learning word-class lattices for definition and hypernym extrac-tion. InProceedings of ACL, pages 1318–1327. John C. Platt. 1999. Fast training of support vector
Alexander J. Smola, editors,Advances in kernel meth-ods, pages 185–208. MIT Press, Cambridge, MA, USA.
Diarmuid O S´eaghdha and Ann Copestake. 2009. Using lexical and relational similarity to classify semantic re-lations. InProceedings of EACL, pages 621–629. Isabel Segura-Bedmar, Paloma Martınez, and Marıa
Herrero-Zazo. 2013. Semeval-2013 task 9: Extrac-tion of drug-drug interacExtrac-tions from biomedical texts.
In Proceedings of the 7th International Workshop on
Semantic Evaluation.
Rion Snow, Daniel Jurafsky, and Andrew Y. Ng. 2004. Learning syntactic patterns for automatic hypernym discovery. InProceedings of NIPS.
Peter D. Turney. 2006a. Expressing implicit seman-tic relations without supervision. In Proceedings of
COLING-ACL, pages 313–320.
Peter D Turney. 2006b. Similarity of semantic relations.
Computational Linguistics, 32(3):379–416.
Peter D Turney. 2008a. The latent relation mapping en-gine: Algorithm and experiments. Journal of Artificial Intelligence Research (JAIR), 33:615–655.
Peter D. Turney. 2008b. A uniform approach to analo-gies, synonyms, antonyms, and associations. In
Pro-ceedings of COLING, pages 905–912.
Dominic Widdows and Beate Dorow. 2002. A graph model for unsupervised lexical acquisition. In
Pro-ceedings of COLING.
Alisa Zhila, Wen-tau Yih, Christopher Meek, Geoffrey Zweig, and Tomas Mikolov. 2013. Combining hetero-geneous models for measuring relational similarity. In
