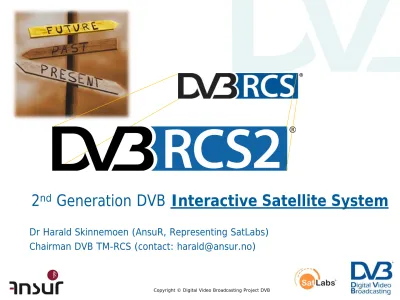

2 nd Generation DVB Interactive Satellite System

(1)

2 nd

_{Generation DVB Interactive Satellite System}

Dr Harald Skinnemoen (AnsuR, Representing SatLabs)

Chairman DVB TM-RCS (contact: [email protected])

(2)

2 nd

_generation

_{DVB Interactive Satellite System}

State-of-the art technology

Substantial enhancements

over 1

st

_{generation DVB-RCS}

2011: First phase DVB-RCS2

completed /approved January

Commercial name

DVB-RCS2

DVB-ISS is an abbreviation of the

ETSI Work Item & Document title

(3)

DVB Satellite Standards - Always Leading the Way ;-)

First DVB standard

DVB-S

First DVB interactive

DVB-RCS

First 2

nd

_gen

DVB-S2

First 2

nd

_{gen interactive}

DVB-RCS2

Satellites are the

best!

(4)

2nd Generation DVB Interactive Satellite System (DVB-ISS)

Lower Layer for Satellite (LLS)

Higher Layer for Satellite (HLS)

(5)

2nd Generation DVB Interactive Satellite System (DVB-ISS)

Lower Layer for Satellite (LLS)

Higher Layer for Satellite (HLS)

Overview and System Specification (OSL)

Overview of System

Definition of Profiles and Terminal Capabilities

Interoperability Management

Migration Scenarios from DVB-RCS

Reference System Architecture

Network Layer Functions

Two-Way Interactive Satellite System Models

Forward Link

Return Link Signalling

Forward Link Signalling

Layer 2 Management and Supervision

Management, FCAPS, Object Models, OSS-NMC,

Protocols

Installation, Motor, SW Update, Configuration, Logon

Mobile Terminals

Security

Mesh Networks

Addressing

Return Link Physical

Channel

(6)

(7)

2nd Generation DVB Interactive Satellite System (DVB-ISS)

Lower Layer for Satellite (LLS)

Higher Layer for Satellite (HLS)

Overview and System Specification (OSL)

Overview of System

Definition of Profiles and Terminal Capabilities

Consumer SCADA

Multi-dwelling

Corporate

Backhaul Institutional

Interoperability Management Migration Scenarios from DVB-RCS

Reference System Architecture Network Layer Functions

Addressing Routing

Quality of Service Operator Virtual Networks

IPv4/v6 issues Interfaces

Two-Way Interactive Satellite System Models Return Link Physical Forward Link

Return Link Signalling Forward Link Signalling Layer 2 Management and Supervision

Management, FCAPS, Object Models, OSS-NMC, Protocols

Installation, Motor Antenna, SW Update, Configuration, Logon _{Mobile Terminals} Security Mesh Networks

Coding and Interleaving Modulation (QPSK/QAM - CPM) Addressing Dedicated / Random Access Control Addressing

(8)

Overview and System Specification (OSL)

Overview of System

Definition of Profiles and Terminal Capabilities

Consumer

SCADA

Multi-dwelling

Corporate

Backhaul

Institutional

Interoperability

Management

Migration Scenarios

from DVB-RCS

(9)

Lower Layer for Satellite (LLS)

Two-Way Interactive Satellite System Models

Return Link Physical

Forward Link

Return Link Signalling

Forward Link Signalling

Layer 2 Management and Supervision

Mobile Terminals

Security

Coding and Interleaving

Modulation

(QPSK/QAM - CPM)

Addressing

Dedicated / Random

Access Control

Addressing

(10)

Higher Layer for Satellite (HLS)

Reference System Architecture

Network Layer Functions

Addressing

Routing

Quality of Service

Virtual Satellite Networks

IPv4/v6 issues

Interfaces

Management, FCAPS, Object Models, OSS-NMC, Protocols

(11)

The Specifications of 1

st

_{and 2}

nd

_Generation

1 st

_Generation

_{– single document}

Interaction channel

for satellite distribution systems

Commercial name DVB-RCS. ETSI number EN 301 790

2 nd

_Generation

_{– multipart document}

Second Generation DVB

Interactive Satellite System

Overview and System Specification (OSL)

Higher Layer Satellite Specification (HLS)

Lower Layer Satellite Specification (LLS) (replaces EN301790)

Commercial name DVB-RCS2. ETSI number xx 101 545

RCS = Return Channel Satellite

(12)

(13)

(14)

99

99.1

99.2

99.3

99.4

99.5

99.6

99.7

99.8

99.9

100

0

5

10

15

20

25

30 Attenuation (dB) for PARIS, FR

50 GHz

40 GHz

30 GHz

20 GHz

15 GHz

12 GHz

Rain Attenuation, Paris

(15)

Adaptive Coding and Modulation (ACM)

Optimizes performance to the

available capacity

rather than worst-case scenario.

Significant increase in

capacity/availability

Forward link DVB-S2.

ACM, VCM

Return link modulation CPM,

QPSK, 8PSK and 16QAM

Per-timeslot ACM configuration

more granular and flexible just-in-

time timeslot adaptation.

(16)

Continuous Phase Modulation (CPM)

4-state modulation

Innovative weighted average pulse

shape

CPM may give lower-cost terminals

Non-linear signals > cheaper

amplifiers

Terminals support both

modulations

ODU instabilities make CPM relatively

better

(17)

Coding / Carrier / Access

16-state turbo



code

for QPSK, 8PSK and 16QAM

benefits substantially from last decade coding development

Random Access option for SCADA / intermittent data

more responsive - less delay

DVB-S2 Continuous Carrier return link

(planned)

option in adaptive or variable mode (ACM/VCM)

From RCS+M

DVB-S2 adapted to low rates.

Power headroom reporting. EIRP control alternative

Constant power spectrum density for carriers of different BW

Constant EIRP

(18)

Generic Stream Encapsulation (GSE)

Generic Stream

Encapsulation (GSE) with

strengthened integrity

control in forward link.

Return link packet

encapsulation (RLE) is

adaptation of GSE.

(19)

Security, Installation, IPv6

Improved security

Not one specific technology

Careful review of all technologies and overall architecture

The strong governmental markets position is maintained

Simplified antenna installation

Possible use of motors for adjusting pointing.

Improved QoS architecture

Support for cross-layer optimization

Performance enhancing proxies.

IPv6 Support

And specifications for addressing, routing and management.

Improved security

Not one specific technology

Careful review of all technologies and overall architecture

The strong governmental markets position is maintained

Simplified antenna installation

Possible use of motors for adjusting pointing.

Improved QoS architecture

Support for cross-layer optimization

Performance enhancing proxies.

IPv6 Support

(20)

OSL: System profiles

Defining use of HLS/LLS

capabilities

and

parameters

for various applications/markets.

(21)
