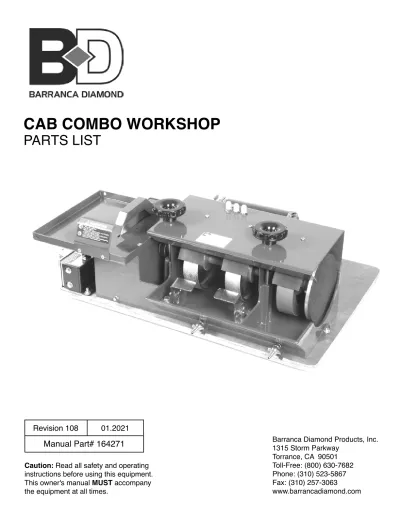

CAB COMBO WORKSHOP PARTS LIST

(1)

PARTS LIST

01.2021

Revision 108

Manual Part# 164271

Caution: Read all safety and operating

instructions before using this equipment.

Barranca Diamond Products, Inc. 1315 Storm Parkway

Torrance, CA 90501 Toll-Free: (800) 630-7682 Phone: (310) 523-5867

(2)

CAB COMBO WORKSHOP

EXPLODED VIEW

CAB COMBO CARBIDE P/N 8300011

3 4 6 7 8 9 10 11 12 13 14 16 17 25 26 28 29 30 31 32 33 35 36 38 39 40 41 42 43 44 45 47 51 52 53 54 55 56 57 58 59 60 61 62 63 66 67 70 71 73 75 76 80 37 15 5 19 20 21 22 23 24 68 78 79 74 18 77

(3)

Item Description Part # Qty

1 PAD, POLISHING 6" POLYTEX 14615 3

2 PAD, POLISHING 6" LEATHER 14617 1

3 NUT, HEX, 5/16-18 101196 2

4 ADAPTER, PUMP TPF-22 1/4X1/4 128397 1

5 HOSE, VINYL, 1/4X3/8 TSAW (3.5FT.) 132951 1

6 WASHER, FLAT, SAE, 3/8 150923 6

7 WASHER, 1/2 SAE FLAT 150924 2

8 SCREW, SOC HD CAP, 1/4-20 X 1 151049 1

9 SCREW, HEX HD, CAP, 5/16-18 X 3/4 151369 2

10 WASHER,FLAT,SAE,5/16 151754 10

11 NUT,HEX,1/4-20 151893 7

12 WASHER,FLAT,SAE,1/4 151915 11

13 SCREW, 5/16-18 X 1/2 HEX HEAD MACHINE 152473 6 14 SCREW, 1/4-20 X 3/4 SOCKET HEAD CAP 152587 6

15 GFCI, 120V, 15A 152610 1

16 SCREW, HEX, 3/8-16 X 3/4 153527 4

17 WASHER,FLAT,SAE,#10 154369 2

18 CLAMP,HOSE,1/4-1/2 FLOW 154394 1

19 LABEL,WARNING,READ MANUAL 154398 1

20 LABEL, NOTICE, OVERTENSION 154399 1

21 LABEL, CAUTION, RECEPTACLE 154822 1

22 LABEL, INFORMATION ON SERVICE 155038 1

23 LABEL, CAUTION, GUARDS IN PLACE 155587 1

24 LABEL, NOTICE, MOTOR PROBLEMS 155672 1

25 LABEL,WARNING, TILESAW SAFETY 155806 1

26 PUMP, WATER 115V, 60HZ 155987-VP 1

27 HOSE, WATER VINYL 3/8 X 1/2 156039 1

28 NUT, HEX 10-32 156269 6

29 TAG, SERIAL NUMBER, BLANK 157500-RW 1

30 SCREW, 1/4-20X1 SHOULDER THUMB 160461 1

31 NUT, 10-32 161040 1

32 PULLEY, 1A20 X 1/2 BORE 161070 1

33 BELT, MICRO-V AX-24 161085 1

34 FEATHERING DISC ADHESIVE 161323 1

35 BARB FITTING 1/8 NPTF 161343 10

36 BRACKET, TOOL REST LH 161442 1

37 CROSS, #10-32 161532 1

38 FLAP, WHEEL 161557 3

39 GASKET, TANK 161566 1

(4)

CAB COMBO WORKSHOP

PARTS LIST

CAB COMBO CARBIDE P/N 8300011

40 HOOD WELDMENT 161629 1

41 KNOB, 2-1/2 DIA X 3/8-16 161651 2

42 KNOB, RIDGED, GRAY 161652 3

43 TOP, MOTOR MOUNT 161668 1

44 BOTTOM, MOTOR MOUNT 161669 1

45 MTR, .33HP 115/230V 60HZ 1PH 161672 1

46 OIL, TOOL COOL, 8 OZ. 161729 1

47 PLUG, PIPE 1/8" 161763 1

48 POLISHING COMPOUND, 01 MICRON 161766 1

50 POLISHING COMPOUND, 2-4 MICRON 161768 1

51 ROD, THREADED 3/8-16 X 6"LG. 161829 2

52 SCREW, 1/4-20 X 3/4 FLAT HEAD PHILLIPS MACHINE 161856 4

53 SCREW, 10-32 X 1-1/2 PAN HEAD SLOT MACHINE 161874 1

54 SCREW, PAN HEAD PHILLIPS 10-32 X 3/8" 161875 6

55 SCREW, 1/4-20 X 3/8 PAN HEAD PHILLIPS MACHINE 161877 4

56 TABLE, WELDMENT 161964 1

57 GUARD, SPLASH 161965 1

58 TOOL REST, CAB COMBO 161974 2

59 VALVE, NV2SV-B, 10/32F 161989 3

60 FITTING, 1/8 MNPT X 3/8 BARB 161991 2

61 VALVE, 1/8NPTFM X 1/4 TUBE 161992 1

62 BRACKET, HOSE MOUNT 162154 3

63 ADAPTOR, MALE PIPE 1/8 NPTF 162315 1

64 TUBING, CLEAR PVC, 1/8 X 1/4 (36") 162505 1

65 TIE, NYLON .10 X 4.0 162506 1

66 WASHER, FLAT LARGE I.D. 1/2" 162510 2

67 CLIP, HOSE RETAINER 162511 1

68 LABEL, WARNING, SILICA, PROP 65 164202 1

69 OWNERS MANUAL, CAB COMBO 164271 1

70 GUARD, BELT 164578 1

71 TANK, CASTING MACHINED 166064 1

72 BOX, SHIPPING, CAB COMBO 166216 1

73 BRACKET, TOOL REST RH 166439 1

74 ASSY,SHAFT/WHEELS,6" CARBIDE 166608-C 1

75 GUARD, INNER BELT 167860 1

(5)

CAB COMBO CARBIDE P/N 8300011

77 GUARD, BLADE, COMP 169749 1

78 LABEL, QR CODE BD MANUALS 171239 1

79 LABEL, WARNING, PROP 65,

EQUIPMENT & COMPONENTS 172641 1

80 ASSY, SWITCH BOX, 30A, GP 172836-18 1

81 BELT, 6 X 1.5 DIAMOND 400 MESH 390401 1

(6)

CAB COMBO WORKSHOP

EXPLODED VIEW

3 4 6 7 8 9 10 11 12 13 14 16 17 25 26 28 29 30 31 32 33 35 36 38 39 40 41 42 43 44 45 47 51 52 53 54 55 56 57 58 59 60 61 62 63 64 67 68 71 72 74 75 76 77 80 37 15 5 19 20 21 22 23 24 69 78 79 18

(7)

1 PAD, POLISHING 6" POLYTEX 14615 3

2 PAD, POLISHING 6" LEATHER 14617 1

3 NUT, HEX, 5/16"-18 101196 2

4 ADAPTER, PUMP TPF-22 1/4 X 1/4 128397 1

5 HOSE, VINYL, 1/4" X 3/8" TSAW (3.5FT.) 132951 1

6 WASHER, 3/8" SAE FLAT 150923 6

7 WASHER, 1/2" SAE FLAT 150924 2

8 SCREW, SOC HD CAP, 1/4"-20 X 1" 151049 1 9 SCREW, HEX HEAD MACHINE, 5/16"-18 X 3/4" 151369 2

10 WASHER, 5/16" SAE FLAT 151754 10

11 NUT, HEX, 1/4-20 151893 7

12 WASHER, 1/4" SAE FLAT 151915 11

13 SCREW, HEX HEAD MACHINE, 5/16"-18 X 1/2" 152473 6 14 SCREW, 1/4"-20 X 3/4", SOCKET HEAD CAP 152587 6

15 GFCI, 120V, 15A 152610 1

16 SCREW, HEX, 3/8"-16 X 3/4" 153527 4

17 WASHER, SAE FLAT, #10 154369 2

18 CLAMP, HOSE 1/2" - 3/4" FLOW 154394 1

19 LABEL, WARNING, READ MANUAL 154398 1

20 LABEL, NOTICE, OVERTENSION 154399 1

21 LABEL, CAUTION, RECEPTACLE 154822 1

22 LABEL, INFORMATION ON SERVICE 155038 1

23 LABEL, CAUTION, GUARDS IN PLACE 155587 1

24 LABEL, NOTICE, MOTOR PROBLEMS 155672 1

25 LABEL, WARNING, TILESAW SAFETY 155806 1

26 PUMP, WATER 115V, 60HZ 155987-VP 1

27 HOSE, WATER VINYL 3/8 X 1/2 156039 1

28 NUT, HEX 10-32 156269 6

29 TAG, SERIAL NUMBER, BLANK 157500-RW 1

30 SCREW, 1/4"-20 X 1", SHOULDER THUMB 160461 1

31 NUT, 10-32 161040 1

32 PULLEY, 1A20 X 1//2 BORE 161070 1

33 BELT, MICRO-V AX-24 161085 1

34 FEATHERING DISC ADHESIVE 161323 1

35 BARB FITTING 1/8 NPTF 161343 10

36 BRACKET, TOOL REST LH 161442 1

37 CROSS, #10-32 161532 2

38 FLAP, WHEEL 161557 3

(8)

CAB COMBO WORKSHOP

PARTS LIST

CAB COMBO DIAMOND P/N 8300012

39 GASKET, TANK 161566 1

40 HOOD WELDMENT 161629 1

41 KNOB, 2-1/2 DIA X 3/8-16 161651 2

42 KNOB, RIDGED, GRAY 161652 3

43 TOP, MOTOR MOUNT 161668 1

44 BOTTOM, MOTOR MOUNT 161669 1

45 MTR, .33HP 115/230V 60HZ 1PH 161672 1

46 OIL, TOOL COOL, 8 OZ. 161729 1

47 PLUG, PIPE 1/8" 161763 1

50 POLISHING COMPOUND, 2-4 MICRON 161768 1

51 ROD, THREADED 3/8-16 X 6"LG. 161829 2 52 SCREW, 1/4-20 X 3/4 FLAT HEAD PHILLIPS MACHINE 161856 4 53 SCREW, 10-32 X 1-1/2 PAN HEAD SLOT MACHINE 161874 1 54 SCREW, PAN HEAD PHILLIPS 10-32 X 3/8" 161875 6 55 SCREW, 1/4-20 X 3/8 PAN HEAD PHILLIPS MACHINE 161877 4

56 TABLE, WELDMENT 161964 1

57 GUARD, SPLASH 161965 1

58 TOOL REST, CAB COMBO 161974 2

59 VALVE, NV2SV-B, 10/32F 161989 3

60 FITTING, 1/8 MNPT X 3/8 BARB 161991 2

61 VALVE, 1/8NPTFM X 1/4 TUBE 161992 1

62 GUARD, BLADE, COMP 162152 1

63 BRACKET, HOSE MOUNT 162154 3

64 ADAPTOR, MALE PIPE 1/8 NPTF 162315 1

65 TUBING, CLEAR PVC, 1/8 X 1/4 (36") 162505 1

66 TIE, NYLON .10 X 4.0 162505 1

67 WASHER, FLAT LARGE I.D. 1/2" 162510 2

68 CLIP, HOSE RETAINER 162511 1

69 LABEL, WARNING, SILICA, PROP 65 164202 1

70 OWNER'S MANUAL, CAB COMBO 164271 1

71 GUARD, BELT 164578 1

72 TANK, CASTING MACHINED 166064 1

73 BOX, SHIPPING, CAB COMBO 166216 1

74 BRACKET, TOOL REST RH 166439 1

(9)

CAB COMBO DIAMOND P/N 8300012

76 GUARD, INNER BELT 167860 1

77 BOARD, BASE 168706 1

78 LABEL, QR CODE BD MANUALS 171239 1

79 LABEL, WARNING, PROP 65, EQUIPMENT & COMPONENTS 172641 1

80 ASSY, SWITCH BOX, 30A, GP 172836-18 1

83 BELT, 6 X 1.5 DIAMOND 1200 MESH 391200 1 84 BELT, 6 X 1.5 DIAMOND 3000 MESH 393000 1

(10)

CAB COMBO WORKSHOP

PARTS LIST

1 FLANGE, OUTER, 2-3/8 135830 8

2 COLLAR, SHAFT, 5/8 X 1-1/8 140012 1

3 BLADE, MK-303C, 6" X .020 X 5/8"BORE 153692 1

4 PULLEY, 1A22 X 5/8"BORE 161020 1

5 PIN ROLL, 3/16" X 1" 161089 1

6 BEARING, RUBBER, 5/8 SHAFT 161348 2

7 NUT, 5/8-18 LH HEX JAM 161704 1

8 WASHER, FELT 162000 1

9 DISC, 6" SPONGE RUBBER 1/4" 162045 1

10 SPACER, I 162507 1

11 SPACER, II 162508 1

12 SPACER, III 162509 1

13 NUT, 5/8-18 HEX JAM 162897 1

14 POLISHING WHEEL, RH 166065 1

15 SHAFT, ARBOR 166414 1

16 SPACER, IV 166606 1

17 DRUM, 6 X 1-1/2 EXPANDABLE RUBBER 390006 1

18 WHEEL, 6" BRAZED 80 GRIT 496080 1

19 WHEEL, 6" BRAZED 170 GRIT 496200 1

SHAFT P/N 166608

19 8 2 1 3 4 6 7 10 11 12 13 14 15 16 17 18 1 1 1 1 1 6 1 1 5 9

(11)

1 FLANGE, OUTER, 2-3/8 135830 8

2 COLLAR, SHAFT, 5/8 X 1-1/8 140012 1

3 BLADE, MK-303C, 6" X .020 X 5/8"BORE 153692 1

4 PULLEY, 1A22 X 5/8"BORE 161020 1

5 PIN ROLL, 3/16" X 1" 161089 1

6 BEARING, RUBBER, 5/8 SHAFT 161348 2

7 NUT, 5/8-18 LH HEX JAM 161704 1

8 WASHER, FELT 162000 1

9 DISC, 6" SPONGE RUBBER 1/4" 162045 1

10 SPACER, I 162507 1

11 SPACER, II 162508 1

12 SPACER, III 162509 1

13 NUT, 5/8-18 HEX JAM 162897 1

14 POLISHING WHEEL, RH 166065 1

15 SHAFT, ARBOR 166414 1

16 SPACER, IV 166606 1

17 DRUM, 6 X 1-1/2 EXPANDABLE RUBBER 390006 1

18 WHEEL, GREEN 6X1" 100 GRIT 8300000 1

19 WHEEL, GREEN 6X1" 220 GRIT 8300001 1

SHAFT P/N 166608-C

19 8 2 1 3 4 6 7 10 11 12 13 14 15 16 17 18 1 1 1 1 1 6 1 1 5 9

(12)
