PROJECT: SALINA
SECTION: PLUMBING SECTION
DATE:
REV.:

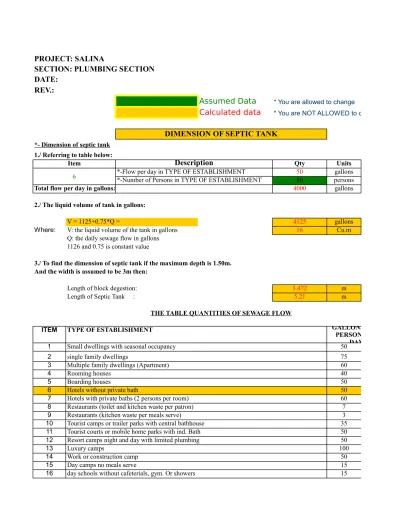

Assumed Data
* You are allowed to changeCalculated data
* You are NOT ALLOWED to changeDIMENSION OF SEPTIC TANK
*- Dimension of septic tank1./ Referring to table below:
Item
Description
Qty Units6 *-Flow per day in TYPE OF ESTABLISHMENT*-Number of Persons in TYPE OF ESTABLISHMENT 5080 personsgallons
Total flow per day in gallons: 4000 gallons
2./ The liquid volume of tank in gallons:
V = 1125+0.75*Q = 4125 gallons
Where: V: the liquid volume of the tank in gallons 16 Cu.m
Q: the daily sewage flow in gallons 1126 and 0.75 is constant value
3./ To find the dimension of septic tank if the maximum depth is 1.50m. And the width is assumed to be 3m then:
Length of block degestion: 3.472 m
Length of Septic Tank : 5.21 m
THE TABLE QUANTITIES OF SEWAGE FLOW ITEM TYPE OF ESTABLISHMENT
1 Small dwellings with seasonal occupancy 50
2 single family dwellings 75
3 Multiple family dwellings (Apartment) 60
4 Rooming houses 40
5 Boarding houses 50
6 Hotels without private bath 50
7 Hotels with private baths (2 persons per room) 60
8 Restaurants (toilet and kitchen waste per patron) 7
9 Restaurants (kitchen waste per meals serve) 3
10 Tourist camps or trailer parks with central bathhouse 35
11 Tourist courts or mobile home parks with ind. Bath 50
12 Resort camps night and day with limited plumbing 50
13 Luxury camps 100
14 Work or construction camp 50
15 Day camps no meals serve 15
16 day schools without cafeterials, gym. Or showers 15
GALLONS PER PERSON PER
17 day schools with cafeterials, gym. Or showers 25
18 Day school with but w/o gym or showers 20
19 Boarding schools 75100
20 Hospitals 150
21 Institutions other than a hospitals 75
22 Factories (exclusive of industrial waste) 15
23 Picnic parks with toilet, bath houses 10
24 Swimming pools and bath houses 10
25 Luxury residences 100
26 Country clubs (per resident member) 100
27 Motels(per bed space) 40
28 Motes with bath, toilet, and kitchen, waste 50
29 Drive in threaters (per car space) 5
30 Movie theaters (per auditorium seat) 5
31 Airport (per passenger) 3
32 Stores(per toilet room) 400
33 Service stations(per vehicle served) 10
34 Seft service laundries(gal. per wash per person) 50
NOTE:
* You are NOT ALLOWED to change 1056.688 50 4032 60 10 3 150 GALLONS PER PERSON PER DAY
25 250 125 35 150 5 12
PROJECT: SALINA
SECTION: PLUMBING SECTION
DATE:
REV.:
Assumed Data
* You are allowed to changeCalculated data
* You are NOT ALLOWED to changeDIMENSION OF SEPTIC TANK
*- Dimension of septic tank1./ Referring to table below:
Item
Description
Qty Units6 *-Flow per day in TYPE OF ESTABLISHMENT*-Number of Persons in TYPE OF ESTABLISHMENT 5080 personsgallons
Total flow per day in gallons: 4000 gallons
2./ The liquid volume of tank in gallons:
V = 1125+0.75*Q = 4125 gallons
Where: V: the liquid volume of the tank in gallons 16 Cu.m
Q: the daily sewage flow in gallons 1126 and 0.75 is constant value
3./ To find the dimension of septic tank if the maximum depth is 1.50m. And the width is assumed to be 3m then:
Length of block degestion: 3.472 m
Length of Septic Tank : 5.21 m
THE TABLE QUANTITIES OF SEWAGE FLOW ITEM TYPE OF ESTABLISHMENT
1 Small dwellings with seasonal occupancy 50
2 single family dwellings 75
3 Multiple family dwellings (Apartment) 60
4 Rooming houses 40
5 Boarding houses 50
6 Hotels without private bath 50
7 Hotels with private baths (2 persons per room) 60
8 Restaurants (toilet and kitchen waste per patron) 7
9 Restaurants (kitchen waste per meals serve) 3
10 Tourist camps or trailer parks with central bathhouse 35
11 Tourist courts or mobile home parks with ind. Bath 50
12 Resort camps night and day with limited plumbing 50
13 Luxury camps 100
14 Work or construction camp 50
15 Day camps no meals serve 15
16 day schools without cafeterials, gym. Or showers 15
GALLONS PER PERSON PER
17 day schools with cafeterials, gym. Or showers 25
18 Day school with but w/o gym or showers 20
19 Boarding schools 75100
20 Hospitals 150
21 Institutions other than a hospitals 75
22 Factories (exclusive of industrial waste) 15
23 Picnic parks with toilet, bath houses 10
24 Swimming pools and bath houses 10
25 Luxury residences 100
26 Country clubs (per resident member) 100
27 Motels(per bed space) 40
28 Motes with bath, toilet, and kitchen, waste 50
29 Drive in threaters (per car space) 5
30 Movie theaters (per auditorium seat) 5
31 Airport (per passenger) 3
32 Stores(per toilet room) 400
33 Service stations(per vehicle served) 10
34 Seft service laundries(gal. per wash per person) 50
NOTE:
* You are NOT ALLOWED to change 1056.688 50 4032 60 10 3 150 GALLONS PER PERSON PER DAY
25 250 125 35 150 5 12
PROJECT: SALINA
SECTION: PLUMBING SECTION
DATE:
REV.:
Assumed Data
* You are allowed to changeCalculated data
* You are NOT ALLOWED to changeDIMENSION OF SEPTIC TANK
*- Dimension of septic tank1./ Referring to table below:
Item
Description
Qty Units6 *-Flow per day in TYPE OF ESTABLISHMENT*-Number of Persons in TYPE OF ESTABLISHMENT 16450 personsgallons
Total flow per day in gallons: 8200 gallons
2./ The liquid volume of tank in gallons:
V = 1125+0.75*Q = 7275 gallons
Where: V: the liquid volume of the tank in gallons 28 Cu.m
Q: the daily sewage flow in gallons 1126 and 0.75 is constant value
3./ To find the dimension of septic tank if the maximum depth is 1.50m. And the width is assumed to be 3m then:
Length of block degestion: 6.124 m
Length of Septic Tank : 9.19 m
THE TABLE QUANTITIES OF SEWAGE FLOW ITEM TYPE OF ESTABLISHMENT
1 Small dwellings with seasonal occupancy 50
2 single family dwellings 75
3 Multiple family dwellings (Apartment) 60
4 Rooming houses 40
5 Boarding houses 50
6 Hotels without private bath 50
7 Hotels with private baths (2 persons per room) 60
8 Restaurants (toilet and kitchen waste per patron) 7
9 Restaurants (kitchen waste per meals serve) 3
10 Tourist camps or trailer parks with central bathhouse 35
11 Tourist courts or mobile home parks with ind. Bath 50
12 Resort camps night and day with limited plumbing 50
13 Luxury camps 100
14 Work or construction camp 50
15 Day camps no meals serve 15
16 day schools without cafeterials, gym. Or showers 15
GALLONS PER PERSON PER
17 day schools with cafeterials, gym. Or showers 25
18 Day school with but w/o gym or showers 20
19 Boarding schools 75100
20 Hospitals 150
21 Institutions other than a hospitals 75
22 Factories (exclusive of industrial waste) 15
23 Picnic parks with toilet, bath houses 10
24 Swimming pools and bath houses 10
25 Luxury residences 100
26 Country clubs (per resident member) 100
27 Motels(per bed space) 40
28 Motes with bath, toilet, and kitchen, waste 50
29 Drive in threaters (per car space) 5
30 Movie theaters (per auditorium seat) 5
31 Airport (per passenger) 3
32 Stores(per toilet room) 400
33 Service stations(per vehicle served) 10
34 Seft service laundries(gal. per wash per person) 50
NOTE:
* You are NOT ALLOWED to change 1056.688 50 4032 60 10 3 150 GALLONS PER PERSON PER DAY
25 250 125 35 150 5 12
OPTIMA CONSULTANT
PROJECT: KOHSANTEPHEAP
SECTION: PLUMBING SECTION
DATE:
REV.:
Assumed Data
* You are allowed to changeCalculated data
* You are NOT ALLOWED to changeWASTE WATER TREATMENT PLANTS(WWTP) CALCULATION
1- Waste Water Influent to WWTPInfluent quantity
Total influent quantity = 90% of water consumption Water consumption = 20 m3/d
So : 18 m3/d
Let say Total inluent = 18 m3/d Influent quality
BOD5 = 250 mg/l SS = 300 mg/l 2- Waste Water Efluent from WWTP
Efluent quality
BOD5 = 20 mg/l SS = 30 mg/l 3- Waste Water Treatment Plants (WWTP) Diagram
Influent Q= 18m3/d BOD=250mg/l
Q= 18m3/d BOD removal efficiency 30% BOD=175mg/l
Q= 18m3/d BOD removal efficiency 25% BOD=131.25mg/l Return sludge
Q=10m3/d
Q= 18m3/d BOD=20mg/l
Solid separation tank
Anaerobic filter tank
Contact aeration tank
To Public Drainage 4- Design Concept of Solid Separation Tank
chamber is Design to equalize and homogenizeinfluent and pretreat organic BOD. It provide (12-24) hour of storage time for designed daily waste water flowrate.
Hydraulic retention time = 24 hr Therefor, require solid separation tank = 18 m3
Actual tank capacity = m3 > 18 m3
BOD Concept of removal Efficiency
BOD Removal Efficiency = 30 % Influent BOD = 250 mg/l BOD residual next to anaerobic filter tank = 175 mg/l 5- Design Concept of Anaerobic Filter Tank
reduces remaining BOD from solid separation chamber which is anaerobic condition. It uses anaerobic microorganisms to further remove the BOD. 5.1 Design concept of media
Influent BOD = 175 mg/l BOD Residual next to contact aerobic tank = 131.25 mg/l Total BOD loading removal = 0.7875 kg/d Use area BOD loading = 0.002571 kg/m2-d Peak flow = 2
Required area media = 612.5 m2 Surface area of media = 110 m2/m3 Required total volume of media = 5.57 m3
Actual volume of media = m3 > 5.57 m3 5.2 Design Volume of anaerobic Filter tank
Hydraulic retention time = 4 hr Therefor, required the anaerobic filter tank = 3.00 m3
Actual tank capacity = m3 > 3.00 m3 To Sludge
Disposal Sedimentation tank
BOD Concept of removal efficiency
BOD Removal Efficiency = 25 % BOD residual next to contact aerobic tank = 131.25 mg/l 6- Design Concept of contact aeration Tank
6.1 Fixed film Aerobic Bacteria
Calculation of media
BOD inluent to aeration tank = 131.25 mg/l BOD loading to be removed = 2.00 kg/d Area BOD loading = 0.01324 kg/m2-d
Safety factor = 1.5 Required area media = 226.875 m2 Surface area of media = 110 m2/m3
Total required of media = 2.06 m3
Actual volume of media = m3
> 2.06 m3 6.2 Suspended of Aerobic Bacteria
Design Volume of contact Aerobic Tank Vr = Tc x Q x Y x (So-Se) / X(1+Kd x Tc)
Where: Tc Mean cell residence time = 7 d Q Waste water flowrate = 18 m3/d
Y Yield factor co.efficient = 0.5 mg.vss/mg.Bod So BOD Influent = 131.25 mg/l
Se Solube BOD escaped treatment = 1.17 mg/l
Efluent BOD = Influent Solube BOD Escaped treatment+BOD of suspended solid. Determine the BOD of effluent of suspended solids
Biodegratable of efluent solids = 19.5 mg/l Ultimate BOD = 27.69 mg/l BOD of Suspended solids = 18.83 mg/l BOD of Escaped treatment = 1.17 mg/l X MLVSS = 80% MLSS = 2000 mg/l Kd = 0.06 1/d
Vr = 2.89 m3 Hydraulic retention time
HRT = Vr/Q 0.16 d HRT = 3.85 hr
Recheck hydraulic retention time Design HRT=6hr > 3.85 hr 6.3 Design Oxygen requirement
O2 = a x Lr + b x Sa
Lr Total BOD load to be treated 13 kg/d
b Sludge endogenouse coefficent 0.07 kg.O2/kg.MLVSS-d Sa MLVSS in aeration tank 57.52 kg/d
So: O2 = 10.53 kg.O2/d Solubility air in sewage 6.5 %
Oxygen content in air 0.277 kg.O2/m3 of air Volume of air required 584.68 m3/d
Provide capacity lost 20 %
701.62 m3/d
Design Safety 2 1403.23 m3/d
0.97 m3/min
6.4 Select Air Blower
Power 1.5 kw Discharge bore 40 mm
Pressure 0.3 kg.f/cm3 air discharge 0.81 m3/min
Electricity 380/3/50 Total 2 set
6.5 Design the quantity of excess sludg that must be waste per day The observes yields(YOBES) = Y/(1+Kd.Tc)
= 0.35 Kg.VSS/Kg.BOD The mass of activated sludge(Px) = Yobes.Q.(So-Se)/1000
= 0.90 Kg.VSS/d The increase in the total mass of MLSS(Px) = Px/80%
= 1.125 Kg.SS/d Design sludge concentration(Xr) = 7000 mg/l
So, Volume of excess sludge = 0.82 m3/d 6.6 Recheck mean cell Residence Time for control
Tc = a/(b+c)
Where: Tc Mean cell residence time
a weight of biomass aeration tank = 57.52 kg b weight of sludgr that must be waste = 5.73 kg/d
c weight of sludge in effluent 3 kg/d So, Tc = 7.00 d 7- Design Concept of Sedimentation tank
7.1 Design overflow rate
Use overflow rate = 24 m3/m2-d Surface area of Sedimentation tank = 0.75 m2
Actual surface = m2
> 0.75 m2 .
7.2 Recheck weir overflow rate
Normaly weir overflow rate of sedimentation tank is not more than 125m3/m-d
Length of construct weir = 6.6 m
So, weir overflow rate = Flow rate / Length of construct weir = 18.94 m3/m-d
7.3 Check volume of sedimentation tank
Hydraulic retention time = 3 hr Therefor, required the sedimentation tank = 3 m3 7.4 Design of return sludge rate
Qr = QX/(Xr-X) Qr Volume of return sludge
Q Flow rate of waste water = 18 m3/d X MLSS = 2500 mg/l
Xr Sludge concentration in the bottom of
sedimentation tank = 7000 mg/l Volume of return sludge(Qr) = 10 m3/d
Recheck of return sludge rate
Normal of return sludge rate (Qr/Q) = 0.25-1 So, return sludge rate (Qr/Q) = 0.56
Air Lift pump
Power = 0.75 kw Decharge bore = 32 mm
Pressure = 0.2 kg.f/cm2 Air decharge rate = 0.65 m3/min
Electricity = 380/3/50 Total = 1 set
* You are allowed to change
* You are NOT ALLOWED to change
mg.vss/mg.Bod
Influent Solube BOD Escaped treatment+BOD of suspended solid.
kg.O2/kg.MLVSS-d
kg.O2/m3 of air
Kg.VSS/Kg.BOD Yobes.Q.(So-Se)/1000
Flow rate / Length of construct weir
OPTIMA CONSULTANT
PROJECT: KOHSANTEPHEAP
SECTION: PLUMBING SECTION
DATE:
REV.:
Assumed Data
* You are allowed to changeCalculated data
* You are NOT ALLOWED to changeWASTE WATER TREATMENT PLANTS(WWTP) CALCULATION
1- Waste Water Influent to WWTPInfluent quantity
Total influent quantity = 90% of water consumption Water consumption = 32.5 m3/d
So : 29.25 m3/d
Let say Total inluent = 30 m3/d Influent quality
BOD5 = 250 mg/l SS = 300 mg/l 2- Waste Water Efluent from WWTP
Efluent quality
BOD5 = 20 mg/l SS = 30 mg/l 3- Waste Water Treatment Plants (WWTP) Diagram
Influent Q= 30m3/d BOD=250mg/l
Q= 30m3/d BOD removal efficiency 30% BOD=175mg/l
Q= 30m3/d BOD removal efficiency 25% BOD=131.25mg/l Return sludge
Q=16.67m3/d
Q= 30m3/d BOD=20mg/l Solid separation tank
Anaerobic filter tank
Contact aeration tank
To Public Drainage 4- Design Concept of Solid Separation Tank
This chamber is Design to equalize and homogenizeinfluent and pretreat organic BOD. It provide (12-24) hour of storage time for designed daily waste water flowrate.
Hydraulic retention time = 24 hr Therefor, require solid separation tank = 30 m3 Actual tank capacity = m3 > 30 m3 BOD Concept of removal Efficiency
BOD Removal Efficiency = 30 % Influent BOD = 250 mg/l BOD residual next to anaerobic filter tank = 175 mg/l 5- Design Concept of Anaerobic Filter Tank
In this step, it reduces remaining BOD from solid separation chamber which is anaerobic condition. It uses anaerobic microorganisms to further remove the BOD.
5.1 Design concept of media
Influent BOD = 175 mg/l BOD Residual next to contact aerobic tank = 131.25 mg/l Total BOD loading removal = 1.3125 kg/d Use area BOD loading = 0.004286 kg/m2-d Peak flow = 2
Required area media = 612.5 m2 Surface area of media = 110 m2/m3 Required total volume of media = 5.57 m3
Actual volume of media = m3 > 5.57 m3 5.2 Design Volume of anaerobic Filter tank
Hydraulic retention time = 4 hr Therefor, required the anaerobic filter tank = 5.00 m3
Actual tank capacity = m3 > 5.00 m3 To Sludge
Disposal Sedimentation tank
BOD Concept of removal efficiency
BOD Removal Efficiency = 25 % BOD residual next to contact aerobic tank = 131.25 mg/l 6- Design Concept of contact aeration Tank
6.1 Fixed film Aerobic Bacteria Calculation of media
BOD inluent to aeration tank = 131.25 mg/l BOD loading to be removed = 3.34 kg/d Area BOD loading = 0.022066 kg/m2-d Safety factor = 1.5
Required area media = 226.875 m2 Surface area of media = 110 m2/m3
Total required of media = 2.06 m3
Actual volume of media = m3
> 2.06 m3 6.2 Suspended of Aerobic Bacteria
Design Volume of contact Aerobic Tank Vr = Tc x Q x Y x (So-Se) / X(1+Kd x Tc)
Where: Tc Mean cell residence time = 7 d Q Waste water flowrate = 30 m3/d
Y Yield factor co.efficient = 0.5 mg.vss/mg.Bod So BOD Influent = 131.25 mg/l
Se Solube BOD escaped treatment = 1.17 mg/l
Efluent BOD = Influent Solube BOD Escaped treatment+BOD of suspended solid. Determine the BOD of effluent of suspended solids
Biodegratable of efluent solids = 19.5 mg/l Ultimate BOD = 27.69 mg/l BOD of Suspended solids = 18.83 mg/l BOD of Escaped treatment = 1.17 mg/l X MLVSS = 80% MLSS = 2000 mg/l Kd = 0.06 1/d Vr = 4.81 m3
Hydraulic retention time
HRT = Vr/Q 0.16 d HRT = 3.85 hr Recheck hydraulic retention time
Design HRT=6hr > 3.85 hr 6.3 Design Oxygen requirement
O2 = a x Lr + b x Sa
Lr Total BOD load to be treated 13 kg/d
b Sludge endogenouse coefficent 0.07 kg.O2/kg.MLVSS-d Sa MLVSS in aeration tank 57.52 kg/d
So: O2 = 10.53 kg.O2/d Solubility air in sewage 6.5 %
Oxygen content in air 0.277 kg.O2/m3 of air Volume of air required 584.68 m3/d
Provide capacity lost 20 %
701.62 m3/d
Design Safety 2
1403.23 m3/d
0.97 m3/min
6.4 Select Air Blower
Power 1.5 kw
Discharge bore 40 mm
Pressure 0.3 kg.f/cm3
air discharge 0.81 m3/min
Electricity 380/3/50
Total 2 set
6.5 Design the quantity of excess sludg that must be waste per day
The observes yields(YOBES) = Y/(1+Kd.Tc)
= 0.35 Kg.VSS/Kg.BOD The mass of activated sludge(Px) = Yobes.Q.(So-Se)/1000
= 1.40 Kg.VSS/d The increase in the total mass of MLSS(Px) = Px/80%
= 1.75 Kg.SS/d Design sludge concentration(Xr) = 7000 mg/l So, Volume of excess sludge = 0.82 m3/d 6.6 Recheck mean cell Residence Time for control
Tc = a/(b+c) Where: Tc Mean cell residence time
a weight of biomass aeration tank = 57.52 kg b weight of sludgr that must be waste = 5.73 kg/d c weight of sludge in effluent = 3 kg/d
So, Tc = 7.00 d 7- Design Concept of Sedimentation tank
7.1 Design overflow rate
Use overflow rate = 24 m3/m2-d Surface area of Sedimentation tank = 1.25 m2 Actual surface = m2
> 1.25 m2 .
7.2 Recheck weir overflow rate
Normaly weir overflow rate of sedimentation tank is not more than 125m3/m-d Length of construct weir = 6.6 m
So, weir overflow rate = Flow rate / Length of construct weir = 18.94 m3/m-d
7.3 Check volume of sedimentation tank
Hydraulic retention time = 3 hr Therefor, required the sedimentation tank = 4 m3 7.4 Design of return sludge rate
Qr = QX/(Xr-X) Qr Volume of return sludge
Q Flow rate of waste water = 30 m3/d X MLSS = 2500 mg/l Xr Sludge concentration in the bottom of
sedimentation tank = 7000 mg/l Volume of return sludge(Qr) = 16.67 m3/d
Recheck of return sludge rate
Normal of return sludge rate (Qr/Q) = 0.25-1 So, return sludge rate (Qr/Q) = 0.56
Air Lift pump
Power = 0.75 kw Decharge bore = 32 mm Pressure = 0.2 kg.f/cm2 Air decharge rate = 0.65 m3/min Electricity = 380/3/50
* You are allowed to change
* You are NOT ALLOWED to change
This chamber is Design to equalize and homogenizeinfluent and pretreat organic BOD. It provide (12-24) hour of storage time for designed daily waste water flowrate.
mg.vss/mg.Bod
Influent Solube BOD Escaped treatment+BOD of suspended solid.
kg.O2/kg.MLVSS-d
kg.O2/m3 of air
Kg.VSS/Kg.BOD Yobes.Q.(So-Se)/1000
Normaly weir overflow rate of sedimentation tank is not more than 125m3/m-d
OPTIMA CONSULTANT
PROJECT: KOHSANTEPHEAP
SECTION: PLUMBING SECTION
DATE:
REV.:
Assumed Data
* You are allowed to changeCalculated data
* You are NOT ALLOWED to changeWASTE WATER TREATMENT PLANTS(WWTP) CALCULATION
1- Waste Water Influent to WWTP
Influent quantity
Total influent quantity = 90% of water consumption Water consumption = 40 m3/d
So : = 36 m3/d Let say Total inluent = 36 m3/d Influent quality
BOD5 = 250 mg/l SS = 300 mg/l 2- Waste Water Efluent from WWTP
Efluent quality
BOD5 = 20 mg/l SS = 30 mg/l 3- Waste Water Treatment Plants (WWTP) Diagram
Influent Q= 36m3/d BOD=250mg/l
Q= 36m3/d BOD removal efficiency 30% BOD=175mg/l
Q= 36m3/d BOD removal efficiency 25% BOD=131.25mg/l Return sludge
Q=20m3/d
Q= 36m3/d BOD=20mg/l
Solid separation tank
Anaerobic filter tank
Contact aeration tank
To Public Drainage 4- Design Concept of Solid Separation Tank
This chamber is Design to equalize and homogenizeinfluent and pretreat organic BOD. It provide (12-24) hour of storage time for designed daily waste water flowrate.
Hydraulic retention time = 24 hr Therefor, require solid separation tank = 36 m3
Actual tank capacity = m3 > 36 m3
BOD Concept of removal Efficiency
BOD Removal Efficiency = 30 % Influent BOD = 250 mg/l BOD residual next to anaerobic filter tank = 175 mg/l 5- Design Concept of Anaerobic Filter Tank
In this step, it reduces remaining BOD from solid separation chamber which is anaerobic condition. It uses anaerobic microorganisms to further remove the BOD.
5.1 Design concept of media
Influent BOD = 175 mg/l BOD Residual next to contact aerobic tank = 131.25 mg/l Total BOD loading removal = 1.575 kg/d
Use area BOD loading = 0.005143 kg/m2-d Peak flow = 2
Required area media = 612.5 m2 Surface area of media = 110 m2/m3 Required total volume of media = 5.57 m3
Actual volume of media = m3 > 5.57 m3 5.2 Design Volume of anaerobic Filter tank
Hydraulic retention time = 4 hr Therefor, required the anaerobic filter tank = 6.00 m3
Actual tank capacity = m3 > 6.00 m3 To Sludge
Disposal Sedimentation tank
BOD Concept of removal efficiency
BOD Removal Efficiency = 25 % BOD residual next to contact aerobic tank = 131.25 mg/l 6- Design Concept of contact aeration Tank
6.1 Fixed film Aerobic Bacteria Calculation of media
BOD inluent to aeration tank = 131.25 mg/l BOD loading to be removed = 4.01 kg/d
Area BOD loading = 0.026479 kg/m2-d Safety factor = 1.5
Required area media = 226.875 m2 Surface area of media = 110 m2/m3 Total required of media = 2.06 m3
Actual volume of media = m3
> 2.06 m3 6.2 Suspended of Aerobic Bacteria
Design Volume of contact Aerobic Tank Vr = Tc x Q x Y x (So-Se) / X(1+Kd x Tc)
Where: Tc Mean cell residence time = 7 d Q Waste water flowrate = 36 m3/d
Y Yield factor co.efficient = 0.5 mg.vss/mg.Bod So BOD Influent = 131.25 mg/l
Se Solube BOD escaped treatment = 1.17 mg/l
Efluent BOD = Influent Solube BOD Escaped treatment+BOD of suspended solid. Determine the BOD of effluent of suspended solids
Biodegratable of efluent solids = 19.5 mg/l Ultimate BOD = 27.69 mg/l BOD of Suspended solids = 18.83 mg/l BOD of Escaped treatment = 1.17 mg/l X MLVSS = 80% MLSS = 2000 mg/l Kd = 0.06 1/d
Vr = 5.77 m3 Hydraulic retention time
HRT = Vr/Q 0.16 d HRT = 3.85 hr Recheck hydraulic retention time
Design HRT=6hr > 3.85 hr 6.3 Design Oxygen requirement
O2 = a x Lr + b x Sa
Lr Total BOD load to be treated 13 kg/d
b Sludge endogenouse coefficent 0.07 kg.O2/kg.MLVSS-d Sa MLVSS in aeration tank 57.52 kg/d
So: O2 = 10.53 kg.O2/d Solubility air in sewage 6.5 %
Oxygen content in air 0.277 kg.O2/m3 of air Volume of air required 584.68 m3/d
Provide capacity lost 20 %
701.62 m3/d
Design Safety 2
1403.23 m3/d
0.97 m3/min
6.4 Select Air Blower
Power 1.5 kw
Discharge bore 40 mm
Pressure 0.3 kg.f/cm3
air discharge 0.81 m3/min
Electricity 380/3/50
Total 2 set
6.5 Design the quantity of excess sludg that must be waste per day The observes yields(YOBES) = Y/(1+Kd.Tc)
= 0.35 Kg.VSS/Kg.BOD The mass of activated sludge(Px) = Yobes.Q.(So-Se)/1000
= 1.70 Kg.VSS/d The increase in the total mass of MLSS(Px) = Px/80%
= 2.125 Kg.SS/d Design sludge concentration(Xr) = 7000 mg/l
So, Volume of excess sludge = 0.82 m3/d 6.6 Recheck mean cell Residence Time for control
Tc = a/(b+c)
Where: Tc Mean cell residence time
a weight of biomass aeration tank = 57.52 kg b weight of sludgr that must be waste = 5.73 kg/d
c weight of sludge in effluent 3 kg/d So, Tc = 7.00 d 7- Design Concept of Sedimentation tank
7.1 Design overflow rate
Use overflow rate = 24 m3/m2-d Surface area of Sedimentation tank = 1.50 m2 Actual surface = m2
> 1.50 m2 .
7.2 Recheck weir overflow rate
Normaly weir overflow rate of sedimentation tank is not more than 125m3/m-d Length of construct weir = 6.6 m
So, weir overflow rate = Flow rate / Length of construct weir = 18.94 m3/m-d
7.3 Check volume of sedimentation tank
Hydraulic retention time = 3 hr Therefor, required the sedimentation tank = 5 m3 7.4 Design of return sludge rate
Qr = QX/(Xr-X) Qr Volume of return sludge
Q Flow rate of waste water = 36 m3/d X MLSS = 2500 mg/l
Xr Sludge concentration in the bottom of
sedimentation tank = 7000 mg/l Volume of return sludge(Qr) = 20 m3/d
Recheck of return sludge rate
Normal of return sludge rate (Qr/Q) = 0.25-1 So, return sludge rate (Qr/Q) = 0.56
Air Lift pump
Power = 0.75 kw Decharge bore = 32 mm Pressure = 0.2 kg.f/cm2 0.65 m3/min Electricity = 380/3/50 Total = 1 set
* You are allowed to change
* You are NOT ALLOWED to change
This chamber is Design to equalize and homogenizeinfluent and pretreat organic BOD. It provide (12-24) hour of storage time for designed daily waste water flowrate.
mg.vss/mg.Bod
Influent Solube BOD Escaped treatment+BOD of suspended solid.
kg.O2/kg.MLVSS-d
kg.O2/m3 of air
Kg.VSS/Kg.BOD Yobes.Q.(So-Se)/1000
Normaly weir overflow rate of sedimentation tank is not more than 125m3/m-d
OPTIMA CONSULTANT
PROJECT:
SECTION: PLUMBING SECTION
DATE:
REV.:
Assumed Data
* You are allowed to changeCalculated data
* You are NOT ALLOWED to changeWASTE WATER TREATMENT PLANTS(WWTP) CALCULATION
1- Waste Water Influent to WWTP
Influent quantity
Total influent quantity = 90% of water consumption Water consumption = 58.5 m3/d
So : = 52.65 m3/d Let say Total inluent = 53 m3/d
Influent quality
BOD5 = 250 mg/l SS = 300 mg/l 2- Waste Water Efluent from WWTP
Efluent quality
BOD5 = 20 mg/l SS = 30 mg/l 3- Waste Water Treatment Plants (WWTP) Diagram
Influent Q= 36m3/d BOD=250mg/l
Q= 36m3/d BOD removal efficiency 30% BOD=175mg/l
Q= 36m3/d BOD removal efficiency 25% BOD=131.25mg/l Return sludge
Q=20m3/d
Q= 36m3/d BOD=20mg/l
Solid separation tank
Anaerobic filter tank
Contact aeration tank
To Public Drainage 4- Design Concept of Solid Separation Tank
This chamber is Design to equalize and homogenizeinfluent and pretreat organic BOD. It provide (12-24) hour of storage time for designed daily waste water flowrate.
Hydraulic retention time = 24 hr Therefor, require solid separation tank = 53 m3
Actual tank capacity = m3 > 53 m3
BOD Concept of removal Efficiency
BOD Removal Efficiency = 30 % Influent BOD = 250 mg/l BOD residual next to anaerobic filter tank = 175 mg/l 5- Design Concept of Anaerobic Filter Tank
In this step, it reduces remaining BOD from solid separation chamber which is anaerobic condition. It uses anaerobic microorganisms to further remove the BOD.
5.1 Design concept of media
Influent BOD = 175 mg/l BOD Residual next to contact aerobic tank = 131.25 mg/l Total BOD loading removal = 2.31875 kg/d
Use area BOD loading = 0.007571 kg/m2-d Peak flow = 2
Required area media = 612.5 m2 Surface area of media = 110 m2/m3 Required total volume of media = 5.57 m3
Actual volume of media = m3 > 5.57 m3 5.2 Design Volume of anaerobic Filter tank
Hydraulic retention time = 4 hr Therefor, required the anaerobic filter tank = 8.83 m3
Actual tank capacity = m3 > 8.83 m3 To Sludge
Disposal Sedimentation tank
BOD Concept of removal efficiency
BOD Removal Efficiency = 25 % BOD residual next to contact aerobic tank = 131.25 mg/l 6- Design Concept of contact aeration Tank
6.1 Fixed film Aerobic Bacteria
Calculation of media
BOD inluent to aeration tank = 131.25 mg/l BOD loading to be removed = 5.90 kg/d
Area BOD loading = 0.038983 kg/m2-d Safety factor = 1.5
Required area media = 226.875 m2 Surface area of media = 110 m2/m3 Total required of media = 2.06 m3
Actual volume of media = m3
> 2.06 m3 6.2 Suspended of Aerobic Bacteria
Design Volume of contact Aerobic Tank Vr = Tc x Q x Y x (So-Se) / X(1+Kd x Tc)
Where: Tc Mean cell residence time = 7 d Q Waste water flowrate = 53 m3/d
Y Yield factor co.efficient = 0.5 mg.vss/mg.Bod So BOD Influent = 131.25 mg/l
Se Solube BOD escaped treatment = 1.17 mg/l
Efluent BOD = Influent Solube BOD Escaped treatment+BOD of suspended solid. Determine the BOD of effluent of suspended solids
Biodegratable of efluent solids = 19.5 mg/l Ultimate BOD = 27.69 mg/l BOD of Suspended solids = 18.83 mg/l BOD of Escaped treatment = 1.17 mg/l X MLVSS = 80% MLSS = 2000 mg/l Kd = 0.06 1/d
Vr = 8.50 m3 Hydraulic retention time
HRT = Vr/Q 0.16 d HRT = 3.85 hr Recheck hydraulic retention time
Design HRT=6hr > 3.85 hr 6.3 Design Oxygen requirement
O2 = a x Lr + b x Sa
Lr Total BOD load to be treated 13 kg/d
b Sludge endogenouse coefficent 0.07 kg.O2/kg.MLVSS-d Sa MLVSS in aeration tank 57.52 kg/d
So: O2 = 10.53 kg.O2/d Solubility air in sewage 6.5 %
Oxygen content in air 0.277 kg.O2/m3 of air Volume of air required 584.68 m3/d
Provide capacity lost 20 %
701.62 m3/d
Design Safety 2
1403.23 m3/d
0.97 m3/min
6.4 Select Air Blower
Power 1.5 kw
Discharge bore 40 mm
Pressure 0.3 kg.f/cm3
air discharge 0.81 m3/min
Electricity 380/3/50
Total 2 set
6.5 Design the quantity of excess sludg that must be waste per day The observes yields(YOBES) = Y/(1+Kd.Tc)
= 0.35 Kg.VSS/Kg.BOD The mass of activated sludge(Px) = Yobes.Q.(So-Se)/1000
= 2.50 Kg.VSS/d The increase in the total mass of MLSS(Px) = Px/80%
= 3.125 Kg.SS/d Design sludge concentration(Xr) = 7000 mg/l
So, Volume of excess sludge = 0.82 m3/d 6.6 Recheck mean cell Residence Time for control
Tc = a/(b+c) Where: Tc Mean cell residence time
a weight of biomass aeration tank = 57.52 kg b weight of sludgr that must be waste = 5.73 kg/d
c weight of sludge in effluent 3 kg/d So, Tc = 7.00 d 7- Design Concept of Sedimentation tank
7.1 Design overflow rate
Use overflow rate = 24 m3/m2-d Surface area of Sedimentation tank = 2.21 m2 Actual surface = m2
> 2.21 m2 .
7.2 Recheck weir overflow rate
Normaly weir overflow rate of sedimentation tank is not more than 125m3/m-d Length of construct weir = 6.6 m
So, weir overflow rate = Flow rate / Length of construct weir = 18.94 m3/m-d
7.3 Check volume of sedimentation tank
Hydraulic retention time = 3 hr Therefor, required the sedimentation tank = 7 m3 7.4 Design of return sludge rate
Qr = QX/(Xr-X) Qr Volume of return sludge
Q Flow rate of waste water = 53 m3/d X MLSS = 2500 mg/l Xr Sludge concentration in the bottom of
sedimentation tank = 7000 mg/l Volume of return sludge(Qr) = 29.45 m3/d
Recheck of return sludge rate
Normal of return sludge rate (Qr/Q) = 0.25-1 So, return sludge rate (Qr/Q) = 0.56
Air Lift pump
Power = 0.75 kw Decharge bore = 32 mm Pressure = 0.2 kg.f/cm2 0.65 m3/min Electricity = 380/3/50 Total = 1 set
* You are allowed to change
* You are NOT ALLOWED to change
This chamber is Design to equalize and homogenizeinfluent and pretreat organic BOD. It provide (12-24) hour of storage time for designed daily waste water flowrate.
mg.vss/mg.Bod
Influent Solube BOD Escaped treatment+BOD of suspended solid.
kg.O2/kg.MLVSS-d
kg.O2/m3 of air
Normaly weir overflow rate of sedimentation tank is not more than 125m3/m-d
