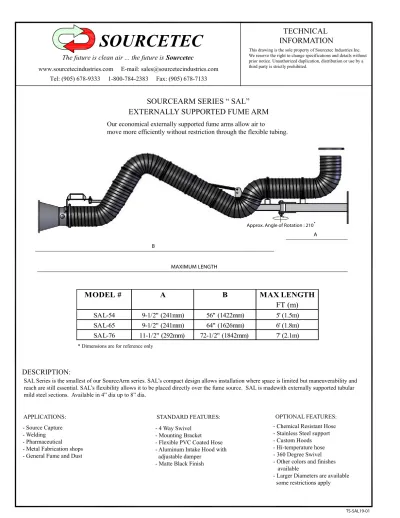

SOURCEARM SERIES SAL EXTERNALLY SUPPORTED FUME ARM

(1)

APPLICATIONS:

SOURCEARM SERIES “ SAL”

EXTERNALLY SUPPORTED FUME ARM

- Source Capture - Welding - Pharmaceutical - Metal Fabrication shops - General Fume and Dust

DESCRIPTION:

SAL Series is the smallest of our SourceArm series. SAL’s compact design allows installation where space is limited but maneuverability and reach are still essential. SAL’s flexibility allows it to be placed directly over the fume source. SAL is madewith externally supported tubular mild steel sections. Available in 4” dia up to 8” dia.

STANDARD FEATURES: - 4 Way Swivel

- Mounting Bracket - Flexible PVC Coated Hose - Aluminum Intake Hood with adjustable damper

- Matte Black Finish

Our economical externally supported fume arms allow air to

move more efficiently without restriction through the flexible tubing.

OPTIONAL FEATURES:

* Dimensions are for reference only

TS-SAL19-01

MODEL #

A

B

MAX LENGTH

FT (m)

SAL-54

9-1/2" (241mm)

56" (1422mm)

5' (1.5m)

SAL-65

9-1/2" (241mm)

64" (1626mm)

6' (1.8m)

SAL-76

11-1/2" (292mm)

72-1/2" (1842mm)

7' (2.1m)

- Chemical Resistant Hose - Stainless Steel support - Custom Hoods - Hi-temperature hose - 360 Degree Swivel - Other colors and finishes available

- Larger Diameters are available some restrictions apply

A B

Approx. Angle of Rotation : 210

(2)

APPLICATIONS:

SOURCEARM SERIES “ SAM”

EXTERNALLY SUPPORTED FUME ARM

DESCRIPTION:

SAM Series is our small to mid-sized arm. It is intended for wall mounting however it’s unique double jointed design enables column or ceiling mounting when required. SAM’s flexibility allows it to be placed directly over the fume source. SAM is made with externally supported tubular mild steel sections. Available in 4” to 8” Dia.

Our economical externally supported fume arms allow air to

move more efficiently without restriction through the flexible tubing.

TS-SAM19-01

OPTIONAL FEATURES: - Chemical Resistant Hose - Stainless Steel support - Custom Hoods - Hi-temperature hose - 360 Degree Swivel - Other colors and finishes available

MODEL #

A

B

C

MAX. LENGTH

FT (m)

SAM-86 19-1/2" (497mm) N/A 80-1/2" (2045mm) 8' (2.4m) SAM-106 19-1/2" (497mm) N/A 104-1/2" (2654mm) 10' (3m) SAM-108 13-1/2" (343mm) N/A 109-1/2" (2781mm) 10' (3m) SAM-126 19-1/2" (497mm) 39" (991mm) 87 (2210mm) 12' (3.6m) SAM-128 19-1/2" (497mm) N/A 129-1/2" (3289mm) 12' (3.6m) SAM-1210 19-1/2" (497mm) N/A 130-/2" (3315mm) 12' (3.6m) SAM-146 19-1/2" (497mm) 51" (1295mm) 101-1/2" (2570mm) 14' (4.2m) SAM-148 19-1/2" (497mm) 39" (991mm) 112" (2845mm) 14' (4.2m) SAM-1410 19-1/2" (497mm) 19" (483mm) 133" (3378mm) 14' (4.2m) A B C

Approx. Angle Of Rotation : 210 Approx. Angle Of Rotation : 359

(3)

APPLICATIONS:

SOURCEARM SERIES “ SAP”

EXTERNALLY SUPPORTED FUME ARM

DESCRIPTION:

SAP Series is our mid to long range arm. SAP’s uniquely strong yet flexible construction allows for a smooth single handed maneuverability anywhere inside a 20’ radius. SAP is made using externally supported tubular mild steel sections. Available in 4” to 8” Dia.

Our externally supported fume arms allow air to move more

efficiently without restriction through flexible tubing

OPTIONAL FEATURES:

TS-SAP19-01

MODEL #

A

B

C

MAX. LENGTH

FT (m)

SAP-166 36" (914mm) 58" (1473mm) 101" (2565mm) 16' (4.9m) SAP-168 36" (914mm) 47" (1194mm) 112" (2845mm) 16' (4.9m) SAP-1610 36" (914mm) 26" (660mm) 133" (3378mm) 16' (4.9m) SAP-186 36" (914mm) 81" (2057mm) 101" (2565mm) 18' (5.5m) SAP-188 36" (914mm) 69" (1753mm) 112" (2845mm) 18' (5.5m) SAP-1810 36" (914mm) 49" (1245mm) 133" (3378mm) 18' (5.5m) SAP-208 36" (914mm) 79" (2007mm) 126" (3200mm) 20' (6.1m) SAP-2010 36" (914mm) 73" (1854mm) 133" (3378mm) 20' (6.1m)

- Chemical Resistant Hose - Stainless Steel support - Custom Hoods - Hi-temperature hose - Other colors and finishes available

C B

A Approx. Angle of Rotation : 210 Approx. Angle of Rotation : 359

(4)

APPLICATIONS:

SOURCEARM SERIES “ SAR”

EXTERNALLY SUPPORTED FUME ARM

DESCRIPTION:

SAR Series fume arm is deisgned to cover large areas ranging from 22’ up to 30’ with complete flexibility. Like our other fume arms SAR heavy duty arms are constructed externally supported tubular mild steel which assures a solid easy to maneuver fume extractor. Available

in 4” dia up to 8” dia.

TS-SAR19-01

MODEL # A B C D MAX LENGTH

FT (m) SAR-2210 50" (1270mm) N/A 69-1/2" (1765mm) 147" (3734mm) 22' (6.7m) SAR-2410 50" (1270mm) 56-1/2" (1435mm) 51-1/2" (1308mm) 133" (3378mm) 24' (7.3m) SAR-2610 50" (1270mm) 62-1/2" (1588mm) 69-1/2" (1765mm) 133" (3378mm) 26' (7.9m) SAR-2810 50" (1270mm) 80-1/2" (2045mm) 75-1/2" (1918mm) 133" (3378mm) 28' (8.5m) SAR-3010 60" (1524mm) 83-1/2" (2121mm) 86-1/2" (2197mm) 133" (3378mm) 30' (9.1m) OPTIONAL FEATURES: - Chemical Resistant Hose - Stainless Steel support - Custom Hoods - Hi-temperature hose - Other colors and finishes available

A B

C D

MAXIMUM LENGTH

Approx. Angle of Rotation : 210 Approx. Angle of Rotation : 210

Approx. Angle of Rotation : 359

Our externally supported fume arms allow air to move more

efficiently without restriction through flexible tubing

(5)

APPLICATIONS:

SOURCEARM SERIES “ S.SAP”

EXTERNALLY SUPPORTED FUME ARM

DESCRIPTION:

S.SAP Series is designed to cover very large areas ranging from 32’ to 35’ with complete flexibility. S.SAP’s heavy duty construction assures you a solid easy to maneuver fume extractor. Externally supported with tubular mild steel sections. Available in 4” to 8” Dia.

TS-S.SAP19-01

MODEL #

A

B

C

D

E

MAX. LENGTH

FT (m)

S,SAP -3510 24" (610mm) 111-1/2" (2832mm) 85" (2159mm) 55-1/2" (1410mm) 146" (3700mm) 35' (10.7m)

OPTIONAL FEATURES: - Chemical Resistant Hose - Stainless Steel support - Custom Hoods - Hi-temperature hose - Other colors and finishes available

- Larger Diameters are available some restrictions apply E Approx. Angle of Rotation : 270 Approx. Angle of Rotation : 210 Approx. Angle of Rotation : 210 Approx. Angle of Rotation : 359 A B C D MAXIMUM LENGTH
