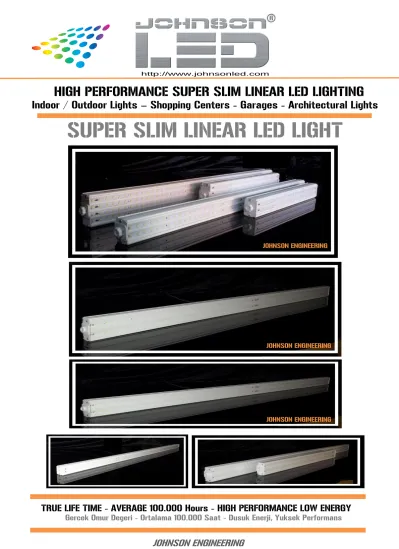

SUPER SLIM LINEAR LED LIGHT

(1)

JOHNSON ENGINEERING

Made in TURKIYE

JOHNSON ENGINEERING

TRUE LIFE TIME - AVERAGE 100.000 Hours - HIGH PERFORMANCE LOW ENERGY

Gercek Omur Degeri - Ortalama 100.000 Saat - Dusuk Enerji, Yuksek Performans

JOHNSON ENGINEERING

(2)

-

NO EXTERNAL POWER SUPPLY IS REQUIRED.

Harici Adaptor kullanimi gerektirmeden direkt baglanti.

-

DIRECT 220-240VAC 50/60Hz.

Direkt 220-240VAC 50/60 Hz.

-

SUPER SLIM HIGH PERFORMANCE LED LIGHTING.

Super Ince Yuksek Performans LED Aydinlatma.

-

LONG LIFE, AVERAGE LIFE TIME 100.000 Hours.

Uzun Omurlu, Ortalama 100.000 Saat Omur.

-

LED’s NICHIA CORPORATION – MADE IN JAPAN

Tum LED’ler NICHIA Kullanılmıştır. Japonya da uretilmiştir.

-

LOW ENERGY.

Dusuk Enerji Tuketimi.

-

EASY MOUNTING.

Kolay Montajlama.

-

SAFE MATERIAL - SAFE PRODUCT.

Guvenli Malzeme - Guvenli Urun.

-

HIGHT QUALITY COMPONENTS & MATERIALS

Yuksek Kaliteli Komponentler ve Malzemeler

-

PROTECTIVE INSURANCE

Koruyucu Sigorta

JOHNSON ENGINEERING

Made in TURKIYE

HIGH PERFORMANCE SUPER SLIM LINEAR LED LIGHTING

Indoor / Outdoor Lights – Shopping Centers - Garages - Architectural Lights

TRUE LIFE TIME - AVERAGE 100.000 Hours - HIGH PERFORMANCE LOW ENERGY

(3)

-

NO EXTERNAL POWER SUPPLY IS REQUIRED.

Harici Adaptor kullanimi gerektirmeden direkt baglanti.

-

DIRECT 220-240VAC 50/60Hz.

Direkt 220-240VAC 50/60 Hz.

-

SUPER SLIM HIGH PERFORMANCE LED LIGHTING.

Super Ince Yuksek Performans LED Aydinlatma.

-

LONG LIFE, AVERAGE LIFE TIME 100.000 Hours.

Uzun Omurlu, Ortalama 100.000 Saat Omur.

-

LOW ENERGY.

JOHNSON ENGINEERING

Dusuk Enerji Tuketimi.

-

EASY MOUNTING.

Kolay Montajlama.

-

SAFE MATERIAL - SAFE PRODUCT.

Guvenli Malzeme - Guvenli Urun.

HIGH PERFORMANCE SUPER SLIM LINEAR LED LIGHTING

Indoor / Outdoor Lights – Shopping Centers - Garages - Architectural Lights

Model No

: LRX-648 WS / WB - LRX-648 WWS / WWB

Input Voltage

: 220-240VAC 50/60Hz.

Power

: 30 Watts

LED

: Made in JAPAN

Beam Angle

: 120 Degree Without Lens

Luminous Flux

: 4400 Lumens / White / WS

:

4200 Lumens / White / WWB

:

3800 Lumens / Warm White / WWS

:

3600 Lumens / Warm White / WWB

IP Rating

: IP 64

Average Life

: 100.000 Hours

Max. Life

: 150.000 Hours

Dimensions

: W60.0 X L600.0 X H30.0 (mm)

Material

: Aluminium and Acrylic

Weight

: 0.50Kg

Manufacturer

: JOHNSON LED / Made in TURKIYE

All Designs are Registered – Tum Tasarimlar Tescillidir.

(4)

-

NO EXTERNAL POWER SUPPLY IS REQUIRED.

Harici Adaptor kullanimi gerektirmeden direkt baglanti.

-

DIRECT 220-240VAC 50/60Hz.

Direkt 220-240VAC 50/60 Hz.

-

SUPER SLIM HIGH PERFORMANCE LED LIGHTING.

Super Ince Yuksek Performans LED Aydinlatma.

-

LONG LIFE, AVERAGE LIFE TIME 100.000 Hours.

Uzun Omurlu, Ortalama 100.000 Saat Omur.

-

LOW ENERGY - EASY MOUNTING.

Dusuk Enerji Tuketimi - Kolay Montajlama.

-

SAFE MATERIAL - SAFE PRODUCT.

Guvenli Malzeme - Guvenli Urun.

HIGH PERFORMANCE SUPER SLIM LINEAR LED LIGHTING

Indoor / Outdoor Lights – Shopping Centers - Garages - Architectural Lights- Billboards

Model No : LRX-1296 WS/WB - LRX-1248WWS / WWB

Input Voltage : 220-240VAC 50/60Hz.

Power : 60 Watts

LED : Made in JAPAN

Beam Angle : 120 Degree Without Lens

Luminous Flux : 7500 Lumens / White / WS*

: 7000 Lumens / White / WB*

: 6500 Lumens / Warm White / WWS*

: 6000 Lumens / Warm White / WWB*

IP Rating : IP 64

Average Life : 100.000 Hours

Max. Life : 150.000 Hours

Dimensions : W60.0 X L1200.0 X H30.0 (mm)

Material : Aluminium and Acrylic

Weight : 1.50Kg

Manufacturer : JOHNSON LED / Made in TURKIYE

:

All Designs are Registered - Tum Tasarimlar Tescillidir.

(5)

-

NO EXTERNAL POWER SUPPLY IS REQUIRED.

Harici Adaptor kullanimi gerektirmeden direkt baglanti.

-

DIRECT 220-240VAC 50/60Hz.

Direkt 220-240VAC 50/60 Hz.

-

SUPER SLIM HIGH PERFORMANCE LED LIGHTING.

Super Ince Yuksek Performans LED Aydinlatma.

-

LONG LIFE, AVERAGE LIFE TIME 100.000 Hours.

Uzun Omurlu, Ortalama 100.000 Saat Omur.

JOHNSON ENGINEERING

-

LOW ENERGY.

Dusuk Enerji Tuketimi.

-

EASY MOUNTING.

Kolay Montajlama.

-

SAFE MATERIAL - SAFE PRODUCT.

Guvenli Malzeme - Guvenli Urun.

HIGH PERFORMANCE SUPER SLIM LINEAR LED LIGHTING

Indoor / Outdoor Lights – Shopping Centers - Garages - Architectural Lights

Model No : LRT-648 WS/WB - LRT-648 WWS / WWB

Power : 30 Watts

LED : Made in JAPAN

Luminous Flux : 4400 Lumens / White / WS

: 4200 Lumens / White / WWB

: 3800 Lumens / Warm White / WWS

: 3600 Lumens / Warm White / WWB

IP Rating : IP 64

Weight : 0.50Kg

:

(6)

-

NO EXTERNAL POWER SUPPLY IS REQUIRED.

Harici Adaptor kullanimi gerektirmeden direkt baglanti.

-

DIRECT 220-240VAC 50/60Hz.

Direkt 220-240VAC 50/60 Hz.

-

SUPER SLIM HIGH PERFORMANCE LED LIGHTING.

Super Ince Yuksek Performans LED Aydinlatma.

-

LONG LIFE, AVERAGE LIFE TIME 100.000 Hours.

Uzun Omurlu, Ortalama 100.000 Saat Omur.

JOHNSON ENGINEERING

-

LOW ENERGY.

Dusuk Enerji Tuketimi.

-

EASY MOUNTING.

Kolay Montajlama.

-

SAFE MATERIAL - SAFE PRODUCT.

Guvenli Malzeme - Guvenli Urun.

HIGH PERFORMANCE SUPER SLIM LINEAR LED LIGHTING

Indoor / Outdoor Lights – Shopping Centers - Garages - Architectural Lights

Power : 60 Watts

LED : Made in JAPAN

IP Rating : IP 64

Weight : 1.20Kg

:

(7)

-

NO EXTERNAL POWER SUPPLY IS REQUIRED.

Harici Adaptor kullanimi gerektirmeden direkt baglanti.

-

DIRECT 220-240VAC 50/60Hz.

Direkt 220-240VAC 50/60 Hz.

-

SUPER SLIM HIGH PERFORMANCE LED LIGHTING.

Super Ince Yuksek Performans LED Aydinlatma.

-

LONG LIFE, AVERAGE LIFE TIME 100.000 Hours.

Uzun Omurlu, Ortalama 100.000 Saat Omur.

JOHNSON ENGINEERING

-

LOW ENERGY.

Dusuk Enerji Tuketimi.

-

EASY MOUNTING.

Kolay Montajlama.

-

SAFE MATERIAL - SAFE PRODUCT.

Guvenli Malzeme - Guvenli Urun.

HIGH PERFORMANCE SUPER SLIM LINEAR LED LIGHTING

Indoor / Outdoor Lights – Shopping Centers - Garages - Architectural Lights

Power : 60 Watts

LED : Made in JAPAN

IP Rating : IP 64

Weight : 0.75Kg

:

(8)

-

NO EXTERNAL POWER SUPPLY IS REQUIRED.

Harici Adaptor kullanimi gerektirmeden direkt baglanti.

-

DIRECT 220-240VAC 50/60Hz.

Direkt 220-240VAC 50/60 Hz.

-

SUPER SLIM HIGH PERFORMANCE LED LIGHTING.

Super Ince Yuksek Performans LED Aydinlatma.

-

LONG LIFE, AVERAGE LIFE TIME 100.000 Hours.

Uzun Omurlu, Ortalama 100.000 Saat Omur.

JOHNSON ENGINEERING

-

LOW ENERGY.

Dusuk Enerji Tuketimi.

-

EASY MOUNTING.

Kolay Montajlama.

-

SAFE MATERIAL - SAFE PRODUCT.

Guvenli Malzeme - Guvenli Urun.

HIGH PERFORMANCE SUPER SLIM LINEAR LED LIGHTING

Indoor / Outdoor Lights – Shopping Centers - Garages - Architectural Lights

Model No : LRT-12192 WS/WB - LRX-12192 WWS / WWB

Power : 120 Watts

LED : Made in JAPAN

IP Rating : IP 64

Weight : 1.20Kg

:

(9)

Unit (mm)

JOHNSON ENGINEERING

http://www.johnsonled.com

MOUNTING INSTRUCTIONS – MONTAJ TALIMATI

Angle Mechanism System – Acili Sistem

LR-LRX-LRT Series

(10)

JOHNSON LR Series LRX-648 W/WW LRX-1296 W/WW LRT-648 W/WW LRT-1296 W/WW LRT-696 W / WW LRT-12192 W/WW Operating Temp. 25C 25C 25C 25C 25C 25C Working Temp. - 40C ~ 85C - 40C ~ 85C - 40C ~ 85C - 40C ~ 85C - 40C ~ 85C - 40C ~ 85C INPUT

Input Voltage 175VAC/265VAC 175VAC/265VAC 175VAC/265VAC 175VAC/265VAC 175VAC/265VAC 175VAC/265VAC

Frequency Range 50 ~ 60Hz 50 ~ 60Hz 50 ~ 60Hz 50 ~ 60Hz 50 ~ 60Hz 50 ~ 60Hz

Efficiency % >90 >90 >90 >90 >90 >90

AC Current 0.10A/230VAC 0.10A/230VAC 0.10A/230VAC 0.10A/230VAC 0.10A/230VAC 0.10A/230VAC

OUTPUT Rated Power 30W 60W 30W 60W 60W 120W LED Qty. 48 Pcs. 96 Pcs. 48 Pcs. 96 Pcs. 96 Pcs. 192 Pcs. Current Tolerance +/- 5% +/- 5% +/- 5% +/- 5% +/- 5% +/- 5% Soft Start 500ms / Rise Time 500ms / Rise Time 500ms / Rise Time 500ms / Rise Time 500ms / Rise

Time 500ms / Rise Time

OTHERS

IP Rating IP 64 Approved IP 64 Approved IP 64 Approved IP 64 Approved IP 64 Approved IP 64 Approved

Grounded Body Yes Yes Yes Yes Yes Yes

Internal Fuse Yes Yes Yes Yes Yes Yes

Material Insulation Class H Class H Class H Class H Class H Class H

Chassis Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium

Dimensions (mm) (LxWxH) 60.0x600.0x30.0 60.0x1200.0x30.0 40.0x600.0x30.0 40.0x1200.0x30.0 40.0x1600.0x30.0 40.0x1200.0x30.0 Weight 0.50Kg/Pc 1.50Kg/Pc 0.50Kg/Pc 1.20Kg/Pc 0.75Kg/Pc 1.50Kg/Pc Packing / Box 24 Pcs. 24 Pcs. 24 Pcs. 24 Pcs. 24 Pcs. 24 Pcs.
