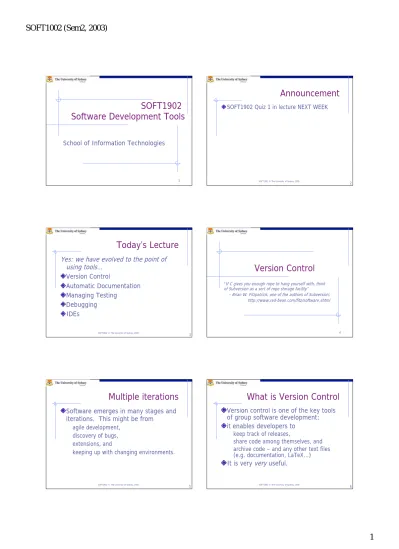

SOFT1902

Software Development Tools

School of Information Technologies

SOFT1902 © The University of Sydney, 2005

2

Announcement

SOFT1902 Quiz 1 in lecture NEXT WEEK

3

Today’s Lecture

Yes: we have evolved to the point of using tools… Version Control Automatic Documentation Managing Testing Debugging IDEs 4

Version Control

“If C gives you enough rope to hang yourself with, think of Subversion as a sort of rope storage facility”

– Brian W. Fitzpatrick, one of the authors of Subversion; http://www.red-bean.com/fitz/software.shtml

5

Multiple iterations

Software emerges in many stages and iterations. This might be from

agile development, discovery of bugs, extensions, and

keeping up with changing environments.

6

What is Version Control

Version control is one of the key tools of group software development: it enables developers to

keep track of releases,

share code among themselves, and

archive code – and any other text files (e.g. documentation, LaTeX...) It is very very useful.

(2)

7

Flavours of version control

Microsfot Word “track changes” Keeping multiple copies

CVS (Concurrent Version System) Subversion (not an acronym). Visual SourceSafe ...and others

8

Models of version control

lock-modify-unlock copy-modify-merge

9

File system

In a simple file system where anyone reads and writes it is not possible to keep track of versions, despite the best of intentions.

10

File sharing

A situation to avoid!

With this model, developers can undo each other’s work.

11

Lock-Modify-Unlock

Developers lock files, make changes, then commit them. This can be

slow,

unnecessary (if both

developers are working on different parts of the file) and

misleading:

dependencies can be violated (if one person uses a file someone else is changing).

12

Copy-Modify-Merge 1

Two developers check out the same file & make changes. Once one commits the changes, the other is ‘out of date’.

(3)

13

Copy-Modify-Merge 2

The versions are compared and merged by a developer; Then it is published for all.

14

Consistency through VC

Some installations of version control can force

coding styles

JStyle is an automated tool for following conventions such as

http://www.geosoft.no/development/javastyle.html (but costs money)

unit testing

… but you shouldn’t need these. Should you?

15

CVS or SVN?

CVS = Concurrent Version System SVN = Subversion

Both have advantages but SVN is preferred (by me):

plain text archives (as of version 1.2) can move folders/directories

slightly nicer more ‘esoteric’ features like

branching (not detailed here).

16

Further benefits

Version Control also enables roll-backs to earlier versions – when something really goes wrong!

You can use it for your text files too!

17

handy places to look

CVS: homepage http://www.nongnu.org/cvs/ manual http://ximbiot.com/cvs/manual/ SVN: homepage http://subversion.tigris.org/ book http://svnbook.red-bean.com/ 18

Automatic Documentation

(4)

19

When you remember about

documentation…

Automatic documentation is very useful for saving time. You put comments in your code; you should use them.

/**

Javadoc comments look like this. (And so do Doxygen comments.) */

/// one-liner comments can be handy

20

What to automatically document

Not everything!

But anything that is needed by a client (programmer) who is calling the public methods in your code:

@param and @return explain the meaning of arguments and return values.

@pre and @post conditions are essential pieces of knowledge, not just for collaborative projects.

21

Commenting practise

Comments should clarify and explain. Scalability needs to be calculated for method calls: it's easier when they're all documented. It is not true that good code should need no comments!

It is not true that everything should be commented.

22

Commenting practise

int putPowers(double x, int n, double[] result) /**

Put positive powers of the input number n into result.

@pre x is positive or zero, n is positive, result is of length n.

@post result[i] contains x^(i+1), for i = 0..(n-1).

*/ {

double current = x; // assign current to value x for (int i = 0; i < n; i++) {

result[i] = current;

current = current * x; // now current = x^(i+1)

} }

23

import java.util.*; public class Powers { public Powers() {}

int putPowers(double x, int n, double[] result) /**

Put positive powers of the input number n into result. @pre x is positive or zero, n is positive, result is of length n.

@post result[i] contains x^(i+1), for i = 0..(n-1).

*/ {

double current = x; // assign current to value x for (int i = 0; i < n; i++) {

result[i] = current;

} } }

Automatic documentation example: Powers.java

24

Using Javadoc

~> emacs Powers.java

~> javadoc Powers.java

Loading source file Powers.java... Constructing Javadoc information... Standard Doclet version 1.5.0_06

Building tree for all the packages and classes... Generating Powers.html...

Generating package-frame.html... Generating package-summary.html... Generating package-tree.html... Generating constant-values.html...

Building index for all the packages and classes... Generating overview-tree.html...

Generating index-all.html... Generating deprecated-list.html... Building index for all classes... Generating allclasses-frame.html... Generating allclasses-noframe.html... Generating index.html... Generating help-doc.html... Generating stylesheet.css... ~>

(5)

SOFT1902 © The University of Sydney, 2005 25 Javadoc creates html pages describing your whole program, with all inheritance, methods, variables, and comments...

26

hierarchy

graphs

This is a file hierarchy for some C++ code

27

hierarchy

graphs

This is a class hierarchy for some C++ code

28

Doxygen also handles pre- and post- conditions.

29

LaTeX

Doxygen can produce LaTeX and rtf documents

too.

30

Managing Testing

because you can't prove the non-existence of bugs

(6)

31

Contents

Terminology: Black box, White box (e.g., unit testing), Test coverage

Unit testing

Assertion (v useful) Testing harness

Test cases should be easy to re-use (Advanced Topic 10.1 in Big

Java (2nd ed))

Numeric class example (pg 374) Oracles

The test suite Regression testing Testing Tools:

JUnit (free from http://junit.org), built in to BlueJ and Eclipse)

32

Terminology

Black box testing:

don't look inside the code akin to beta-release

White box:

look inside and use program structure

includes Unit Testing (if you actually look inside!)

Test coverage:

the proportion of a program's code that has been

tested.

33

Unit Testing

A unit test is test of a single method or closely related group of methods.

Unit tests typically have a wrapper called a "harness".

When you write a method you may as well write your unit test at the same time. JUnit can help you here by providing a simple and convenient interface to your testing methods.

34

Verifying the output

How to test your method is working? Suppose you are solving an equation (for x): then just substitute the value of x into that equation and see if it's true:

testing mysqrt(2.0), equation is x2 = 2. x = 1.41422 = 1.99996164 2 mysqrt fails the test.

35

Oracles

An alternative is to find an oracle: another method that works, which is more reliable (though may be slower). E.g., compare mysqrt(2.0) with Java built-in pow(2.0, 0.5)

(=1.4142135623730951).

Oracles are not always easy to find!

36

Rounding error

Rounding error can suggest spurious bugs: don't be too hasty claiming things are not equal!

You can use approximation where appropriate.

BigJava provides a Numeric class you may find useful.

(7)

37

Numeric class

public class Numeric { /** From Big Java pg 374 */

public static boolean approxEqual(double x, double y) {

final double EPSILON=1E-12; return Math.abs(x-y) <= EPSILON; }

}

38

Testing suite and regression

Never throw anything away.

When you create a (unit) test, keep it! Often when you fix something else, an old

bug may creep back...

You can accumulate a suite of tests. Re-running previous tests after changes is called regression testing.

39

Make it easy on yourself

Tests need to be easily repeatable. Manual testing of many cases is

slow and difficult to repeat.

You can

hard-code test cases in your testing classes, or read a set of test cases from an input file:

java MyProgram < testdata.txt

40

JUnit

JUnit is free from http://junit.org and is built in to BlueJ and Eclipse.

For each class you build, you also build a tester that extends TestCase from the junit.framework package. For each test case define a method beginning with test, like

testSimpleInput.

41

JUnit example

import junit.framework.TestCase;

public class RootApproximatorTest extends TestCase { public void testSimpleCase() {

double x = 4;

RootApproximator a = new RootApproximator(x); double r = a.getRoot();

assertTrue(Numeric.approxEqual(r, 2)); }

public testBoundaryCase() { // more testing here... }

// more test cases... }

42

JUnit output

JUnit runs all the tests and returns a summary.

(8)

43

Debugging

you and your Mortein

44

Contents

General advice:

consider boundary (also called 'corner') cases Trace through problem areas

Output messages

Log messages: use Logger class Use a debugger! Eclipse, JSwat

Basic tools

Breakpoints, steps, inspection

Flashy tricks: Conditional breaks

Change variables on the fly

Change code on the fly

45

General Advice

It is much easier to prove bugs exist than that they don't!

It is in general not possible to write bug-free code (first time).

46

Tracing

One of commonest techniques you will use is tracing through your code.

(Yes, there's a reason we teach you to trace

code!)

You can often find errors quickly this way but you need to pay close attention!

Step through your code slowly and make sure every part is correct.

47

Judicious use of println

Another simple debugging method is printing out interim results and data. Put println("...") statements where you suspect there to be errors.

Disadvantages:

you have to take out the printlns later it slows down the program and

can flood you with unnecessary verbiage.

48

Logger

You can keep a log file with

Logger.global.info("message");

...which prints by default. Alternatively set

Logger.global.setLevel(Level.OFF);

at the beginning of main().

Don't forget to turn off logging prior to release!

(9)

49

assert

Java provides an assert keyword:

int putPowers(double x, int n, double[] result) /**

Put positive powers of the input number n into result. @pre x is positive or zero, n is positive, result is of length n. @post result[i] contains x^(i+1), for i = 0..(n-1).

*/ {

assert x >= 0; // we expect x to be non-negative assert n >= 0; // n must not be negative either.

double current = x; // assign current to value x

for (int i = 0; i < n; i++) { result[i] = current;

} }

50

assert

The assert keyword will cause a run-time error if the following statement is false.

assert is enabled with

java -enableassertions MyProg java -ea MyProg

otherwise the default is not to check assertions.

51

Debuggers

For bigger projects it's good to use a dedicated debugger.

Some IDEs have debuggers built-in; there are other debugger-only applications.

Debuggers give a broad view of your code and enable to you stop wherever you want.

52

Standard debugging features

breakpoint: a position in code where

execution will halt. You can continue on after inspecting the state of variables;

step into: go into methods (the smallest step possible);

step over: go to the next line, over method calls;

step out: go back up the program stack (via the completion of the current method).

53

Flashy debugging tricks

conditional breakpoints: set a condition such that if the condition is met, execution pauses.

watch points: watch a location in memory (such as for a particular variable) and stop if it changes. SLOW!

change variables: change the value of a variable (dangerous!)

54

Building Big Projects

when vi(m) and emacs aren't enough

(10)

55

ant

‘ant’ is the ‘make’ of Java. This sentence makes sense. ant is a tool for the creation of big projects:

create an XML description of the project

with all dependencies

56

ant build file

<project name="MyProject" default="dist" basedir=".">

<description> simple example build file </description>

<property name="src" location="src"/>  <property name="build" location="build"/>

<property name="dist" location="dist"/> <target name="init">

<tstamp/>

<mkdir dir="${build}"/>  </target>

<target name="compile" depends="init" description="compile the source " > <javac srcdir="${src}" destdir="${build}"/> <!-- Compile the java code from ${src} into

${build} --> </target>

<target name="dist" depends="compile” description="generate the distribution" > <mkdir dir="${dist}/lib"/>

<jar jarfile="${dist}/lib/MyProject-${DSTAMP}.jar" basedir="${build}"/>

</target>

<target name="clean” description="clean up" >

<delete dir="${build}"/>  <delete dir="${dist}"/>

</target> </project>

define dependencies among logical components (compile depends on init); define targets to compile larger components (including the complete project)

57

using ant

Once your build file is correct with all dependencies, type

ant <target>

e.g.

ant clean ant compile ...and sit back.

58

BlueJ

Available from:

http://www.bluej.org/download/download.html

Platforms: Windows, Mac OS X, .jar Features: free, simple to use, can and run bare methods.

59

BlueJ summary

BlueJ was conceived at U. Syd, developed at Monash, and is now maintained from Kent and Deakin Universities.

It is specifically for teaching Object Oriented Programming with Java to novices.

It’s not as sophisticated as Eclipse but is easy to use.

(11)

Eclipse

Eclipse is a powerful open-source development environment. Available from

http://www.eclipse.org (current version 3.2) Platforms: just about everything Features

very nice for Java! quite nice for C/C++ uses external compilers built-in debugger Javadoc refactoring

plug-ins for Subversion, other languages

63

Good for multiple large projects

64

Summary

Version Control

Essential for collaborative projects; SVN is good, use it!

Automatic Documentation Good for APIs

Managing Testing

Test, test, test.. Unit Testing (as in JUnit) Debugging

takes up lots of time Big Projects:

ant, BlueJ, Eclipse

65

And for next week...

Monday: GUIs

Thursday: SOFT1902 Quiz! Yay! on all that stuff up to last week
