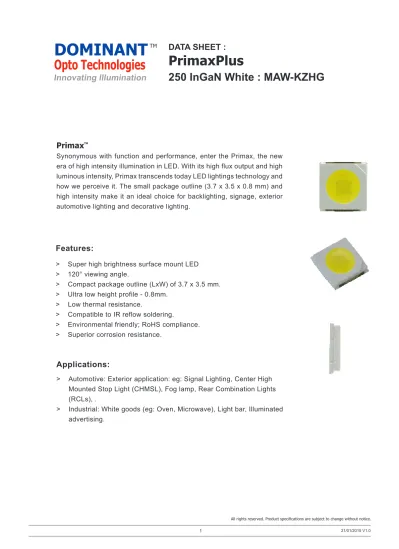

DATA SHEET : PrimaxPlus

(1)

21/01/2015 V1.0 1

Features:

> Super high brightness surface mount LED

> 120° viewing angle.

> Compact package outline (LxW) of 3.7 x 3.5 mm.

> Ultra low height profile - 0.8mm.

> Low thermal resistance.

> Compatible to IR reflow soldering.

> Environmental friendly; RoHS compliance.

> Superior corrosion resistance.

Primax

^TM

Synonymous with function and performance, enter the Primax, the new era of high intensity illumination in LED. With its high flux output and high luminous intensity, Primax transcends today LED lightings technology and how we perceive it. The small package outline (3.7 x 3.5 x 0.8 mm) and high intensity make it an ideal choice for backlighting, signage, exterior automotive lighting and decorative lighting.

DATA SHEET :

PrimaxPlus

250 InGaN White : MAW-KZHG

Applications:

> Automotive: Exterior application: eg: Signal Lighting, Center High Mounted Stop Light (CHMSL), Fog lamp, Rear Combination Lights (RCLs), .

> Industrial: White goods (eg: Oven, Microwave), Light bar, Illuminated advertising.

DOMINANT

Opto Technologies

Innovating Illumination

TM

(2)

21/01/2015 V1.0 2

Part Ordering

Number Color Viewing

Angle˚ Luminous Flux @ 250mA (lm)

NOTE1. Luminous intensity is measured with an accuracy of ± 11%.

2. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.

MAW-KZHG-SU2-1 White 120 51.7

Electrical Characteristics at Tj=25

⁰

C

Vf @ If = 250 mA

3.1

Forward Voltages are tested using a current pulse of 1 ms and has an accuracy of ± 0.1 V.

Part Number

Min. (V) Typ. (V) Max. (V)

MAW-KZHG 2.9 3.4

Unit

Absolute Maximum Ratings

Maximum Value

DC forward current

Peak pulse current (tp<=10μs, Duty cycle=0.005) Reverse voltage

ESD threshold (HBM) LED junction temperature Operating temperature Storage temperature

Thermal resistance

- Junction / solder point, Rth JS

(Mounted on dual sided FR4 in house PCB, total Cu area >900mm2)

300 350

Not designed for reverse bias 4000

150 -40 … +125 -40 … +125

40

mA mA V V

˚C

K/W

Optical Characteristics at Tj=25

⁰

C

Min. Typ. Max.

78.0 99.4

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

Innovating Illumination

TM

(3)

21/01/2015 V1.0 3

Characteristics

Symbol Part Number Value Unit

Temperature coefficient of V_{F (typ)} I_F = 250mA; 0 ˚C <= T <= 100˚C

Temperature coefficient of I_{V (typ)} I_F = 250mA; 0 ˚C <= T <= 100 ˚C Temperature coefficient of Cx_(typ) I_F = 250mA; 0 ˚C <= T <= 100 ˚C Temperature coefficient of Cy_(typ) I_F = 250mA; 0 ˚C <= T <= 100 ˚C

TC_V

TC_IV

TC_Cx

TC_Cy

MAW-KZHG

-2.8

-0.16

-0.00005

-0.00003

mV / K

% / K

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

TM

(4)

21/01/2015 V1.0 4

MAW-KZHG, Color Grouping

Chromaticity coordinate groups are measured with an accuracy of ± 0.01.

Dominant White Bin Structure

1 2 3 4 1

JK Cx 0.2960 0.2910 0.3005 0.3045 0.2960

Cy 0.2590 0.2680 0.2825 0.2715 0.2590

JL Cx 0.291 0.2850 0.2960 0.3005 0.291

Cy 0.2680 0.2790 0.2955 0.2825 0.2680

KK Cx 0.3045 0.3005 0.3100 0.3130 0.3045

Cy 0.2715 0.2825 0.2970 0.2840 0.2715

KL Cx 0.3005 0.2960 0.3070 0.3100 0.3005

Cy 0.2825 0.2955 0.3120 0.2970 0.2825

NK Cx 0.3288 0.3288 0.3386 0.3386 0.3288

Cy 0.3081 0.3282 0.3426 0.3235 0.3081

NL Cx 0.3288 0.3288 0.3386 0.3386 0.3288

Cy 0.3282 0.3453 0.3591 0.3426 0.3282

OK Cx 0.3386 0.3386 0.3484 0.3484 0.3386

Cy 0.3235 0.3426 0.3571 0.3388 0.3235

OL Cx 0.3386 0.3386 0.3484 0.3484 0.3386

Cy 0.3426 0.3591 0.3730 0.3571 0.3426

LK Cx 0.3100 0.3197 0.3205 0.3130 0.3100

Cy 0.2970 0.3131 0.2956 0.2840 0.2970

LL Cx 0.3070 0.3189 0.3197 0.3100 0.3070

Cy 0.3120 0.3302 0.3131 0.2970 0.3120

MK Cx 0.3197 0.3288 0.3288 0.3205 0.3197

Cy 0.3131 0.3282 0.3081 0.2956 0.3131

ML Cx 0.3189 0.3288 0.3288 0.3197 0.3189

Cy 0.3302 0.3452 0.3282 0.3131 0.3302

PK Cx 0.3484 0.3484 0.3582 0.3582 0.3484

Cy 0.3388 0.3571 0.3715 0.3542 0.3388

PL Cx 0.3484 0.3484 0.3582 0.3582 0.3484

Cy 0.3571 0.3730 0.3792 0.3715 0.3571

0.2300 0.2400 0.2500 0.2600 0.2700 0.2800 0.2900 0.3000 0.3100 0.3200 0.3300 0.3400 0.3500 0.3600 0.3700 0.3800 0.3900

0.2700 0.2800 0.2900 0.3000 0.3100 0.3200 0.3300 0.3400 0.3500 0.3600 0.3700

JL JK

KL KK

LL LK

NK NL

OL

ML

PL

PK OK

MK

Bin

0.2960 0.2590 0.291 0.2680 0.3045 0.2715 0.3005 0.2825 0.3288 0.3081 0.3288 0.3282 0.3386 0.3235 0.3386 0.3426 0.3100 0.2970 0.3070 0.3120 0.3197 0.3131 0.3189 0.3302 0.3484 0.3388 0.3484 0.3571 Cx

Cy Cx Cy Cx Cy Cx Cy Cx Cy Cx Cy Cx Cy Cx Cy Cx Cy Cx Cy Cx Cy Cx Cy Cx Cy Cx Cy

0.2910 0.2680 0.2850 0.2790 0.3005 0.2825 0.2960 0.2955 0.3288 0.3282 0.3288 0.3453 0.3386 0.3426 0.3386 0.3591 0.3197 0.3131 0.3189 0.3302 0.3288 0.3282 0.3288 0.3452 0.3484 0.3571 0.3484 0.3730

0.3005 0.2825 0.2960 0.2955 0.3100 0.2970 0.3070 0.3120 0.3386 0.3426 0.3386 0.3591 0.3484 0.3571 0.3484 0.3730 0.3205 0.2956 0.3197 0.3131 0.3288 0.3081 0.3288 0.3282 0.3582 0.3715 0.3582 0.3792

0.3045 0.2715 0.3005 0.2825 0.3130 0.2840 0.3100 0.2970 0.3386 0.3235 0.3386 0.3426 0.3484 0.3388 0.3484 0.3571 0.3130 0.2840 0.3100 0.2970 0.3205 0.2956 0.3197 0.3131 0.3582 0.3542 0.3582 0.3715

1 2 3 4

JK JL KK KL NK NL OK OL LK LL MK ML PK

PL

Dominant color coordinate is measured with an accuracy of ± 0.01.

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

TM

(5)

21/01/2015 V1.0 5

S2 S3 T2 T3 U2

51.7 ... 59.0 59.0 ... 67.2 67.2 ... 76.5 76.5 ... 87.4 87.4 ... 99.4

Brightness Group Luminous Flux IV (lm)

Luminous intensity is measured with an accuracy of ± 11%.

Luminous Intensity Group at Tj=25

⁰

C

Group Forward Voltage (V) Wavelength distribution (nm)

Vf Binning (Optional)

Vf Bin @ 250mA

Forward voltage, Vf is measured with an accuracy of ± 0.1 V.

Please consult sales and marketing for special part number to incorporate Vf binning.

V0 V1 V2

2.70 ... 3.00 3.00 ... 3.30 3.30 ... 3.60

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

TM

(6)

21/01/2015 V1.0 6

Relative Intensity Vs Forward Current

Forward Current; mA

Relative Intensity; Normalized at 150mA

0 100 200 300 400

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

Forward Current vs Forward Voltage

Forward Voltage; V

2 2.5 3 3.5 4 4.5

0 100 200 300 400 500

Relative Intensity Vs Wavelength

Wavelength; nm

400 450 500 550 600 650 700 750 800 0

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Forward Current Vs Ambient Temperature

Ambient Temperature

Variables

0 10 20 30 40 50 60 70 80 90 100 0

20 40 60 80 100 120 140 160 180 200

Rja=90K/W Rja=125K/W

Forward Voltage Vs Forward Current

Relative Intensity Vs Forward Current

Forward Current, mA

Relative Intensity, Normalized at 175mA

0 100 200 300 400

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8

Total Flux Vs Forward Current

Total Flux, lm

0 100 200 300 400

0 1 2 3 4 5 6 7 8 9

Forward Current Vs Forward Voltage

Forward Voltage, V

1.4 1.6 1.8 2 2.2 2.4

0 50 100 150 200 250 300 350

Maximum Forward Current Vs Ambient Temperature

Maximum Forward Current, mA

0 10 20 30 40 50 60 70 80 90 100 0

20 40 60 80 100 120 140 160 180 200

Relative Intensity Vs Wavelength

Wavelength, nm

500 550 600 650 700 750 800

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Forward Current (mA)

Forward Voltage (V)

Relative Flux Vs Forward Current

Relative Flux, Normalized at 250mA

Relative Intensity Vs Forward Current

Relative Intensity; Normalized at 60mA

0 20 40 60 80 100

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8

Forward Voltage Vs Forward Current

Forward Voltage

0 20 40 60 80 100

0 0.5 1 1.5 2 2.5 3 3.5 4

Relative Intensity Vs Wavelength

Wavelength, nm

Relative Intensity

400 500 600 700

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Maximum Current Vs Ambient Temperature

0 10 20 30 40 50 60 70 80 90 100 0

10 20 30 40 50 60 70 80 90 100

Max Pulse Current vs Duty Cycle

Duty Cycle (%); Tp<=10ms

Pulse Current; mA

1 10 100

0 50 100 150 200 250 300

Radiation Pattern

70° 0.2

90°

80°

0 60°

50°

40°

30° 20°

0.6 0.4 1.0 0.8

10° 0°

DOMINANT Opto Technologies

09/09/14 PrimaxPlus 250 InGaN White MAW-KZHG -pv2 Page 7 of 10

PRELIMINARY

UNDER DEVELOPMENT

Engineering reference data are not verified. The specifications are subject to

change without notice.

Relative intensity vs. forward current Forward voltage vs. forward current

Radiation pattern. Color Spectrum

Max Forward Current vs Solder-point Tempearture

70° 0.2

90°

80°

0 60°

50°

40°

30° 20°

0.6 0.4 1.0 0.8 10° 0°

0.0 0.2 0.4 0.6 0.8 1.0 1.2

400 450 500 550 600 650 700 Wavelength (nm)

Relative Emission Intensity

DOMINANT Opto Technologies

09/09/14 PrimaxPlus 250 InGaN White MAW-KZHG -pv2 Page 7 of 10 PRELIMINARY

UNDER DEVELOPMENT Engineering reference data are not verified. The specifications are subject to

change without notice.

Relative intensity vs. forward current Forward voltage vs. forward current

Radiation pattern. Color Spectrum

Max Forward Current vs Solder-point Tempearture

70° 0.2

90°

80°

0 60°

50°

40°

30° 20°

0.6 0.4 1.0 0.8 10° 0°

0.0 0.2 0.4 0.6 0.8 1.0 1.2

400 450 500 550 600 650 700 Wavelength (nm)

DOMINANT Opto Technologies

09/09/14 PrimaxPlus 250 InGaN White MAW-KZHG -pv2 Page 7 of 10

PRELIMINARY UNDER DEVELOPMENT Engineering reference data are not verified. The specifications are subject to

change without notice.

Relative intensity vs. forward current Forward voltage vs. forward current

Radiation pattern. Color Spectrum

Max Forward Current vs Solder-point Tempearture 70° 0.2

90°

80°

0 60°

50°

40°

30° 20°

0.6 0.4 1.0 0.8

10° 0°

0.0 0.2 0.4 0.6 0.8 1.0 1.2

400 450 500 550 600 650 700 Wavelength (nm)

Forward Current (mA)

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

TM

(7)

21/01/2015 V1.0 7

PrimaxPlus • 250 InGaN White: MAW-KZHG Package Outlines

Material

Lead-frame

Package

Encapsulant

Soldering Leads

Cu Alloy With Au Plating High Temperature Resistant Plastic

Silicone Resin

Au Plating

Note: This product is Pb free

DOMINANT Opto Technologies

09/05/14 PrimaxPlus 350 InGaN White MAW-YZHG -pv3.docx Page 1 of 9 PRELIMINARY

UNDER DEVELOPMENT Engineering reference data are not verified. The specifications are subject to

 Super high brightness surface mount LED for automotive applications.

 120 viewing angle.

 Compact package outline (LxW) of 3.7 x 3.5 mm.

 Ultra low height profile – 0.8 mm.

 Low thermal resistance;

 Superior corrosion robustness.

 Compatible to IR reflow soldering.

PrimaxPlus 350mA White: MAW-YZHG

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

TM

(8)

21/01/2015 V1.0 8

Recommended Solder Pad

DOMINANT Opto Technologies

09/05/14 PrimaxPlus 350 InGaN White MAW-YZHG -pv3.docx Page 5 of 9 PRELIMINARY

UNDER DEVELOPMENT Engineering reference data are not verified. The specifications are subject to

Solder Pad Design.

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

TM

(9)

21/01/2015 V1.0 9

Taping and orientation

• Reels come in quantity of 1000 units.

• Reel diameter is 180 mm.

DOMINANT Opto Technologies

09/05/14 PrimaxPlus 350 InGaN White MAW-YZHG -pv3.docx Page 7 of 9

PRELIMINARY

UNDER DEVELOPMENT

Engineering reference data are not verified. The specifications are subject to

change without notice.

Taping And Orientation. Reels come in quantity of 1000 units.

Reel diameters are 180 mm.

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

TM

(10)

21/01/2015 V1.0 10

Packaging Specification

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

TM

(11)

21/01/2015 V1.0 11

Packaging Specification

Average 1pc PrimaxPlus 1 completed bag (1000pcs)

0.034 190 ± 10

Weight (gram)

Cardboard Box

For PrimaxPlus

Weight (gram) 0.041 160 ± 10

DOMINANT

^TM

D/C: date code S/N : serial no

GROUP : group

QTY : product quantity per reel PART NO : partno

LOT NO : lotno Moisture sensitivity level

Moisture absorbent material + Moisture indicator

The reel, moisture absorbent material and moisture indicator are sealed inside the moisture proof foil bag

Reel Barcode label

DOMINANT

ROHS Compliant

PB Free

Label

Dimensions (mm) Empty Box Weight (kg)

300 x 250 x 250 416 x 516 x 476

15 reels MAX 96 reels MAX Small

Large

Reel / Box Quantity / Box (pcs) Cardboard Box

Size

0.58 1.74

15,000 MAX 96,000 MAX

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

TM

(12)

21/01/2015 V1.0 12

Time (sec)

0 50 100 150 200

300

250 225 200 175 150 125 100 75 50 25 275

Temperature (˚C)

Classification Reflow Profile (JEDEC J-STD-020C)

Ramp-up 3˚C/sec max.

255-260˚C 10-30s

60-150s

Ramp- 6˚C/secdown Preheat 60-180s max.

480s max 217˚C

Recommended Pb-free Soldering Profile

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

TM

(13)

Revision History

NOTE

All the information contained in this document is considered to be reliable at the time of publishing. However, DOMINANT Opto Technologies does not assume any liability arising out of the application or use of any product described herein.

DOMINANT Opto Technologies reserves the right to make changes to any products in order to improve reliability, function or design.

DOMINANT Opto Technologies products are not authorized for use as critical components in life support devices or sys- tems without the express written approval from the Managing Director of DOMINANT Opto Technologies.

Page -

Subjects Initial Release

Date of Modification 21 Jan 2015

21/01/2015 V1.0 13

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

TM

(14)

About Us

DOMINANT Opto Technologies is a dynamic Malaysian Corporation that is among the world’s leading SMT LED Manufacturers. An excellence – driven organization, it offers a comprehensive product range for diverse industries and applications. Featuring an internationally certifi ed quality assurance acclaim, DOMINANT’s extra bright LEDs are perfectly suited for various lighting applications in the automotive, consumer and communications as well as in- dustrial sectors. With extensive industry experience and relentless pursuit of innovation, DOMINANT’s state-of-art manufacturing, research and testing capabilities have become a trusted and reliable brand across the globe. More information about DOMINANT Opto Technologies can be found on the Internet at http://www.dominant-semi.com.

DOMINANT

Opto Technologies

Innovating Illumination

TM

Please contact us for more information:

DOMINANT Opto Technologies Sdn. Bhd

Lot 6, Batu Berendam, FTZ Phase III, 75350 Melaka, Malaysia.

Tel: +606 283 3566 Fax: +606 283 0566 E-mail: [email protected]

250 InGaN White: MAW-KZHG

DOMINANT

Opto Technologies

TM
