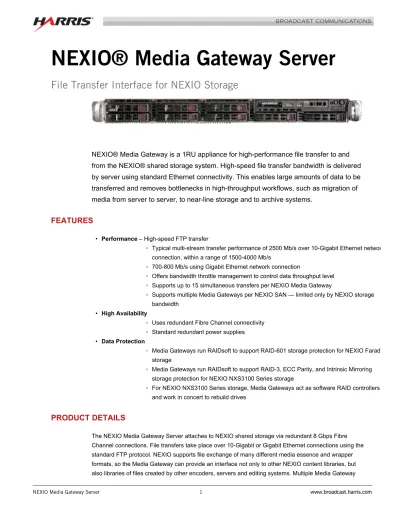

NEXIO® Media Gateway Server
File Transfer Interface for NEXIO Storage
NEXIO® Media Gateway is a 1RU appliance for high-performance file transfer to and
from the NEXIO® shared storage system. High-speed file transfer bandwidth is delivered
by server using standard Ethernet connectivity. This enables large amounts of data to be
transferred and removes bottlenecks in high-throughput workflows, such as migration of
media from server to server, to near-line storage and to archive systems.
FEATURES
• Performance – High-speed FTP transfer
◦ Typical multi-stream transfer performance of 2500 Mb/s over 10-Gigabit Ethernet network connection, within a range of 1500-4000 Mb/s
◦ 700-800 Mb/s using Gigabit Ethernet network connection
◦ Offers bandwidth throttle management to control data throughput level
◦ Supports up to 15 simultaneous transfers per NEXIO Media Gateway
◦ Supports multiple Media Gateways per NEXIO SAN — limited only by NEXIO storage bandwidth
• High Availability
◦ Uses redundant Fibre Channel connectivity
◦ Standard redundant power supplies
• Data Protection
◦ Media Gateways run RAIDsoft to support RAID-601 storage protection for NEXIO Farad storage
◦ Media Gateways run RAIDsoft to support RAID-3, ECC Parity, and Intrinsic Mirroring storage protection for NEXIO NXS3100 Series storage
◦ For NEXIO NXS3100 Series storage, Media Gateways act as software RAID controllers and work in concert to rebuild drives
PRODUCT DETAILS
The NEXIO Media Gateway Server attaches to NEXIO shared storage via redundant 8 Gbps Fibre Channel connections. File transfers take place over 10-Gigabit or Gigabit Ethernet connections using the standard FTP protocol. NEXIO supports file exchange of many different media essence and wrapper formats, so the Media Gateway can provide an interface not only to other NEXIO content libraries, but also libraries of files created by other encoders, servers and editing systems. Multiple Media Gateway
www.broadcast.harris.com
servers are supported, enabling a shared storage system to support many thousands of gigabits of file transfer across multiple devices. Each media gateway can support up to 15 simultaneous transfers, allowing flexible usage of the available bandwidth.
Reliability is a high priority in any NEXIO system. NEXIO Media Gateway redundancy features include hot-swappable power supplies and two-port Fibre Channel connectivity to the NEXIO SAN. Two Gigabit Ethernet ports support redundant Ethernet for the NEXIO network, and multiple 10-Gigabit or Gigabit Ethernet data ports provide file transfer paths in and out of the NEXIO server system.
The Media Gateway server includes NEXIO LLM software and the Emmy® award-winning RAIDsoft software RAID controller. As with all NEXIO devices running RAIDsoft, the Media Gateway provides a real-time system for data I/O and also acts as a software RAID controller, contributing to the data protection operations for NEXIO Farad and NEXIO NXS3100 Series storage systems.
IMAGES/DIAGRAMS
NX1011MGH-10GE Physical Connections
NX1011MGH-GE Physical Connections
SPECIFICATIONS
Specifications and designs are subject to change without notice.
Product Performance
Input/Output interfaces 2 Gigabit Ethernet I/O ports for NEXIO LAN connection External FTP connectivity via:
4 Gigabit Ethernet I/O ports OR
Two 10-Gigabit Ethernet I/O ports
NEXIO Shared storage data connectivity via two 8-Gb/s fibre channel I/O ports 4 USB ports: 2 front, 2 rear
2 PS/2 ports
Performance Gigabit Ethernet interface: 700 Mb/s 10-Gigabit Ethernet interface: 2500 Mb/s
File Exchange Industry-standard FTP protocol
Supported file types include LXF, MXF, MXFXD, DV, AVI, MOV, MP4, GXF, MPG Supported video formats include DVCPro, DVCAM, IMX/D10, MPEG2, AVCHD, AVC-Intra, XDCAM, VC-3 (DNxHD), H.264
www.broadcast.harris.com
Operating System Microsoft Windows 7, 64-bit
Components Solid-State system boot drive
Dual AMD Opteron multi-core processor 16 GB RAM
Front Panel Buttons Power on/off System reset
Universal Information (UID)
LEDs Power status
Drive activity 2 network activity
Universal Information (UID)
System Cooling Fans Six 40x56mm counter-rotating PWM fans
Electrical and Electrical Emissions Summary
Emissions/Safety USA - UL listed, FCC Canada - CUL listed
CCC certification (power supply) EN 60950/IEC 60950-1-07 Europe/CE Mark
Germany - TUV certified RoHS compliant
Power Supply 650 W (1 + 1) redundant AC-DC power supply AC Voltage: 100 to 240 V, 60 to 50 Hz, 8 to 4 Amp 5 V standby: 3 Amp
12 V: 54 Amp
With power distributor:
5 V: 25 Amp 3.3 V: 25 Amp -12V: 0.6 Amp
Power Consumption Typical: 290 W @120 V; 260 W @ 240 V Idle: 150 W @120 V; 140 W @ 240 V
Environmental
Temperature Operating: 50° to 95° F (10° to 35° C) Non-operating: -40° to 158° F (-40° to 70° C)
Humidity Operating: 8% to 90% non-condensing
Non-operating: 5% to 95% non-condensing
Physical Characteristics
Dimensions Height: 1.7 in. (4.3 cm) - 1 RU
Width: 17.2 in. (43.7 cm) - standard 19 in. rackmount Depth: 23.5 in. (59.7 cm)
Weight 26 lbs (11.8 kg)
ORDERING INFORMATION
NX1011MGX-10GE NEXIO Media Gateway 1011 (10GigE): 1RU chassis with dual 8 Gb/s fiber channel interface connection to NXS3100 or Farad storage, hot-swappable redundant power supplies, dual 10Gigabit Ethernet ports and FTP Server software
NX1011MGX-GE NEXIO Media Gateway 1011 (GigE): 1RU chassis with dual 8 Gb/s fiber channel interface connection to NXS3100 or Farad storage, hot-swappable redundant power supplies, quad Gigabit Ethernet ports and FTP Server software
NX1011-10GE-2 Optional 2-port 10Gigabit Ethernet NIC for the NX1011 platform, can be used to upgrade from 1GbE to 10GbE
NX1011SPS Shelf spare 650W power supply for NX1011-based NEXIO Server Products
NX1011SSDSYS Shelf spare solid-state system drive for NX1011-based NEXIO Server Products
NX1011UP-MEM16 System memory upgrade option for NX1011 products; adds 16GB memory for a total of 32GB
NX1011-BASIC 1-Year Basic ServicePAK HW/SW Support for NX1011 NEXIO Server Products
NX1011-GOLD 1-Year Gold ServicePAK HW/SW Support for NX1011 NEXIO Server Products
