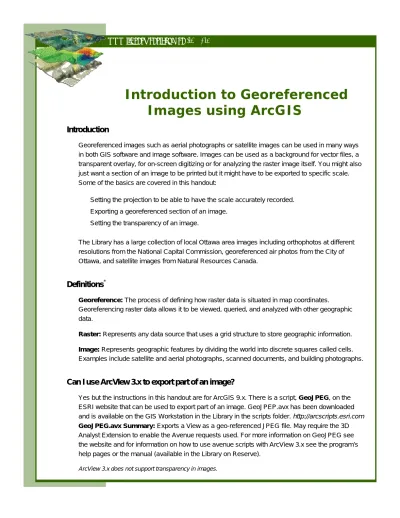

Introduction to Georeferenced

Images using ArcGIS

Introduction

Georeferenced images such as aerial photographs or satellite images can be used in many ways in both GIS software and image software. Images can be used as a background for vector files, a transparent overlay, for on-screen digitizing or for analyzing the raster image itself. You might also just want a section of an image to be printed but it might have to be exported to specific scale. Some of the basics are covered in this handout:

4

Setting the projection to be able to have the scale accurately recorded.

4

Exporting a georeferenced section of an image.

4

Setting the transparency of an image.

The Library has a large collection of local Ottawa area images including orthophotos at different resolutions from the National Capital Commission, georeferenced air photos from the City of Ottawa, and satellite images from Natural Resources Canada.

Definitions

*

Georeference: The process of defining how raster data is situated in map coordinates.

Georeferencing raster data allows it to be viewed, queried, and analyzed with other geographic data.

Raster: Represents any data source that uses a grid structure to store geographic information.

Image: Represents geographic features by dividing the world into discrete squares called cells.

Examples include satellite and aerial photographs, scanned documents, and building photographs.

Can I use ArcVIew 3.x to export part of an image?

Yes but the instructions in this handout are for ArcGIS 9.x. There is a script, GeoJPEG, on the ESRI website that can be used to export part of an image. GeoJPEP.avx has been downloaded and is available on the GIS Workstation in the Library in the scripts folder. http://arcscripts.esri.com

GeoJPEG.avx Summary: Exports a View as a geo-referenced JPEG file. May require the 3D

Analyst Extension to enable the Avenue requests used. For more information on GeoJPEG see the website and for information on how to use avenue scripts with ArcView 3.x see the program’s help pages or the manual (available in the Library on Reserve).

(2)

Page 2 Georeferenced Images using ArcView 9.x

What do I do first in ArcView 8.x?

Start the desktop mapping program ArcGIS (available on the Mapping Workstation in MADGIC). If there is no icon on the desktop go to the Start Menu -> ArcGIS -> ArcMap. You should have already selected the georeferenced image(s) that you want to use. Indexes are available on the GIS website at:

http://www.library.carleton.ca/madgic/ maps/gisweb/index.htm

Some indexes are also available in paper in MADGIC

.

When the program starts

Select from the Dialog

box:

A new empty map

Select

File -> Add Data

or

(3)

Navigate to the folder

that contains the image

file that you require

If the Folder or the

drive is not present in

the Add Data dialog

box use the Connect

to folder

icon

(4)

Select the image file and

then click

Add

If this dialog box appears

select

Build Pyramids

See ArcMap online help

for more details if

(5)

In the Table of Contents

to the left of the display

right click on Layers to

display a menu. Select

Properties. Double click.

An Image might come up

with this error message if the

spatial reference or

projection information is

not available for the

program.

If there is not a prj file

associated with the image

the projection will have to

(6)

The

Data Frame

Properties

Dialog appears.

Navigate to the

Coordinate System

Tab.

Choices include:

•Favorites: For Ottawa area

images select

NAD 1983

MTM9

•Predefined: select the

correct coordinate system.

For City of Ottawa air photos

and NCC orthophotos Navigate

to:

Predefined ->Projected

(7)

Scale

When the Coordinate System is set the Map Scale will appear on the Toolbar as seen below.

The Image can be selected by changing the scale number in the display box

above – If you know the scale that you need type it into the box or use the Pull down menu for some standard selections. Be careful this is where the resolution of the original

raster image file will make a difference - the relationship between distance and pixels in the image. In the National Capital Commission series of orthophotos there is a choice of

1 metre, ½ metre and ¼ meter resolution. The ¼ metre resolution will allow more zooming in without loss of detail. However the smaller the resolution the larger the file

size.

(8)

Zoom in or out and Select the Area Required

The

Map Scale

is now set

in the image to 1:1,000

Select the Zoom in icon

or the Zoom out icon

and with the mouse draw a

rectangle on the image of the

(9)

Exporting a Selected Image as a Georeferenced Image File

In the Map or Display

Window have the image or

section of the image that you

want to export selected

On the File Menu Select

Export Map

To export a georeferenced file

in the

Export Dialog

box

select

Save as Type: TIFF

for

a georeferenced file.

If a georeferenced file is not

required choose the file format

(10)

Setting the Transparency in an Image
