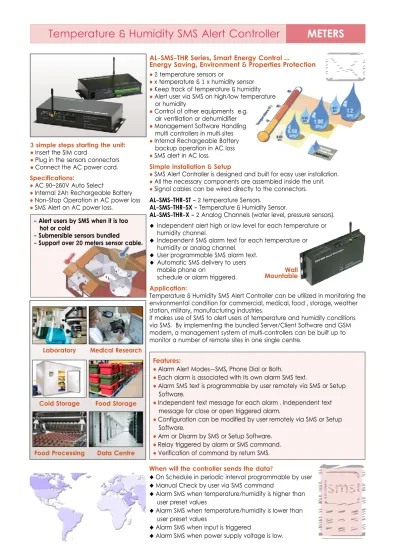

Temperature & Humidity SMS Alert Controller

●2 temperature sensors or

●x temperature & 1 x humidity sensor ●Keep track of temperature & humidity ●Alert user via SMS on high/low temperature or humidity

●Control of other equipments e.g. air ventilation or dehumidifier ●Management Software Handling multi controllers in multi‐sites ●Internal Rechargeable Battery backup operation in AC loss ●SMS alert in AC loss.

AL-SMS-THR Series, Smart Energy Control ... Energy Saving, Environment & Properties Protection

Temperature & Humidity SMS Alert Controller

METERS

Simple Installation & Setup

●SMS Alert Controller is designed and built for easy user installation. ●All the necessary components are assembled inside the unit. ●Signal cables can be wired directly to the connectors.

3 simple steps starting the unit:

●Insert the SIM card

●Plug in the sensors connectors ●Connect the AC power cord.

Specifications:

●AC 90~260V Auto Select

●Internal 2Ah Rechargeable Battery ●Non-Stop Operation in AC power loss

●SMS Alert on AC power loss. AL-SMS-THR-ST - 2 temperature Sensors.AL-SMS-THR-SX - Temperature & Humidity Sensor.

AL-SMS-THR-X - 2 Analog Channels (water level, pressure sensors). ◆ _{Independent alert high or low level for each temperature or} humidity channel.

◆ _{Independent SMS alarm text for each temperature or} humidity or analog channel.

◆ _{User programmable SMS alarm text.} ◆ _{Automatic SMS delivery to users} mobile phone on

schedule or alarm triggered. MountableWall - Alert users by SMS when it is too

hot or cold

- Submersible sensors bundled

- Support over 20 meters sensor cable.

Application:

Temperature & Humidity SMS Alert Controller can be utilized in monitoring the environmental condition for commercial, medical, food , storage, weather station, military, manufacturing industries.

It makes use of SMS to alert users of temperature and humidity conditions via SMS. By implementing the bundled Server/Client Software and GSM modem, a management system of multi‐controllers can be built up to monitor a number of remote sites in one single centre.

Features:

●Alarm Alert Modes—SMS, Phone Dial or Both.

●Each alarm is associated with its own alarm SMS text.

●Alarm SMS text is programmable by user remotely via SMS or Setup Software.

●Independent text message for each alarm . Independent text message for close or open triggered alarm.

●Configuration can be modified by user remotely via SMS or Setup Software.

●Arm or Disarm by SMS or Setup Software. ●Relay triggered by alarm or SMS command. ●Verification of command by return SMS.

Laboratory Cold Storage Food Processing Medical Research Food Storage Data Centre

When will the controller sends the data?

◆On Schedule in periodic interval programmable by user ◆Manual Check by user via SMS command

◆Alarm SMS when temperature/humidity is higher than user preset values

◆Alarm SMS when temperature/humidity is lower than user preset values

◆Alarm SMS when input is triggered

Temperature & Humidity SMS Alert Controller

METERS

Electrical Specification:

●Programmable high/low temp/humidity values

●8 x Alarm Inputs (DC8~15V) N/C, N/O, State Change

●3 x Relay Outputs (Dry Contact) N/C, N/O

●8 x Mobile Phone Number ●2 x Central Station phone number ●User Programmable SMS text for each alarm

●2 x AD Channel: 4 ~ 20mA current type, 12 bit resolution.

Power Input: AC 90~240VA_{DC 7~15V}

Power Consumption Send/Receive SMS: Standby Mode: Max. Rating: 500mA 20mA <2A Operating Temp: ‐50 ~ 70°C Standby: ‐55 ~ 85°C

Model AL-SMS-THR-X AL-SMS-THR-SX AL-SMS-THR-ST Internal AC/DC Adaptor

(90~240VAC) AC or DC power source

Internal Rechargeable

Battery 7.4VDC, 2.0Ah Max. 14 days operation backup

Metal Casing 205 x 105 x 42 mm

Alarm Inputs 8 8 8

Mobile Phone &

Centre Number 10 10 10

AC Power Loss Alert _{  }

AD Channels 2 -

-Temperature Channel - 1 2

Humidity Channel - 1

-Internal 5V output for

sensors    Temperature/Humidity Alert High/Low -   Temperature Sensor: DS18B20 Measuring Range ‐55 ~ 125°C Accuracy ±0.5°C

Humidity Sensor: CHM‐01A

Measuring Range 0 ~ 100% RH

Accuracy ±3% RH

Operating Voltage 3.5 ~ 5.5VDC

Enclosure PVC Housing

Sensor Cable 2 meter (max. 100m)

AL-SMS-THR-SX, Temperature & Humidity Sensors

Temperature Sensor: DS18B20

Measuring Range ‐55 ~ 125°C

Accuracy ±0.5°C

Operating Voltage 3.5 ~ 5.5VDC

Enclosure Steel Housing

Submersible

Sensor Cable 2 meter (max. 100m)

AL-SMS-THR-ST, 2 x Temperature Sensors

AL-SMS-THR:

●90~260VAC Auto Select ●Backup Rechargeable Battery ●Metal Casing

●205 x 105 x 42 mm.

AL-SMS-THC:

●Solar Panel Controller ●Internal Rechargeable Battery

●Aluminum IP67 Enclosure ●280 x 199 x 90 mm.

AL-SMS-THP:

●Internal Rechargeable Battery ●Aluminum IP67 Enclosure ●210 x 130 x 60 mm.

AL-SMS-THV:

●Internal Rechargeable Battery ●IP65 PVC Enclosure

Temperature & Humidity SMS Alert Controller

METERS

AC Power & Rechargeable Battery, 7.4V 2Ah  - -

-Metal Casing  - -

-PVC Casing (IP65 water proof) - _ -

-Aluminum Casing (IP67 water proof) - - _{ }

Rechargeable Battery 7.4VDC, 2Ah - _{ }

-Solar Panel Controller & 12VDC,

2Ah Rechargeable Bat‐tery - - - 

Example: AL-SMS-THC-SX

●Solar Panel & Rechargeable Battery ●Aluminum Casing IP67 water proof ●1 x Temperature & 1 x Humidity.

Order Part Number: AL-SMS-THR/V/P/C-X/SX/ST

-X -SX -ST

AD Channels (standard 4~20mA input) 2 0 0

Temperature Sensor 0 1 2

Humidity Sensor 0 1 0

Max. Sensor Cable Length (meter) - 100m 100m

Free Setup Software

Setup software is ready for configuring SMS Alert Controller via SMS or RS232 port. In addition, mobile phone can be used in sending command or receiving data message.

1. Setting up the controller configuration 2. Receiving the live data from controller.

Sending Command:

Remote setup via SMS by mobile phone comand in SMS format Mobile Phone _{GSM Network} SMS Alret Controllers comand via RS232 Port (SMSPro_Setup) SoftWare RS232 Cable (3 wire cross link) SMS

Alret Controllers

Local setup via RS232

Receiving Data:

Receiving data via SMS by mobile phone Data in SMS format Mobile Phone _{GSM Network} SMS Alret Controllers Data via RS232 Port (SMSPro_Setup) SoftWare RS232 Cable (3 wire cross link) SMS

Alret Controllers

Local receiving data via RS232

SMS Server Software

It provides the data and command management in handling a number of SMS Alert Controllers simultaneously. 1. Configure multi‐controllers locally and remotely

2. Receiving the live data from multi‐controllers locally and remotely 3. Maintaining database in XML/SQL/MySQL/Oracle format

4. Allowing a number of client computers to access the data over the network

Setup multi‐controllers:

Remote setup via SMS

comand in SMS format GSM Modem GSM Network SMS Alret Controllers comand via RS232 Port RS232 Cable (3 wire cross link) SMS

Alret Controllers

Local setup via RS232

Receiving Data from multi‐controllers:

Remote receiving data via SMS Data in SMS format GSM Network SMS Alret Controllers Data via RS232 Port RS232 Cable (3 wire cross link) SMS Alret Controllers

Local receiving data via RS232

(SMSPro_Server)

SoftWare (SMSPro_Server)SoftWare

GSM Modem (SMSPro_Server)

Temperature & Humidity SMS Alert Controller

METERS

Server software

●Keep receiving the SMS from controllers ●Maintain the historical records in database ●Manage clients in accessing the data ●Alert clients in alarm SMS/email/TCP.

Client software

●Keep tracking of temperature/humidity from the server

●Alert user on alarm temperature or humidity . ●Manage live data from multi‐controllers ●Manage controllers in multi‐sites.

Server Client GSM Network SMS Alret Controllers GSM Modem Data via SMS SMS Alert Email Alert SMSPro_Client Data/Alarm on LAN Premium Server - data records - alarm records - devices - clients - emails - mobile phones - alert hl/low levels

Server Software Client Software Web based client Software Feature: Edition SMS Server

(A) Management Software

Receive Data via SMS Yes

Receive Data via RS232 Port Yes

Live Data Display Yes

Database Access/ MySQL / SQL Server / Oracle

XML Yes

Data Export to Excel Yes

Remote Command via SMS Yes

Schedule Command Yes

Batch Command Yes

Temperature & Humidity Alert Yes

Send Alarm Alert via TCP network Yes

Send Alarm Alert via email Yes

Send Alarm Alert via SMS Yes

Alert Users Grouping Yes

Alert Emails Grouping Yes

Multi‐users and Multi‐devices support Yes

Client Software support Yes

Max. SMS Alert Controllers simultaneous support 99999

SMS Devices Management Yes

User Authentication & Management Yes

Network Client Authentication & Management Yes

Web Client support Yes

SDK for user development Yes

(B) Client Software Bundled

Live Data Display Yes

Alarm Alert Yes

Graphic Display of Temperature & Humidity Yes Temperature & Humidity Hi/Low Alert Yes

Historical Data Access Yes

Web Client Support

●Max. 8 digital temperature sensors

●Data communication via SMS and Ethernet ●Integra ted management with office network ●Alarm Data via both SMS and Ethernet. 8 x Digital Temperature Sensors

1 x Digital Humidity Sensor

6 x Analog Temp. or Humidity Sensors Upload data on schedule or alarm Alarm on high/low temp. & humidity User programmable upload interval 4MB Logging Memory

30000 records of readings.

Multipoint SMS Alret Data Logger

METERS

AL-SMS Series,

Smart Energy Control for Building Management & Production Plant

Laboratory Cold Storage Food Processing Medical Research Food Storage Data Centre Application:

It can be utilized in monitoring the environmental condition for commercial building management, medical, food, storage, weather station, military, manufacturing industries.

It alerts users via SMS or Ethernet when any of those 8 x temperature or humidity sensors are too high or low.

When will AL-SMS-THR-HV upload temperature data?

(1) On Schedule

●Data is uploaded in interval ●User Programmable interval (2) Manual Check

●Query by user (3) Alarm Triggered ●High/Low Temperature ●AC Power Loss/Resume.

How it uploads data?

- Sending SMS - RS232 Port - Ethernet

How to receive data?

- NET Server * LAN

- SMS Server * GSM Modem - SMS * Mobile Phone.

AL-SMS-THR-HV Features:

●8 x digital temperature sensors, 1 x digital humidity sensor

●Sensors are powered by internal output, no external power is needed ●6 x analog channel optional for analog temperature or humidity sensors ●Programmable high/low alert level of temperature/humidity

●Independent temperature/humidity alert level for each channel

●Alarm SMS text of each channel is independent and user programmable Each channel has its own alert level and alarm SMS text

●4 x Alarm Inputs, 4 x Relay Outputs

●Device can be configured by SMS using mobile phone or Ethernet using PC ●Device can also be configured by PC setup software via COM port or Ethernet

●All temperature & humidity readings are logged and uploaded via RS232, SMS or Ethernet ●Programmable SMS Data Upload Interval (1 mlnute r- 24 hours)

●Programmable Data Logging Interval (1 min ‹» 60 min)

●4MB Non-volatile Memory storing max. 60 days period or 30000 records ●Live data and logged data can be retrieved over SMS or Ethernet ●Server Client Software ready.

NET Server SMS Server Mobile Phone 8 digital temp. sensors 8 digital humid. sensors 4 relay output

Multipoint SMS Alret Data Logger

METERS

AC Power & UPS

●Internal AC/DC power adaptor ●90 ~ 240VAC, 9~15VDC

●Internal 2000mAh Li-ion battery ●Rechargeable for power backup ●Sends alarm on AC power loss or resume.

Specifications:

Power Input 90~240VAC Auto or 10~15VDC

UPS Backup 2000mA rechargeable battery (average _{14 days operation)}

Internal 5VDC Output 5V, lA max. power supply for temperature _sensors

Sensor rating 1mA each temperature sensor

Power Consumption Standby: 20mA, Data Upload: 500mA

Metal Casing 155 x 172 x 54 mm AD Channel Signal Type: Precision: Alarm Input Relay Output Digital Output: Voltage Output 5VDC: 4 ~ 20mA or 0 ~ 5VDC 12 bit AD converter NO/NC/State Change Max. DC24V @3A, Max. AC230V @lA Sensor power source

Temperature Humidity

Sensor DS18B20 CH1B

Range -55 ~ 1250_{C 1 ~ 100% RH}

Accuracy ±0.50_{C ±5% RH}

Resolution 12 bit (0.06250_{C) 12 bit}

Power Input 3.5~5.5VDC 3.5~5.5VDC

Housing Submersible Steel PVC

Sensor Cable 2 meter (max. 100m) 2 meter (max. 100m)

Temperature & Humidity Sensors

Sensor Options:

Standard ShieldedCable WallMounted ScrewMounted

Specification AL-SMS-THR-HV AL-SMS-THR-HV-NET AL-SMS-HV-NET

Data Transmission SMS & RS232 Ethernet SMS & Ethernet

Alarm Data SMS Ethernet SMS & Ethernet

Device Setup SMS & RS232 Ethernet SMS & Ethernet

Cinterion MC55i GSM Module 850/900/1800/1900MHz - 850/900/1800/1900MHz

RJ45 Port Baud Rate - _{10/100M 10/100M}

Enclosure Metal

Power Input DC 9~15V or AC 90~260V

2Ah Rechargeable Battery Backup Max. 7 days operation backup

AC or Battery Status Alert Alert on AC power loss or resume

Alarm Input / Relay Output 4/4

Analog Channels 6

8 x Temperature Sensors 8 x Submersible (-55~125°C) Steel Housing, 2 meter_{Extendable up to 100 meter sensor cable}

1 x Humidity Sensor o ~ 100% RH, ±3% RH

Built-in 5VDC output to sensors Direct temperature humidity sensors power source

Data Logging Interval Programmable (1 ~ 60 minutes)

Data Upload Interval Programmable (1 minute ~ 24 hours)

Data Upload On Schedule / Manual Request / Alarm Triggered

Internal Memory 4MB

Max. Logged Data 30000 records

Setup Software Local (RS232 or Ethernet) & Remote (optional GSM Modem)

Optional Software SMS or NET Server Client Software

Multipoint SMS Alret Data Logger

METERS

●Programmable High & Low Humid. ●Water Leakage Alarm Input

●Alarm Inputs (DC8~15V) N/C, N/O, State Change

●Relay Outputs (Dry Contact) N/C, N/O

●Mobile Phone Number& Central Station phone number

●User Programmable SMS text for each alarm.

Power Input AC90~240VA, DC 7~15V

Power Consumption: Send/Receive SMS Standby Mode Max. Rating 500mA 20mA <2A Operating Temp. -50 ~ 700_C Standby -55 ~ 850_C

Free Setup Software

Complete set of software is ready for working with (SMS or NET Alert Controller).

Data, Alarm or Command can be delivered via either SMS or Ethernet:

1. Setting up the controller configuration 2. Receiving the live data from controller

AL-SMS-HV-NET support both SMS & Ethernet

How to setup the device? comand in SMS format Mobile Phone GSM Network SMS Alret Controllers comand via RS232 Port (SMSPro_Setup) SoftWare RS232 Cable (3 wire cross link)

comand over network Setup SoftWare GPRS Data Logger SMS Alret Controllers SMS RS232 Ethernet Ethernet

How to receive data from device? Data in SMS format Mobile Phone GSM Network Multipoint Temp. SMS Alarm Data via RS232 Port Setup SoftWare RS232 Cable (3 wire cross link)

Data over network Setup SoftWare Net Data Logger Multipoint Temp. SMS Alarm

SMS Data Upload RS232 Data Upload Ethernet Data Upload

Multipoint SMS Alret Data Logger

METERS

Server software

●Receiving the data from controllers ●Support data from SMS and Ethernet ●Maintain the records in 4 database types ●MySQL, SQL Server, Oracle, Access ●Manage clients in accessing the data ●Alert clients in alarm SMS/email/TCP.

Client software

●Keep tracking of temperature/humidity from the server

●Alert user on alarm temperature or humidity ●Manage live data from multi-dataloggers ●Manage data loggers in multi-sites.

Server Client GSM Network AL-SMS-THR-HV Multipoint Temp. SMS Data Logger GSM Modem Data/Alarm via SMS SMS Alert Email Alert Client Data/Alarm on LAN Premium Server - data records - alarm records - devices - clients - emails - mobile phones - alert hl/low levels

Server Client Software Web based client Software Feature: AL-SMS-HV-NET

Edition SMS Server NET Server

Models supported AL-SMS-THR-HV All models

(A) Server Software

Receive Data via SMS Yes Yes

Receive Data via Ethernet - Yes

Receive Data via RS232 Port Yes

-Live Data Display Yes Yes

Database Access/MySQL/SQL Server/Oracle Access/MySQL/SQL Server/Oracle

XML Yes Yes

Data Export to Excel Yes Yes

Remote Command via SMS Yes Yes

Schedule Command Yes Yes

Batch Command Yes Yes

Temperature & Humidity Alert Yes Yes

Water Leakage Alert Yes Yes

Send Alarm Alert via TCP network Yes Yes

Send Alarm Alert via email Yes Yes

Alert Users Grouping Yes Yes

Alert Emails Grouping Yes Yes

Multi‐users and Multi‐devices support Yes Yes

Client Software support Yes Yes

Max. SMS Alert Controllers simultaneous support 99999

Devices Management Yes Yes

User Authentication & Management Yes Yes

Network Client Authentication & Management Yes Yes

Web Based Access support Yes Yes

Direct data access support for user development Yes Yes

(B) Client Software Bundled Bundled

Live Data Display Yes Yes

Alarm Alert Yes Yes

Graphic Display of Temperature & Humidity Yes Yes

Temperature & Humidity Hi/Low Alert Yes Yes

Historical Data Access Yes Yes

Web Client (Supporting web browser) Yes Yes

GS300 GSM Modem bundled 1 1
