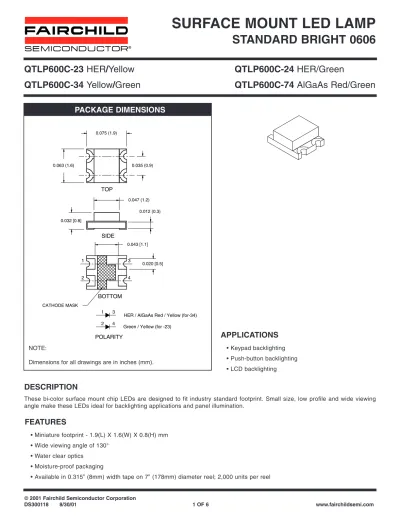

SURFACE MOUNT LED LAMP STANDARD BRIGHT 0606

DESCRIPTION

HER / AlGaAs Red / Yellow (for-34) Green / Yellow (for -23)

POLARITY TOP SIDE BOTTOM 0.075 (1.9) 0.035 (0.9) 0.063 (1.6) 0.047 (1.2) 0.032 [0.8] 0.020 [0.5] 0.043 [1.1] 1 2 3 4 1 2 4 3 0.012 (0.3) CATHODE MASK NOTE:

Dimensions for all drawings are in inches (mm).

PACKAGE DIMENSIONS

APPLICATIONS

• Keypad backlighting • Push-button backlighting • LCD backlighting

Parameter Symbol QTLP600C Units -23 -24 -34 -74 Luminous Intensity (mcd) Minimum I_V 4 / 2.5 4 / 7.5 2.5 / 7.5 10 / 7.5 I_F= 20mA Typical 7 / 4 7 / 12.5 4 / 12.5 20 / 12.5 Forward Voltage (V) Maximum VF 2.8 / 2.8 2.8 / 2.8 2.8 / 2.8 2.4 / 2.8 IF= 20mA Typical 2.0 / 2.0 2.0 / 2.1 2.0 / 2.1 1.9 / 2.1 Wavelength (nm) D_P Peak 635 / 585 635 / 565 585 / 565 660 / 565 I_F= 20mA Dominant DD 630 / 590 630 / 570 590 / 570 645 / 570

Spectral Line Half Width (nm) D 45 / 35 45 / 30 35 / 30 20 / 30 I_F= 20mA

Viewing Angle (°) 201/2 130 130 130 130 IF= 20mA

Parameter Symbol QTLP600C Units -23 -24 -34 -74

Continuous Forward Current IF 30 / 30 30 / 30 30 / 30 30 / 30 mA

Peak Forward Current

I_FM 160 / 160 160 / 160 160 / 160 180 / 160 mA

(f = 1.0 KHz, Duty Factor = 1/10)

Reverse Voltage V_R 5 5 5 5 V

Power Dissipation PD 84 / 84 84 / 84 84 / 84 72 / 84 mW

Operating Temperature T_OPR -40 to +85 °C

Storage Temperature TSTG -40 to +90 °C

Lead Soldering Time T_SOL 260 for 5 sec °C

ELECTRICAL / OPTICAL CHARACTERISTICS

Fig. 3 Relative Intensity vs. Peak Wavelength 1.0 0.5 0 300 350 400 450 500 550 600 650 700 750 RELA TIVE INTENSITY WAVELENGTH (nm)

IF - DC FORWARD CURRENT (mA)

RELA

TIVE LUMNOUS INTENSITY

(NORMALIZED A

T

20 mA)

Fig. 2 Relative Luminous Intensity vs. DC Forward Current 2.0 1.5 1.0 0.5 0.0 0 5 10 15 20 25 30 HER YELLOW GREEN

Fig.5 Maximum Forward Current vs. Ambient Temperature 50 AlGaAs RED GREEN HER AlGaAs RED YELLOW

Fig.4 Radiation Diagram

IF - FOR W A RD CURRENT (mA) VF - FORWARD VOLTAGE (V) Fig. 1 Forward Current vs. Forward Voltage 90 40 50 60 70 80 30 20 10 0 1.0 2.0 3.0 4.0 5.0 YELLOW GREEN HER AlGaAs RED

60 - 120 sec Preheating +5° C/s MAX -5° C/s MAX 120 - 150° C MAX 5 sec MAX soldering time 240° C MAX 0.075 (1.9) 0.035 (0.9) 0.043 (1.1) 0.024 (0.6)

RECOMMENDED PRINTED CIRCUIT BOARD PATTERN

Ø12.75 Ø 62.0± 0.5 Ø 180± 1 2.5±0.5 11.0+0.5-0.0 +0.25 -0.0 +1.5 8.4 -0.0 2.50± 0.5

Progressive direction
