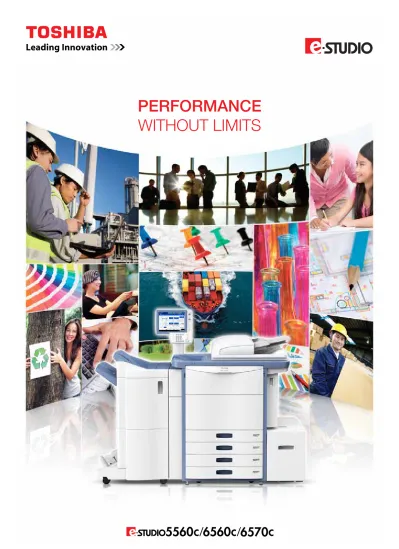

Performance
without limits
High speeds and high
quality colour have a
whole new platform.
with every new series of mFPs, we look to more than a century of advanced toshiba
technology to continually improve speed, performance and functionality. Now, with
the integration of the new generation e-BRiDGE platform, the possibilities are
limitless. in addition to printing 65 brilliant colour pages per minute, the new
e-stuDio6570c series platform provides increased security, connectivity,
manageability, energy savings and best of all, solutions readiness.
Quality and quantity
the e-stuDio6570c series also has what you have come to expect from toshiba — industry-leading image quality, rich colour, crisp text, powerful paper handling and versatile scanning. Designed for medium to large offices that have high-volume demands of the work done in colour, this impressive series delivers up to 65 colour pages per minute and up to 75 in black and white. it also features Gigabit connectivity, standard network scanning and printing as well as optional dual-line, high volume super G3 faxing.
• New Generation e-BRIDGE Platform • Capacity for New Apps • Increased Security • Greater Connectivity • Easy Fleet Management • Colour MFP
• Up to 65 PPM Colour • Up to 75 PPM B&W • Copy, Print, Scan, Fax • Exceptionally Crisp Colour Output
Bright colour,
brilliant architecture.
toshiba’s patented technologies include the enhanced laser image technology that sets the benchmark for the best colour output. e-BRiDGE colour technology provides exceptional colour clarity and precise text renditions, from scanning to copying and printing, along with true 1,200 x 1,200 dpi print resolution and 600 x 600 dpi scan resolution.
however, in today’s environment, mFPs do not only provide exceptional scanning, copying and printing services, they have also become integral it devices. this is also why toshiba restructured the architectural system of e-stuDio6570c series to allow for better system connectivity, improved response speed, and easy fleet management and serviceability.
• 10.4” SVGA Control Panel • Print From/Scan To USB • 12,060 Template Feature Keys • Replenish Paper/Toner On The Fly • Secure MFP
CONVERT
Convert paper documents to electronic files, like word, Excel or PDF from your toshiba e-stuDio mFP. the advanced scanning features of toshiba e-stuDio mFPs make this a reality, and it all happens with the touch of a button. this means the entire process is completely automated allowing your employees to re-edit documents immediately.
CLUSTER
e-BRiDGE Job Point eX allows users to harness the combined output speed of toshiba e-stuDio mFP fleet to deliver astonishing output speeds through the universal Print Driver.
Combine up to 10 toshiba e-stuDio mFPs to print at speeds up to 850 ppm. ideal for large print jobs and tight deadlines!
REPLICATE
still using expensive multi-part forms that require impact printers?
we bring you good news. e-BRiDGE Replicator eX is a simple yet effective toshiba universal Print Driver enhancement that automates multi-copy printing.
simply print the same document to multiple paper sources to create different coloured copies that are easy to recognise and identify.
it even retains settings for future jobs, enabling labour savings and convenience.
For Rapid Output To Edit & Archive
SECURITY
toshiba e-stuDio mFP protects confidential documents and reduces the volume of unnecessary printouts.
with secure Print, users print jobs to a virtual queue and releases them for printing to any toshiba e-stuDio mFP.
COLLABORATION
Combines multiple formats for printing and finishing.
Do you manually compile reports, tenders or documents from multiple formats such as word, Excel and PDF? with one click, e-BRiDGE Job Build eX automatically combines various file formats, paper types and settings into one neatly printed document.
For Security
E.g. Monthly Reports
For people on the go
secure Print also requires user authentication. simply swipe your card or enter an account code to collect confidential documents.
in addition, the authorisation of print jobs, prior to release is supported by managers, teachers or system administrator.
MOBILITY
e-BRiDGE Print & Capture is an application that allows you to utilise toshiba e-stuDio mFPs to print and scan from your mobile device.
You can discover e-stuDio mFPs on your network, select from a list of your most recently used mFPs or choose your mFP by scanning the displayed QR code.
Technology leaders,
managed print specialists.
Doing more for our planet
toshiba has always worked hard to keep environmental impact to a minimum, developing many of the world’s leading technologies to conserve energy and protect the environment. the e-stuDio6570c series is proof of that. A dramatic reduction in power consumption during its sleep mode — down to 5w — has been achieved, as well as an overall reduction of power by as much as 40%. the new design incorporates approximately 30% recycled plastics, which is part of the reason there has been an impressive reduction in carbon dioxide. this new line of mFPs also qualifies for Energy star tier 2 compliance.
Better Security
toshiba’s self-Encrypting hard Disk Drive is now a standard feature in e-stuDio6570c series. it improves data security and reduces the risk of stored sensitive information in the e-stuDio6570c series from being leaked.
this new technology allows users to determine a range of security settings, including invalidation of encryption keys and data invalidation when a drive is removed from its housing or connected to an unauthorised host system. when the hDD is removed or stolen from the e-stuDio6570c series and installed into another device, the hDD data is erased automatically.
At the end of the mFP lease or life, the data can be instantly erased by the service technician.
in addition to improved functionality, connectivity, and solutions readiness, the
new e-stuDio6570c series also allows for increased security, energy savings,
and manageability. while our previous mFPs were excellent in those categories,
at toshiba, we do not simply settle for excellence.
Drawing on a rich lineup of flexible options, you can easily, quickly and
inexpensively perform bookbinding, binding and finishing tasks on the
new e-stuDio6570c series.
e-BrIDGe ID Gate efI fiery controller faX Unit
2nd Line for faX Unit Wireless Lan module antenna for Wireless Lan
KP-2004/2005 GA-1310E-EX GD-1270AS-FN GD-1260AU-F GN-1060 GN-3010 • Saddle Stitch Finisher MJ-1104 • Finisher MJ-1103 • Hole Punch
MJ-6102E • Side Exit TrayKA-6550-ET
• Standard Bypass (100 sheets) • Standard Drawer (540 sheets x 2) • Standard Tandem LCF (2,320 sheets) • LCF (Large Capacity Feeder) (2,500 sheets) MP-2501A System Options
Data overwrite enabler IPSec enabler
Hardcopy Security Printing Harness kit for coin controller meta Scan enabler
external Interface enabler
GP-1070 GP-1080 GP-1190A GQ-1200 GS-1010 GS-1020
General Copy Print Scan e-Filing Fax (Option) Options Copying/Printing process
Print & Copy Speed Warm-up Time Paper Size & Weight
Paper Capacity Processor Memory HDD Control Panel Dimensions Weight (Approx) Power Consumption Operation Noise Dimensions
indirect electrostatic photographic method Black: 55/65/75 (A4 size) Colour: 55/65/65 (A4 size) After Power on: 180 sec. From sleep mode: 180 sec. From low Power: 70 sec.
Drawer: 320 x 460mm - A5R / 64 - 256gsm tandem lCF: A4 / 64 - 256gsm
Bypass (multi feed): 13” x 19” - A6R / 64 - 300gsm Banner ( 313.4 x 1200mm) /90 - 163gsm Duplex: 320 x 460mm - A5R / 64 - 256gsm std 3,500 sheets (80gsm) max 6,000 sheets (80gsm) Power PC Freescale mPC8536E 1.5 Ghz main memory : 1GB
Page memory : 1GB 320 GB toshiBA secure hDD 10.4” lCD touch-screen & Key top
w980 x D698 x h1,540 (mm) (Control panel height at maximum) 243 kg
max. 2.4 kw (220 - 240V) idling: 54 dB (A) Copying: 71 dB (A)
Max. Original Size Resolution Original Scan Speed Multiple Copy Qty First Copy Copy Mode
Job Memory
Resolution
Page Description Languages Interface Network Protocol Resolution Scan Speed File Formats Supported Destination Number of Boxes Number of Folders Number of Documents Number of Pages Compatibility
Data Compression Method Modem Speed Transmission Speed Memory Capacity
Finisher
Saddle Stitch Finisher Hole Punch Unit Staple Cartridge Staple Cartridge Finisher Guide Rail Large Capacity Feeder Side Exit Tray Manual Pocket EFI Controller FAX Unit 2nd Line for FAX Unit Wireless LAN Module Antenna
Harness for Coin Controller Data Overwrite Enabler e-BRIDGE ID Gate (HID) e-BRIDGE ID Gate (Mifare) Meta Scan Enabler IPSec Enabler External Interface Enabler Unicode Font Enabler FIPS HDD Option Hardcopy Security Printing e-BRIDGE Re-Rite e-BRIDGE Replicator eX e-BRIDGE Job Point eX e-BRIDGE Job Separator eX e-BRIDGE Job Built eX
A3
scanning 600dpi x 600dpi, 10bit / 1,024step Printing 600 dpi x 600 dpi, 8bit
2400dpi x 600dpi, 1bit (Bw) 60spm (A4 size, 100% single side copy) 1-9999 (ten key input)
B&w: 5.3 sec. (es5560c/6560c) 4.6 sec. (es6570c)
Colour: 6.5 sec. (es5560c/6560c/6570c) Black mode text, text/Photo, Photo, image smoothing Full Colour mode text, text/Photo, Photo, Printed image, map twin Colour mode text, text/Photo, Printed image mono Colour mode Applicable to 10 colours text, text/Photo,
Photo, Printed image, map Auto Colour selection text, text/Photo, Printed image 12,060 template
600dpi x 600dpi, 8bit 1,200dpi x 1,200dpi, 2bit
PCl5e, PCl5c, PCl6(PCl Xl), Ps3, PDF, XPs 10/100/1000baset, usB 2.0/hi speed usB iPX/sPX, tCP/iP (iPv4,iPv6), Ethertalk, NetBios over tCP/iP
600dpi x 600dpi up to 77 spm (300dpi)
B&w: tiFF, PDF, XPs
Grayscale/Colour: tiFF, PDF, XPs, JPEG, slim PDF ACs: single Page: tiFF
multi/single page: PDF, XPs local hDD, e-Filing, e-mail, FtP, usB, FtPs, smB, sharePoint, iFAX, FAX, ws scan, twAiN, mobile Device
1 Public Box, 200 user Boxes 100 per Box 400 per Folders 200 per Document super G3, G3 JBiG, mmR, mR, mh 33.6kbps - 2.4kbps (Automatic fallback) Approx. 3 sec. 1GB (toshiBA secure hDD) mJ-1103 mJ-1104
mJ-6102E 2 holes (80mm pitch) stAPlE-2400 for mJ-1103, 1104
stAPlE-3100 for mJ-1104 (saddle-stitch cartridge) KN-1103 mP-2501A KA-6550-Et KK-8560 GA-1310E-EX GD-1270As-FN GD-1260Au-F GN-1060 GN-3010 GQ-1200 GP-1070 KP-2004 KP-2005 Gs-1010 GP-1080 Gs-1020 Gs-1007 GE-1230 GP-1190A
GB-1280 Advance scanning solutions
GB-1550 Printer Driver Plug-in (node/subnet/domain license) GB-1560 Printer Driver Plug-in (node/subnet/domain license) GB-1590 Printer Driver Plug-in (node/subnet/domain license) GB-1610 Printer Driver Plug-in (node/subnet/domain license)
Distributed by
specification for e-STUDIO 5560c/6560c/6570c
this is Class 1 laser product complying with iEC60825-1.
