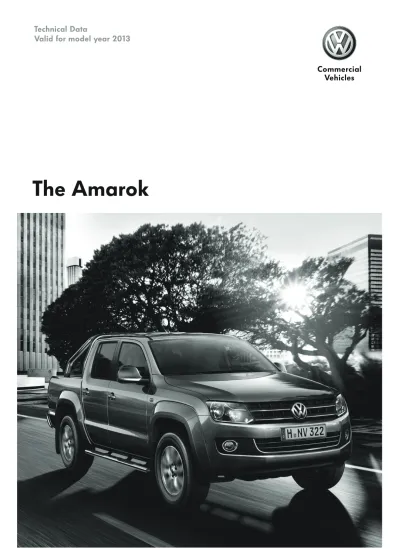

Technical Data Valid for model year The Amarok

(1)

Technical Data

Valid for model year 2013

(2)

02 – General information – The Amarok

Information on fuel consumption and CO₂ emissions can be found within the technical data.

Not all combinations of engine, gearbox and auto body design are possible. Please discuss your individual requirements with your Volkswagen Commercial Vehicles dealer. Only your Volkswagen Commercial Vehicles dealer is able to check the necessary combination requirements as well as verify the accuracy and completeness of data in the purchasing system. The payloads listed here have been established allowing for factory options or other tailored solutions that are not included in the standard scope of delivery and services. The actual payload of a vehicle, which is calculated by the difference between the gross vehicle weight and the curb weight, can only be established by weighing the individual vehicle. The product name Caddy®_{is a registered brand name of Caddie S.A. and is used by Volkswagen Commercial Vehicles with the kind approval of Caddie S.A.}

TDI®_{, DSG}®_{, Shiftmatic}®_{, 4MOTION}®_{and BlueMotion}®_{are registered brand names of Volkswagen AG and other companies in the Volkswagen Group in Germany as well as in other} countries. The fact that a brand name in this document is not marked with ® does not mean that it is not a registered brand name and/or that this brand name may be used without the written approval of the Volkswagen AG. Not all brand names mentioned are necessarily a part of these technical details.

Our vehicles are equipped with summer tyres as standard. As of the 12.04.2010, in the Federal Republic of Germany you are legally oblieged to equipe your vehicle in icy conditions, packed snow, slash, ice or hoar frost with winter tyres or all seasons tyres. Please contact your Volkswagen Commercial Vehicles dealer for assistance.

Take-back and recycling of end of life vehicles:

Volkswagen meets the challenges of modern society and takes them into consideration in all new products of the Volkswagen brand. This naturally also applies to protection of the environment and resources. All new Volkswagens can therefore be recycled in an environment-friendly way and can be returned free of charge, subject to fulfilment of national legislation. For details concerning take-back and recycling of end of life vehicles, please contact your local Volkswagen dealer, refer to the Internet on www.volkswagen.de or call the hotline +49 800 - Volkswagen (+49 800 865 579 2436), free for callers in Germany.

The data provided in this data sheet is in accordance with the information available at the time of going to print and are based on the features of the German market. Your Volkswagen dealer can provide you with information on country-specific differences.

(3)

– Fuel consumption and CO2 emissions – The Amarok The Amarok – Fuel consumption and CO2 emissions – The fuel consumption and emission values listed here have been ascertained in accordance with the measuring method stipulated (ECE-R 101 directive 80/1268/EWG which is currently valid). CO2 emissions arising from the production and provision of fuel and/or other energy sources are not taken into consideration when determining the CO2 emissions in accordance with directive 1999/94/EC. These figures do not refer to a particular vehicle and do not constitute part of the offer but are purely for comparison purposes between the various types of vehicle. In addition to the fuel efficiency of a vehicle, driving behaviour as well as other non-technical factors play a role in determining a vehicle’s fuel consumption and CO2 emissions. CO2 is the main greenhouse gas responsible for global warming.

Fuel consumption and CO

₂

emissions.

With manual gearbox, fuel consumption (litres/100 km) and combined CO

₂

emissions (g/km), fuel tank capacity approx. 80 litres

Engine/

model

2.0 l TSI

(118 kW)

rear-wheel drive

2.0 l TDI

(103 kW)

rear-wheel drive

2.0 l TDI

(103 kW)

4MOTION

engageable

2.0 l BiTDI

(132 kW)

rear-wheel drive

2.0 l BiTDI

(132 kW)

4MOTION

engageable

Amarok DoubleCab

urban

12.7

9.4

9.5

9.7

9.8 extra-urban

7.9

6.7

6.8

7.0

6.9 combined

9.6

7.6

7.7

7.9

8.0 CO

2

emissions combined

228

199

203

208

211 With automatic gearbox, fuel consumption (litres/100 km) and combined CO

2

emissions (g/km), fuel tank capacity approx. 80 litres

Engine/

model

2.0 l BiTDI

(132 kW)

4MOTION

permanent

Amarok DoubleCab

urban

10.1 extra-urban

7.3 combined

8.3 CO

2

emissions combined

219

(4)

The Amarok – Engines –

– Engines – The Amarok

*The use of 95 RON unleaded sulfur-free super petrol in accordance with DIN EN 228 is recommended. The use of 91 RON sulfur-free petrol in accordance with DIN EN 228 is possible, in this case a slight decrease in performance or higher fuel consumption must be reckoned with. Fuel quality unleaded with 95 RON with a maximum ethanol blend of 10 percent (E10) is generally suitable. For detailed information on E10 fuel compatibility, please refer to www.volkswagen.de or www.dat.de/e10liste/e10vertraeglichkeit. The performance and fuel consump-tion figures listed are based on the use of 95 RON unleaded sulfur-free super petrol in accordance with DIN EN 228.

Engines.

Petrol engine/Diesel engine

2.0 l TSI engine (118 kW)

2.0 l TDI engine (103 kW)

Mixture preparation/injection method

direct injection/exhaust-gas turbocharger

common rail direct injection

No. of cylinders

4

4 Cubic capacity, cm

3

_1,984

_1,968

Output, kW at rpm

118 at 3,800 – 5,500

103 at 3,500

Max. torque, Nm/rpm

300/1,600 – 3,750

340/1,600 – 2,250

EU exhaust emission directive

according to ECE-R 83.05, Euro 4

6-speed manual gearbox

standard

8-speed automatic gearbox

–

Rear-wheel drive

standard

4MOTION engageable

–

standard

4MOTION permanent

–

Type of fuel

premium unleaded/regular petrol

in accordance with DIN EN 228 RON 95/91*

diesel, in accordance with DIN EN 590

Diesel engines

2.0 l BiTDI engine (132 kW)

Mixture preparation/injection method

common rail direct injection

No. of cylinders

4

4 Cubic capacity, cm

3

_1,968

Output, kW at rpm

132 at 4,000

Max. torque, Nm/rpm

400/1,500 – 2,250

420/1,750

EU exhaust emission directive

according to ECE-R 83.05, Euro 4

6-speed manual gearbox

standard

–

8-speed automatic gearbox

–

standard

Rear-wheel drive

standard

–

4MOTION engageable

standard

–

4MOTION permanent

–

standard

Type of fuel

diesel, in accordance with DIN EN 590

engine speed [rpm] tor que [ Nm] output [kW]

118 kW

2.0 l TSI, manual gearbox (Euro 4) 140 80 60 40 20 250 200 150 100 50 300 100 120 1000 2000 3000 4000 5000 6000 118 kW 300 Nm engine speed [rpm] tor que [ Nm] output [kW]

103 kW

1000

2.0 l TDI, manual gearbox (Euro 4) 140 80 60 40 20 250 200 150 100 50 300 400 350 100 120 2000 3000 4000 5000 103 kW 340 Nm engine speed [rpm] tor que [ Nm] output [kW]

132 kW

1000

2.0 l BiTDI, manual gearbox (Euro 4) 140 80 60 40 20 250 200 150 100 50 300 400 350 100 120 2000 3000 4000 5000 400 Nm 132 kW engine speed [rpm] tor que [ Nm] output [kW]

132 kW

1000

2.0 l BiTDI, automatic gearbox (Euro 4) 140 80 60 40 20 250 200 150 100 50 300 400 350 450 100 120 2000 3000 4000 5000 500 420 Nm 132 kW

(5)

– Performance – The Amarok The Amarok – Performance –

1) Measured in 5th gear, or position D with an automatic gearbox. 2) Reached in 5th gear, or 7th gear with an automatic gearbox.

Performance.

Engine

Output

(kW)

Acceleration

(kph. s)

0 – 80

0 – 100

Flexibility

(kph. s)

80 – 120

1)

Top speed

(kph)

2)

Amarok DoubleCab

2.0 l TSI

118

6.7

9.9

14.4

180 2.0 l TDI

103

8.4

13.5

12.5

163 2.0 l TDI 4MOTION engageable

103

8.7

13.7

13.5

161 2.0 l BiTDI

132

7.1

10.3

10.5

184 2.0 l BiTDI 4MOTION engageable

132

7.3

10.6

11.0

183 2.0 l BiTDI 4MOTION permanent,

(6)

The Amarok – Weights –

– Weights – The Amarok

Weights

Gross

vehicle

weight

(kg)

Engine

Output

(kW)

Seats

Unladen weight

with driver

(kg)

1), 2)

from – to

Payload

(kg)

1), 2)

from – to

Axle load limit

front/rear

(kg)

Trailer weight

braked, 12 %

gradient/

unbraked

(kg)

Gross train

weight

12 % gradient

(kg)

Amarok DoubleCab

2,820

2.0 l TSI

118

5 1,850 – 2,068

970 – 752

1,300/1,620

2,800/750

5,550

2.0 l TDI

103

5 1,868 – 2,096

952 – 724

1,315/1,620

2,800/750

5,550

2.0 l TDI 4MOTION

engageable

103

5 1,931 – 2,175

889 – 645

1,375/1,620

3,000/750

5,550

2.0 l BiTDI

132

5 1,888 – 2,116

932 – 704

1,325/1,620

2,800/750

5,550

2.0 l BiTDI 4MOTION

engageable

132

5 1,951 – 2,195

869 – 625

1,385/1,620

3,000/750

5,550

2.0 l BiTDI 4MOTION

permanent, automatic

gearbox

132

5 1,975 – 2,203

845 – 617

1,415/1,620

3,200/750

5,950

3,040

3)

_{2.0 l TSI}

₁₁₈

₅

_{1,871 – 2,074}

_{1,169 – 966}

_1,310/1,860

_3,000/750

_5,550

2.0 l TDI

103

5 1,889 – 2,117

1,151 – 923

1,325/1,860

3,000/750

5,550

2.0 l TDI 4MOTION

engageable

103

5 1,968 – 2,196

1,072 – 844

1,375/1,860

3,000/750

5,550

2.0 l BiTDI

132

5 1,909 – 2,137

1,131 – 903

1,335/1,860

3,000/750

5,550

2.0 l BiTDI 4MOTION

engageable

132

5 1,988 – 2,216

1,052 – 824

1,385/1,860

3,000/750

5,550

2.0 l BiTDI 4MOTION

permanent, automatic

gearbox

132

5 1,996 – 2,224

1,044 – 816

1,415/1,860

3,200/750

5,950

1) Equipment can result in an increase/decrease in the unladen weight and consequently affect the payload. Please consult your Volkswagen Commercial Vehicle partner. 2) For Amarok DoubleCab with a hardtop (optional extra), the unladen weight increases by 90 kg and the payload is accordingly lower. 3) With heavy-duty suspension.

Roof load limit 100 kg.

Trailer nose weight 120 kg with manual gearbox, 130 kg with automatic gearbox.

For commercial use: in accordance with EU directive 3820/85, a tachograph is stipulated by law as of a gross train weight of 3.5 tonnes. Retrofitting of a tachograph is possible on all vehicles.

The payloads listed here have been established allowing for factory options or other tailored solutions that are not included in the standard scope of delivery and services. The actual payload of a vehicle, which is calculated by the difference between the gross vehicle weight and the curb weight, can only be established by weighing the individual vehicle.

Amarok Chassis DoubleCab

2,820

2.0 l TSI

118

5 1,732 – 1,916

1,088 – 904

1,300/1,620

2,800/750

5,550

2.0 l TDI

103

5 1,750 – 1,944

1,070 – 876

1,315/1,620

2,800/750

5,550

2.0 l TDI 4MOTION

engageable

103

5 1,813 – 2,023

1,007 – 797

1,375/1,620

3,000/750

5,550

2.0 l BiTDI

132

5 1,770 – 1,964

1,050 – 856

1,325/1,620

2,800/750

5,550

2.0 l BiTDI 4MOTION

engageable

132

5 1,833 – 2,043

987 – 777

1,385/1,620

3,000/750

5,550

2.0 l BiTDI 4MOTION

permanent, automatic

gearbox

132

5 1,857 – 2,051

963 – 769

1,415/1,620

3,200/750

5,950

3,040

3)

_{2.0 l TSI}

₁₁₈

₅

_{1,753 – 1,937}

_{1,287 – 1,103}

_1,310/1,860

_3,000/750

_5,550

2.0 l TDI

103

5 1,771 – 1,965

1,269 – 1,075

1,325/1,860

3,000/750

5,550

2.0 l TDI 4MOTION

engageable

103

5 1,850 – 2,044

1,190 – 996

1,375/1,860

3,000/750

5,550

2.0 l BiTDI

132

5 1,791 – 1,985

1,249 – 1,055

1,335/1,860

3,000/750

5,550

2.0 l BiTDI 4MOTION

engageable

132

5 1,870 – 2,064

1,170 – 976

1,385/1,860

3,000/750

5,550

2.0 l BiTDI 4MOTION

permanent, automatic

gearbox

132

5 1,878 – 2,072

1,162 – 968

1,415/1,860

3,200/750

5,950

(7)

– Dimensional drawings – The Amarok The Amarok – Dimensional drawings –

*In the front/rear view, the measure of ground clearance under the front or rear axle is shown. With 4MOTION engageable (engine/tank underrun protection standard): ground clearance under the front axle 192 mm, 244 mm between the axles, ramp angle 21.4°.

All measurements listed are based on series vehicles. Because of manufactoring tolerances/tyre sizes/type of chassis, the actual dimensions may differ slightly from the values stated here. The vehicle drawings are not to scale.

Amarok DoubleCab*

Amarok DoubleCab Trendline/Amarok DoubleCab Highline

898 1834 2228 16 20 1555 13 64 12 22 1188 28° 28° 1944 3095 5181 230 203 250 780 508 23°

* -10 mm with Amarok DoubleCab Trendline. 898 1834 2228 16 20 1555 13 64 12 22 1261 28° 23.6° 1954* 3095 5254 230 203 250 780 508 23°

load area

2.52 m

2

_{load area}

_{2.52 m}

2

wading depth

500 mm

wading depth

500 mm

turning circle

12.95 m

turning circle

12.95 m

Amarok Chassis DoubleCab*

898 28° 1944* 3095 230 4979 986 250 1834 2228 203

* +10 mm with Amarok Chassis DoubleCab Highline.

23°

wading depth

500 mm

turning circle

12.95 m

(8)

265.1190.37.18 • Printed in Germany

Subject to change without notice

Issue: May 2012
