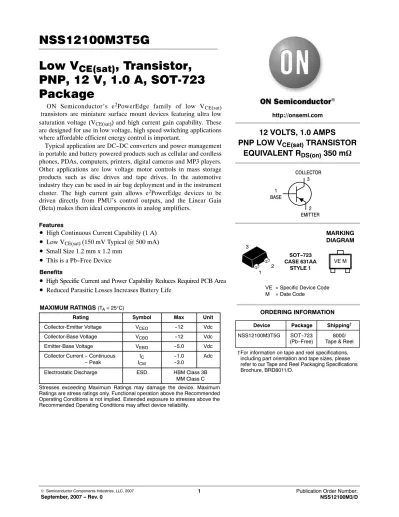

NSS12100M3T5G. Low V CE(sat), Transistor, PNP, 12 V, 1.0 A, SOT-723 Package. 12 VOLTS, 1.0 AMPS PNP LOW V CE(sat) TRANSISTOR EQUIVALENT R DS(on) 350 m

(1)

NSS12100M3T5G

Low V

_CE(sat)

, Transistor,

PNP, 12 V, 1.0 A, SOT-723

Package

ON Semiconductor's e

2 _{PowerEdge family of low V}

_CE(sat)

transistors

are miniature surface mount devices featuring ultra low

saturation voltage (V

CE(sat)

) and high current gain capability. These

are designed for use in low voltage, high speed switching applications

where affordable efficient energy control is important.

Typical application are DC-DC converters and power management

in portable and battery powered products such as cellular and cordless

phones, PDAs, computers, printers, digital cameras and MP3 players.

Other applications are low voltage motor controls in mass storage

products such as disc drives and tape drives. In the automotive

industry they can be used in air bag deployment and in the instrument

cluster. The high current gain allows e

2 PowerEdge devices to be

driven directly from PMU's control outputs, and the Linear Gain

(Beta) makes them ideal components in analog amplifiers.

Features

• High Continuous Current Capability (1 A)

• Low V

CE(sat)

(150 mV Typical @ 500 mA)

• Small Size 1.2 mm x 1.2 mm

• This is a Pb-Free Device

Benefits

• High Specific Current and Power Capability Reduces Required PCB Area

• Reduced Parasitic Losses Increases Battery Life

MAXIMUM RATINGS

(T

A

= 25

°C)

Rating

Symbol

Max

Unit

Collector‐Emitter Voltage

V

CEO

-12

Vdc

Collector‐Base Voltage

V

CBO

-12

Vdc

Emitter‐Base Voltage

V

EBO

-5.0

Vdc

Collector Current - Continuous

Collector Current

- Peak

I

C

I

CM

-1.0

-3.0

Adc

Electrostatic Discharge

ESD

HBM Class 3B

MM Class C

Stresses exceeding Maximum Ratings may damage the device. Maximum

Ratings are stress ratings only. Functional operation above the Recommended

Operating Conditions is not implied. Extended exposure to stresses above the

Recommended Operating Conditions may affect device reliability.

http://onsemi.com

12 VOLTS, 1.0 AMPS

PNP LOW V

_CE(sat)

TRANSISTOR

EQUIVALENT R

DS(on)

350 m

W

Device

Package

Shipping

†

ORDERING INFORMATION

SOT-723

CASE 631AA

STYLE 1

MARKING

DIAGRAM

COLLECTOR

3

1 BASE

2 EMITTER

NSS12100M3T5G

SOT-723

(Pb-Free)

8000/

Tape & Reel

VE = Specific Device Code

M

= Date Code

VE M

†For information on tape and reel specifications,

including part orientation and tape sizes, please

refer to our Tape and Reel Packaging Specifications

Brochure, BRD8011/D.

3

2

1

(2)

NSS12100M3T5G

http://onsemi.com

2 THERMAL CHARACTERISTICS

Characteristic

Symbol

Max

Unit

Total Device Dissipation

T

A

= 25

°C

Derate above 25

°C

P

D

(Note 1)

460

3.7 mW

mW/

°C

Thermal Resistance,

Junction-to-Ambient

R

_qJA

(Note 1)

270 _°C/W

Total Device Dissipation

T

_A

= 25

_°C

Derate above 25

°C

P

_D

(Note 2)

625

5.0 mW

mW/

°C

Thermal Resistance,

Junction-to-Ambient

R

_qJA

(Note 2)

200 °C/W

Thermal Resistance,

Junction-to-Lead 3

R

_qJL

105 °C/W

Junction and Storage

Temperature Range

T

J

, T

stg

-55 to +150

°C

ELECTRICAL CHARACTERISTICS

(T

J

= 25

°C unless otherwise noted)

Characteristic

Symbol

Min

Typ

Max

Unit

OFF CHARACTERISTICS

Collector-Emitter Breakdown Voltage, (I

C

= -10 mAdc, I

B

= 0)

V

(BR)CEO

-12

-

Vdc

Collector-Base Breakdown Voltage, (I

C

= -0.1 mAdc, I

E

= 0)

V

(BR)CBO

-12

-

Vdc

Emitter-Base Breakdown Voltage, (I

E

= -0.1 mAdc, I

C

= 0)

V

(BR)EBO

-5.0

-

Vdc

Collector Cutoff Current, (V

CB

= -12 Vdc, I

E

= 0)

I

CBO

-

-0.01

-0.1

mAdc

Emitter Cutoff Current, (V

CES

= -5.0 Vdc, I

E

= 0)

I

EBO

-

-0.01

-0.1

mAdc

ON CHARACTERISTICS

DC Current Gain (Note 3)

(I

C

= -10 mA, V

CE

= -2.0 V)

(I

C

= -500 mA, V

CE

= -2.0 V)

(I

C

= -1.0 A, V

CE

= -2.0 V)

h

FE

200

120

80 -Collector-Emitter Saturation Voltage (Note 3)

(I

C

= -0.05 A, I

B

= -0.005 A) (Note 4)

(I

C

= -0.1 A, I

B

= -0.002 A)

(I

C

= -0.1 A, I

B

= -0.010 A)

(I

C

= -0.5 A, I

B

= -0.050 A)

(I

C

= -1.0 A, I

B

= -0.100 A)

V

CE(sat)

--0.030

-0.060

-0.040

-0.155

-0.350

-0.035

-0.080

-0.060

-0.220

-0.410

V

Base-Emitter Saturation Voltage (Note 3)

(I

C

= -1.0 A, I

B

= -0.01 A)

V

BE(sat)

-

0.95 -1.15

V

Base-Emitter Turn-on Voltage (Note 3)

(I

_C

= -2.0 A, V

_CE

= -2.0 V)

V

BE(on)

-

-1.05

-1.15

V

SMALL-SIGNAL CHARACTERISTICS

Input Capacitance (V

EB

= -0.5 V, f = 1.0 MHz)

Cibo

-

40

50 pF

Output Capacitance (V

CB

= -3.0 V, f = 1.0 MHz)

Cobo

-

15

20 pF

Noise Figure (I

_C

= 0.2 mA, V

_CE

= 5.0 V, R

_S

= 1.0 k

_{W, f = 1.0 MHz, BW = 200 Hz)}

NF

-

5.0 dB

1. FR-4 @ 100 mm

2

_{, 1 oz copper traces.}

2. FR-4 @ 500 mm

2

_{, 1 oz copper traces.}

3. Pulsed Condition: Pulse Width = 300

msec, Duty Cycle ≤ 2%.

4. Guaranteed by design but not tested.

(3)

0.2

0

2.0

0.001

0.15

0 I

C

, COLLECTOR CURRENT (A)

Figure 1. Collector Emitter Saturation Voltage vs.

Collector Current

Figure 2. Collector Emitter Saturation Voltage vs.

Collector Current

0.001

0.1

1 I

C

, COLLECTOR CURRENT (A)

0.10

0.01 I

C

/I

B

= 100

0.05

0.20

1.4

1.6

1.8 V

CE(sat)

, COLLECT

OR EMITTER

SA

TURA

TION VOL

T

AGE (V)

0.25

0.35

0.30

0.40 I

C

/I

B

= 10

V

CE(sat)

= 150

°C

1

0.1

0.01

25 _°C

-55

_°C

V

CE(sat)

= -55

°C

25 °C

150 °C

1.2

10 V

CE(sat)

, COLLECT

OR EMITTER

SA

TURA

TION VOL

T

AGE (V)

1.0

0.4

0.6

0.8 V

BE(sat)

= -55

°C

1

0.1

0.01

300

200

100

0

0.001

150 °C (5.0 V)

600 Figure 3. DC Current Gain vs. Collector

Current

I

C

, COLLECTOR CURRENT (A)

Figure 4. Base Emitter Saturation Voltage vs.

Collector Current

I

C

, COLLECTOR CURRENT (A)

V

BE( sat)

, BASE EMITTER

SA

TURA

TION VOL

T

AGE (V)

h

FE

, DC CURRENT GAIN

0.0001

0.001

0.01

0.1

0.4

0

1.4

0

0.001 0.0001

0.00001

0.2

0.4

1.0

BE( sat)

, BASE EMITTER SA

TURA

TION VOL

T

AGE (V)

0.2

0.8

0.6

1.2

1.0

25 °C

150 _°C

150 °C (2.0 V)

25 _{°C (5.0 V)}

25 °C (2.0 V)

400

500 -55

°C (5.0 V)

-55

°C (2.0 V)

10

1 I

C

/I

B

= 100

25 °C

150 _°C

0.6

0.8

1.2 V

BE(sat)

= -55

°C

0.01 I

C

/I

B

= 10

0

0.1

0.01

0.001

0.2

0.4

1.0 V

BE( on)

, BASE EMITTER TURN-ON VOL

T

AGE (V)

V

CE

= -3.0 V

25 _°C

150 °C

0.6

0.8 V

BE(on)

= -55

°C

1

0.1

0.3

0.9

0.5

0.7

(4)

NSS12100M3T5G

http://onsemi.com

4

5

0

35

6

2

0 V

CB

, COLLECTOR BASE VOLTAGE (V)

C

obo

, OUTPUT CAP

ACIT

ANCE (pF)

50

0

9

10 V

_EB

, EMITTER BASE VOLTAGE (V)

30 C

ibo(pF)

25

45

10

20

25 C

ibo

, INPUT CAP

ACIT

ANCE (pF)

1

3

4

40

1

2

3

4

5

6

7

8 C

obo(pF)

15

5

20

15

10

5 V

CE

, COLLECT

OR-EMITTER VOL

T

AGE (V)

0

1.0

1.5

3.0 I

B

, BASE CURRENT (mA)

0.01

1

10 Figure 7. Saturation Region @ 25

5C

0.5

2.5

0.1

100 I

C

= 500 mA

300 mA

100 mA

10 mA

Figure 8. Input Capacitance

Figure 9. Output Capacitance

2.0 Figure 10. Safe Operating Area

V

_CE

, COLLECTOR-EMITTER VOLTAGE (V)

I

C

, COLLECT

OR CURRENT (A)

1

10

0.1

0.01

100

10

1

0.1 Power Limit

Package Limit

1.0 ms

1.0 s

10 ms

100 ms

(5)

SOT−723

CASE 631AA−01

ISSUE D

DATE 10 AUG 2009

DIM MIN NOM MAX MILLIMETERS A 0.45 0.50 0.55 b 0.15 0.21 0.27 b1 0.25 0.31 0.37 C 0.07 0.12 0.17 D 1.15 1.20 1.25 E 0.75 0.80 0.85 e 0.40 BSC H 1.15 1.20 1.25 L E NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD

FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL.

4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS.

D

b1

E

b

e

A

L

C

H

−Y−

−X−

X

0.08 Y

2X E 1 2 3

XX

= Specific Device Code

M

= Date Code

GENERIC

MARKING DIAGRAM*

SCALE 4:1

XX M

STYLE 1: PIN 1. BASE 2. EMITTER 3. COLLECTOR STYLE 2: PIN 1. ANODE 2. N/C 3. CATHODE STYLE 3: PIN 1. ANODE 2. ANODE 3. CATHODE STYLE 4: PIN 1. CATHODE 2. CATHODE 3. ANODE

1 *This information is generic. Please refer

to device data sheet for actual part

marking. Pb−Free indicator, “G”, may

or not be present.

*For additional information on our Pb−Free strategy and soldering

details, please download the ON Semiconductor Soldering and

Mounting Techniques Reference Manual, SOLDERRM/D.

SOLDERING FOOTPRINT*

STYLE 5: PIN 1. GATE 2. SOURCE 3. DRAIN L2 0.15 0.29 REF0.20 0.25 3X

L2

3X 1 2X

TOP VIEW

BOTTOM VIEW

SIDE VIEW

0.40

1.50

2X PACKAGE OUTLINE

0.27

2X

0.52

3X

_0.36

PACKAGE DIMENSIONS

(6)
