1 RBS 2116
This section lists the spare parts for the earlier variant of RBS 2116.
1.1
Control and Alarm Units

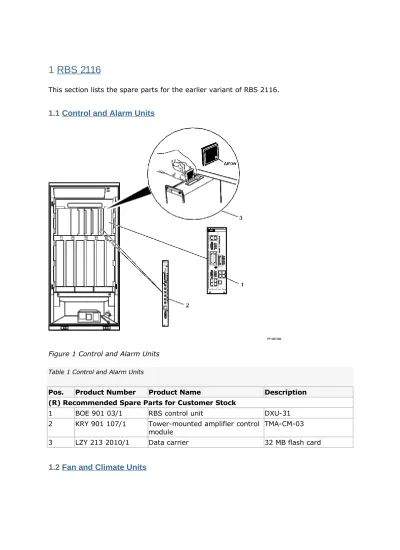

Figure 1 Control and Alarm Units
Table 1 Control and Alarm Units
Pos. Product Number Product Name Description
(R) Recommended Spare Parts for Customer Stock
1 BOE 901 03/1 RBS control unit DXU-31
2 KRY 901 107/1 Tower-mounted amplifier control
module TMA-CM-03
3 LZY 213 2010/1 Data carrier 32 MB flash card
Figure 2 Fan and Climate Units
Table 2 Fan and Climate Units
Pos. Product Number Product Name Description (R) Recommended Spare Parts for Customer Stock
1 3/BPD 901 27/1 HEX CCU main board Heat exchanger Climate Control Unit (CCU) main board
2 1/BPD 901 27/1 Fan and motor
assembly Fan and motor assembly 4 BPD 901 27/2 Heater assembly Heater Assembly
5 BGM 119 12/1 Fan control unit FCU-03
6 BKV 301 216/77 Fan Diagonal fan 24 VDC 1.7 A
8 SXK 109 7298/1 Fan box Fan box
(A) Other Available Parts
3A SXK 109 7381/1 Outdoor, Door with HEX Outdoor, Door with HEX 3B SXK 109 7381/2 Outdoor, Door with HEX Outdoor, Door with HEX
7 5/BPD 104 35/3 HEX core HEX core
1.3
Power Units
Figure 3 Power Units
Table 3 Power Units
Pos. Product Number Product Name Description
(R) Recommended Spare Parts for Customer Stock
1 BMG 907 65/1 AC connection unit ACCU-06
2 BMG 980 343/2 Internal distribution module IDM-13 3 BML 901 124/1 Power supply unit PSU-AC-31 4 BML 901 168/2 AC/DC convertor AC/DC convertor (A) Other Available Parts
5A BMG 907 036/1 Service outlet Service outlet EU 5B BMG 907 036/2 Service outlet Service outlet CH 5C BMG 907 036/3 Service outlet Service outlet UK 5D BMG 907 036/4 Service outlet Service outlet US
1.4
Radio Units
Figure 4 Radio Units
Table 4 Radio Units
Pos. Product Number Product Name Description (R) Recommended Spare Parts for Customer Stock
1A KRC 161 094/1 DRU9P-03 DRU, P-GSM 900 MHz variant
1B KRC 161 118/1 DRU18-03 DRU, GSM 1800 MHz variant
1C KRC 161 149/1 DRU9E-03 DRU, E-GSM 900 MHz variant (A) Other Available Parts
2 KRY 901 104/1 RX-splitter-03 RX-splitter-03
3 SDD 701 123/1 Shielding cover Shielding cover with text
4 ROA 128 3095/1 UC/HC Switch Card Switch card for hybrid combiner or uncombiner downlink transmitter
Figure 5 Cabinet Parts
Table 5 Cabinet Parts
Pos. Product Number Product Name Description (R) Recommended Spare Parts for Customer Stock
1 NCD 901 26/11 OVP module EIM-T1 (for E1 and ESB)
2 NCD 901 26/12 OVP module EIM-T2 (for 75 ohm E1)
3 NCD 901 26/13 OVP module EIM-S1 (external alarm)
4 NCD 901 26/15 OVP module EIM-GPS
(A) Other Available Parts
5 NTM 201 3351/1 EMC cable bushing EMC cable bushing
6A SMB 102 10/1 Lock LOCK / KEY; B LK2075
6B SMB 102 10/3 Lock LOCK / KEY; B LK2766
6C SMB 102 10/4 Lock LOCK / KEY; B LK207501
6D SMB 102 10/5 Lock LOCK / KEY; B LK4181
6E SMB 102 10/6 Lock LOCK / KEY; B LK4200
6F SMB 102 10/7 Lock LOCK / KEY; B LK4474
6G SMB 102 10/8 Lock LOCK / KEY; B LK4663
6H SMB 102 10/9 Lock LOCK / KEY; B LK3724
6I SMB 102 10/10 Lock LOCK / KEY; B LK6216
6J SMB 102 10/11 Lock LOCK / KEY; B LK6132
6K SMB 102 10/12 Lock LOCK / KEY; B LK6306
6L SMB 102 10/13 Lock LOCK / KEY; B LK6688
8 SXK 109 7227/1 Cabinet lamp kit Cabinet lamp kit
9 SXK 107 2465/1 Handle Lock handle
1.6
Cables
The sections below describe cables for the early variant RBS.
1.6.1 Signal Cables
Figure 6 Signal Cables
Table 6 Signal Cables
Pos. Product Number Product Name Description (A) Other Available Parts
1 RPM 119
0158/01000 Alarm cable PSU alarm cable
2 RPM 119
0158/00200
Alarm cable PSU to PSU alarm cable
3 RPM 119
0202/00800 Signal cable Y-link cable 4 RNV 899 066/1 ESB terminator ESB terminator
5 RPM 119
0158/00650
Alarm cable Fan alarm cable
6 RPM 119
0158/02000 Signal cable E1/ESB cable
7 RPM 119
0218/02000 Signal cable GPS cable
8 RPM 119
9 RPM 119
0344/02400 Alarm cable Climate Unit (CLU) / Door alarm cable to DXU RPM 777 209/00540 Cable with connector Alarm cable, door switch to DXU 10 RPM 119
0350/00200 Signal cable TMA-IOM
1.6.2 Power Cables
Figure 7 Power Cables, 1
Table 7 Power Cables, 1
Pos. Product Number Product Name Description (A) Other Available Parts
1 RPM 119
0242/00280 Power cable IDM power cable
2 RPM 119
0242/00330 Power cable IDM power cable
3 RPM 119
0242/00370
Power cable IDM power cable
4 RPM 119
0242/00420 Power cable IDM power cable
5 RPM 119
0341/02600 Power cable AC power cable (ACCU to AC/DC)
6 RPM 119
0342/02700 Power cable Control cable (HEX to Heater relay)
7 RPM 119
0343/00250
Power cable DC power cable (AC/DC to HEX)
8 RPM 119
0352/02300 Power cable AC power cable (AC/DC to heater)
0366/01640
Figure 8 Power Cables, 2
Table 8 Power Cables, 2
Pos. Product Number Product Name Description (A) Other Available Parts
1 RPM 777 44/00700 Power cable IDM power cable (IDM to FCU) 2 RPM 777 44/00700 Power cable IDM power cable (IDM to DRU) 3 RPM 777 216/01450 Power cable IDM power cable (IDM to AC/DC
converter)
Figure 9 Power Cables, 3
Table 9 Power Cables, 3
Pos. Product Number Product Name Description (A) Other Available Parts
1 RPM 777 217/00750 Power cable IDM power cable (IDM to DXU) 2 RPM 777 217/00750 Power cable IDM power cable (IDM to TMA-CM)
Figure 10 Coaxial Cables
Table 10 Coaxial Cables
Pos. Product Number Product Name Description (A) Other Available Parts
1 RPM 513
1893/00390 Coaxial cable RX cable
2 RPM 777 05/00800 Coaxial cable Coaxial cable
4.7
Dummies
Figure 11 Dummies
Table 11 Dummies
Pos. Product Number Product Name Description (A) Other Available Parts
1 SXA 214 7843/1 Dummy DRU dummy
2 SXA 214 8006/1 Dummy TMA-CM dummy
3 SXA 214 8008/1 Dummy PSU dummy
5 RBS 2116 V2
This section lists the spare parts for RBS 2116 V2.
2.1
Control and Alarm
The figure and tables below show the alarm and control units.
Figure 12 Control and Alarm Units
Table 12 Control and Alarm Units
(R) Recommended Spare Parts for Customer Stock
1 BOE 602 21/1 DXU-23 Distribution Switch Unit (DXU) variant 2 BFB 109 012/1 IFB-01 Interface Board (IFB) variant
#3 SDK 107 881/3 TMA-CM Tower-Mounted Amplifier Control Module (TMA-CM)
4 LZY 213 2010/1 Data carrier 32 MB flash card
2.1.1 Control and Alarm Connections
The figure and tables below show the alarm and control connections.
Figure 13 Internal Alarm and Control Connections
Table 13 Internal Alarm and Control Cables
Pos. Product No. From To
(A) Other Available Parts
1 RPM 777 218/02100 IFB (Fans 5–8) CLU (Fan control)
2 RPM 777 218/00300 IFB (Fans 1–4) Fan connection board (Fan control)
3(1) RPM 777 171/01800 DC-filter BFU (Temp)
4 RPM 777 220/00750 IFB (Door) Door switch
Figure 14 External Control and Alarm Connections
Table 14 External Alarm and Control Cables
Pos. Product No. From To
(A) Other Available Parts
1 RPM 777 239/01200 DXU (ESBs 1–2) Overvoltage Protection (OVP) module
2 RPM 777 238/01150 DXU (A–D) OVP module
3 RPM 777 240/01250 DXU (GPS) OVP module
4 RPM 777 241/01200 DXU (Ext. alarm) OVP module Table 15 Terminators
Pos. Product No. Description (A) Other Available Parts
(5) RPT 403 805/01 D-sub terminator for DXU (ESB), 90
5.1.2 Y Link
The figure and the table below shows the cable connections between IFB and each Digital Signal Processor (DSP) system in a core-based Transceiver Unit (TRU); (Y link).
Figure 15 Y Link Connections
Table 16 Y Link Cables
Pos. Product No. From To
(A) Other Available Parts
1 RPM 119 0202/00900 IFB (Y links 1–6) DRUs 1–3 (Y link) IFB (Y links 7–12) DRUs 4–6 (Y link)
2.1.3 EPC Bus
The figure and the table below show the Environmental and Power Control (EPC) connections.
Figure 16 EPC Bus Connections (V2)
Table 17 EPC Bus Cables (V2)
Pos. Product No. From To
(A) Other Available Parts
1 RPM 777 143/00650 BFU (EPC bus out) PSU (EPC bus in) 2 RPM 777 143/00150 PSU (EPC bus out) PSU (EPC bus in) 3 RPM 777 143/01000 DXU (EPC bus out) BFU (EPC bus in)
2.2
Fans and Climate
Figure 17 Fan and Climate Units (V2)
Table 18 Fan and Climate Units (V2)
Pos. Product Number Product Name Description (R) Recommended Spare Parts for Customer Stock
1 BKV 301 216/135 Fan Diagonal fan 24 VDC 1.7 A 4A 6/BPD 901 33/1 Climate unit Complete CLU
4B 16/BPD 901 33/1 Climate unit Complete CLU
5A 3/BPD 901 33/1 CCP Board Climate connection panel board 5B 13/BPD 901 33/1 CCP Board Climate connection panel board 6 11/BPD 901 33/1 W1G180 (Class R) Fan motor and assembly (internal) 8 12/BPD 901 33/1 W1G180 (Class R) Fan motor and assembly (external) 9 1/BPD 901 33/1 W1G180 (Class R) Fan motor and assembly (internal,
external) (A) Other Available Parts
2 RPM 777 114/00300 Power cable Extension cable for fan
3A BPD 901 27/4 AC Heater AC Heater, lowermost blowup in figure 3B BPD 901 27/6 DC Heater DC Heater, uppermost blowup in figure 7 5/BPD 901 33/1 HEX core Heat exchanger core
2.3
Input Power
The following configurations of input power are supported: AC Power
Note:
BBS power (optional)
DC Power Note:
BBS power (not supported)
For information about voltage levels and recommended fuse ratings, see the document
RBS Product Description, specific for the RBS.
2.3.1 AC RBS Input Power
The figure and table below show a RBS 2116 V2 cabinet equipped with ACCU PSU-ACs. The figure below also shows parts for input power from an optional Battery Backup System (BBS).
Note:
Figure 18 AC RBS Input Power Connections (V2)
Table 19 AC RBS Input Power Cables (V2)
Pos. Product No. From To
(A) Other Available Parts
1 RPM 777 275/1 Battery Fuse Unit (BFU)
(Load) Internal Distribution Module (IDM) (P+ and P-)
2.3.2 DC RBS Input Power
The figure and table below show an earlier variant of RBS cabinet equipped with an DC Connection Unit (DCCU) and DC powered PCUs that convert DC to DC (PSU-DCs).
Figure 19 DC RBS Input Power Connections (V2)
Table 20 DC RBS Input Power Cables (V2)
Pos. Product No. From To
(A) Other Available Parts
1 RPM 777 235/01650 DCCU (PSUs 1–4) PSUs 1–4 (Input)
2.4
Internal Power
Figure 20 Power Units (V2)
Table 21 Power Units (V2)
Pos. Product Number Product Name Description (R) Recommended Spare Parts for Customer Stock
1 BMG 980 41/2 IDM-15 IDM variant
2 BMR 911 20/1 DC/DC Converter 200 W +24 to -60 or -48 V DC conversion
3 BMG 980 326/1 BFU-32 BFU variant
4A BML 353 206/2 PSU-AC-32 PSU-AC variant 4B BMR 910 423/2 PSU-DC-32 PSU-DC variant 5 KFE 101 1145/11 DC-Filter-08 DC-filter variant(1)
6 BMG 980 345/1 DCCU-15 DCCU variant
7 BMG 907 69/1 ACCU-07 ACCU variant(2) (A) Other Available Parts
8A BMG 907 036/1 Connection cable Service outlet EU 8B BMG 907 036/2 Connection cable Service outlet CH 8C BMG 907 036/3 Connection cable Service outlet UK 8D BMG 907 036/4 Connection cable Service outlet US
(1) Optional for BBS input power, for AC powered RBS (2) With optional service outlets
Figure 21 Internal Power Connections (V2)
Table 22 Internal Power Cables (V2)
Pos. Product No. From To
(A) Other Available Parts
1 RPM 777 44/01450 IDM (DRUs 1–6) DRUs 1–6 (DC in)
2 RPM 777 44/00400 IDM (Fans 1–4) Fan connection board (+24 V DC)
3 RPM 777 231/00600 IDM (DXU) IFB (DC in DXU)
4 RPM 777 135/00700 IDM (TMA-CMs 1–2) IFB (DC in TMA-CMs)
5 RPM 777 44/02100 IDM (CLU) CLU (DC in)
2.4.1 Optional Heater
Figure 22 Optional DC Heater Connections (V2)
Table 23 Optional DC Heater Connections Cables (V2)
Pos. Product No. From To
(A) Other Available Parts
1 RPM 777 44/02100 CLU (DC in) DC Heater (DC out) 2 RPM 777 244/02500 DCCU (Climate) DC Heater (DC in)
Figure 23 Optional AC Heater Connections (V2)
Table 24 Optional AC Heater Cables (V2)
Pos. Product No. From To
(A) Other Available Parts
1 RPM 777 44/02100 CLU (DC in) AC Heater (DC out)
2.4.2 Internal Bias Cables
The figure and table below show internal bias connections.
Figure 24 Internal Bias Cable Connections (V2)
Table 25 Bias Cables (V2)
Pos. Product No. From To
(A) Other Available Parts
1 RPM 777 258/00800 TMA-CM-02 1 (TMA Power) DRUs 1–3 (TMA Power 1) DRUs 1–3 (TMA Power 2) TMA-CM-02 2 (TMA Power) DRUs 4–6 (TMA Power 1) DRUs 4–6 (TMA Power 2)
2.4.3 DC Converter Options
Figure 25 200 W DC/DC Option Connections(V2)
Table 26 200 W DC/DC Option Cables (V2)
Pos. Product No. From To
(A) Other Available Parts
1 RPM 777 44/00700 BFU (DC-OUT) DC/DC
2 RPM 777 62/00600 IFB (DC/DC) Cable junction
Figure 26 400 W DC/DC Option Connections(V2)
Table 27 400 W DC/DC Option Cables (V2)
Pos. Product No. From To
(A) Other Available Parts
1 RPM 777 44/00700 BFU (DC-OUT) DC/DC
2 RPM 777 62/00600 IFB (DC/DC) Cable junction
3 RPM 777 61/00200 DC/DC Cable junction
Figure 27 Radio Units
Table 28 Radio Units
Pos. Product Number Product Name Description (R) Recommended Spare Parts for Customer Stock
1A KRC 161 094/1 DRU9P-03 DRU, P-GSM 900 MHz variant 1B KRC 161 118/1 DRU18-03 DRU, GSM 1800 MHz variant 1C KRC 161 149/1 DRU9E-03 DRU, E-GSM 900 MHz variant 2 KRY 901 104/1 RX-splitter-03 RX-splitter-03
Figure 28 DRU Rear
Table 29 DRU Rear
Pos. Product Number Product Description
1 SDD 701 123/1 Shielding cover Shielding cover with text
2 ROA 128 3095/1 UC/HC switch card Switch card for hybrid combiner or uncombiner downlink transmitter
2.6
Coaxial Cables
Figure 29 Coaxial Cables
Table 30 Coaxial Cables
Pos. Product Number Product Name Description (A) Other Available Parts
2.7
Cabinet Parts
Figure 30 Cabinet Parts (V2)
Table 31 Cabinet Parts
Pos. Product Number Product Name Description (R) Recommended Spare Parts for Customer Stock
1 NCD 901 26/11 OVP module EIM-T1 (for E1 and ESB) 2 NCD 901 26/12 OVP module EIM-T2 (for 75 ohm E1) 3 NCD 901 26/13 OVP module EIM-S1 (external alarm)
4 NCD 901 26/15 OVP module EIM-GPS
9 NFD 302 34/08 OVP module EIM-S1 (external alarm) (1)
(10) BFX 901 43/1 EMC Cassette EMC-cage for TMA-CMs, DXU and IFB (A) Other Available Parts
6A SMB 102 10/1 Lock LOCK / KEY; B LK2075
6B SMB 102 10/3 Lock LOCK / KEY; B LK2766
6C SMB 102 10/4 Lock LOCK / KEY; B LK207501
6D SMB 102 10/5 Lock LOCK / KEY; B LK4181
6E SMB 102 10/6 Lock LOCK / KEY; B LK4200
6F SMB 102 10/7 Lock LOCK / KEY; B LK4474
6G SMB 102 10/8 Lock LOCK / KEY; B LK4663
6H SMB 102 10/9 Lock LOCK / KEY; B LK3724
6I SMB 102 10/10 Lock LOCK / KEY; B LK6216
6J SMB 102 10/11 Lock LOCK / KEY; B LK6132
6K SMB 102 10/12 Lock LOCK / KEY; B LK6306
6L SMB 102 10/13 Lock LOCK / KEY; B LK6688
7 RMD 955 010/02 Door switch Door switch 8 NTM 2013770/1 Cabinet lamp kit Cabinet lamp kit
(1) OVP modules number 3 and 9 are interchangeable.
2.8
Dummies
Similar to table in Section 4.7, the following table lists dummies for V2. Table 32 Dummies
Pos. Product Number Product Name Description (A) Other Available Parts
1 SXA 214 7843/1 Dummy DRU dummy
2 SXK 109 7425/1 Dummy TMA-CM dummy
3 SXK 109 8705/1 Dummy PSU dummy
Replaced and Withdrawn Parts
This chapter shows replaced or withdrawn products
Due to continuous improvement in design and production methods, some parts are changed.
This is the only place in this catalog where Product Numbers shown in previous catalogs are found.
Updating of replaced and withdrawn parts are indicated by a #-sign in front of the old product number.
Table 33 Replaced and Withdrawn Parts
BMG 907 67/2 Replaced by BMG 980 343/2 BYB 911 24/1 Withdrawn BYB 911 25/1 Withdrawn RPM 119 0352/02500 Replaced by RPM 119 0352/02300 RPM 119 0366/01800 Replaced by RPM 119 0366/01640 SEB 104 112/2 Withdrawn SEB 104 118/1 Withdrawn SXK 109 7679/1 Withdrawn SXK 109 7680/1 Withdrawn SXK 109 7709/1 Withdrawn UML 102 126/1 Withdrawn RPM 513 1893/00280 Replaced by RPM 513 1893/00390 RPM 513 1893/00800 Replaced by RPM 777 05/00800 SDD 701 123/1 Replaced by ROA 128 3095/1 11/BPD 104 35/3 Replaced by 1/BPD 901 27/1
