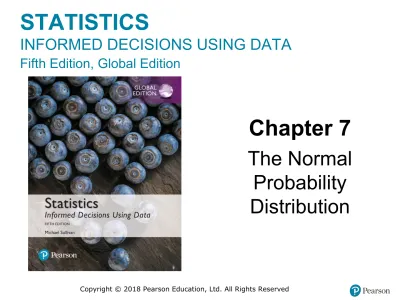

sst5e_ppt_ch07.pptx

(1)

STATISTICS

INFORMED DECISIONS USING DATA

Fifth Edition, Global Edition

Chapter 7

The Normal

Probability

Distribution

(2)

7.1 Properties of the Normal Distribution

Learning Objectives

1. Use the uniform probability distribution

2. Graph a normal curve

3. State the properties of the normal curve

(3)

7.1 Properties of the Normal Distribution

7.1.1 Use the Uniform Probability Distribution

(1 of 6)

EXAMPLE Illustrating the Uniform Distribution

Suppose that United Parcel Service is supposed to deliver a package to your front door and the arrival time is somewhere between 10 am and 11 am. Let the random variable X represent the time from 10 am when the delivery is supposed to take place. The delivery could be at 10 am (x = 0) or at 11 am (x = 60) with all 1-minute interval of times between x = 0 and x = 60 equally likely. That is to say your package is just as likely to arrive between

10:15 and 10:16 as it is to arrive between 10:40 and 10:41. The random variable X can be any value in the interval from 0 to 60, that is, 0 < X < 60. Because any two intervals of equal length between 0 and 60, inclusive, are equally likely, the random

(4)

7.1 Properties of the Normal Distribution

7.1.1 Use the Uniform Probability Distribution

(2 of 6)

A

probability density function (pdf)

is an equation used to

compute probabilities of continuous random variables. It

must satisfy the following two properties:

1. The total area under the graph of the equation over all possible values of the random variable must equal 1.

(5)

7.1 Properties of the Normal Distribution

7.1.1 Use the Uniform Probability Distribution

(3 of 6)

(6)

7.1 Properties of the Normal Distribution

7.1.1 Use the Uniform Probability Distribution

(4 of 6)

(7)

7.1 Properties of the Normal Distribution

7.1.1 Use the Uniform Probability Distribution

(5 of 6)

The area under the graph of the density function over an

(8)

7.1 Properties of the Normal Distribution

7.1.1 Use the Uniform Probability Distribution

(6 of 6)

EXAMPLE Area as a Probability

(9)

7.1 Properties of the Normal Distribution

7.1.2 Graph a Normal Curve

(1 of 3)

(10)

7.1 Properties of the Normal Distribution

7.1.2 Graph a Normal Curve

(2 of 3)

A continuous random variable is normally distributed, or has a normal probability distribution, if its relative frequency

(11)

7.1 Properties of the Normal Distribution

(12)

7.1 Properties of the Normal Distribution

7.1.3 State the Properties of the Normal Curve

(1 of 3)

Properties of the Normal Density Curve

1. It is symmetric about its mean, μ.

2. Because mean = median = mode, the curve has a single peak and the highest point occurs at x = μ.

3. It has inflection points at μ − σ and μ − σ

(13)

7.1 Properties of the Normal Distribution

7.1.3 State the Properties of the Normal Curve

(2 of 3)

6. As x increases without bound (gets larger and larger), the

graph approaches, but never reaches, the horizontal axis. As x decreases without bound (gets more and more negative), the graph approaches, but never reaches, the horizontal axis.

7. The Empirical Rule: Approximately 68% of the area under the normal curve is between x = μ − σ and x = μ + σ; approximately 95% of the area is between x = μ − 2σ and x = μ + 2σ;

(14)

7.1 Properties of the Normal Distribution

(15)

7.1 Properties of the Normal Distribution

7.1.4 Explain the Role of Area in the Normal Density Function (1 of 9)

EXAMPLE A Normal Random Variable

The data on the next slide represent the heights (in inches) of a random sample of 50 two-year old males.

a) Draw a histogram of the data using a lower class limit of the first class equal to 31.5 and a class width of 1.

(16)

7.1 Properties of the Normal Distribution

(17)

7.1 Properties of the Normal Distribution

(18)

7.1 Properties of the Normal Distribution

In the next slide, we have a normal density curve drawn

over the histogram. How does the area of the rectangle

corresponding to a height between 34.5 and 35.5 inches

relate to the area under the curve between these two

(19)

7.1 Properties of the Normal Distribution

(20)

7.1 Properties of the Normal Distribution

(21)

7.1 Properties of the Normal Distribution

Area under a Normal Curve

Suppose that a random variable X is normally distributed with mean μ and standard deviation σ. The area under the normal curve for any interval of values of the random variable X

represents either

• the proportion of the population with the characteristic described by the interval of values or

• the probability that a randomly selected individual from the

(22)

7.1 Properties of the Normal Distribution

EXAMPLE Interpreting the Area Under a Normal Curve

The weights of giraffes are approximately normally distributed with mean μ = 2200 pounds and standard deviation σ = 200 pounds.

(a) Draw a normal curve with the parameters labeled.

(b) Shade the area under the normal curve to the left of x = 2100 pounds.

(23)

7.1 Properties of the Normal Distribution

(c)

• The proportion of giraffes whose weight is less than 2100 pounds is 0.3085

(24)

7.2 Applications of the Normal Distribution

Learning Objectives

1. Find and interpret the area under a normal curve

(25)

7.2 Applications of the Normal Distribution

7.2.1 Find and Interpret the Area Under a Normal Curve (1 of 14)

Standardizing a Normal Random Variable

(26)

7.2 Applications of the Normal Distribution

(27)

7.2 Applications of the Normal Distribution

(28)

7.2 Applications of the Normal Distribution

IQ scores can be modeled by a normal distribution with

μ

= 100 and

σ

= 15.

(29)

7.2 Applications of the Normal Distribution

(30)

7.2 Applications of the Normal Distribution

(31)

7.2 Applications of the Normal Distribution

(32)

7.2 Applications of the Normal Distribution

EXAMPLE Finding the Area Under the Standard Normal Curve

(33)

7.2 Applications of the Normal Distribution

(34)

7.2 Applications of the Normal Distribution

(35)

7.2 Applications of the Normal Distribution

Find the area under the standard normal curve between z = −1.02 and z = 2.94.

Area between

−

1.02 and 2.94

= (Area left of z = 2.94) − (area left of z = −1.02)

= 0.9984 − 0.1539

(36)

7.2 Applications of the Normal Distribution

Solution:

• Convert the value of x to a z-score. Use Table V to find the row and column that correspond to z. The area to the left of x is the value where the row and column intersect.

(37)

7.2 Applications of the Normal Distribution

Solution:

• Convert the value of x to a z-score. Use Table V to find the area to the left of z (also is the area to the left of x). The area to the right of

(38)

7.2 Applications of the Normal Distribution

Solution:

• Convert the values of x to a z-scores. Use Table V to find the area to the left of z₁ and to the left of z₂. The area between z₁ and z₂ is (area to the left of z₂) − (area to the left of z₁).

(39)

7.2 Applications of the Normal Distribution

7.2.2 Find the Value of a Normal Random Variable

(1 of 6)

Procedure for Finding the Value of a Normal Random Variable

Step 1: Draw a normal curve and shade the area corresponding to the proportion, probability, or percentile.

Step 2: Use Table V to find the z-score that corresponds to the shaded area.

(40)

7.2 Applications of the Normal Distribution

7.2.2 Find the Value of a Normal Random Variable

(2 of 6)

EXAMPLE Finding the Value of a Normal Random Variable

The combined (verbal + quantitative reasoning) score on the GRE is normally distributed with mean 1049 and standard deviation 189.

(Source: http://www.ets.org/Media/Tests/GRE/pdf/994994.pdf.)

What is the score of a student whose percentile rank is at the 85th

(41)

7.2 Applications of the Normal Distribution

7.2.2 Find the Value of a Normal Random Variable

(3 of 6)

The z-score that corresponds to the 85th percentile is the z-score

such that the area under the standard normal curve to the left is 0.85. This z-score is 1.04.

x = µ + zσ

= 1049 + 1.04(189)

= 1246

(42)

7.2 Applications of the Normal Distribution

7.2.2 Find the Value of a Normal Random Variable

(4 of 6)

It is known that the length of a certain steel rod is normally

(43)

7.2 Applications of the Normal Distribution

7.2.2 Find the Value of a Normal Random Variable

(5 of 6)

(44)

7.2 Applications of the Normal Distribution

7.2.2 Find the Value of a Normal Random Variable

(6 of 6)
