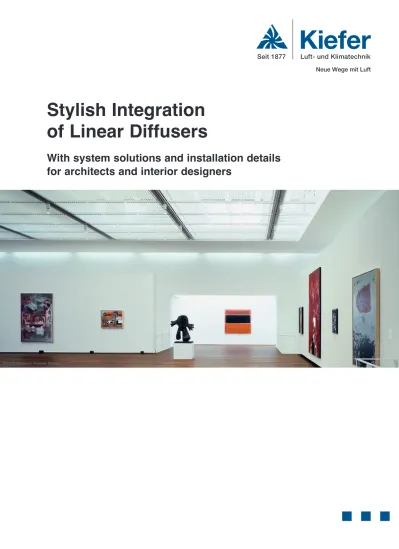

Stylish Integration
of Linear Diffusers
With system solutions and installation details
for architects and interior designers
Integrate diffusers
unobtrusively in flush, bright ceilings or use them as design elements. Make conscious use of form and colour to create a unique ceiling design. The entirely draught-free linear diffusers from Kiefer give you the freedom to design.
Here, we show you some refe-rences.
Please request detailed technical information directly from us.
INDUL Linear diffuser Pages 4 – 10 Only 15 mm wide – unobtrusive installa-tion in ceiling joints Keeps ceilings clean and dust free longer Insulation free of mineral fibres Clean simple instal-lation with plaster-board bracket K K K K K K K K K K K INDULCLIP Ceiling air diffuser Page 13
Attractive design with round or square front plate and slim air guide elements
Available in a range of colours and sizes
Front plate can incor-porate any design INDULSNAP
Wall air passage Pages 11 – 12
Wall air passage with absorption box Can be completely installed in a dry construction wall No cross-talk silencer required
Air guide profile installed using simple clip connection
INDUDRALL Ceiling air diffuser Page 14
Sophisticated design with round air guide ele-ments
For further advantages: see INDULCLIP K K K K K K K INDUCOOL
Chilled ceiling panel Pages 15 – 19 High performance chilled ceiling panel with integral air diffuser Controlled air distribution Partial ceiling coverage of max. 10% Panel width 300 mm As a continuous band
Festspielhaus, Bregenz INDUL
Linear diffuser: Linear diffuser INDUL P 15 –100 Type of ceiling: Plasterboard ceiling
Building: Festspielhaus, Bregenz
Architects: Dietrich / Unterfallinger, Bregenz Installation of a linear diffuser using Kiefer plasterboard brackets. Installation is simplified and the profile is protected against soiling during plastering and painting.
Professional installation in plasterboard ceilings.
Photo © Bruno Klomfar
Linear diffuser: Linear diffuser INDUL P 15 –100 Type of ceiling: Plasterboard ceiling
Building: Festspielhaus, Bregenz
Architects: Dietrich / Unterfallinger, Bregenz Installation of a linear diffuser using Kiefer plasterboard brackets. Installation is simplified and the profile is protected against soiling during plastering and painting.
ESPRIT, Zurich INDUL
Entirely unobtrusive installation of linear diffuser INDUL in the joints of the panel ceiling.
Integration of
linear diffusers INDUL in panel ceilings.
Linear diffuser: Linear diffuser INDUL P 15 – 80 Type of ceiling: Metal panel ceiling
Building: ESPRIT fashion house, Zurich
Architects: Interior designer: Heinz Müller, Zurich, Sottsass Associate, Milan
clip in dummy section
Teatro Carlo Felice, Genoa INDUL
Linear diffuser: Linear diffuser INDUL P 18 –125 Type of ceiling: Plasterboard ceiling
Building: Teatro Carlo Felice, Genoa Architects: Rossi + Gardella, Milan
In combination with Kiefer plasterboard and overlay brackets a perfectly flush installation is assured.
Messeturm, Frankfurt INDUL
Linear diffuser: Linear diffuser INDUL PI 15 –100 Type of ceiling: Plasterboard / metal coffered ceiling Building: Messeturm, Frankfurt
Bundeskanzleramt, Berlin INDUL
Linear diffuser: Linear diffuser INDUL V20 –125 Type of ceiling: Plasterboard ceiling
Building: Canteen, Bundeskanzleramt, Berlin Architects: ASA, Axel Schultes Architekten, Berlin
Frieder Burda Museum, Baden-Baden INDUL
Linear diffuser: Linear diffuser INDUL V45 Type of ceiling: Lamellar ceiling
Building: Frieder Burda Museum, Baden-Baden Architects: Richard Meier & Partners Architects,
New York
Felix Nussbaum Museum, Osnabrück INDUL
Linear diffuser: Linear diffuser INDUL P 15-80 Type of ceiling: Plasterboard ceiling
Building: Felix Nussbaum Museum, Osnabrück Architects: Daniel Libeskind, New York
Daimler Bank, Stuttgart INDULSNAP
Linear diffuser: Wall air passage INDULSNAP Type of ceiling: Plasterboard drops
Building: Daimler Bank, Stuttgart Architects: Ziltz + Partner, Stuttgart At the completion of plastering and painting
work, the visible air guide profiles of INDULSNAP are clipped into the absorption box.
©
Stefan
SAP, Walldorf INDULSNAP
Indulsnap enables a draught-free air distribution directly from the corridor partition wall and guarantees a solid aimbient air flow.
Linear diffuser: Wall air passage INDULSNAP Type of ceiling: Plasterboard ceiling
Building: SAP Deutschland AG, Walldorf, Campus II Planning: Vorfelder, Freie Architetkten, Walldorf
Photo © SAP AG Corridor Office Exhaust
air Supply air Wall air passage
Linear diffuser: Wall air passage INDULSNAP Type of ceiling: Plasterboard ceiling
Building: SAP Deutschland AG, Walldorf, Campus II
Planning: Vorfelder, Freie Architetkten, Walldorf The colour of the front plates and the highly inductive air guide elements is adapted to the ceiling and interior design. Various sizes and forms of front plates are available.
INDULCLIP R 600 Square or round front plate Sizes 300, 400, 500, 600, 625 and 800 mm INDULCLIP Q 600 With square front plate
Linear diffuser: Ceiling air diffuser INDULCLIP Type of ceiling: Mineral-fibre ceiling
Building: Hansa Metallwerke AG, Stuttgart
Architects: Manz, Dipl.-Ing. Günter und Peter Manz, Freie Architekten, Stuttgart
Hansa Metallwerke, Stuttgart INDULCLIP
Enterprise House, London INDUDRALL
Suitable for use in various ceiling systems
Installation in modular ceilings with visible T-rails (cut-out in ceiling panel). Installation in plasterboard ceilings Installation in metal ceilings Linear diffuser: Ceiling air diffuser INDUDRALL
Type of ceiling: Plasterboard ceiling
Building: Entrance Hall, Enterprise House, London Planning: Long & Partners, London
Altes Schloss, Stuttgart INDUCOOL
Single element INDUCOOL-Compact between double-sided cable cross bars and light strips.
Chilled-ceiling panel: INDUCOOL-Compact Mounting: Visible installation
Building: Altes Schloss, Stuttgart
Temporary exhibition
Planning: Krebs Ingenieure, Ditzingen
Detail visible installation
©
Callcenter Vivento, Frankfurt INDUCOOL
Chilled-ceiling panel: INDUCOOL-Compact Type of ceiling: Plasterboard ceiling
Building: Callcenter Vivento, Frankfurt
EURO PLAZA, VIENNA INDUCOOL
Chilled-ceiling panel: INDUCOOL-Compact
Building: EURO PLAZA, Vienna
Architects: Neumann + Partner, Vienna
Only a very small area of ceiling (5 –10%) is sufficient to remove excess heat using these high performance panels.
Photo © Anna Blau Photos © Anna Blau
Pressehaus, Stuttgart INDUCOOL
Chilled-ceiling panel: INDUCOOL-Compact Type of ceiling: Plasterboard ceiling
Building: Pressehaus Stuttgart
Architects: Pfeiffer, Ellermann, Preckel, Lüdinghausen
INDUCOOL elements
Installed with mounting frame KL 3 – GK.
Hotel Le Royal Méridien, Hamburg INDUCOOL
Chilled-ceiling panel: INDUCOOL-Compact
Type of ceiling: Plasterboard ceiling with integrated lighting
Building: Hotel Le Royal Méridien, Hamburg
Planning Interior design: JOI-Design, Hamburg
Combination of two INDUCOOL elements in a band arrangement with installation
©
