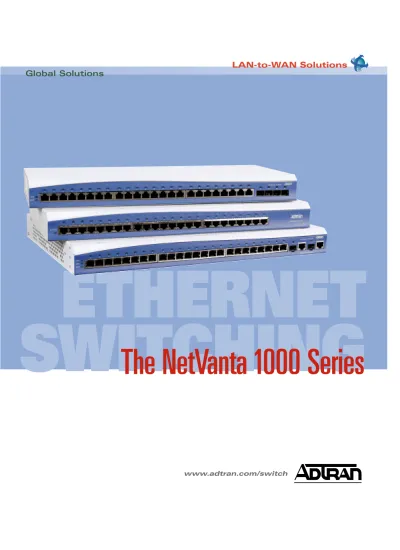

LAN-to-WAN Solutions. Global Solutions ETHERNET SWITCHING. The NetVanta 1000 Series.

(1)

Global Solutions

www.adtran.com/switch

LAN-to-WAN Solutions

ETHERNET

(2)

The NetVanta 1000 Series from ADTRAN.

Why NetVanta 1000?

The NetVanta 1000 Series is a family of full-featured, managed Layer 2 Fast Ethernet, Power over Ethernet (PoE), and Gigabit Ethernet switches and integrated switch-routers. This lineup features the NetVanta 1224R and 1224STR— unique, all-in-one access platforms that combine switch, router, modular WAN interface, and firewall in a single 1U chassis, with optional VPN, PoE, and dial backup.

Based on the ADTRAN Operating System (OS), these industry-standard devices offer an extremely high level of functionality at a price point normally associated with low-end switches. Perfect for enterprise-class deploy-ment in branch offices or in multi-site net-works, these powerful, cost-efficient switches redefine branch office connectivity, and introduce a new level of value into network operations. These products are also excellent for use by carriers in bundled service offerings.

There are many compelling reasons to implement a NetVanta 1000 Ethernet switch solution as part of your networking plan.

1. You’re looking for ways to cut costs in your network, without sacrificing functionality or reliability. The NetVanta 1000 Series is

a full-featured solution priced 20 to 50 per-cent less than leading brand name switches. Free of hidden charges, such as mandatory maintenance agreements and costly firm-ware downloads, and backed by an industry-leading warranty and unlimited technical support, the NetVanta 1000 Series signifi-cantly lowers Total Cost of Ownership (TCO) and improves Return on Investment (ROI).

2. You’re adding voice or video over IP to your network, and you need an affordable switch that’s equipped to manage the task.

NetVanta 1000 Series switches and switch-routers include, as standard equipment, the feature set necessary to facilitate VoIP applications, including standards-based 802.3af PoE, QoS, VLAN trunking, and firewall traversal functionality for Session Initiation Protocol (SIP) based applications.

Introducing the NetVanta 1000 Series.

The NetVanta 1000 Series from ADTRAN offers a value-rich alternative to competing brand name switches. Advanced functionality, flexible management, and a very favorable price point set this series apart from other switches in its category.

NetVanta 1524ST

Managed Layer 2 Gigabit Ethernet Switch

■24-port 10/100/1000Base-T Gigabit Ethernet switch

■Dual-mode fiber or metallic uplinks (ports 21–24)

■Accepts industry-standard Small Form-factor Pluggable (SFP) modules

■Non-blocking switching capacity up to 48 Gbps

■1U, 48 cm rackmount metal enclosure

■Auto-ranging power (100–250 VAC, 50/60 Hz)

NetVanta 1224R and 1224R PoE

Modular Fast Ethernet and PoE Switch-Routers

■24-port managed Layer 2 Fast Ethernet and PoE switch-routers

■Modular WAN interface

■PoE version offers 802.3af (15.4 watts/port)

■Stateful inspection firewall

■Optional VPN and dial backup capability

■Non-blocking switching capacity up to 4.8 Gbps

■1U, 48 rackmount metal enclosure

The NetVanta 1000 Series At-A-Glance

■ Full-featured, managed Layer 2 Ethernet switches and switch-routers

■ 24-port Ethernet, Fast Ethernet, Power over Ethernet, and Gigabit Ethernet functionality

■ Unique all-in-one switching/ routing/firewall/VPN platforms (1224R/STR Switch-Router Series) ■ Interoperable in established, multi-vendor networks ■ Up to 48 Gbps switching capacity, non-blocking ■ Gigabit SFP/1000Base-T uplink/stacking capability available

■ Stacking (up to 16 switches) with single IP address management

■ Link Aggregation, GVRP, and LLDP

■ MAC-based port security

■ SIP ALG for NAT traversal in VoIP applications

■ Feature-rich ADTRAN Operating System (OS)

■ Easily recognizable

Command Line Interface (CLI)

■ Intuitive web-based Graphical User Interface (GUI)

■ Free firmware updates

■ Unlimited, responsive, technical support ■ Industry-leading warranty Test drive a NetVanta 1000 Series switch today! www.adtran.com/switch

Everything you need in a switch (and more)

at a much lower cost.

New

Product!

(3)

3. Your network is bandwidth-intensive and requires high-speed switching capability. The new NetVanta

1524ST Layer 2 Gigabit Ethernet switch delivers high-capacity switching at a cost that is up to 50 percent less than comparable brand name Gigabit switches, and oftentimes less than brand name Fast Ethernet switches. Now it makes sense to move forward with plans to equip your network for higher bandwidth and Gigabit-to-the-desktop applications.

4. You’re seeking an alternative to your existing switch vendor, but have been reluctant to change due to the learning curve associated with a new product.

The NetVanta 1000 Series is a standards-based solution with a Command Line Interface (CLI) that mimics the de facto industry-standard, plus a user-friendly web GUI, eliminating the need for retraining and costly industry certification.

5. You’re faced with equipping multiple remote locations for data and/or voice communications quickly and cost-effectively, with little or no IT field staff. NetVanta 1000 Series switches and

inte-grated switch-routers are perfect in cost-conscious

industries with applications as simple as intercon-necting LAN devices or as advanced as segmenting networks in Fast Ethernet or Gigabit Ethernet applications. The NetVanta 1000 Series offers a low initial investment, coupled with simplified installation, configuration, and management.

6. With limited time to research and evaluate various vendors, you prefer a standards-based, interoperable product portfolio that works in established, multi-vendor networks.

NetVanta 1000 switches and switch-routers, used alone or in conjunction with NetVanta 3000 routers and NetVanta 2000 firewalls/Internet security appliances, offer a single-source WAN-to-the-desk-top solution backed by a 100 percent satisfaction guarantee from ADTRAN.

In any case, what is the most cost-effective LAN-to-WAN connectivity solution for today’s advanced communications? The NetVanta 1000 Series from ADTRAN.

NetVanta 1224 and 1224 PoE

Managed Layer 2 Fast Ethernet and PoE Switches

■24-port managed Layer 2 Fast Ethernet switch

■Non-blocking, switching capacity up to 4.8 Gbps

NetVanta 1224ST and 1224ST PoE

Managed Layer 2 Fast Ethernet and PoE Switches with Gigabit Uplinks

■24-port managed Layer 2 Fast Ethernet switch

■Combination 10/100/1000Base-T/SFP Ethernet ports for Gigabit uplink or stacking

NetVanta 1224STR and 1224STR PoE

Modular Fast Ethernet and PoE Switch-Routers with Gigabit Uplink(s)

■24-port managed Layer 2 Fast Ethernet and PoE switch-routers

■Modular WAN interface

■Stateful inspection firewall

■Optional VPN and dial backup capability

■Combination 10/100/1000Base-T/SFP Ethernet port(s) for Gigabit uplink(s) or stacking

Now available!

Every NetVanta switch is backed by ADTRAN’s 100% satisfaction guarantee, including unlimited telephone technical support and free firmware updates.

Inherent QoS functionality supports Voice over IP needs! ADTRAN NetVanta 1000 Series switches are VoIP-Ready!

(4)

Switching functionality at a favorable price point

The NetVanta 1000 Series from ADTRAN is a standards-based, non-blocking Layer 2 switching solution available at a cost that is up to 50 percent less than competing brand name switches. These value-oriented devices are suitable for interconnecting LAN devices or for network segmentation in applications requiring Fast Ethernet, Power over Ethernet, or Gigabit Ethernet functionality.

All-in-one network access solution

Designed for small- and medium-sized businesses requiring converged WAN/LAN, and branch office or multi-site connectivity, NetVanta 1224R/1224STR integrated switch-routers simplify installation, configuration, and network administration; reduce the number of devices to be managed; eliminate excess cabling costs; and mini-mize the need for on-site IT personnel.

A complete QoS solution

NetVanta 1000 Series Ethernet switches and switch-routers provide a fully compatible, single-source QoS solution for delay-sensi-tive applications, such as voice or video over IP. These products guarantee Class of Service (CoS) in accordance with 802.1p at Layer 2 and DiffServ at Layer 3, and use Weighted Round Robin (WRR), Weighted Fair, and Strict Priority or Low Latency queuing to prioritize traffic.

PoE and NAT-traversal enable VoIP and other new technologies

NetVanta switches and switch-routers are available with PoE functionality. PoE-enabled models save time and expense by eliminating the need for an external power source for VoIP phones, Wireless Access Points (WAPs), and other LAN-powered devices.

Housed in a compact 1U chassis, NetVanta 1000 Series PoE models supply 15.4 watts of power per port, the maximum supported by the 802.3af standard (370 watts total). These devices automatically discover other 802.3af standards-based, LAN-powered devices on the network.

A specialized Session Initiation Protocol (SIP) Application Level Gateway (ALG) ensures seamless delivery of VoIP calls to SIP-based phones, IP PBXs, and other IP-enabled devices requiring LAN power, without having to disable firewalls or compromise network security.

Affordable, high-capacity bandwidth

ADTRAN’s new NetVanta 1524ST Gigabit Ethernet switch significantly lowers the cost of bandwidth in your network, and changes the business case for Gigabit migration. Available for less than half of what brand name Gigabit switches cost, the NetVanta 1524ST sets a new standard of affordability in high-bandwidth and Gigabit-to-the-desktop deployments.

The NetVanta 1524ST is equipped with 24 10/100/1000Base-T ports, including four combination SFP/1000Base-T Gigabit Ethernet ports (ports 21–24). Up to 16 NetVanta Gigabit and Fast Ethernet switch-es may be stacked (using copper or fiber) and managed using a single IP address. Compliant with 802.lab Link Layer Discovery Protocol (LLDP), the NetVanta 1524ST auto-discovers neighboring Ethernet devices, simplifying integration into multi-vendor environments.

The NetVanta 1000 Series delivers savings

well beyond the list price.

A switching solution so remarkably versatile,

it makes your job easy.

A quick-start utility and step-by-step configuration wizards simplify the setupof NetVanta 1000 switch, router, firewall, and VPN options.

Suitable for novice and advanced users alike, the intuitive, web-based NetVanta 1000 GUI permits remote configuration, upload or download of configurations, and firmware uploads.

Configure multiple units without repetitive key strokesusing the NetVanta 1000 upload/download feature.

An all-in-one network access solution, the NetVanta 1224R and 1224STR consolidate the functionality of five separate branch office connectivity devices in a single, 1U chassis. Now available in PoE versions. Ethernet Switch DSU/CSU

VPN Firewall IP Router

(5)

Comprehensive Network Management

For more comprehensive management of your NetVanta-based network, ADTRAN offers n-Command. This ADTRAN-designed network management system streamlines network opera-tion, administraopera-tion, and management and offers an intuitive, user-friendly, menu-driven interface.

■Centrally manage firmware revisions

■Push firmware upgrades and configuration changes to remote sites

■Backup and restore configurations

■Restore configurations based on event

■Manage security policies and Access Control Lists (ACLs)

NetVanta Internetworking Essentials

(recommended for installations of 15 or fewer NetVanta devices) is available at no charge from www.adtran.com/n-command. For larger networks, ADTRAN offers the scalable, modular Enterprise Edition.

A reliable operating system

The NetVanta 1000 Series employs the ADTRAN OS for advanced standards-based functionality and ease of integration into multi-vendor net-works. Two full versions of the OS can coexist on a NetVanta device, simplifying the testing of newly released versions and permitting system backup. New enhancements to firmware can be implemented throughout a network using FTP/TFTP or HTTP from a central location.

A flexible, modular platform: NIMs and DIMs

A single WAN access slot in the back of an ADTRAN integrated switch-router chassis supports a variety of interchangeable NetVanta Network Interface Modules (NIMs) to terminate the wide area connection. NIMs include an Integral NTU for E1, FE1, Serial, or ADSL interface over ATM (ADSL-only), Frame Relay, or PPP networks. These modules are field upgradable and remotely configurable. TDM voice support is also available for G.703 standards.

Optional analog and ISDN Dial Backup Interface Modules (DIMs) support business con-tinuity and disaster recovery in mission-critical applications. Available in a plug-on form factor, these modules dial into any PPP-compliant device. Options available include Euro-ISDN

restoral via the PSTN at 64 kbps, and analog modem restoral at up to 33.6 kbps. The ADSL NIM may also be used for higher-speed broadband backup.

The NetVanta 1224ST, 1224ST PoE, 1224STR, and 1224STR PoE feature Gigabit uplink ports that accept industry-standard SFP modules, available from ADTRAN and third-party sources. These modules may be used independently or in conjunction with copper interfaces to provide uplinks to upstream switches.

Full-featured routing functionality

NetVanta switch-routers include an integral IP access router for cost-effective Internet access, corporate Frame Relay, or point-to-point connec-tivity. These devices utilize industry-standard IP routing protocols such as BGP, OSPF, and RIP.

Network security — a top priority

NetVanta switch-routers include a high-perform-ance stateful inspection firewall to protect against network intrusion, while enabling employee access to valuable corporate informa-tion resources. This stringent line of defense identifies and protects against common Denial of Service (DoS) attempts, such as TCP SYN flooding, IP spoofing, ICMP redirect, ping of death, and IP reassembly problems.

Affordable and secure connectivity across the Internet

VPN functionality can be added to all NetVanta switch-router models with an optional upgrade. This upgrade includes IPSec Virtual Private Networking (VPN) with advanced security features, such as DES/3DES/AES encryption and advanced user authentication.

A NetVanta DIM added to these models creates a VPN-secured disaster recovery link.

Network integration

Using the NetVanta 1000 Series in conjunction with ADTRAN’s NetVanta routers and VPN/fire-wall appliances offers the highest level of integra-tion across the enterprise network. These product lines share the ADTRAN OS, ensuring common configuration practices, VPN policies, protection schemes, and management interfaces regardless of the class of NetVanta equipment installed.

ISDN BRI “U” Interface DIM Analog DIM ISDN BRI “S/T” Interface DIM

NetVanta 1000 Series

Network Interface

Modules (NIMs)

NetVanta 1000 Series

Dial Backup Interface

Modules (DIMs)

NetVanta 1224R/1224STR Rear Panel

Configuring your NetVanta 1224R/1224STR Switch-Router

56/64 kbps NIM E1/FE1 + G.703 NIM

ADSL NIM

Serial Interface NIM

T1/FT1 NIM

T1/FT1 + DSX-1 NIM Dual T1/FT1 NIM E1/FE1 NIM

(6)

10/100Base-T 10/100Base-T LAN E1 E1 10/100Base-T IP PBX E1s NetVanta 1224STR PoE NetVanta 4305 Wireless Access Points 10/100Base-T NetVanta 1224ST PoE 1000Base-T Up to 24 Up to 24

Private

IP Network

NetVanta 1224R PoE 10/100Base-T Up to 24 IP Phones IP Phones IP Phones NetVanta 4305 NET LAN 1 WAN DBU STATUS TD RD

LAN 2WIDE SLOT 1 NET WAN DBU TDRD TD RDLNK TD RDLNK STATUS ACTIVITY TEST G1G2 STAT 123456789101112131415161718192021222324G1 G2 NetVanta 1224/ST G1G2 STAT 123456789101112131415161718192021222324NetVanta 1224R G1 G2STAT 123456789101112131415161718192021222324G1 NetVanta 1224STR ADSL Gigabit Ethernet Server E1 Uplink to Server or Other Switches NetVanta 1224STR/1224STR PoE 10/100Base-T Up to 24

Internet

10/100Base-T Up to 24

PPP or

Frame Relay

IP Phones IP Phones G1G2 STAT 123456789101112131415161718192021222324G1 NetVanta 1224STR Power over Ethernet

NetVanta 1224R/ 1224R PoE

G1G2 STAT

123456789101112131415161718192021222324NetVanta 1224R Power over Ethernet

ADTRAN’s NetVanta 1000 Series integrated switch-routers and managed Ethernet switches are now available with Power over Ethernet functionality.Fully compliant with 802.3af standards, these 24-port Layer 2 switches can equip networks with everything needed for powering VoIP networks. PoE is ideal for supporting IP phones, WAPs and other 802.3af powered devices. ADTRAN switches use the

data pair to provide data and power to networked LAN devices with up to 15.4 watts per Ethernet port (340 watts total). Standards-based and designed with the reliability of an ADTRAN-engineered solution, these products provide a lower-cost, future-proof switching solution that eliminates the need for extra in-house wiring to accommodate LAN-powered devices.

Power Over Ethernet (PoE) for VoIP

ADTRAN’s NetVanta 1000 Series offers a unique all-in-one network access solutionsthat combine the functionality of managed Layer 2 Ethernet switching and access routing into a single platform. The NetVanta 1224R, 1224R PoE, 1224STR, and 1224STR PoE offer 24 10/100Base-T Ethernet ports and an integral IP router with all of the routing functionality of the widely deployed NetVanta 3200 access

router. The NetVanta 1224STR and 1224STR PoE also offer 1000Base-T Gigabit port(s) for high-speed uplink and stacking requirements. In addition, these products include a stateful inspection firewall, optional VPN, and backup capability in a single 1U chassis. This single-platform LAN/WAN access solution significantly reduces the cost of branch office connectivity compared to multi-platform solutions.

(7)

1000Base-T, LX or SX 1000Base-T, LX or SX 1000Base-T, LX or SX 1000Base-T, LX or SX NetVanta 1524ST NetVanta 1524ST NetVanta 1524ST NetVanta 1524ST

Upstream Switch Wiring Closet Switches

1000Base-T Up to 22 1000Base-T Up to 22 1000Base-T Up to 22 1000Base-T Up to 22 STK STAT 12345678910111213141516171819202122232421222324 NetVanta 1524ST NetVanta 1524ST STK STAT 12345678910111213141516171819202122232421222324 NetVanta 1524ST STK STAT 12345678910111213141516171819202122232421222324 NetVanta 1524ST STK STAT 12345678910111213141516171819202122232421222324 NetVanta 1524ST STK STAT 12345678910111213141516171819202122232421222324 NetVanta 1524ST Link Aggregation Link Aggregation Link Aggregation Link Aggregation Gigabit-to-the-Desktop Gigabit-to-the-Desktop Gigabit-to-the-Desktop Gigabit-to-the-Desktop 1000Base-T 1000Base-T Gigabit Stacking Links 1000Base-LX or SX 1000Base-LX or SX NetVanta 1524ST NetVanta 1524ST NetVanta 1524ST NetVanta 1524ST 1000Base-T Up to 16 Switches

Core Switch Network Wiring Closet

Redundant Links Core Switch 1000Base-T Up to 22 1000Base-T Up to 22 1000Base-T Up to 22 1000Base-T Gigabit-to-the-Desktop Gigabit-to-the-Desktop Gigabit-to-the-Desktop Gigabit-to-the-Desktop Up to 22 STK STAT 12345678910111213141516171819202122232421222324 NetVanta 1524ST STK STAT 12345678910111213141516171819202122232421222324 NetVanta 1524ST STK STAT 12345678910111213141516171819202122232421222324 NetVanta 1524ST STK STAT 12345678910111213141516171819202122232421222324 NetVanta 1524ST The NetVanta 1524ST is a full-function, managed Gigabit Ethernet

switch available for less than half the cost of other managed 24-port Layer 2 Gigabit switches.This product sets a new standard for affordable higher bandwidth and Gigabit-to-the-desktop deployments.

Link Aggregation provides additional bandwidth for connectivity to upstream or core switches. Ideal for new installations or network upgrades, these switches provide higher bandwidth for corporate and branch office LANs.

Link Aggregation and Gigabit-to-the-Desktop

Ideal for new installations or network upgrades, the NetVanta 1524ST Gigabit switch provides higher bandwidth to support today’s most bandwidth- intensive applications. In this application, multiple NetVanta 1524ST Gigabit Ethernet switches are stacked (up 16 switches per stack), and managed using a single IP address.

Redundant fiber links provide a backup or secondary path to the core switch network in the event of a primary uplink failure. LLDP, a standards-based peer discovery protocol, allows network administrators to easily integrate NetVanta switches into large network applications.

(8)

Branch Office

Host Site/Corporate Office

1000Base-T or 1000Base-SX/LX IP PBX Up to 24 10/100Base-T Server 10/100Base-T E1 NetVanta 1224R PoE NetVanta 1224 PoE NetVanta 1224STR FE1 FE1 NetVanta 3200

Private I P

10/100Base-T LAN 10/100Base-T Up to 23 10/100Base-T Up to 24 IP Phones IP Phones STATWANDBUTDRDLNKTD RD VPN LAN G1G2 STAT 123456789101112131415161718192021222324NetVanta 1224R G1G2 STAT 123456789101112131415161718192021222324G1 NetVanta 1224STR

Power over Ethernet

G1G2 STAT

123456789101112131415161718192021222324NetVanta 1224 Power over Ethernet

E1/ADSL

SIP Call Control and Voice Messages NetVanta 1224R/1224R PoE or 1224STR/1224STR PoE NAT-enabled Firewall SIP-ALG 10/100Base-T LAN

Carrier

Network

IP Phones G1G2 STAT 123456789101112131415161718192021222324G1 NetVanta 1224STR Feature Server

SIP Call Control and Voice Messages NetVanta Ethernet switches, switch-routers, and access routers

provide QoS functionalityto ensure network managers have the ability to prioritize delay-sensitive or mission-critical traffic, such as VoIP, and control network congestion. NetVanta 1000 Series switches support Layer 2 802.1p Class of Service (CoS), while Weighted Round

Robin and Strict Priority queuing are used for traffic prioritization. At Layer 3, NetVanta 3000 Series access routers and 1000 Series switch-routers support DiffServ-marking and Weighted Fair or Low Latency Queuing.

Quality of Service for VoIP Networks

NetVanta 1000 Series products include a specialized SIP ALG that allows SIP traffic to traverse NAT-enabled firewalls.In the enter-prise network, this interoperability allows IP PBXs, phones, and other SIP-based devices to set up, tear down, and pass voice and call control messages seamlessly through the integral NAT-enabled firewall. With enhanced OS features enabled, NetVanta 1000 Series devices

preserve DiffServ markings in a VPN tunnel to maintain traffic prioritization and support NAT traversal for IPSec tunnels. In carrier networks, extensive SIP interoperability testing by ADTRAN comple-ments the SIP ALG to ensure ease of deployment with various softswitches and feature servers.

(9)

10/100Base-T Up to 24 IP Phones 10/100Base-T Up to 24 IP Phones 10/100Base-T LAN 10/100Base-T LAN

Internet

Frame Relay

ADSL 10/100Base-T VPN for Backup E1/FE1 E1/FE1 E1/FE1 Primary Link NetVanta 3305 Cable/DSL Broadband Modem NetVanta 3305 NetVanta 1224STR/ 1224STR PoE G1G2 STAT 123456789101112131415161718192021222324G1 NetVanta 1224STR Power over Ethernet

NetVanta 1224R/ 1224R PoE

G1G2 STAT

123456789101112131415161718192021222324 NetVanta 1224R Power over Ethernet

Gigabit Uplink Computer Room 200 Mbps Link Aggregation E1

VLAN 1 VLAN 2 VLAN 3 VLAN 4

Ultra-High Bandwidth Users

NetVanta 1224ST NetVanta 1224ST NetVanta 1224ST NetVanta 1224ST Wiring Closet Up to 24 Up to 24 Up to 24 Up to 24

High Bandwidth Users

NetVanta 1224 Wiring Closet NetVanta 1224 NetVanta 1224 10/100Base-T 10/100Base-T 10/100Base-T 10/100Base-T 1000Base-T 1000Base-T 1000Base-SX 1000Base-T 1000Base-T 10/100Base-T 10/100Base-T 10/100Base-T 10/100Base-T 10/100Base-T 10/100Base-T 10/100Base-T 10/100Base-T Up to 21 Up to 23 Up to 23

Internet

or Corporate

Frame Relay

Server Server NetVanta 1224STR G1 G2 STAT 123456789101112131415161718192021222324G1NetVanta 1224/STG2 G1G2 STAT 123456789101112131415161718192021222324G1NetVanta 1224/STG2 G1 G2 STAT 123456789101112131415161718192021222324G1NetVanta 1224/STG2 G1G2 STAT 123456789101112131415161718192021222324G1NetVanta 1224/STG2 G1G2 STAT 123456789101112131415161718192021222324G1 NetVanta 1224STR G1G2 STAT 123456789101112131415161718192021222324NetVanta 1224 G1 G2 STAT 123456789101112131415161718192021222324NetVanta 1224 G1G2 STAT 123456789101112131415161718192021222324NetVanta 1224

NetVanta 1000 Series switches and switch-routers provide managed switching features, like VLAN trunking, and GVRPto ease the configuration of larger VLAN networks. All of these features are offered at a price point up to 50 percent less than the competition. Up to 24 Fast Ethernet or Gigabit Ethernet ports may be configured for 802.1Q VLAN functionality to provide separation of broadcast domains and functional work areas. The NetVanta 1224ST and 1224STR add

Gigabit Ethernet uplink capability using integral 1000Base-T ports or SFP modules for single- or multi-mode fiber applications. These Gigabit ports may be used for VLAN trunking to an upstream switch, for link redundancy, or to connect high-speed ports on servers or other devices. Link Aggregation provides higher speed links from wiring closets to computer rooms. The NetVanta 1224STR provides inter-VLAN routing, as well as Internet connectivity via a modular WAN interface.

VLAN Switching and Inter-VLAN Routing

Secure VPN Connectivity Over the Internet

The NetVanta switch-routers offer optional VPN functionality to connect remote offices to corporate information resources, securely and cost-effectively.The NetVanta 1000 Series adheres to IPSec standards and is designed to maintain data integrity, secure VPN tunneling, and protect your network from cyber attacks for

communi-cation over potentially unsecured network components. Independent of the Internet service being provided, NetVanta 1000 Series switch-router platforms securely connect end-users to corporate information resources over primary or backup DSL or ADSL circuits.

(10)

Technical Questions www.adtran.com/support Where To Buy www.adtran.com/where2buy

ADTRAN: One of the world’s most successful

network access equipment suppliers.

Value-oriented solutions for the cost-conscious IT manager

ADTRAN addresses today’s value-orient-ed networking market with a full line of enterprise solutions for LAN-to-WAN connectivity over IP, TDM, switched, and wireless architectures. Our mission with these solutions is to lower acquisition costs, lower recurring monthly costs, or both, lowering TCO and offering you the best possible value in network access.

The reliability of a market leader

Our LAN-to-WAN solutions complement our highly successful and long-standing lines of wide area connectivity and carrier-class network access products. Our newest products reflect the same attention to detail that won us market leadership positions in key technologies such as integrated access devices (IADs), T1/HDSL2/4 transport, T1 and subrate NTU, Frame Relay/DDS extension, and ISDN extension.

Relentless product refinement and cost reduction

A strategy of relentless product refine-ment and cost reduction remains one of the primary drivers behind our market successes. Cost reduction at ADTRAN is about smart engineering, not cutting corners. We reward engineers who reduce costs in the same way we reward engineers who innovate. We also lower costs by using ADTRAN-developed intellectual property where feasible.

Quality and reliability in every unit

Your ADTRAN purchase is backed by an indisputable reputation of quality and reliability—the result of ADTRAN’s long-term, corporate-wide commitment to quality assurance in all phases of business and manufacturing operations. From initial product design and develop-ment to post-production testing of every unit shipped, ADTRAN means quality. A TL 9000 3.0 and ISO 9001:2000 certified supplier supporting next-generation quality standards, the company maintains extensive in-house labs for reliability, component, and compliance testing— all in the name of

customer satisfaction.

High-touch customer support

Every ADTRAN solution is backed by a 100% satisfaction guarantee, including an industry-leading warranty and best-in-class service and support.

■ Unlimited telephone technical support — A single call puts you in

touch with a knowledgeable expert in our technical support organization.

■ Comprehensive training and certification services — Access

to a comprehensive training and certification program that includes both free and fee-based options. Sessions are available on-site, off-site, on CD, and on the Internet.

ADTRAN is a company you can depend on for

high-value, customer-centric solutions.

NetVanta 1000 Series

Integrated Switch-Router Platforms Managed Fast Ethernet/PoE/Gigabit Switches

ADSL/ADSL2/ADSL2+ Routers

NetVanta 3000/4000/5000 Series

IP Access Routers

VPN/Internet Security Appliances

ATLAS Series

Integrated Access Devices

TRACER Series

(11)

Product Features Access Ports (10/100Base-T) Access Ports (10/100/1000Base-T) Combo Ports (10/100/1000Base-T/SFP) Chassis

WAN Slot Switching Capacity

Max # of MAC Addresses Supported Power over Ethernet 802.3af 15.4 watts/port WAN Protocols

Frame Relay, PPP, Multilink PPP, PPPoE, PPP Dial Backup

Routing Protocols BGP, OSPF, RIP, Static Spanning Tree 802.1D (Spanning Tree) 802.1w (Rapid Spanning Tree)

Stacking with Single IP Address Management Number of Switches Supported

Link Aggregation 802.3ad

Quality of Service (QoS) 802.1p Class of Service (CoS) DiffServe

DiffServ-to-802.1p Mapping Number of Egress Queues Storm Control

Broadcast, Multicast, Unicast Virtual LANs

802.1Q VLANs/VLAN Trunking/255 Active VLANs GVRP

Management

Command Line Interface (CLI) RS-232 (DB-9/Rear Panel) Telnet/SSH SNMP HTTP/SSL n-Command LLDP Port Mirroring Configuration/Firmware Load Dual Firmware Images Configuration File Download FTP/TFTP Firmware Updates DHCP

VPN

Optional ADTRAN OS Upgrade Security

XAUTH: RADIUS & RSA SecurID MAC-based Port Security Firewall

Stateful Packet Inspection NAT (1:1), NAPT (Many:1) Access Control Lists

Denial of Service (DoS) Protection Application Level Gateways (ALGs)

NetVanta 1224STR/ 1224STR PoE 24 1 port/2 ports 1U Rackmount 1 6.8/8.8 Gbps 8,000

*

•

16

•

4

•

NetVanta 1224R/ 1224R PoE 24 1U Rackmount 1 4.8 Gbps 8,000

*

•

16

•

4

•

NetVanta 1224ST/ 1224ST PoE 24 2 1U Rackmount 8.8 Gbps 8,000

*

•

16

•

4

•

NetVanta 1224/ 1224 PoE 24 1U Rackmount 4.8 Gbps 8,000

*

•

16

•

4

•

NetVanta 1524ST 24 4 (ports 21–24) 1U Rackmount 48 Gbps 8,000

•

16

•

2

•

*PoE versions only

NetVanta 1000 Series Feature Matrix

NetVanta 1000 series Part Numbers

NetVanta 1224R

w/US Power Cord...4200510L1 w/Australian Power Cord...4200510L1#AUS w/Euro Power Cord...4200510L1#EUR w/UK Power Cord ...4200510L1#UK

NetVanta 1224R with VPN

NetVanta 1224STR

NetVanta 1224STR with VPN

NetVanta 1224R PoE

w/US power cord ...1200530L1 w/Australian power cord ...4200530L1#AUS w/Euro power cord ...4200530L1#EUR w/UK power cord...4200530L1#UK

NetVanta 1224R PoE with VPN

NetVanta 1224STR PoE

NetVanta 1224STR PoE with VPN

NetVanta 1224 PoE

NetVanta 1224ST PoE

NetVanta 1524

w/US power cord ...1200560L2 w/Australian Power Cord...4200560L2#AUS w/Euro Power Cord...4200560L2#EUR w/UK Power Cord ...4200560L2#UK

(12)

U.S. Headquarters—Huntsville, Alabama ADTRAN, Inc.

Attention: International Department 901 Explorer Boulevard Huntsville, Alabama 35806 USA +1 256 963 8000 voice +1 256 963 6300 fax www.adtran.com [email protected]

International Customer Service

+1 256 963 8716 voice

Where To Buy

www.adtran.com/where2buy

Asia Pacific—Beijing, China

+86 10 8527 5011 voice +86 10 8527 5010 fax [email protected]

Asia Pacific—Hong Kong, China

+852 3187 7111 voice +852 2116 4084 fax [email protected]

Asia Pacific—Guangzhou, China

Asia Pacific Regional Headquarters—Melbourne, Australia

Asia Pacific—Sydney, Australia

+61 02 9004 7444 voice +61 02 9004 7445 voice +61 02 9004 7070 Fax Canada—Montreal, Quebec +1 877 923 8726 voice Canada—Toronto, Quebec +1 416 290 0585 voice

EMEA Regional Headquarters—Dublin, Ireland

Europe/Middle East/Africa— Bad Homburg, Germany

+49 6172 483 2304 voice +49 6172 483 2305 fax [email protected] [email protected] Latin America/Caribbean—USA +1 954 474 4424 voice +1 954 474 1298 fax [email protected] Latin America/Caribbean/Mexico—USA* +1 256 963 6736 voice +1 256 963 6300 fax [email protected] [email protected]

Mexico—Mexico City, Mexico

+52 55 9171 1535 voice +52 55 9171 2039 fax [email protected] Mexico/Brazil/Venezuela—USA* +1 256 963 8401 voice +1 256 963 6300 fax [email protected] [email protected]

* Managed out of Huntsville, Alabama, USA Headquarters

For a current list of global regional offices, visit www.adtran.com/regional

Five-year warranty applies only to products sold in North America and Europe.

For information on ADTRAN’s global warranty, visit www.adtran.com/global

Copyright © 2005 ADTRAN, Inc. All rights reserved. ADTRAN is a registered trademark of ADTRAN, Inc. in the United States and in other countries. NetVanta is a trademark of ADTRAN, Inc. in the United States and in other countries. IN589D 8.1

An Export License is required if this ADTRAN product is sold to a Government Entity outside of the EU+8 (Austria, Australia, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Japan, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Spain, Sweden, Switzerland, and the United Kingdom). This is per DOC/BIS ruling G030477 issued June 6, 2003.

ADTRAN is an ISO 9001, ISO 14001 and a TL 9000 certified supplier.
