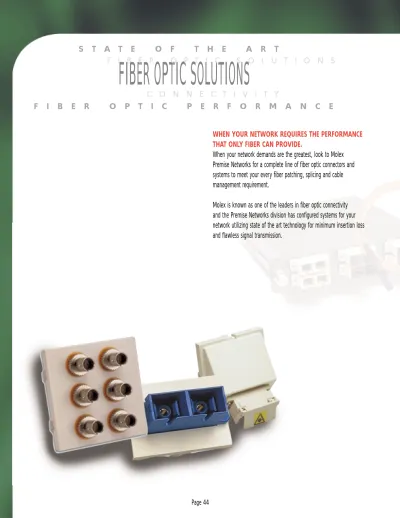

WHEN YOUR NETWORK REQUIRES THE PERFORMANCE THAT ONLY FIBER CAN PROVIDE.

When your network demands are the greatest, look to Molex Premise Networks for a complete line of fiber optic connectors and systems to meet your every fiber patching, splicing and cable management requirement.

Molex is known as one of the leaders in fiber optic connectivity and the Premise Networks division has configured systems for your network utilizing state of the art technology for minimum insertion loss and flawless signal transmission.

(2)

FIBER OPTIC SOLUTIONS

Page 45

In this section...

Description

Page

Wallplates and Modules . . . .46

Multi-Media Interface . . . .49

601 Series . . . .49

ModLink

TM

(pre-terminated plug-and-play fiber system) . . . .50

FMS Plus (high density/high security optical fiber patching enclosures) . . . .52

FMS II (rugged, high density/high security optical fiber patching enclosures) . . . .53

FMS Termination Drawer . . . .54

Optical Fiber Patch Panels . . . .54

LI-24 (wall-mount fiber enclosures) . . . .55

WM-12 . . . .55

Demarc Cabinets . . . .56

6-Pak Adapters . . . .57

Connectors & Adapters . . . .58

Splice Trays . . . .59

Optical Fiber Breakout Kits . . . .60

Termination Kits . . . .60

Termination Tools . . . .63

Optical Fiber Patch Cords . . . .64

Fiber Cable (Draka-Molex Cabling Systems) . . . .65

(3)

FIBER OPTIC SOLUTIONS

Page 46

Synergy

TM

– Better Than the Sum of its Parts

Synergy is an industrially designed family of wallplates, surface boxes and modular furniture outlets providing a sleek, curved and low profile appearance. Its slim, rounded contours offer an aesthetically pleasing style that fits even the most contemporary of high technology office atmospheres.

The Synergy family blends optimum functionality with its unique design by offering convenient features such as: • Low profile for inconspicuous network connecting

• Clear, concise labeling

• Rear-loading to reduce tampering

PART NO. DESCRIPTION

Wallplates

WSY-00003-** 3 Port Wallplate

WSY-00004-** 4 Port M/M Wallplate

WSY-00006-** 2 Port Angled Wallplate

WSY-00005-** 4 Port Angled Wallplate

WSY-00015-** 12 Port Double Gang Wallplate

Surface Boxes

SSY-00002-** 2 Port Modular Surface Box

Modular Furniture Outlets

SSY-00001-** 4 Port Modular Furniture Outlet/NEMA Cutout size a minimum of 2.812” x 1.750”

SSY-00005-** 3 Port Modular Furniture Outlet/TIA 569A Cutout size of 1.345-1.405” x 2.630-2.850”

SSY-00007-** 4 Port Modular Furniture Outlet/TIA 569A Cutout size of 1.345-1.405” x 2.630-2.850”

Accessories

CSP-00013 Clear Label Holder (bag of 25)

CSP-00011-** Molex Screw Cap Covers (bag of 25)

CSP-00005-** Alpha Icon Tree (bag of 10)

CSP-00010-** Synergy Icon Tree (bag of 10)

Synergy Fiber Modules

PART NO. DESCRIPTION

Fiber Modules

MSY-00003-** Single ST SM Module

MSY-00004-** Single ST MM Module

MSY-00018-** Simplex SC SM w/Shutter

MSY-00025-** Synergy MT-RJ

MSY-00020-** Dual ST MM

MSY-00021-** Dual ST SM

MSY-00027-** Synergy Duplex SC Module SM

MSY-00029-** Synergy Duplex SC Module MM

MSY-00026-** Duplex SC SM w/Shutter

MSY-00028-** Duplex SC MM w/Shutter

Synergy Color Options: Insert color code in place of ** when ordering Synergy: 01 = Almond, 02 = White, 04 = Black, 05 = Ivory, 08 = Light Grey MSY-00020-**, MSY-00021-**

Dual ST MM/SM Dimensions: .79”H x 1.60”W x 1.15”D

(20mm x 40mm x 29mm) Shipping Weight: .58 oz. (15g)

MSY-00025-** Module - Synergy MT-RJ Dimensions: .79”H x .70”W x 1.1”D

(20mm x 18mm x 29mm) Shipping Weight: 1 oz. (28g)

MSY-00027-**, MSY-00029-** Synergy Duplex SC Module SM/MM Dimensions: .79”H x 1.6”W x 1.2”D

MSY-00026-**, MSY-00028-** Duplex SC SM/MM w/Shutter Dimensions: .79”H x 1.6”W x 1.2”D

• Hinged screw caps prevent misplacement

• Slotted screw holes for alignment and easy removal • 5 wallplate colors available

The Synergy Family

(4)

FIBER OPTIC SOLUTIONS

Page 47

Single Gang USO II Bezel Dimensions: 4.5"H x 2.75"W x .6"D

(114mm x 70mm x 15mm) Shipping Weight: 1.5 oz. (42.5g)

Double Gang USO II Bezel Dimensions: 4.5"H x 4.5"W x .6"D

(114mm x 114mm x 15mm) Shipping Weight: 2.5 oz. (70.9g)

Single and Double-Gang USO II

TM

Single and Double-Gang USO II bezels respectively hold up to three or six USO II modules (up to twelve channels). Bezels include screws, screw caps and Snapz icon trees. Modules are ordered separately.

The Single-Gang USO II requires a total of up to four part numbers: • One Bezel • Three USO II modules or blanks

The Double-Gang USO II requires up to seven part numbers: • One Bezel • Six USO II modules or blanks

PART NO. DESCRIPTION

USO II Bezels

WUS-00001-** Single Gang Bezel with Alpha icons

WUS-00002-** Double Gang Bezel with Alpha icons

WUS-00003-** Single Gang Bezel with Telcom icons

WUS-00004-** Double Gang Bezel with Telcom icons

USO II Fiber Modules

Fiber Modules MUS-00044-** FDDI MUS-00063-** 2 ST SM MUS-00038-** 2 ST MM MUS-00045-** SC/SC SM MUS-00048-** SC/SC MM MUS-00046-** ST/SC MM MUS-00047-** ST/SC SM

MUS-00066-** FDDI Angled (2U)

MUS-00064-** 2 ST MM Angled (2U)

MUS-00065-** 2 ST SM Angled (2U)

MUS-00050-** SC/SC SM w/Shutter

MUS-00052-** SC/SC MM w/Shutter

MUS-00053-** ST/SC MM w/Shutter

MUS-00054-** ST/SC SM w/Shutter

MUS-00073-** 3 Duplex SC SM (2U)

MUS-00074-** 3 Duplex SC MM (2U)

MUS-00075-** 3 Duplex ST TO SC SM (2U)

MUS-00076-** 3 Duplex ST TO SC MM (2U)

MUS-00071-** 6 ST SM (2U)

MUS-00072-** 6 ST MM (2U)

MUS-00067-** 1 Duplex SC SM Angled (2U)

MUS-00068-** 1 Duplex SC MM Angled (2U)

MUS-00069-** 1 Duplex ST TO SC SM Angled (2U)

MUS-00070-** 1 Duplex ST TO SC MM Angled (2U)

MUS-00014-** 1 Duplex SC SM Angled w/Shutter (2U)

MUS-00015-** 1 Duplex SC MM Angled w/Shutter (2U)

MUS-00016-** 1 Duplex ST TO SC SM Angled w/Shutter (2U)

MUS-00017-** 1 Duplex ST TO SC MM Angled w/Shutter (2U)

MUS-00088-** Single MT-RJ

MUS-00087-** Dual MT-RJ

USO II Color Options:

Insert color code in place of ** in part number when ordering. 01 = Almond, 02 = White, 04 = Black, 08 = Light Grey

(5)

FIBER OPTIC SOLUTIONS

Page 48

USO II

TM

FIBER MODULES

MUS-00045-**, MUS-00048-**, MUS-00047-**, MUS-00046-** Module - SC/SC SM/MM

Module - ST/SC SM/MM Dimensions: 1.0"H x 2.0"W x 1.675"D

MUS-00050-**, MUS-00052-**, MUS-00054-**, MUS-00053-** Module - SC/SC SM/MM w/Shutter Module - ST/SC SM/MM w/Shutter

Dimensions: 1.0"H x 2.0"W x 1.675"D (25mm x 50mm x 43mm) Shipping Weight: 1 oz. (28g)

MUS-00065-**, MUS-00064-** Module - 2 ST SM/MM Angled (2U) Dimensions: 2.0"H x 2.0"W x 1.25"D

(50mm x 50mm x 32mm) Shipping Weight: 1.5 oz. (43g)

MUS-00066-** Module - FDDI - Angled (2U) Dimensions: 2.0"H x 2.0"W x 1.675"D

MUS-00073-**, MUS-00074-**, MUS-00075-**, MUS-00076-** Module - 3 Duplex SC SM/MM (2U) Module - 3 Duplex ST TO SC SM/MM (2U) Dimensions: 2.0"H x 2.0"W x 1.25"D (50mm x 50mm x 32mm)

Shipping Weight: 2.5 oz. (71g)

MUS-00071-**, MUS-00072-** Module - 6 ST SM/MM (2U)

Dimensions: 2.0"H x 2.0"W x 1.25"D (50mm x 50mm x 32mm) Shipping Weight: 2.5 oz. (71g)

MUS-00087-** Module - Dual MT-RJ Dimensions: 1.0”H x 2.0”W x 1.1”D

(25mm x 50mm x 28mm) Shipping Weight: 1oz. (28g)

MUS-00067-**, MUS-00068-**, MUS-00069-**, MUS-00070-** Module - 1 Duplex SC SM/MM Angled (2U) Module - 1 Duplex ST TO SC SM/MM Angled (2U)

MUS-00014-**, MUS-00015-**, MUS-00016-**, MUS-00017-** Module - 1 Duplex SC SM/MM Angled w/Shutter (2U) Module - 1 Duplex ST TO SC SM/MM Angled w/Shutter (2U)

MUS-00088-** Module - Single MT-RJ Dimensions: 1.0”H x 2.0”W x 1.1”D

(25mm x 50mm x 28mm) Shipping Weight: 1oz. (28g) MUS-00044-**

Module - FDDI Dimensions: 1.0"H x 2.0"W x 1.25"D

MUS-00063-**, MUS-00038-** Module - 2 ST SM/MM Dimensions: 1.0"H x 2.0"W x 1.25"D

(6)

FIBER OPTIC SOLUTIONS

The MMI and MMI-R share a common base which has special provision for storing and protecting optical fiber. Both units can be wall-mounted on a US 1 or electrical box.

WFR-00016-02 MMI

WFR-00017 MMI-R

MMI — Multi Media Interface

The MMI and MMI-R are compact wall-mounted units for storing and protecting optical fiber. The internal storage spool easily holds 1.5 meters of up to 12 fibers with 900 micron buffers. Both units accept up to six USO II modules (refer to pages 47 and 48) and can be configured using a combination of fiber, UTP, STTM _{and coax adapters, placing all outlets in one centrally located unit. This makes MMI an ideal}

fiber-to-the-desk consolidation point for clustered furniture.

The MMI has a sturdy snap-on plastic cover and is available in three attractive colors: almond, white and light grey. The MMI-R is a rugged version of the MMI with a grey powder-coated steel cover that over-hangs and protects the lower module positions. The metal cover is attached with allen-type cap screws. Both units include the cover, base, cable ties and icon labels.

WFR-00016-01 MMI (Plastic Cover) Almond

WFR-00016-02 MMI (Plastic Cover) White

WFR-00016-08 MMI (Plastic Cover) Light Grey

WFR-00017 MMI-R (Graphite Grey Metal Cover)

601 Fiber Series

The 601 Fiber series wall mount system interface products are compact units for optical fiber. The ST and Duplex SC versions have a capacity for up to either 6 or 8 ports.

The enclosures are made of white rugged plastic and while having a low profile, provide the proper internal fiber management to ensure the integrity of the optical network. There is also provision for a user-supplied seal for added security.

The 601 Fiber series is compatible for splicing and direct terminations. The splice holders accept up to 8 fusion splice protectors or mechanical splices.

WFR-00009-02 6 Ports, ST, unloaded WFR-00010-02 6 Ports, ST, MM, loaded WFR-00011-02 6 Ports, ST, SM, loaded WFR-00015-02 2 MTP Loaded 12/24 Fiber WFR-00024-02 8 Ports, ST, unloaded WFR-00025-02 8 Ports, ST, MM, loaded WFR-00026-02 8 Ports, ST, SM, loaded

WFR-00027-02 8 Ports, Duplex SC, unloaded

WFR-00028-02 8 Ports, Duplex SC, MM, loaded

WFR-00029-02 8 Ports, Duplex SC, SM, loaded

WFR-00030-02 6 Ports, Accepts Simplex SC or MTRJ (2 Fibers/Port) Couplers unloaded

601 Series Dimensions: 7.25"H x 5.0"W x 1.5"D

(185mm x 130mm x 40mm) Shipping Weight: 11 oz. (320g) Page 49

(7)

FIBER OPTIC SOLUTIONS

Page 50 4U ModLink Enclosure populated with 12 Port MT-RJ Adapter Cassettes

Dimensions: 6.75”H x 19”W x 12”D

ModLink cable is available in five meter increments. If your installation is measured in foot lengths, convert your measurements to

meter lengths using this formula:

Foot Length ÷ 3.281 = Meter Length

Then, convert the meter length to 5 meter increments, as follows:

Meter Length ÷ 5 = Number of 5 Meter Increments Required

Replace XXX in part number with number of 5 meter increments

Example: CFR-03003 = 15 meters CFR-03004 = 20 meters

ModLink Cable supplied with a factory assembled pulling eye and protective sleave.

ModLink

TM

Installing fiber-optic systems is quick, easy and cost-effective with ModLink. Because field termination is not required, there is no need for special termination tools and training. Simply plug in the cable and the link is operational. This is also an excellent solution for disaster recovery and fast-track installs.

• ModLink cables and cassettes are factory tested and shipped with complete optical test results for each unit

• Multi-fiber ribbon cable terminations put all fibers in one MTP®_connector

for easier cable management

• Rack or wall-mounted enclosures for multiple applications including premises backbones, consolidation points and OFTD

ModLink features compact 6- and 12-fiber 62.5/50µm MM or SM plenum-rated ribbon cables. The cables are factory-terminated on both ends with multi-fiber MTP®_{connectors and a built-in}

protective pulling eye. SM is angle-polished to reduce back reflection. MM is flat polished.

ModLink cassettes are self-contained fiber-optic patching enclosures. They convert the MTP®_{interface to}

an individual standard ST, SC, FC or MT-RJ coupler. Cassettes are available in 6, 12 and 24-fiber versions and can be rack or wall-mounted with the correct enclosure or bracket.

PART NO. DESCRIPTION ModLink Cable

86293-3XXX 6-Fiber 62.5 ModLink Cable MM

86293-2XXX 12-Fiber 62.5 ModLink Cable MM

86293-6XXX 12-Fiber 50µm ModLink Cable MM

86293-7XXX 6-Fiber 50µm ModLink Cable MM

CFR-03XXX 6-Fiber ModLink Cable SM

CFR-04XXX 12-Fiber ModLink Cable SM

16” x 16” ModLink wall mount enclosure depicted loaded and closed.

(8)

FIBER OPTIC SOLUTIONS

Page 51 PFR-00040 SM MTP12/MT-RJ ModLink Cassette Dimensions: 1.25”H x 6.5”W x 7”D (32mm x 165mm x 178) Shipping Weight: 14 oz. (397g)

PFR-00021 62.5MM MTP12/DSC ModLink Cassette

Dimensions: 1.25”H x 6.5”W x 7”D (32mm x 165mm x 178) Shipping Weight: 14 oz. (397g)

ModLink

TM

NO. OF MTP NO. OF FRONT

PART NO. DESCRIPTION ON BACK FIBERS/MTP CONNECTOR

ModLink Cassettes PFR-00011 62.5MM MTP6/ST 1 6 ST PFR-00012 62.5MM MTP12/ST 1 12 ST PFR-00013 62.5MM 2MTP6/ST 2 6 ST PFR-00017 SM MTP6/ST 1 6 ST PFR-00018 SM MTP12/ST 1 12 ST PFR-00019 SM 2MTP6/ST 2 6 ST PFR-00020 62.5MM MTP6/DSC 1 6 Duplex SC PFR-00021 62.5MM MTP12/DSC 1 12 Duplex SC PFR-00022 62.5MM 2MTP6/DSC 2 6 Duplex SC PFR-00026 SM MTP6/DSC 1 6 Duplex SC PFR-00027 SM MTP12/DSC 1 12 Duplex SC PFR-00028 SM 2MTP6/DSC 2 6 Duplex SC PFR-00029 62.5MM MTP6/MT-RJ 1 6 MT-RJ PFR-00030 62.5MM MTP12/MT-RJ 1 12 MT-RJ PFR-00031 62.5MM 2MTP6/MT-RJ 2 6 MT-RJ PFR-00032 62.5MM 2MTP12/MT-RJ 2 12 MT-RJ PFR-00033 62.5MM 4MTP6/MT-RJ 4 6 MT-RJ PFR-00039 SM MTP6/MT-RJ 1 6 MT-RJ PFR-00040 SM MTP12/MT-RJ 1 12 MT-RJ PFR-00041 SM 2MTP6/MT-RJ 2 6 MT-RJ PFR-00042 SM 2MTP12/MT-RJ 2 12 MT-RJ PFR-00043 SM 4MTP6/MT-RJ 4 6 MT-RJ PFR-00044 62.5MM MTP6/FC 1 6 FC PFR-00045 62.5MM MTP12/FC 1 12 FC PFR-00046 62.5MM 2MTP6/FC 2 6 FC PFR-00047 50MM MTP6/FC 1 6 FC PFR-00048 50MM MTP12/FC 1 12 FC PFR-00049 50MM MTP6/FC 2 6 FC PFR-00050 SM MTP6/FC 1 6 FC PFR-00051 SM MTP12/FC 1 12 FC PFR-00052 SM 2MTP6/FC 2 6 FC PFR-00053 SM MTP12/FC APC 1 12 FC APC NO. OF

PART NO. DESCRIPTION CASSETTES COLOR

Enclosures and Brackets

RFR-00071 1U 19” Open Bracket 2 Grey

RFR-00072 1U 19” Enclosure 2 Grey

RFR-00073 4U Enclosure/Steel Door 12 Grey

RFR-00074 4U Enclosure/Lexan Door 12 Grey

WFR-00039 16"x16" Wall Mount 6 Champagne

PFR-00051 SM MTP12/FC ModLink Cassette Dimensions: 1.25”H x 6.5”W x 7”D

(32mm x 165mm x 178) Shipping Weight: 14 oz. (397g)

PFR-00012 62.5MM MTP12/ST ModLink Cassette

Dimensions: 1.25”H x 6.5”W x 7”D (32mm x 165mm x 178) Shipping Weight: 14 oz. (397g)

MT-RJMT-RJMT-RJMT-RJMT-RJMT-RJMT-RJMT-RJMT-RJMT-RJMT-RJ MT-RJ

MT-RJMT-RJMT-RJMT-RJMT-RJMT-RJMT-RJMT-RJMT-RJMT-RJMT-RJ MT-RJ

1U 19” Open Bracket shown loaded

(9)

Page 52 RFR-00027, RFR-00031, RFR-00034, RFR-00038 4U FMS Plus Dimensions: 6.75”H x 16”W x 12”D (171mm x 406mm x 305mm) Shipping Weight: 19 lbs. (8.6kg) RFR-00028, RFR-00033, RFR-00035, RFR-00040 8U FMS Plus Dimensions: 13.5”H x 16”W x 12”D (343mm x 406mm x 305mm) Shipping Weight: 30 lbs. (13.6kg)

FMS Plus

FMS Plus is a series of configurable patching and/or splicing units that are available in seven styles. The FMS plus is shipped completely assembled including a configurable 6-Pak panel. All you need to do is mount the unit on a rack and snap in 6-Pak/Adapter Plates (refer to page 57) and splice trays (refer to page 59), each purchased separately. Using 6-Paks allows installation of multiple connector types within the same enclosure. Each 4U frame accepts 12 6-Paks. All units are available with either a Lexan®_{door or a steel door – each style is fully lockable.}

• Fully configurable using 6-Pak/Adapter plates

• Accommodates multiple connector and fiber types within a single enclosure • Available with fully lockable steel doors where security is a primary concern

Or, smoked Lexan doors – fully lockable – are perfect where aesthetics are paramount • Easy to use and apply labeling

• Holds up to six Universal Splice Trays which adapt for either fusion or mechanical splices • Splicing and patching can occur within the same unit (patching in the top, splicing in the bottom) • Low profile design allows a maximum of fiber terminations in a minimum of rack space • Multiple cable access holes with grommets to protect incoming cables and caps for unused holes

PART NO. DESCRIPTION

RFR-00027 FMS Plus 72 Fiber Patch Panel with Metal Door (4U)

RFR-00028 FMS Plus 72 Fiber Patch/Splice Panel with Metal Door (8U)

RFR-00031 FMS Plus 72 Fiber Splice Panel with Metal Door (4U)

RFR-00033 FMS Plus 144 Fiber Patch Panel with Metal Door (8U)

RFR-00034 FMS Plus 72 Fiber Patch Panel with Smoked Plexi Door (4U)

RFR-00035 FMS Plus 72 Fiber Patch/Splice Panel with Smoked Plexi Door (8U)

RFR-00038 FMS Plus 72 Fiber Splice Panel with Smoked Plexi Door (4U)

(10)

FIBER OPTIC SOLUTIONS

FMS II

FMS II is a fully-enclosed optical patch panel and integral cable management unit that is suitable for high-density applications or where a high level of security and protection is required. A clear Lexan®

cover protects the swing-away patch field in the front and a rugged graphite grey powder-coated steel enclosure protects the incoming cable at the rear. Each FMS II enclosure accepts 12 6-Paks (refer to page 57).

Where rear access is necessary, the back panel opens with two quarter-turn screws or the back cover can be lifted off by removing four corner screws. FMS II can be flush mounted or non-flush mounted, making it the most versatile fiber management product available. Includes rack-mounting screws, cable management rings, adjustable mounting ears, cable ties and labeling.

FMS IIS

FMS IIS is a ruggedized version of the FMS II and is also suitable for high-density applications or where a high level of security and protection is required. It provides all of the features of the FMS II plus a rugged steel front door in place of the Lexan door. Each FMS IIS enclosure accepts 12 6-Paks (refer to page 57). In addition, FMS IIS comes with keyed locks for the front and rear doors for added security. FMS IIS uses the same patch panel inserts as FMS II, providing up to 72 ports in only three 19" rack positions. Includes rack mounting screws, cable management rings, adjustable mounting ears, cable ties and labeling.

17.B146G FMS II – Fiber Management System (Lexan door)

17.B154G FMS IIS (Steel Door)

FMS II Configurable Panel Inserts

Molex Premise Networks Configurable Panel Inserts are used with the FMS II and FMS IIS. They accept 6-Pak plates (refer to page 57) for custom-configuring with any combination of SC or ST adapters and are available in 48 and 72-port versions. Use blank plates for unoccupied positions.

FMS II Panel Inserts

30.B026G 48-Port Configurable Panel Insert – unloaded

30.B034G 72-Port Configurable Panel Insert – unloaded

17.B146G FMS II Dimensions: 5.25"H x 19.0"W x 10"D (133mm x 483mm x 254mm) Shipping Weight: 11 lbs. (5kg) 30.B026G 48-Port Configurable Panel Insert Dimensions: 4.79"H x 16.34"W x .06"D

(121mm x 415mm x 2mm) Shipping Weight: 1 lb. (454g)

30.B034G 72-Port Configurable Panel Insert Dimensions: 4.79"H x 16.34"W x .06"D (121mm x 415mm x 2mm) Shipping Weight: 1 lb. (454g) Page 53 17.B154G FMS IIS Dimensions: 5.25"H x 19.0"W x 10"D (133mm x 483mm x 254mm) Shipping Weight: 11 lbs. (5kg)

(11)

FIBER OPTIC SOLUTIONS

Page 54 30.B035G, 30.B039G ST to SC Panel Dimensions: 1.75"H x 19"W x .75"D (44mm x 483mm x 19mm) Shipping Weight: 1 lb. 7.5 oz. (665g)

30.B015G, 30.B040G SC Panel Dimensions: 1.75"H x 19"W x .75"D

(44mm x 483mm x 19mm) Shipping Weight: 1 lb. 5 oz. (595g)

17.B155G

24-Port Termination Drawer-(show loaded) Dimensions: 1.75"H x 19.0"W x 12.5"D

(45mm x 483mm x 318mm) Shipping Weight: 9 lbs. (4kg)

24-Port FMS Termination Drawer

The 24-Port FMS Termination Drawer is a 1U configurable rack mount unit for storing and terminating incoming fiber cable. The cabinet is made of rugged 16-gauge steel with a graphite grey powdercoat finish. The front of the drawer slides open to reveal a recessed configurable patch panel that accepts up to four 6-Paks or Adapter plates (refer to page 57). Behind the configurable panel is a fully-enclosed cable management area. The 24-Port FMS comes with a keyed lock to provide a compact secure termination drawer. Includes rack mounting screws, cable management ring, labeling and split tubing to protect incoming cable.

PART NO. DESCRIPTION

17.B155G 24-Port FMS Termination Drawer

Optical Fiber Patch Panels

The 24 Port ST Panel is an economical 1U panel for rack mounted optical fiber patching. It comes preloaded with 12 or 24 high quality ST adapters in singlemode and multimode versions.

The 24 Port SC Panel is available loaded with 12 duplex SC adapters, suitable for singlemode or multi-mode. It may also be purchased half loaded. In addition, Molex Premise Networks now provides shuttered SC and ST to SC panels.

PART NO. DESCRIPTION

30.B010G 24 Port ST Panel - Unloaded

30.B012G 24 Port ST Panel - MM 30.B011G 24 Port ST Panel - SM 30.B014G 12 Port ST Panel - MM 30.B013G 12 Port ST Panel - SM 30.B015G 24 Port SC Panel - SM 30.B040G 24 Port SC Panel - MM

RFR-00016 24 Port Shuttered SC Panel - SM

RFR-00017 24 Port Shuttered SC Panel - MM

30.B016G 12 Port SC Panel -SM

30.B037G 12 Port SC Panel - MM

30.B035G 24 Port ST to SC Panel - SM

30.B039G 24 Port ST to SC Panel - MM

RFR-00018 24 Port Shuttered ST to SC Panel - SM

RFR-00019 24 Port Shuttered ST to SC Panel - MM

30.B036G 12 Port ST to SC Panel - SM 30.B038G 12 Port ST to SC Panel - MM 30.B010G, 30.B012G, 30.B011G ST* Panel Dimensions: 1.75"H x 19"W x .75"D (44mm x 483mm x 19mm) Shipping Weight: 1 lb. 7.5 oz. (665g)

(12)

FIBER OPTIC SOLUTIONS

Page 55

LI-24

The LI-24 is a configurable, wall-mounted, optical fiber interconnect unit. The unit accepts up to four 6-Pak plates (refer to page 57) that are available with high-quality singlemode or multimode adapters (sold separately). Each LI-24 comes complete with internal fiber management rings, cable ties and a unique patch cord organizer block that is invaluable for arranging the outgoing cables safely without strain or pressure. There is an optional clear patch cord protection shield and each fiber can be individu-ally labeled. The LI-24 is made of 16-gauge steel in graphite grey or champagne powdercoated finish.

15.B016G LI-24 - Grey

WFR-00019 LI-24 - Champagne

15.B0210 Organizer Blocks (10 per Bag)

30.B0330 Patch Cord Protection Shield

Two LI-24s, in tandem, provide a perfect transition point from outdoor to indoor cable.

WM-12

The WM-12 is a wall-mounted enclosure that accepts up to six single or three double Molex Premise Networks modules providing up to eighteen fiber ports in a minimum of space. This lockable 16-gauge steel unit is the recommended solution where a high level of security is required. The WM-12 is available in powdercoated grey or champagne finishes.

The inside of the WM-12 has an integral configurable panel that accepts USO II Modules (refer to pages 47 and 48). By loading the panel with triple-duplex SC or ST modules, the unit will accommo-date 18 fibers. Modules may be mixed fiber, UTP, STP and coax, making this the most versatile and compact wall mount enclosure for mixed media.

The back wall of the WM-12 has cable management clips for routing cable to the USO II modules. This design guarantees that all of the media will be protected and properly managed, with special attention paid to the minimum bend radius requirements of the optical fiber.

PART NO. DESCRIPTION

WFR-00018 WM-12 Wall Mount Fiber Box - Grey

WFR-00020 WM-12 - Champagne

Molex Premise Networks recommends that all inside plant fiber have a 900µ buffer coating. This fiber may be terminated in the back of the patch panels and inside the WM-12 without the addition of breakout kits or the need for splicing. This installation policy eliminates a potential failure point and significant labor and material cost.

Remember: properly selected and installed passive fiber components are highly dependable and virtually maintenance-free.

WFR-00018 WM-12 Wall Mount Fiber Box Dimensions: 6.5”H x 11.5”W x 6.625”D

(165mm x 292mm x 67mm) Shipping Weight: 4 lb. 7.5 oz. (2kg)

The WM-12 (shown with cover removed) is recommended for higher security applications of up to 18 fibers.

15.B016G LI-24 (Grey) Dimensions: 8.0"H x 9.875"W x 3.0"D

(203mm x 251mm x 76mm) Shipping Weight: 4 lbs. 6.5 oz. (2kg)

(13)

FIBER OPTIC SOLUTIONS

Page 56

Patch/Splice Demarc Cabinets

Molex Premise Networks Patching/Splicing Demarc cabinets provide a central point for interconnecting and/or splicing fiber optic cables. Each includes an integral panel that accepts 6-Pak/Adapter plates (refer to page 57) for field configuring the units for a variety of connector types including the most commonly used ST and SC connectors – the 36P holds six 6-Paks and the 72P holds twelve 6-Paks. When using the Demarc units for splicing, order the splice tray holder and Universal Splice Trays separately (refer to page 59). The cable management areas (left side) of each unit includes a keyed lock. If you require a lock on the right side (patch field), purchase an additional keyed lock kit. Doors are removable for easy installation of 6-Paks and Splice Trays.

All locks are identical.

PART NO. DESCRIPTION

WFR-00022 36P Patch/Splice Demarc Cabinet

WFR-00023 72P Patch/Splice Demarc Cabinet

Optional Accessories

AFR-00110 72P Splice Tray Holder (holds 6 trays)

AFR-00001 Universal Splice Tray

35.B0130 Keyed Lock Kit

AFR-00144 Cable Clamp 20mm - cable diameter 4-8mm

AFR-00145 Cable Clamp 20mm - cable diameter 7.5-10mm

AFR-00146 Cable Clamp 20mm - cable diameter 9.5-13.2mm

AFR-00147 Cable Clamp 25mm - cable diameter 13-18mm

WFR-00022 36P Patch/Splice Demarc Cabinet Dimensions: 14.0"H x 14.0"W x 3.5"D

(256mm x 356mm x 89mm) Shipping Weight : 11 lb. (5kg)

WFR-00023 72P Patch/Splice Demarc Cabinet (Shown loaded including Splice Tray Holder)

Dimensions: 16.0"H x 16.0"W x 4.8"D (406mm x 406mm x 122mm) Shipping Weight: 13 lb. (5.9kg)

(14)

FIBER OPTIC SOLUTIONS

Page 57

6-Pak Adapter Plates

Molex Premise Networks makes it easy to field configure fiber optic products by offering an extensive line of 6-Pak and Adapter Plates. The plates are loaded with high quality SC, ST, FDDI and ESCON®

adapters. No tools are required—the plates install with a simple snap rivet, making installation or changes simple.

PART NO. DESCRIPTION

AFR-00111 6-Pak ST - SM

AFR-00112 6-Pak ST - MM

AFR-00159 6-Pak MT-RJ SM/MM

AFR-00160 6-Pak ST - unloaded - 4/pkg

AFR-00113 6-Pak ST to SC SM

AFR-00114 6-Pak ST to SC SM Shuttered

AFR-00115 6-Pak ST to SC MM

AFR-00116 6-Pak ST to SC MM Shuttered

AFR-00117 6-Pak SC SM (Blue)

AFR-00118 6-Pak SC SM (Blue) Shuttered

AFR-00119 6-Pak SC MM (Beige)

AFR-00120 6-Pak SC MM (Beige) Shuttered

AFR-00121 6-Pak Blanks - 4/pkg

15.B0394 Adapter Plate ST to FC MM

15.B0404 Adapter Plate FC to FC SM

15.B0324 Adapter Plate ST to ESCON SM

15.B0284 Adapter Plate ST to ESCON MM

15.B0314 Adapter Plate ST to FDDI SM

15.B0294 Adapter Plate ST to FDDI MM

6-Pak/Adapter Plates are used in the following products: • FMS Plus High-Density Patching/Splicing (page 52) • Configurable Panel Inserts (FMS II and FMS IIS) (page 53) • 24-Port FMS Termination Drawer (page 54)

• LI-24 (page 55)

• Fiber Patch/Splice Demarc Cabinets (page 56) When using SC adapters in your installation, always follow the keying and color-coding requirements of ANSI/ EIA/TIA 568A.

AFR-00111, AFR-00112 6-Pak ST - SM/MM Dimensions: 3.375”H x 1.312”W x .6”D

(86mm x 33 mm x 15mm) Shipping Weight: 2 oz. (56g)

AFR-00117, AFR-00119, AFR-00113, AFR-00115 6-Pak SC - SM/MM, 6-Pak ST to SC -SM/MM

Dimensions: 3.35”H x 1.312”W x 1.1“D (86mm x 33 mm x 28mm) Shipping Weight: 2 oz. (56g)

AFR-00118, AFR-00120, AFR-00114, AFR-00116 6-Pak SC - SM/MM with Shutter 6-Pak ST to SC - SM/MM with Shutter Dimensions: 3.375”H x 1.312”W x 1.1“D

15.B0314, 15.B0294 ST to FDDI Plate - SM/MM Dimensions: 3.375”H x 1.312”W x 2.0“D

(86mm x 33 mm x 53mm) Shipping Weight: 2 oz. (56g) AFR-00121

Blank Plate

Dimensions: 3.375”H x 1.312”W x .43“D (86mm x 33 mm x 11mm) Shipping Weight (Bag of 4): 2 oz. (56g) AFR-00159

6-Pak MT-RJ SM/MM Dimensions: 3.375”H x 1.312”W x 1.1“D

(15)

FIBER OPTIC SOLUTIONS

Page 58

Connectors and Adapters

Molex Premise Networks offers a complete line of high-quality multimode and singlemode fiber optic connectors. ST, SC and LC connectors are available in metal body or plastic body with zirconia ceramic ferrules. Adapters for the ST and SC are available with SC duplex adapters color-coded per

TIA/EIA 568A specifications.

PART NO. DESCRIPTION FERRULE MATERIAL JACKET DIAMETER ACTION COLOR

86063-0000 SC Connector MM Simplex Zironia Polymer 3.0mm Heat Epoxy Blue

86063-0060 SC Connector MM Simplex Zirconia Polymer 3.0mm Heat Epoxy Beige

86063-5000 SC Connector SM Simplex Zirconia Polymer 3.0mm Heat Epoxy Blue

86063-3560 SC Connector MM Simplex Zirconia Polymer .9mm Heat Epoxy Beige

86063-5500 SC Connector SM Simplex Zirconia Polymer .9mm Heat Epoxy Blue

86010-0200 ST Connector MM Simplex Zirconia Polymer 2.4 and 3.0mm Heat Epoxy

86010-5200 ST Connector SM Simplex Zirconia Polymer 2.4 and 3.0mm Heat Epoxy

86012-0200 ST Connector MM Simplex Zirconia Metal 2.4 and 3.0mm Heat Epoxy

86012-5200 ST Connector SM Simplex Zirconia Metal 2.4 and 3.0mm Heat Epoxy

86012-0500 ST Connector MM Simplex Zirconia Metal .9mm Heat Epoxy

86012-5500 ST Connector SM Simplex Zirconia Metal .9mm Heat Epoxy

86030-0200 FDDI Connector MM Duplex Zirconia Polymer Zipcord Heat Epoxy Black

84.B0020 SC/SC Adapter SM Duplex PB* Polymer NA** NA Blue

84-5-STA-DM ST/ST Adapter MM Simplex Polymer Polymer NA NA

84-5-STB-DM ST/ST Adapter SM Simplex PB Metal NA NA

86066-0000 SC Connector MM Duplex Zirconia Polymer 3.0mm Heat Epoxy Beige

86066-5000 SC Connector SM Duplex Zirconia Polymer 3.0mm Heat Epoxy Blue

86102-0000 MT-RJ Adapter NA Polymer NA NA Black

86167-0110 SC/SC Adapter-Snap Mount MM DuplexPB Polymer NA NA Beige

86167-1110 SC/ST Adapter-Snap Mount MM DuplexPB Polymer NA NA Beige

86167-0100 SC/SC Adapter-Snap Mount SM DuplexPB Polymer NA NA Blue

86166-0210 Shutter Assembly-Duplex NA Polymer NA NA Beige

86166-0200 Shutter Assembly-Duplex NA Polymer NA NA Blue

AFR-00150 MT-RJ Connector (Prepolished)

MM (62.5) Duplex Composite Polymer .9mm Spring Lock Black

MM (50) Duplex Composite Polymer .9mm Spring Lock Black

SM Duplex Composite Polymer .9mm Spring Lock Black

86024-3500 Simplex LC MM Connector Zirconia Plastic 900µm Heat Epoxy Beige

86024-5500 Simplex LC SM Connector Zirconia Plastic 900µm Heat Epoxy Blue

86025-3300 Duplex LC MM Connector Zirconia Plastic 2.0mm Heat Epoxy Beige

86025-5300 Duplex LC SM Connector Zirconia Plastic 2.0mm Heat Epoxy Blue

86124-0010 Simplex LC MM Adapter PB Plastic NA NA Beige

86124-1000 Simplex LC SM Adapter Zirconia Plastic NA NA Blue

86125-0110 Duplex LC MM Adapter PB Plastic NA NA Beige

86125-1100 Duplex LC SM Adapter Zirconia Plastic NA NA Blue

86066-0000 Duplex SC Connector w/Shutter Dimensions: .43”H x 1.12”W x 1.08”D

AFR-00150, AFR-00151 MT-RJ Connector Dimensions: 2”L x .37”W x .75”D

(50mm x 9.5mm x 19mm) Shipping Weight: .05 oz. (15g)

84-5-STA-DM, 84-5-STB-DM MM/SM ST Adapter Shipping Weight: 1oz. (28g)

84.B0020 Duplex SC Adapter Dimensions: .37”H x 1.12”W x 1.08”D

(16)

86000-2000, 86000-2100 Xpress Anarobic Termination Kit

Shipping Weight: 2 oz. (56g)

Xpress Termination Connectors

Xpress Termination connectors provide quick, low cost and reliable terminations for fiber optic LANs. Xpress Termination Connectors are packaged in a plastic shell that can be used as a holder during termination. Each kit includes 12 Xpress Termination Connectors, adhesive, one vial of accelerator and quick termina-tion procedures. (refer to page 60 for terminatermina-tion kits)

• Installs in about two minutes – no curing oven required

• No electrical power required for termination • One part adhesive requires no mixing or applicator

86000-2000 Xpress Anarobic Termination ST Connectors MM (12 per pack)

86000-2100 Xpress Anarobic Termination SC Connectors MM (12 per pack)

Universal Splice Tray

Molex Premise Networks Universal Splice Tray is a unique configurable enclosure for both mechanical and fusion splices. Each tray includes two fusion splice sleeves and two mechanical splice sleeves. Loose tube cable is routed into and out of the tray through adjustable tube grips located at each corner. These grips eliminate the need for separate cable ties and, being adjustable, are easily tightened and loosened preventing over-compression of the loose tube cable.

AFR-00001 Universal Splice Tray

Splice Trays may be mounted with Splice Cabinets (refer to page 56)

Ultrasplice

TM

Mechanical Splice

The Ultrasplice Mechanical Splice is a high-performance, fully-mechanical fiber optic splice that accepts any combination from 250-900 micron buffers. It has a visible glass capillary alignment member that is pre-loaded with index matching gel, so the installer can inspect the fiber location during installation. This splice is suitable for most installation requirements (emergency or permanent) and does not require additional fixtures or special tools to install.

91.B0210 Ultrasplice Splice Kit

91.B0110 Ultrasplice MM Mechanical Splice

91.B0120 Ultrasplice SM Mechanical Splice

Ultrasplice Kit includes:

1 Lighted magnifier/ 1 Scissors for Kevlar®

holder assembly 1 Package of cleaning pads

1 Battery pack with switch 1 Alcohol bottle

1 Pocket cleaver 1 Carry case/workstation

1 No-Nik buffer stripper 1 Installation video

1 Wire stripper

AFR-00001 Universal Splice Tray Dimensions: 5.625”H x 3.75”W x 0.5”D

91.B0110, 91.B0120 Ultrasplice Mechanical Splice Dimensions: 1.75” length x .25” diameter

(40mm x 5.7mm) Shipping Weight: 1 oz. (28g)

FIBER OPTIC SOLUTIONS

Page 59 • Consistent results with

minimum training

• Includes 900µm and 3mm boots • Zirconia ferrule

UltraspliceTM _{is a trademark of Advanced Custom Applications, Inc.} Kevlar®_{is a registered trademark of E.I. duPont deNamours & Co. Inc.}

(17)

Page 60

Optical Fiber Breakout Kits

Molex Premise Networks Breakout Kits are used on multi-fibers-per-tube loose tube cables to modify the cable for direct termination. Each kit breaks out 250 µm fibers from a multifiber loose tube into individual 900 µm buffer tubes. The fibers can then be terminated using the connector manufacturer’s recommended termination procedures for 900 µm tight-buffered fibers.

PART NO. DESCRIPTION

Optical Fiber Breakout Kits

91.B0610 4 Fibers Per Tube Breakout Kit

Optical Fiber Termination Kits & Components

Fiber optic connector performance is dependent upon high quality terminations. In order to achieve the best possible connector performance, Molex Premise Networks offers a variety of termination kits, tools and expendable materials (epoxy, lapping film, etc.) to ensure high-quality, quick and reliable terminations. Our termination kits include everything necessary for the efficient installation of standard Molex style ST and SC connectors. Each consumables kit is sufficient for approximately 100 connectors, unless otherwise stated.

86779-0000 XpressTerm SC Termination Kit

86719-0000 XpressTerm ST Termination Kit

86719-5000 XpressTerm Consumables Kit

AFR-00154 MT-RJ Table Top Termination Tool

AFR-00158 MT-RJ Polishless Termination Kit

86710-0000 Epoxy Termination Kit 110V ST

86763-0000 SC Termination Tool Kit with 110V/60Hz Curing Oven

86710-5000 Consumables Kit ST/SC

91.B0210 Ultrasplice Splice Kit (Contains No Splices)

86719-0000, 86779-0000 Xpress Term®_ST/SC

Termination Kit Shipping Weight: 3 lbs. 11 oz.

(1316g)

91.B0610, 91.B0620, 91.B0630, 91.B0640 Optical Fiber Breakout Kit Shipping Weight: 1 oz. (28g)

(18)

FIBER OPTIC SOLUTIONS

Page 61 XpressTerm SC and ST Termination Kits

(86779-0000, 86719-0000)

Enclosed in a padded nylon case with Velcro closure all around, the XpressTerm SC and ST Termination kits include the following items:

1 Dispenser Bottle with Pump 1 Stripper, No Nick, NN254 1 Jacket Stripper

1 Cutter, Kevlar & Cable

1 ST/SC/FC/FDDI Microscope Assembly 1 ST/SC Polishing Tool

1 ST or SC Connector Crimp Tool 1 ST or SC Xpress Termination Procedure 1 Red Rubber Pad (4” x 8.5”) 1 Foam Pad (4” x 8”) 1 Cleaving Tool (universal) 1 Holder for ST/SC Boot Assembly 1 Xpress Term Consumables Kit

Xpress Term Consumables Kit(86719-5000) Includes the following items:

1 Lens Cleaning Tissue – 50 sheets (4” x 6” each) 1 Lapping Film 0.5 micron – 20 sheets (3” x 8” each) 1 Lapping Film 1.0 micron – 20 sheets (3” x 8” each) 1 Lapping Film 5 micron – 5 sheets (3” x 8” each)

MT-RJ Polishless Termination Kit (AFR-00158)

Each kit allows SM and MM terminations and includes the following items: 1 900 um Micro-Stripper

1 250 um Micro-Stripper 1 Cleaver

1 Ceramic Kevlar Cutter 1 Buffer Tube Stripper

1 Loctite 4203 Prism Adhesive – 20g tube 1 MT-RJ Table Top Termination Tool 1 Package of Pre-Saturated Alcohol Wipes

Epoxy Termination Kit 110V – ST(86710-0000) Suitcase-type kits, each including either

1 110 Volt Curing Oven or

1 220 Volt Curing Oven And the following items:

1 Polishing Tool 1 Cleaving Tool 1 Retaining Nut Fixture 1 Curing Oven and Fixtures 1 Stripping Template 1 Stripper, No Nik (.010) 1 Stripper, Buffer Tube 1 Jacket Stripper 1 Cutter, Kevlar and Cable 1 Dispenser Bottle (4 oz.) 3 Polishing Plates 1 Microscope, 100X

1 Consumables Kit (see p/n 93.B0080 for contents) 1 Connector Assembly Procedure

(19)

FIBER OPTIC SOLUTIONS

Page 62 SC Termination Tool Kit with 110V/60Hz Curing Oven

(86763-0000)

Suitcase-type kit including the following:

1 6 Position, 110V,60Hz Curing Oven 1 Alcohol Dispenser Bottle

1 Stripper, No Nik (.010) 1 Jacket Stripper 1 Cutter, Kevlar and Cable 1 Cable Preparation Template

1 Tool Case

1 Polishing Pad, Grey 1 Polishing Pad, Red 1 Microscope, 100X 1 Jacket Splitting Tool

1 Consumables Replacement Kit containing the following: 1 Cable Preparation Template

1 Loctite 411 (3g) 1 Plastic Box

1 Lens Cleaning Tissue, 50 sheets 10 Epoxy Packs

10 Lapping Film, 5 micron 25 Lapping Film, 1 micron 25 Lapping Film, 0.5 micron 10 Syringe, 3cc

10 Needles, Round 1 Universal Cleave Tool 6 Curing Fixtures, 900 µm Fiber 1 Crimp Tool - SC, 1 Piece 1 Termination Procedure, SC 1 Piece 1 Termination Procedure, SC 1 Piece 900 µm 1 Polishing Tool, SC

Consumables Kit – ST and SC (86710-5000) Kit includes the following:

1 Cable Preparation Template 1 Loctite 411 (3g) 1 Plastic Box

1 Lens Cleaning Tissue, 50 sheets 10 Epoxy Packs

10 Lapping Film, 5 micron 25 Lapping Film, 1 micron 25 Lapping Film, 0.5 micron 10 Syringes, 3cc

10 Needles, Round

Ultrasplice Splice Kit (Contains No Splices)(91.B0210) Lighted Fiber Optic Workstation with all tools below:

1 Lighted Magnifier/Holder Assembly 1 Battery Pack with Switch

1 Siecor Pocket Cleaver 1 No-Nik Buffer Stripper 1 Wire Stripper 1 Scissors for Kevlar 1 Package of Cleaning Pads 1 Alcohol Bottle

1 Carry Case/Workstation 1 Installation Video

(20)

FIBER OPTIC SOLUTIONS

Page 63

86710-5200, 86760-5000 ST/SC Crimp Tool Shipping Weight: 15 oz. (425g)

86710-1000, 86763-1000 ST/SC Polishing Tool Shipping Weight: 1.0 oz. (28g)

86753-2000 Universal Cleave Tool Shipping Weight: 1.0 oz. (28g)

ST/SC Crimp Tools

This crimp tool has a dual hex cavity to accommodate most standard sized ST/SC crimp sleeves. Easy grip handles reduce installer fatigue. Works with all Molex Premise Network ST and SC connectors.

PART NO. DESCRIPTION

86710-5200 ST Crimp Tool

86760-5000 SC Crimp Tool

The ST/SC Polishing Tools

Consistent and reliable PC (physical contact) terminations are easily achieved with the constant pressure of the ST/SC polishing tools. The fixture incorporates a spring loaded nest that provides uniform downward pressure on the ferrule tip. With this feature, operator variability is virtually eliminated.

PART NO. DESCRIPTION

86710-1000 ST Polishing Tool

86763-1000 SC Polishing Tool

Universal Cleave Tool

The Universal Cleave Tool is designed for repeated and accurate cleaving of fiber at a controlled length just above the surface of the ferrule. This eliminates the need for a bead of epoxy and extensive operator training. The result is a substantial reduction in polishing time and a significant improvement in production yield. Works with all Molex Premise Network ST and SC connectors.

PART NO. DESCRIPTION

(21)

Page 64

Length in meters

Jacket Type: 1 = PVC, 2 = LSSH, 3 = Plenum Number of Fibers

6 = 62.5 µm, 5 = 50µm, 8 = Single Mode

0 = No Connector, 1 = ST, 2 = FDDI, 3 = SC, 4 = ESCON, 7 = SMA 9 = SC Duplex, A = MT-RJ Male, B = MT-RJ Female F = FC, L = LC Connectors Custom patch cords are available for quantities of five pieces or more.

Optical Fiber Patch Cords

A wide variety of simplex and duplex patch cords are available with virtually any combination of optical fiber connector and any type of single-mode or multimode fiber. Standard lengths include 1M, 2M, 3M and 5M. Special patch cords or pigtails can be ordered by calling Tech Support at 800-266-3827.

ST-ST Patch Cords

91.11.611.00100 ST-ST Simplex Patch Cord 62.5/1m

91.11.621.00100 ST-ST Duplex Patch Cord 62.5/1m

SC-ST Patch Cords

91.31.621.00100 SC-ST Duplex Patch Cord 62.5/1m

SC-SC Patch Cords

91.33.621.00100 SC-SC Duplex Patch Cord 62.5/1m

Custom Patch Cords

Custom patch cords may be ordered using the following part number template:

91._ _._ _ _.00_00

Example of a Custom Patch Cord Order 91.13.611.01000

The above part number would indicate a request for: Fiber Patch Cord Assembly with a ST Connector assembled on one end and a SC Connector assembled

on the other. This 10m patch cord would be a single-fiber, multimode (62.5) with a PVC jacket.

(22)

FIBER OPTIC SOLUTIONS

Page 65

Draka-Molex Cabling Systems

Draka USA, a multibillion dollar cable manufacturer has joined forces with Molex Premise Networks to establish a new customer/vendor partnership standard, Draka-Molex Cabling Systems. Draka-Molex addresses three fundamental issues essential to the long-term success of corporate enterprises: truly significant presence–dedicated to supporting cabling system applications everywhere; massive test and development capability–dedicated to unsurpassed cabling system performance; and, industrial design innovation–dedicated to enhanced cabling system manageability.

Draka-Molex offers comprehensive fiber solutions and three warranted copper channel solutions: Bronze, Silver and Gold (refer to page 37 for copper). All warranted and all exceeding, with ample headroom, the EIA/TIA standards in their category. You choose the system that best meets your requirements and Draka-Molex will provide you with the peace of mind inherent when you align with two multibillion dollar industry leaders.

Outdoor Cable

AERIAL/DUCT CABLE

Aerial/Duct Fiber Optic Cable is all dielectric, loose-tube, dry core, polyethylene jacketed cable used for severe conditions encountered in outside plant applications such as aerial pole to pole and underground duct installations. These cables provide superior protection against water, sunlight, and temperature extremes.

Aerial/Duct Cable

D740L6-06-62X 6-Fiber MM Gigabit Ethernet 62.5/125 Dielectric

ARMORED CABLE

Where rodent protection is a requirement, Armored Direct Burial Cables are recommended. A corrugated steel tape and an outer jacket are added to this loose tube, dry core cable as a barrier to rodents.

Armored Cable

D700L6-06-62X 6-Fiber MM Gigabit Ethernet 62.5/125 Armored

The above cables are also available with Single Mode optical fiber or a combination of Multimode and Single Mode fibers. Additional fiber counts are available.

Call Molex Premise Networks for more information.

Aerial/Duct Cable

Armored Cable

Chromatic Technologies, Inc. Helix/HiTemp Cables, Inc.

(23)

FIBER OPTIC SOLUTIONS

Page 66 Riser Rated Premise Cable

Indoor Cable

RISER RATED PREMISE CABLE

Riser Rated Premise Cable consists of high-quality optical fiber with a 900-micron buffer wrapped in Kevlar®_{and a flame-retardant outer jacket. The buffered fibers are color-coded and will support direct}

termination in patch panels or enclosures. All riser cables are UL listed to NEC 770, OFNR.

PART NO. DESCRIPTION

Riser Rated Premise Cable

400T-06-62X 6-Fiber MM Gigabit Ethernet 62.5/125 Riser Rated

400T-12--62X 12-Fiber MM Gigabit Ethernet 62.5/125 Riser Rated

400T6-24-62X 24-Fiber MM Gigabit Ethernet 62.5/125 Riser Rated

The above cables are also available with Single Mode optical fiber or a combination of Multimode and Single Mode fibers. Additional fiber counts are available.

Call Molex Premise Networks for more information.

PLENUM RATED PREMISE CABLE

Plenum Rated Premise Cable consists of high-quality optical fiber with a 900-micron buffer wrapped in Kevlar®_{and a flame-retardant outer jacket. The buffered fibers are color-coded and will support direct}

termination in patch panels or enclosures. All plenum cables are UL listed to NEC 770, OFNP.

Plenum Rated Premise Cable

800S-06-62X 6-Fiber MM Gigabit Ethernet 62.5/125 Plenum Rated

800S-12-62X 12-Fiber MM Gigabit Ethernet 62.5/125 Plenum Rated

800T6-24-62X 24-Fiber MM Gigabit Ethernet 62.5/125 Plenum Rated

INTERCONNECT CABLES

These simplex and duplex cables are ideal for horizontal cables as well as patchcord or jumper assemblies. Each cable consists of 900-micron tight-buffer fibers, Kevlar®_{strength members and a flexible}

flame-retardant jacket.

Interconnect Cables

53OT-01-62X 1-Fiber MM Gigabit Ethernet 62.5/125 Simplex Riser Rated

53OT-02F-62X 2-Fiber MM Gigabit Ethernet 62.5/125 Duplex Riser Rated

The above cables are also available with Single Mode optical fiber. Additional cable designs such as Plenum or LSZH are available. Call Molex Premise Networks for more information.

(24)

FIBER OPTIC SOLUTIONS

Page 67

FLT4

TM

Molex Premise Networks FLT4 Optical Loss Test Set is an easy to use and inexpensive solution for attenuation testing of multimode systems. The FLT4 test set consists of a dual wavelength optical power source and optical power meter in a rugged plastic carry case complete with ST adapter cap and operation manual. In addition, each optical source and optical power meter features rubber protective boots to prevent accidental damage or abuse to the units.

The FLT4 LED light source outputs are stabilized to ensure accurate test results. The source is battery operated and typically provides over 80 hours of battery life. The unit is easy to operate with only a wavelength selection switch and a power switch that illuminates when activated and flashes to indicate a low battery condition.

The optical power meter is fully N.I.S.T. traceable to ensure accurate test results. The unit has keys for power on/off, optical power (dBm) and loss (dB), set reference and wavelength selection. The power meter is battery operated and typically provides over 60 hours of battery life. The optical power meter even has an auto shutoff feature that activates after 5 minutes if none of the keys are used.

The set reference feature of the power meter allows the user to “zero out” the initial reading and eliminate any field calculations. After setting a reference, simply record the loss or power value for the component under test and then move onto the next test.

The FLT4 is an accurate and dependable loss tester and is recommended as the minimum requirement for testing multimode fiber optic systems.

Included Items: • Case • Power Meter • ST Adapter Cap • Operation Manual

PART NO. DESCRIPTION

TFR-00002 FLT4 Optical Loss Test Set

AFR-00096 Replacement ST Adapter Cap

AFR-00097 FLT4-S Light Source

AFR-00098 FLT4-M Optical Power Meter

AFR-00099 FLT4 Protective Boots

AFR-00100 FLT4 Carry Case

TFR-00002 FLT4 Optical Loss Test Set Dimensions (each unit): 4.5”H x .75”W x1.0”D

(115mm x 70mm x 25mm) Kit Shipping Weight (includes case): 2 lb.9 oz. (1.15kg)
