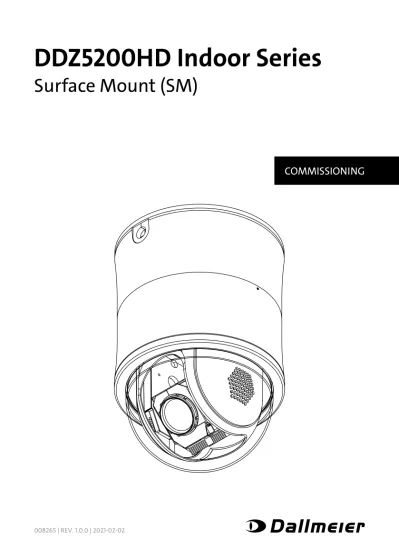

DDZ5200HD Indoor Series

(1)

008265 | REV. 1.0.0 | 2021-02-02

COMMISSIONING

DDZ5200HD Indoor Series

Surface Mount (SM)

(2)

The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages.

All rights reserved in the event of the grant of a patent, utility model or design. The manufacturer accepts no liability for damage to property or pecuniary damages arising due to minor defects of the product or documentation, e.g. print or spelling errors, and for those not caused by intention or gross negligence of the manufacturer.

Figures in this document may differ from the actual product.

Specifications subject to change without notice. Errors and misprints excepted.

All trademarks identified by ® are registered trademarks of Dallmeier.

All trademarks identified by *) are trademarks or registered trademarks of the following owners: Google and Google Chrome of Google Inc. headquartered in Mountain View, California, USA; JavaScript of Oracle Corporation (and/or its affiliates) headquartered in Redwood Shores, California, USA; Microsoft, Internet Explorer, Microsoft Edge and Windows of Microsoft Corporation headquartered in Redmond, Washington, USA;

Mozilla and Firefox of Mozilla Foundation headquartered in Mountain View, California, USA. Third-party trademarks are named for information purposes only.

Dallmeier respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights.

(3)

3

1 Validity

This document applies to the following devices:

•

DDZ5220HD Indoor SM

•

DDZ5232HD Indoor SM

For reasons of simplification, the term “device” or “camera” is used in the following.

Figures in this document may differ from the actual product.

2 Documents

The product documentation for the device consists of various documents which are provided in printed and/or digital form, as for example via the website www.dallmeier.com.

Read the complete product documentation for the device carefully and thoroughly before using the device. Always observe and follow the con-tained instructions, notes and warnings as well as the technical data in the currently valid product specification.

Keep all printed documents relating to your device in a legible condition and in a suitable location for future reference.

Save digital documents relating to your device (e.g. the technical product specification) on a suitable data storage device.

Regularly check the website www.dallmeier.com for the latest product documentation updates.

(5)

5

This Document

Commissioning

The document entitled “Commissioning” (this document) contains detailed information concerning the installation, connection and commissioning of the device as well as safety instructions and general notes.

The target audience of this document is trained system integrators (installa-tion contractors of video security/surveillance systems).

3 Typographical Conventions

This document may contain various warning words and symbols that indi-cate potential sources of danger:

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE addresses practices not related to physical injury and indicates measures to prevent device and/or property damage due to improper installation, assembly, wiring, operation, configuration or maintenance of the device.

(7)

7

For reasons of clarity and readability, various text formatting elements and types of emphasis are used in this documentation:

Instructions are indicated by arrows (➡).

➡ Always carry out instructions one after the other in the sequence de-scribed.

“Expressions” in quotation marks usually refer to individual components of the device (housing parts, mounting elements, connections/interfaces, etc.) or to control elements of the device’s web-based graphical user interface (menu items, buttons, etc.).

Paragraphs in italics provide information on basic principles, special features and efficient procedure as well as general recommendations.

(8)

4 Approvals/Certifications

The following approvals/certifications were valid for the device at the time of this document’s compilation:

•

CE (tested according to DIN EN 50130-4:2011, EN 55032:2015)

•

FCC

•

RCM

Visit www.dallmeier.com for possible updates.

Information for Users in the United States of America (USA)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interfer-ence at his own expense.

(9)

9

5 Safety Instructions

Only use the device if it is in technically perfect condition, according to its intended purpose, in a safety and hazard conscious manner and in accor-dance with the following safety instructions:

•

Qualified Personnel

The mounting, connection, commissioning and configuration of the device may only be carried out by qualified personnel.

This also applies to the maintenance, inspection and repair of the device in compliance with the locally applicable regulations (regional and country-specific legal requirements and standards), such as the DIN VDE 0701-0702 series of standards (VDE 0701-0702: “Inspection after repair, modification of electrical appliances – Periodic inspection on electrical appliances – General requirements for electrical safety”).

•

Regulations

The use of video and audio security/surveillance systems is, in general, strictly regulated.

Before using the device, inform yourself about the currently valid laws and regulations regarding data, worker and environmental protection and ensure compliance with them.

•

Opening the Device

The device may only be opened by qualified personnel in a voltage-free state for commissioning, inspection, maintenance and repair (ensure adequate ESD protection when working on the open device).

•

System Components

Only use internal components that have been tested and approved by Dallmeier. Inappropriate internal components may cause malfunctions, damage and data loss and may result in the loss of warranty.

(10)

•

Modifications to the Device

Do not make any modifications to the hardware or software of the device that have not been tested and approved by Dallmeier.

Inappropriate modifications (e.g. unapproved paintwork or housing add-ons) may cause malfunctions, damage and data loss and may result in the loss of warranty.

•

Condensation

If the device is brought from a cold to a warm environment, resulting condensation may cause malfunctions and damage. In this case, wait until the device has reached room temperature (up to 8 hours) before commissioning.

•

Operating Conditions

Unfavorable operating conditions may shorten the lifetime of the device, may cause malfunctions, damage and data loss and may result in the loss of warranty.

Before using the device, observe the specifications given in the technical data, the operating condition requirements and the maintenance instruc-tions.

•

Earthing/Grounding & Equipotential Bonding

For the safety of persons (protection against dangerous contact voltages) and devices (protection against over-voltages) as well as for the immunity of information and communication technology equipment to electro-magnetic interferences (EMI), all protective measures, which are specified by the currently applicable DIN, VDE and ISO standards and which provide for a standard-compliant earthing/grounding and a correct equipotential bonding of electrical and electronic devices, are mandatory and must be fulfilled by all means.

(11)

11

•

Lightning Storms

To avoid damage to the device by electrical surge during lightning storms, all protective measures, which are specified by the currently applicable DIN, VDE and ISO standards and which provide for a standard-compliant lightning protection equipotential bonding, are mandatory and must be fulfilled by all means.

•

Foreign Bodies in the Device

If objects or liquids get into the device, immediately interrupt the power supply to the device (e.g. pull the power plug of your external power supply unit out of the mains socket or disable the PoE feature on the corresponding Ethernet port of your PSE).

Contact the sales partner responsible for your area.

•

Burnt Smell from the Device

If you notice burnt smell or a formation of smoke coming from the de-vice, immediately interrupt the power supply to the device (e.g. pull the power plug of your external power supply unit out of the mains socket or disable the PoE feature on the corresponding Ethernet port of your PSE). Contact the sales partner responsible for your area.

•

Disposal of the Device

Do not dispose waste electrical and electronic equipment into the house-hold trash.

Interrupt the power supply to the device (e.g. pull the power plug of your external power supply unit out of the mains socket or disable the PoE feature on the corresponding Ethernet port of your PSE).

Remove all connected peripherals.

(12)

6 General Notes

Scope of Delivery

The standard scope of delivery includes:

•

2× Hexagon socket set screw with cone point DIN 914 M2.5 × 4 mm

•

1× Hexagon socket screw key (wrench size 1.3)

•

1× Mounting ring

•

3× Expansion nylon plug S6 (drill hole diameter: 6 mm, min. drill hole depth: 40 mm, anchor length: 30 mm)

•

3× Chipboard screw ∅ 4.5 × 40 mm

(fully threaded, pan head, cross recessed PZ2)

•

1× Weidmüller B2L 3.50/12/180 SN (for Alarm In / Relay Out / RS485)

•

1× Weidmüller BL 3.50/02/180 SN (for Power In)

•

1× Pair of gloves to avoid fingerprints on the device (especially on the polycarbonate dome bubble)

•

Product documentation

The scope of delivery may differ depending on the ordered equipment, device variant or country of destination.

NOTICE

Possible damage to the surface coating of the polycarbonate dome bubble as well as reduced image quality due to fingerprints

➡ Do not touch the polycarbonate dome bubble with bare fingers. Instead, always use the supplied pair of gloves to prevent a reduction in image quality due to fingerprints and to protect the surface coating

(13)

13

Transportation and Packaging

Store the original packaging for later transportation.

Dallmeier is not responsible for any damage resulting from unprofessional or improper transportation.

The device should only be shipped in the original packaging.

If the original packaging is no longer available, ensure that the used packag-ing sufficiently protects the device against damage, moisture, heat and cold.

Warranty

The terms and conditions valid at the time the contract was signed shall apply.

Appropriate Use

The cameras of the DDZ5200HD Indoor series are high-resolution and high-speed PTZ dome network cameras with 20× or 32× optical zoom, fast-reacting autofocus as well as a powerful pan/tilt/zoom mechanism for comprehensive IP-based video surveillance of areas and objects in indoor environments.

The SM (Surface Mount) housing variants described in this document are designed for indoor surface mount installations on ceilings and, depending on requirements, can either be operated with Power over Ethernet (PoE+, IEEE 802.3at) or powered by an external 24 V AC power supply unit.

NOTICE

Damage to the devices due to unsuitable mounting location

The cameras of the DDZ5200HD Indoor series are intended for indoor use only. Outdoor installation is not permitted and may result in malfunctions, damages, data loss and the loss of warranty.

(14)

Operation

➡ Observe the following notes for operating the device:

•

If the device or the cables connected to the device are located near sources with strong radiation (e.g. radio transmitters, magnetic fields), the video image may be distorted.

•

The device is equipped with Automatic Gain Control (AGC). In low-light conditions the image may be altered (e.g. noise). This is not a malfunction.

•

The video image quality depends on the lighting conditions and the used monitor.

•

The accuracy of the Automatic White Balance (AWB) algorithm depends on the used lighting.

Mixed light (consisting of artificial light and daylight) may cause color distortions (inaccurate color reproduction).

(15)

15

7 Requirements

Operating Mode and Ambient Conditions

The device is designed for 24/7/365 continuous operation.

However, the device may only be installed and operated indoors and under suitable ambient conditions.

NOTICE

Damage to the device due to unfavorable ambient conditions

Use of the device under unfavorable ambient conditions may shorten the lifetime of the device and may cause malfunction or damage to the device. ➡ Do not install and operate the device in environments with

•

a large amount of dust and dirt,

•

water or oil vapors (e.g. in a kitchen),

•

exposure to direct sunlight for a longer period of time,

•

high heat radiation (e.g. generated by a radiator),

•

unsuitable ambient temperatures or unfavorable relative humidity levels (observe the product specification of your device),

•

nearby strong radiation sources (e.g. radio transmitters, magnetic fields),

•

a corrosive atmosphere, such as indoor swimming pools with a high concentration of chlorides, in the immediate vicinity of a sea or near a coast with salty air, or in industrial areas with the presence of aggressive elements (gases, vapors, solvents, chemicals, etc.),

•

areas of explosive hazard due to flammable material (gas, vapor,

mist or dust),

•

poor air circulation or heat dissipation (e.g. in insufficiently dimen-sioned cavities).

(16)

Power Supply

The device can be operated with Power over Ethernet (PoE+) and is com-patible with all Power Sourcing Equipment (PSE) that is compliant with the IEEE 802.3at PoE standard.

Alternatively, the device can also be powered by an external 24 V AC power supply unit.

WARNING

Electrical shock caused by live electrical parts as well as due to the lack of or improper earthing/grounding

Risk of death or serious injury

➡ All work on the device (including the connection of peripheral equip-ment) may only be carried out by qualified personnel and in a volt-age-free state (verify the absence of voltage).

➡ Before connecting or disconnecting an external AC power supply unit, make sure that the power supply unit is disconnected from the mains socket (pull the power plug out of the socket).

➡ Carry out all protective measures for a standard-compliant earthing/ grounding of the device in accordance with the currently applicable DIN, VDE and ISO standards in order to ensure the safety of persons (protection against dangerous contact voltages).

NOTICE

Damage to the device due to improper power supply Damage to electronic components or serious malfunctions

➡ Do not operate the device with Power over Ethernet (PoE+) if the device is powered by an external AC power supply unit.

(17)

17

If you operate the device with Power over Ethernet (PoE+), observe the following notes:

NOTICE

Damage to the contacts of the RJ45 connectors by contact erosion when un-mating the jack-plug connection under PoE load

Un-mating the jack-plug connection while transmitting PoE power causes erosion and pitting by electrical arcs on both the jack and plug contacts (especially when repeatedly un-mating the jack-plug connection under PoE load).

Electrical arcs are generated, since the electric potential difference (voltage) and therefore the intensity of the electric field between the contacts rises sharply when un-mating the jack-plug connection.

The more un-mating cycles are carried out under PoE load, the higher the loss of contact material due to metal evaporation by electrical arcs, which in turn accelerates the material erosion process on the contact surfaces. Damaged contacts with an increased contact resistance may lead to a reduced data transfer rate, unreliable network connectivity or even total device failure.

➡ Always disable PoE on the relevant port of your PoE switch (or PoE midspan device) or disconnect the used single-port PoE injector from the power supply before un-mating the jack-plug connection in order to prevent damage to the contacts of the RJ45 connectors by contact erosion.

(18)

Earthing/Grounding

The device must be properly earthed/grounded in accordance with the locally applicable regulations (regional and country-specific legal requirements and standards) before commissioning.

NOTICE

Damage to the device or serious malfunctions due to the lack of or improper earthing/grounding

Damage to electronic components caused by lightning strikes or over-volt-ages (electrical surges) as well as malfunctions due to electromagnetic interferences (EMI)

➡ Carry out all protective measures for a standard-compliant earthing/ grounding and a correct (lightning protection) equipotential bonding of the device in accordance with the currently applicable DIN, VDE and ISO standards in order to ensure the safety of the device (protection against lightning strikes and over-voltages) and its immunity to electromagnetic interferences (EMI).

(19)

(20)

8 Maintenance, Inspection and Cleaning

Maintenance and Inspection of the Device

The operational safety of the device has to be inspected periodically by qualified personnel.

However, note in this context that all maintenance, inspection and repair work on the device may only be carried out in compliance with the locally applicable regulations (regional and country-specific legal requirements and standards), such as the DIN VDE 0701-0702* series of standards.

* VDE 0701-0702: Inspection after repair, modification of electrical appliances – Periodic inspection on electrical appliances –

General requirements for electrical safety

WARNING

Electrical shock caused by live electrical parts Risk of death or serious injury

➡ All maintenance and repair work on the device may only be carried out in a voltage-free state (verify the absence of voltage).

NOTICE

Possible damage to the surface coating of the polycarbonate dome bubble as well as reduced image quality due to fingerprints

➡ Do not touch the polycarbonate dome bubble with bare fingers. Instead, always use the supplied pair of gloves to prevent a reduction in image quality due to fingerprints and to protect the surface coating of the dome bubble from possible damage caused by sweat and grease deposits.

(21)

21

The device has to be cleaned regularly to prevent the formation of deposits that may permanently damage the surfaces of the device.

NOTICE

Damage to the surfaces of the device due to improper cleaning practices ➡ Clean the outside of the housing using only a clean, soft, dry and

anti-static cloth.

•

Do not use detergents.

•

Do not use microfiber cleaning cloths, glasses cleaning cloths, abrasive paper towels or cloths with seams, buttons, plastic or metal parts.

➡ Clean the polycarbonate dome bubble only with water and some hand dishwashing liquid, using a clean, soft and non-linting cloth or sponge.

•

Do not rub the dome bubble with a dry cloth.

•

Do not use common glass cleaners.

•

Do not use microfiber cleaning cloths.

•

Avoid excessive rubbing.

•

To dry the dome bubble, dab it carefully and gently with a clean, soft, dry and antistatic cloth (e.g. a glasses cleaning cloth) to avoid scratching the surface coating.

(22)

9 Mounting, Connection and Commissioning

Mounting, connection and commissioning of the device may only be carried out by qualified personnel.

The following tools/accessories are required for mounting the device:

•

Hexagon socket set screw with cone point DIN 914 M2.5 × 4 mm

(included in delivery)

•

Hexagon socket screw key (wrench size 1.3; included in delivery)

•

Mounting ring (included in delivery)

•

Tool (e.g. awl or pencil) for marking the drill hole locations

•

Three anchors/dowels (e.g. expansion nylon plugs S6)

•

Three mounting screws (e.g. chipboard screws ∅ 4.5 × 40 mm)

•

Drilling machine with suitable drill bit for used type of anchors/dowels

•

Suitable screwdriver for used mounting screws

WARNING

Personal injury caused by falling device or collapsing ceiling Risk of death or serious injury to the head

➡ Before mounting the device, follow the manufacturer’s instructions regarding the maximum load-bearing capacity of the ceiling.

➡ When mounting the device, only use screws and anchors/dowels that are suitable for the total weight of the device and the respective ceiling type (construction material), such as for example:

•

Plastic screw anchors for use in solid masonry materials (concrete/brick)

•

Gravity or spring toggle anchors for use in drywall ceiling systems (plasterboard)

(23)

23

❶

➡ First, make sure that the locking screw for the housing ring is not fully screwed in to avoid damaging the thread of the housing base during step ❷.

➡ If necessary, loosen the locking screw in counterclockwise direction using the supplied hexagon socket screw key (wrench size 1.3). However, if possible, do not fully unscrew the locking screw to avoid losing the screw.

Fig. 1:

Locking screw DIN 914 M2.5 × 4 mm

(24)

❷

➡ Unscrew the housing ring with bubble in counterclockwise direction

(25)

25

pressure and carefully pull the PTZ dome camera out of the housing base.

❸

(26)

(27)

27

❹

➡ Carefully detach the adhesive tape from the camera unit and remove the lens protection cap.

(28)

Fig. 6

❺

(29)

29

Fig. 7

➡ Attach the mounting ring to the ceiling as shown in Fig. 6 and Fig. 7.

WARNING

You can use the supplied mounting screws and anchors/dowels, for example. However, make absolutely sure to only use screws and anchors/dowels that are suitable for the respective ceiling type (construction material) in order to avoid personal injury from the device falling down.

(30)

Fig. 8

(31)

31

(32)

(33)

33

housing base as shown above.

(34)

Fig. 12

(35)

35

(36)

❽

Fig. 14

➡ Attach the housing base to the mounting ring.

(37)

37

Fig. 15

A

(38)

Fig. 16

A

3× Slotted flat-head screw with shoulder (DIN 923)

B

Indexing plunger with rest position (knob)

B

A

(39)

39

Fig. 17

➡ Make sure that all three keyhole-shaped slots in the bottom of the housing base are properly hooked into the flat-head screws A of the mounting ring and that the housing base is securely fixed (the indexing plunger B must be engaged).

To remove the housing base, gently pull the knob of the indexing plunger B and turn it by 90°.

The housing base can then be removed by turning it clockwise.

B

A

(40)

Fig. 18

(41)

41

Fig. 19

(42)

Fig. 20

(43)

43

fully engaged (have clicked into place) and that the PTZ dome camera is securely fixed.

(44)

Fig. 22

(45)

45

Fig. 23:

Locking screw DIN 914 M2.5 × 4 mm

(Hexagon socket set screw with cone point; included in delivery)

⓭

➡ If not already partially screwed in, insert the locking screw for the housing ring into the provided thread (as shown above).

(46)

Fig. 24

➡ Tighten the locking screw in clockwise direction using the supplied hexagon socket screw key (wrench size 1.3).

(47)

(48)

Fig. 25

10 Connections and Pin Assignment

Alarm In / Relay Out / RS485

Power In LAN / PoE

(49)

49

Fig. 26:

Weidmüller male connector S2L 3.50/12/90G

(mating connector: Weidmüller B2L 3.50/12/180 SN; included in delivery)

Alarm In / Relay Out / RS485

12 10 8 6 2 4 3 5 7 9 11 1

Pin No. Assignment Pin No. Assignment

1 RS485+ 2 RS485−

3 not used 4 not used

5 Relay Out 6 Relay Out

7 Alarm In 1 8 Alarm 1 GND

Alarm In 1 – 3

For use with potential-free switch contacts. Relay Out

(50)

Pink TS (Line In, mono) Green TS (Line Out, mono)

Tip Signal Signal

Sleeve Ground Ground

NOTICE

Unavailable audio signals due to improper cabling/connections

➡ Always use a ground loop isolator (with galvanic isolation) for both the Audio In and the Audio Out interface.

Audio In/Out

Tip Sleeve

Fig. 27:

(51)

51

Power In

24 V AC 24 V AC

In order to comply with UL’s requirements, only use a UL certified “Limited Power Source (LPS)” power supply unit when powering the device by an external AC power supply unit.

Fig. 28:

RJ45 female connector – 10BASE-T/100BASE-TX / PoE+ (IEEE 802.3at)

Fig. 29:

Weidmüller male connector SL 3.50/02/90G

(mating connector: Weidmüller BL 3.50/02/180 SN; included in delivery)

LAN / PoE

Do not operate the device with Power over Ethernet (PoE+) if the device is powered by an external AC power supply unit.

(52)

11 Configuration

The configuration of the device is carried out with a PC and web browser over the local area network (LAN).

System Requirements

To configure the device, the client PC must meet the following system requirements:

System Requirements

Operating system (OS)

•

Microsoft*) Windows*) 7

•

Microsoft Windows 8.1

•

Microsoft Windows 10 (recommended)

(each with the latest security patches)

Ethernet 100 Mbps

Web browser

•

Microsoft Internet Explorer*) 11

•

Microsoft Edge*)

•

Google*) Chrome*)

•

Mozilla*) Firefox*)

(each in the latest version)

Browser settings JavaScript*) enabled

(53)

53

Establishing the Connection

The factory default IP address of the device is: 192.168.2.28

You can change the IP address, subnet mask and gateway addressing of the device using the Dallmeier software PService3.

➡ Ensure that your PC/web browser can establish an Ethernet connection to your device (if necessary, contact your network administrator for more information and assistance).

➡ Start the web browser.

➡ Enter the IP address of your device into the address bar of the web browser.

➡ Confirm the input.

The connection to the device is then established.

After the successful connection to the device and before the very first login, a system security dialog for the first-time access is displayed.

The language of the graphical user interface (WebConfig-GUI) can be switched in the top-left corner of the screen without the need to login.

(54)

First-Time Access

Before you can log in to the device via a web browser for the first time, you have to enter the default password for your device and then assign a new password for the factory default administrator account (user name: admin). The default password is the complete serial number of the device.

The serial number is printed on the type plate of the device and can also be determined using the Dallmeier software PService3.

➡ Enter the default password (serial number of the device).

➡ Enter a new password for the default administrator account and confirm your input (the strength of the selected password is displayed during input).

➡ Click “OK”.

(55)

55

Login

The web-based graphical user interface (WebConfig-GUI) of the configuration mode is displayed for authenticated and authorized users only.

The user name of the factory default administrator account is: admin

➡ Enter your login credentials. ➡ Click “OK”.

After a successful login, the graphical user interface of the configuration mode is displayed.

➡ Configure all required settings.

➡ Finally, click “LOGOUT” to properly log out of the device.

Detailed descriptions of the configuration settings can be found in separate documentations that are available at www.dallmeier.com.

(56)

12 Technical Product Specification (Basic Data)

Connections/Interfaces

Alarm In 3×*

Relay Out 1×*

Serial interface 1× RS485 (half duplex)*

Audio Line In (mono) 1× 3.5 mm phone jack (for mono TS plug) Input level: 2.0 – 2.4 Vp-p,

Input impedance: 1 kΩ ±10 %

Audio Line Out (mono) 1× 3.5 mm phone jack (for mono TS plug) Output impedance: 600 Ω

Ethernet 1× RJ45 female connector 10BASE-T/100BASE-TX (PoE+)

Power In 1× Weidmüller male connector SL 3.50/02/90G * 1× Weidmüller male connector S2L 3.50/12/90G

Electrical Data

Voltage supply 24 V AC ±10 % (50/60 Hz) or via PoE+ PoE standard IEEE 802.3at

Power consumption Max. 25 W

Mechanical Data

Bubble Polycarbonate (clear)

Color Black

(57)

57

Environmental Conditions

Suitable

installation sites Indoor

Operating temperature −10 °C to +50 °C (14 °F to 122 °F) Relative humidity 0% – 90% RH, non-condensing

Approvals/Certifications

Type CE, FCC, RCM

The technical product specification (basic data) in this document is based on the information at the time of this document’s compilation. Detailed information and possible updates can be found in the currently valid product specification at www.dallmeier.com.

(58)

13 Dimensions

Fig. 30 178 mm (6 .99") ∅156mm (6.12") ∅179mm (7.05") 26 6 mm (10 .48")

(59)

(60)

DDZ5200HD Indoor Series
