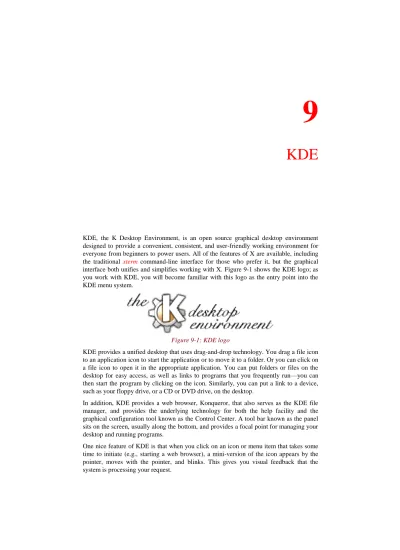

9
KDE
KDE, the K Desktop Environment, is an open source graphical desktop environment designed to provide a convenient, consistent, and user-friendly working environment for everyone from beginners to power users. All of the features of X are available, including the traditionalxterm command-line interface for those who prefer it, but the graphical interface both unifies and simplifies working with X. Figure 9-1 shows the KDE logo; as you work with KDE, you will become familiar with this logo as the entry point into the KDE menu system.
Figure 9-1: KDE logo
KDE provides a unified desktop that uses drag-and-drop technology. You drag a file icon to an application icon to start the application or to move it to a folder. Or you can click on a file icon to open it in the appropriate application. You can put folders or files on the desktop for easy access, as well as links to programs that you frequently run—you can then start the program by clicking on the icon. Similarly, you can put a link to a device, such as your floppy drive, or a CD or DVD drive, on the desktop.
In addition, KDE provides a web browser, Konqueror, that also serves as the KDE file manager, and provides the underlying technology for both the help facility and the graphical configuration tool known as the Control Center. A tool bar known as the panel sits on the screen, usually along the bottom, and provides a focal point for managing your desktop and running programs.
One nice feature of KDE is that when you click on an icon or menu item that takes some time to initiate (e.g., starting a web browser), a mini-version of the icon appears by the pointer, moves with the pointer, and blinks. This gives you visual feedback that the system is processing your request.
If your system is not already set up to start KDE, you need to configure your X initialization file. Depending on your Linux distribution, look for either.xinitrc,.xsession, or .Xclients in your home directory. Edit the file to remove any window manager references that may already exist and add the commandstartkde, without a terminating&, as the last command in the file (it may be the only command). Be certain that the proper KDE directory is in your search path. Depending on your distribution, you might find startkdein/usr/local/kde/bin,/usr/bin, or/opt/kde. If you have more than one version of KDE installed (e.g., KDE 2 and KDE 3), the path might include the version number. For example, you might have both/opt/kde3and/opt/kde2. Once the initialization file is set up, KDE will run when you start X. Then when KDE is running, you can check the version by opening the Control Center, and then selecting HelpAbout KDE.
To log out of KDE, which also ends your X session, choose Logout from either the K menu or the desktop menu. You can access the K menu, officially known as the Application Starter, by clicking the K icon on the panel at the bottom of the screen. Or right-click anywhere on the desktop to open the desktop menu and log out from there. You can also log out by clicking the logout button on the panel; the logout button is under the lock icon towards the left end of the panel—it looks like a power switch.
When you log out, the KDE session manager provides a checkbox that lets you choose whether to save your present session so it can be restored the next time you log in. For example, if you log out with two shell windows and a Konqueror browser window open, the same windows will be open on your next login, and Konqueror will have the same pages open as when you logged out. If you leave the checkbox empty, no application windows will be open when you next start KDE (unless you start them from your initialization file). If you logged into KDE by means of the K Display Manager, KDM, you can also choose whether you want to login as a different user, turn off the computer, or restart the computer. If you logged in through one of the other display managers or by runningstartx,you won’tseetheseoptions.In thatcase,thedefaultoption is to login as a different user. You can change that default via the Control Center to one of the other options;seethesection “TheControlCenter”laterin thischapterformoreinformation. In any case, you can click on the Cancel button if you change your mind and want to return to KDE.
The Desktop
A typical KDE desktop is shown in Figure 9-2. The desktop fills your screen and provides the area where you do your work. You can have multiple virtual desktops and move between them. By default, KDE provides four virtual desktops, but you can change that number at any time via the Control Center.
Figure 9-2: KDE desktop
The desktop shown here has two open windows—a shell and a web browser. Along the left edge of the desktop are icons that provide a trash barrel for deleted files, a link to the user’shomedirectory,and linksto theCD and floppy drives.Thebaralong thebottom edge of the desktop is called the panel; it provides a launch pad for applications and ready access to your virtual desktops and running programs.
The desktop can be used to hold icons that represent programs, files, and folders that you want readily accessible. In contrast to other window managers, such as FVWM or Window Maker, these icons do not represent running programs; instead, each icon is a link and single-clicking on the icon starts the program or accesses an object.(If you double-click by mistake, the program will start twice.) Icons can represent many types of object, including programs, files, folders, devices such as the floppy drive, or web pages. The object does not have to reside on your system, but can link to a website or file across the network.
Managing Your Desktop
The default desktop is just a starting point. As you work with KDE, you’ll want to rearrange the desktop, add and delete files and links, and generally customize it to suit your needs. KDE provides the desktop menu for this purpose. Right-clicking anywhere on the desktop displays the desktop menu, shown in Figure 9-3.
Single-clicking is the default, but you can change that behavior in the Control Center to require a double-click instead. In that case, single-clicking selects the object.
Figure 9-3: Desktop menu
When you select Create New, a submenu opens that lets you choose between creating a new directory, HTML file, text file, CDROM device, floppy device, application, or Internet address (URL). Whichever type you select, a dialog box opens for you to specify the object. For example, for a text file, you specify a filename; for a URL, you specify the URL; for a device, you indicate which device you are linking to; etc. An appropriate icon is placed on the desktop for the newly created object, and a file is stored in the~/Desktop directory under the name you gave the object.
You can undo the creation of the object by selecting the Undo option. Note that in the figure,thisoption isgrayed out,indicating thatitisn’tavailable,becausetherewasno previous action to undo. The Paste option allows you to paste an object from the clipboard to the desktop.
Selecting Bookmarks opens a submenu that lets you edit your Konqueror bookmarks or modify Netscape bookmarks. Selecting Edit Bookmarks from the submenu runs the Konqueror bookmarks editor,keditbookmarks. Once you are in the editor window, you can edit your existing bookmarks or import your Mozilla and/or Netscape bookmarks to save them as Konqueror bookmarks. When you are done editing, you can export the updated bookmarks to Mozilla and Netscape. If you select Netscape bookmarks from the editor submenu and click on a bookmark, KDE brings up Konqueror and goes to that page.
The Run Command option lets you run a single command without having to open a terminal window. Entering a URL instead of a command brings up a Konqueror window and goesto thatURL.Running acommand linethisway doesn’tshow you any output,so you wouldn’twantto useit,forexample,to run an lscommand. On the other hand, it would be useful for running chmod to change the permissions on a file. Using Run Command is equivalent to entering the keyboard shortcut Alt-F2. Run Command is also available on the K menu.
Selecting Configure Desktop lets you set many options for your desktop. It combines the Control Center Look & Feel settings for the Desktop, Background, and Screensaver preferences.We’lldescribetheDesktop settingshere;seethesection “Look & Feel”later in this chapter for more information on Background and Screensaver options. When you select Desktop from the three choices on the left-hand side of the window, four tabs appear in the main window section:
Desktop
The Desktop tab has three sections. The settings in Misc. Options (miscellaneous options) affect the types of objects that can appear on the desktop and how their icons are aligned.
In the Show Previews for section, checking the option for a filetype means that the normal icon for that type of file is replaced by a small preview of the file contents. The bottom section, Clicks on the desktop, determines the action taken when the various pointer buttons are clicked. In addition to taking no action, you can select the window list menu, the desktop menu, the application menu, and two custom menus. By default, the left button produces no action, the middle button displays the current windows on each desktop, and the right button displays the desktop menu. The application menu is the same as the K menu; if it’s more convenient, selecting Application Menu from one of the drop-down lists lets you attach it to a pointer button.
The custom menus are menus that you can create for your own purposes. There are default custom menus in the directory $KDEDIR/share/config with the names kdesktop_custom_menu1 andkdesktop_custom_menu2. The default custom menu 1 has one entry, kconsole, while the default custom menu 2 runs an xterm. You can either create your own custom menus from scratch, or copy the defaults to $HOME/.kde/share/config. The file contains of the following two types of entries: NrOfItems=n
Specifies the number of items,n, to appear on the menu. Itemn=name
Specifies the name of one entry on the menu, wherenamespecifies the program name andnindicates which entry it is.
For example, the following creates a short custom menu with four entries: NrOfItems=4
Item1=konsole Item2=kshisen Item3=konqueror Item4=emacs
NOTE to production: please indent the code lines above correctly.
The resulting menu is shown in Figure 9-4. It has options to start a Konsole session, the game Shisen-Sho, a Konqueror session, and the Emacs editor.
Appearance
The Appearance tab provides options for setting the font and fontsize, as well as the text and text background colors, to appear on the desktop. It also includes a checkbox that determines if the filenames that appear with the icons are to be underlined. Underlining the filenames makes them stand out, but it also takes up additional space. Number of Desktops
This tab is where you can change the number of virtual desktops from the default value of 4. Move the slider at the top of the window to the right to add desktops or to the left to remove desktops. Below the slider, each of the 16 possible desktops is listed. You can use the box to the right of each listed desktop to give each desktop a unique name. By default, they are named Desktopn, wherenis the number of that desktop. For example, if you always use Desktop 2 to run KDE Office, you might want to change its name from Desktop 2 to KDE Office.
Paths
The Paths tab lets you change the default path to yourDesktop,Trash,Autostart, and Documents directories. Changing the path to any of the first three directories also moves any files to the directory specified in the new path. Unless you have some goodreason to changethem,it’sbestto leavethedefaultsettings.
The Unclutter Windows and Cascade Windows options on the desktop menu let you organize the placement of windows on the desktop, while Line up Icons and Arrange Icons do the same for the icons. Clicking on Unclutter Windows results in KDE attempting to arrange your open windows to minimize the amount of overlap. Ideally, the result will be to have no overlap, but if you have many windows open, that may not be possible. When you select Cascade Windows, KDE layers the windows so that at least one edge of each is visible, but the maximum amount of desktop space is left uncovered. Selecting Line up Icons lines up your desktop icons in nice neat rows, while Arrange Icons lets you order them by name (either case-sensitive or case-insensitive), size, or type. There is also a checkbox to have directories show up first.
The Lock Screen option displays your screensaver and locks your screen. You must enter your password to unlock the screen; clicking a pointer button or pressing a key on the keyboard presents the password prompt.
Selecting Logout presents the logout box to log you out from KDE, as described at the beginning of the chapter.
If you use the desktop menu frequently, you can check the Enable Desktop Menu option to place it permanently as a horizontal bar on the top of your screen. Of course you can disable it again to make the bar disappear.The menu bar contains the same options as the regular desktop menu, but organized differently and with a few variations. The menu bar contains the following submenus:
Menu Contains
File Run Command, Lock Screen, and Logout
If you have KDE configured to display the panel at the top of the screen, the desktop menu bar appears above the panel.
New Equivalent to Create New on the desktop menu Bookmarks Equivalent to Bookmarks on the desktop menu
Desktop Includes Unclutter Windows, Cascade Windows, Line Up Icons, and Arrange Icons, as well as Refresh Desktop and Configure Desktop. Also contains the option Disable Desktop Menu.
Windows Repeats the Unclutter Windows and Cascade Windows options, and also includes an entry for each virtual desktop and lists the windows on each desktop. Selecting one of the desktops moves you to that desktop; selecting a window in one of the desktops moves you to that desktop and also makes that window the active window.
Help Includes options to open the KDesktop Handbook, report a bug, and view information about KDE.
It is planned that you will be able to customize the desktop menu beginning with KDE 3.1.
You can quickly change the background image of the desktop by dragging a graphics image from a Konqueror window to the desktop background* and selecting Set as Wallpaper. You might then want to go to the configuration option of the Desktop menu, choose BackgroundWallpaper and set the mode (i.e., whether to tile the image, center it, or scale it).
Working with Multiple Desktops
KDE supports virtual desktops in a variety of ways. The default number of virtual desktops is four. This value can be increased up to sixteen or decreased down to only one virtualdesktop.Each ofthesedesktopscan haveitsown name (instead of“desktop 1”, “desktop 2”,“one”,“two”,etc.)and itsown background.It’sagood ideato givethe desktop anamecorresponding to itsusage(e.g.,“edit”,“doc”,“Internet”,etc.). Different backgrounds and images can help you to orientate yourself, as well as show your office friends what your private hobbies and interests are.
Right-clicking on a desktop button in the panel brings up the menu shown in Figure 9-5.
*Be aware of copyright issues when you do this. The best option is to use one of your own figures, so you aren’tinfringing on someoneelse’scopyright.
Figure 9-5: Desktop display menu
Only one of Preview, Number, or Name can be checked at a time: which one you select determines what is displayed in the desktop preview windows in the panel. Preview shows a representation of the windows open on each desktop, Number shows the desktop number for each desktop, and Name shows the name of each desktop. Preview only takes effect if Enable Desktop Preview is checked. If you click on one desktop and change the settings, they are changed for all the desktops.
Selecting Preferences in the menu brings up a window that is the same as the Number of Desktops tab that you get when you select Configure Desktop from the desktop menu. You can then modify the number of desktops and rename them.
The Activate option lets you move between desktops. If you are on, say, desktop 1, and you right-click on desktop 3 in the panel and select Activate, desktop 3 becomes the active desktop. Normally it would be easier to just click on the panel button for the desktop you want to move to, but if you have the menu open anyway, then selecting Activate moves you to the desktop from which you selected the menu.
Using the keyboard, you can cycle through the virtual desktops by holding the Ctrl key down and simultaneously pressing Tab to move forward or Shift-Tab to move back. You can also switch to another desktop by clicking in the taskbar on a program running on that desktop. Alternatively you can usekpager, which also shows which windows are currently open on other desktops. You can access kpager with Alt-F2 kpager or by clicking on the up-arrow just to the left of the desktop buttons in the panel.
You can also use kpager to move a window from one desktop to another, by simply dragging the window in the pager. Note that this also moves you to the new desktop, with the dragged window active.
The Panel
The KDE panel, known as Kicker, as we mentioned earlier, is a toolbar used for launching applications. It consists of menus, icons that run programs when clicked, and small programs known as applets that run inside the panel.
Figure 9-6: The KDE panel
Figure 9-6 shows a typical panel. It includes the following items, from left to right: K menu
KDE’sK logo markstheApplication Starter,orK menu.Clicking on theK menu displays a hierarchical list of available applications. As you add new applications to your system, you can update the K menu by runningkappfinderfrom a command line or selecting SystemKAppfinder from the K menu.
Show Desktop
Clicking on the Show Desktop button iconifies all your open windows into the taskbar section of your panel. Your desktop is now shown, empty of open windows. This is particularly useful if you want to find an icon that has been hidden beneath the open windows. Clicking again on the Show Desktop icon reopens all the previously iconified windows. If you had other windows already iconified on that desktop, reclicking does not open them; it only reopens windows that the previous click iconified.
Terminal
The button that looks like a terminal with a shell in front of it opens a Konsole (KDE console) terminal emulation window. Similar to anxterm, Konsole is described later in thesection “TheKonsoleTerminalEmulator”.
Control Center
The button that looks like a terminal partially covered by a circuit board opens the KDE control center. The control center is the central point for configuring your desktop environment.Seethe section “TheControlCenter”laterin thischapterfor details.
Help
The KDE Help center is represented by a button that looks like a life-saving ring. Click on the icon to bring up the KDE help system, described in detail in the section “TheHelp Center”laterin thechapter.
Home
Clicking on the button with a small house in front of a file folder opens the Konqueror file manager, with your home directory and its files displayed as icons. Konqueror
The next button represents the web browser aspect of Konqueror. For more information on Konqueror, as both web browser and file manager, see the section “Konqueror”.
KDE keeps its overall menu structure in a directory called /usr/share/applnk, /usr/local/kde/share/applnk, /usr/kde3/share/applnk, or /opt/kde3/share/applnk, depending on your distribution. Here you’ll find a directory structure that matches the structure of entries in the Application Starter. For each program, these directories contain a file. The files, which end with .kdelnk, contain a description of the program, the startup command and other things which might be important to properly start the program. These files are plain text, and they are largely self describing.
These systemwide configuration files are augmented by a .kde/share/applnk or .kde3/share/applnkdirectory in every KDE user’shomedirectory.Thisdirectory is organized like the systemwide directory but contains user-specific KDE configuration information.
Text editor
KDE includesseveraltexteditors,described briefly laterin thesection “Editors: kate,kedit,and kwrite”.Thepen-and-paper icon is used for bothkateandkwrite; in this case, it represents a link tokate.
Desktop preview
The desktop preview, or mini-pager appears next, consisting of a set of buttons that let you switch between virtual desktops. There is one button in the mini-pager for each virtual desktop. The highlighted button denotes the active desktop.
You can display a larger desktop preview, the pager, either by clicking on the up-arrow in the wider vertical bar to the left of the mini-pager, from the K menu (select UtilitiesKPager), or by running thekpagercommand. Like the mini-pager,kpager shows the open windows on each desktop, but it also shows a graphic for each one, so it is evident what application each window represents.
Taskbar
The taskbar contains an entry for every running program. Clicking on one of these names calls up the program window, together with the desktop that it is in. This makes it easy to switch to any application without having to switch first to another desktop. If the window is currently iconified, it appears grayed out in the taskbar, and clicking on its entry restores the full window. If the window is not iconified, clicking on it moves the focus to that window (automatically switching desktops as necessary), and raises the window if it is currently hidden.
If there are multiple occurrences of the same program running, they are combined into a single taskbar entry with an up-arrow on the right edge. Clicking on the arrow displays a list of the windows running that program. For example, if you have multiple kconsole windows open, clicking on the arrow shows the name of each window as it appears in the titlebar. For Konqueror, the names of open pages are shown. (Note that combining occurrences is an option that can be set or unset in the preferences menu for the taskbar with the Group similar tasks option.)
You cannot tell from the taskbar which desktop a window is running in. To see the running applications by desktop, click on the up-arrow in the wider vertical bar to the left of the taskbar. This displays the applications by desktop.
Lock/logout applet
The lock and logout buttons to the right of the taskbar are actually part of a single applet that provides both screen locking and logout functions. Clicking one of these buttons is the same as selecting the equivalent option from the desktop menu, described earlierin thesection “Managing YourDesktop”.
System tray
Rounding up the panel is the system tray, where swallowed applications reside. Swallowed applications are mini-applications that run on the panel instead of in a window on the desktop. Two examples shown here are the clock, which contains an embedded calendar, andklipper,KDE’sclipboard tool.
Hide panel
Clicking on the right-pointing arrow on thefarrightofthepanel“rollsup”thewhole panel to the right, to provide more desktop work area. This action leaves only a narrow vertical bar showing, with the arrow now pointing left. Clicking on this arrow brings the panel back into view again.
Right-clicking anywhere on the panel displays the Panel menu, which lets you add or remove buttons, resize the panel, set panel preferences, or access help for the panel. Clicking on the up-arrow in one of the narrow vertical bars to the left of a panel entry brings up the preferences menu for that entry. For example, the preferences menu for the mini-pager lets you set the number and names of the virtual desktops, while the menu for the taskbar sets preferences for the taskbar and lets you specify the actions to be taken for each pointer button. The bars themselves act as handles; you can click on the bar and to move that panel entry to the right or left on the panel.
Help forthepanelisavailablefrom the“KDE PanelHandbook”,accessed from theHelp option of the Panel menu.
Configuring the Panel
A fast way to add an application to the panel is to right-click the panel to open the Panel menu. Then select PanelAddButton and the Application Starter menu is displayed. From the menu, select the application you want to add and a button for that application is placed on the panel. In addition to adding application buttons, you can add entire menus. Once the Application Starter menu is displayed, select the submenu you want and click on the entry at the top of the menu that says Add this Menu.
You can also use the Panel menu to delete panel objects with the Remove option or to make the panel itself larger or smaller with the Size option.
Selecting Preferences from the Panel menu runs the Control Center Settings module, which provides options along the left-hand side for configuring the Panel and the Taskbar. Among the panel configuration options are options to set the position, alignment, and size of the panel on the screen, determine whether to show the left or right hide button (or both), and configure the look of the K menu. The taskbar configuration options include the option mentioned earlier to group similar tasks into one taskbar button, other options to determine how applications appear in the taskbar, as well as pointer-button actions.
Konqueror
OneofKDE’smostimportantand visibletoolsisKonqueror,theKDE web browser, advanced file manager, and universal viewer--all rolled into one. As explained in the Konqueror FAQ at www.konqueror.org, the name Konqueror is a word play on other browser names. After the Navigator came the Explorer and finally the Conqueror (with a K to show thatit’spartofKDE).
Figure 9-7 shows some of the features of Konqueror, including both its web browsing and file management capabilities. The figure also shows how you can split the Konqueror window into parts, each performing a different activity.
Figure 9-7: Konqueror, not your average web browser
The largest window is being used for browsing; in this case, it is displaying the KDE home page (www.kde.org). The two smaller windows show two views of Konqueror as file manager. The following sections describe the browser and file manager aspects of Konqueror in more detail, and then explain how to customize Konqueror.
Once Konqueror is running, it automatically switches between the browser and file manager modes as needed. But you can also open Konqueror in one mode or the other. To open Konqueror in browser mode, do one of the following:
Click on the Konqueror icon in the Panel. From the K menu, select InternetKonqueror. Enter a URL on the command line.
Or to open it in file manager mode, do one of the following: Click on the house icon in the Panel.
Click on any directory icon on the desktop (including the trash barrel) to open Konqueror and display the contents of that directory.
Enter the commandkonqueroron the command line.
Konqueror the Web Browser
Konqueror houseskhtml,KDE’sHTML rendering engine,which supports the full gamut of current Internet technologies, including JavaScript, Java 2, HTML 4.0, CSS 1 and partially CSS 2 (Cascading Style Sheets), SSL (Secure Socket Layer for secure
communications) and Netscape plugins (for playing Flash, RealAudio, RealVideo, and similar technologies).
In addition to providing features you would expect from a modern browser, Konqueror allows you to read UNIX man pages by simply opening the location man:commandor #command. It also supportsbashfile completion when looking for files on your system. Like other browsers, Konqueror can serve as a viewer for many file types. Click on an imageand Konquerordisplaystheimage.Click on atextfileand itshowsthefile’s contents. The same goes for PostScript, PDF, and DVI files, KOffice files, and others. On thetechnicalside,it’sinteresting to notethattheseviewersarenotpartofKonqueror. Konqueror embeds components provided by other KDE applications, using the KParts library. The image viewer iskview, the text viewer iskwrite, the DVI viewer iskdvi, the PostScript viewer iskghostview, and of course all KOffice documents are shown by their originating KOffice application.
Unlike Netscape and other browsers, the Konqueror web browser does not include mail or news reading capabilities. Instead, KDE provides two dedicated programs, KMail and KNode,described laterin thesection “Mailand news:KMailand KNode”.
Konqueror the File Manager
As a file manager, Konqueror displays filesand directoriesusing the“icon view”(three icon sizes) as seen on the lower-right corner of Figure 9-7 orthe“treeview”(detailed view in which you can open sub-directories) as also used in Figure 9-7. Konqueror allows copying, moving, and deleting, by both direct drag-and-drop or by using copy, cut, and paste. You can view and modify the properties of a file or directory by right-clicking on the file and selecting Properties.
The file manager also provides automatic updating of directories--if a file is created in a directory that is currently being viewed, it is not necessary to refresh or reload the directory;Konquerorautomatically showsthedirectory’snew content. Similarly, deleted files simply disappear.
Customizing Konqueror
The fastest way to customize Konqueror is with the Settings menu on the Konqueror menubar. This menu provides options to turn the menubar and toolbar on or off, show several additional toolbars, and to configure shortcuts, the toolbars, and Konqueror itself. Selecting Configure Konqueror displays the Control Center module for Konqueror, from which you can choose to configure the file manager, file associations, and the browser, including settings for the browser itself, enhanced browsing options, cookies, the cache, proxy, stylesheets, privacy, and user agent options.
The Window button on the Konqueror toolbar offers a number of useful options for managing Konqueror so you can work comfortably with it. These options are described in the following sections.
View options
The view options let you add and remove windows (views) inside the Konqueror window. Use the first two view options (Split View Left/Right and Split View Top/Bottom) to split the currently active Konqueror window in two vertically or horizontally.
The third view option, Remove Active View, closes the currently active window. The active window is the one in which any keystrokes or pointer clicks take effect. Each window has a small circle at the bottom; the green circle marks the active view. Selecting Remove Active View closes that window.
Terminal emulation
Selecting the Show Terminal Emulator option opens a terminal emulator window at the bottom of your Konqueror window, into which you can enter commands as though you were working in an xterm or konsole window. Note that after opening the terminal window, you may need to resize the Konqueror window to access the command line. Notealso thatfrom Konqueror’sToolsmenu,you can selectOpen Terminal;thisalso gives you a command line, but does so by opening a newkonsolewindow that remains open even after you close Konqueror.
The Navigation Panel
The navigation panel is a tabbed window that opens on the left of the Konqueror window. Its purpose is to simplify navigation inside Konqueror, particularly for navigating through files or through your bookmarks. Select a tab by clicking on it. The tabs include a display of your bookmarks, your home directory tree, your browsing history, and the root directory tree. There is also a Services tab for audio CD, local area networking, and print services.
When you open Konqueror in its file manager mode, the navigation panel is displayed, opened to the home directory tab. You can also open the panel at any other time by selecting the Show Navigation Panel option from the Window menu and selecting the tab you want.
Profiles
Konqueror lets you set up profiles. Using profiles, you can set up separate Konqueror configurations for different purposes. There are default profiles for using Konqueror as a file manager, file previewer, web browser, or in Midnight Commander mode (Midnight Commander is a popular file manager for Unix-based systems).
The Window menu has three options for working with profiles: Save View Profile
If you are working with profiles and you have modified the configuration, use this option to save the changes.
Configure View Profile
This option is for updating any profile, not just the current one. It shows all existing profiles and lets you save the current Konqueror configuration under an existing profile name or a new name. You might, for example, configure a view such as the one shown in Figure 9-7 with both web browsing and file management windows, and save it under a new name.
Load View Profile
Select the Load View Profile option to load and begin working with one of the saved profiles.
The Konsole Terminal Emulator
Konsole is an X terminal emulator for the K Desktop Environment. When invoked, the konsolewindow looks similar to anxtermwindow, but it has two additional features: a menu bar at the top and a toolbar containing icons for current sessions at the bottom. The existence of that toolbar represents the major difference between Konsole and xterm, which is that you can run multiplekonsolesessions inside a single window. Withxterm, running multiple sessions means having multiple xterm windows open. Even if some xtermwindows are iconified, they still represent individual windows. Unless you want to see the contents of different terminal windows at the same time, having multiple sessions in one window is a big advantage. And of course you can open more than one Konsole window. Each Konsole session running in one window is represented by an icon in the toolbar, making it easy to switch between sessions with a single click on the appropriate icon.
Figure 9-8 shows a Konsole window with a single active shell session and the Session menu open.
Figure 9-8: Konsole The Session menu offers six session types:
New Shell
New Screen Session
Uses the screen command that multiplexes a physical terminal between several processes.
New Root Console
Opens a terminal shell as the root user. Konsole prompts you for the root password, then the#prompt appears, indicating that you are now working with root privileges. New Midnight Commander
Opens a Midnight Commander graphical file browser session. New Linux Console
Emulates a text-only Linux system. New Root Midnight Commander
Opens a Midnight Commander session as the root user.
The final two options on the Session menu let you close the current session and quit Konsole.
From the Settings menu, you can configure Konsole to hide or show the menubar, toolbar, and scrollbar as well as select window size, fonts, color schemes, and key mappings. Selecting SettingsConfigure Konsole displays the Control Center Konsole configuration module, if you want to change a number of settings at the same time.
Right-clicking on the toolbar brings up a toolbar menu, where you can set options such as the size and location of the toolbar itself, how text appears with the icons on the toolbar, and the size of the icons. Any changes made from the toolbar menu apply only to that particular Konsole window.
The Window Manager
Unlike GNOME, KDE has its own window manager, kwin, which is tightly integrated into KDE itself.Thusyou won’tfind specificoptionsorsettingsforthewindow manager in the Control Center—it’snot generally treated as a separate entity.
Managing Windows
Most of the material in Chapter 4, Overview, applies to the KDE window manager as well. In addition, this section contains a few tips for managing your windows.
Windows can bepinned, so that they appear at the same location on every desktop. For example, you might pin the kscdCD player to turn down the volume when somebody walks into your office. To pin a window, clikc on the pin symbol on the left-hand side of the titlebar.
To move a window to another desktop, access the Window menu by right-clicking on the window’stitlebar.Then choosethedesired desktop from theTo Desktop submenu.The window disappears from the current desktop. To access it again, simply go to the new desktop.
Another method of moving a window is to pin down the window by clicking on the pin button. This puts the window on all the desktops. Then change to the desktop you want
and pull out the pin. The window now appears only on the new desktop, and you can work with it immediately.
Unlike many other window managers,kwindoes not leave an icon behind on the desktop when you minimize a window. You can still restore the window either by clicking on its entry in the taskbar or by middle-clicking on the desktop to display a list of running tasks. Minimized tasks are shown in parentheses. Select the task you want to restore and click on it.
As you would expect,kwin allows you to maximize your window in both directions by left-clicking on the maximize button-on the right-hand side of the titlebar. What you might not expect, is that you can also maximize the window horizontally by right-clicking
on the maximize button, and vertically by middle-clicking on it.
Using Another Window Manager
Although there’sgenerally no need to do so,itispossibleto useadifferentwindow manager. Many other window managers offer at least some KDE compatibility. To run KDE with another window manager, you need to edit KDE’sstartup script,startkde. Towardstheend ofthisscript,you’llfind alinesimilarto thefollowing:
ksmserver --restore
KDE’ssession manager,ksmserver, startskwinif no window manager is specified on this line. To use a different window manager, modify the line as follows:
ksmserver --restore --windowmanager wm
wherewmis the desired window manager.
Killing Windows With Ctrl-Alt-Esc
Normally, you close a window by either closing the application running in the window orby clicking on thewindow’sclosebutton.However,ifsomething goes wrong and the window will not close, you can force it to close with the key combination Ctrl-Alt-Esc.When you use this key combination, the cursor changes to a skull-and-crossbones symbol. Any window that you click on with this cursor, “dies” instantly, with no questions asked.
If you change your mind, the Escape key restores the normal mouse cursor and no window is closed.
Note: you need to be very careful with this method. KDE does not ask for confirmation or offer to save any open files. You should also be careful which windows you kill this way. The KDE panel, for example, is a window, and can bekilled,butyou probably don’twantto do that.
You must restart KDE for the change to take effect.. Note that by modifyingstartkdein this fashion, you are changing the window manager for all users, not just yourself.
The Help Center
The KDE Help Center provides a central point for accessing not only KDE help, but also the manpages and Info pages for your Linux system. The Help Center’swelcomepage can be seen in Figure 9-9.
Figure 9-9: KDE Help Center
On the left-hand side of the Help Center window are two tabs. In Figure 9-9, the Contents tab is displayed. Clicking on an entry with a page icon displays that entry; clicking on an entry with a book icon opens a hierarchical list of contents for that entry. For example, clicking on the Application manuals entry lists the hierarchy of manuals for various KDE applications, organized into categories that match those of the K menu. Click on an entry to display the documentation for that KDE feature.
The second tab is the Glossary, which provides a glossary of terms. You can access the glossary either alphabetically or by topic.
The KDE Help Center can be started in several ways: Application Help menu
The most common way to access the Help Center is probably from within an application.From theapplication’smenu bar,chooseHelpContents to open that application’shelp file.
Finding a particular topic in the Help Center from the Contents page can be confusing, so it is often easier to access the help you want directly from that
application.It’salso worth exploring theHelp Centerwhen you first start using KDE, to familiarize yourself with its contents and organization.
K Menu
From the K menu, and select the Help option to open the KDE Help Center. This starts the Help Center at the welcome page.
Panel
By default, the panel contains an icon,which lookslikeaship’srescuering,to open the KDE Help Center.
Command line
The KDE Help Center may be started from the command line by running the commandkhelpcenter,passing it a URL for the file you want to display. There are URLs for Info and man pages, as well as for KDE commands. Note that in some cases,you’llneed to know thepath to thedocumentation in orderto providethe correct URL Here are some examples of starting the Help Center from the command line:
An application help file
To open the Help Center to an application help file, issue a command such as the following. In this case, help for the KEdit text editor is displayed:
khelpcenter help:/kedit A local URL
The following opens the local documentation for the Qt library:
khelpcenter file:/usr/local/doc/qt/html/index.html A Man page
The following opens the manpage for thestrcpycommand: khelpcenter man:/strcpy
An Info page
The following opens the Info page for thegcccompiler: khelpcenter info:/gcc
Invokingkhelpcenterwithout parameters opens the Help Center at the welcome page.
The Control Center
The KDE Control Center, kcontrol, contains a number of configuration tools, called modules, that allow you to configure and view information about your system. You can configure the desktop, window manager, input devices, and other important parts of your system here. The Control Center is split into two windows: the left window shows a hierarchical list of installed modules, and the right window displays the selected module. As is often the case, there is more than one way to customize KDE. In this section, we concentrate on the KDE Control Center. However, you can choose individual modules from theK menu’sPreferenceoption.In addition,many KDE applications have entry pointsinto theappropriateconfiguration module,aswe’veseen in someoftheearlier sections.kcontrolcomfortably brings everything together in a central place.
To launch the KDE control center, either run the commandkcontrolor select the Control Center option from the K menu. The Control Center appears, as shown in Figure 9-10.
Figure 9-10: The KDE Control Center
The Control Center has three tabs on the left-hand side: Index, Search, and Help. Most of the time you will probably use the Index, shown in Figure 9-10, to access the module you want.
Ifyou don’tknow whatmoduleyou want,selectSearch and eitherenterakeyword or scroll through the alphabetical list of keywords and select the one you want. The results box at the bottom of the Search tab lists the module or modules containing configuration options for that keyword. Click on a module name and the main Control Center window opens to that module.
The Help tab provides information to help set configuration options in the currently displayed module. Select Help from the menu bar to get the documentation for the Control Center itself.
The following sections describe the modules listed on the right-hand side of the window and the type of configuration each provides. Each module includes an Apply button on the lower right of the screen, so you can apply your changes as you go to see if you like the effect.
File Browsing
File Associations
This module lets you establish the relationship between file extensions and the application to be used to open the file. KDE supports MIME (Multipurpose Internet Mail Extensions) types. MIME types, as used in Internet browsers, are sets of rules for certain files. If a file looks like an HTML text file for example (because its name ends with.htmlor .htm), the file is opened in a browser, in this case, Konqueror. If the filename ends with.gif, it must be an image file, so we want Konqueror to open it in an image viewer. By default, a KDE application is used. The File Associations module lets you indicate that a different application, such asxv, should be used. KDE keeps the MIME type registrations in the/share/mimelnksubdirectories of your main KDE directory (e.g., /opt/kde/share/mimelnk), one file for each application, organized by application types.In addition,each user’shomedirectory hasitsown .kde/share/mimelnkdirectory; when you add or change MIME type registrations, the changes are reflected in your local directory. The registration files are text files and can be directly edited or new files added if for some reason you prefer not to use the ControlCenter.Generally,though,there’sno reason to do that.Each fileisnamed after the MIME type, with.desktopas the extension.
File Manager
ConfiguresKonqueror’sbehaviorand appearance,asdescribed earlierin thesection “Customizing Konqueror”.
Quick Copy & Move Plugin
Configureskuick, which is a Konqueror plugin for copying and moving files.
Information
TheInformation module’ssubmenushold awealth ofstatusinformation,mainly hardware related. Some of the more interesting options are described in the following list. In some of the displays, a column head includes an arrow pointing down; if you click on the arrow, the order of entries in the column is reversed.
Block Devices
Shows your block devices, their size, mount points, what is still free, and usage in %. Devices
The character, block, and misc. devices and their major device numbers are shown. Memory
Displays information on your total physical and virtual memory. Total and free swap memory are also shown.
Network interfaces
Displays the name, IP address, network mask, type, and state of each network interface configured on your Linux system.
Partitions
Displays the device, its mount point, filesystem type, total and free size, and mount options for each partition. This is equivalent to viewing the contents of/etc/fstab. Processor
USB Devices
Displays any USB Devices, their class, version, speed, and bandwidth usage. X-Server
Shows the vendor and version of your X server plus detailed information on many aspects of your X server and your display, as shown in Figure 9-11.
Figure 9-11: X-Server information
Look & Feel
Like most modern window managers and desktop environments, KDE lets you change just about everything concerning its look and feel.
Background
KDE offersa variety ofoptionsforcustomization ofadesktop’sbackground.The final appearance of your desktop is a combination of background colors, patterns, and wallpaper based on the image from a graphic file.
Colors
Colors and color schemes can be set for just about every element of your windows, including the background, menu text, title bar, button, etc.
Desktop
The desktop’s borders, appearance, and the number of virtual desktops can be changed.Seethesection “Managing YourDesktop”earlierin thischapterfordetails.
Fonts
Different fonts, including its family, style, and size, can besetforthe desktop’s icons, the file manager, toolbar, menu, and window title.
Icons
Lets you choose sets of icons, known as themes, to be used on your desktop. Changing the icon theme is a quick way to update the look of your desktop.
Launch Feedback
Sets options for receiving immediate feedback when you run an application. There are two launch feedback options:
Busy cursor
Turning on the busy cursor option enables the feature that attaches an icon to the cursor when you start an application, to provide visual feedback that something is happening.
Taskbar notification
If taskbar notification is enabled, an entry is placed in the taskbar as soon as you
launch an application.Otherwise,theentry doesn’tappearin thetaskbaruntilthe
application is up and running. Panel
Here you can configure the KDE panel (also referred to as the “kicker”). This includes options such as the position and size of the panel as well as its hiding behaviorand itslooks.Seethesection “Configuring thePanel”earlierin thischapter for more information.
Screensaver
Besides providing an endless variety of entertainment and preventing monitor burn-in,the screensaveristurned on when you lock yourdisplay ifyou’regoing to leaveit unattended for a while.
Production:Thesidebar“Keyboard Shortcuts”should comeascloseaspossibleto the
ListVariableTerm “Shortcuts”and theterm’sdescription.Itshould contain thefollowing
table. Shortcuts
Here you can alter the KDE keyboard shortcuts. The default key bindings are shown in thesidebar“Keyboard Shortcuts”.
Keyboard Shortcuts
Key combination Resulting action
Alt-F1 Opens the K menu
Alt-F2 Gives you a command prompt
Alt-F3 Sets the properties of the current window Alt-F4 Closes the current window
Alt-Tab Switches between application windows Ctrl-Tab Cycles through your virtual desktops Ctrl-Fn Switches to virtual desktopn
Ctrl-Alt-Esc Immediately kills every window you click on Ctrl-Alt-Backspace Kills the X server and all its clients
Style
Allows you to modify the visual appearance of user interface elements, such as the widget style and effects.
Taskbar
You can configure the taskbar here. This includes options that determine whether the taskbar is embedded in the panel (the default) or floats outside on the desktop. You can also configure whether the taskbar should show all windows or only those on the current desktop.
Theme Manager
Allows the setting of themes. Window Behavior
Actions and mouse behavior affecting window management can be changed. Window Decoration
Lets you set the window border decoration to emulate other window managers.
Network
Here you set the networking options that affect KDE. The primary options are: Email
Configures basic email information such as name and email address. This information is needed for sending a bug report to the KDE developers.
Preferences
Sets timeout values of socket read, proxy connect, server connect, and server response. You might want to change these values if you are experiencing timeouts or connection problems.
SOCKS
Enable SOCKS, which is a protocol to traverse firewalls as described in RFC 1928. Window Shares
Lets you configure your Samba client if you are running Samba on a network that also includes systems running Microsoft Windows so that Konqueror can access shared Windows filesystems. Note that this does not configure the Samba server. In addition, you may see additional options, such as Kisdndock to configure ISDN docking options, LAN Browsing, News Ticker, and Talk Configuration.
Peripherals
The keyboard and mouse peripherals are configured here. These settings only affect KDE, not your X server.
Keyboard
Allows simple keyboard configuring. You can specify additional layouts other than the default, which is helpful if you regularly work in more than one language. You can set up multiple keyboard layouts, and switch among them; enabling multiple layouts adds an icon to the panel for switching.
Mouse
Allows various options for the way in which your pointing device works. Your pointing device may be a mouse, trackball, or some other hardware that performs a similar function.
Personalization
The personalization module includes options to configure aspects ofthesystem thatdon’t fall into one of the other categories.
Accessibility
Configures options designed to help users who have difficulty hearing audible cues, or who have difficulty using a keyboard or mouse.
Country & Language
Allows country-specific settings for things like currency symbols, number formats, dates and time, etc.
Crypto
Enables SSL cryptography. Konsole
Allows configuring of Konsole, the KDE terminal application described earlier in the section “TheKonsoleTerminalEmulator”.
Passwords
Lets you set your password to echo as one or three stars or not to echo at all. Session Manager
Sets session manager options such as whether logout needs to be confirmed or the session is to be saved for future logins.
Spell Checking
Lets you select a spell checking program, specify what types of spelling errors are identified, and specify what dictionary to use.
Power Control
Power control configuration is especially interesting if you are using Linux on a laptop computer without a built-in atomic reactor. The configuration options let you monitor battery use, set energy-saving options, and set battery warning levels.
Sound
The sound settings include options for configuring various aspects of KDE sound capabilities.
Audio CD IO-Slave
Midi
Allows use and configuration of MIDI device. Sound Server
ConfiguresaRts,KDE’ssound server. System Bell
You can set the volume (0 to 100%), pitch (20 to 2000Hz), and duration (1 to 1000 milliseconds) of the system bell. Use the Test button to listen to your newly configured bell.
System Notifications
Allows saying how the application should acoustically inform you of an event. The configuration screen shows a list of applications and possible events, and lets you select the notification method you prefer for each. The choices are: Log to file, Play sound, Show messagebox, and Standard error output.
System
Because system configuration settings affect the whole system, not just an individual user, you will generally be required to click on the Administrator Mode button at the bottom of the configuration screen and asked to provide the root password in order to change any of the system settings.
Date & Time
Allows setting of the date, time, and timezone. Font Installer
Allows the installing of X fonts. Login Manager
VariousaspectsofKDE’slogin managercan beconfigured. Printing Manager
Configuration ofKDEPrint,KDE’sprintmanager.
Other possible options that you may find in this module include Boot Manager (LILO), Linux Kernel Configurator, Alarm Daemon, and XML RPC Daemon settings.
Web Browsing
Mostoftheseconfiguration optionsaffectonly Konqueror,KDE’sweb browser. Cache
Controls the size and use of the disk cache, where Konqueror stores recently read web pages.
Cookies
Lets you enable or disable Cookies. Cookies contain information stored on your computer by a remote server.
Enhanced Browsing
Konqueror Browsing
Some of Konqueror’s browser functionality can be configured here, including appearance options, the use of Java and JavaScript, and whether the use of plugins is allowed.
Netscape Plugins
The Konqueror web browser can be set here to use Netscape plugins to show special content.
Proxy
Proxy settings can be set here. This is only of interest if you access the network through a proxy server.
Stylesheets
Lets you apply your own color and font settings to Konqueror by using stylesheets (CSS).
User Agent
The user agent control screen allows you to have full control over what type of browser that Konqueror will report itself to be to remote systems and how much information it provides.
While all these configuration settings are stored in a text file, usually somewhere in $HOME/.kde/share/, and can be altered by manually editing the proper file, it is much easierto useKDE’sControlCenterwith itsGUIapproach.
On the other hand, you can use the Control Center modules without having to run the entire Control Center. If you only want to configure one particular feature of KDE, it is sometimes easier simply to access the appropriate module from within that feature, or from the Preferences option on the K menu.
KDE Applications
What is a desktop environment without its own applications? These applications are written with KDE-Lib,giving them both KDE’scommon userinterface,and itslook and feel.WhiletheseapplicationsareapartofKDE,you shouldn’tforgetthatbasically, they’reX Window System applications.Thatmeansthey don’tneed necessarily require KDE as a desktop environment, just the necessary libraries, which are usually delivered with KDE, not the application.
New KDE applications are continuing to appear on an almost weekly basis. Some representative applications are listed here to give you an idea of their broadness in offerings. You’ll find many others on the K menu. In the later sections “User Applications” and “System Tools”,theheadingsgivethe fullnameofeach application, while the descriptions use the program name as you would enter it on the command line. Notethatifyou didn’tinstallalloftheKDE packageson yoursystem,you mightnot have all of the applications described here. You can always install missing applications later, from your installation CDs or by downloading the appropriate package. The documentation page of the KDE website (http://docs.kde.org) lists the applications by package, which you can use not only to learn more about the applications, but also to find out which package to download to get the applications you want.
KOffice
KOffice, like StarOfficeand its open-source follow-on OpenOffice,** is an integrated office suite for KDE. KOffice 1.1, released with KDE 3, includes a full suite of applications, which are described briefly in Table 9-1.
Table 9-1: KOffice components Component Description
KWord A word processorapplication forKOffice.Itcan beused for“normal” word processing like writing letters, reports, etc. or more complex tasks such as DTP (desktop publishing).
KSpread A powerful spreadsheet application
KPresenter Full-featured presentation application used for talks and presentations Kivio A flowcharting application.
Kontour A vector drawing application.
Krita A raster-based image manipulation program similar to The GIMP or Adobe Photoshop.
Kugar A tool for generating business quality reports. KChart KChart helps you draw charts and diagrams.
Native file formats are XML-based, and work on filters for proprietary binary file formats is underway. KOffice components work together using the KParts object model; you can embed any KOffice component in any other KOffice component. In addition to the current KOffice applications, other programs may be embeddable into KOffice documents in the future.
User Applications
KDE also contains many user applications written and contributed by the KDE development team.
Editors: Kate, KWrite, and KEdit
KDE has several text editors available: kate and kwrite include features designed for programmers, whilekeditis a simple text editor. All three editors are used to edit ASCII files and are not to be confused with word processing programs, which contain many more formatting features.
StarOffice,Sun Microsystems’integrated officesoftware,runson
Linux, various flavors of Unix including Solaris, and on Microsoft Windows.
**
OpenOffice is documented athttp://www.openoffice.org. Its mission is to create, as a community, the leading international office suite that will run on all major platforms and provide access to all functionality and data through open-component based APIs and an XML-based file format.
kateis a text editor designed for programmers. (That does not mean, however, that you have to be a programmer to use kate). It’s the newest and most sophisticated ofthe editors. kate’s features include configurable syntax highlighting for many different programming languages, project management capabilities, and the ability to have multiple documents open simultaneously. You can use plugins withkate, set and unset bookmarks, and open an embeddedkonsoleterminal emulator.
kwrite has also been optimized for programming. Like kate, it provides syntax highlighting and the ability to use different fonts and styles (e.g., italics and bold). You can also configurekwriteto specify such features as indentation options and various other editing options.
keditis a basic text editor that is used as the default KDE text editor. Simpler thankate and kwrite, kedit isnotaprogrammer’seditorand doesn’tincludemostofthemore extensive features of the other two editors. On the other hand, it starts quickly and is perfectly adequate for simple text-editing tasks.
Mail and news: KMail and KNode
Although the Konqueror web browser does not include mail capabilities, KDE provides the dedicated program, kmail for that purpose. Apart from expected features like receiving and sending mail using different mail protocols, kmail can filter mail into different folders using user-defined filters. This is useful, for example, for keeping important business mail separate from mail received from a general mailing list. Sorted this way, mail can be read in a quiet moment or just quickly browsed and deleted, without the worry that something important may be lost. kmail also provides seamless PGP integration for encrypting and signing your email messages.
knode isKDE’stoolforreading Internet-based newsgroups (Usenet). Though it offers many features for the advanced user,knodewas designed to be easily understood even if you’veneverused anewsreaderbefore.The newsreadersupportsyou with many hints and warnings.
Calculator: KCalc
kcalc isasimplebutusefulscientificcalculator.Itsupportsthe X Window System’scut -and-paste capabilities, explained in Chapter 2,Getting Started Using X. This means that a number from anywhere can be copied with the left mouse button and then inserted into the numerical display with the middle mouse button.
Organizer: KOrganizer
KDE also supports a professional level organizer: korganizer, which provides daily, weekly, and monthly views and can handle repeating events.
Image viewers: KView and KuickShow
KDE provides two image viewers: kview and kuickshow. Both are image viewers, not image processing applications, but kview has limited image-processing support. If you
need to do serious image processing, you should turn to The GIMP or xv. Both are explained in Chapter 3,A Selection of Useful X Clients.
kviewhas more features thankuickshow, including lightness control, gamma correction, and smoothing, which is especially important for enlarging. You can also filter, rotate, flip images, and place an image on the desktop as the background image. If you have a scanner, you can scan an image intokview.
kuickshowis a viewer whose main goal is speed--but at the cost of functionality. It has a slideshow mode, and it can display an image either as a preview in thekuickshowwindow or full size in a separate window.
Screen snapshots: KSnapshot
ksnapshotlets you capture screen images. Most of the figures in this book were taken usingksnapshot. You can capture either the whole screen or a window, and save it in one of the following formats: GIF, JPEG, BMP, XPM, PNG, or as a PostScript image. (See Chapter 3 for an explanation of these image formats.)
Special viewer: KGhostView
For viewing PostScript and PDF files, KDE provides the programkghostview.
Alternative non-KDE programs are gv (Ghostview) for PostScript files, and acroread (Acrobat Reader) orxpdffor PDF files.
Audio: KsCD, Noatun, and KMix
You can listen to audio CDs using the programkscdor MP3 files withnoatun.kmixis a mixer with a friendly user interface.
kscdis a CD player that supports the CDDB, the Internet-accessed database of available audio CDs. Using the unique number assigned to every commercial CD, you can download a list of the titles on the CD, and use that list to play particular tracks. A slide-control inkscd is used to adjust the output volume. You do not need a soundcard--the CD-ROM’saudio outputisused foreitherearphonesorspeakers.
noatunis a plugin-based media player for KDE.Actually,it’safront-end to aRts, which is an analog real-time synthesizer. By default, noatun supports MP3 and MPEG-1 but because of its plugin support, you can expand its capabilities by using third-party plugins or even by writing your own.
In fact,noatunis so plugin-oriented that it requires both a play plugin and one or more user interface plugins. A default user interface plugin provides an interface that is compatiblewith otherKDE applications,butyou’refreeto chooseadifferentplugin from the large selection that is available.
kmix isasound card mixerprogram thatdoesn’tjustletyou changethevolumeofyour system; nor the volume of all your sound cards; this small, full-featured program gives you slider controls for all devices on all your sound cards.
Games
KDE comes bundled with many small games. They might not be comparable to the modern 3D real-timeaction orstrategy games,butthatdoesn’tmakethem lessaddictive.
Games are grouped into arcade games like KAsteroids, board games like KBattleship and KReversi, card games like KPoker, and strategy games like KMines and Konquest.
System Tools
KDE also has its own repertoire of tools that help you work with and manage the system..
File tool: Find Files
kfind(analogous to the Unixfind command and also known asKFind)doesn’thaveallof find’s features, but it’s certainly much easier to use. You can specify a filename, filesystem location, age, and filetype to helpkfindfind the file you want.
Process management: KDE System Guard
ksysguard (also known asKSysguard)isKDE’stask managerand performancemonitor. Its client architecture allows monitoring of your local system as well as remote hosts. Not only does it display the processes, as the top command does, it allows you to “kill” processes, that is, send the kill signal to the processes that you have marked. Enabling the Tree checkbox results in the display of the process hierarchy; e.g., which process started which other processes.
Behind the System Load tab is a graphical output of the CPU load and its load average, use of the physical memory in regards to application, buffer, and cache usage, and the amount of swap memory being used.
Disk management: KDiskFree
kdf(analogous to thedfcommand) shows how much space is available on each filesystem or device. In addition, if you right-click on an entry, you can mount or unmount that device.
Scheduling tasks: KCron
kcronis a graphical front-end to the Unixcroncommand. It displays a list of scheduled tasks, and lets you add, modify, and delete tasks.
Managing user accounts: KUser
kuseris a tool for managing user and group accounts; as such, it requires root privileges and promptsyou fortherootpassword ifyou aren’tlogged in asroot.There are two tabs, for user accounts and group accounts; from each tab, you can add, edit, and delete accounts.
KDE and Xinerama
While KDE 3.0 supports Xinerama along with the more traditional multi-screen technology, the user is often referred to the upcoming KDE 3.1 release for better software quality.Remember,independentofwhich KDE version thatyou’reusing,theX server must first be started with the Xinerama option.
The Window Behavior module in the Look & Feel section of the Control Center offers some Xinerama settings on the Advanced tab. These settings are only available if
Xinerama is enabled. The settings are: Enable Xinerama Support, Enable Window Resistance Support, Enable Window Placement Support, and Enable Window Maximize Support.
