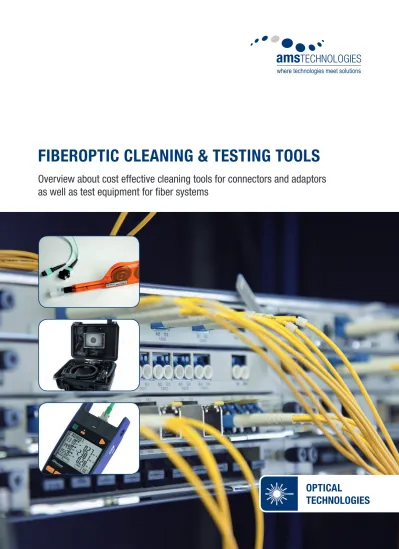

FIBEROPTIC CLEANING & TESTING TOOLS

(1)

OPTICAL

TECHNOLOGIES

Overview about cost effective cleaning tools for connectors and adaptors

as well as test equipment for ﬁ ber systems

(2)

02 Easy shopping: www.amstechnologies-webshop.com

FIBEROPTIC CLEANING TOOLS

With rapidly growing transmission rates of state of the art ﬁ ber optic networks the requirements on cleaning endfaces of connectors becomes more stringent. Even the smallest contamination on the connector’s endface reduces the overall quality of the connection. Cleaning with alcohol and tissues on a daily basis is time consuming and subjected to failures.

The cleaning tools available from AMS Technologies clean the endface with a dedicated microﬁ ber tissue.

This material removes all contaminations and secures them. The antistatic concept prevents static load which could bring new contamination after the cleaning. Unlike traditional cleaning concepts this method does not degrade optical return loss. Products include cleaning tools for the end-faces and ferrules of ﬁ ber optic connectors, as well as for the end-faces of plugged connectors through an adapter.

• Removes dirt you can’t even see without scratching the end face

• Compact design with workability in mind

• Replacement cartridge system brings excellence in running cost management

Ferrule end-face before cleaning Ferrule end-face after cleaning

(3)

Easy shopping: www.amstechnologies-webshop.com 03

INDEX

Compatibility Chart Fiberoptic Cleaning Tools ……… 4

NEOCLEAN

®

Series ……… 5

OPTIPOP

®

Series ……… 6

CLETOP

®

Series ……… 7

Microscopes ……… 8

CleanBlast™ System – Portable ……… 8

CleanBlast™ System – Bench-top ……… 8

P5000i Digital Probe Microscope ……… 9

FM-C Field Microscope ……… 9

FV-A Benchtop Microscope ……… 9

Pocket Fiber Source – KI9800 ………10

Pocket Fiber Source – KI9600 ………10

(4)

Th

e p

io

ne

er i

n o

pt

ic

al co

nn

ec

to

r cl

ea

ne

rs

,

bri

ng

s to y

ou t

he h

ig

hes

t q

ua

lit

y cl

ea

ni

ng to

ol

s.

Su

p

o

rt

in

g r

e

lia

b

ili

ty i

n t

e

le

c

o

m

un

ic

a

tio

ns s

e

rv

ic

e

: NT

T-A

T’

s O

p

tic

a

l C

o

n

ne

c

to

r L

in

e

up

*1 : F o r f e rr u le e n d f a c e c le a n in g i n p lu g s . * 2 : F o r f e rr u le e n d f a c e c le a n in g i n a d a p to rs

Optical connector end face is easily contaminated, and when contaminants adher

e to the 10µm diameter optical

ﬁber cor e, ther e is a high chance of transmission quality being af fected. Since ther e is also the danger of ﬁber end face being damaged by high power light, cleaning is necessar y befor e making a connection. Why is c

leaning optical connectors so important?

Cartridge T

ype for us in plugs*

1 Stick T ype for Adaptors* 2 Pipe T

ype for Ferrule Side Edges

Compatible for plugs or adaptors with the attachment conversion

The cause of many troubles in optical communication equipment is contamination on the end face of optical connectors. NTT Advanced Technology’ s optical connector cleaners use ﬁber developed speciﬁ -cally for optical connectors, so even the smallest contaminants not

visible to the naked eye ar

e r emoved. Engineer ed with both highly por table compact designs and ease of operation in mind, and since no cleaning ﬂuids ar e necessar y ther e ar

e no special needs for the operating envir

onment either . W e have pr epar ed a full lineup of cleaners compatible with ever y type of optical connector

. Please put our technology to work for you.

Pen T

ype Convertible for plugs and

Adaptors After c leaning Before c leaning

NEOCLEAN Series

CLETOP Series

OPTIPOP Series

*3 : F o r c le a n in g F A p lu g s / F A S p lu g s , p le a s e u s e N E O C L E A N -E a n d N E O C L E A N -E Z .

Single core optical connectors

Compatible Connector

Main Connector/Cleaner Compatibility Chart

MU adaptor LC adaptor SC adaptor F A socket FC adaptor MU plug LC plug F AS socket F A plug F AS plug SC plug FC plug MT plug no pin

MPO plug no pin

MT

plug with pin

MPO plug with pin

MTRJ plug no pin

MT

plug no pin

MPO plug no pin

MT

plug with pin

MPO plug with pin

MPO adaptor pins yes/no

MPO plug pins yes/no

MTRJ plug no pin MU adaptor LC adaptor SC adaptor F A socket FC adaptor MU plug LC plug F AS socket F A plug F AS plug *3 SC plug FC plug Multi-core connectors Ferrule End F ace Cleaner

Ferrule Side Edge Cleaner

NEOCLEAN-E1

OPTIPOP P125 NEOCLEAN-P125 OPTIPOP P250

OPTIPOP C NEOCLEAN-E2, E3 NEOCLEAN-EZ2 NEOCLEAN-EZ1 NEOCLEAN-R2 OPTIPOP R1 OPTIPOP R1/R2 R1 R2 OPTIPOP R3

CLETOP MPO type

NEOCLEAN-S125 NEOCLEAN-S250

NEOCLEAN-E1 _NEOCLEAN-EZ1

NEOCLEAN-E2, E3 NEOCLEAN-EZ2 CLETOP stick 1.25mm type

CLETOP stick 2.0/2.5mm Double ended

CLETOP stick 2.5mm type

CLETOP-S A/B type

A type B type

CLETOP A/B type

NEOCLEAN-R2 NEOCLEAN-R2

Optimal cleaning for various video equipment (LEMO, T

ajimi brand, etc.)

OPTIPOP C

OPTIPOP R1/R2

R1 R2

CLETOP B type

CLETOP-S B type

Cleaners for video equipment

For video equipment

Optical compound connectors

NEOCLEAN-E1

OPTIPOP P125 NEOCLEAN-P125 OPTIPOP P250

OPTIPOP C

NEOCLEAN-E2, E3

NEOCLEAN-EZ2 NEOCLEAN-MNEOCLEAN-M

NEOCLEAN-EZ1 NEOCLEAN-R2 OPTIPOP R1 OPTIPOP R1/R2 R1 R2 OPTIPOP R3

CLETOP MPO type

NEOCLEAN-S125 NEOCLEAN-S250

NEOCLEAN-E1 _NEOCLEAN-EZ1

NEOCLEAN-E2, E3 NEOCLEAN-EZ2 CLETOP stick 1.25mm type

NEOCLEAN-R2 NEOCLEAN-R2 OPTIPOP C OPTIPOP R1/R2 R1 R2 LEMO Connector

CLETOP-S A/B type

A type B type

CLETOP A/B type

CLETOP B type CLETOP-S B type CLETOP B type CLETOP-S B type CLETOP B type CLETOP-S B type

CLETOP stick 2.0/2.5mm Double ended

*3 * W e h a v e c le a n e rs f o r c o n n e c to rs n o t s h o w n i n t h e a b o v e c h a rt , s o p le a s e f e e l f re e t o c o n s u lt w it h u s a b o u t a n y n e e d s y o u m a y h a v e .

NEOCLEAN

®

CLETOP

®

OPTIPOP

®

SERIES

Main Connector/Cleaner Compa

(5)

NEOCLEAN

®

Series

NEOCLEAN-E over 750 times Replacement cartridges cartridges (3/set) E2 ATC-NE-E2 SC,SC2, FC, FAS, FA L:230 ATC-NE-ES2 EZ1 ATC-NE-EZ1 MU, LC EZ2 ATC-NE-EZ2 SC, SC2, FC, FAS, FA E1 ATC-NE-E1 MU, LC L:240 ATC-NE-ES1 NEOCLEAN-EZ

L:113(when attachment removed:104/attached:167) over 400 times

One time use Plugs/Adaptors Pen Type E3 ATC-NE-E3 SC, FC, ST, E2000, PC/APC L:230 ATC-NE-ES3 S125 ATC-ST-01N Ø1.25mm S250 ATC-ST-02N Ø2.5mm

Ferrule Side Edges Pipe Type NEOCLEAN-P P125 ATC-NE-P1 Ø1.25mm 100mm 200 sticks/set

The tool that combines compactness and the workability of one-push cleaning.

Plugs/Adaptors Pen Type

NEOCLEAN-M

ATC-NE-M1

MPO, MTP®_{(pin/no pin)}

L:208 × W:17 × H:51 over 600 times

NEOCLEAN-E, EZ series, and NEOCLEAN-M are all high performance hybrid type cleaners that provide cleaning for both optical connector plugs and adaptors in one unit.

Attaching the cap for cleaning plugs.Attaching the cap for cleaning plugs.

Plug Simple Type

NEOCLEAN-R2

ATC-NE-R2 Single core, Multi-core (no pin)

W:115 × D:25 × H:55 over 400 times(Disposable Type)

Fix the attachment to the tip makes it ideal for cleaning in inset spots Fix the attachment to the tip makes it ideal for cleaning in inset spots Remove the cap on the

end to clean plugs Remove the cap on the end to clean plugs Remove the attachment

to clean adaptors. Remove the attachment to clean adaptors. Cleaning an adaptor. Cleaning an adaptor. NEOCLEAN-EZ250 NEOCLEAN-EZ250 NEOCLEAN-M NEOCLEAN-M Type Product Name Model Number Consumables Target Use Type Product Name Model # Compatible Connectors Size(mm) Number of Uses

Product Specifications

http://www.ntt-at.com/

Notes:

* NEOCLEAN are registered trademarks of NTT Advanced Technology Corporation.

* Any other Company Names, product names, etc. recorded herein are trademarks or registered trademarks of the speciﬁed companies.

* Please understand that the contents recorded herein may be subject to change without notiﬁcation.

* Catalog contents from August, 2013 to present.

For more information, please contact

201308B

International Business Division

Muza Kawasaki Central Tower 14F, 1310 Omiya-Cho, Saiwai-Ku, Kawasaki-Shi, Kanagawa, 212-0014, Japan TEL: +81 44 589 5894, FAX: +81 44 541 1326 Target Use Type Product Name Model # Compatible Connectors Size(mm) Number of Uses Target Use Type Product Name Model # Compatible Connectors Length(mm) Packing Specifications Adaptors Stick Type NEOCLEAN-S 152mm (length adjustment:45/65/85/105mm) 200 sticks/set

NEOCLEAN

®

SERIES

OPTICAL CONNECTOR CLEANER LINEUP

NEOCLEAN

®

SERIES

Optical Connector Cleaner Lineup

The tool for increasing optical construction work efficiency

and supporting communication service reliability.

Because they use pure sterile microfibers, they remove dirt without scratching the ultra-fine core of the optical fiber.

Removes dirt you can’t even see without scratching the end face

1

P O I N T

Designed in response to the voices of actual on site workers, they show improvement in both excellent portability and working efficiency.

Compact design with workability in mind

2

P O I N T

NEOCLEAN-E and R use a replacement system for consumables, greatly reducing running costs.

Replacement cartridge system brings excellence in running cost management

3

(6)

OPTIPOP

®

Series

OPTIPOP R

OPTIPOP C

OPTIPOP P

A line up of 4 kinds to match different types of optical connectors. Its dustproof shutter allows you to open a new cleaning surface with a single hand, one-action lever no matter what working environment you are in.

This cleaner for single core connectors has a thin pocket size that allows you to use it even in places with limited working space, while providing the same cleaning power as the R series.

When a connector with dirt on its ferrule end face is inserted into an adaptor, deviations in the optical axis may occur. OPTIPOP P is the ideal solution for preventing this kind of trouble.

The assurance and reliability of high quality,

born from our know-how of optical connector

standardization and compatibility testing.

NTT-At’s OPTIPOP Series was born out of the optical connector standardization and compatibility testing know-how that comes from our company’s many years of experience. We also listened to the voices of on location workers so that various devices that support smooth and helpful work are utilized in each part.

R2

ATC-RE-02 single core

R3

ATC-RE-03 MT, MPO (with pin)

R4

ATC-RE-04 MT-RJ (with pin) R1

ATC-RE-01 single core, multi-core (no pin)

Cassette Grip Type OPTIPOP

W:124 × D:35 × H:83 over 400 times Replacement Reels (6 rolls/set)

OPTIPOP RS ATC-RS-01 Plugs Card Type OPTIPOP C ATC-CA-01 single core W:120 × D:16 × H:57 12 times/sheet – 10 sheets Replacement card (100 sheets/set)

OPTIPOP CS ATC-CS-01 Ferrule end face

Pipe Type OPTIPOP P

http://www.ntt-at.com/

Notes:

* OPTIPOP are registered trademarks of NTT Advanced Technology Corporation.

* Any other Company Names, product names, etc. recorded herein are trademarks or registered trademarks of the speciﬁed companies. * Please understand that the contents recorded herein may be subject to change without notiﬁcation.

* Catalog contents from July, 2013 to present.

For more information, please contact

201307A

Musa Kawasaki Central Tower 14F, 1310 Omiya-Cho, Saiwai-Ku, Kawasaki-Shi, Kanagawa, 212-0014, Japan TEL: +81 44 589 5894, FAX: +81 44 541 1326 Target Use Type Product Name Model # Compatible Connectors Length(mm) Packing Specifications Type Product Name Model Number Consumables Target Use Type Product Name Model # Compatible Connectors Size(mm) Number of Uses P125 ATC-PP-01 Ø1.25mm 100mm 600/set P250 ATC-PP-02 Ø2.5mm 100mm 200/set

Product Specifications

The tool for increasing optical construction work efficiency

and supporting communication service reliability.

OPTIPOP

®

SERIES

OPTIPOP

®

SERIES

Removes dirt you can’t even see without scratching the end face

1

P O I N T

Compact design with workability in mind

2

P O I N T

In consideration of the health of workers and the surrounding environment, there is no need for any cleaning fluids such as organic alcohol, etc.

No cleaning solution required means they are friendly to the environment

3

P O I N T

(7)

CLETOP

®

Series

1.25mm Type 14100401 Ø1.25mm 100mm Adaptors Stick Type CLETOP Stick 2.5mm Type 14100400 Ø2.5mm 146mm 2.0mm Type 14100402 146mm 200/set

2.0/2.5mm dual end type

14100403 127mm 100/set

Product Specifications

The assurance and reliability of high quality,

born from our know-how of optical connector

standardization and compatibility testing.

CLETOP

CLETOP-S

CLETOP Stick

Target Use Type Product Name Model # Compatible Connectors Length(mm) Packing Specifications

NTT-At’s CLETOP Series was born out of the optical connector standardization and compatibility testing know-how that comes from our company’s many years of experience. We also listened to the voices of on location workers so that various devices that support smooth and helpful work are utilized in each part.

A line up of 4 kinds to match different types of optical connectors. Its dustproof shutter allows you to open a new cleaning surface with a one-action lever no matter what working environment you are in.

A line up of 2 kinds to match different types of optical connectors. Also equipped with a dustproof shutter, its light touch opening grip allows for even greater ease of use for the operator.

Easily removes contamination on adaptor ferrule end face. With both 2.0mm and 2.0/2.5mm ends, they are ideal for the optical composite connectors (LEMO brand, Tajimi electronics brand, etc.) for video equipment.

Cassette Grip Type CLETOP-S

W:125 × D:35 × H:85 over 400 times Replacement cartridges (6/set)

Blue Tape/White Tape 14110700 / 14110710 A Type

14110501 single core (ideal for Ø2.5mm)

B Type

14110601 single core, multi-core (with pin)

Type Product Name Model Number

Consumables

Cassette Lever Type CLETOP

W:130 × D:40 × H:75 over 400 times Replacement Reels (6 rolls/set)

Blue Tape / White Tape 14100700 / 14100710 A Type

14100501 single core (ideal for Ø2.5mm)

Plugs

B Type

14100601 single core, multi-core (with pin)

MT-RJ Type

14100101 MT-RJ (with pin)

MPO Type

14100201 MT, MPO (with pin) Target Use Type Product Name Model # Compatible Connectors Size(mm) Number of Uses

Connectors for high vision cameras 200/set

http://www.ntt-at.com/

Notes:

* CLETOP are registered trademarks of NTT Advanced Technology Corporation.

* Any other Company Names, product names, etc. recorded herein are trademarks or registered trademarks of the speciﬁed companies. * Please understand that the contents recorded herein may be subject to change without notiﬁcation.

* Catalog contents from July, 2013 to present.

For more information, please contact

201307A

Musa Kawasaki Central Tower 14F, 1310 Omiya-Cho, Saiwai-Ku, Kawasaki-Shi, Kanagawa, 212-0014, Japan TEL: +81 44 589 5894, FAX: +81 44 541 1326

The tool for increasing optical construction work

efficiency and supporting communication service reliability.

CLETOP

®

SERIES

CLETOP

®

SERIES

Removes dirt you can’t even see without scratching the end face

1

P O I N T

Compact design with workability in mind

2

P O I N T

In consideration of the health of workers and the surrounding environment, there is no need for any cleaning fluids such as organic alcohol, etc.

No cleaning solution required means they are friendly to the environment

3

P O I N T

(8)

MICROSCOPES FOR FIBEROPTIC CONNECTORS

CleanBlast™ System – Portable

Advanced Fiber Optic Connector End Face Cleaning System

CleanBlast™ System – Bench-top

with optional FBP Probe Microscope

The patented JDSU CleanBlast fi ber end face cleaning systems provide a fast, effective, and cost-effi cient solution for removing dirt and debris from connectors in most common applications. The precise, highly effi cient non-contact air-solvent-air stream blasts and removes contamination with nearly 100-percent effectiveness.

HIGHLIGHTS

•

Fast, repeatable, more effective, and more cost-efﬁ cient per clean than other cleaning methods

•

Eliminates user sensitivity and error

•

Removes, rather than spreading or

smearing, loose debris from ﬁ ber end faces with a push of a button

•

Input for optional FBP probe

microscope and 6.4-inch LCD enable ﬁ ber inspection capability

KEY FEATURES

•

Provides rapid, controlled, and repeatable cleaning and removal of contamination from ﬁ ber end faces

•

Uses a precise non-contact

air-solvent-air mixture/sequence to blast and remove contamination particles

•

Cleans faster, more effectively, and more economically per clean than conventional methods

•

Offers a comprehensive selection of precision cleaning tips and adapters

The patented JDSU CleanBlast fi ber end face cleaning systems provide a fast, effective, and cost-effi cient solution for removing dirt and debris from connectors in most common applications. CleanBlast is a non-contact system that uses a highly fi ltered stream of pressurized gas with a vacuum circuit to create a high fl ow rate jet across the surface of the fi ber. A 30-µl cleaning solvent is injected into the airfl ow, and the contamination from the end face along with the solvent are then removed through the retrieval circuit.

KEY FEATURES

•

Provides rapid, controlled, and repeatable cleaning and removal of contamination from ﬁ ber end faces

•

Uses a precise non-contact air-solvent-air mixture/sequence to blast and remove contamination particles

•

Cleans faster, more effectively, and more economically per clean than conventional methodsxerferem ium rectur?

(9)

P5000i Digital Analysis Microscope

Inspect and certify ﬁ ber end face quality

at the push of a button

FM-C Field Microscope

FV-A Benchtop Microscope

The FM-C-series microscopes use coaxial illumination to provide users with maximum detail. It easily can detect the ﬁ nest scratches and contamination, making it ideal for critically inspecting polish quality.

FVA Benchtop Microscope fully automates the inspection process and is used to detect scratches that technicians may miss. FiberChekPRO™ then provides Pass/ Fail results.

Coaxial Illumination Handheld Optical

Microscope for Fiber Inspection

with FiberCheckPRO™

APPLICATIONS

•

LED illumination provides 100,000 h of lamp life and extends battery life up to 30 h of continuous use.

•

Laser safety ﬁ lter installed.

•

The versatile interface uses

interchangeable, pre-centered universal or dedicated adapters.

APPLICATIONS

•

Automatically inspects and analyzes ﬁ ber optic connectors in manufacturing and quality assurance environments

•

Automatically focuses, centers, captures, and analyzes ﬁ ber end face images, and obtains instant Pass/Fail result

•

Standardizes ﬁ ber inspection and analysis procedures

KEY FEATURES

•

Rugged, ergonomic design for ﬁ eld use

•

LED illumination for 100,000+ hour life

•

Coaxial illumination for the highest level of detail; most critical view of ﬁ ber end face cleanliness and condition

•

Integrated laser safety

KEY FEATURES

•

Fully-automated inspection system

•

Adjustable, scalable automation settings from all-manual to all-automatede

•

Plugs directly into PC via USB 2.0 connection

•

FiberChekPRO pre-programmed with

International Electrotechnical Commission (IEC) acceptance criteria standards

KEY FEATURES

•

Repeatable Pass/Fail analysis eliminates subjective guesswork from the measurement process

•

User-selectable acceptance proﬁ les allow certiﬁ cation to any acceptance criteria

•

Includes FiberChekPRO™ software for analysis and reporting with PC/laptop

•

Automatic Image Centering ensures the ﬁ ber in always on the center of the screen

•

Dual-Magniﬁ cation switching allows easy toggling between low & high magniﬁ cations.in both live and analysis views

The P5000i makes it fast and easy to certify that every connection in your network is clear and optimized. This intelligent fi ber microscope removes the guesswork from fi ber inspection and provides reliable and objective PASS/FAIL analysis of the fi bers that connect customers to your network and to the best user experience possible.

The P5000i ﬁ ber microscope also enables PASS/FAIL analysis using many JDSU test solutions that users already rely on for essential network testing. Easily connect to a T-BERD®/MTS 2000/4000/6000, HST-3000 or laptop/PC via USB without the need for any additional adapters.

APPLICATIONS

•

Ensure physical layer performance by guaranteeing ﬁ ber connectivity meets industry standards

•

Instantly capture, analyze, and grade ﬁ ber end face images and obtain a PASS/FAIL result according to pre-conﬁ gured criteria setting

•

Standardize ﬁ ber inspection, analysis, and grading process throughout ﬁ ber network

(10)

010 Easy shopping: www.amstechnologies-webshop.com

KI 2600 SERIES

Hand held power meter

A fully-featured Hand Held Optical Power Meter used for testing ﬁ ber optic communications systems. Superior measurement conﬁ dence is achieved through a combination of excellent basic accuracy, intuitive use and rugged reliability.

Pocket Fiber Source – KI9800

Optical power meter

Pocket Fiber Source – KI9600

Optical power meter

The inexpensive KI 9600 Shirt-Pocket Fiber Meter is a simple and reliable power meter for testing power and loss on all types of ﬁ ber optic systems. It provides high accuracy and simplicity of use.

The small KI 9600 Pocket Fiber Meter is ideal for measuring absolute / relative light levels or test tones on single mode, multimode or plastic optical ﬁ ber (POF) systems. High traceable accuracy and ease of use make it perfect for ﬁ eld or laboratory.

APPLICATIONS

•

Singlemode, multimode or POF cable loss testing

•

Continuity testing

•

Visual Fault Finder option

APPLICATIONS

•

System power testing

•

Attenuation testing

•

Fiber identiﬁ cation

•

Wavelength Selective Option for PON

APPLICATIONS

•

System power testing

•

Attenuation testing

•

Fiber identiﬁ cation

•

Fault Finding & Continuity

Testing KEY FEATURES

•

9 traceable calibration wavelengths with 2% accuracy

•

Very small size, intuitive to use, rugged & reliable

•

300 hr alkaline battery life

•

3 year warranty and calibration cycle

•

dBm / dB / mW display, 0.01 dB resolution

The KI 9600 series Optical Power Meter is used for testing fi ber optic communications systems. Traceable 2% accuracy, ease of use and high availability combine to achieve superior measurement confi dence. Detector & calibration options cover a wide range of connector types, fi ber types and common wavelengths from +24 to -80 dBm.

KEY FEATURES

•

Shirt pocket size with spring clip

•

3 year warranty

•

3 year calibration cycle

•

Include SC, FC, ST Interchangeable connectors

•

Multi-fi ber ID for fi ber identifi cation

•

Displays dBm, dB, linear, tone Hz

•

Simple to use

•

300 hr battery life

KEY FEATURES

•

Reliable, rugged & versatile

•

Simple to use

•

Very long battery life

•

LCD is large, clear, sunlight readable & backlit

•

Interchangeable connectors with dust cap/ tilt bail

(11)

Easy shopping: www.amstechnologies-webshop.com 011

Order online, purchase on account!

Welcome to the AMS Technologies web shop... in your own language!

We deliver test and cleaning equipment for every optical ﬁ bre application.

Our fi ber test equipment offers practical specifi cations to help you test fi ber systems. AMS Technologies fi bre optic test and cleaning equipment helps you get your job done effi ciently. Simply click on the required fl ag to enable you to use the shop in your own language.

(12)

 Thermal Management

www.amstechnologies.com

WHAT CAN WE DO FOR YOU?

Please contact us for further information

Germany

AMS Technologies AG (Headquarters) Fraunhoferstr. 22 82152 Martinsried, Germany Phone +49 (0)89 895 77 0 Fax +49 (0)89 895 77 199 [email protected]

Italy

AMS Technologies S.r.l. Via San Bernardino, 49 20025 Legnano (MI), Italy Phone +39 0331 596 693 Fax +39 0331 590 732 [email protected]

United Kingdom

AMS Technologies Ltd. Unit 11, St Johns Business Park Lutterworth

Leicestershire LE17 4HB, United Kingdom Phone +44 (0)1455 556360 Fax +44 (0)1455 552974 [email protected]

Spain

AMS Technologies S.L. C/Muntaner, 200 Atico, 4a 08036 Barcelona, Spain Phone +34 (0) 93 380 84 20 Fax +34 (0) 93 380 84 21 [email protected]

France

AMS Technologies S.A.R.L. Silic 717 – Bâtiment Magnolia 16, avenue du Québec 91961 Courtaboeuf Cedex Phone +33 (0)1 64 86 46 00 Fax +33 (0)1 69 07 87 19 [email protected]

Nordic

AMS Technologies Nordic Azpect Photonics AB Aminogatan 34 43153 Mölndal, Sweden Phone +46 (0)8 55 44 24 80 Fax +46 (0)8 55 44 24 99 [email protected]

ISO

9001

DIN EN ISO 9001

TAW Cert

Zert.Nr.: 29050313
