Ece-V-Information Theory & Coding [10ec55]-Assignment

(1)

Dept. of ECE/SJBIT Page 1

Assignment Questions

UNIT 1:

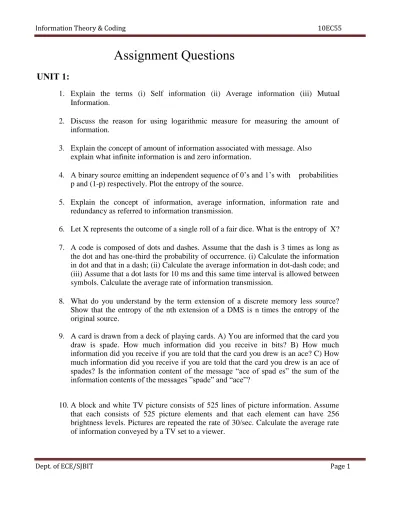

1. Explain the terms (i) Self information (ii) Average information (iii) Mutual Information.

2. Discuss the reason for using logarithmic measure for measuring the amount of information.

3. Explain the concept of amount of information associated with message. Also explain what infinite information is and zero information.

4. A binary source emitting an independent sequence of 0‟s and 1‟s with probabilities p and (1-p) respectively. Plot the entropy of the source.

5. Explain the concept of information, average information, information rate and redundancy as referred to information transmission.

6. Let X represents the outcome of a single roll of a fair dice. What is the entropy of X? 7. A code is composed of dots and dashes. Assume that the dash is 3 times as long as

the dot and has one-third the probability of occurrence. (i) Calculate the information in dot and that in a dash; (ii) Calculate the average information in dot-dash code; and (iii) Assume that a dot lasts for 10 ms and this same time interval is allowed between symbols. Calculate the average rate of information transmission.

8. What do you understand by the term extension of a discrete memory less source? Show that the entropy of the nth extension of a DMS is n times the entropy of the original source.

9. A card is drawn from a deck of playing cards. A) You are informed that the card you draw is spade. How much information did you receive in bits? B) How much information did you receive if you are told that the card you drew is an ace? C) How much information did you receive if you are told that the card you drew is an ace of spades? Is the information content of the message “ace of spad es” the sum of the information contents of the messages ”spade” and “ace”?

10. A block and white TV picture consists of 525 lines of picture information. Assume that each consists of 525 picture elements and that each element can have 256 brightness levels. Pictures are repeated the rate of 30/sec. Calculate the average rate of information conveyed by a TV set to a viewer.

(2)

11. A zero memory source has a source alphabet S= {S1, S2, S3} with P= {1/2, 1/4, 1/4}. Find the entropy of the source. Also determine the entropy of its second extension and verify that H (S2) = 2H(S).

12. Show that the entropy is maximum when source transmits symbols with equal probability. Plot the entropy of this source versus p (0<p<1).

13. The output of an information source consists OF 128 symbols, 16 of which occurs with probability of 1/32 and remaining 112 occur with a probability of 1/224. The source emits 1000 symbols/sec. assuming that the symbols are chosen independently; find the rate of information of the source.

14. A CRT terminal is used to enter alphanumeric data into a computer, the CRT is connected through a voice grade telephone line having usable bandwidths of 3KHz and an output S/N of 10Db. Assume that the terminal has 128 characters and data is sent in an independent manner with equal probability.

i. Find average information per character. ii. Find capacity of the channel.

iii. Find maximum rate at which data can be sent from terminal to the computer without error.

15. A message source produces two independent symbols A and B with probabilities P i. =0.4 and P (B) =0.6. Calculate the efficiency of the source and hence

its redundancy. If the symbols are received in average with 4 in every 100 symbols in error, calculate the transmission rate of the system.

16. A message source produces two independent symbols U and V with probabilities P (v) =0.6 and P (U) =0.4. Calculate the efficiency of the source and hence the redundancy. If the symbols are received on average with 3 in every 100 symbols in error & calculate the transmission rate of the system.

17. The output of a DMS consists of the possible letters x1, x2…xn which occur with

probabilities p1,p2,….p n respectively. Prove that the entropy of H(x) of the source is

(3)

UNIT 2:

1. What do you mean by source encoding? Name the functional requirements to be satisfied

in the development of an efficient source encoder.

2. For a binary communication system, a „0‟ or „1‟ is transmitted. Because of noise on the channel, a „0‟ can be received as „1‟ and vice-vers a. Let m0 and m1 represent the events of

transmitting „0‟ and „1‟ respectively. Let r 0 and r0 denote the events of receiving „0‟ and „1‟

respectively. Let p(m 0) = 0.5, p(r1/m0) = p = 0.1, P(r0/m1) = q = 0.2

i. Find p(r0) and p(r1)

ii. If a „0‟ was received what is the probability that „0‟ was sent iii. If a „1‟ was received what is the probability that „1‟ was sent. iv. Calculate the probability of error.

v. Calculate the probability that the transmitted symbol is read correctly at the receiver. 3. State Shannon-Hartley‟s law. Derive an equation showing the efficiency of a system in

terms of the information rate per Unit bandwidth. How is the efficiency of the system related to B/W?

4. For a discrete memory less source of entropy H(S), show that the average code-word length for any distortion less source encoding scheme is bounded as L≥H(S).

5. Calculate the capacity of a standard 4KHz telephone channel working in the range of 200 to 3300 KHz with a S/N ratio of 30 dB.

6. What is the meaning of the term communication channel. Briefly explain data communication channel, coding channel and modulation channel.

7. Obtain the communication capacity of a noiseless channel transmitting n discrete message system/sec.

8. Explain extremal property and additivity property.

9. Suppose that S1, S2 are two memory sources with probabilities p1,p2,p3,……pn for source s1 and q1,q2,…….qn for source s2 . Show that the entropy of the source s1

n

H(s1)≤ ∑ Pk log (1/qk) K=1

(4)

UNIT 3:

1. What are important properties of the codes?

2. what are the disadvantages of variable length coding? 3. Explain with examples:

4. Uniquely decodable codes, Instantaneous codes

5. Explain the Shannon-Fano coding procedure for the construction of an optimum code 6. Explain clearly the procedure for the construction of compact Huffman code.

7. A discrete source transmits six messages symbols with probabilities of 0.3, 0.2, 0.2, 0.15, 0.1, 0.05. Device suitable Fano and Huffmann codes for the messages and determine the average length and efficiency of each code.

8. Consider the messages given by the probabilities 1/16, 1/16, 1/8, ¼, ½. Calculate H. Use the Shannon-Fano algorithm to develop a efficient code and for that code, calculate the average number of bits/message compared with H.

9. Consider a source with 8 alphabets and respective probabilities as shown:

A B C D E F G H

0.20 0.18 0.15 0.10 0.08 0.05 0.02 0.01

Construct the binary Huffman code for this. Construct the quaternary Huffman and code and show that the efficiency of this code is worse than that of binary code 10. Define Noiseless channel and deterministic channel.

11. A source produces symbols X, Y,Z with equal probabilities at a rate of 100/sec. Owing to noise on the channel, the probabilities of correct reception of the various symbols are as shown:

P (j/i) X Y z

X ¾ ¼ 0

y ¼ ½ ¼

z 0 ¼ ¾

(5)

12. Determine the rate of transmission l(x,y) through a channel whose noise characteristics is shown in fig. P(A1)=0.6, P(A2)=0.3, P(A3)=0.1

A 1 0.5 B1 T R 0.5 A2 0.5 B2 0.5 A 3 0.5 B3

13. For a discrete memory less source of entropy H(S), show that, the average code-word length for any distortionless source encoding scheme is bounded as L  H(S).

14. Briefly discuss the classification of codes. 15. Show that H(X,Y) = H(X/Y)+H(Y). 16. state the properties of mutual information.

17. Show that I(X,Y) = I(Y,X) for a discrete channel. 18. Show that for a discrete channel I(X,Y)  0

19. Determine the capacity of the channel shown in fig.

y2

x1

½

(6)

20. For a binary erasure channels show in figure below Find the following:

i. The average mutual information in bits

ii. The channel capacity

iii. The values of p(x1) and p(x2) for maximum mutual information

1-p y 1 x1 p e(y2)

21. A DMS has an alphabet of seven symbols whose probabilities of occurrences are described here:

Symbol: S0 S1 S2 S3 S4 S5 S6

Prob 0.25 0.125 0.125 0.125 0.125 0.0625 0.0625

Compute the Huffman code for this source, moving a combined symbol as high as possible, Explain why the computed source code has an efficiency of 100%.

22. Consider a binary block code with 2n code words of same length n. Show that the Kraft inequality is satisfied for such a code.

23. Write short notes on the following:

Binary Symmetric Channels (BSC), Binary Erasure Channels (BEC) Uniform Channel, Cascaded channels

(7)

UNIT 4:

1. Show that for a AWGN channel C

1.448 where /2 = noise power spectral density

in watts/Hz.

2. Consider an AWGN channel with 4 KHz bandwidth with noise power spectral density watts/Hz. The signal power required at the receiver is 0.1mW. Calculate the capacity of the channel.

3. If I(xi, yi) = I(xi)-I(xi/yj). Prove that I(xi,yj)=I(yj)-I(yj/xi)

4. Design a single error correcting code with a message block size of 11 and show that by an example that it can correct single error.

5. If Ci and Cj an two code vectors in a (n,k) linear block code, show that their sum is also a

code vector.

6. Show CHT=0 for a linear block code.

7. Prove that the minimum distance of a linear block code is the smallest weight of the non-zero code vector in the code.

(8)

UNIT 5:

1. Design a single error correcting code with a message block size of 11 and show that by an example that it can correct single error.

2. If Ci and Cj an two code vectors in a (n,k) linear block code, show that their sum is also a

code vector.

3. Show CHT=0 for a linear block code.

4. Prove that the minimum distance of a linear block code is the smallest weight of the non-zero code vector in the code.

5. What is error control coding? Which are the functional blocks of a communication system that accomplish this? Indicate the function of each block. What is the error detection and correction on the performance of communication system?

6. Explain briefly the following:

Golay codes and BCH codes.

7. Explain the methods of controlling errors 8. List out the properties of linear codes.

9. Explain the importance of hamming codes & how these can be used for error detection and correction.

(9)

UNIT 6:

1. Write a standard array for Systematic Cyclic Codes code 2. Explain the properties of binary cyclic codes.

3. With a neat diagrams explain the binary cyclic encoding and decoding 4. Explain how meggit decoder can be used for decoding the cyclic codes. 5. Write short notes on BCH codes

6. Draw the general block diagram of encoding circuit using (n-k) bit shift register and explain its operation.

7. Draw the general block diagram of syndrome calculation circuit for cyclic codes and explain its operation.

UNIT 7:

1. What are RS codes? How are they formed?

2. Write down the parameters of RS codes and explain those parameters with an example. 3. List the applications of RS codes.

4. Explain why golay code is called as perfect code. 5. Explain the concept of shortened cyclic code. 6. What are burst error controlling codes?

7. Explain clearly the interlacing technique with a suitable example. 8. What are Cyclic Redundancy Check (CRC) codes

(10)

UNIT 8:

1. What are convolutional codes? How is it different from block codes?

2. Explain encoding of convolution codes using time doman approach with an example. 3. Explain encoding of convolution codes using transform doman approach with an

example.

4. What do you understand by state diagram of a convolution encoder? Explain clearly. 5. What do you understand by code tree of a convolution encoder? Explain clearly. 6. What do you understand by trellis diagram of a convolution encoder? Explain clearly.
