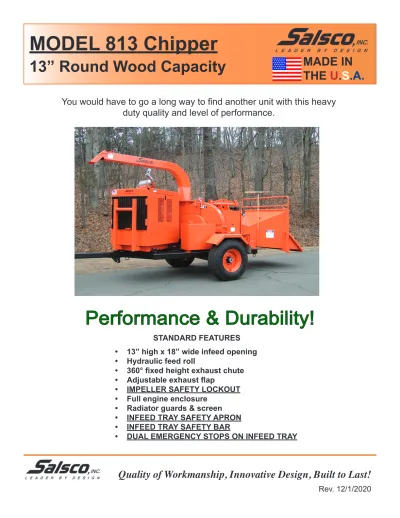

MODEL 813 Chipper
13” Round Wood Capacity
Quality of Workmanship, Innovative Design, Built to Last!
Rev. 12/1/2020
Performance & Durability!
• 13” high x 18” wide infeed opening
• Hydraulic feed roll
• 360° fixed height exhaust chute
• Adjustable exhaust flap
• IMPELLER SAFETY LOCKOUT
• Full engine enclosure
• Radiator guards & screen
• INFEED TRAY SAFETY APRON
• INFEED TRAY SAFETY BAR
• DUAL EMERGENCY STOPS ON INFEED TRAY
STANDARD FEATURES
You would have to go a long way to find another unit with this heavy
duty quality and level of performance.
MADE IN
THE
U
.
S
.
A.
http://www.salsco.com/videos/sss-salsco-safety-shield.html
The
SSS
is a safety system that vastly improves wood
chipping safety, proactively and effectively preventing
wood chipper injury by shutting down the chipper’s
in-feed system when an operator enters a defined hazard
zone. As the magnets enter a hazard zone defined by
the
SSS
, an instant signal is sent to the chipper’s
feed-ing mechanism, shuttfeed-ing it down before the worker can
come in contact with the infeed rolls. Reset Stations are
located on the two outer sides of the infeed hopper. By
simply hovering a hook and loop band next to a reset
sta-tion the feed rolls reactivate immediately.
SPECIFICATIONS - SSS SALSCO SAFETY SHIELD OPTION
ANTENNA PANELS: Two (2) One on each side of theinfeed rolls.
WRIST & ANKLE BANDS: Four (4) wrist bands, four (4) ankle Fluorescent Velcro bands with magnets.
RESET STATIONS: Two (2), one on either side of the infeed hopper.
CONTROLLER: Shuts down the infeed by shutting
down power to the hydraulic valves. Controller Wrist and ankle bands
WIRING HARNESSES: Two (2). One powering the SSS, one for safety accessory detection.
DECALS: Full set of safety and warning decals.
The SSS Salsco Safety Shield is the newest addition to our
growing family of wood chipper safety solutions. Salsco is
confident our wood chippers are manufactured as the best,
rugged, and most dependable line Made in America, but
wondered what was next. The answer was obvious when
we looked at all machines in the industry from a safety
aspect. Our engineering team is diligent in designing the
tools needed to maintain a compliant workplace safety
pro-gram, and it was imperative that we devise an innovative
safety mechanism above all that will save lives.
The
SSS
Salsco Safety Shield was designed to keep
arms, legs, and people from entering the infeed area
of the wood chipper.
Wrist and ankle bands are worn by
the operator, and when the antenna panels located in the
infeed hopper detect these bands (pictured to the right),
the feed rolls stop immediately
preventing the threat of bodily injury. After the operator can remove himself from danger,
he simply waves the wrist band over the reset bar to resume chipping.
Everyone knows these machines are designed to eat wood at the rate of 90’ per minute, but I would ask you to consider the
following...… 90’ per minute translates to 18” per second. If you are 6’ tall, 72” from the ground to the top of your head, and
you fell 6’ away from the infeed area, you have
FOUR SECONDS
(yes, four!)
to come up with your escape plan, find the
last chance strings, that are hopefully in good repair, reach for the reverse lever or hope someone sees you and has time
to help. If you were using a Salsco wood chipper with the SSS Salsco Safety Shield and had the wrist and ankle bands on,
the feed rolls would stop in less than a second
(yes, less than a second!)
. You did not have to do anything other than wear
these bands that just may have saved your life.
This makes the Salsco line of wood chippers the safest on the market today.
We are proud to make the SSS Salsco
Safety Shield optional on all Salsco engine driven wood chippers with 10” or larger infeed openings.
Salsco now has
a real world innovative system that allows safe operation of wood chippers, and we invite you to take a closer look.
SSS SALSCO SAFETY SHIELD
Know that your
Employees are Safe At All Times
with this highly recommended option.
SSS SALSCO SAFETY SHIELD OPTION
Salsco strives to provide the operator of our chippers with the most innovative safety features,
how-ever these are not meant to replace safe operating procedures.
Be Smart, Be Alert & Be Safe!
INFEED TRAY SAFETY
BAR:
Safety bar, forward/neutral/reverse, mounted on outer edge of infeed and accessible from top of ifeed tray and both sides of infeed tray.INFEED TRAY SAFETY
APRON:
Safety apron welded to bottom of infeed adds 18” to the length of the infeed tray.EMERGENCY STOPS:
Dual emergency stop switches mounted on either side of infeed tray.SAFETY LATCH
ASSEMBLY:
Electric plug to prevent starting if unplugged. Mechanical push pin to prevent opening the chipper impeller housing when the impeller is still rotating.Safety Infeed Tray Apron
Safety Latch Assembly
Emergency Stop Button
Infeed Safety Handle
STANDARD SPECIFICATIONS, FEATURES & OPTIONS - MODEL 813
All Specifications & Options are subject to change without notice.
ENGINE OPTIONS: (All
Engines are current as of
January 2020)
74HP Hatz Tier IV (Diesel); 74.3HP Kubota Tier IV (Diesel); 99HP John Deere Tier IV (Diesel); 80.2HP PSI (Gas); 125HP John Deere Tier IV (Diesel); 133.27HP PSI (Gas); 110HP Cat-erpillar Tier IV (Diesel)
ENGINE ENCLOSURE:
Full engine enclosure with all engine options.CLUTCH:
Single plate or double plate over-center clutch depending on horse power for diesel engine options. Autoclutch on PSI gas engines.AUX DRIVE/PUMP:
Standard on all engine options.INSTRUMENT PANEL:
Ammeter, temperature gauge, oil pressure gauge, ignition key switch, high engine temperature/low oil pressure shutdown, mounted curb side for operator protection. (Depending on engine package) (Speed sensing meter with hour meter and RPM meter when Speed Sensing option is installed)RADIATOR GUARD/SCREEN:
2” x 4” rectangular steel tubing. Removable heavy duty mesh radiator screen with 1” bends to increase the contact surface for more air to pass through.BATTERY/BATTERY BOX:
12 v., automotive type, 900 cold cranks. Lockable battery box.FUEL TANK:
24 gallon capacity steel fuel tank, 19-3/4” x 12” x 24”, lockable, drain plug, screw cap with dipstick, cushioned with springs & rubber mounts.INFEED OPENING:
Opening at feed roll, 13” high x 18” wide to accept 13” round wood. Straight sides to impeller, no restrictions. Infeed Rate, 0-135 F.P.M. 1/2” Uniform chip capability.Instrument Panel with Speed
Sens-ing Option
Engine Enclosure Radiator Guard & Screen
Infeed & Feed Roll
STANDARD SAFETY SPECIFICATIONS & FEATURES
All Specifications & Options are subject to change without notice.IMPELLER:
Machined & fully balanced, 2” thick x 40” diameter steel impeller with six (6) welded & gusseted exhaust paddles. Approximately 700 lbs. 3” diameter shaft held in place by self-centering, heavy duty, cast iron, greaseable, 4-bolt flanged bearings, bolted to 1-1/4” steel plate. Four (4) chip blade pockets, machined into impeller, (two of the four pockets are open to allow extra flow through of debris). Pockets hold a total of six (6) chip blades. Impeller feeds at a 35° angle. Impeller speed is approximately 1,350 R.P.M.IMPELLER
INSPEC-TION DOOR:
Allows the user to set the chip blades to bed knives adjustment without crawling into the machine.CHIP BLADES:
Six (6), 1/2” x 4” x 7-1/4”, double sided & sharpenable. A-8 grade steel. Rockwell hardness: Center 38-45 RC, Edge 54-56 RC. Blades are bolted & held in place by 1/2” x 3” grade 8 bolts.TWO BED KNIVES:
One (1) Horizontal - 1” thick x 6-1/4” x 15-3/8”, adjustable, reversible & sharpenable & one (1) Vertical - 1” thick x 7-5/8” x 12-15/16”, adjustable, reversible & sharpenable.HYDRAULIC
COMPO-NENTS:
Hoses: pump, 5/8” 9-tooth spline shaft, 66 Cu.In.Disp., (rotation depends on engine option) Char-Lynn, Series H, 14.1 Cu.In.Disp. SAE JIC hose ends & fittings. 3,000 P.S.I. working, 12,000 P.S.I. burst. Pump:Motor: One (1) Eaton Gear One (1) EatonHYDRAULIC TANK:
16-3/4 gallon capacity steel tank, drain plug, lockable, vented, screw cap with dipstick. Painted black, with finsfor heat disbursement. Cushioned with springs & rubber mounts.
TRAILER FRAME:
2” x 6” X 1/4” wall rectangular steel tubing. 3” x 6” x 1/4” wall main center beam. All welds continuous, both sides, top and bottom. All cross members fully gusseted.Impeller Impeller & Impeller Housing Feed Roll Housing
INFEED TRAY:
Opening at outer edge, 57” wide x 33” high, 1,881 sq.in. 1/4” steel plate sides.EXHAUST CHUTE:
360º rotation, fixed height exhaust chute with adjustable chip deflector. No tools necessary to adjust.DRIVE SYSTEM:
One (1) 5-V single back belt. Cast iron pulleys with taper lock centers.PUSHER SCREWS:
Adjusting shafts have pusher screws to hold adjustment.FEED ROLL:
One (1) Weighted, 18” long x 21” diameter, 1-1/4” welded knife blades. Hydraulically driven using #80 chain & sprocket drive assembly. 3/8” thick steel bearing & slide mounts. 1-1/2”, 4-bolt flange bearings that are self-center-ing & greaseable. Cutter/cleaner bars, extend full length, welded both ends & side. 600 lbs. approximately.FEED ROLLS
HOUSING:
Heavy duty 800 lb. weighted box type feed system. Four (4) 3/4” x 1” x 17” UHMW replaceable wear bars. 3/8” thick steel plate, continuous welds.IMPELLER
HOUSING:
Upper, lower, front & rear side housing is 3/8” steel plate. Housings are hinged & held in place by a 13” long x 3/4” diameter pin. Impeller inspection door. Upper housing is vented to provide more air flow for chip exhaust.STANDARD SPECIFICATIONS, FEATURES & OPTIONS - MODEL 813 (
continued)
All Specifications & Options are subject to change without notice.
Fenders/Lights
Trailer Frame Inspecition Door
FENDERS/LIGHTS:
3/8” thick steel diamond plate fenders with light enclosures and flag holders.
Four function; stop, direc-tional, license plate & safety LED lights, wired to meet ICC regulations. Wiring protected inside frame tube or conduit where possible.TONGUE:
3” x 6” x 1/4” wall, rectangular steel tubing with continuous welds. 1/2” steel plate bolt on tongue, with 1/4” gus-sets.HITCH/SAFETY
CHAINS:
Adjustable height hitch. Two (2), 3/8” x 5’ long, link safety chains with safety hooks & spring clasps. 3” pintle coupler welded to 3/4” steel plate and bolted to 3/4” plate on tongue.TONGUE JACK:
2,000 lb. adjustable height, top wind jack. 15” lift.AXLES/TIRES &
WHEELS OPTIONS:
7,000 lb. Torflex Axle, Idler, Standard Tires7,000 lb. Torflex Axle, Idler, Wide Tires7,000 lb. Torflex Axle, Electric Brakes, Standard Tires 7,000 lb. Torflex Axle, Electric Brakes, Wide Tires 7,000 lb. Torflex Axle, Surge Brakes, Standard Tires 7,000 lb. Torflex Axle, Surge BrakesWide Tires 8,000 lb. Torflex Axle, Electric Brakes, Wide Tires
TOOL BOX:
Lockable, 7” wide x 16-3/4” long x 6” high. Large enough for a grease gunGUARDS/DECALS:
All moving parts guarded. Full set of safety decals.PAINT:
Polyester powder coat paint provides excellent outdoor weatherability and offers protection against ultraviolet discoloration. All parts painted separately. Chipper: Orange Trailer: BlackDIMENSIONS:
Length: 17’ 6” Width: 7’ (with wide tires) Height: 8’ Weight: 7,500 lbs. (Approximately)OPTIONS
Hydraulic Feed Roll Lift - OPTION
Strobe Light Perm. Mount Cone Holder on Tongue Chock Holders (Set) Shut-Off Valve (Fuel Tank) Fold Down Infeed Tray Single Rear Jack Stand Mud Flaps (Set) Lock Set, Keyed Alike Dirt Drop Infeed Grate Bastard File, Blade Touch-Up 1/2” Chip Blades, Extra (EACH) LED Light Package
Flag Holders Live Hydraulics
Speed Sensing (dual feed roll option includes upgrade to speed sensing with auto reverse, when ordering speed sensing & dual feed rolls)
Hydraulic Feed Roll Lift Cylinders Dual Feed Rolls
SSS Salsco Safety Shield SSS Safety Band Package 12,000 lbs., Heavy Duty Jack Safety Light Package
360° Hand Crank Exhaust Chute Height Adjustable Exhaust Chute High Speed Winch
Wire Rope for Winch
Fluid Coupler (depends on eng. pkg.)
Spare Tire & Rim (Wide Tire) Spare Tire Mount (Wide Tire) Spare Tire Mount (Std. Tire) Spare Tire & Rim (Std. Tire) 3” Pintle Coupler (Extra) 2 5/16” Ball Coupler (Extra) 7-Prong Elec. Socket, Tow Vehicle 6-Prong Elec. Socket, Tow Vehicle 6-Prong Electric Plug
Brake Control Box, Tow Vehicle Hydraulic Pressure Check Kit Flashing Amber Warning Light Amber Strobe Light
Safety Light Package - OPTION Hand Crank Height Adjustable & 360° Rotational Exhaust Chute - OPTION
STANDARD SPECIFICATIONS, FEATURES & OPTIONS - MODEL 813 (
continued)
All Specifications & Options are subject to change without notice.
High Speed Winch - OPTION
Salsco offers a full line of Wood/Brush Chippers. PTO & Engine Driven up to 18” Capacity.
***Model 810M - 10” x 18”
(Pictured below)
***Model 810, 10” x 18”,
Single or Dual Feed
(Pictured below)***Model 813 or 813XT, 13” x 18”
( Model 813XT Pictured below)
***Model 818, 18” X 18” & 818XT, 18” x 24”
( Model 818XT Pictured below)***The SSS Salsco Safety Shield is Optional on These Models.
600 Series, Gravity Feed, 3-1/2”
Capacity
(Pictured below)400 Series, Gravity Feed, 4-1/2”
Capacity
(Pictured below)86 Series, Hyd. Feed, 6”
Capacity
(Pictured below)62 Series, Hyd. Feed, 6” Capacity
Salsco offers a full line of Wood/Brush Chippers. PTO & Engine Driven up to 18” Capacity.
Model 810PTO, 10” x 18”, for those
really big jobs!
(Pictured above)4” or 6” Hydraulic Feed, fully self contained.
Models 824 & 826.
(Pictured above)6” or 10”, Gravity Feed or Hydraulic Feed,
Models 627, 627XT, 6210 & 6210XT.
( Model 627XT Pictured left, Model 6210XT Pictured below.
Model 600PTO, Gravity Feed,
3-1/2” Capacity
(Pictured below)Model 624PTO, Gravity Feed,
4-1/2” Capacity
(Pictured below)Model 624XT PTO, Hyd. Feed,
4-1/2” Capacity
(Pictured below)MANUFACTURER OF OUTDOOR POWER EQUIPMENT
