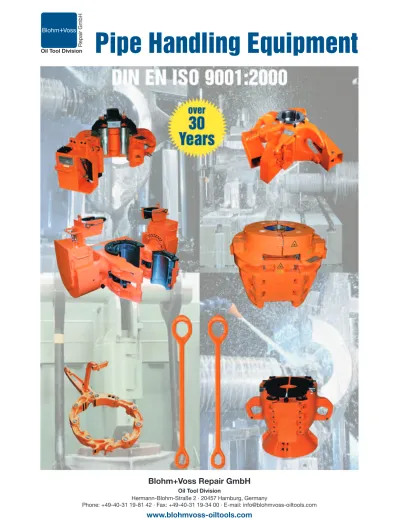

Pipe Handling Equipment

(1)

Pipe Handling Equipment

Blohm+Voss Repair GmbH

Oil Tool Division

Hermann-Blohm-Straße 2 · 20457 Hamburg, Germany

Phone: +49-40-31 19-81 42 · Fax: +49-40-31 19-34 00 · E-mail: [email protected]

www.blohmvoss-oiltools.com

(2)

HYDRAULIC ELEVATORS AND POWER SLIPS

- HYDRAULIC DOUBLE DOOR ELEVATORS

500 - 1,000 ton

with bushings for all pipe sizes 2.3/8“ thru 30“.

- POWER SLIPS 500 and 750 ton

for 37.1/2“, 49.1/2“ and

60.1/2“ rotary tables, hydraulic operated for all pipe sizes

2.3/8“ thru 22“.

ELEVATORS

- SPECIAL ELEVATORS WITH BUSHING – SYSTEM VES

Series 150 to 1,000 ton as center latch elevators for pipe

range 2.3/8“ thru 7“ air/hydraulic/manually operated.

- SPIDER/ELEVATORS BVE/S Series

175 to 1,000 ton for

pipe range 2.3/8“ thru 24.1/2“ air/manually operated.

- SLIP TYPE ELEVATORS BVC & BVT Series

75 to 200 ton

pipe range 1.315“ thru 7.5/8“ air/manually operated.

- 18-DEGREE CENTER LATCH ELEVATORS CL Series

100 to 1000 ton for pipe range 2.3/8“ thru 7“

air/hydraulic/manually operated.

- CENTER LATCH COLLAR TYPE ELEVATORS CLS Series

65 to 350 ton pipe range 1.660“ thru 9.5/8“ air/manually

operated. For 150 ton and above for DC sizes also as air

operated available.

- SIDE DOOR COLLAR TYPE ELEVATORS SDS Series

65 to 500 ton for pipe range 2.3/8“ to 36“ hydraulic/manually

operated.

- AUXILLIARY ELEVATORS SJ and SJS Series

2.5 to 6 ton

for pipe range 1.660“ thru 36“.

.

ELEVATOR LINKS

- WELDLESS LINKS

from 150 to 1,380 ton,

length from 36“ to 720“.

- SPECIAL LINKS

for top drive systems

MANUAL TONGS AND SLIPS

- MANUAL TONGS BV-25 to BV-100 Series

for torque

ratings from 25,000 to 100,000 ft/lbs for pipe range 2.3/8“ to

42“

- MANUAL SLIPS

for Drill Pipe, Casing, Conductor Pipe, Drill

Collar and Tubing for pipe range 2.3/8“ to 36“

- AIR OPERATED ROTARY SLIPS

for pipe range 2.3/8“ to 7“

DRILL PIPE SPINNER

- CHAIN TYPE SPINNER, air or hydraulic operated, for pipe

range 3.1/2“ to 7“ and 3.1/2“ to 9.1/2“

- ROLLER TYPE SPINNER, air or hydraulic operated, for

pipe range 3.1/2“ to 7“ and 3.1/2“ to 9.1/2“

OTHER EQUIPMENT/SERVICES

- SAFETY CLAMPS, CASING BUSHINGS, BOWLS,

LIFT ADAPTERS

etc.

- REPAIR/LOAD TESTING

of pipe handling tools

GENERAL INFORMATION

The Oil Tool Division of Blohm+Voss Repair GmbH is a member of the ThyssenKrupp group of companies.

The manufacturing and assembly facilities are located in the Freeport of Hamburg.

TESTING FACILITIES

ELEVATOR LOAD TEST UNITS up to 4,000 ton

TORQUE TESTING UNIT up to 250,000 ft/lbs

ELEVATOR LINKS PULL TEST UNIT

up to 1,020 ton/set, max. 16 m

STANDARDS AND APPROVALS

MANUFACTURING/QUALITY STANDARDS:

API-8A, API-8C, API-7K, ISO 9001:2000, API-Q1, ABS-QA

TYPE APPROVAL CLASSIFICATION SOCIETIES:

DNV, ABS, LR, GL

PRODUCT LINES

ool Division

Production and Service Head Office Hamburg/Germany Blohm + Voss Repair GmbH

Hermann-Blohm-Straße 2 20457 Hamburg, Germany Phone: +49-40-31 19-81 42 +49-40-31 19-81 27 Fax: +49-40-31 19-34 00 +49-40-31 19-81 94 E-mail: [email protected]

Stocking and Service Houston, Texas/USA

Gray EOT, Inc.

P.O. Box 79485 Houston, Texas 77279-9485 United States of America Phone: +1-713-95 20 266 Fax: +1-713-95 22 807 E-mail: [email protected]

Stocking and Service Singapore/Republic of Singapore

Premier Sea & Land Pte. Ltd.

1, Scotts Road #19-12 Shaw Centre Singapore 228208 Republic of Singapore Phone: +65-6734-71 77 Fax: +65-6734-91 15 E-mail: [email protected]

(3)

HYDRAULIC POWER SLIP SERIES

Type r.c. Size O.D. approx. weight in KG RT Size P/N

PS-500 500 tons 2.3/8“- 14“ 3265 KG 37.1/2“ 756 000 PS-750 750 tons 2.3/8“- 14“ 3870 KG 49.1/2“ 775 000 PS-750-2 750 tons 2.3/8“- 22“ 49.1/2“ 775 100

HYDRAULIC DOUBLE DOOR ELEVATOR

Type r.c. Size O.D. approx. weight in KG Link Size P/N

SD-500-1 500 tons 2.3/8“- 9.5/8“ 3265 KG 500 tons 645 000-Y SD-500-2 500 tons 9.5/8“- 20“ 4300 KG 500 tons 645 200-Y SD-500-3 500 tons 20“- 30“ 5180 KG 500 tons 645 600-Y SD-750 750 tons 2.3/8“- 9.5/8“ 3870 KG 750 tons 675 000-Y SD-1000 csg 1000 tons 2.3/8“- 9.5/8“ 3870 KG 750 tons to 1000 tons 675 000-Y

HYDRAULIC ELEVATOR / SLIP SELECTION CHART

RSM-MEDIUM ROTARY SLIP

API Pipe Size O.D. Slip Body Size Slip c/w inserts

2.3/8“ 3.1/2“ 82110 2.7/8“ 3.1/2“ 82120 3.1/2“ 3.1/2“ 82130

All sizes of Inserts at stock.

RSX-EXTRA LONG ROTARY SLIP

API Pipe Size O.D. Slip Body Size Slip c/w inserts

3.1/2“ 4.1/2“ 83210 4“ 4.1/2“ 83220 4.1/2“ 4.1/2“ 83230 4“ 5“ 83310 4.1/2“ 5“ 83320 5“ 5“ 83330 4.1/2“ 5.1/2“ 83410 5“ 5.1/2“ 83420 5.1/2“ 5.1/2“ 83430 6“ 7“ 83510 6.5/8“ 7“ 83520 7“ 7“ 83530

All sizes of Inserts at stock.

DCS MULTISEGMENT DRILL COLLAR SLIP

API Pipe Size O.D. Slip Body Size Slip c/w inserts

3“-4“ DCS 84110 4“-4.7/8“ DCS 84120

All sizes of circular buttons at stock.

DCM MULTISEGMENT DRILL COLLAR SLIP

API Pipe Size O.D. Slip Body Size Slip c/w inserts

4.1/2“-6“ DCM 85110 5.1/2“-7“ DCM 85120

DCL MULTISEGMENT DRILL COLLAR SLIP

API Pipe Size O.D. Slip Body Size Slip c/w inserts

6.3/4“-8.1/4“ DCL 86120 8“-9.1/2“ DCL 86130 8.1/2“-10“ DCL 86140 9.1/4“-11.1/2“ DCL 86150 11“-12.3/4“ DCL 86160 12“-14“ DCL 86170

CSL EXTRA LONG CASING SLIP

API Pipe Size O.D. Slip Body Size Slip c/w inserts

6.5/8“ CSL 87110 7“ CSL 87120 7.5/8“ CSL 87130 8.5/8“ CSL 87140 9.5/8“ CSL 87150 10.3/4“ CSL 87160 11.3/4“ CSL 87170 13.3/8“ CSL 87180 16“ CSL 87190 18.5/8“ CSL 87200 20“ CSL 87210 24“ CSL 87220 26“ CSL 87230 30“ CSL 87240

Larger sizes upon request. All sizes of circular buttons at stock.

CSC CONDUCTOR PIPE SLIP

API Pipe Size O.D. Slip Body Size Slip c/w inserts

24“ CSC 88110 26“ CSC 88120 30“ CSC 88130

SLIP SELECTION CHART

AIR OPERATED POWER SLIP SERIES

Type r.c. Size O.D. approx. weight in KG Rotary table Size P/N Remark

PSA-150 150 tons 2.3/8“- 7“ 166 KG 20.1/2“ / 37.1/2“ / 49.1/2“ 88 210 suitable for all rotary hand slips

SAFETY CLAMP SELECTION CHART

SAFETY CLAMPS

Collar Size Part-No. No. of Links

1.1/8“-2“ 88003 4 2.1/8“-3.1/4“ 88004 5 3.1/4“-4.1/2“ 88005 6 4.1/2“-5.5/8“ 99501 8 5.1/2“-6.5/8“ 99502 9 6.1/2“-7.5/8“ 99503 10 7.1/2“-8.5/8“ 99504 11 8.1/2“-9.5/8“ 99505 12 9.1/2“-10.5/8“ 99506 13 10.1/2“- 11.5/8“ 99507 14 11.1/2“-12.5/8“ 99508 15 12.1/2“-13.5/8“ 99509 16

SAFETY CLAMPS

Collar Size Part-No. No. of Links

13.1/2“-14.5/8“ 99510 17 14.1/2“-15.5/8“ 99511 18 15.1/2“-17“ 99512 18 16.1/2“-18“ 99513 19 17.1/2“-19“ 99514 20 18.1/2“-20“ 99515 21 19.1/2“-21.1/2“ 99516 22 21.1/2“-22.5/8“ 99517 23 23“-24“ 99518 24 24.1/2“-26“ 99519 25 29.1/2“-30.1/2“ 99525 26 35.1/2“-36.1/2“ 99526 27

(4)

ELEVATOR SELECTION CHART

18° CENTER LATCH ELEVATOR CL SERIES (MANUAL / HYDRAULIC OPERATED)

Size O.D. r.c. Type P/N approx. weight in KG w/o BoreCode Link size

2.3/8“ - 3.1/2” 150 tons CL-150/1 611 500-Y-Bore Code 136 KG 150-350 tons 4“ - 5.1/2“ 150 tons CL-150/2 611 520-Y-Bore Code 148 KG 150-350 tons 3.1/2“- 5.1/2“ 250 tons CL-250 612 540-Y-Bore Code 260 KG 250-500 tons 3.1/2“- 6.5/8“ 350 tons CL-350 613 540-Y-Bore Code 320 KG 250-500 tons 4“- 6.5/8“ 500 tons CL-500 615 000-Y-Bore Code 640 KG 500 tons 2.3/8“-8.3/4“ 750 tons CL-750 617 500-Y-Bore Code 1935 KG 750 tons 2.3/8“-8.3/4“ 1000 tons CL-1000 610 000-Y-Bore Code 2100 KG 1000 tons

18° CENTER LATCH ELEVATOR ACL SERIES (AIR OPERATED)

Size O.D. r.c. Type P/N approx. weight in KG w/o BoreCode Link size

3.1/2“- 5.1/2“ 250 tons ACL-250 612 700 - Bore Code 496 KG 250-500 tons 3.1/2“- 6.5/8“ 350 tons ACL-350 613 700 - Bore Code 499 KG 250-500 tons 4“- 6.5/8“ 500 tons ACL-500 615 700 - Bore Code 975 KG 500 tons

For more information see detailed leaflet.

CENTER LATCH ELEVATORS VES-CL SERIES (MANUAL / HYDRAULIC OPERATED) BUSHING SYSTEM

Size O.D. r.c. Type P/N approx. weight in KG w/o BoreCode Link size

2.3/8“-5.1/4“ 150 tons VES-CL-150 611 900-Y 132 KG 150-350 tons 2.3/8“-5.1/4“ 250 tons VES-CL-250 612 900-Y 256 KG 250-500 tons 2.3/8“-6.5/8“ 350 tons VES-CL-350 613 900-Y 311 KG 250-500 tons 2.7/8“-7“ 500 tons VES-CL-500 615 900-Y 636 KG 500-750 tons 3.1/2“-7“ 750 tons VES-CL-750 617 500-Y 1835 KG 750 tons 2.3/8“-8.3/4“ 1000 tons VES-CL-1000 610 000-Y 2100 KG 1000 tons

CENTER LATCH ELEVATORS VES-ACL SERIES (AIR OPERATED) BUSHING SYSTEM

Size O.D. r.c. Type P/N approx. weight in KG w/o BoreCode Link size

2.7/8“-5.1/4“ 250 tons VES-ACL 250 612 950-Y 491 KG 250-500 tons 2.7/8“-7“ 350 tons VES-ACL 350 613 950-Y 494 KG 250-500 tons 2.7/8“-7“ 500 tons VES-ACL 500 615 950-Y 970 KG 500-750 tons

COLLAR TYPE CENTER LATCH ELEVATOR CLS SERIES (MANUAL OPERATED)

Size O.D. r.c. Type P/N approx. weight in KG w/o BoreCode Link size

1.660“-2.7/8“ 65 tons CLS-65/1 620 600-Y-Bore Code 65 KG 150-350 tons 3.1/2“- 5.3/4“ 65 tons CLS-65/2 620 620-Y-Bore Code 68 KG 150-350 tons 2.3/8“- 4.1/8“ 100 tons CLS-100/1 621 000-Y-Bore Code 90 KG 150-350 tons 4“- 6.1/4“ 100 tons CLS-100/2 621 020-Y-Bore Code 93 KG 150-350 tons 6.1/4“- 8.5/8“ 100 tons CLS-100/3 621 040-Y-Bore Code 97 KG 150-350 tons 2.3/8“- 4.1/8“ 150 tons CLS-150/1 621 500-Y-Bore Code 115 KG 150-350 tons 4“- 6.1/4“ 150 tons CLS-150/2 621 570-Y-Bore Code 150 KG 150-350 tons 6.1/4“- 8“ 150 tons CLS-150/3 621 540-Y-Bore Code 166 KG 150-350 tons 8“- 9.5/8“ 150 tons CLS-150/4 621 560-Y-Bore Code 196 KG 150-350 tons 4“- 7“ 250 tons CLS-250/2 622 500-Y-Bore Code 213 KG 250-500 tons 4“- 7“ 350 tons CLS-350 623 500-Y-Bore Code 290 KG 350-500 tons

COLLAR TYPE CENTER LATCH ELEVATOR ACLS SERIES (AIR OPERATED)

Size O.D. r.c. Type P/N approx. weight in KG w/o BoreCode Link size

4 - 6.1/4“ 150 tons ACLS-150/2 621 456-Y-Bore Code 310 KG 150-350 tons 6.1/4“- 8“ 150 tons ACLS-150/3 621 446-Y-Bore Code 330 KG 150-350 tons 8“- 9.5/8“ 150 tons ACLS-150/4 621 400-Y-Bore Code 350 KG 150-350 tons

90° SIDE DOOR ELEVATORS

Size O.D. r.c. Type P/N approx. weight in KG w/o BoreCode Link size

1.660“- 2.7/8“ 65 tons SDS-65/1 640 600-Y-Bore Code 34 KG 150-250 tons 2.3/8“- 4.1/8“ 100 tons SDS-100/1 641 020-Y-Bore Code 60 KG 150-350 tons 4“- 6.3/4“ 100 tons SDS-100/2 641 000-Y-Bore Code 115 KG 150-350 tons 6.3/4“- 9.5/8“ 100 tons SDS-100/3 641 040-Y-Bore Code 125 KG 150-350 tons 4“- 6.3/4“ 150 tons SDS-150/1 641 500-Y-Bore Code 125 KG 150-500 tons 6.3/4“- 9.5/8“ 150 tons SDS-150/2 641 520-Y-Bore Code 165 KG 150-500 tons 10“-12.3/4“ 150 tons SDS-150/3 641 540-Y-Bore Code 193 KG 150-500 tons 13“- 16“ 150 tons SDS-150/4 641 560-Y-Bore Code 279 KG 150-500 tons 16.3/4“- 21.1/2“ 150 tons SDS-150/5 641 580-Y-Bore Code 370 KG 150-500 tons 24“- 30“ 150 tons SDS-150/7 641 620-Y-Bore Code 400 KG 150-500 tons 6.1/2“- 9.5/8“ 250 tons SDS-250/0 642 600-Y-Bore Code 241 KG 250-500 tons 9.5/8“- 13.3/8“ 250 tons SDS-250/1 642 500-Y-Bore Code 283 KG 250-500 tons 13.17/32“- 18.25/32“ 250 tons SDS-250/2 642 520-Y-Bore Code 435 KG 250-500 tons 18.5/8“- 20.1/2“ 250 tons SDS-250/3 642 540-Y-Bore Code 420 KG 250-500 tons 24“ - 30“ 250 tons SDS-250/5 642 580-Y-Bore Code 750 KG 250-500 tons 30“ - 36“ 250 tons SDS-250/6 642 620-Y-Bore Code 780 KG 250-500 tons 6.5/8“- 9.5/8“ 350 tons SDS-350/1 643 500-Y-Bore Code 427 KG 350-500 tons 10.3/4“- 16.3/4“ 350 tons SDS-350/2 643 520-Y-Bore Code 688 KG 350-500 tons 18.5/8“- 21.1/2“ 350 tons SDS-350/4 643 560-Y-Bore Code 633 KG 350-500 tons 24“- 30“ 350 tons SDS-350/5 643 580-Y-Bore Code 1079 KG 350-500 tons 10.3/4“- 16“ 500 tons SDS-500 645 500-Y-Bore Code 850 KG 500 tons

(5)

ELEVATOR SELECTION CHART

SLIP TYPE ELEVATOR BVT-SERIES (MANUAL OPERATED)

Size O.D. r.c. Type P/N approx. weight in KG Link size

1,315“-3.1/2“ 75 tons BVT-75 670 700 161 KG 250-350 tons 1,315“-3.1/2“ 100 tons BVT-100 671 000 198 KG 250-350 tons

SLIP TYPE ELEVATOR BVC-SERIES (MANUAL OPERATED)

Size O.D. r.c. Type P/N approx. weight in KG Link size

1,315“- 7“ 75 tons BVC-75 670 720 161 KG 250-350 tons 1,315“- 7“ 100 tons BVC-100 671 100 201 KG 250-350 tons 1,315“- 7“ 125 tons BVC-125 671 200 213 KG 250-500 tons 1,315“- 7“ 150 tons BVC-150 671 500 328 KG 250-500 tons 3 1/2“ - 7 5/8“ 200 tons BVC-200 672 000 351 KG 250-500 tons

SLIP TYPE ELEVATOR ABVC-SERIES (AIR OPERATED)

Size O.D. r.c. Type P/N

1,315“-7“ 150 tons ABVC-150 671 600-Y

AUXILIARY ELEVATORS SJ SERIES

Size O.D. r.c. Type P/N

2.3/8“- 5.1/2“ 2,5 tons SJ-2,5 650 200 3.1/2“- 7.5/8“ 3 tons SJ-3/1 650 300

Swivel Suspension 1,7m long P/N 650 312

AUXILIARY ELEVATORS SJS SERIES

Size O.D. r.c. Type P/N approx. weight in KG 1,7m Swivel Susp. 3m Swivel Susp.

1,6601“- 4“ 4 tons SJS-4/1 660 400 13 KG 660 412 660 415 4“- 6.5/8“ 4 tons SJS-4/2 660 420 20 KG 660 412 660 415 6.3/4“- 9.5/8“ 5 tons SJS-5/3 660 500 36 KG 660 512 660 513 9.5/8“- 12.3/4“ 5 tons SJS-5/4 660 520 45 KG 660 512 660 513 13“- 16“ 5 tons SJS-5/5 660 540 56 KG 660 512 660 513 16.3/4“- 20“ 6 tons SJS-6/6 660 600 63 KG 660 612 660 614 24“- 30“ 6 tons SJS-6/8 660 640 79 KG 660 612 660 614 30“ - 36“ 6 tons SJS-6/9 660 660 84 KG 660 612 660 614

PIPE RANGE SJ 2/5-SLIP ASSY.

Size O.D 5° 18° 2.3/8“ 650 209 650 219 2.7/8“ 650 210 650 220 3.1/2“ 650 211 650 221 4“ 650 212 650 222 4.1/2“ 650 213 650 223 5“ 650 214 5.1/2“ 650 215

PIPE RANGE SJ 3/1-SLIP ASSY.

Size O.D 5° 18° 3.1/2“ 650 411 4“ 650 412 4.1/2“ 650 413 5“ 650 316 650 414 5.1/2“ 650 317 650 415 6.5/8“ 650 313 650 416 7“ 650 314 7.5/8“ 650 315

ELEVATOR/SPIDER SELECTION CHART

BVE / S-250, 250 ton ELEVATOR / SPIDER 2 3/8" - 7 5/8"

API Slip Body Slip Assy. Guide Plates Guide Plates

Pipe Size: Size c/w Inserts Elevator Spider

4 1/2" 5 1/2" 735 560 752 610 752 710 5" 5 1/2" 735 550 752 610 752 715 5 1/2" 5 1/2" 735 540 752 610 752 715 6 5/8" 7 5/8" 735 530 752 620 752 720 7" 7 5/8" 735 500 752 620 752 720 7 5/8" 7 5/8" 735 490 752 630 752 725 8 5/8" 9 5/8" 735 460 752 640 752 730 9 5/8" 9 5/8" 735 450 752 650 752 735 10 3/4" 10 3/4" 735 430 752 660 752 740 11 3/4" 12 1/2" 735 420 752 670 752 745 12 1/2" 12 1/2" 735 425 12 3/4" 13 3/8" 735 410 752 682 752 750 13 3/8" 13 3/8" 735 400 752 682 752 750 13 3/8" 14" 735 380 14" 14" 735 390 752 682 752 750 Description Part-No.

Body Assembly complete less Slip &

Guide Plate Assembly (Air) 735 001-Y Body Assembly complete less Slip &

Guide Plate Assembly (Manual) 735 000-Y Casing Guide Bell Assy. (Elevator) 752 600 Upper Guard Assy. (Spider) 735 700 Spider Adapter Plate (for 37 1/2"+49 1/2“ RT) 752 765 Air Hose Assy. 52' 752 822 Air Hose Assy. 26' 752 823

BVE / S-350, 350 ton ELEVATOR / SPIDER 4 1/2" - 14"

API Slip Body Slip Assy. Guide Plates Guide Plates

2 3/8" 3 1/2" 725 325 725 902 725901 2 7/8" 3 1/2" 725 330 725 902 725 901 3 1/2" 3 1/2" 725 355 725 902 725 901 3 1/2" 4 1/2" 725 340 725 904 725 903 4" 4 1/2" 725 350 725 904 725 903 4 1/2" 4 1/2" 725 360 725 904 725 903 4 1/2" 5 1/2" 725 375 725 906 725 905 5" 5 1/2" 725 385 725 906 725 905 5 1/2" 5 1/2" 725 365 725 906 725 905 6 5/8" 7 5/8" 725 390 725 908 725 907 7" 7 5/8" 725 380 725 908 725 907 7 5/8" 7 5/8" 725 370 725 908 725 907 Description Part-No.

Guide Plate Assembly (Manual) 725 000-Y Casing Guide Bell Assy. (Elevator) 725 270 Upper Guard Assy. (Spider) 725 150 Spider Adapter Plate (for 27 1/2" RT) 725 500 Air Hose Assy. 52' 752 822 Air Hose Assy. 26' 752 823

(6)

ELEVATOR/SPIDER SELECTION CHART

BV-25 MANUAL TONG, 25,000 FT/LBS TORQUE RATING

Part-No. Description Range Weight

70300 BV-25 Manual Tong complete, less lug jaws 153 KG 70370 lug jaw assembly 2.3/8“- 3.3/4“ 23 KG 70372 lug jaw assembly 2.7/8“- 4.1/2“ 25 KG 70374 lug jaw assembly 4“- 5.3/4“ 31 KG 70376 lug jaw assembly 5.1/2“- 7“ 37 KG 70380 hinge and lug jaw assembly 7“- 8.5/8“ 50 KG 70390 hinge and lug jaw assembly 9.5/8“-10.3/4“ 64 KG

BV-35 MANUAL TONG, 35,000 FT/LBS TORQUE RATING

Part-No. Description Range Weight

70400 BV-35 Manual Tong complete w/long lever, less lug jaws (7.5/8“-10.3/4“) 250 KG 70401 BV-35 Manual Tong complete w/long lever, less lug jaws (2.3/8“-7“) 250 KG 70402 BV-35 Manual Tong complete w/short lever, less lug jaws (7.5/8“-10.3/4“) 232 KG 70403 BV-35 Manual Tong complete w/short lever, less lug jaws (2.3/8“-7“) 232 KG 70470 latch lug jaw assembly 2.3/8“-3-668“ 33 KG 70472 latch lug jaw assembly 2.7/8“-4.1/4“ 34 KG 70474 latch lug jaw assembly 3.1/2“-5.1/4“ 37 KG 70476 latch lug jaw assembly 5.1/4“-7“ 49 KG 70480 hinge + latch lug jaw assembly 7“-8.5/8“ 61 KG 70485 hinge + latch lug jaw assembly 9.5/8“10.3/4“ 76 KG 70478 latch lug jaw assembly (optional) 4.1/2“-6.1/2“ 39 KG 70420 short jaw assembly (7.5/8“-10.3/4“) 31 KG 70425 short jaw assembly (2.3/8“-7“) 31 KG

MANUAL TONG SELECTION CHART

API Slip Body Slip Assy. Guide Plates Guide Plates

4 1/2" 5 1/2" 752 510 752 610 752 710 5" 5 1/2" 752 500 752 610 752 715 5 1/2" 5 1/2" 752 490 752 610 752 715 6 5/8" 7 5/8" 752 480 752 620 752 720 7" 7 5/8" 752 470 752 620 752 720 7 5/8" 7 5/8" 752 460 752 630 752 725 8 5/8" 9 5/8" 752 450 752 640 752 730 9 5/8" 9 5/8" 752 440 752 650 752 735 10 3/4" 11 3/4" 752 430 752 660 752 740 11 3/4" 11 3/4" 752 420 752 670 752 745 12 3/4" 13 3/8" 752 410 752 682 752 750 13 3/8" 13 3/8" 752 400 752 682 752 750 14" 13 3/8" 752 380 14" 14" 752 390 752 682 752 750 Description Part-No.

Guide Plate Assembly (Manual) 752 000-Y Casing Guide Bell Assy. (Elevator) 752 600 Upper Guard Assy. (Spider) 735 700 Spider Adapter Plate (for 37 1/2"+49 1/2“ RT) 752 765 Air Hose Assy. 52' 752 822 Air Hose Assy. 26' 752 823

BVE / S-500, 500 ton ELEVATOR / SPIDER 4 1/2" - 14"

API Slip Body Slip Assy. Guide Plates Assy Guide Plates Assy

4 1/2" 5 1/2" 710 100-221 752 710 5" 5 1/2" 710 100-223 752 715 5 1/2" 5 1/2" 710 100-224 752 715 6 5/8" 7 5/8" 710 100-228 752 720 7" 7 5/8" 710 100-229 752 720 7 5/8" 7 5/8" 710 100-231 710 041 752 725 8 5/8" 9 5/8" 710 100-234 752 730 9 5/8" 9 5/8" 710 100-236 710 040 752 735 10 3/4" 11 3/4" 710 100-238 752 740 11 3/4" 11 3/4" 710 100-239 752 745 12 3/4" 13 3/8" 710 100-241 752 750 13 3/8" 14" 710 100-243 752 750 14" 14" 710 100-255 710 030 Description Part-No.

Guide Plate Assembly (Air) 710 000-Y-A Body Assembly complete less Slip &

Guide Plate Assembly (hydraulic) 710 000-Y-H Casing Guide Bell Assy. (Elevator) 752 600 Spider Adapter Plate (for 37 1/2" RT) 752 765 Air Hose Assy. 52' 752 822 Air Hose Assy. 26' 752 823

BVE / S-750, 750 ton ELEVATOR / SPIDER 4 1/2“- 14“

API Slip Body Slip Assy. Guide Plates Guide Plates

12 3/4" 14" 753 400 753 610 753 711 13 3/8" 14" 753 410 753 610 753 716 13 5/8" 14" 753 420 753 620 753 716 14" 14" 753 430 753 630 753 721 16" 16" 753 440 753 725 753 726 18 5/8" 20" 753 450 753 650 753 731 20" 20" 753 460 753 735 753 736 22" 22" 753 470 753 740 753 741 24" 24" 753 480 753 745 753 746 24 1/2" 24 1/2" 753 490 753 690 753 751 Description Part-No.

Guide Plate Assembly (Manual) 753 000-Y Casing Guide Bell Assy. (Elevator) 753 600 Upper Guard Assy. (Spider) 753 700 Spider Adapter Plate (for 37 1/2" RT) 753 765 Air Hose Assy. 52' 752 822 Air Hose Assy. 26' 752 823

(7)

MANUAL TONG SELECTION CHART

BV-37 MANUAL TONG, 35,000 FT/LBS TORQUE RATING

Part-No. Description Range approx. Weight

70200 BV-37 Manual Tong complete w/long lever, less lug jaws 280 KG 70280 lug jaw assembly 2.3/8“-3.3/4“ 31 KG 70281 lug jaw assembly 3.1/2“-4.5/8“ 33 KG 70282 lug jaw assembly 4.1/2“-5.3/4“ 35 KG 70283 lug jaw assembly 5.1/4“-7.1/4“ 35 KG 70284 lug jaw assembly 6.7/8“-8.5/8“ 49 KG 70285 lug jaw assembly 9“-10.3/4“ 60 KG

BV-55 MANUAL TONG, 55,000 FT/LBS TORQUE RATING

Part-No. Description Range approx. Weight

70600 BV-55 Manual Tong complete w. long lever, less lug jaws 395 KG 70601 BV-55 MAnual Tong complete w. short lever, less lug jaws 386 KG 70602 BV-55 Manual Tong c/w long lever & long hanger assy. 400 KG 70603 BV-55 Manual Tong c/w short lever & long hanger assy. 391 KG 70680 lug jaw assembly 3.1/2“-5“ 30 KG 70681 lug jaw assembly 5“-6.3/4“ 37 KG 70682 lug jaw assembly 6.5/8“-9“ 53 KG 70683 lug jaw assembly 9“-10.3/4“ 60 KG 70684 lug jaw assembly 11.3/4“ 61 KG 70686 lug jaw assembly 12.3/4“-13“ 70 KG 70688 lug jaw assembly 13.3/8“ 70 KG 70690 lug jaw assembly (optional) 4“-5.1/2“ 32 KG 70693 lug jaw assembly (optional) 4.1/4“-6.3/4“ 42 KG

BV-55C MANUAL TONG, 25,000 FT/LBS TORQUE RATING

Part-No. Description Range approx. Weight

71600 Manual Tong assembly w/long lever less casing head assembly 189 KG 71601 Manual Tong assembly w/short lever less casing head assembly 180 KG 71605 Casing head assembly 13.3/8“-14.1/2“ 373 KG 71606 Casing head assembly 13.3/8“-16“+17.1/2“-19“ 426 KG 71607 Casing head assembly 13.3/8“-19“+20“-21.1/2“ 470 KG 71608 Casing head assembly 13.3/8“-25.1/2“ 523 KG 71609 Casing head assembly 25.1/2“-27“

71610 Casing head assembly 27“-28.1/2“ 71611 Casing head assembly 28.1/2“-30“ 71612 Casing head assembly 30“-31.1/2“ 71613 Casing head assembly 31.1/2“-33“ 71614 Casing head assembly 33“-34.1/2“ 71615 Casing head assembly 34.1/2“-36“

BV-57 MANUAL TONG, 55, 000 FT/LBS TORQUE RATING

Part-No. Description Range approx. Weight

70000 BV-57 Manual Tong complete w/long lever, less lug jaws 164 KG 70080 lug jaw assembly 2.7/8“-3.3/4“ 17 KG 70081 lug jaw assembly 3.1/2“-4.1/2“ 20 KG 70082 lug jaw assembly 4“-5.1/4“ 21 KG 70083 lug jaw assembly 5“-7.1/4“ 24 KG 70084 lug jaw assembly 6“-6.1/2“ 23 KG 70085 lug jaw assembly 6.7/8“-8.5/8“ 36 KG 70086 lug jaw assembly 9“-10.3/4“ 27 KG 70087 lug jaw assembly 10.3/4“-11.3/4“ 32 KG 70088 lug jaw assembly 13.3/8“ 42 KG

BV-65 MANUAL TONG, 65,000 FT/LBS TORQUE RATING

Part-No. Description Range approx. Weight

70700 BV-65 Manual Tong complete, less lug jaws 220 KG 70780 lug jaw assembly 3.1/2“-8.1/4“ 38 KG 70782 lug jaw assembly 8“-11.1/4“ 47 KG 70783 lug jaw assembly 11.3/4“-14.3/8“ 32 KG 70784 lug jaw assembly 16“-17“ 42 KG 70785 hinge jaw assembly 11.3/4“-17“ 45 KG 70786 hinge + lug jaw assembly 18.5/8“-21.1/2“ 120 KG

BV-80 MANUAL TONG, 80,000 FT/LBS TORQUE RATING

Part-No. Description Range approx. Weight

70100 BV-80 Manual Tong complete w/long lever, less lug jaw 235 KG 70180 lug jaw assembly 3.1/2“-4.1/2“ 24 KG 70181 lug jaw assembly 4“-5.1/2“ 22 KG 70182 lug jaw assembly 5“-6“ 28 KG 70183 lug jaw assembly 6“-7“ 34 KG 70184 lug jaw assembly 7“-9“ 32 KG 70185 lug jaw assembly 9“-10.3/4“ 42 KG 70186 lug jaw assembly 10.3/4“-11.3/4“ 43 KG 70187 lug jaw assembly 13.3/8“ 47 KG

(8)

MANUAL TONG SELECTION CHART

Master Bushings • Casing Bushings • Bowls

Lift Adapter • Tubing Spider • Hinged Casing Spider • Drill Pipe Spinner

Custom made products upon request

ADDITIONAL EQUIPMENT SELECTION CHART

ELEVATOR LINK SELECTION CHART

150 TON ELEVATOR LINKS

Part No. Size r.c. approx. Weight

134 048-Y 1.3/4“ x 48“ 150 tons 260 KG 134 060-Y 1.3/4“ x 60“ 150 tons 305 KG 134 072-Y 1.3/4“ x 72“ 150 tons 350 KG 134 084-Y 1.3/4“ x 84“ 150 tons 395 KG 134 096-Y 1.3/4“ x 96“ 150 tons 440 KG

250 TON ELEVATOR LINKS

Part No. Size r.c. approx. Weight

214 060-Y 2.1/4“ x 60“ 250 tons 540 KG 214 072-Y 2.1/4“ x 72“ 250 tons 600 KG 214 084-Y 2.1/4“ x 84“ 250 tons 660 KG 214 096-Y 2.1/4“ x 96“ 250 tons 720 KG 214 108-Y 2.1/4“ x 108“ 250 tons 780 KG 214 240-Y 2.1/4“ x 240“(20ft.) 250 tons 214 360-Y 2.1/4“ x 360“(30ft.) 250 tons 214 480-Y 2.1/4“ x 480“(40ft.) 250 tons

350 TON ELEVATOR LINKS

Part No. Size r.c. approx. Weight

234 060-Y 2.3/4“ x 60“ 350 tons 630 KG 234 072-Y 2.3/4“ x 72“ 350 tons 720 KG 234 084-Y 2.3/4“ x 84“ 350 tons 810 KG 234 096-Y 2.3/4“ x 96“ 350 tons 900 KG 234 108-Y 2.3/4“ x108“ 350 tons 990 KG 234 120-Y 2.3/4“ x120“ 350 tons 1080 KG 234 132-Y 2.3/4“ x132“ 350 tons 1170 KG 234 150-Y 2.3/4“ x150“ 350 tons 1300 KG 234 168-Y 2.3/4“ x168“ 350 tons 1440 KG 234 180-Y 2.3/4“ x 180“(15ft.) 350 tons 234 240-Y 2.3/4“ x 240“(20ft.) 350 tons 234 300-Y 2.3/4“ x 300“(25ft.) 350 tons 234 360-Y 2.3/4“ x 360“(30ft.) 350 tons 234 480-Y 2.3/4“ x 480“(40ft.) 350 tons 234 540-Y 2.3/4“ x 540“(45ft.) 350 tons 234 600-Y 2.3/4“ x 600“(50ft.) 350 tons

500 TON ELEVATOR LINKS

Part No. Size r.c. approx. Weight

312 108-Y 3.1/2“ x 108“ 500 tons 1460 KG 312 120-Y 3.1/2“ x 120“ 500 tons 1570 KG 312 132-Y 3.1/2“ x 132“ 500 tons 1680 KG 312 144-Y 3.1/2“ x 144“ 500 tons 1790 KG 312 168-Y 3.1/2“ x 168“ 500 tons 2010 KG 312 180-Y 3.1/2“ x 180“(15ft.) 500 tons 312 240-Y 3.1/2“ x 240“(20ft.) 500 tons 312 360-Y 3.1/2“ x 360“(30ft.) 500 tons 312 480-Y 3.1/2“ x 480“(40ft.) 500 tons 312 540-Y 3.1/2“ x 540“(45ft.) 500 tons 312 600-Y 3.1/2“ x 600“(50ft.) 500 tons 312 720-Y 3.1/2“ x 720“(60ft.) 500 tons

750 TON ELEVATOR LINKS

Part No. Size r.c. approx. Weight

434 108-Y 4.3/4“ x 108“ 750 tons 434 132-Y 4.3/4“ x 132“ 750 tons

434 144-Y 4.3/4“ x 144“ 750 tons 3000 KG 434 264-Y 4.3/4“ x 264“ 750 tons

1000 TON ELEVATOR LINKS

Part No. Size r.c. approx. Weight

512 180-Y 5.1/2“ x 180“ 1000 tons 512 240-Y 5.1/2“ x 240“ 1000 tons 512 264-Y 5.1/2“ x 264“ 1000 tons

All other length upon request!

BV-100 MANUAL TONG, 100,000 FT/LBS TORQUE RATING

Part-No. Description Range approx. Weight

70800 BV-100 Manual Tong complete, less lug jaws 257 KG 70880 lug jaw assembly 4“-8.1/2“ 61 KG 70882 lug jaw assembly 8.1/2“-12“ 44 KG 70883 lug jaw assembly 12“-15“ 69 KG 70884 lug jaw assembly 15.3/4“ 78 KG 70885 lug jaw assembly 16“-17“ 71 KG 70886 hinge jaw assembly 8.1/2“-17“ 45 KG

BV-100C EXTENDED MANUAL TONG, 100,000 FT/LBS TORQUE RATING

Part-No. Description Range

71805 Casing head assembly 18.4 - 19.4 71806 Casing head assembly 19.75-20.9 71807 Casing head assembly 20.7 - 21.6 71808 Casing head assembly 20.7 - 21.6 71809 Casing head assembly 22.2 - 23.1 71810 Casing head assembly 23.4 - 24.4 71811 Casing head assembly 24.6 - 25.3 71812 Casing head assembly 25.3 - 26.3 71813 Casing head assembly 26.4 - 27.4 71814 Casing head assembly 27.4 - 28.4 71815 Casing head assembly 28.6 - 29.8 71816 Casing head assembly 29.5 - 30.6 71817 Casing head assembly 30.6 - 31.5 71818 Casing head assembly 31.4 - 32.6 71819 Casing head assembly 31.6 - 33.7 71820 Casing head assembly 33.3 - 34.4 71821 Casing head assembly 34.2 - 35.5 71822 Casing head assembly 35.5 - 36.7 71823 Casing head assembly 36.5 - 37.7
