Oracle DBA

(1)

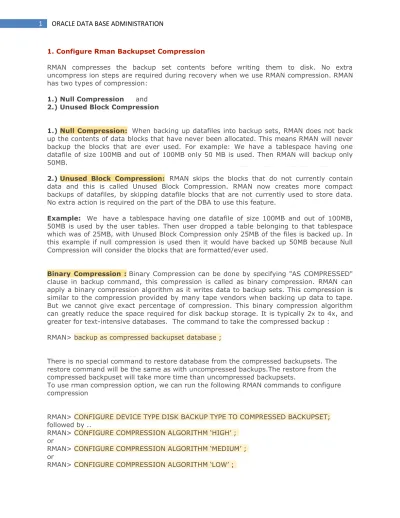

1. Configure Rman Backupset Compression

RMAN compresses the backup set contents before writing them to disk. No extra uncompress ion steps are required during recovery when we use RMAN compression. RMAN has two types of compression:

1.) Null Compression and 2.) Unused Block Compression

1.) Null Compression: When backing up datafiles into backup sets, RMAN does not back up the contents of data blocks that have never been allocated. This means RMAN will never backup the blocks that are ever used. For example: We have a tablespace having one datafile of size 100MB and out of 100MB only 50 MB is used. Then RMAN will backup only 50MB.

2.) Unused Block Compression: RMAN skips the blocks that do not currently contain data and this is called Unused Block Compression. RMAN now creates more compact backups of datafiles, by skipping datafile blocks that are not currently used to store data. No extra action is required on the part of the DBA to use this feature.

Example: We have a tablespace having one datafile of size 100MB and out of 100MB, 50MB is used by the user tables. Then user dropped a table belonging to that tablespace which was of 25MB, with Unused Block Compression only 25MB of the files is backed up. In this example if null compression is used then it would have backed up 50MB because Null Compression will consider the blocks that are formatted/ever used.

Binary Compression : Binary Compression can be done by specifying "AS COMPRESSED" clause in backup command, this compression is called as binary compression. RMAN can apply a binary compression algorithm as it writes data to backup sets. This compression is similar to the compression provided by many tape vendors when backing up data to tape. But we cannot give exact percentage of compression. This binary compression algorithm can greatly reduce the space required for disk backup storage. It is typically 2x to 4x, and greater for text-intensive databases. The command to take the compressed backup :

RMAN> backup as compressed backupset database ;

There is no special command to restore database from the compressed backupsets. The restore command will be the same as with uncompressed backups.The restore from the compressed backpuset will take more time than uncompressed backupsets.

To use rman compression option, we can run the following RMAN commands to configure compression

RMAN> CONFIGURE DEVICE TYPE DISK BACKUP TYPE TO COMPRESSED BACKUPSET; followed by ..

RMAN> CONFIGURE COMPRESSION ALGORITHM ‗HIGH‘ ; or

RMAN> CONFIGURE COMPRESSION ALGORITHM ‗MEDIUM‘ ; or

(2)

or

RMAN> CONFIGURE COMPRESSION ALGORITHM ‗BASIC‘ ;

Oracle 11g added several compression algorithms to compress data. They can be used for compressing tables, LOBs , compressed data pump exports or even RMAN backups. Unfortunately for some compression algorithms we need to purchase the ―Advanced Compression Option‖. The following table lists the available RMAN compression options, the most likely compression algorithm being used and states if an additional license is required:

The compression levels are BASIC, LOW, MEDIUM and HIGH and each affords a trade off related to backup throughput and the degree of compression afforded. If we have enabled the Oracle Database 11g Release 2 Advanced Compression Option, then we can choose from the following compression levels :

 HIGH - Best suited for backups over slower networks where the limiting factor is network speed

 MEDIUM - Recommended for most environments. Good combination of compression ratios and speed

 LOW - Least impact on backup throughput and suited for environments where CPU resources are the limiting factor.

Note: The compression ratio generally increases from LOW to HIGH, with a trade-off of potentially consuming more CPU resources.

We can check the compression level by using the command . SQL> select * from V$RMAN_COMPRESSION_ALGORITHM; Output

(3)

I found a good scenario on net related to compression level having statistics about the this compression level . Here is the scenario : The environment being used was a freshly created 11g Release 2 database with some smaller tables in it. The total sum of all segments equals to 4.88 GB. All database data files excluding the temporary ones are 7.3 GB total. Excluding temporary and undo data files total size equates to 5.9 GB.

Here is the test results displays of the compression level : Test results

As we can see from the table HIGH compression does an incredibly high load on the machine and take extremely long but produces the smallest backup set size.Surprisingly BASIC compression (which is available without advanced compression license) does a good job as well and produces the second smallest backup set but takes nearly as long as doing uncompressed backups. But in other environment with faster CPUs this will change .

In the test environment used either LOW or MEDIUM compression seems to be the best choice. Due to the fact MEDIUM produces a approx. 15% smaller backup set but taking only a few seconds more time to complete i would rank MEDIUM on 1st and LOW on second. Finally we came to the conclusion that stronger the compression the smaller the backup size but the more CPU-intensive the backup is. If we do not have the advanced compression license BASIC compression will produce reasonable compression rates at moderate Load. If we have the licence we have a lot more options to suit our needs.

If we want to test and optimize our rman backup, we basically have three major switches to play with :

 compression algorithmn  rman parallelism and

 data transfer mechanism (SAN or Ethernet [this includes: iSCSI, NFS, CIFS, Backup to tape over Ethernet])

2.Oracle Advanced Compression

Oracle Advanced Compression and Oracle Database 11g Release 2 helps manage more data in a cost-effective manner. With data volumes, on average, tripling every two years, Oracle Advanced Compression delivers compression rates of 2-4x across all types of data

(4)

and applications.storage savings from compression will cascade throughout the data center, reducing network traffic and data backups as well. And by reading fewer blocks off disk, Oracle Advanced Compression also improves query performance.

Oracle Advanced Compression is an option of the Oracle 11g database (separately licensed) that allows data in the database to be compressed. Oracle Advanced Compression offers the following advantages:

1.) OLTP Compression : It allows structured and unstructured data to be compressed on insert,update and delete operations.The following are features :

 New compression algorithm uses deferred or batched approach

 Data is inserted as is without compression until PCTFREE value is reached.  Compression of data starts once PCTFREE threshold is reached

 Can be enabled at table, partition or tablespace level  No need of decompressing the data during reads  Recommended for low update activity tables

2.) Data Pump Compression : In Data Pump, the compression of metadata was introduced in 10g and compression of "data" was introduced in 11g.This covers the following features :

 Both are Inline operation  Save on storage allocation

 No need to uncompress before Import

 Implemented with COMPRESSION attribute, Values supported are ALL, DATA_ONLY, METADATA_ONLY .

3.) Data guard Compression : It includes the following features :  Redo is compressed as it is transmitted over a network .

 Helps efficiently utilize network bandwidth when data guard is across data centers  Faster re-synchronization of Data guard during gap resolution.

 Recommended for low network bandwidth .

 Implemented with attribute ―COMPRESSION‖ of initialization parameter log_archive_dest_n

.4.) RMAN Backup Compression : It compresses the RMAN backups.The followinf features are

 Supports compression of backups using "ZLIB" algorithm .

 Faster compression and low CPU utilization compared to default BZIP2 (10g) .  Low compression ratio compared to BZIP2 .

 Implement with CONFIGURE COMPRESSION ALGORITHM ‗value‘ command where value can be High , Medium(ZLIB) and Low(LZO) .

The Oracle Database 11g Advanced Compression option introduces a comprehensive set of compression capabilities to help customers maximize resource utilization and reduce costs. It allows IT administrators to significantly reduce their overall database storage footprint by enabling compression for all types of data – be it relational (table), unstructured (file), or

(5)

backup data . Although storage cost savings are often seen as the most tangible benefit of compression, innovative technologies included in the Advanced Compression Option are designed to reduce resource requirements and technology costs for all components of our IT infrastructure, including memory and network bandwidth .

The benefits of compression are manyfold 1.) Reduction of disk space used for storage . 2.) Reduction in I/O bandwidth requirements . 3.) Faster full table scans .

4.) Lower server memory usage.

3.Change Database Character Set using CSSCAN

CSSCAN (Database Character Set Scanner) is a SCAN tool that allows us to see the impact of a database character set change or assist us to correct an incorrect database nls_charactersetsetup. Data scanning identifies the amount of effort required to migrate data into the new character encoding scheme before changing the database character set. This information helps to determine the best approach for converting the database character set.

Before altering the character set of a database, check the convertibility of the data before converting. Character set conversions can cause data loss or data corruption. The Character Set Scanner utility provides the below two features:

1.) Convertibility check of existing data and potential issues. The Scanner checks all character data in the database including the data dictionary and tests for the effects and problems of changing the character set encoding (characterset). At the end of the scan, it generates a summary and exception report of the database scan.

2.) Csscan allows also us to do a check if there is no data in the database that is incorrectly stored.

The CSALTER script is part of the Database Character Set Scanner utility. The CSALTER script is the most straightforward way to migrate a character set, but it can be used only if all of the schema data is a strict subset of the new character set. Each and every character in the current character set is available in the new character set and has the same code point value in the new character set.

With the strict superset criteria in mind, only the metadata is converted to the new character set by the CSALTER script, with the following exception: the CSALTER script performs data conversion only on CLOB columns in the data dictionary and sample schemas that have been created by Oracle. CLOB columns that users have created may need to be handled separately

Note : it's possible to run Csscan from a client, but this client needs to be the same base version as the database home.(i.e, oracle 11g server need oracle 11g client) .

(6)

STEP 1 : Remove the invalid objects and purge the recyclebin , then take a full backup of the database.

STEP 2 : Install the CSS utility if not install . We will get error css-00107 if css utility is not install .Install the CSS utility by running the csminst.sql script which is found in $ORACLE_HOME\rdbms\admin .

STEP 3 : Run the Database Character Set Scanner utility as set the oracle_sid and run as

CCSSCAN /AS SYSDBA FULL=Y

STEP 4 : Run the CSALTER script.This script is in $ORACLE_HOME\rdbms\admin folder . i.> shut down

ii.> startup restrict iii.> @csalter.plb iv.> shut immediate v.> startup

Note :

i.> The CSALTER script does not perform any user data conversion. It only changes the character set metadata in the data dictionary.Thus, after the CSALTER operation, Oracle will behave as if the database was created using the new character set.

ii.> Changing the database characterset is not an easy task . It is quite tricky tasks and may face errors which need the oracle support . So,it's better to raise as SR for this task and involve the oracle support .

4.How to Reduce DB File Sequential Read Wait

DB File Sequential Read wait event occurs when we are trying to access data using index and oracle is waiting for the read of index block from disk to buffer cache to complete. A sequential read is a single-block read.Single block I/Os are usually the result of using indexes. Rarely, full table scan calls could get truncated to a single block call due to extent boundaries, or buffers already present in the buffer cache.Db file sequential read wait events may also appear when undo blocks are read from disk in order to provide a consistent get(rarely).

To determine the actual object being waited can be checked by the p1, p2, p3 info in v$session_wait . A sequential read is usually a single-block read, although it is possible to see sequential reads for more than one block (See P3). This wait may also be seen for reads from datafile headers (P2 indicates a file header read) ,where p1,p2 and p3 gives the the absolute file number ,the block being read ,and the number of blocks (i.e, P3 should be 1) respectively.

Block reads are fairly inevitable so the aim should be to minimise un-necessary IO. This is best achieved by good application design and efficient execution plans. Changes to execution plans can yield orders of magnitude changes in performance.Hence to reduce this wait event follow the below points .

1.) Tune Oracle - tuning SQL statements to reduce unnecessary I/O request is the only guaranteed way to reduce "db file sequential read" wait time.

(7)

2.) Tune Physical Devices - Distribute(stripe) the data on diferent disk to reduce the i/o . Logical distribution is useless. "Physical" I/O performance is only governed by

"independency of devices".

3.) Faster Disk - Buy the faster disk to reduce the unnecessary I/O request .

4.) Increase db_block_buffers - A larger buffer cache can (not will, "might") help . 5.Cannot Load OCI.DLL : While Connecting

Sometimes the error "cannot load OCI.DLL" occur whenever we try to connect with the oracle database by using the third-party tools(i.e, toad,sqltools and others) or command prompt . This error may occur because of the following reason .

1.) The oci.dll error may occur because you have not set the correct ORACLE_HOME and path in environment variables .

2.) It might be possible that the oci.dll file may be corrupt or may not exist on the correct path .

3.) May be possible that oci.dll may not be correct version. (e.g. 32bit s/w will load a 32bit DDL - we cannot for example use a 64bit DLL for a 32bit executable) .

To solve this issue , consider the below points .

1.) Check the ORACLE_HOME and Path setting in the envirnoment variable. 2.) Check the correct location of the oci.dll path . The path of the oci.dll file is $ORACLE_HOME\bin\oci.dll

3.) Check the oci.dll correct version .

In my case , i am facing this issue because the $ORACLE_HOME is not correctly set in the environment variables . So setting the correct path in environment variables, we find not any error while connecting the database .

Transparent Data Encryption in Oracle 11g

Oracle Transparent Data Encryption (TDE) enables the organizations to encrypt sensitive application data on storage media completely transparent to the application. TDE addresses encryption requirements associated with public and private privacy and security regulations such as PCI DSS. TDE column encryption was introduced in Oracle Database 10g Release 2, enabling encryption of table columns containing sensitive information. The TDE tablespace encryption and the support for hardware security modules (HSM) were introduced in Oracle Database 11gR1.

TDE is protecting the data at rest. It is encrypting the data in the datafiles so that in case they are obtained by other parties it will not be possible to access the clear text data. TDE cannot be used to obfuscate the data for the users who have privileges to access the tables. In the databases where TDE is configured any user who has access on an encrypted table will be able to see the data in clear text because Oracle will transparently decrypt the data for any user having the necessary privileges.

(8)

TDE is using a two tier encryption key architecture consisting of :

 a master encryption key - this is the encryption key used to encrypt secondary keys used for column encryption and tablespace encryption.

 one or more table and/or tablespace keys - these are the keys that are used to encrypt one or more specific columns or the keys used to encrypt tablespaces. There is only one table key regardless of the number of encrypted columns in a table and it will be stored in the data dictionary. The tablespace key is stored in the header of each datafile of the encrypted tablespace.

The table and tablespace keys are encrypted using the master key. The master key is stored in an external security module (ESM) that can be one of the following:

 an Oracle Wallet - a secure container outside of the database. It is encrypted with a password.

 a Hardware Security Module (HSM) - a device used to secure keys and perform cryptographic operations.

To start using TDE the following operations have to be performed:

1.) Make sure that the wallet location exists. If a non default wallet location must be used then specify it in the sqlnet.ora file :

ENCRYPTION_WALLET_LOCATION = (SOURCE = (METHOD = FILE) (METHOD_DATA =

(DIRECTORY = C:\app\neerajs\admin\orcl\wallet) )

)

Note : The default encryption wallet location

is $ORACLE_BASE/admin/<global_db_name>/wallet. If we want to let Oracle manage a wallet in the default location then there is no need to set theENCRYPTION_WALLET_LOCATION parameter in sqlnet.ora.

It is important to check that the location specified in sqlnet.ora or the default location exists and can be read/written by the Oracle processes.

(9)

2.) Generate a master key :

SQL> alter system set encryption key identified by "wallet_password" ; system altered

This command will do the following :

A.) If there is no wallet currently in the wallet location then a new wallet with the password "wallet_password" will be generated. The password is enclosed in double quotes to preserve the case of the characters. If the double quotes are not used then the characters of the password will be all in upper case. This command will also cause the new wallet to be opened and ready for use.

B.) A new master key will be generated and will be written to the wallet. This newly generated master key will become the active master key. The old master keys (if there were any) will still be kept in the wallet but they will not be active. They are kept there to be used when decrypting data that was previously encrypted using them .

To see the status of an wallet run the following query: SQL> select * from v$encryption_wallet;

WRL_TYPE WRL_PARAMETER STATUS --- --- --- file C:\app\neerajs\admin\orcl\wallet OPEN

3.) Enable encryption for a column or for an entire tablespace: 3.1) Create a table by specifying the encrypt option:

SQL> create table test(col1 number, col2 varchar2(100) encrypt using 'AES256' NO SALT) ; 3.2) Encrypt the column(s) of an existing table :

SQL> alter table test modify( col2 encrypt SALT ) ;

Note : If the table has many rows then this operation might take some time since all the values stored in col2 must be replaced by encrypted strings. If the access to the table during this operations is needed then useOnline Table Redefinition

3.3) Create an encrypted tablespace : The syntax is the same as creating a normal tablespace except for two clauses:

 We specify the encryption algorithm – in this case ‗AES256′. If we do not specify this, it will default to ‗AES128′. At the time of tablespace creation specify the encryption and default storage clause.

Define the encryption algorithem as " using 'algorithm' " along with the encryption clause. We can use the following algorithms while creating an encrypted tablespace.

AES128 AES192 AED256 3DES168

(10)

 The DEFAULT STORAGE (ENCRYPT) clause. SQL> create tablespace encryptedtbs datafile

'C:\app\neerajs\oradata\orcl\encryptedtbs01.dbf' size 100M encryption using 'AES256' default storage(encrypt) ;

Note: An existing non encrypted tablespace cannot be encrypted. If we must encrypt the data from an entire tablespace then create a new encrypted tablespace and then move the data from the old tablespace to the new one TDE Master Key and Wallet Management . The wallet is a critical component and should be backed up in a secure location (different to the location where the database backups are stored!). If the wallet containing the master keys is lost or if its password is forgotten then the encrypted data will not be accessible anymore. Make sure that the wallet is backed up in the following scenarios:

Immediately after creating it.

1. When regenerating the master key

2. When backing up the database. Make sure that the wallet backup is not stored in the same location with the database backup

3. Before changing the wallet password

Make sure that the wallet password is complex but at the same time easy to remember. When it is possible split knowledge about wallet password .If needed, the wallet password can be changed within Oracle Wallet Manager or with the following command using orapki (starting from 11.1.0.7):

c:\> orapki wallet change_pwd -wallet <wallet_location>

Oracle recommends that the wallet files are placed outside of the $ORACLE_BASE directory to avoid having them backed up to same location as other Oracle files. Furthermore it is recommended to restrict the access to the directory and to the wallet files to avoid accidental removals.

we can identify encrypted tablespaces in the database by using the below query : SQL>SELECT ts.name, es.encryptedts, es.encryptionalg FROM v$tablespace ts INNER JOIN v$encrypted_tablespaces es ON es.ts# = ts.ts# ;

The following are supported with encrypted tablespaces

 Move table back and forth between encrypted tablespace and non-encrypted tablespace .

 Datapump is supported to export/import encrypted content/tablespaces.  Transportable tablespace is supported using datapump.

The following are not supported with encrypted tablespaces

 Tablespace encryption cannot be used for SYSTEM, SYSAUX, UNDO and TEMP tablespaces .

 Existing tablespace cannot be encrypted .

 Traditional export/import utilities for encrypted content.

(11)

The block change tracking (BCT) feature for incremental backups improves incremental backup performance by recording changed blocks in each datafile in a block change tracking file. This file is a small binary file called block change tracking (BCT) file stored in the database area. RMAN tracks changed blocks as redo is generated.If we enable block change tracking, then RMAN uses the change tracking file(BCT) to identify changed blocks for an incremental backup, thus avoiding the need to scan every block in the datafile. RMAN only uses block change tracking when the incremental level is greater than 0 because a level 0 incremental backup includes all blocks.

Enable block change tracking (BCT)

SQL> alter database enable block change tracking using file 'C:\app\neerajs\admin\noida\bct.dbf' ;

When data blocks change, shadow processes track the changed blocks in a private area of memory at the same time they generate redo . When a commit is issued, the BCT information is copied to a shared area in Large Pool called 'CTWR dba buffer' . At the checkpoint, a new background process, Change Tracking Writer (CTWR) , writes the information from the buffer to the change-tracking file . If contention for space in the CTWR dba buffer occurs, a wait event called , 'Block Change Tracking Buffer Space' is recorded. Several causes for this wait event are poor I/O performance on the disk where the change-tracking file resides , or the CTWR dba buffer is too small to record the number of concurrent block changes .By default, the CTWR process is disabled because it can introduce some minimal performance overhead on the database.

The v$block_change_tracking views contains the name and size of the block change tracking file plus the status of change tracking: We can check by the below command : SQL> select filename, status, bytes from v$block_change_tracking;

To check whether the block change tracking file is being used or not, use the below command .

SQL> select file#, avg(datafile_blocks), avg(blocks_read),

avg(blocks_read/datafile_blocks) * 100 as "% read for backup" from v$backup_datafile where incremental_level > 0 and used_change_tracking = 'YES' group by file# order by file# ;

To disable Block Change Tracking (BCT) issue the below command : SQL> alter database disable block change tracking ;

RMAN Tablespace Point-in-Time Recovery(TSPIR) in Oracle 11gR2

Recovery Manager (RMAN) Automatic TSPITR enables quick recovery of one or more tablespaces in a database to an earlier time without affecting the rest of the tablespaces and objects in the database.

RMAN TSPITR is most useful for the following situations:

 We want to recover a logical database to a point different from the rest of the physical database, when multiple logical databases exist in separate tablespaces of one physical database. For example, we maintain logical databases in the orders and

(12)

personnel tablespaces. An incorrect batch job or DML statement corrupts the data in only one of the tablespaces.

 We want to recover data lost after DDL operations that change the structure of tables. We cannot use Flashback Table to rewind a table to before the point of a structural change such as a truncate table operation.

 We want to recover a table after it has been dropped with the PURGE option.  We want to recover from the logical corruption of a table.

 We want to recover dropped tablespaces. In fact, RMAN can perform TSPITR on dropped tablespaces even when a recovery catalog is not used.

 We can also use Flashback Database to rewind data, but we must rewind the entire database rather than just a subset. Also, unlike TSPITR, the Flashback Database feature necessitates the overhead of maintaining flashback logs. The point in time to which you can flash back the database is more limited than the TSPITR window, which extends back to our earliest recoverable backup.

TSPIR was there in earleir release but have some limitation i.e, we cannot recover a dropped tablespace . Oracle 11gr2 performs a fully automated managed TSPIR. It automatically creates and start the auxiliary instance and restores the datafiles it requires and the files pertaining to the dropped tablespace. It will first

perform a recovery of the tablespace on the auxiliary instance and then use Data Pump and Transportable Tablespace technology to extract and import the tablespace meta data into the original source database .

Here we will illustrate the Concept of TSPIR with an example .

We will create a user say "TSPIR" and assign the default tablespace say "tspir" and create tables in this tablespace. We take the full backup of the database and further drop the tablespace "tspir" . Before dropping we we note the scn and use this scn to do TSPIR . Below are steps for the TSPIR

Step 1 : Clean the previous failed TSPIR

SQL> exec dbms_backup_restore.manageauxinstance ('TSPITR',1) ; PL/SQL procedure successfully completed.

Step 2 : Create tablespace and Users and Create tables

SQL> create tablespace tspir datafile 'C:\app\neerajs\oradata\orcl\tspir.dbf' size 150m autoextend on;

Tablespace created.

SQL> create user tspir identified by tspir 2 default tablespace tspir

3 quota unlimited on tspir; User created.

SQL> grant resource,connect to tspir; Grant succeeded.

SQL> connect tspir/tspir@orcl Connected.

(13)

SQL> create table test(id number); Table created.

SQL> insert into test values(12); 1 row created.

SQL> insert into test values(121); 1 row created.

SQL> commit; Commit complete. SQL> select * from test; ID

--- 12 121

SQL> create table emp as select * from user_objects; Table created.

SQL> select count(*) from emp; COUNT(*)

--- 2

SQL> conn / as sysdba Connected.

Step 3 : Take the fresh backup of database SQL> host rman target sys@orcl

target database Password:

connected to target database: ORCL (DBID=1296005542) RMAN> backup database plus archivelog;

Starting backup at 30-NOV-11 current log archived

using target database control file instead of recovery catalog allocated channel: ORA_DISK_1

channel ORA_DISK_1: SID=141 device type=DISK channel ORA_DISK_1: starting archived log backup set

channel ORA_DISK_1: specifying archived log(s) in backup set

input archived log thread=1 sequence=3 RECID=1 STAMP=768238310 input archived log thread=1 sequence=4 RECID=2 STAMP=768238310 input archived log thread=1 sequence=5 RECID=3 STAMP=768238311 input archived log thread=1 sequence=6 RECID=4 STAMP=768238314 input archived log thread=1 sequence=7 RECID=5 STAMP=768239453 input archived log thread=1 sequence=8 RECID=6 STAMP=768239455 input archived log thread=1 sequence=9 RECID=7 STAMP=768305386

(14)

input archived log thread=1 sequence=10 RECID=8 STAMP=768334227 input archived log thread=1 sequence=11 RECID=9 STAMP=768393025 input archived log thread=1 sequence=12 RECID=10 STAMP=768454251 input archived log thread=1 sequence=13 RECID=11 STAMP=768521484 input archived log thread=1 sequence=14 RECID=12 STAMP=768580566 channel ORA_DISK_1: starting piece 1 at 30-NOV-11

channel ORA_DISK_1: finished piece 1 at 30-NOV-11

piece handle=F:\RMAN_BKP\01MSV6UP_1_1 tag=TAG20111130T143608 comment=NONE channel ORA_DISK_1: backup set complete, elapsed time: 00:00:55

Finished backup at 30-NOV-11 Starting backup at 30-NOV-11 using channel ORA_DISK_1

channel ORA_DISK_1: starting full datafile backup set channel ORA_DISK_1: specifying datafile(s) in backup set

input datafile file number=00001 name=C:\APP\NEERAJS\ORADATA\ORCL\SYSTEM01.DBF input datafile file number=00002 name=C:\APP\NEERAJS\ORADATA\ORCL\SYSAUX01.DBF input datafile file number=00006 name=C:\APP\NEERAJS\ORADATA\ORCL\TSPIR.DBF input datafile file number=00005 name=C:\APP\NEERAJS\ORADATA\ORCL\EXAMPLE01.DBF input datafile file number=00003

name=C:\APP\NEERAJS\ORADATA\ORCL\UNDOTBS01.DBF

input datafile file number=00004 name=C:\APP\NEERAJS\ORADATA\ORCL\USERS01.DBF channel ORA_DISK_1: starting piece 1 at 30-NOV-11

piece handle=F:\RMAN_BKP\02MSV70H_1_1 tag=TAG20111130T143705 comment=NONE channel ORA_DISK_1: backup set complete, elapsed time: 00:01:55

Finished backup at 30-NOV-11 Starting backup at 30-NOV-11 current log archived

using channel ORA_DISK_1

channel ORA_DISK_1: starting archived log backup set

channel ORA_DISK_1: specifying archived log(s) in backup set

input archived log thread=1 sequence=15 RECID=13 STAMP=768580741 channel ORA_DISK_1: starting piece 1 at 30-NOV-11

piece handle=F:\RMAN_BKP\04MSV746_1_1 tag=TAG20111130T143901 comment=NONE channel ORA_DISK_1: backup set complete, elapsed time: 00:00:01

Finished backup at 30-NOV-11

Starting Control File and SPFILE Autobackup at 30-NOV-11

piece handle=F:\RMAN_BKP\CF\C-1296005542-20111130-01 comment=NONE Finished Control File and SPFILE Autobackup at 30-NOV-11

Step 4 : Note the SCN and drop the tablespace SQL> select current_scn from v$database;

CURRENT_SCN --- 5659022

SQL> drop tablespace tspir including contents and datafiles; Tablespace dropped.

(15)

Step 5 : Connect with rman and perform TSPIR

Here we have used the auxiliary destination with the recover tablespace command because auxiliary destination is an optional disk location where RMAN uses to temporarily store the auxiliary set files. The auxiliary destination is used only when using a RMAN-managed auxiliary instance. Specifying an auxiliary destination with a user-RMAN-managed auxiliary instance results in an error.

C:\>rman target sys/xxxx@orcl

connected to target database: ORCL (DBID=1296005542)

RMAN> recover tablespace tspir until scn 5659022 auxiliary destination 'F:\'; Starting recover at 30-NOV-11

using channel ORA_DISK_1

RMAN-05026: WARNING: presuming following set of tablespaces applies to specified point-in-time

List of tablespaces expected to have UNDO segments Tablespace SYSTEM

Tablespace UNDOTBS1

Creating automatic instance, with SID='nume'

initialization parameters used for automatic instance: db_name=ORCL db_unique_name=nume_tspitr_ORCL compatible=11.2.0.0.0 db_block_size=8192 db_files=200 sga_target=280M processes=50 db_create_file_dest=F:\ log_archive_dest_1='location=F:\' #No auxiliary parameter file used starting up automatic instance ORCL Oracle instance started

Total System Global Area 292933632 bytes Fixed Size 1374164 bytes Variable Size 100665388 bytes Database Buffers 184549376 bytes Redo Buffers 6344704 bytes Automatic instance created

List of tablespaces that have been dropped from the target database: Tablespace tspir

contents of Memory Script: {

# set requested point in time set until scn 5659022; # restore the controlfile restore clone controlfile; # mount the controlfile

sql clone 'alter database mount clone database'; # archive current online log

(16)

# avoid unnecessary autobackups for structural changes during TSPITR sql 'begin dbms_backup_restore.AutoBackupFlag(FALSE); end;';

}

executing Memory Script

executing command: SET until clause Starting restore at 30-NOV-11

allocated channel: ORA_AUX_DISK_1

channel ORA_AUX_DISK_1: SID=59 device type=DISK

channel ORA_AUX_DISK_1: starting datafile backup set restore channel ORA_AUX_DISK_1: restoring control file

channel ORA_AUX_DISK_1: reading from backup piece F:\RMAN_BKP\CF\C-1296005542-20111130-01

channel ORA_AUX_DISK_1: piece handle=F:\RMAN_BKP\CF\C-1296005542-20111130-01 tag=TAG20111130T143903

channel ORA_AUX_DISK_1: restored backup piece 1

channel ORA_AUX_DISK_1: restore complete, elapsed time: 00:00:04 output file name=F:\ORCL\CONTROLFILE\O1_MF_7FD0QK8S_.CTL Finished restore at 30-NOV-11

sql statement: alter database mount clone database sql statement: alter system archive log current

sql statement: begin dbms_backup_restore.AutoBackupFlag(FALSE); end; contents of Memory Script:

{

# set requested point in time set until scn 5659022;

# set destinations for recovery set and auxiliary set datafiles set newname for clone datafile 1 to new;

set newname for clone datafile 3 to new; set newname for clone datafile 2 to new; set newname for clone tempfile 1 to new; set newname for datafile 6 to

"C:\APP\NEERAJS\ORADATA\ORCL\TSPIR.DBF"; # switch all tempfiles

switch clone tempfile all;

# restore the tablespaces in the recovery set and the auxiliary set restore clone datafile 1, 3, 2, 6;

switch clone datafile all; }

executing command: SET until clause executing command: SET NEWNAME executing command: SET NEWNAME executing command: SET NEWNAME executing command: SET NEWNAME executing command: SET NEWNAME

renamed tempfile 1 to F:\ORCL\DATAFILE\O1_MF_TEMP_%U_.TMP in control file Starting restore at 30-NOV-11

using channel ORA_AUX_DISK_1

channel ORA_AUX_DISK_1: starting datafile backup set restore

channel ORA_AUX_DISK_1: specifying datafile(s) to restore from backup set channel ORA_AUX_DISK_1: restoring datafile 00001 to

F:\ORCL\DATAFILE\O1_MF_SYSTEM_%U_.DBF

(17)

F:\ORCL\DATAFILE\O1_MF_UNDOTBS1_%U_.DBF channel ORA_AUX_DISK_1: restoring datafile 00002 to F:\ORCL\DATAFILE\O1_MF_SYSAUX_%U_.DBF

channel ORA_AUX_DISK_1: restoring datafile 00006 to C:\APP\NEERAJS\ORADATA\ORCL\TSPIR.DBF

channel ORA_AUX_DISK_1: reading from backup piece F:\RMAN_BKP\02MSV70H_1_1 channel ORA_AUX_DISK_1: piece handle=F:\RMAN_BKP\02MSV70H_1_1

tag=TAG20111130T143705

channel ORA_AUX_DISK_1: restored backup piece 1

channel ORA_AUX_DISK_1: restore complete, elapsed time: 00:02:15 Finished restore at 30-NOV-11

datafile 1 switched to datafile copy

input datafile copy RECID=5 STAMP=768585055 file

name=F:\ORCL\DATAFILE\O1_MF_SYSTEM_7FD0QYNZ_.DBF datafile 3 switched to datafile copy

name=F:\ORCL\DATAFILE\O1_MF_UNDOTBS1_7FD0QYRF_.DBF datafile 2 switched to datafile copy

name=F:\ORCL\DATAFILE\O1_MF_SYSAUX_7FD0QYPG_.DBF contents of Memory Script:

{

# set requested point in time set until scn 5659022;

# online the datafiles restored or switched sql clone "alter database datafile 1 online"; sql clone "alter database datafile 3 online"; sql clone "alter database datafile 2 online"; sql clone "alter database datafile 6 online"; # recover and open resetlogs

recover clone database tablespace "TSPIR", "SYSTEM", "UNDOTBS1", "SYSAUX" delete archivelog;

alter clone database open resetlogs; }

executing command: SET until clause

sql statement: alter database datafile 1 online sql statement: alter database datafile 3 online sql statement: alter database datafile 2 online sql statement: alter database datafile 6 online Starting recover at 30-NOV-11

using channel ORA_AUX_DISK_1 starting media recovery

archived log for thread 1 with sequence 15 is already on disk as file D:\ARCHIVE\ORCL_ARCHIVE\ARC0000000015_0768224813.0001 archived log for thread 1 with sequence 16 is already on disk as file D:\ARCHIVE\ORCL_ARCHIVE\ARC0000000016_0768224813.0001

archived log file name=D:\ARCHIVE\ORCL_ARCHIVE\ARC0000000015_0768224813.0001 thread=1 sequence=15

archived log file name=D:\ARCHIVE\ORCL_ARCHIVE\ARC0000000016_0768224813.0001 thread=1 sequence=16

media recovery complete, elapsed time: 00:00:04 Finished recover at 30-NOV-11

(18)

database opened

# make read only the tablespace that will be exported sql clone 'alter tablespace TSPIR read only';

# create directory for datapump import

sql "create or replace directory TSPITR_DIROBJ_DPDIR as '' F:\''";

# create directory for datapump export

sql clone "create or replace directory TSPITR_DIROBJ_DPDIR as '' F:\''";

}

sql statement: alter tablespace TSPIR read only

sql statement: create or replace directory TSPITR_DIROBJ_DPDIR as ''F:\'' sql statement: create or replace directory TSPITR_DIROBJ_DPDIR as ''F:\'' Performing export of metadata...

EXPDP> Starting "SYS"."TSPITR_EXP_nume":

EXPDP> Processing object type TRANSPORTABLE_EXPORT/PLUGTS_BLK EXPDP> Processing object type TRANSPORTABLE_EXPORT/TABLE

EXPDP> Processing object type TRANSPORTABLE_EXPORT/POST_INSTANCE/PLUGTS_BLK EXPDP> Master table "SYS"."TSPITR_EXP_nume" successfully loaded/unloaded

EXPDP>

************************************************************************* *****

EXPDP> Dump file set for SYS.TSPITR_EXP_nume is: EXPDP> F:\TSPITR_NUME_43731.DMP

EXPDP>

************************************************************************* *****

EXPDP> Datafiles required for transportable tablespace TSPIR: EXPDP> C:\APP\NEERAJS\ORADATA\ORCL\TSPIR.DBF

EXPDP> Job "SYS"."TSPITR_EXP_nume" successfully completed at 16:20:28 Export completed

# shutdown clone before import shutdown clone immediate }

executing Memory Script database closed

database dismounted Oracle instance shut down

Performing import of metadata...

IMPDP> Master table "SYS"."TSPITR_IMP_nume" successfully loaded/unloaded IMPDP> Starting "SYS"."TSPITR_IMP_nume":

IMPDP> Processing object type TRANSPORTABLE_EXPORT/PLUGTS_BLK IMPDP> Processing object type TRANSPORTABLE_EXPORT/TABLE

IMPDP> Processing object type TRANSPORTABLE_EXPORT/POST_INSTANCE/PLUGTS_BLK IMPDP> Job "SYS"."TSPITR_IMP_nume" successfully completed at 16:21:48

Import completed

(19)

# make read write and offline the imported tablespaces sql 'alter tablespace TSPIR read write';

sql 'alter tablespace TSPIR offline';

# enable autobackups after TSPITR is finished

sql 'begin dbms_backup_restore.AutoBackupFlag(TRUE); end;'; }

sql statement: alter tablespace TSPIR read write sql statement: alter tablespace TSPIR offline

sql statement: begin dbms_backup_restore.AutoBackupFlag(TRUE); end; Removing automatic instance

Automatic instance removed

auxiliary instance file F:\ORCL\DATAFILE\O1_MF_TEMP_7FD0Y3PY_.TMP deleted auxiliary instance file F:\ORCL\ONLINELOG\O1_MF_4_7FD0XROZ_.LOG deleted auxiliary instance file F:\ORCL\ONLINELOG\O1_MF_3_7FD0XK9R_.LOG deleted auxiliary instance file F:\ORCL\ONLINELOG\O1_MF_2_7FD0X9RF_.LOG deleted auxiliary instance file F:\ORCL\ONLINELOG\O1_MF_1_7FD0X2LK_.LOG deleted auxiliary instance file F:\ORCL\DATAFILE\O1_MF_SYSAUX_7FD0QYPG_.DBF deleted auxiliary instance file F:\ORCL\DATAFILE\O1_MF_UNDOTBS1_7FD0QYRF_.DBF deleted auxiliary instance file F:\ORCL\DATAFILE\O1_MF_SYSTEM_7FD0QYNZ_.DBF deleted auxiliary instance file F:\ORCL\CONTROLFILE\O1_MF_7FD0QK8S_.CTL deleted Finished recover at 30-NOV-11

RMAN>

Step 6 : Check the tablepsace status and existance SQL> select tablespace_name,status from dba_tablespaces; TABLESPACE_NAME STATUS --- --- SYSTEM ONLINE SYSAUX ONLINE UNDOTBS1 ONLINE TEMP ONLINE USERS ONLINE EXAMPLE ONLINE TSPIR OFFLINE

Since, we find the tablepspace "TSPIR" is offline . So bring the tablespace online . SQL> alter tablespace tspir online;

Tablespace altered.

SQL> alter database datafile 'C:\app\neerajs\oradata\orcl\tspir.dbf' online; Database altered.

SQL> select table_name from dba_tables where tablespace_name='TSPIR'; TABLE_NAME

--- TEST

EMP

SQL> select * from tspir.test; ID

(20)

--- 12 121

SQL> select count(*) from tspir.emp; COUNT(*)

--- 2

Hence , we find that both the tables are recovered ORA-7445 Internal Error

An ORA-7445 is a generic error, and can occur from anywhere in the Oracle code. The precise location of the error is identified by the core file and/or trace file it produces. Whenever an ORA-7445 error is raised a core file is generated. There may be a trace file generated with the error as well.

Prior to 11g, the core files are located in the CORE_DUMP_DEST directory. Starting with 11g, there is a new advanced fault diagnosability infrastructure to manage trace data. Diagnostic files are written into a root directory for all diagnostic data called the ADR home. Core files at 11g will go to the ADR HOME/cdump directory

For more Indispensability check the below :

1. Check the Alert Log : The alert log may indicate additional errors or other internal errors at the time of the problem. In some cases, the ORA-7445 error will occur along with ORA-600, ORA-3113, ORA-4030 errors. The ORA-7445 error can be side effects of the other problems and we should review the first error and associated core file or trace file and work down the list of errors.

If the ORA-7445 errors are not associated with other error conditions, ensure the trace data is not truncated. If we see a message at the end of the file ―MAX DUMP FILE SIZE EXCEEDED" . theMAX_DUMP_FILE_SIZE parameter is not setup high enough or to ‗unlimited‘. There could be vital diagnostic information missing in the file and discovering the root issue may be very difficult. Set the MAX_DUMP_FILE_SIZE appropriately and regenerate the error for complete trace information.

2. Search 600/7445 Lookup Tool : Visit My Oracle Support to access the ORA-00600 Lookup tool (Note 7445.1). The ORA-600/ORA-7445 Lookup tool may lead you to applicable content in My Oracle Support on the problem and can be used to investigate the problem with argument data from the error message or we can pull out key stack pointers from the associated trace file to match up against known bugs.

3. “Fine tune” searches in Knowledge Base : As the ORA-7445 error indicates an unhandled exception in the Oracle source code, our search in the Oracle Knowledge Base will need to focus on the stack data from the core file or the trace file.

Keep in mind that searches on generic argument data will bring back a large result set . The more we can learn about the environment and code leading to the errors, the easier it will be to narrow the hit list to match our problem.

(21)

4 . If assistance is required from Oracle : Should it become necessary to get assistance from Oracle Support on an ORA-7445 problem, please provide at a minimum, the

 Alert log

 Associated tracefile(s) or incident package at 11g  Patch level information

 Core file(s)

 Information about changes in configuration and/or application prior to issues  If error is reproducible, a self-contained reproducible testcase: Note.232963.1 How to Build a Testcase for Oracle Data Server Support to Reproduce ORA-600 and ORA-7445 Errors.

 RDA report or Oracle Configuration Manager information

How to resize redolog file in oracle

Once , i receive the e-mail regarding the resize of the redo log file . The Sender want the easiest way to size the redo log file something like 'alter database logfile group 1 '?\redo01.log resize 100m ' or using some other trick .

We cannot resize the redo log files. We must drop the redolog file and recreate them .This is only method to resize the redo log files. A database requires atleast two groups of redo log files,regardless the number of the members. We cannot the drop the redo log file if its status is current or active . We have change the status to "inactive" then only we can drop it.

When a redo log member is dropped from the database, the operating system file is not deleted from disk. Rather, the control files of the associated database are updated to drop the member from the database structure. After dropping a redo log file, make sure that the drop completed successfully, and then use the appropriate operating system command to delete the dropped redo log file. In my case i have four redo log files and they are of 50MB in size .I will resize to 100 MB. Below are steps to resize the redo log files.

Step 1 : Check the Status of Redo Logfile

SQL> select group#,sequence#,bytes,archived,status from v$log; GROUP# SEQUENCE# BYTES ARC STATUS

--- --- --- --- --- 1 5 52428800 YES INACTIVE 2 6 52428800 YES ACTIVE 3 7 52428800 NO CURRENT 4 4 52428800 YES INACTIVE Here,we cannot drop the current and active redo log file . Step 2 : Forcing a Checkpoint :

The SQL statement alter system checkpoint explicitly forces Oracle to perform a checkpoint for either the current instance or all instances. Forcing a checkpoint ensures that all changes

(22)

to the database buffers are written to the datafiles on disk .A global checkpoint is not finished until all instances that require recovery have been recovered.

SQL> alter system checkpoint global ; system altered.

--- --- --- --- --- 1 5 52428800 YES INACTIVE 2 6 52428800 YES INACTIVE 3 7 52428800 NO CURRENT 4 4 52428800 YES INACTIVE

Since the status of group 1,2,4 are inactive .so we will drop the group 1 and group 2 redo log file.

Step 3 : Drop Redo Log File :

SQL> alter database drop logfile group 1; Database altered.

--- --- --- --- --- 3 7 52428800 NO CURRENT 4 4 52428800 YES INACTIVE Step 4 : Create new redo log file

If we don't delete the old redo logfile by OS command when creating the log file with same name then face the below error . Therefore to solve it delete the file by using OS command .

SQL> alter database add logfile group 1 'C:\app\neerajs\oradata\orcl\redo01.log' size 100m;

alter database add logfile group 1 'C:\app\neerajs\oradata\orcl\redo01.log' size 100m *

ERROR at line 1:

ORA-00301: error in adding log file 'C:\app\neerajs\oradata\orcl\redo01.log' - file cannot be created

ORA-27038: created file already exists

OSD-04010: <create> option specified, file already exists

Database altered.

(23)

--- --- --- --- --- 1 0 104857600 YES UNUSED

2 0 104857600 YES UNUSED 3 7 52428800 NO CURRENT 4 4 52428800 YES INACTIVE

Step 5 : Now drop the remaining two old redo log file SQL> alter system switch logfile ;

System altered.

SQL> alter system switch logfile ; System altered.

--- --- --- --- --- 1 8 104857600 YES ACTIVE 2 9 104857600 NO CURRENT 3 7 52428800 YES ACTIVE 4 4 52428800 YES INACTIVE SQL> alter system checkpoint global;

System altered.

--- --- --- --- --- 1 8 104857600 YES INACTIVE 2 9 104857600 NO CURRENT 3 7 52428800 YES INACTIVE 4 4 52428800 YES INACTIVE SQL> alter database drop logfile group 3;

Database altered.

--- --- --- --- --- 1 8 104857600 YES INACTIVE 2 9 104857600 NO CURRENT Step 6 : Create the redo log file

Database altered.

(24)

Database altered.

--- --- --- --- ---

1 8 104857600 YES INACTIVE 2 9 104857600 NO CURRENT 3 0 104857600 YES UNUSED 4 0 104857600 YES UNUSED How Often Redo Log file should switch ?

Redo log file switch has good impact on the performance of the database. Frequent log switches may lead to the slowness of the database .If the log file switches after long times then there may be chances of lossing data when the redo log file get corrupt . Oracle documents suggests to resize the redolog files so that log switches happen more like every 15-30 min (roughly depending on the architecture and recovery requirements).

But what happen when there in bulk load ?? since we cannot resize the redolog file size every time because it's seems to be silly. Generally we donot load the data in bulk on regular basis . it's very often twice or thrice in a week . So what should be the accurate size ??

Here is a very good explanation of this question by "howardjr".

One of my database have very large logs which are not intended to fill up under normal operation. They are actually big enough to cope with a peak load we get every week. previously, we had two or three log switches recorded under the one alert log timestamp! Now, they switch every 10 minutes or so, even under the heaviest load.

So big logs are good for slowing things own under load. But I don't want to sit there with 5 hours of redo sitting in my current log during non-peak-load normal running. Therefore, I set archive_lag_target to 1800 (seconds = 30 minutes), and I know that in the worst possible case, I will only lose 30 minutes of redo.

I see LOADS of advantages for using archive_lag_target even for standalone instances. Actually especially for standalone instances. I want logs big enough not to cause rapid log switching. But I have bulk loads. Therefore, I have to have enormous logs to prevent rapid log switching during those times. In fact, on one database I am connected to right now, I have 2GB redo logs which nevertheless manage to switch every 8 minutes on a Friday night. We can imagine the frequency of log switches we had when those logs were originally created at 5MB each! And the number of redo allocation retries.

I'd like 8GB logs to get it down to a log switch every 30 minutes or so on a Friday night, but with multiple members and groups, that's just getting silly.But now I have an enormous log that will take forever and a day to fill up and switch when I'm NOT doing bulk loads. Ordinarily, without a forced log switch, my 2GB log takes 3 days to fill up.

How FAST_START_MTTR_TARGET affect the redolog file in case of recovery? If I were to have a catastrophic hardware failure, I could lose my current redo log. Fast_start_mttr_target can't do anything to ameliorate that loss: flushing the dirty buffers to disk regularly doesn't protect my data, actually. In fact, there is no way to recover transactions that are sitting in the current redo log if that log is lost. Therefore, having an

(25)

enormous log full of hours and hours (in my case, about 72 hours'-worth) of redo is a massive data loss risk, and not one I'm prepared to take.forcing log switches is a good thing for everyone to be able to do, when appropriate, even if they're not using Data Guard and standby databases.

That huge log files are necessary. That a forced log switch is essential thereafter to data security. We can certainly try to minimise the risk: that's what redo log multiplexing is all about. But if we lose all copies of your current log, then we have lost the only copy of that redo, and that means we have lost data.

Frequent checkpoints can help minimise the amount of redo that is vulnerable to loss, but they do nothing to minimise the risk of that loss occurring. Redundant disks (mirroring), redundant controllers, multiplexing: those are the only things that can help protect the current redo log and thus actually reduce the risk of failure occurring in the first place. Frequent checkpointing simply reduces the damage that the loss of all currrent logs would inevitably cause, but it doesn't (and cannot) reduce it to zero. It's therefore not a protection mechanism at all, in the slightest.

Checkpoints set a limit on potential data loss from redo log damage, absolutely they do. But no matter how frequently we checkpoint, we cannot reduce potential data loss to zero and reducing the potential cost of a disaster should it strike doesn't count as reducing the risk of the disaster happening. Buying car insurance doesn't reduce our risk of having a car accident: it simply means we can pay the bills when the accident eventually happens. Therefore, checkpoints cannot reasonably be called a "current redo logfile protection mechanism" . Mirroring, multiplexing and redundant hardware are the only ways to actually protect the current redo log Safety and performance always have to be traded off against each other, and we cannot realistically propose going for just one or the other without appreciating the impact on the other.

Configuration of Snapshot Standby Database in Oracle 11g

Snapshot Standby is a new features introduced in Oracle 11g. A snapshot standby database is a type of updatable standby database that provides full data protection for a primary database. A snapshot standby database receives and archives, but does not apply, redo data from its primary database. Redo data received from the primary database is applied when a snapshot standby database is converted back into a physical standby database, after discarding all local updates to the snapshot standby database.

The main benefits of snapshot standby database is that we can convert the physical standby database into a read-write real time clone of the production database and we can then temporarily use this environment for carrying out any kind of development testing, QA type work or to test the impact of a proposed production change on an application.

The best part of this snapshot features is that the Snapshot Standby database in turn uses the Flashback Database technology to create a guaranteed restore point to which the database can be later flashed back to.All the features of the flashback are inherent in the snapshot standby.

Here we will configure the snapshot standby database Step 1 : Create the physical standby database Create the physical standby database .

(26)

Step 2: Enable Flashack Parameter

SQL> alter system set db_recovery_file_dest_size=4G scope=both ; System altered.

SQL> alter system set db_recovery_file_dest='D:\standby\fra\' scope=both ; System altered.

SQL> show parameter db_recovery

NAME TYPE VALUE --- --- --- db_recovery_file_dest string D:\standby\fra\ db_recovery_file_dest_size big integer 4G

Step 3 : Stop the media recovery process

SQL> alter database recover managed standby database cancel; Database altered.

Step 4 : Ensure that the database is mounted, but not open. SQL> shut immediate

ORA-01109: database not open Database dismounted.

ORACLE instance shut down. SQL> startup mount

Step 5 : Create guaranteed restore point

SQL> create restore point snapshot_rspt guarantee flashback database; Restore point created.

Step 6 : Perform the conversion to snapshot standby database SQL> alter database convert to snapshot standby ;

Database altered.

SQL> select name,open_mode,database_role from v$database; NAME OPEN_MODE DATABASE_ROLE

--- --- --- NOIDA MOUNTED SNAPSHOT STANDBY SQL> alter database open;

Database altered.

SQL> select name,db_unique_name ,open_mode,database_role from v$database; NAME DB_UNIQUE_NAME OPEN_MODE DATABASE_ROLE

--- --- --- --- NOIDA gurgoan READ WRITE SNAPSHOT STANDBY

Since the database is in read-write mode , so we can make some changes or even change the parameter say tunning parameter and check there performance after converting to physical standby and further flashback the whole changes.

SQL> select name,guarantee_flashback_database from v$restore_point; NAME GUA

(27)

--- --- SNAPSHOT_STANDBY_REQUIRED_11/18/2011 20:41:01 YES SNAPSHOT_RSPT YES

While the original physical standby database has been now converted to snapshot database, some changes are happening on the Primary database and those changes are shipped to the standby site but not yet applied. They will accumulate on the standby site and will be

applied after the snapshot standby database is converted back to a physical standby database.

Step 7 : Convert snapshot standby to physical standby SQL> shut immediate

SQL> startup mount

SQL> alter database convert to physical standby ; Database altered.

SQL>shut immediate SQL> startup mount

SQL> alter database recover managed standby database disconnect from session; Database altered.

SQL> alter database recover managed standby database cancel; Database altered.

SQL> alter database open; Database altered.

SQL> select name,open_mode,db_unique_name,database_role from v$database; NAME OPEN_MODE DB_UNIQUE_NAME DATABASE_ROLE

--- --- --- --- NOIDA READ ONLY gurgoan PHYSICAL STANDBY

SQL> alter database recover managed standby database using current logfile disconnect; Database altered.

Hence, we finally back to physical standby database. How to Drop Data Guard Configuration in oracle 11g

Once while configuring the dataguard broker, i faced the ORA-16625 and ORA-16501 . This error occurs beacuse the broker rejects an operation requested by the client when the database required to execute that operation was not reachable from the database where the request was made. If the request modifies the configuration, the request must be processed by the copy of the broker running on an instance of the primary database.

Few days ago i configured the standby database "RED" and broker, later drop it . Next time while configuring the data broker the error occurs as

DGMGRL> create configuration 'dgnoida' > as primary database is 'noida'

(28)

> connect identifier is 'noida';

Error: ORA-16501: the Data Guard broker operation failed Error: ORA-16625: cannot reach database "red"

Failed.

To solve this issue, I have remove the data guard broker configuration and then created the dataguard broker. The steps to drop the configuration are as follows :

Step 1 : Stop the standby data guard broker process ( On Standby )

SQL>show parameter dg_broker

NAME TYPE VALUE

--- --- --- dg_broker_config_file1 string C:\APP\NEERAJS\PRODUCT\11.2.0\ DBHOME_1\DATABASE\DR1NOIDA.DAT dg_broker_config_file2 string C:\APP\NEERAJS\PRODUCT\11.2.0\ DBHOME_1\DATABASE\DR2NOIDA.DAT dg_broker_start boolean True

SQL> alter system set dg_broker_start=false; System altered.

Step 2 : Diable the archive log state (On Primary )

SQL> select dest_id,destination,status from v$archive_dest where target='STANDBY'; DEST_ID DESTINATION STATUS

--- --- --- 2 delhi VALID

SQL> alter system set log_archive_dest_state_2=defer ; System altered.

SQL> select dest_id,destination,status from v$archive_dest where target='STANDBY'; DEST_ID DESTINATION STATUS

--- --- --- 2 delhi DEFERRED

Step 3 : On both system rename or drop the metadata files SQL> show parameter dg_broker

NAME TYPE VALUE

--- --- --- dg_broker_config_file1 string C:\APP\NEERAJS\PRODUCT\11.2.0\ DBHOME_1\DATABASE\DR1NOIDA.DAT dg_broker_config_file2 string C:\APP\NEERAJS\PRODUCT\11.2.0\ DBHOME_1\DATABASE\DR2NOIDA.DAT dg_broker_start boolean False

(29)

Delete or rename the file DR1NOIDA.DAT and [email protected] . Step-By-Step Configuration Of Data Guard Broker in Oracle 11g

As we have already discuss about the Data Guard Broker and its benefits in earlier post . Here we will configure the data Guard Broker . Here are the steps :

Primary Databse = Noida Standby Database = Delhi

Step 1 : Check the Data Guard Broker process SQL> sho parameter dg_broker

NAME TYPE VALUE --- --- --- dg_broker_start boolean FALSE

Step 2 : Start the Data Guard Broker Process on Primary database SQL>alter system set dg_broker_start=true scope=both;

System altered.

Step 3 : Check DG_BROKER on standby database and start it SQL> sho parameter dg_broker

NAME TYPE VALUE --- --- --- dg_broker_start boolean FALSE

SQL>alter system set dg_broker_start=true scope=both ; System altered.

Step 4 : Edit the listener.ora file

Edit the listener.ora file which includes the db_unique_name_DGMGRL.db_domain values for theGLOBAL_DBNAME in both primary and standby database . To set the value, lets check the db_domainvalue .

SQL> show parameter db_domain

NAME TYPE VALUE --- --- --- db_domain string

Since the value of db_domain is null so the the value of GLOBAL_DBNAME = NOIDA_DGMGRL for primary database and for standby GLOBAL_DBNAME = DELHI_DGMGRL. The primary listener.ora file is as

SID_LIST_LISTENER = (SID_LIST = (SID_DESC = (GLOBAL_DBNAME = noida_DGMGRL) (ORACLE_HOME = C:\app\neerajs\product\11.2.0\dbhome_1) (SID_NAME = noida) ) )

(30)

Step 5 : Configure the Data Guard Configuration C:\> dgmgrl

Welcome to DGMGRL, type "help" for information. DGMGRL> connect sys/xxxx@noida

Connected.

DGMGRL> create configuration 'dgnoida' > as primary database is 'noida'

> connect identifier is noida ;

Configuration "dgnoida" created with primary database "noida" .

Once the configuration is created then check the status of configuration . DGMGRL> show configuration

Configuration - dgnoida

Protection Mode : MaxPerformance

Databases : noida - Primary database Fast-Start Failover : DISABLED

Configuration Status : DISABLED

Step 6 : Add standby database to the data broker configuration DGMGRL> add database 'delhi' as

> connect identifier is delhi > maintained as physical ; Database "delhi" added DGMGRL> show configuration Configuration - dgnoida

Databases : noida - Primary database

: delhi - Physical standby database Fast-Start Failover : DISABLED

Configuration Status : DISABLED Step 7 : Enable the configuration DGMGRL> enable configuration Enabled.

DGMGRL> show configuration Configuration - dgnoida

Databases : noida - Primary database

: delhi - Physical standby database Fast-Start Failover : DISABLED

Configuration Status : SUCCESS

Step 8 : View the Primary and Standby database properties DGMGRL> show database verbose noida

(31)

Role : PRIMARY

Intended State : TRANSPORT-ON Instance(s) : noida Properties: DGConnectIdentifier = 'noida' ObserverConnectIdentifier = '' LogXptMode = 'ASYNC' DelayMins = '0' Binding = 'optional' MaxFailure = '0' MaxConnections = '1' ReopenSecs = '300' NetTimeout = '30' RedoCompression = 'DISABLE' LogShipping = 'ON' PreferredApplyInstance = '' ApplyInstanceTimeout = '0' ApplyParallel = 'AUTO' StandbyFileManagement = 'AUTO' ArchiveLagTarget = '0' LogArchiveMaxProcesses = '4' LogArchiveMinSucceedDest = '1' DbFileNameConvert = '' LogFileNameConvert = '' FastStartFailoverTarget = '' StatusReport = '(monitor)' InconsistentProperties = '(monitor)' InconsistentLogXptProps = '(monitor)' SendQEntries = '(monitor)' LogXptStatus = '(monitor)' RecvQEntries = '(monitor)' HostName = 'TECH-199' SidName = 'noida' StaticConnectIdentifier = '(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=TECH-199)(PORT=1521))(CONNECT_DATA=(SERVICE_NAME=noida_DGMGRL)(INSTANCE_NAME =noida)(SERVER=DEDICATED)))' StandbyArchiveLocation = 'D:\archive\' AlternateLocation = '' LogArchiveTrace = '0' LogArchiveFormat = 'ARC%S_%R.%T' TopWaitEvents = '(monitor)' Database Status = SUCCESS DGMGRL> show database verbose delhi Database - delhi

Role: PHYSICAL STANDBY Intended State : APPLY-ON

Transport Lag : 0 seconds Apply Lag : 0 seconds Real Time Query : ON
