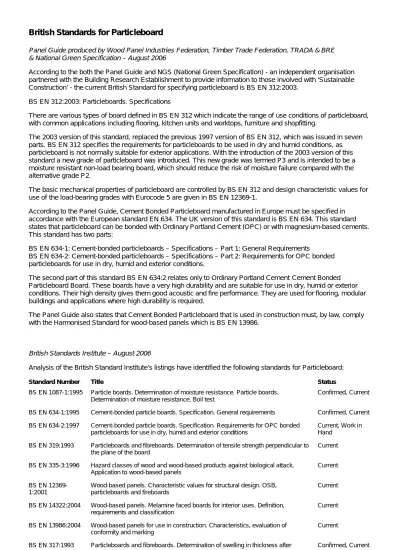

British Standards for Particleboard
Panel Guide produced by Wood Panel Industries Federation, Timber Trade Federation, TRADA & BRE
& National Green Specification – August 2006
According to the both the Panel Guide and NGS (National Green Specification) - an independent organisation
partnered with the Building Research Establishment to provide information to those involved with ‘Sustainable
Construction’ - the current British Standard for specifying particleboard is BS EN 312:2003.
BS EN 312:2003: Particleboards. Specifications
There are various types of board defined in BS EN 312 which indicate the range of use conditions of particleboard,
with common applications including flooring, kitchen units and worktops, furniture and shopfitting.
The 2003 version of this standard, replaced the previous 1997 version of BS EN 312, which was issued in seven
parts. BS EN 312 specifies the requirements for particleboards to be used in dry and humid conditions, as
particleboard is not normally suitable for exterior applications. With the introduction of the 2003 version of this
standard a new grade of particleboard was introduced. This new grade was termed P3 and is intended to be a
moisture resistant non-load bearing board, which should reduce the risk of moisture failure compared with the
alternative grade P2.
The basic mechanical properties of particleboard are controlled by BS EN 312 and design characteristic values for
use of the load-bearing grades with Eurocode 5 are given in BS EN 12369-1.
According to the Panel Guide, Cement Bonded Particleboard manufactured in Europe must be specified in
accordance with the European standard EN 634. The UK version of this standard is BS EN 634. This standard
states that particleboard can be bonded with Ordinary Portland Cement (OPC) or with magnesium-based cements.
This standard has two parts:
BS EN 634-1: Cement-bonded particleboards – Specifications – Part 1: General Requirements
BS EN 634-2: Cement-bonded particleboards – Specifications – Part 2: Requirements for OPC bonded
particleboards for use in dry, humid and exterior conditions.
The second part of this standard BS EN 634:2 relates only to Ordinary Portland Cement Cement Bonded
Particleboard Board. These boards have a very high durability and are suitable for use in dry, humid or exterior
conditions. Their high density gives them good acoustic and fire performance. They are used for flooring, modular
buildings and applications where high durability is required.
The Panel Guide also states that Cement Bonded Particleboard that is used in construction must, by law, comply
with the Harmonised Standard for wood-based panels which is BS EN 13986.
British Standards Institute – August 2006
Analysis of the British Standard Institute’s listings have identified the following standards for Particleboard:
Standard Number Title Status
BS EN 1087-1:1995 Particle boards. Determination of moisture resistance. Particle boards. Determination of moisture resistance. Boil test
Confirmed, Current
BS EN 634-1:1995 Cement-bonded particle boards. Specification. General requirements Confirmed, Current BS EN 634-2:1997 Cement-bonded particle boards. Specification. Requirements for OPC bonded
particleboards for use in dry, humid and exterior conditions
Current, Work in Hand
BS EN 319:1993 Particleboards and fibreboards. Determination of tensile strength perpendicular to the plane of the board
Current
BS EN 335-3:1996 Hazard classes of wood and wood-based products against biological attack. Application to wood-based panels
Current
BS EN 12369-1:2001
Wood-based panels. Characteristic values for structural design. OSB, particleboards and fireboards
Current
BS EN 14322:2004 Wood-based panels. Melamine faced boards for interior uses. Definition, requirements and classification
Current
BS EN 13986:2004 Wood-based panels for use in construction. Characteristics, evaluation of conformity and marking
Current
immersion in water
BS 6100-4.3:1984 Glossary of building and civil engineering terms. Forest products. Wood based panel products Current, Proposed for Confirmation, Work in Hand BS EN 1995-1-1:2004
Eurocode 5. Design of timber structures. General. Common rules and rules for buildings
Current
BS EN 309:2005 Particleboards. Definition and classification Current
BS 5268-2:2002 Structural use of timber. Code of practice for permissible stress design, materials and workmanship
Current, Work in Hand
BS EN 1328:1997 Cement bonded particleboards. Determination of frost resistance Current
BS EN 311:2002 Wood-based panels. Surface soundness. Test method Current
BS EN 312:2003 Particleboards. Specifications Current
BS EN 14755:2005 Extruded particleboards. Specifications Current
BS EN 633:1994 Cement-bonded particleboards. Definition and classification Confirmed, Current
BS EN 1128:1996 Cement-bonded particleboards. Determination of hard body impact resistance Confirmed, Current BS EN 300:1997 Oriented strand boards (OSB). Definitions, classification and specifications Current, Work in
Hand 97/103065 DC prEN 12869-1. Wood-based panels. Structural floor decking on joists. Part 1.
Performance specifications
Current, Draft for Public Comment 97/103066 DC prEN 12869-2. Wood-based panels. Structural floor decking on joists. Part 2.
Performance requirements
Current, Draft for Public Comment 97/103067 DC prEN 12870-1. Wood-based panels. Structural wall sheathing on studs. Part 1.
Performance specifications
Current, Draft for Public Comment 03/305686 DC ISO 17064. Wood-based panels. Fibreboard and particleboard. Vocabulary Current, Draft for Public Comment 04/30113724 DC EN 300. Oriented strand boards (OSB). Definitions, classification and
specifications
Current, Draft for Public Comment 05/30132017 DC BS EN 634-2. Cement-bonded particleboards. Specifications. Part 2.
Requirements for OPC bonded particleboards for use in dry, humid and external conditions
Current, Draft for Public Comment
06/30146208 DC ISO 16893-1. Wood-based panels. Particleboard. Part 1. Classifications Current, Draft for Public Comment
British Standards for profile products
British Standards Institute – June 2006
Due to the number of various products and varying names given to the types of products produced by Likov,
analysis of the British Standards Institute was carried out by searching for key terms to describe Likov products.
The following is a list of the key terms that were used to find British Standards which could be applicable to Likov
products:
Search Terms: +bead +plaster
Standard Number Title Status
BS 6452-1:1984 Beads for internal plastering and dry lining. Specification for galvanized steel beads
Current, Proposed for Confirmation BS EN 13658-1:2005 Metal lath and beads. Definitions, requirements and test methods. Internal
plastering
Current
Search Terms: +construction +joint +filler
BS 6093:1993 Code of practice for design of joints and jointing in building construction Current, Work in Hand
06/30147091 DC BS 6093. Design of joints and jointing in building construction. Guide Current, Draft for Public Comment
British Standards for bathroom products
The Bathroom Manufacturers Association – May 2006
The Bathroom Manufacturers Association (BMA) is the trade association for manufacturers of bathroom products
trading in the UK.
According to the Bathroom Manufacturers Association the main British Standards for shower heads are as follows:
BSEN 1112:
Shower outlets High Pressure
BSEN 13904: Shower outlets Low Pressure
BSEN 1113:
Shower hoses High Pressure
BSEN 13905: Shower hoses Low Pressure
The Bathroom Manufacturers Association do not believe there are any British Standards in place for bathroom
shelving, soap dishes and these type of bathroom accessories.
British Standards Institute – June 2006
Analysis of the British Institute website has identified the following British Standards for Towel rails, taps, and
shower heads.
British Standards for Towel Rails:
Standard Number Title Status
BS EN 60335-2-43:2003
Specification for safety of household and similar electrical appliances. Particular requirements for clothes dryers and towel rails. Part 2-43 Particular requirements for clothes dryers and towel rails
Current, Work in Hand
04/30109592 DC IEC 60335-2-43 A1. Household and similar electrical appliances. Safety. Part 2-43. Particular requirements for appliances for clothes dryers and towel rails
Current, Draft for Public Comment
British Standards for Bathroom Taps:
Standard Number Title Status
BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size ½ and ¾) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0. 1 bar)
Current
BS EN 816:1997 Sanitary tapware. Automatic shut-off valves PN 10 Current
BS EN 200:1992 Sanitary tapware. General technical specifications for single taps and mixer taps (nominal size 1/2) PN 10. Minimum flow pressure of 0.05 MPa (0.5 bar)
Current, Work in Hand
BS EN 1113:1997 Shower hoses for (PN 10) sanitary tapware Current
BS EN 1111:1999 Sanitary tapware. Thermostatic mixing valves (PN 10). General technical specification
Current
BS EN 1286:1999 Sanitary tapware. Low pressure mechanical mixing valves. General technical specification
Current
BS 7942:2000 Thermostatic mixing valves for use in care establishments Current
BS EN ISO 3822-1:1999
Acoustics. Laboratory tests on noise emission from appliances and equipment used in water supply installations. Method of measurement
Current
BS EN 1287:1999 Sanitary tapware. Low pressure thermostatic mixing valves. General technical specifications
Current
BS EN 248:2002 Sanitary tapware. General specification for electrodeposited coatings of Ni-Cr Current
BS EN 695:2005 Kitchen sinks. Connecting dimensions Current
BS EN 13904:2003 Low resistance shower outlets for sanitary tapware Current
BS EN 13905:2003 Low resistance shower hoses for sanitary tapware Current
BS EN 817:1998 Sanitary tapware. Mechanical mixers (PN 10). General technical specifications Current, Work in Hand
96/105590 DC Specification for installations inside buildings conveying water for human consumption. Part 3. Pipe sizing (prEN 806-3)
Current, Draft for Public Comment 02/101511 DC BS EN 200. Sanitary tapware. Single taps and combination taps (PN 10). General
technical specification
Current, Draft for Public Comment 05/30127036 DC EN 817. Sanitary tapware. Mechanical mixers (PN 10). General technical
specifications
Current, Draft for Public Comment
British Standards for Shower Heads/Hoses:
Standard Number Title Status
BS 6340-4:1984 Shower units. Specification for shower heads and related equipment Current
BS EN 1112:1997 Shower outlets for (PN 10) sanitary tapware Current
BS EN 1113:1997 Shower hoses for (PN 10) sanitary tapware Current
British Standards for Security Doors
The Door & Hardware Federation – May 2006
The Door & Hardware Federation (DHF) was created by a merger between the Association of Building Hardware
Manufacturers and the Door & Shutter Manufacturers Association. DHF represents the interests of manufacturers
and installers of industrial, pedestrian and garage doors as well as manufacturers of locks and building hardware.
The DHF has established six specialist groups:
•
Building Hardware Group
•
Drive & Control Group
•
Garage Door Group
•
Industrial Door Group
•
Metal Doorset Forum
•
Repair & Service Group
According to the DHF there are a number of standards which cover the products of Security Doors; Security
Shutters; and Garage Doors, these include British and other standards and are as follows:
Applicable British and other Standards BS 1245:1975
Specification for metal door frames (steel) BS 3621:2004
Thief resistant lock assemblies - Key egress BS 476-20:1987
Fire tests on building materials and structures. Method for determination of the fire resistance of elements of construction (general principles)
BS 476-22:1987
Fire tests on building materials and
structures. Methods for determination of the fire resistance of non-loadbearing elements of construction
BS EN 12426:2000 Industrial, commercial and garage doors and gates. Air permeability. Classification BS EN 12427:2000 Industrial, commercial and garage doors and gates. Air permeability. Test method BS EN 12428:2000 Industrial, commercial and garage doors and gates. Thermal transmittance. Requirements for the calculation
BS EN 12444:2001
BS EN 60335-2-95:2001 Safety of electrical appliances - Particular requirements for drives for vertically-moving garage doors BS EN 60335-2-97:2001
Safety of electrical appliances - Particular requirements for drives for rolling shutters, awnings, blinds &c
BS EN 61000-6-2:2001 Electromagnetic compatibility (EMC). Generic standards. Immunity standard for industrial environments
BS 476-31.1:1983
Fire tests on building materials and structures. Methods for measuring smoke penetration through doorsets and shutter assemblies. Method of measurement under ambient temperature conditions
BS 5588
Fire precautions in the design, construction and use of buildings. Various parts published from 1984 onwards. Some have now been withdrawn. See also DD 9999:2005
BS 6375-1:2004
Performance of windows and doors. Classification for weathertightness and guidance on selection and specification BS 6399-2:1997
Loading for buildings. Code of practice for wind loads
BS 8220-1:2000
Guide for security of buildings against crime - Part 1 - Dwellings
BS 8220-2:1995
Guide for security of buildings against crime - Part 2 - Offices and shops
BS 8220-3:2004
Guide for security of buildings against crime - Part 3: Storage, industrial and distribution premises
BS 8424:2004
Building hardware. Pull handles. Requirements and test methods BS 8621:2004
Thief resistant lock assemblies - Keyless egress
BS EN 1125:1997
Panic exit devices operated by a horizontal bar
BS EN 1154:1997
Controlled door closing devices BS EN 1155:1997
Electrically powered hold open devices for swing doors
BS EN 1158:1997 Door coordinator devices BS EN 12046-2:2000
Doors - Operating forces - Test method BS EN 12051:2000
Door and window bolts
Industrial, commercial and garage doors and gates. Resistance to wind load. Testing and calculation
BS EN 12445:2001 Industrial, commercial and garage doors and gates. Safety in use of power operated doors. Test methods
BS EN 12453:2001 Industrial, commercial and garage doors and gates. Safety in use of power operated doors. Requirements
BS EN 12489:2000 Industrial, commercial and garage doors and gates. Resistance to water penetration. Test method
BS EN 12604:2000 Industrial, commercial and garage doors and gates. Mechanical aspects. Requirements BS EN 12605:2000 Industrial, commercial and garage doors and gates. Mechanical aspects. Test methods
BS EN 12635:2002 Industrial, commercial and garage doors and gates. Installation and use BS EN 1294:2000
Door leaves - Behaviour under humidity variations
BS EN 12978:2003 Industrial, commercial and garage doors and gates. Safety devices for power operated doors and gates. Requirements and test methods
BS EN 1303:2005 Cylinders for locks BS EN 13241-1:2003 Industrial, commercial and garage doors and gates - Product standard - Products w/out fire/smoke resistance BS EN 13724:2002
Apertures of private letter boxes and letter plates. Requirements and test methods
BS EN 14600:2005
BS EN 61000-6-3:2001 Electromagnetic compatibility (EMC). Generic standards. Emission standard for residential, commercial and light-industrial environments
DD 171:1987
Guide to specifying performance requirements for hinged or pivoted doors (including test methods) DD 9999:2005
Code of practice for fire safety in the design, construction and use of buildings
DD CEN/TS 13126-1:2004 Fittings for windows - Common requirements
DD CEN/TS 13126-10:2004 Fittings for windows - Arm balancing systems
DD CEN/TS 13126-11:2004 Fittings for windows - Top hung projecting reversible hardware DD CEN/TS 13126-12:2004 Fittings for windows - Side hung projecting reversible hardware DD CEN/TS 13126-13:2004 Fittings for windows - Sash balances
DD CEN/TS 13126-14:2004 Fittings for windows - Sash fasteners
DD CEN/TS 13126-15:2004 Fittings for windows - Rollers DD CEN/TS 13126-16:2004 Fittings for windows - Fittings for lift and slide systems
DD CEN/TS 13126-17:2004 Fittings for windows - Fittings for tilt and slide systems
DD CEN/TS 13126-2:2004 Fittings for windows - Casement fastener handles
DD CEN/TS 13126-3:2004 Fittings for windows - Fittings for espagnolette bolts
DD CEN/TS 13126-4:2004 Fittings for windows - Espagnolette bolts
BS EN 12207:2000
Windows and doors - Air permeability - Classification
BS EN 12208:2000
Windows and doors - Watertightness - Classification
BS EN 12209:2003
Mechanically operated locks, latches and striking plates
BS EN 12210:2000
Windows and doors - Resistance to windload - Classification
BS EN 12211:2000
Windows and doors - Resistance to windload - Test method
BS EN 12217:2003
Doors - Operating forces - Requirements and classification
BS EN 12219:2000
Doors - Climatic Influences - Requirements and Classification
BS EN 12320:2001
Padlocks and padlock fittings BS EN 12400:2002
Windows and pedestrian doors -
Mechanical durability - Requirements and Classification
BS EN 12424:2000
Industrial, commercial and garage doors and gates. Resistance to wind load. Classification
BS EN 12425:2000
Industrial, commercial and garage doors and gates. Resistance to water penetration. Classification
Doorsets and openable windows with fire-resisting and/or smoke control characteristics -
Requirements and classification BS EN 1522:2001
Windows, doors &c - Bullet resistance
BS EN 1527:1998
Hardware for sliding doors and folding doors
BS EN 1529:2001
Door leaves - Height, width, thickness and squareness BS EN 1530:2001
Door leaves - General and local flatness
BS EN 1634-1:2000
Fire resistance tests for door and shutter assemblies
BS EN 1634-3:2004
Fire resistance tests for door and shutter assemblies. Smoke control doors and shutters BS EN 1670:1998
Building hardware - Corrosion resistance
BS EN 179:1997 Emergency exit devices BS EN 1906:2002
Lever handles and knob furniture BS EN 1935:2002
Single axis hinges BS EN 1991-1-4:2005 Eurocode 1. Actions on
structures. General actions. Wind actions
BS EN 60204-1:1998, IEC 60204-1:1997
Safety of machinery. Electrical equipment of machines. General requirements
BS EN 60335-1:2002 Specification for safety of household and similar electrical appliances. General
requirements
BS EN 60335-2-103:2003 Safety of electrical appliances - Particular requirements for drives for gates, doors and windows
DD CEN/TS 13126-5:2004 Fittings for windows - Opening restrictors
DD CEN/TS 13126-6:2004 Fittings for windows - Variable geometry stay hinges
DD CEN/TS 13126-7:2004 Fittings for windows - Finger catches
DD CEN/TS 13126-8:2004 Fittings for windows - Tilt & turn &c hardware
DD CEN/TS 13126-9:2004 Fittings for windows - Pivot hinges DD ENV 1627:1999
Windows, doors, shutters. Burglar resistance. Requirements and classification
DD ENV 1628:1999
Windows, doors, shutters. Burglar resistance. Test method for the determination of resistance under static loading
DD ENV 1629:1999
Windows, doors, shutters. Burglar resistance. Test method for determination of resistance under dynamic loading
DD ENV 1630:1999
Windows, doors, shutters. Burglar resistance. Test method for the determination of resistance to manual burglary attempts PAS 23-1:1999
General performance requirements for door assemblies. Single leaf, external door assemblies to dwellings
PAS 24-1:1999
Enhanced security performance requirements for door assemblies. Single and double leaf, hinged external door assemblies to dwellings
British Standards Institute – June 2006
Analysis of the British Standard Institute’s listings have identified the following standards for Security Doors:
Standard Number
Title Status
BS 8220-2:1995
Guide for security of buildings against crime. Offices and shops Current
BS 5357:1995 Code of practice for installation of security glazing Current
BS EN 1522:1999
Windows, doors, shutters and blinds. Bullet resistance. Requirements and classification
Current
BS EN 1523:1999
Windows, doors, shutters and blinds. Bullet resistance. Test method Current
BS 8220-3:2004
Guide for security of buildings against crime. Storage, industrial and distribution premises
Current
BS 8220-1:2000
Guide for security of buildings against crime. Dwellings Current
BS EN 12051:2000
Building hardware. Door and window bolts. Requirements and test methods Current
BS EN 81-71:2005
Safety rules for the construction and installation of lifts. Particular applications to passenger lifts and goods passenger lifts. Vandal resistant lifts
Current
BS EN 12209:2003
Building hardware. Locks and latches. Mechanically operated locks, latches and locking plates. Requirements and test methods
Current
BS EN 1143-1:2005
Secure storage units. Requirements, classification and methods of test for resistance to burglary. Safes, ATM safes, strongroom doors and strongrooms
Current
BS 3621:2004 Thief resistant lock assemblies. Key egress Current
PAS 24-1:1999 Enhanced security performance requirements for door assemblies. Single and double leaf, hinged external door assemblies to dwellings
Current
BS 5655-13:1995
Lifts and service lifts. Recommendations for vandal resistant lifts Current, Superseded
BS EN 1125:1997
Building hardware. Panic exit devices operated by a horizontal bar. Requirements and test methods
Current, Work in Hand
BS EN 179:1998
Building hardware. Emergency exit devices operated by a lever handle or push pad. Requirements and test methods
Current, Work in Hand
BS 2881:1989 Specification for cupboards for the storage of medicines in health care premises Confirmed, Current 99/104967 DC Building hardware. Electronically controlled emergency exit systems. Requirements
and test methods (prEN 13637)
Current, Draft for Public Comment 99/104966 DC Building hardware. Electronically controlled panic exit systems. Requirements and
test methods (prEN 13633)
Current, Draft for Public Comment 03/102518 DC BS EN 13637. Building hardware. Electrically controlled emergency exit systems for
use on escape routes. Requirements and test methods
Current, Draft for Public Comment
British Standards for Security Shutters/Garage Doors:
The Door & Hardware Federation – May 2006
The Door & Hardware Federation (DHF) was created by a merger between the Association of Building Hardware
Manufacturers and the Door & Shutter Manufacturers Association. DHF represents the interests of manufacturers
and installers of industrial, pedestrian and garage doors as well as manufacturers of locks and building hardware.
The DHF has established six specialist groups:
•
Building Hardware Group
•
Drive & Control Group
•
Garage Door Group
•
Industrial Door Group
•
Metal Doorset Forum
•
Repair & Service Group
According to the DHF there are a number of standards which cover the products of Security Doors; Security
Shutters; and Garage Doors, these include British and other standards and are as follows:
Applicable British and other Standards BS 1245:1975
Specification for metal door frames (steel) BS 3621:2004
Thief resistant lock assemblies - Key egress BS 476-20:1987
Fire tests on building materials and structures. Method for determination of the fire resistance of elements of construction (general principles)
BS 476-22:1987
Fire tests on building materials and
structures. Methods for determination of the fire resistance of non-loadbearing elements of construction
BS 476-31.1:1983
Fire tests on building materials and structures. Methods for measuring smoke penetration through doorsets and shutter assemblies. Method of measurement under ambient temperature conditions
BS 5588
Fire precautions in the design, construction and use of buildings. Various parts published from 1984 onwards. Some have now been withdrawn. See also DD 9999:2005
BS 6375-1:2004
Performance of windows and doors. Classification for weathertightness and guidance on selection and specification BS 6399-2:1997
Loading for buildings. Code of practice for wind loads
BS 8220-1:2000
Guide for security of buildings against crime - Part 1 - Dwellings
BS 8220-2:1995
Guide for security of buildings against crime - Part 2 - Offices and shops
BS 8220-3:2004
Guide for security of buildings against crime - Part 3: Storage, industrial and distribution premises
BS EN 12426:2000 Industrial, commercial and garage doors and gates. Air permeability. Classification BS EN 12427:2000 Industrial, commercial and garage doors and gates. Air permeability. Test method BS EN 12428:2000 Industrial, commercial and garage doors and gates. Thermal transmittance. Requirements for the calculation
BS EN 12444:2001 Industrial, commercial and garage doors and gates. Resistance to wind load. Testing and calculation
BS EN 12445:2001 Industrial, commercial and garage doors and gates. Safety in use of power operated doors. Test methods
BS EN 12453:2001 Industrial, commercial and garage doors and gates. Safety in use of power operated doors. Requirements
BS EN 12489:2000 Industrial, commercial and garage doors and gates. Resistance to water penetration. Test method
BS EN 12604:2000 Industrial, commercial and garage doors and gates. Mechanical aspects. Requirements BS EN 12605:2000 Industrial, commercial and garage doors and gates. Mechanical aspects. Test methods
BS EN 12635:2002 Industrial, commercial and
BS EN 60335-2-95:2001 Safety of electrical appliances - Particular requirements for drives for vertically-moving garage doors BS EN 60335-2-97:2001
Safety of electrical appliances - Particular requirements for drives for rolling shutters, awnings, blinds &c
BS EN 61000-6-2:2001 Electromagnetic compatibility (EMC). Generic standards. Immunity standard for industrial environments
BS EN 61000-6-3:2001 Electromagnetic compatibility (EMC). Generic standards. Emission standard for residential, commercial and light-industrial environments
DD 171:1987
Guide to specifying performance requirements for hinged or pivoted doors (including test methods) DD 9999:2005
Code of practice for fire safety in the design, construction and use of buildings
DD CEN/TS 13126-1:2004 Fittings for windows - Common requirements
DD CEN/TS 13126-10:2004 Fittings for windows - Arm balancing systems
DD CEN/TS 13126-11:2004 Fittings for windows - Top hung projecting reversible hardware DD CEN/TS 13126-12:2004 Fittings for windows - Side hung projecting reversible hardware DD CEN/TS 13126-13:2004 Fittings for windows - Sash balances
BS 8424:2004
Building hardware. Pull handles. Requirements and test methods BS 8621:2004
Thief resistant lock assemblies - Keyless egress
BS EN 1125:1997
Panic exit devices operated by a horizontal bar
BS EN 1154:1997
Controlled door closing devices BS EN 1155:1997
Electrically powered hold open devices for swing doors
BS EN 1158:1997 Door coordinator devices BS EN 12046-2:2000
Doors - Operating forces - Test method BS EN 12051:2000
Door and window bolts BS EN 12207:2000
Windows and doors - Air permeability - Classification
BS EN 12208:2000
Windows and doors - Watertightness - Classification
BS EN 12209:2003
Mechanically operated locks, latches and striking plates
BS EN 12210:2000
Windows and doors - Resistance to windload - Classification
BS EN 12211:2000
Windows and doors - Resistance to windload - Test method
BS EN 12217:2003
Doors - Operating forces - Requirements and classification
BS EN 12219:2000
Doors - Climatic Influences - Requirements and Classification
BS EN 12320:2001
Padlocks and padlock fittings BS EN 12400:2002
Windows and pedestrian doors -
Mechanical durability - Requirements and
garage doors and gates. Installation and use BS EN 1294:2000
Door leaves - Behaviour under humidity variations
BS EN 12978:2003 Industrial, commercial and garage doors and gates. Safety devices for power operated doors and gates. Requirements and test methods
BS EN 1303:2005 Cylinders for locks BS EN 13241-1:2003 Industrial, commercial and garage doors and gates - Product standard - Products w/out fire/smoke resistance BS EN 13724:2002
Apertures of private letter boxes and letter plates. Requirements and test methods
BS EN 14600:2005
Doorsets and openable windows with fire-resisting and/or smoke control characteristics -
Requirements and classification BS EN 1522:2001
Windows, doors &c - Bullet resistance
BS EN 1527:1998
Hardware for sliding doors and folding doors
BS EN 1529:2001
Door leaves - Height, width, thickness and squareness BS EN 1530:2001
Door leaves - General and local flatness
BS EN 1634-1:2000
Fire resistance tests for door and shutter assemblies
BS EN 1634-3:2004
Fire resistance tests for door and shutter assemblies. Smoke control doors and shutters BS EN 1670:1998
Building hardware - Corrosion resistance
BS EN 179:1997
DD CEN/TS 13126-14:2004 Fittings for windows - Sash fasteners
DD CEN/TS 13126-15:2004 Fittings for windows - Rollers DD CEN/TS 13126-16:2004 Fittings for windows - Fittings for lift and slide systems
DD CEN/TS 13126-17:2004 Fittings for windows - Fittings for tilt and slide systems
DD CEN/TS 13126-2:2004 Fittings for windows - Casement fastener handles
DD CEN/TS 13126-3:2004 Fittings for windows - Fittings for espagnolette bolts
DD CEN/TS 13126-4:2004 Fittings for windows - Espagnolette bolts
DD CEN/TS 13126-5:2004 Fittings for windows - Opening restrictors
DD CEN/TS 13126-6:2004 Fittings for windows - Variable geometry stay hinges
DD CEN/TS 13126-7:2004 Fittings for windows - Finger catches
DD CEN/TS 13126-8:2004 Fittings for windows - Tilt & turn &c hardware
DD CEN/TS 13126-9:2004 Fittings for windows - Pivot hinges DD ENV 1627:1999
Windows, doors, shutters. Burglar resistance. Requirements and classification
DD ENV 1628:1999
Windows, doors, shutters. Burglar resistance. Test method for the determination of resistance under static loading
DD ENV 1629:1999
Windows, doors, shutters. Burglar resistance. Test method for determination of resistance under dynamic loading
Classification BS EN 12424:2000
Industrial, commercial and garage doors and gates. Resistance to wind load. Classification
BS EN 12425:2000
Industrial, commercial and garage doors and gates. Resistance to water penetration. Classification
Emergency exit devices BS EN 1906:2002
Lever handles and knob furniture BS EN 1935:2002
Single axis hinges BS EN 1991-1-4:2005 Eurocode 1. Actions on
structures. General actions. Wind actions
BS EN 60204-1:1998, IEC 60204-1:1997
Safety of machinery. Electrical equipment of machines. General requirements
BS EN 60335-1:2002 Specification for safety of household and similar electrical appliances. General
requirements
BS EN 60335-2-103:2003 Safety of electrical appliances - Particular requirements for drives for gates, doors and windows
DD ENV 1630:1999
Windows, doors, shutters. Burglar resistance. Test method for the determination of resistance to manual burglary attempts PAS 23-1:1999
General performance requirements for door assemblies. Single leaf, external door assemblies to dwellings
PAS 24-1:1999
Enhanced security performance requirements for door assemblies. Single and double leaf, hinged external door assemblies to dwellings
British Standards Institute – June 2006
Analysis of the British Standard Institute’s listings have identified the following standards for Shutters/Grilles:
Standard Number
Title
Status
BS 476-31.1:1983
Fire tests on building materials and structures. Methods for measuring
smoke penetration through doorsets and shutter assemblies. Method of
measurement under ambient temperature conditions
Current
BS 476-22:1987
Fire tests on building materials and structures. Methods for determination
of the fire resistance of non-loadbearing elements of construction
Current
BS EN 1523:1999
Windows, doors, shutters and blinds. Bullet resistance. Test method
Current
BS EN 1634-1:2000 Fire resistance tests for door and shutter assemblies. Fire doors and
shutters
Current
BS EN 12194:2000 Shutters, external and internal blinds. Misuse. Test methods
Current
BS EN 13125:2001 Shutters and blinds. Additional thermal resistance. Allocation of a class of
air permeability to a product
Current
BS EN
13123-1:2001
Windows, doors and shutters. Explosion resistance. Requirements and
classification. Shock tube
Current
BS EN
13124-1:2001
Windows, doors and shutters. Explosion resistance. Test method. Shock
tube
Current
BS EN 12216:2002 Shutters, external blinds, internal blinds. Terminology, glossary and
definitions
Current
BS EN 14201:2004 Blinds and shutters. Resistance to repeated operations (mechanical
endurance). Methods of testing
Current
BS EN 14202:2004 Blinds and shutters. Suitability for use of tubular and square
motorizations. Requirements and test methods
BS EN 14203:2004 Blinds and shutters. Capability for use of gears with crank handle.
Requirements and test methods
Current
BS EN 13330:2002 Shutters. Hard body impact. Test method
Current
BS EN 1634-3:2004 Fire resistance tests for door and shutter assemblies. Smoke control
doors and shutters
Current
BS EN
12412-4:2003
Thermal performance of windows, doors and shutters. Determination of
thermal transmittance by hot box method. Roller shutter boxes
Current
BS EN 13659:2004 Shutters. Performance requirements including safety
Current
BS EN 12833:2001 Skylight and conservatory roller shutters. Resistance to snow load. Test
method
Current
BS EN
13123-2:2004
Windows, doors, and shutters. Explosion resistance. Requirements and
classification. Range test
Current
BS EN
13124-2:2004
Windows, doors and shutters. Explosion resistance. Test method. Range
test
Current
BS EN 14759:2005 Shutters. Acoustic insulation relative to airborne sound. Expression of
performance
Current
DD ENV 1630:1999 Windows, doors, shutters. Burglar resistance. Test method for the
determination of resistance to manual burglary attempts
Current, Work
in Hand
DD ENV 1627:1999 Windows, doors, shutters. Burglar resistance. Requirements and
classification
Current, Work
in Hand
BS EN 13527:2000 Shutters and blinds. Measurement of operating force. Test methods
Current
BS EN 12045:2000 Shutters and blinds power operated. Safety in use. Measurement of the
transmitted force
Current
BS EN 1932:2001
External blinds and shutters. Resistance to wind loads. Method of testing Current
BS EN ISO
10077-2:2003
Thermal performance of windows, doors and shutters. Calculation of
thermal transmittance. Numerical method for frames
Current
BS EN 14501:2005 Blinds and shutters. Thermal and visual comfort. Performance
characteristics and classification
Current
DD ENV 1629:1999 Windows, doors, shutters. Burglar resistance. Test method for
determination of resistance under dynamic loading
Current, Work
in Hand
DD ENV 1628:1999 Windows, doors, shutters. Burglar resistance. Test method for the
determination of resistance under static loading
Current, Work
in Hand
BS EN 1522:1999
Windows, doors, shutters and blinds. Bullet resistance. Requirements and
classification
Current
BS EN
12412-2:2003
Thermal performance of windows, doors and shutters. Determination of
thermal transmittance by hot box method. Frames
Current
BS EN
60335-2-97:2001
Specification for safety of household and similar electrical appliances.
Particular requirements. Particular requirements for drives for rolling
shutters, awnings, blinds and similar equipment. Part 2-97: Particular
requirements for drives for rolling shutters, awnings, blinds and similar
equipment
Current, Work
in Hand
BS EN ISO
10077-1:2000
Thermal performance of windows, doors and shutters. Calculation of
thermal transmittance. Simplified method
Current, Work
in Hand
BS ISO TR
5925-2:1997
Fire tests. Smoke control door and shutter assemblies. Commentary on
test method and test data application
Current
BS EN 1933:1999
Exterior blinds. Resistance to load due to water accumulation. Test
method
Current
the resistance to soft and heavy body impact for doors
BS EN 12635:2002 Industrial, commercial and garage doors and gates. Installation and use
Current
BS EN 12978:2003 Industrial, commercial and garage doors and gates. Safety devices for
power operated doors and gates. Requirements and test methods
Current
BS EN
12365-1:2003
Building hardware. Gasket and weatherstripping for doors, windows,
shutters and curtain walling. Performance requirements and classification
Current
BS EN
12365-2:2003
Building hardware. Gasket and weatherstripping for doors, windows,
shutters and curtain walling. Linear compression force test methods
Current
BS EN
12365-3:2003
Building hardware. Gasket and weatherstripping for doors, windows,
shutters and curtain walling. Deflection recovery test method
Current
BS EN
12365-4:2003
Building hardware. Gasket and weatherstripping for doors, windows,
shutters and curtain walling. Recovery after accelerated ageing test
method
Current
BS EN 12453:2001 Industrial, commercial and garage doors and gates. Safety in use of
power operated doors. Requirements
Current, Work
in Hand
BS 8220-2:1995
Guide for security of buildings against crime. Offices and shops
Current
BS EN 12605:2000 Industrial, commercial and garage doors and gates. Mechanical aspects.
Test methods
Current, Work
in Hand
03/115061 DC
ISO 3008. Fire resistance tests. Test method for fire resistance of doors
and shutters
Current, Draft
for Public
Comment
03/102655 DC
EN 14648. Building hardware. Fittings for shutters. Requirements and test
methods
Current, Draft
for Public
Comment
04/19991935 DC
BS EN 1634-2. Fire resistance tests for door and shutter assemblies. Part
2. Fire door hardware. Building hardware for fire resisting doorsets and
openable windows
Current, Draft
for Public
Comment
02/104377 DC
BS EN 14500. Blinds and shutters. Thermal and visual comfort. Test
methods
Current, Draft
for Public
Comment
05/30076951 DC
BS EN 12605. Industrial commercial and garage doors and gates.
Mechanical aspects. Test methods
Current, Draft
for Public
Comment
05/30076959 DC
BS EN 12453. Industrial commercial and garage doors and gates. Safety
in use of power operated doors. Requirements
Current, Draft
for Public
Comment
05/30093062 DC
prEN 15269-2. Extended application of test results for doorsets and
shutter assemblies. For doors and shutters. Part 2. Steel hinged and
pivoted doorsets
Current, Draft
for Public
Comment
03/317805 DC
IEC 60335-2-97 ED.2 A1. Household and similar electrical appliances.
Safety. Particular requirements for drives for rolling shutters, awnings,
blinds and similar equipment
Current, Draft
for Public
Comment
04/30113929 DC
EN ISO 10077-1. Thermal performance of windows, doors and shutters.
Calculation of thermal transmittance. Part 1. General
Current, Draft
for Public
Comment
04/30116228 DC
EN 60335-2-97. Household and similar electrical appliances. Safety. Part
2-97. Particular requirements for drives for rolling shutters, awnings,
blinds and similar equipment
Current, Draft
for Public
Comment
05/30137099 DC
ISO 5925-1. Fire tests. Smoke control door and shutter assemblies. Part
1. Ambient and medium temperature leakage test procedure
Current, Draft
for Public
Comment
05/30137946 DC
EN 15269-1. Extended application of test results for fire resistance for
doorsets and shutter assemblies. For doors and windows. Part 1. General
requirements for fire resistance
Current, Draft
for Public
Comment
05/30137949 DC
EN 15269-3. Extended application of test results for fire resistance for
doorsets and shutter assemblies. For doors and shutters. Part 3. Timber
hinged and pivoted doorsets
Current, Draft
for Public
Comment
06/30146718 DC
prEN 1630. Burglar resistant construction products (not for precast
concrete parts). Test method for the determination of resistance to
manual burglary attempts
Current, Draft
for Public
Comment
06/30146719 DC
prEN 1629. Burglar resistant construction products (not for precast
concrete parts). Test method for the determination of resistance under
dynamic loading
Current, Draft
for Public
Comment
06/30146722 DC
prEN 1628. Burglar resistant construction products (not for precast
concrete parts). Test method for the determination of resistance under
static loading
Current, Draft
for Public
Comment
06/30146723 DC
prEN 1627. Burglar resistant construction products (not for precast
concrete parts). Requirements and classification
Current, Draft
for Public
Comment
BS EN
10223-4:1998
Steel wire and wire products for fences. Steel wire welded mesh fencing
Current
BS EN ISO
8560:1999
Construction drawings. Representation of modular sizes, lines and grids
Current
BS EN 12635:2002 Industrial, commercial and garage doors and gates. Installation and use
Current
BS EN 631-2:1999
Materials and articles in contact with foodstuffs. Catering containers.
Dimensions of accessories and supports
Confirmed,
Current
The British Standard Institute identifies the following standards for Garage Doors:
Standard Number
Title
Status
BS EN
12433-1:2000
Industrial, commercial, and garage doors and gates. Terminology.
Types of doors
Current
BS EN
12433-2:2000
Industrial, commercial, and garage doors and gates. Terminology. Parts
of doors
Current
BS EN 12424:2000 Industrial, commercial and garage doors and gates. Resistance to wind
load. Classification
Current
BS EN 12425:2000 Industrial, commercial and garage doors and gates. Resistance to water
penetration. Classification
Current
BS EN 12426:2000 Industrial, commercial and garage doors and gates. Air permeability.
Classification
Current
BS EN 12427:2000 Industrial, commercial and garage doors and gates. Air permeability.
Test method
Current
BS EN 12428:2000 Industrial, commercial and garage doors and gates. Thermal
transmittance. Requirements for the calculation
Current
BS EN 12635:2002 Industrial, commercial and garage doors and gates. Installation and use Current
BS EN 12604:2000 Industrial, commercial and garage doors and gates. Mechanical
aspects. Requirements
Current, Work in
Hand
BS EN 12453:2001 Industrial, commercial and garage doors and gates. Safety in use of
power operated doors. Requirements
Current, Work in
Hand
penetration. Test method
BS EN 12444:2001 Industrial, commercial and garage doors and gates. Resistance to wind
load. Testing and calculation
Current
BS EN 12978:2003 Industrial, commercial and garage doors and gates. Safety devices for
power operated doors and gates. Requirements and test methods
Current
BS EN
13241-1:2003
Industrial, commercial and garage doors and gates. Product standard.
Products without fire resistance or smoke control characteristics
Current
BS EN 12605:2000 Industrial, commercial and garage doors and gates. Mechanical
aspects. Test methods
Current, Work in
Hand
BS EN
60335-2-95:2001
Specification for safety of household and similar electrical appliances.
Particular requirements. Particular requirements for drives for vertically
moving garage doors for residential use
Current, Revised
BS EN 12445:2001 Industrial, commercial and garage doors and gates. Safety in use of
power operated doors. Test methods
Current, Work in
Hand
BS EN
60335-2-95:2004
Household and similar electrical appliances. Safety. Particular
requirements for drivers for vertically moving garage doors for
residential use
Current
96/108073 DC
prEN 12624. Industrial, commercial and garage doors and gates.
Operational noise. Requirements and test methods
Current, Draft for
Public Comment
96/108703 DC
prEN 12652. Industrial, commercial and garage doors and gates. Sound
reduction. Requirements and classification
Current, Draft for
Public Comment
05/30076926 DC
EN 12604. Industrial commercial and garage doors and gates.
Mechanical aspects. Requirements
Current, Draft for
Public Comment
05/30076951 DC
BS EN 12605. Industrial commercial and garage doors and gates.
Mechanical aspects. Test methods
Current, Draft for
Public Comment
05/30076956 DC
BS EN 12445. Industrial commercial and garage doors and gates.
Safety in use of power operated doors. Test methods
Current, Draft for
Public Comment
05/30076959 DC
BS EN 12453. Industrial commercial and garage doors and gates.
Safety in use of power operated doors. Requirements
Current, Draft for
Public Comment
03/317783 DC
IEC 60335-2-95-A1 ED.2. Safety of household and similar electrical
appliances. Particular requirements for drives for vertically moving
garage doors for residential use
Current, Draft for
Public Comment
British Standards for Electric Boilers
British Standards Institute – June 2006
Analysis of the British Institute website has identified the following British Standards for Electric Boilers.
Standard Number Title
Status
BS 1894:1992
Specification for design and manufacture of electric boilers of welded
construction
Current, Partially
Replaced
BS EN
60335-2-63:1993
Specification for safety of household and similar electrical appliances.
Particular requirements. Commercial electric water boilers and liquid
heaters
Current,
Superseded
BS EN
60730-2-15:1996, IEC
60730-2-15:1994
Specification for automatic electrical controls for household and similar
use. Particular requirements. Automatic electrical water level sensing
controls of the float or electrode-sensor type used in boiler
applications. Section 2.15: Automatic electrical water level sensing
controls controls of the flaot or electrode-sensor type used in boiler
applications
Current, Work in
Hand
BS 855:1990
Specification for welded steel boilers for central heating and indirect
hot water supply (rated output 44 kW to 3 MW)
Current, Partially
Replaced
BS EN
60335-2-15:1996, IEC
60335-2-15:1995
Specification for safety of household and similar electrical appliances.
Particular requirements. Appliances for heating liquids. Particular
requirements for Appliances for heating liquids
Current, Revised
BS 749:1969
Specification for underfeed stokers
Current
BS 2486:1997
Recommendations for treatment of water for steam boilers and water
heaters
Current
BS EN
12952-8:2002
Water-tube boilers and auxiliary installations. Requirements for firing
systems for liquid and gaseous fuels for the boiler
Current
BS EN
60335-2-15:2002
Specification for safety of household and similar electrical appliances.
Particular requirements for appliances for heating liquids
Current
BS 5986:1980
Specification for electrical safety and performance of gas fired space
heating appliances with inputs 60 kW to 2 MW
Confirmed, Current
BS 6880-
3:1988
Code of practice for low temperature hot water heating systems of
output
greater than 45 kW. Installation, commissioning and maintenance
Current
BS
3456-202.46:1990, EN
60335-2-46:1989
Specification for safety of household and similar electrical appliances.
Particular requirements. Specification for safety of household and
similar electrical appliances. Particular requirements. Commercial
electric steam cookers
Current
BS EN
14597:2005
Temperature control devices and temperature limiters for heat
generating systems
Current
BS ISO
14617-11:2002
Graphical symbols for diagrams. Devices for heat transfer and heat
engines
Current
BS EN
12952-7:2002
Water-tube boilers and auxiliary installations. Requirements for
equipment for the boiler
Current, Work in
Hand
BS 6880-2:1988
Code of practice for low temperature hot water heating systems of
output greater than 45 kW. Selection of equipment
Current
BS EN
60730-2-18:1999, IEC
60730-2-18:1997
Specification for automatic electrical controls for household and similar
use. Particular requirements. Particular requirements for automatic
electrical water and air flow sensing controls, including mechanical
requirements. Particular requirements forautomatic electrical water and
air flow sensing controls, including mechanical requirements
Current, Work in
Hand
BS EN
60335-2-75:2004
Specification for safety of household and similar electrical appliances.
Particular requirements for commercial dispensing appliances and
vending machines
Current, Work in
Hand
BS 5258-15:1990
Safety of domestic gas appliances. Specification for combination
boilers
Current,
Obsolescent
03/117957 DC
IEC 60730-2-15 ED.2. Automatic controls for household and similar
use. Part 2-15. Particular requirements for automatic electrical water
level sensing controls of the float or electrode-sensor type used in
boiler applications
Current, Draft for
Public Comment
04/30115376 DC
BS EN 60730-2-15/prA11. Automatic electrical controls for household
and similar use. Part 2-15. Particular requirements for automatic
electrical water level sensing controls of the float or electrode-sensor
type used in boiler applications
Current, Draft for
Public Comment
06/30145467 DC
EN 15456. Heating boilers. Electrical power consumption for heat
generators. System boundaries. Measurements
Current, Draft for
Public Comment
Metal Cladding & Roofing Manufacturers Association
According to the Metal Cladding & Roofing Manufacturers Association there are currently no British Standards
covering the stone coated metal tile product which Satjam manufacture.
The only British Standard in place which relates to this type of product is a code of practice for cladding buildings –
BS 5427.
In order to trade in the UK, Satjam may be required to meet British Standards with regards to the components of
their tile product. That is, Satjam may be required to meet the British Standards set for the materials used for the
tile for example regulations on the base metal, the coatings etc.
RoofConsult – May 2006
RoofConsult are an advisory service involved in the UK roofing and cladding industry.
The British Standards, listed on the RoofConsult website, which relate most closely to the products produced by
Satjam are those covering Sheeting and Cladding and those covering Metal Roofing.
The Standards shown on the RoofConsult website are as follows:
British Standards - Sheeting & Cladding
CP 143 -1:1958
Code of practice for sheet roof and wall coverings. Aluminium, corrugated and troughed
BS EN 494 :1994
Fibre-cement profiled sheets and fittings for roofing. Product specification and test methods
BS EN 506 :2000
Roofing products from metal sheet. Specification for self-supporting products of copper or
zinc sheet
BS EN 508 -1:2000
Roofing products from metal sheet. Specification for self-supporting products of steel,
aluminium or stainless steel sheet. Steel
BS EN 508 -2:2000
Roofing products from metal sheet. Specification for self-supporting products of steel,
aluminium or stainless steel sheet. Aluminium
BS EN 508 -3:2000
el
Roofing products from metal sheet. Specification for self-supporting products of steel,
aluminium or stainless steel sheet. Stainless ste
BS EN 1013
-1:1998 L
Light transmitting profiled plastic sheeting for single skin roofing. General requirements and
test methods
BS EN 1013
-2:1999
Light transmitting profiled plastic sheeting for single skin roofing. Specific requirements and
test methods for sheets of glass fibre reinforced polyester resin (GRP)
BS EN 1013
-3:1998
Light transmitting profiled plastic sheeting for single skin roofing. Specific requirements and
test methods for sheets of polyvinyl chloride (PVC)
BS EN 1013
-4:2000
Light transmitting profiled plastic sheeting for single skin roofing. Specific requirements, test
methods and performance of polycarbonate (PC) sheets
BS EN 1013
-5:2000
Light transmitting profiled plastic sheeting for single skin roofing. Specific requirements, test
methods and performance of polymethylmethacrylate (PMMA) sheets
BS 5427 -1:1996
Code of practice for the use of profiled sheet for roof and wall cladding on buildings
BS 8219 :2001
Installation of sheet roof and wall coverings - Profiled fibre cement - Code of Practice.
BS EN 12152 :2002
Curtain Walling - Air permeability - Performance requirements and classifications
British Standards - Metal Roofing
BS EN 501 :1994
Roofing products from metal sheet. Specifications for fully supported roofing products of zinc
sheet
BS EN 502 :2000
Roofing products from metal sheet. Specification for fully supported products of stainless
BS 5427-1:1996 Code of practice for the use of profiled sheet for roof and wall cladding on buildings. Design
steel sheet
BS EN 504 :2000
Roofing products from metal sheet. Specification for fully supported roofing products of
copper sheet
BS EN 505 :2000
Roofing products from metal sheet. Specification for fully supported roofing products of steel
sheet
BS EN 507 :2000
Roofing products from metal sheet. Specification for fully supported roofing products of
aluminium
BS EN 988 :1997
Zinc and zinc alloys. Specification for rolled flat products for building
BS 6915 :2001
Design and Construction of fully supported lead sheet roof and wall coverings. Code of
practice
BS EN 14782:2006
Self-supporting metal sheet for roofing, external cladding and internal lining. Product
specification and requirements
David George (RoofConsult’s Standards & Flat Roofing Materials Expert):
Mr. George from RoofConsult has advised that as far as his records, and those of a colleague of his at BSI, shows
there are no specific British or European standards for steel roof tiles.
Mr. George recommended that the Czech companies approach a testing board such as the BBA to have their
product tested in order to receive certification for selling in the UK.
Alternatively he suggested they apply for an E-Tag in order to receive CE marking for the product.
British Standards Institute – June 2006
Analysis of the British Standards Institute has identified the following British Standards for Satjam’s type of roofing
products:
Standard Number Title Status BS EN
12629-4:2001
Machines for the manufacture of constructional products from concrete and calcium-silicate. Safety. Concrete and tile making machines
Current
BS EN 1304:2005 Clay roofing tiles and fittings. Product definitions and specifications Current BS EN 539-1:2005 Clay roofing tiles for discontinuous laying. Determination of physical characteristics.
Impermeability test
Current
BS EN 491:2004 Concrete roofing tiles and fittings for roof covering and wall cladding. Test methods Current BS EN 539-2:1998 Clay roofing tiles for discontinuous laying. Determination of physical characteristics.
Test for frost resistance
Current, Work in Hand BS EN 490:2004 Concrete roofing tiles and fittings for roof covering and wall cladding. Product
specifications
Current, Work in Hand BS 8000-6:1990 Workmanship on building sites. Code of practice for slating and tiling of roofs and
claddings
Confirmed, Current BS EN 538:1994 Clay roofing tiles for discontinuous laying. Flexural strength test Current BS EN 1024:1997 Clay roofing tiles for discontinuous laying. Determination of geometric characteristics Current
BS 5534:2003 Code of practice for slating and tiling (including shingles) Current
BS EN 14437:2004
Determination of the uplift resistance of clay or concrete tiles for roofing. Roof system test method
Current
BS EN 13748-2:2004
Terrazzo tiles. Terrazzo tiles for external use Current
DD CEN/TS 15087:2005
Determination of the uplift resistance of installed clay and concrete interlocking tiles for roofing. Test method for mechanical fasteners
Current
04/30099864 DC BS EN 539-2. Clay roofing tiles for discontinuous laying. Determination of physical characteristics. Part 2. Test for frost resistance
Current, Draft for Public Comment 05/30139071 DC EN 490 AMD 1. Concrete roofing tiles and fittings for roof covering and wall cladding.
Product specifications
Current, Draft for Public Comment
British Standards for Steel Roof Products:
Standard Number
Title Status
BS 1494-1:1964 Specification for fixing accessories for building purposes. Fixings for sheet, roof and wall coverings
Current
BS EN 508-1:2000
Roofing products from metal sheet. Specification for self-supporting products of steel, aluminium or stainless steel sheet. Steel
Current
BS EN 508-2:2000
Roofing products from metal sheet. Specification for self-supporting products of steel, aluminium or stainless steel sheet. Aluminium
Current
BS EN 508-3:2000
Roofing products from metal sheet. Specification for self-supporting products of steel, aluminium or stainless steel sheet. Stainless steel
Current
BS EN 502:2000 Roofing products from metal sheet. Specification for fully supported products of stainless steel sheet
Current
BS EN 505:2000 Roofing products from metal sheet. Specification for fully supported roofing products of steel sheet
Current
CP 143-10:1973 Code of practice for sheet roof and wall coverings. Code of practice for sheet roof and wall coverings. Galvanized corrugated steel. Metric units
Current, Proposed for Confirmation BS 5950-6:1995 Structural use of steelwork in building. Code of practice for design of light
gauge profiled steel sheeting
Current
BS EN 14782:2006
Self-supporting metal sheet for roofing, external cladding and internall ining. Product specification and requirements
BS 5950-7:1992 Structural use of steelwork in building. Specification for materials and workmanship: cold formed sections
Current, Obsolescent BS 5427-1:1996 Code of practice for the use of profiled sheet for roof and wall cladding on
buildings. Design
Current
BS 5950-9:1994 Structural use of steelwork in building. Code of practice for stressed skin design
Current
DD ENV 10169-2:1999
Continuously organic coated (coil coated) steel flat products. Products for building exterior applications
Current
03/115371 DC EN 14783. Fully supported metal sheet and strip for roof coverings and wall finishes
Current, Draft for Public Comment
British Standards for Metal Roof Products:
Standard Number
Title Status
BS EN 501:1994 Roofing products from metal sheet. Specifications for fully supported roofing products of zinc sheet
Current
BS EN 508-1:2000
Roofing products from metal sheet. Specification for self-supporting products of steel, aluminium or stainless steel sheet. Steel
Current
BS EN 508-2:2000
Roofing products from metal sheet. Specification for self-supporting products of steel, aluminium or stainless steel sheet. Aluminium
Current
BS EN 508-3:2000
Roofing products from metal sheet. Specification for self-supporting products of steel, aluminium or stainless steel sheet. Stainless steel
Current
BS EN 507:2000 Roofing products from metal sheet. Specification for fully supported roofing products of aluminium sheet
Current
BS EN 505:2000 Roofing products from metal sheet. Specification for fully supported roofing products of steel sheet
Current
BS EN 504:2000 Roofing products from metal sheet. Specification for fully supported roofing products of copper sheet
Current
BS EN 14782:2006
Self-supporting metal sheet for roofing, external cladding and internall ining. Product specification and requirements
Current
BS 5950-7:1992 Structural use of steelwork in building. Specification for materials and workmanship: cold formed sections
Current, Obsolescent BS EN 506:2000 Roofing products from metal sheet. Specification for self-supporting products
of copper or zinc sheet
Current
BS EN 502:2000 Roofing products from metal sheet. Specification for fully supported products of stainless steel sheet
Current
CP 143-10:1973 Code of practice for sheet roof and wall coverings. Code of practice for sheet roof and wall coverings. Galvanized corrugated steel. Metric units
Current, Proposed for Confirmation BS
6100-1.5.2:1987
Glossary of building and civil engineering terms. General and miscellaneous. Operations. Associated plant and equipment. Jointing
Current, Proposed for Confirmation, Work in Hand 96/104019 DC prEN 503. Roofing products from metal sheet. Specification for fully supported
roofing products of lead sheet
Current, Draft for Public Comment 02/105004 DC prEN 14509. Self-supporting double skin metal faced insulating sandwich
panels. Factory made products. Specification
Current, Draft for Public Comment 03/115371 DC EN 14783. Fully supported metal sheet and strip for roof coverings and wall
finishes
Current, Draft for Public Comment
British Standards for Clay/Stone Roofing Products:
Standard Number
Title Status
