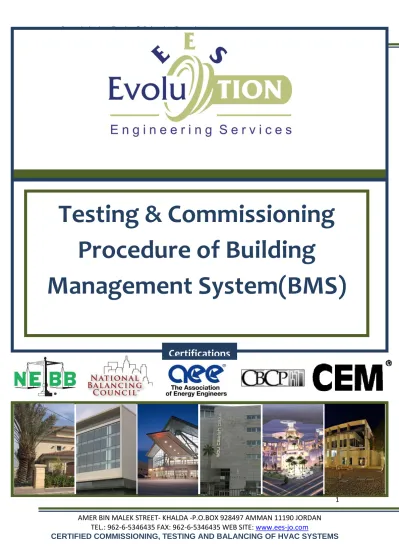

BMS method statement

(1)

Certifications

Testing & Commissioning

Procedure of Building

(2)

1. Purpose

This procedure prescribes a uniform set of methods for conducting commissioning verification checks and functional tests of HVAC DDC Systems (BMS).

2. Scope

1. definitions and terminology

2. a general description of method(s) provided

3. required information and conditions for initiating a check or test 4. recommendations for applying general protocols specific applications 5. uniform method(s) including identification of test equipment and

measurement points for performing such checks or tests 6. identification of requirements for acceptance

3. Reference

1. Project Specifications. 2. NEEB.

3. Manufacturer test sheet.

4. Instruments

1. Multi meter including AC/DC. 2. Clamp meters. 3. Thermometer. 4. Humidity meter. 5. Flow hood. 6. Flow-meter.

5. Preliminary Checks

The following general check list must be done before starting the test: 1. Proper pneumatic pressures and conditions

2. Proper electric voltage and amperages, and all circuits are free from grounds or faults.

3. Integrity/safety of all electrical [and pneumatic] connections 4. Proper interface with fire and life safety systems

5. Identification of all necessary control settings determined from balancing procedures including:

 Optimum VAV duct pressure set points

 VAV fan VFD minimum and maximum speed settings

 VAV Return fan volume tracking settings

(4)

 VAV box minimum and maximum volume settings.

 Optimum differential pressure set points for variable speed

pumping.

 Variable volume pumps VFD minimum and maximum speed

settings.

 Verification of air-handler maximum design flow.

6. Testing, calibration, and setting of all digital and analog sensing and actuating devices.

7. Checking and setting zero and span adjustments for all actuating devices. 8. Checking of each digital control point.

9. Programming and testing of all sequences of operation, schedules and set points.

10. Proper tuning of all control loops.

6. Testing Procedure

6.1 Verification checks:

Those full range of physical inspections and checks that are conducted to verify that specific components, equipment, systems, and interfaces between systems conform to a given criteria. These checks typically verify proper installation, start-up and initial contractor checkout, prior to equipment being functionally tested.

 Documentation checks: verify specifications, submittals, TAB report,

pre-commissioning report, as-built drawings, and training implementation.

 Hardware/software installation checks: verify nameplate data, verify

installed characteristics, and verify system is operational.

 Software implementation checks: verify AI, AO, DI/DO I/O points, verify

sensor calibrations; demonstrate offline setpoints, control sequence logic, graphics, alarm codes and standard reports.

6.2 functional tests:

Those full range of tests that are conducted to verify that specific components, equipment, systems, and interfaces between systems conform to a given criteria. These tests are typically used to verify that a sequence of operation is correctly implemented or that a design intent criterion has been met. They typically are done after equipment is placed in full operation. Performance tests, which include efficiency, capacity, load, monitoring and M&V or savings protocols, are considered a subset of functional tests.

 Software functionality tests.

 Operational trend tests: observed range of control; can be used to verify many control sequences.

 Control sequence tests. Possible tests include: start/stop (on/off);

(5)

cool-down], unoccupied setback [includes night purge], sweep); lead/lag (includes runtime and equipment failure); staging; reset (including setpoint change, control by flow and speed control); safeties; economizer; life safety interface; power failure.

6.2 Networks (LAN/WAN):

The media that connects multiple intelligent devices. LAN (local area network) implies a network over small geographic area. A building may have two LAN’s, one for the building computer network and one for the DDC system. WAN (wide area network) implies data transfer through a router. The most basic task of the network is to connect the DDC controllers so that information can be shared between them.

6.3 user interface devices:

Operator workstation (desktop computer with necessary software to provide full access and operational capabilities to the entire DDC system); remote workstation, also known as a portable terminal (laptop computer with necessary software to provide full access and operational capabilities to the entire DDC system from a remote location); mobile terminal station, also known as a hand-held terminal (typically supplied and programmed by the vendor for specific set-up tasks); smart stats (thermostats that allow a multiple hierarchy of user entered offsets and adjustments); web browser (an internet based device with limited software that provides some level of access and operational capabilities).

(6)

7. Test Forms.

 Field device installation check form: (Sensors and Controlled Devices)

Device Name Installation Wiring Operation

Tem. sensor Humidity sensor Differential pressure switch Flow switch Valves Actuators Dampers Pressure sensor Velocity sensor

 Direct Digital Control (DDC) Panel Check form:

Panel Name Installation verification I/O points setup check Program dawn loaded Network operation Stand alone operation DDC1 DDC2 DDC3 DDC4 DDC5 DDC6

(7)

 Software and Graphical interface: Software name:……… System name Graphic assembly test Commands assembly test Feedback assembly test Alarm and Alarm history test Time/ Date Look Sound Chiller Boiler AHU1 AHU2 Fire Fighting Pump Lighting Transformer  Sequence of Operation: Controlled / Monitored

System Sequence Of Operation

Acceptance

Remarks

Yes No

Chiller Filled when final _{sequence is approved} Boiler Filled when final _{sequence is approved} AHU1 Filled when final _{sequence is approved} AHU2 Filled when final _{sequence is approved} FCU Filled when final _{sequence is approved} Lighting Filled when final _{sequence is approved}

Pumps Filled when final

(8)

 Interface with other systems:

System Name Description of interface Acceptance Remarks

Yes No Elevators Fire Alarm Access Door Security Power system Generators Transformers

 Network test form:

Network No.

Processor type Media Type Connection to

work station
