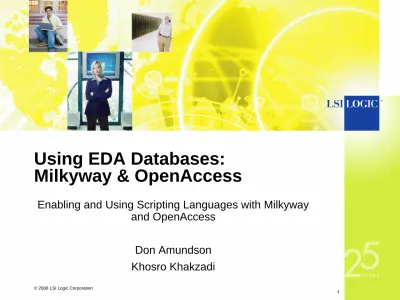

Using EDA Databases:
Milkyway & OpenAccess
Enabling and Using Scripting Languages with Milkyway and OpenAccess
2
Outline
•
History
•
Choice Of Scripting Language
•
When To Use Scripting Language
•
When Not To Use Scripting Language
•
Python For OpenAccess & Milkyway
•
Summary
•
Something Completely Different
History
Internal CAD
Commercial CAD
4
History
Flexstream LSI Internal CAD
•
LSI Proprietary CAD system§ Data base API written in C
§ Data base functions return error code that must be checked after each function call
§ Global variables, Memory management
•
LSI Internal Common API§ Written in C++
§ Use C++ exception rather that check return code
§ Abstraction layer to hide the data base
§ Main objective was to substantially reduce porting cost of internal tools when data base changes
§ Python wrappers written for the common API
• To provide rapid prototyping capability
• Ease of use for Engineers
•
LSI Proprietary CAD system flavor of this API developed§ Python wrappers are basically free
History
Third party CAD
•
Synopsys (Avant!)§ Same characteristics as LSI Proprietary CAD system • Data base API (Milkyway) written in C
• Data base functions return error code
• Applications must manage memory allocated by API
• At the time certain operations not available in C (scheme only)
§ Milkyway Flavor of LSI Common API
• Same motivation as LSI Internal Common API
- Written in C++
- Object oriented
- Use C++ exception rather that check return code
- Abstraction layer to hide the data base
- Substantially reduce porting cost of internal tools • Python wrappers are basically free
- Implementation is a number of #include ‘s
•
“Other” Flavors Of LSI Common API§ Minor porting cost
• This allowed existing programs written for LSI Proprietary CAD system to port by simply including new header files and recompiling.
6
History
Third party CAD
Utilities
Tcl/Tk
GUI Forms
OpenAccess V1 API 3rd Party Database API LSI DatabaseAPI Based Applications
API Layer (DB side)
History
Third party CAD
Utilities
Tcl/Tk
GUI Forms
API Based Applications
OpenAccess 2.0
Decided to Natively Adopt OA 2.x As Common API
© 2006 LSI Logic Corporation
8
Choice of Scripting Language
PYTHON
TCL
JAVA
10
Choice of Scripting Language
PYTHON
•
Python – Reasons LSI chose Python
§ More proficient in python than Tcl.
§ Python is an object oriented language, this results in a easy and clean mapping to class based languages such as C++
§ Easy to learn thus ideal to use by engineers who may not be interested in hard core programming
§ “Python provides you with a good environment for quickly developing an initial prototype” http://www.amk.ca/python/howto/advocacy
Choice of Scripting Language
TCL
•
TCL – Reasons LSI chose Python
§ “Like Python, Tcl is usable as an application extension
language, as well as a stand-alone programming language. However, Tcl, which traditionally stores all data as strings, is weak on data structures…” http://python.fyxm.net/doc/essays/comparisons.html
§ Better suited for pure script programming and good choice for command interpreters.
§ “Tcl scripts can be useful and efficient if they grow to no larger than a few pages, and if they manage a relatively
12
Choice of Scripting Language
JAVA
•
Java – Reasons LSI chose Python
§ Java was in its infancy. (Circa 1996)
§ Java will be the choice for LSI in the future.
§ “Java's design is friendlier to glue languages than C. Both Java's type safety and the existence of a reflection API make it reasonably easy to automatically generate wrappers that allow Python programmers to access Java packages. “
http://www.python.org/workshops/1997-10/proceedings/hugunin.html
§ With availability of open source “development tools” such as Eclipse we believe JAVA will become the scripting language of choice at LSI.
• Eclipse http://www.eclipse.org/
- “Eclipse is an open source community whose projects are focused on providing an extensible development platform and application frameworks for building software.”
When To Use Scripting Language
Data Base Conversion
Data Base Browser
14 DEF Interface DEF Interface DEF File 5:15 min 75k gates + 3 rams DEF Interface DEF File DEF File
3:02 min + HAND edits
DEF Interface
OpenAccess Milkyway
When To Use Scripting Language
Milkyway To OpenAccess
Python Interface
Python Interface MW to OA Python App – 5:50 min
In Memory Interpretive Translators File Based Compiled Translators
CHIP CELL
16
When to use scripting language
Browse Milkyway
18
When to use scripting language
Browse OpenAccess
When Not To Use Scripting
Language
Complex Data Structures
Complex Algorithm
20
When not to use scripting language
•
Cycle intensive programs such as DRC, Placement or Routing.These may be prototyped in a language like python but will not be useful in production
•
Example§ Flexstream to Milkyway • Not the same problem as
Milkyway to OA
• Different connectivity model requires converting “edge
connected” shapes to “center line connected” shapes
• DRC algorithm
FlexStream 1.0
When not to use scripting language
Flexstream to Milkyway
Insert WIRE
© 2006 LSI Logic Corporation
22
Python For
Python For Milkyway
•
Milkyway Flavor of LSI Internal Common AP
§ Difficult to write Python wrappers for Milkyway API
§ Common API makes writing python wrappers relatively easy
•
Python wrappers ( for the Common API )
§ Usable for any data base
string AvantNet :: Name() const { if (!ObjectId() )
return string(); // Return empty String
char * name = NULL;
// Milkyway MWXDb_Get_name() will allocate memory
// for the net name, so this method is responsible for the memory
int32 rc = MWXDb_Get_Net_name ( CellId(), ObjectId(), &name );
if ( !AvantApiMWXError(rc,"Find Net Name") ) // throw exception or issue error message
return string(); // if in message mode
string result = name;
free(name); // Further, certain names (i.e. layer names) may not be freed.
return result;
24
Python For Milkyway
•
Python Wrapper (Milkyway Flavor of API)
#define PDPY_AVANTI_API
#include "so_sdb_avant.H“ (#define SdbNet AvantNet)
Python for OpenAccess
•
Code is auto-generated directly from header files
§ We considered SWIG and BOOST PYTHON
• Reduce maintenance with code updates
•
Each OA type maps to a real Python type
•
Python API matches C++ API as much as possible
Code Generator API Header Files Hint Information Extension
© 2006 LSI Logic Corporation
26
SUMMARY
•
PYTHON & TCL Are used extensively at LSI
§ Both provide an interpreted high-level programming environment.
§ Widely available and well supported.
§ Free
•
Python has been historically used as the primary scriptinglanguage for programs performing complex operations on large data bases
§ Familiarity.
§ Easy to manage large programs.
§ Rapid prototyping
§ Component gluing
§ Flexibility, Interactivity, Debugging, Testing, etc.
•
TCL has been historically used as embedded command processor for applications.§ Works well when program is small, the amount of data being managed is small & the data structures map well to strings.
28
SUMMARY
•
JAVA
§ LSI Common API was developed when JAVA was in its infancy
§ JAVA is very well supported and its feature set is growing at a much faster rate than Tcl or Python.
•
Productivity gains achieved through Eclipse are such
that we may not have a choice but to move to JAVA.
•
LSI is considering developing JAVA wrappers for
30
And Now For Something Completely Different
•
Can you guess the following language?
• Hint : ! English
