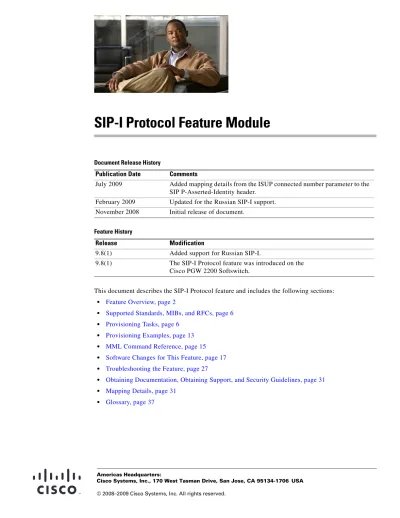

SIP-I Protocol Feature Module
Document Release History
Feature History
This document describes the SIP-I Protocol feature and includes the following sections: • Feature Overview, page 2
• Supported Standards, MIBs, and RFCs, page 6 • Provisioning Tasks, page 6
• Provisioning Examples, page 13 • MML Command Reference, page 15 • Software Changes for This Feature, page 17 • Troubleshooting the Feature, page 27
• Obtaining Documentation, Obtaining Support, and Security Guidelines, page 31 • Mapping Details, page 31
• Glossary, page 37
Publication Date Comments
July 2009 Added mapping details from the ISUP connected number parameter to the SIP P-Asserted-Identity header.
February 2009 Updated for the Russian SIP-I support. November 2008 Initial release of document.
Release Modification
9.8(1) Added support for Russian SIP-I.
9.8(1) The SIP-I Protocol feature was introduced on the Cisco PGW 2200 Softswitch.
SIP-I Protocol Feature Module Feature Overview
Feature Overview
SIP-I (SIP with encapsulated ISUP) is an ITU-defined SIP extension which allows IP networks to provide services that are supported by ISUP networks, for example, malicious call identification. The feature allows the Cisco PGW 2200 Softswitch to interwork between SIP-I and ISUP, and also to interwork between SIP-I and other protocols such as SIP, H.323, PRI, and QSIG. Where PSTN services are required in IP networks, SIP trunks with SIP-I support can be the preferred method for supplying these services, because the ISUP content is encapsulated in SIP message headers.
The SIP-I Protocol feature is useful in a next-generation network (NGN) emulation model, where the Cisco PGW 2200 Softswitch, working with the Cisco BTS 10200 Class 5 softswitch in a SIP solution, communicates with other NGNs using SIP-I. This new feature is also useful for bridging existing PSTN networks without TDM interconnections being required.
This feature introduces a SIP-I interface license. For more information about the SIP-I interface license on the Cisco PGW 2200 Softswitch, see the Licensing Features for the Cisco PGW 2200 Softswitch at http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/feature/module/9.7_3_/FlexLM.html See the following lists of ISUP services interworking and transmitting with SIP-I on the Cisco PGW 2200 Softswitch.
Supported ISUP Services Interworking with SIP-I (Profile C)/SIP (Profile B)
• Malicious Call Identification (MCID)(SIP-I only) • Call Diversion (CFB, CFNR, CFU, CD)
• Connected Line Presentation and Restriction (COLP/COLR) • Calling Line Presentation and Restriction (CLIP/CLIR) • Number Portability (NP)
• Call Hold (HOLD) • Terminal Portability (TP)
• B-controlled Release (CCL) (for Russian SIP-I only) • Call Offering (ACM/SUS/RNG) (for Russian SIP-I only)
Supported ISUP Services Transiting with SIP-I
• SUB-addressing (SUB)
• Malicious Call Identification (MCID) • Call Waiting (CW)
• Call Diversion (CFB, CFNR, CFU, CD) • Conference Calling (CONF)
• Three Party (3PTY)
• Explicit Call Transfer (ECT) • User-to-User Service (UUS) • Direct-Dialling-In (DDI)
• Connected Line Presentation and Restriction (COLP/COLR) • Calling Line Presentation and Restriction (CLIP/CLIR) • Completion of Calls to Busy Subscriber (CCBS)
SIP-I Protocol Feature Module
Feature Overview
• Number Portability (NP)
Figure 1 shows how service providers interwork the ISUP services using this SIP-I Protocol feature. In this figure, PGW B interconnects different ISUP variants and other protocols like ISDN, DPNSS, and EISUP on the SIP trunk with SIP-I support.
Figure 1 Interworking Between Service Providers with SIP-I
Figure 2 shows the SIP-I being used on multiple incoming SIP trunk groups. In this figure,
Cisco PGW 2200 Softswitches interwork ISUP variants, ISDN, SIP, HSI (EISUP), DPNSS, and EISUP using multiple incoming SIP trunk groups on which different SIP-I versions are provisioned. PGW A interworks TDM, SIP, and H.323 protocols to SIP-I. PGW B interconnects SIP-I variants to the TDM, SIP, and H.323 protocols on multiple incoming SIP trunk groups with SIP-I support.
UK ISUP MGC B GERMAN ISUP MGC C ISDN PGW A DPNSS EISUP ANSI ISUP MGC A UK ISUP UK GERMAN ISUP GERMAN SIP/SIP-I /SIP-GTD SIP ANSI ISUP ANSI ISDN ISDN DPNSS DPNSS EISUP EISUP EISUP HSI(EISUP) 280871 FINNISH ISUP FINNISH RUSSIAN ISUP RUSSIAN PGW B FINNISH ISUP MGC D RUSSIAN ISUP MGC E SIP-I version=ansi00 base=ansi00 SIP-I version=isupv3-uk base=etsi356 SIP/SIP-I /SIP-GTD SIP-I version=q761german base=itu92+ SIP-I version=isupv2-finnish96 base=etsi356 SIP-I version=Q761_97VER_RUSS base=itu92+ 5060
SIP-I Protocol Feature Module Feature Overview
Figure 2 SIP-I Used on Multiple Incoming SIP Trunk Groups
Figure 3 shows the SIP-I being used on a single incoming SIP trunk group. In this figure,
Cisco PGW 2200 Softswitches interwork ISUP variants, ISDN, SIP, HSI (EISUP), DPNSS, and EISUP using a single incoming SIP trunk group which has SIP-I support. This single incoming SIP trunk group of PGW B dynamically adapts to the incoming SIP-I message version.
280872 UK ISUP UK GERMAN ISUP GERMAN SIP/SIP-I /SIP-GTD SIP ANSI ISUP ANSI ISDN ISDN DPNSS DPNSS EISUP EISUP EISUP HSI(EISUP) FINNISH ISUP FINNISH RUSSIAN ISUP RUSSIAN PGW A UK ISUP UK GERMAN ISUP GERMAN SIP/SIP-I /SIP-GTD SIP ANSI ISUP ANSI ISDN ISDN DPNSS DPNSS EISUP EISUP EISUP HSI(EISUP) FINNISH ISUP FINNISH RUSSIAN ISUP RUSSIAN PGW B Route 6060 SIP-I version=ansi00 base=ansi00 7060 SIP-I version=isupv3-uk base=etsi356 5060 SIP 9060 SIP-I version=isupv2-finnish96 base=etsi356 4060 SIP-I version=Q761_97VER_RUSS base=itu92+ 8060 SIP-I version=q761german base=itu92+
SIP-I Protocol Feature Module
Feature Overview
Figure 3 SIP-I Used on a Single Incoming SIP Trunk Group
Benefits
The feature allows service providers to offer a complete VoIP interconnection which can handle PSTN services that the traditional TDM ISUP interconnection supports. Among all the IP interconnection forms (such as SIP, SIP-I, and H.323), SIP-I interconnections can be the destination of choice if service providers require PSTN service interworking.
The Cisco PGW 2200 Softswitch supports ITU, ANSI, German, UK, Finnish, and Russian ISUP encapsulated in SIP-I messages, which allows a high degree of interworking for many services across a SIP-I configured link.You can provision the closest base or the closest country-specific SIP-I variant if you are using SIP-I for other ISUP variants. The service interoperability level between SIP-I and other protocols such as SIP, H.323, PRI, and QSIG, is lower than the interoperability level between SIP-I and ISUP, but is nearly equivalent to the interoperability level between those protocols and ISUP today.
Prerequisites
The Cisco PGW 2200 Softswitch must be running Cisco PGW 2200 Softswitch software Release 9.8(1). Prerequisites for this release can be found in the Release Notes for Cisco PGW 2200 Softswitch Release 9.8(1) at http://www.cisco.com/en/US/partner/docs/voice_ip_comm/pgw/9/release/note/rn981.html. 280874 5060 SIP-I version=ansi00 base=ansi00 SIP-I version=isupv3-uk base=etsi356 SIP SIP-I version=q761german base=itu92+ SIP-I version=isupv2-finnish96 base=etsi356 UK ISUP UK GERMAN ISUP GERMAN SIP/SIP-I /SIP-GTD SIP ANSI ISUP ANSI ISDN ISDN DPNSS DPNSS EISUP EISUP EISUP HSI(EISUP) FINNISH ISUP FINNISH RUSSIAN ISUP RUSSIAN PGW A Route PGW B UK ISUP UK GERMAN ISUP GERMAN SIP/SIP-I /SIP-GTD SIP ANSI ISUP ANSI ISDN ISDN DPNSS DPNSS EISUP EISUP EISUP HSI(EISUP) FINNISH ISUP FINNISH RUSSIAN ISUP RUSSIAN SIP-I version=Q761_97VER_RUSS base=itu92+
SIP-I Protocol Feature Module Provisioning Tasks
Restrictions or Limitations
The SIP-I Protocol feature has the following limitations:
• Currently the Cisco PGW 2200 Softswitch does not support SIP precondition (the ability to require that the SIP participant reserve network resources before continuing with the session).
• Currently the Cisco PGW 2200 Softswitch supports only en-bloc signaling on the SIP side for SIP-I. The Cisco PGW 2200 Softswitch supports overlap signaling on the TDM ISUP side.
Related Documents
This document contains information that is strictly related to this feature. The documents that contain additional information related to the Cisco PGW 2200 Softswitch are at
http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/tsd_products_support_series_home.html.
Supported Standards, MIBs, and RFCs
StandardsThis feature is in compliance with the following standards:
• ITU-T Recommendation Q.1912.5 (2004) Interworking between Session Initiation Protocol (SIP) and ISDN User Part
• ETSI EN 383 001: Telecommunications and Internet Converged Services and Protocols for Advanced Networking (TISPAN); Interworking between Session Initiation Protocol (SIP) and ISDN User Part (ISUP) [ITU-T Recommendation Q.1912.5, modified]
• T1.679-2004: Interworking between Session Initiation Protocol (SIP) and ISDN User Part
• ND1017-2006: Interworking between Session Initiation Protocol (SIP) and UK ISDN User Part (UK ISUP)
• Ficora GFI 0301: Guidelines for Implementation ISUP-SIP Interworking Profile C (Finland ISUP)
MIBs
No new or modified MIBs are introduced by this feature.
For more information on the MIBs used in the Cisco PGW 2200 Softswitch software, see the Cisco PGW 2200 Softswitch Release 9 Management Information Base Guide at the following URL. http://www.cisco.com/iam/PGW_MIBS/index.html
Provisioning Tasks
This section describes how to provision this feature and includes four parts: • Provisioning an Incoming SIP Trunk Group, page 7
• Provisioning an Outgoing SIP Trunk Group, page 9 • Enabling the Route Preference, page 11
SIP-I Protocol Feature Module
Provisioning Tasks
Provisioning an Incoming SIP Trunk Group
SIP-I Version Name and ISUP Variant Mapping
The Cisco PGW 2200 Softswitch uses the version subparameter in the Content-Type header of a SIP-I INVITE message to identify SIP-I variants. In order to specify the SIP-I variants supported on the incoming trunk groups, you can add a file, sipIVersion.dat, through MML commands, and associate it with the incoming trunk group SIP profiles. The following provisioning example is applicable to specific networks.
Add Mapping Entries in sipIVersion.dat File
prov-add:sipiversion:profilename="BT",version="X-UKISUP",mdo="ISUPV3_UK_SIPI" prov-add:sipiversion:profilename="BT",version="etsi356",mdo="ISUPV3_UK_SIPI" prov-add:sipiversion:profilename="BT",version="itu-t92+",mdo="Q761_99VER_BASE_SIPI" prov-add:sipiversion:profilename="US",version="itu-t92+",mdo="Q761_99VER_BASE_SIPI" prov-add:sipiversion:profilename="US",version="ansi00",mdo="ANSISS7_STANDARD_SIPI" prov-add:sipiversion:profilename="GERMAN",version="isupv2-german",mdo="ISUPV2_GERMAN_SIPI" prov-add:sipiversion:profilename="FINNISH",version="isupv2-finnish96",mdo="ISUPV2_FINNISH9 6_SIPI" prov-add:sipiversion:profilename="RUSSIAN",version="Q761_97VER_RUSS",mdo="Q761_97VER_RUSS_ SIPI"
The commands listed in the preceding example generate the following SIP-I mapping table.
Edit a Mapping Entry
prov-ed:sipiversion:profilename="BT",version="etsi356",mdo="ISUPV3_UK_SIPI"
Retrieve a Mapping Entry
prov-rtrv:sipiversion:profilename="BT",version="etsi356"
Delete a Mapping Entry
prov-dlt:sipiversion:profilename="BT",version="etsi356" SIP-I Mapping Profile
Name SIP-I Version in Content-Type SIP-I Variant
BT X-UKISUP ISUPV3_UK_SIPI
BT etsi356 ISUPV3_UK_SIPI
BT itu-t92+ Q761_99VER_BASE_SIPI
US itu-t92+ Q761_99VER_BASE_SIPI
US asnsi00 ANSISS7_STANDARD_SIPI
GERMAN isupv2-german ISUPV2_GERMAN_SIPI
FINNISH isupv2-finnish96 ISUPV2_FINNISH96_SIPI
SIP-I Protocol Feature Module Provisioning Tasks
Add a SIP Profile
prov-add:profile:name="sipi-in",type="SIPPROFILE",sipmimebodysupport="4"
Note To support both SIP and SIP-I on the incoming trunk group and support SIP-I on the outgoing trunk group, the Cisco PGW 2200 Softswitch requires the property sipMimeBodySupport to be set to 4.
For detailed property information, see the “Properties” section on page 18.
Attach the SIP-I Mapping Profile to the SIP Profile
prov-ed:profile:name="sipi-in",sipiingressversionmap="BT"
Note You attach the SIP-I mapping profile BT to the SIP profile sipi-in by the preceding command. According to the preceding SIP-I mapping table, the incoming trunk group supports three SIP-I versions of the SIP-I mapping profile BT in Content-Type of the SIP-I messages.
(Optional) Attach the ISUP TMR Profile to the SIP Profile
prov-add:profile:name="isup01",type="ISUPTMRPROFILE",t6="120000", variant="etsi356",t2="180000",t9="60000",t33="12000",validation="OFF" prov-ed:profile:name="sipi-in",isuptmrprofile="isup01"
Attach the SIP Profile to the Trunk Group
prov-add:trnkgrpprof:name=”2000”,profile=”sipi-in”
Incoming SIP-I Message Processing
Figure 4 shows how Cisco PGW 2200 Softswitch starts a SIP-I variant to process a specific SIP-I message on the incoming SIP trunk group based on your provisioning. From the source IP of the incoming SIP-I message, Cisco PGW 2200 Softswitch selects the trunk group 2000. With the selected trunk group, Cisco PGW 2200 Softswitch selects a SIP-I mapping profile according to the value of the property sipMimeBodaySupport and the property SipIIngressVersionMap. Based on the selected SIP-I mapping profile and the Content-Type field in the SIP-I message, Cisco PGW 2200 Softswitch starts ISUPV3_UK_SIPI as the SIP-I variant to process the incoming SIP-I message.
SIP-I Protocol Feature Module
Provisioning Tasks
Figure 4 Processing SIP-I Messages on the Incoming SIP Trunk Group
Provisioning an Outgoing SIP Trunk Group
Add a SIP Profile
prov-add:profile:name="sipi-out",type="SIPPROFILE",sipmimebodaysupport="4"
Note To support both SIP and SIP-I on the incoming trunk group and support SIP-I on the outgoing trunk group, the Cisco PGW 2200 Softswitch requires the property sipMimeBodySupport to be set to 4.
For detailed property information, see the “Properties” section on page 18.
Provision the SIP-I Version on the SIP Profile
prov-ed:profile:name="sipi-out",sipiegressisupversion="isupv2-german"
Provision the SIP-I Variant on the SIP Profile
prov-ed:profile:name="sipi-out",sipiegressmdo="ISUPV2_GERMAN_SIPI" Content-Type: application/isup; version=etsi356; base=etsi356 Encapsulated ISUP Message IAM INVITE IP 10.0.5.1 10.0.5.1 5060 2000 10.0.5.2 5060 3000 10.0.6.1 5060 4000 10.0.6.2 5060 5000 Source IP Listening Trunk
Port Group
2000 4 BT
3000 3 or 4 GERMAN
4000 3 or 4 GERMAN
5000 3 or 4 GERMAN
Trunk sipMimeBodySupport SiplingressVersionMap Group BT X-UKISUP ISUPV3_UK_SIPI BT etsi356 ISUPV3_UK_SIPI BT itu-t92 Q761_99VER_BASE_SIPI US itu-t92 Q761_99VER_BASE_SIPI SIP-I Mapping Profile SIP-I Version SIP-I Variant 1 2 280851 3A 3B 4 Decodeencapsulated ISUP message as ISUPV3_UK
SIP-I Protocol Feature Module Provisioning Tasks
Provision the Handling Property on the SIP Profile
prov-ed:profile:name="sipi-out",sipiegresshandling="2"
Note To always add “handling=required” to the Content-Disposition header of the INVITE message, the Cisco PGW 2200 Softswitch requires the property SipIEgressHandling to be set to 2.
For detailed property information, see “Properties” section on page 18.
(Optional) Provision the SipICANCELEncapREL Property on the SIP Profile
To make the encapsulated REL message required in the SIP-I CANCEL message, you need to provision the SipICANCELEncapREL property as follows:
prov-ed:profile:name="sipi-out",sipicancelencaprel="1"
(Optional) Attach the ISUP TMR Profile to the SIP Profile
prov-add:profile:name="isup02",type="ISUPTMRPROFILE",t6="120000",variant="isupv2-german",t 2="180000",t9="60000",t33="12000",validation="OFF"
prov-ed:profile:name="sipi-out",isuptmrprofile="isup02"
Attach the SIP Profile to the Trunk Group
prov-add:trnkgrpprof:name="3000",profile="sipi-out"
Outgoing SIP-I Message Processing
Figure 5 shows how Cisco PGW 2200 Softswitch transforms the incoming ISUP messages to the outgoing SIP-I messages if the route preference is enabled. The Cisco PGW 2200 Softswitch selects a route from the route analysis after a German ISUP initial address message (IAM) comes in. If the route preference is enabled, Cisco PGW 2200 Softswitch selects the trunk group 3000 based on the trunk group property SipIEgressMDO. The other trunk group properties, sipMimeBodySupport,
SipIEgressHandling, and SipIEgressISUPVersion, determine the content of SIP-I header fields in the outgoing SIP-I messages.
Note If the route preference is not enabled, Cisco PGW 2200 Softswitch selects an outgoing trunk group in the route as the result of the route analysis. The trunk group property SipIEgressHandling provisioned on this trunk group determines the content of SIP-I header fields in the outgoing SIP-I messages.
SIP-I Protocol Feature Module
Provisioning Tasks
Figure 5 Processing SIP-I Messages on the Outgoing SIP Trunk Group
Enabling the Route Preference
numan-add:resulttable:custgrpid="1000",setname="set-7",name="rp",resulttype="SIPI_CONTROL" ,dw1="1"
Note SIPI_CONTROL is a new result type introduced in this feature. To enable the SIP-I route preference, the Cisco PGW 2200 Softswitch requires the dw1 to be set to 1.
It is possible to configure the Cisco PGW 2200 Softswitch so that, for calls between ISUP and SIP trunks with SIP-I supported, the Cisco PGW 2200 Softswitch tries to route the calls using the SIP trunk on which the corresponding SIP-I variant is available to match the ISUP trunk. Use the SIPI_CONTROL result type in dial plans to achieve this.
For detailed information on this result type, see the “Result Type Definitions” section on page 26. For detailed information on the dial plan, see the Cisco PGW 2200 Softswitch Release 9.8 Dial Plan Guide at http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/dial_plan/guide/dplan.html.
Additional Provisioning for Finnish SIP-I
Finnish SIP-I has some specific message requirements which require additional provisioning: • Add Meter Pulse Message Support, page 12
• Give ISUP Encapsulation Priority over SIP Headers, page 12 • Map the Cause Code, page 12
• Stop the Hop Counter and Satellite Indicator From Increasing, page 12 • Set Calling Party Number (CgPN) APRI to Presentation Restricted, page 13
1 2 280873 4 3 Content-Type: application/isup; version=isupv2-german; base=etsi356 Content-Disposition: signal; handling=required Encapsulated ISUP Message IAM INVITE TG 3000 TG 4000 TG 5000
Trunk sipMimeBodySupport SipIEgressMDO SipIEgressISUPVersion SipIEgressHandling
Group 3000 4 ISUPV2_GERMAN_SIPI isupv2-german 2 4000 3 or 4 ISUPV3_UK_SIPI X-UKISUP 1 5000 3 or 4 ISUPV3_UK_SIPI etsi356 2 PGW SIP-I Proce-ssor UK ISUP GERMAN ISUP ANSI ISUP Route List IAM 5 SIP-I Message
SIP-I Protocol Feature Module Provisioning Tasks
Add Meter Pulse Message Support
Currently the Cisco PGW 2200 Softswitch supports meter pulse message (MPM) which is required in Finnish ISUP. Finnish SIP-I encapsulates MPMs in INFO messages in order to interwork this Finnish ISUP service among service providers. For details on provisioning MPM support for Finnish ISUP on the Cisco PGW 2200 Softswitch, see the section, Provisioning Tasks, of the feature guide Meter Pulse Messages Support at
http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/feature/module/9.5_1_/FMmpm.html.
Give ISUP Encapsulation Priority over SIP Headers
Finnish SIP-I requires that within an incoming SIP-I message, the parameters in the encapsulated ISUP message has higher priority over the ones in the SIP header when the device decodes the SIP-I message. To achieve this on the Cisco PGW 2200 Softswitch, you need to provision the SipICLICOLPreference property for the SIP profile used for Finnish SIP-I.
prov-ed:profile:name="sipi-in",sipiclicolpreference="1"
Note To make encapsulated ISUP content has higher priority over SIP headers in the decoding of incoming SIP-I messages, set the SipICLICOLPreference to 1.
For detailed property information, see “Properties” section on page 18.
Map the Cause Code
According to Ficora GFI 0301: Guidelines for Implementation ISUP-SIP Interworking Profile C (Finland ISUP), Finnish SIP-I map the cause code 24 to the SIP status code 503 Service Unavailable. You need to manually map the cause code 24 (internal cause value IC_REJECTED_BY_FEATURE (169) by default) to 503 Service Unavailable (internal cause value IC_SERVICE_UNAVAIL(209) by default):
numan-add:resultset:custgrpid="1111",name="cause-set-1"
numan-add:cause:custgrpid="1111",setname="cause-set-1",causevalue= 169
numan-add:resulttable:custgrpid="1111",setname"cause-set-1",name="cause-tbl-1",resulttype= "CAUSE",dw1=209
Note For details on the ISUP cause codes and the internal cause codes on the Cisco PGW 2200 Softswitch, see Appendix B, Cause and Location Codes in Cisco PGW 2200 Softswitch Release 9.8 Dial Plan Guide at the following URL.
http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/dial_plan/guide/dplan.html
Stop the Hop Counter and Satellite Indicator From Increasing
The hop counter has no value change for an ISUP to Finnish SIP-I call. There is no satellite circuit in the connection according to the Ficora GFI 0301. If you have provisioned the CircHopCount and the SatelliteInd properties to other values, you need to set them to default values in the common profile:
prov-add:profile:name="sipicommon",type="COMMONPROFILE",circhopcount="0" prov-ed:profile:name="sipicommon",satelliteind="0"
SIP-I Protocol Feature Module
Provisioning Examples
prov-ed:profile:name="sipi-in",commonprofile="sipicommon" (using Finnish SIP-I on incoming trunks)
or
prov-ed:profile:name="sipi-out",commonprofile="sipicommon"(using Finnish SIP-I on outgoing trunks)
Set Calling Party Number (CgPN) APRI to Presentation Restricted
Finnish SIP-I requires the CgPN APRI be set to presentation restricted.
prov-ed:profile:name="sipi-in",restrictpresifnopaid="1"
Provisioning Examples
This section provides a provisioning example for this feature. Additional provisioning examples for the Cisco PGW 2200 Softswitch software can be found in the Cisco PGW 2200 Softswitch Release 9.8 Provisioning Guide.
________________________________________ ; Add SIP-I Mapping Table
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; prov-add:sipiversion:profilename="BT",version="X-UKISUP",mdo="ISUPV3_UK_SIPI" prov-add:sipiversion:profilename="BT",version="etsi356",mdo="ISUPV3_UK_SIPI" prov-add:sipiversion:profilename="BT",version="itu-t92+",mdo="Q761_99VER_BASE_SIPI" prov-add:sipiversion:profilename="US",version="itu-t92+",mdo="Q761_99VER_BASE_SIPI" prov-add:sipiversion:profilename="US",version="ansi00",mdo="ANSISS7_STANDARD_SIPI" prov-add:sipiversion:profilename="GERMAN",version="isupv2-german",mdo="ISUPV2_GERMAN_SIPI" prov-add:sipiversion:profilename="FINNISH",version="isupv2-finnish96",mdo="ISUPV2_FINNISH9 6_SIPI" prov-add:sipiversion:profilename="RUSSIAN",version="Q761_97VER_RUSS",mdo="Q761_97VER_RUSS_ SIPI" ________________________________________
; Add a SIP Profile for the Incoming SIP Trunk Group with SIP-I Support ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-add:profile:name="sipi-in",type="SIPPROFILE",sipmimebodysupport="4" ________________________________________
; Attach the SIP-I Mapping to the SIP Profile ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-ed:profile:name="sipi-in",sipiingressversionmap="BT" ________________________________________
; (Optional) Attach the ISUP TMR Profile to the SIP Profile ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-add:profile:name="isup01",type="ISUPTMRPROFILE",t6="120000", variant="etsi356",t2="180000",t9="60000",t33="12000",validation="OFF" prov-ed:profile:name="sipi-in",isuptmrprofile="isup01"
________________________________________ ; Attach the SIP Profile to a Trunk Group ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-add:trnkgrpprof:name=”2000”,profile=”sipi-in” ________________________________________
; Add a SIP Profile for the Outgoing SIP Trunk Group with SIP-I Support ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
SIP-I Protocol Feature Module Provisioning Examples
________________________________________
; Provision the SIP-I Version on the SIP Profile ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-ed:profile:name="sipi-out",sipiegressisupversion="isupv2-german" ________________________________________
; Provision the SIP-I Variant on the SIP Profile ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-ed:profile:name="sipi-out",sipiegressmdo="ISUPV2_GERMAN_SIPI" ________________________________________
; Provision the Handling Property on the SIP Profile ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-ed:profile:name="sipi-out",sipiegresshandling="2" ________________________________________
; (Optional) Make ISUP REL message encapsulation required in the SIP-I CANCEL message ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-ed:profile:name="sipi-out",sipicancelencaprel="1" ________________________________________
; (Optional) Attach the ISUP TMR Profile to the SIP Profile ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-add:profile:name="isup02",type="ISUPTMRPROFILE",t6="120000",variant="isupv2-german",t 2="180000",t9="60000",t33="12000",validation="OFF"
prov-ed:profile:name="sipi-out",isuptmrprofile="isup02" ________________________________________
; Attach the SIP Profile to a Trunk Group ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-add:trnkgrpprof:name="3000",profile="sipi-out" ________________________________________
; Enable the Route Preference
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
numan-add:resulttable:custgrpid="1000",setname="set-7",name="rp",resulttype="SIPI_CONTROL" ,dw1="1"
________________________________________
; (For Finnish SIP-I Only) Give ISUP Encapsulation Priority over SIP Headers ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-ed:profile:name="sipi-in",sipiclicolpreference="1" ________________________________________
; (For Finnish SIP-I Only) Map the Cause Code ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; numan-add:resultset:custgrpid="1111",name="cause-set-1" numan-add:cause:custgrpid="1111",setname="cause-set-1",causevalue= 169 numan-add:resulttable:custgrpid="1111",setname"cause-set-1",name="cause-tbl-1",resulttype= "CAUSE",dw1=209 ________________________________________
; (For Finnish SIP-I Only) Set Hop Counter and Satellite Indicator to Default Values ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-add:profile:name="sipicommon",type="COMMONPROFILE",circhopcount="0" prov-ed:profile:name="sipicommon",satelliteind="0"
prov-ed:profile:name="sipi-in",commonprofile="sipicommon" (using Finnish SIP-I on incoming trunks)
or
prov-ed:profile:name="sipi-out",commonprofile="sipicommon"(using Finnish SIP-I on outgoing trunks)
________________________________________
SIP-I Protocol Feature Module
MML Command Reference
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
prov-ed:profile:name="sipi-in",restrictpresifnopaid="1"
MML Command Reference
This section documents new, modified, or deleted Man-Machine Language (MML) commands. All other MML commands are documented in the Cisco PGW 2200 Softswitch Release 9 MML Command Reference at
http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/command/reference/mmlref_1.html.
New MML Commands
This section contains the MML commands that are new for this feature.
PROV-ADD:SIPIVERSION:PROFILENAME—Add an Entry to the sipIVersion.dat File (Release 9.8(1))
Purpose: Adds an entry in the sipIVersion.dat file.Syntax: prov-add:sipiversion:profilename="SIP-I mapping profile
name",version="SIP-I version in Content-Type",mdo="SIP-I variant name" Input
Description:
• PROFILENAME—MML name of a SIP-I mapping profile. This name can be up to 20 alphanumeric characters in length.
– The name must start with an alphabetic character.
• VERSION— SIP-I version defined by the operator and used in the SIP-I message Content-Type header field. One SIP-I mapping profile can have more than one SIP-I version defined on the Cisco PGW 2200 Softswitch. This parameter value can be up to 128 characters in length.
• MDO—SIP-I variant name mapped to the SIP-I message ParamContent field. This name can be up to 40 alphanumeric characters.
Example: The MML command shown in the following example adds a mapping from SIP-I version X-UKISUP to SIP-I variant ISUPV3_UK_SIPI in the SIP-I mapping profile BT:
mml>prov-add:sipiversion:profilename="BT",version="X-UKISUP",mdo="ISUPV3_
UK_SIPI"
SIP-I Protocol Feature Module MML Command Reference
PROV-ED:SIPIVERSION:PROFILENAME—Edit an Entry in the sipIVersion.dat File (Release 9.8(1))
PROV-RTRV:SIPIVERSION:PROFILENAME—Retrieve an Entry in the sipIVersion.dat File
(Release 9.8(1))
Purpose: Edits an entry within a SIP-I mapping profile in the sipIVersion.dat file.
Syntax: prov-ed:sipiversion:profilename="SIP-I mapping profile
name",version="SIP-I version in Content-Type",mdo="SIP-I variant name" Input
Description:
• PROFILENAME—MML name of a SIP-I mapping profile. This name can be up to 20 alphanumeric characters in length.
– The name must start with an alphabetic character.
• VERSION—SIP-I version defined by the operator and used in the SIP-I message Content-Type field. One SIP-I mapping profile can have more than one SIP-I version defined on the Cisco PGW 2200 Softswitch. This parameter value can be up to 128 characters in length.
• MDO—SIP-I variant name mapped to the SIP-I message ParamContent field. This name can be up to 40 alphanumeric characters.
Example: The MML command shown in the following example edits the mapping from SIP-I version “X-UKISUP” to SIP-I variant ISUPV3_UK_SIPI in the SIP-I mapping profile BT:
mml>prov-ed:sipiversion:profilename="BT",version="X-UKISUP",mdo="ISUPV3_U
K_SIPI"
Comments: Performance Impact Category: A
Purpose: Displays the information for one entry within a SIP-I mapping profile in the sipIVersion.dat file.
Syntax: prov-rtrv:sipiversion:profilename="SIP-I mapping profile name",version="SIP-I version in Content-Type"
Input Description:
• PROFILENAME—MML name of a SIP-I mapping profile. This name can be up to 20 alphanumeric characters in length.
– The name must start with an alphabetic character.
• VERSION—SIP-I version defined by the operator and used in the SIP-I message Content-Type header field. One SIP-I mapping profile can have more than one SIP-I version defined on the Cisco PGW 2200 Softswitch. This parameter value can be up to 128 characters in length.
Example: The MML command shown in the following example displays the information of the entry for SIP-I version X-UKISUP in the SIP-I mapping profile BT:
mml>prov-rtrv:sipiversion:profilename="BT",version="X-UKISUP"
SIP-I Protocol Feature Module
Software Changes for This Feature
PROV-DLT:SIPIVERSION:PROFILENAME—Delete an Entry in the sipIVersion.dat File (Release 9.8(1))
Modified MML Commands
No MML commands are modified for this feature.
Related MML Commands
You need to provision MPM for the Finnish ISUP variant before you use Finnish SIP-I. See the MML commands for provisioning MPM on the Cisco PGW 2200 Softswitch at
http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/feature/module/9.5_1_/FMmpm.html.
Software Changes for This Feature
The following sections contain software changes related to this feature: • Alarms, page 17
• Properties, page 18
• Result Type Definitions, page 26
Alarms
This section lists the alarms that are added for this feature. For information on the other alarms for the Cisco PGW 2200 Softswitch software, see the Cisco PGW 2200 Softswitch Release 9 Messages Reference at
Purpose: Deletes an entry within a SIP-I mapping profile in the sipIVersion.dat file.
Syntax: prov-dlt:sipiversion:profilename="SIP-I mapping profile name",version="SIP-I version in Content-Type"
Input Description:
• PROFILENAME—MML name of a SIP-I mapping profile. This name can be up to 20 alphanumeric characters in length.
– The name must start with an alphabetic character.
• VERSION—SIP-I version defined by the operator and used in the SIP-I message Content-Type header field. One SIP-I mapping profile can have more than one SIP-I version defined on the Cisco PGW 2200 Softswitch. This parameter value can be up to 128 characters in length.
Example: The MML command shown in the following example deletes the mapping for the SIP-I version X-UKISUP in the SIP-I mapping profile BT:
mml> prov-dlt:sipiversion:profilename="BT",version="X-UKISUP"
SIP-I Protocol Feature Module Software Changes for This Feature
http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/system/message/errmsg.html.
Unsupported SIP-I Call
Description
This alarm is triggered when the Cisco PGW 2200 Softswitch rejects an unsupported SIP-I call.
Severity
Informational (non-service affecting)
Cause
The Cisco PGW 2200 Softswitch raises the alarm in any one of the three following cases:
• If the property sipMimeBodySupport is set to 3 (only SIP-I supported on the incoming trunk group) and the Content-Disposition header in the incoming SIP-I message contains “handling=required”, the Cisco PGW 2200 Softswitch cannot find any matched SIP-I mapping profile or version entry in the configuration.
• The property sipMimeBodySupport is set to 0 (only SIP supported on the incoming trunk group), and the Content-Disposition header in the incoming SIP-I message contains “handling=required”. • If the property sipMimeBodySupport is set to 3 (only SIP-I supported on the incoming trunk group),
the Cisco PGW 2200 Softswitch receives a SIP INVITE message.
Type
Processing error alarm
Action
Perform the following steps:
1. Check the sipMimeBodySupport property value to make sure that SIP/SIP-I call is allowed on the incoming trunk group.
2. Check the SipIIngressVersionMAP property value on the incoming SIP trunk group.
3. Use the following command to see whether the Cisco PGW 2200 Softswitch selects the correct SIP-I variant:
prov-rtrv:sipiversion:profilename="SIP-I mapping profile name",version="SIP-I version in Content-Type"
Properties
The properties identified in this section are used for the SIP-I Protocol feature. After confirming which SIP-I protocol standard you are following (see the “Supported Standards, MIBs, and RFCs” section on page 6), you can provision these properties according to that specific SIP-I protocol.
For information on other properties of the Cisco PGW 2200 Softswitch software, see the Cisco PGW 2200 Softswitch Release 9.8 Provisioning Guide at
SIP-I Protocol Feature Module
Software Changes for This Feature
New Properties
Table 1 describes the new SIP profile and domain profile properties used for this feature.
Table 1 New Properties
Property Description
isuptmrProfile This property indicates the Level 2 ISUP TMR profile that is attached to a SIP profile. Valid values: any string up to 128 characters in length.
Default value: NULL.
Dynamically reconfigurable: yes. LRNDigitCCPr
efix
This property indicates whether the function is enabled: the Cisco PGW 2200 Softswitch adds a prefix to the destination country code in CC_DIG for the call to the location routing number and changes the NOA code to international. This is an outgoing trunk group property. This property is for PSTN emulation services (SIP/SIP-I).
Valid values: boolean (0 = not enabled, 1 = enabled). Default value: 0.
Dynamically reconfigurable: yes.
LRNDigitCCrm This property specifies a country code digit string to which the RNDigitCCrm is compared if the NOA code is International. If the digits match, the matched digits are removed from the location routing number and the NOA code is set to National. This is an incoming trunk group property. This property is for PSTN emulation services (SIP/SIP-I).
Valid values: NULL or any string up to 5 digits. Default value: NULL.
Dynamically reconfigurable: yes. PropagateDelay
Counter
This property indicates the propagation delay increase value (measured in milliseconds) which the Cisco PGW 2200 Softswitch adds to the propagation delay of the incoming message. The outgoing message carries the calculation result. This property is for PSTN emulation services (SIP-I). Valid values: integer (0 to 255).
Default value: 0.
Dynamically reconfigurable: yes. RestrictPresIfN
oPAID
This property indicates whether the Cisco PGW 2200 Softswitch sets the CgPN APRI of the outgoing ISUP message to presentation restricted when the incoming SIP-I message does not contain the P-Asserted-Identity header. This property is for PSTN emulation services (SIP/SIP-I).
Valid values: boolean where:
0 = If the incoming SIP-I message does not contain the P-Asserted-Identity header, the
Cisco PGW 2200 Softswitch sets the CgPN APRI of the outgoing ISUP message according to the ITU-T Recommendation Q1912.5.
1 = If the incoming SIP-I message does not contain the P-Asserted-Identity header, the
Cisco PGW 2200 Softswitch sets the CgPN APRI of the outgoing ISUP message to presentation restricted. Default value: 0.
SIP-I Protocol Feature Module Software Changes for This Feature
SIPCOLPReqEn abled
This property specifies whether the COLP request for SIP-originated calls is enabled or not. This property is for PSTN emulation services (SIP/SIP-I).
Values: boolean (0 = not enabled, 1 = enabled). Default value: 0.
Dynamically reconfigurable: yes. SipEgressEarly
DialogRelType
This property indicates whether the Cisco PGW 2200 Softswitch sends the CANCEL message or the BYE message for the Early Dialog release. This property is for Q.1912.5 compliance.
Valid values: boolean (0 = send the CANCEL message, 1 = send the BYE message). Default value: 0.
Dynamically reconfigurable: yes. SipEgressGN2F
romScreenInd
This property controls how the Cisco PGW 2200 Softswitch maps the generic number to the SIP From header. This property is for PSTN emulation services (SIP/SIP-I).
Valid values: integer (from 0 to 3) where:
0 = UPVP and UPNV
If the screen indicator subparameter in the incoming ISUP message is UPVP or UPNV and the property value is 0, the Cisco PGW 2200 Softswitch maps the generic number to the SIP From header.
1 = UPVP
If the screen indicator subparameter in the incoming ISUP message is UPVP and the property value is 1, the Cisco PGW 2200 Softswitch maps the generic number to the SIP From header.
2 = UPNV
If the screen indicator subparameter in the incoming ISUP message is UPNV and the property value is 2, the Cisco PGW 2200 Softswitch maps the generic number to the SIP From header.
3 = always mapping
If the property value is 3, the Cisco PGW 2200 Softswitch always maps the generic number to the SIP From header.
Default value: 0.
Dynamically reconfigurable: yes. SipICANCELE
ncapREL
This property indicates whether the encapsulated REL message is required or not in the CANCEL message. This property is a non-essential SIP-I-specific property.
Valid values: boolean (0 = not required, 1 = required). Default value: 0.
Dynamically reconfigurable: yes.
Table 1 New Properties (continued)
SIP-I Protocol Feature Module
Software Changes for This Feature
SipICLICOLPre ference
This property indicates which parameters the CLI/Connect number takes as preference, SIP header or ISUP parameters. This property is a non-essential SIP-I-specific property.
Valid values: boolean.
0 = CLI/Connect number takes SIP header parameters as preference. 1 = CLI/Connect number takes ISUP parameters as preference. Default value: 0.
Dynamically reconfigurable: yes. SipIConfusionH
andling
This property indicates whether to terminate the ISUP confusion message or transport this message transparently. This property is a non-essential SIP-I-specific property.
Valid value: boolean.
0 = terminate the ISUP confusion message.
1 = transport the ISUP confusion message transparently. Default value: 0.
Dynamically reconfigurable: yes. SipIEgressHand
ling
This property indicates the value of handling the disposition parameter in the Content-Disposition header field of the ISUP MIME body in SIP-I messages. This property is set on outgoing trunk groups with SIP-I support. If it is set to 2, “handling=required” is always added to the INVITE Content-Disposition header. If it is set to 0, “handling=required” is added only if there is a to-be-encapsulated IAM message with user-to-user information; otherwise, “handling=optional” is added. This property is an essential SIP-I-specific property.
Valid value: integer (from 0 to 2) where:
0 = Content-Disposition header is “Content-Disposition:signal; handling=required” only if there is a to-be-encapsulated IAM message with user-to-user information; otherwise, Content-Disposition header is “Content-Disposition:signal; handling=optional”.
1 = Content-Disposition header is “Content-Disposition:signal; handling=optional”. 2 = Content-Disposition header is “Content-Disposition:signal; handling=required”. Default value: 1.
Dynamically reconfigurable: yes. SipIEgressISUP
Version
This property indicates the version subparameter used in the Content-Type header field for SIP-I messages on the outgoing SIP trunk group. This property is an essential SIP-I-specific property.
Valid values: NULL or any string up to 128 characters in length. Default value: NULL.
Dynamically reconfigurable: yes.
Table 1 New Properties (continued)
SIP-I Protocol Feature Module Software Changes for This Feature
SipIEgressMDO This property indicates the SIP-I variant name on the outgoing SIP trunk group. This property is an essential SIP-I-specific property.
Valid values: NULL or any string up to 40 alphanumeric characters. Default value: NULL.
Dynamically reconfigurable: yes. SipIFacilityReje
ctHandling
This property indicates whether to terminate the ISUP facility reject message or transport this message transparently. This property is a non-essential SIP-I-specific property.
Valid values: boolean.
0 = terminate the ISUP facility reject message.
1 = transport the ISUP facility reject message transparently. Default value: 0
Dynamically reconfigurable: yes. SipIIngressVersi
onMAP
This property indicates the SIP-I mapping profile name which is defined in the SIP profile name field of the sipIVersion.dat file. This property is an essential SIP-I-specific property.
Valid values: NULL or the string defined in the SIP-I mapping profile name field of the sipIVersion.dat file, like BT.
Default value: NULL.
Dynamically reconfigurable: yes. SipIngressLNP
Handling
This property controls whether the Cisco PGW 2200 Softswitch maps the SIP routing number and the telephone number to the called party number and the generic address ISUP parameters. This property is for PSTN emulation services (SIP/SIP-I).
Valid values: boolean (0 = no mapping, 1 = mapping) Default value: 0.
Dynamically reconfigurable: yes.
Table 1 New Properties (continued)
SIP-I Protocol Feature Module
Software Changes for This Feature
Updated Properties
The following existing sigpath properties are added to the SIP sigpath in this feature. • ADigitCCPrefix
• ADigitCCrm • BDigitCCPrefix • BDigitCCrm • CCOrigin
For Finnish SIP-I, you can provision the following properties in the common profile. • AOCEnabled
• CircHopCount • CLIPEss
• PropagateDelayCounter • SatelliteInd
Table 2 describes SIP profile properties which have modified values in this feature. SipInsertReason
Header
This property indicates whether a reason header containing the cause code is required or not. This property is for Q.1912.5 compliance.
Valid values: integer (from 0 to 2) where:
0 = do not insert the reason header. 1 = add the reason header in Q.850 format. 2 = add the reason header in ANSI format. Default value: 0.
Dynamically reconfigurable: yes.
SipIToiw2 This property indicates the Toiw2 timer value measured in seconds. This property is for Q.1912.5 compliance.
Valid values: integer (from 4 to 14). Cause for initiation: Sending of INVITE.
Termination criterion: On receipt of 18x, or 200 OK INVITE. Action At expiry: Send early ACM
Default value: 4.
Dynamically reconfigurable: yes.
Table 1 New Properties (continued)
SIP-I Protocol Feature Module Software Changes for This Feature
Table 2 Updated Properties
Property Description
InhibitSipFr omMapping
The value 5 is added in this feature. This property determines the mapping from the incoming SIP message to the ISUP CLI. This property is for PSTN emulation services (SIP/SIP-I).
Valid values:
• 0 = If the PAID/RPID E164 number is present, map the PAID/RPID to CgPN, and map the E164 number in username in From header to GN (additional CgPN). If the PAID/RPID E164 number is not present, map the E164 number in username in From header to CgPN.
• 1 = Ignore the From header, and map the PAID/RPID E164 number to CgPN.
If the remote party ID or P-Asserted-ID header is present and the InhibitSipFromMapping property = 1, then disable mapping the SIP From header to the generic number. If the remote party ID or P-Asserted-ID header is not present and the InhibitSipFromMapping property = 1, then disable mapping the SIP From header to the calling party number.
• 2 = Ignore the PAID/RPID, and map the E164 number in the username in From header to CgPN.
• 3 = If the PAID/RPID E164 number is present, map the PAID/RPID to CgPN, and map the E164 number in Display name in From header to GN (additional CgPN). If the PAID/RPID E164 number is not present, map the E164 number in the username in From header to ISUP CgPN, and map the E164 number in the displayname in From header to GN (additional CgPN).
• 4 = If the PAID/RPID E164 number is present, map the PAID/RPID to CgPN, and map the E164 number in the username in From header to GN (additional CgPN). If the PAID/RPID E164 number is not present, ignore From header.
• 5 = If the PAID/RPID E164 number is present, map the PAID/RPID to CgPN, and map the E164 number in username in From header to GN (additional CgPN). If the PAID/RPID E164 number is not present, map the E164 number in the username in From header to ISUP CgPN, and map the E164 number in
displayname in From header to GN (additional CgPN).
Note The value 4 is available only in Release 9.7(3). The value 5 is available only in Release 9.8(1). Default value: 0.
SIP-I Protocol Feature Module
Software Changes for This Feature
Table 3 describes the original ISUP sigpath properties which you can provision in the common profile for this feature.
sipMimeBod ySupport
The values 0, 3, and 4 are added in this feature. This property indicates how SIP, SIP-T, SIP-GTD, and SIP-I are supported on one trunk group. This property is an essential SIP-I-specific property.
Valid values: integer (from 0 to 4) where:
• 0 = only SIP supported • 1 = SIP-T supported • 2 = SIP-GTD supported
• 3 = Only SIP-I supported on the incoming trunk group, SIP and SIP-I supported on the outgoing trunk group
• 4 = SIP and SIP-I supported on both the incoming and outgoing trunk groups Default value: 0.
Dynamically reconfigurable: yes.
Support183 The values 1, 2, and 5 are added in this feature. This property indicates how the Cisco PGW 2200 Softswitch supports the 183 response code. This property is for Q.1912.5 compliance.
Valid values: integer (from 0 to 5). where:
0 = 183 not supported
1 = Q1912.5 supported without SDP in 180 message 2 = Q1912.5 supported with InbandInfo check 3 = 183 supported
4 = always send 183 5 = Q1912.5 supported Default value: 3.
Dynamically reconfigurable: yes.
Table 2 Updated Properties (continued)
SIP-I Protocol Feature Module Software Changes for This Feature
Result Type Definitions
Table 4 describes the result type added for this feature. For information on other result type definitions for the Cisco PGW 2200 Softswitch software, see the Cisco PGW 2200 Softswitch Release 9.8 Dial Plan Guide at
http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/dial_plan/guide/dplan.html.
Table 3 Properties Provisioned in the Common Profile
Property Description
T2 This property indicates the ISUP T2 timer value measured in millisecond seconds. This property is for PSTN emulation services (SIP-I).
Valid value: 180000
Cause for initiation: Receives a user generated SUS (user Initiated TP service) in order to unplug the terminal from the socket and plug it in another one.
Termination criterion: At receipt of resume (user) message. Action at Expiry: Initiate release procedure.
Default value: 180000
T6 This property indicates the ISUP T6 timer value measured in millisecond seconds. This property is for PSTN emulation services (SIP-I).
Valid value: 2000 - 120000
Cause for initiation: Receives SUS (network)
Termination criterion: At receipt of resume (network) message or release message. Action at Expiry: Initiate release procedure.
Default value: 120000.
T33 This property indicates the ISUP T33 timer value measured in millisecond seconds. This property is for PSTN emulation services (SIP-I).
Valid value: 12000 - 15000
Cause for initiation: Sends an MCID request in an Information Request message Termination criterion: At receipt of at the receipt of an Information Response Action at Expiry: Initiate release procedure.
Default value: 15000.
CLIPEss This property indicates whether/how to request the Calling Line Identity (CLI) in MCID service. This property is for PSTN emulation services (SIP-I).
Valid value: 0, 1, 2 0 = CLI not requested
1 = CLI requested if not provided and call is dropped if CLI is not available
2 = CLI requested if not provided and call is continued regardless if CLI is available or not Default value: 0
SIP-I Protocol Feature Module
Troubleshooting the Feature
SIPI_CONTROL
A new result type SIPI_CONTROL is added to enable the SIP-I route preference and to overwrite the outgoing SIP-I related configuration parameters on outgoing trunk group. Currently this result type is used to enable the SIP-I route preference only.
Dataword 1: enable the route preference
1 = Enable the route preference
Troubleshooting the Feature
This section describes troubleshooting procedures for this feature: • Incoming SIP-I calls fail.
Table 4 New Result Type Definitions
Result Number Result Type Dataword1 Dataword2 Dataword3 Dataword4
Analysis Points
Result Type Valid For
Intermediate End Point A-digit analy
sis B-digit analy sis Cause Pre-anal ys is
84 SIPI_CONTROL Enable the route preference
SIP-I Protocol Feature Module Troubleshooting the Feature
• Outgoing SIP-I calls fail.
Action Description
Step 1 Check the property
sipMimeBodySupport on the incoming trunk group.
The Cisco PGW 2200 Softswitch requires this property to be set to 3 or 4 in order to support SIP-I on the incoming trunk group. For property details, see Properties, page 18.
Step 2 Check the SIP-I interface license. Use the MML command, rtrv-lics:all, to check if the SIP-I license is available. The following example gives you an example of using this command to check the SIP-I license.
mml> rtrv-lics:all
The following system output is truncated. The bottom line indicates that the SIP-I interface license is available.
MGC-01 - Media Gateway Controller 2009-02-23 01:53:48.371 EST
M RTRV "LMAgent:
---
---PGW Fully Featured License 9.8 permanent ---
---Interface Name Entitled Provisioned SS7Interface Y Y PRIInterface Y N PBXInterface Y N INAPInterface Y N LIInterface Y N/A SBEInterface Y N SIPIInterface Y Y
Step 3 Check the property
SipIIngressVersionMap on the incoming trunk
The Cisco PGW 2200 Softswitch requires this property to be set to the desired SIP-I mapping profile on the incoming trunk group. See Provisioning Tasks, page 6.
Step 4 Check the entry of that desired SIP-I mapping profile in sipIVersion.dat.
Check if entry of that desired SIP-I mapping profile is correctly provisioned in sipIVersion.dat.
1. Check if the SIP-I version field of that entry matches the version subparameter in the Content-Type in the incoming SIP-I INVITE message.
2. Check if the SIP-I variant field of that entry is correctly provisioned using the following command:
prov-rtrv:sipiversion:profilename="BT",version="etsi 356"
For details on how to add, edit, and delete records in the sipIVersion.dat, see Provisioning Tasks, page 6.
SIP-I Protocol Feature Module
Troubleshooting the Feature
• Ringback tones are missing.
Action Description
Step 1 Check the property
sipMimeBodySupport on the outgoing trunk group.
The Cisco PGW 2200 Softswitch requires this property to be set to 3 or 4 in order to support SIP on the outgoing trunk group. For property details, see the “Properties” section on page 18. Step 2 Check the SIP-I interface license. See Step 2 in the previous troubleshooting procedure for failed
incoming SIP-I calls. Step 3 Check the Content-Disposition
parameter in the outgoing SIP-I INVITE message.
If it is "handling=optional", change the SipIEgressHandling property on the outgoing trunk group to 2. See the “Provisioning Tasks” section on page 6.
Step 4 Check the SIP-I version defined in SipIEgressISUPVersion property.
Check if the SIP-I version defined in SipIEgressISUPVersion property on the outgoing trunk group matches the SIP-I version of the peer devices.
SIP-I Protocol Feature Module Troubleshooting the Feature
• (Finnish SIP-I only) Finnish SIP-I doesn’t work.
For more information on operational tasks for the rest of the Cisco PGW 2200 Softswitch software, see the Cisco PGW 2200 Softswitch Release 9 Operations, Maintenance, and Troubleshooting Guide at http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/maintenance/guide/omtguide.html.
Action Description
Step 1 Provision the property support183 on the incoming trunk group.
• If the terminating side cannot play the remote ringback tone, you can provision the support183 property:
– 0 (183 not supported) = The Cisco PGW 2200 Softswitch sends a 180 Ringing without SDP.
– 1 (Q1912.5 supported without SDP in 180 message) = The Cisco PGW 2200 Softswitch sends a 180 Ringing without SDP. – 2 (Q1912.5 supported with InbandInfo check) = The
Cisco PGW 2200 Softswitch sends a 180 Ringing without SDP.
– 3 (183 supported) = The Cisco PGW 2200 Softswitch sends a 180 Ringing without SDP.
• If the terminating side can play the remote ringback tone and the alerting signaling includes the InbandInfo indicator, you can provision the support183 property:
– 2 (Q1912.5 supported with InbandInfo check) = The Cisco PGW 2200 Softswitch sends a 180 Ringing with SDP.
– 3 (183 supported) = The Cisco PGW 2200 Softswitch sends a 183 Session Progress with SDP.
– 4 (always send 183) = The Cisco PGW 2200 Softswitch sends a 183 Session Progress with SDP.
– 5 (Q1912.5 supported) = The Cisco PGW 2200 Softswitch sends a 180 Ringing with SDP.
• If the terminating side can play the remote ringback tone but the alerting signaling does not include the Inbandinfo indicator, you can provision the support183 property:
– 4 (always send 183) = The Cisco PGW 2200 Softswitch sends a 183 Session Progress with SDP.
– 5 (Q1912.5 supported) = The Cisco PGW 2200 Softswitch sends a 180 Ringing with SDP.
Action Description
Step 1 Check the MPM provisioning on the Cisco PGW 2200 Softs witch
For details on provisioning MPM support for Finnish ISUP on the Cisco PGW 2200 Softswitch, see the section, Provisioning Tasks, of the feature guide Meter Pulse Messages Support at
http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/feature/module/ 9.5_1_/FMmpm.html.
Step 2 Check the property SipICLICOLPreference
For Finnish SIP-I, encapsulated ISUP takes precedence over SIP headers. Make sure the SipICLICOLPreference property is set to 1.
SIP-I Protocol Feature Module
Obtaining Documentation, Obtaining Support, and Security Guidelines
If you still have problems with this feature, get the MDL trace and contact the Cisco TAC.
Obtaining Documentation, Obtaining Support, and Security
Guidelines
For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html.
Mapping Details
This section contains additional information which may be useful for you to understand specific mapping details of parameters. The heavy vertical line in the tables indicates where the mapping takes place. Different combinations of input message parameters and the Cisco PGW 2200 Softswitch properties on the left of the heavy vertical line have corresponding mapping results on the right. These tables are not limited to SIP and ISUP mapping.
Table 5 describes the mapping from SIP header fields to ISUP message parameters under control of the property InhibitSipFromMapping. Table 6 describes the mapping from the address complete message (ACM) to 180 Ringing /183 Session Progress under control of the property Support183. Table 7 describes the mapping from the call progress message (CPG) to 180 Ringing /183 Session Progress under control of the property Support183.
Table 5 Mapping of SIP Header Fields to ISUP CgPN/GN/PN/GAP Address Subparameter Under Control of the InhibitSipFromMapping Property
SIP Header Fields Property ISUP Parameter Fields
P-Asserted -Identity
Field From Field
InhibitSipFr
omMapping Address Signal in CgPN1 Fields
Address Signal in GN2 or GA3 Fields Address Signal in PN4 Fields Present in E164 format5 Present in E164 format 0 4 5
From the E164 number in username of SIP P-Asserted Identity.
Address signal: from the E164 number in username of SIP From header
PN should be the same as GN.
1 Absent
3 Address signal: from the
E164 number in
displayname of SIP From header
2 From the E164 number in username of SIP From header
SIP-I Protocol Feature Module Mapping Details
Absent or the field not in E164 format 0 1 3 4 5
From the E164 number in username of SIP P-Asserted Identity.
Absent 2 Absent Absent or the field not in E164 format Present in E164 format 0 2
• From the E164 number in username of SIP From header if username is present in SIP From header
• From the E164 number in
displayname of SIP From header if displayname is present in SIP From header and
InhibitSipFromMapping = 3
Absent
3 5
The E164 number in displayname of SIP From header is mapped to GA/GN if username present in the SIP From header is already mapped to CgPN.
1 4
Absent Absent
Absent or the field not in E164 format Any valid value (integer, 0 to 5) Absent Absent
1. CgPN = calling party number.
2. GN = generic number (Q1912.5/EN 383 001, ND 1017 only). 3. GA = generic address (T1.679 only).
4. PN = presentation number (ND1017 only).
5. For SIP-URI in the P-Asserted-Identity or the From header field, if the field userinfo is E164 number with parameter “user=phone” or the field userinfo is E164 number with respectSipUriUserParm value set to 0, the Cisco PGW 2200 Softswitch treats the SIP-URI as E164 format.
Table 5 Mapping of SIP Header Fields to ISUP CgPN/GN/PN/GAP Address Subparameter Under Control of the InhibitSipFromMapping Property (continued)
SIP Header Fields Property ISUP Parameter Fields
P-Asserted -Identity
Field From Field
InhibitSipFr
omMapping Address Signal in CgPN1 Fields
Address Signal in GN2 or GA3 Fields
Address Signal in PN4 Fields
SIP-I Protocol Feature Module
Mapping Details
Table 6 Mapping ISUP Address Complete Message (ACM) to 180/183 Under Control of the Property Support183
Called Party Status Indicator in BCI1
1. BCI = Backward Call Indicator. Local SDP2 Ready
2. SDP = Session Description Protocol.
Support183 Property InbandInfo in OBCI3
3. OBCI = Optional Backward Call Indicator.
Message Sent to SIP
Subscriber free No 4 (always send 183) Any 183 Session Progress
Any other Any 180 Ringing
Yes 0 (183 not supported)
1 (Q1912.5 supported without SDP in 180) 5 (Q1912.5 supported) 2 (Q1912.5 supported with InbandInfo) Any 180 Ringing
4 (always send 183) Any 183 Session Progress
3 (183 is supported) Has inband indicator 183 Session Progress with SDP
No inband indicator 180 Ringing No indication or
connect when free
No Any valid value (integer, 0 to 5) Any • In Profile C4 183 (ACM) Session Progress
• In Profile B Not interworked
4. For details of the Profile B and Profile C definitions, see the ITU-T Recommendation Q.1912.5 (2004) Interworking between Session Initiation Protocol
(SIP) and Bearer Independent Call Control Protocol or ISDN User Part.
Yes 0 (183 not supported) Any 180 Ringing
3 (183 is supported) or 4 (always send 183)
Any 183 Session Progress
1 (Q1912.5 supported without SDP in 180) 5 (Q1912.5 supported) Any • In Profile C 183 (ACM) Session Progress • In Profile B Not interworked 2 (Q1912.5 supported with InbandInfo)
Has inband indicator 183 Session Progress No inband indicator • In Profile C
183 (ACM) Session Progress
• In Profile B Not interworked
SIP-I Protocol Feature Module Mapping Details
Note Table 6 is not applicable for SIP to SIP B2BUA. This table is for SIP-I involved calls and SIP-to-EISUP calls. For details on whether or not the Cisco PGW 2200 Softswitch includes SDP in 180/183 messages, see the troubleshooting procedure when ringback tones are missing in the “Troubleshooting the Feature” section on page 27.
Table 7 Mapping ISUP Call Progress Message (CPG) to 180/183 Under Control of the Property Support183
Event Indicator in Event Information of CPG1
1. CPG = call progress message
Local SDP2 Ready
2. SDP = Session Description Protocol
Support183 Property Message Sent to SIP
000 0001 (“alerting”) Either 1 (Q1912.5 supported without SDP in 180) 5 (Q1912.5 supported)
2 (Q1912.5 supported with InbandInfo)
180 Ringing
1 (183 not supported) 3 (183 supported)
180 Ringing
4 (always send 183) 183 Session Progress
000 0010 (“progress”) No 1 (Q1912.5 supported without SDP in 180) 5 (Q1912.5 supported)
2 (Q1912.5 supported with InbandInfo)
• In Profile C3
183 (CPG) Session Progress • In Profile B
Not interworked
3. For details of the Profile B and Profile C definitions, see the ITU-T Recommendation Q.1912.5 (2004) Interworking between Session Initiation Protocol
(SIP) and Bearer Independent Call Control Protocol or ISDN User Part
Values other than 1, 2, or 5 Not interworked Yes 1 (Q1912.5 supported without SDP in 180)
5 (Q1912.5 supported)
2 (Q1912.5 supported with InbandInfo)
• In Profile C
183 (CPG) Session Progress • In Profile B
Not interworked Values other than 1, 2, or 5 183 Session Progress 000 0011 (in-band information or an appropriate pattern is now available) No 1 (Q1912.5 supported without SDP in 180) 5 (Q1912.5 supported)
2 (Q1912.5 supported with InbandInfo)
• In Profile C
183 (CPG) Session Progress • In Profile B
Not interworked Values other than 1, 2, or 5 Not interworked Yes 1 (Q1912.5 supported without SDP in 180)
5 (Q1912.5 supported)
• In Profile C
183 (CPG) Session Progress • In Profile B
Not interworked 2 (Q1912.5 supported with InbandInfo) 183 (CPG) Session Progress Values other than 1, 2, or 5 183 Session Progress
