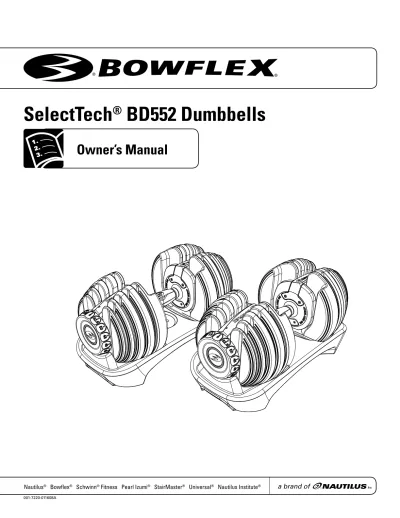

Owner’s Manual
SelectTech
®
BD552 Dumbbells
Introduction
Congratulations on the your purchase of the Bowflex
®SelectTech
®Dumbbell set. This innovative dumbbell is a
versatile training tool that will help you reach your fitness goal. This product has been carefully engineered and
manufactured to provide a wide array of weight options starting at 5 lbs (2.27 kg) and going all the way up to 52.5 lbs.
(23.9kg) In order to utilize this product to its fullest extent, it is critical that you read and fully understand this owner’s
manual prior to using the SelectTech
®dumbbell.
Table of Contents
Safety Warnings ... 4
Safety Warning Labels ... 5
Product Specifications ... 6
Operation ... 7
Getting to Know Your Bowflex
®SelectTech
®Dumbbells ... 7
Understanding and Testing Locking Mechanism Function ... 8
Testing Proper Locking Mechanism Function ... 8
Offset Weight Selection ... 10
Maintenance ... 12
Troubleshooting Guide ... 13
Dumbbell Stand ... 14
Exercises ... 15
Leg Exercises ... 15
Chest Exercises ... 18
Arm Exercises ... 21
Back Exercises ... 25
Abdominal Exercises ... 27
Shoulder Exercises ... 30
Muscle Chart ... 33
Limited Warranty ... 34
Contact Information ... 35
Safety Warnings
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Before using this equipment, obey the following warnings:
Read and understand the complete Owner's Manual.
Read and understand all Warnings on this machine.
Never allow children to use or play near this equipment. Teenagers under the age of 18 must always have parental
•
supervision and instruction on the use of this product.
Consult a physician before starting an exercise program. Stop exercising if you feel pain or tightness in your chest,
•
become short of breath, or feel faint. Contact your doctor before using the machine again.
This product is for consumer users only.
•
Inspect the dumbbells prior to each use. Do not use a dumbbell with worn or damaged parts Contact Nautilus
•
Customer Service for repair information.
Periodically inspect and test the locking mechanism for proper function. Follow the test procedures included in this
•
manual.
Never attempt to force the adjustment knob to rotate when the dumbbell has been removed from the dumbbell base.
•
Never allow the dumbbells to drop freely to the ground. Damage to the product and potential personal injury may
•
occur. Please see the warranty section for specific warranty limitations related to dropped dumbbells.
Never allow dumbbells to forcefully bump together during use. Damage to the product and potential personal injury
•
may occur.
Never attempt to disassemble your SelectTech
•
®Dumbbell handle, or base assembly–the product is not designed to
be user serviced. Contact Nautilus, Inc. directly for service.
Before beginning your workout, make certain that your surroundings are free from potential interference.
•
The SelectTech
•
®dumbbells are very heavy; if you are not using the optional SelectTech
®Dumbbell Stand, we suggest
you place the dumbbell assembly directly on the floor for best support.
Do not over exert yourself during exercise. Only use this product in the manner described in this manual
Safety Warning Labels
BefOre uSing yOur prODucT
: Find and read all warning labels. If any warning label is damaged, illegible or missing,
call 1-800-864-1270 for a replacement.
A:
General warning label.
(Location: On the side of the base.)
B:
Serial number.
(Location: On the bottom of the base.)
A
Product Specifications and Features
Dimensions
16.9” L x 8.3” W x 9” H (43cm x 21.2cm x 22.8cm)
Dumbbell Assembly Weight
Approximately 58 lbs (26.3 kg)
features
A. Handle grip
B. Adjustment knob
c. Weight plates
D. Weight locking tab
e. Base
f. Lifting handle
22.8cm 9.0” 43.0cm 16.9” 21.2cm8.3” C A B F F E DD
Operation
getting to know your Bowflex
®SelectTech
®Dumbbells
The Bowflex
®SelectTech
®BD 552 dumbbells are shipped fully assembled, one dumbbell to a box. After carefully removing the
dumbbell from its box, there are some initial steps that should be taken to familiarize you with the function of the product, and to
assure that all aspects of the dumbbell are performing according their specifications.
Notice: Do not drop the dumbbell. Dropping the dumbbell will damage the weight plates and locking mechanism, which could
void the warranty of this product.
1. After removing the dumbbell from its protective packaging, inspect the products and packaging material for any damages.
2. Push down slightly on the handle assembly to make sure it is fully seated in the base. Rotate each adjustment knob several
full rotations to make sure it turns freely in both directions. Make sure there is a click at each weight increment of the
adjustment knob. This click will help you locate the proper alignment to select a given weight increment.
3. The weight increments range from 5 to 52.5 lbs (2.27kg to 23.9kg) on both adjustment knobs.
To properly select a given weight (20 lbs [9kg] for example), rotate both adjustment knobs
until that number (20) is aligned with the arrow located on the outward edge of the Bowflex
®nameplate (Fig.1).
4. After confirming the proper rotational function of the adjustment knob, turn each adjustment
so that the number 5 is aligned with the arrow in the Bowflex
®nameplate.
5. With both adjustment knobs set to 5, pull the handle straight up from the dumbbell. This
will remove only the handle from the base, leaving all of the weight plates standing in the
base (Fig. 2). The handle without plates represents the starting weight of 5 lbs (2.27 kg).
6. You may increase the selected weight by rotating each adjustment knob clockwise.
7. The dumbbell handle and weight plates are symmetrical. The handle is inserted with
either end facing the user, provided that you have selected the same weight number on
both ends of the dumbbell.
8. When either returning or removing the dumbbell to or from the base, use a vertical
motion, perpendicular to the base. Do not tilt the dumbbell or move it laterally (parallel to
the base) until it is fully clear of the unselected weight plates.
There are 15 weight increments:
5
7.5 10 12.5 15 17.5 20 22.5 25
30
35
40
45
50 52.5
(2.27kg) (3.4kg) (4.5kg) (5.7kg) (6.8kg) (8kg)
(9kg) (10.2kg) (11.4kg) (13.6kg) (15.9kg) (18.2kg) (20.5kg) (22.7kg) (23.9kg)
Figure 1
Operation
understanding and testing the locking mechanism function
The Bowflex
®SelectTech
®Dumbbell features a patent pending locking mechanism designed to ensure proper and complete
selection of the weight plates as well as to ensure weight plate retention during the workout. It is important that you fully
understand the function of this mechanism and periodically test it to ensure it is properly functioning.
function
The locking mechanism provides two key functions:
1. The mechanism will only allow the adjustment knobs to be rotated when the dumbbell handle is completely inserted and
engaging the dumbbell base.
2. The mechanism is designed to lock the dumbbell handle to the base if either adjustment knob is not fully engaging the
selected weight plates.
purpose
The locking mechanism serves two important purposes:
1. The mechanism will prevent deselecting (dropping) weight plates from the dumbbell when it is NOT in the dumbbell base.
2. The mechanism will prevent partial selection of the weight plates in which the plates are not fully supported and the
locking pin is not fully engaged.
D
All locking tabs (D) must point outward.
D
Operation
Given the importance of this locking mechanism, it is critical that you understand how it operates, and periodically test it to make
sure it is functioning correctly.
Testing proper locking mechanism function
1. With the dumbbell handle set in the dumbbell base, turn both adjustment knobs to the
number 5. You will know you have fully and correctly selected the number when you feel
the adjustment knob settle into a notch (known as a detent). You will also hear a slight, but
audible, clicking noise that corresponds with the detent locations for each number.
2. You should be able to withdraw the handle from the base leaving all the weight plates behind.
3. With the handle removed from the base, grab one adjustment knob with your other hand and
gently attempt to turn the knob, the knob should not rotate. A locking pin in the mechanism will
have engaged the rotational assembly when the unit was withdrawn from the base. Perform
this test with all adjustment knobs.
Do not use a great deal of force in an attempt to turn the locked adjustment knob. Excessive force may damage the locking
mechanism.
4. After confirming the proper function of the locking mechanism as described above, return and fully insert the dumbbell
handle back into the base assembly.
5. With the handle back in the base, turn the adjustment knob on one side to a position that is between the numbers 5 and
7.5. This represents an incomplete weight selection where the adjustment knob has not fully selected a weight and the
knob is in-between the selection detents (clicks).
6. With the selection knob in this improper position, gently attempt to lift up on the handle to remove it from the base. You
should find that the handle is locked to the base and cannot be removed with light pressure, as it can normally.
7. Return the improperly selected adjustment knob to a full and proper weight selection and assure that the dumbbell handle
can once again be removed.
8. Repeat this test for all adjustment knobs.
9. Assure the entire dumbbell handle assembly is properly tightened. Do this by setting the adjustment knobs to 5 pounds and
removing the handle assembly from the base. Grab both adjustment knobs and very slightly push and pull the knobs toward
and away from the handle grip. The knobs should not exhibit free play and all of the selection discs should feel tightly
connected.
10. You have now tested the function of the locking mechanism. We suggest you repeat this test periodically (once a month) to
confirm the proper function of the locking mechanism.
Do not intentionally engage the locking mechanism and attempt to lift the entire dumbbell with the grip. The dumbbell and
base should only be lifted by using the lift handles molded into the base assembly.
If the dumbbell locking mechanism fails to perform in accordance with the test procedure above, do the following:
1. Discontinue use of the product immediately until proper service can be provided.
Operation
Offset weight selection
As indicated previously, proper selection for a given weight is accomplished by selecting that weight number on both ends of the
dumbbell. For example: to select 20 lbs (9 kg), one must dial both adjustment knobs on the dumbbell to the number 20. By selecting
the same number on both sides of the dumbbell, you will replicate a common dumbbell (a balanced dumbbell with equal weight
on both sides). While this is the most common form of weight selection and will be used in the vast majority of workouts, the
Bowflex
®SelectTech
®Dumbbell offers a useful and unique workout alternative known as offset weight selection.
Offset weight selection involves using a different weight setting on one side of the dumbbell relative to the other. Doing so can be
a powerful muscle development tool during certain workouts, such as the biceps curl.
The SelectTech
®Dumbbell functions exactly the same way whether you have selected balanced or offset weights. The only
exception is that when you are using offset weights, you must return the dumbbell to the base in the same orientation that you
removed it.
When you have offset weight selection, the combination of weight plates selected will not be the same on both sides of the
dumbbell. You must therefore make certain to return the dumbbell to the base in the same orientation in which it was removed, in
order for the weight plates to settle back into the corresponding vacant slots in the dumbbell base.
example of offset weight selection workout
Performed traditionally, dumbbell curls strengthen the biceps, but do little for the forearm muscles that assist in supination
and pronation of the wrist. Supination and pronation are terms describing a rotating motion of the wrist. For example, turning
a doorknob and turning your key in your car’s ignition are examples of supination and pronation. Turning a doorknob clockwise
would be the supination direction, while counter-clockwise would be the pronation direction. Whether you are training for a
specific sport, or just training to become stronger and improve activities of daily living, training your forearm muscles that are
involved in supination and pronation can be beneficial.
These dumbbells allow you to train differently than traditional dumbbells. By using different weight settings on either side of
the dumbbells, you can use those supination/pronation muscles during your curls. Using more weight on the thumb side of the
dumbbell will improve pronation strength, while more weight on the little finger side will improve supination strength. Not only will
you be strengthening your biceps, but also you can become stronger in activities involving rotation of the wrist.
The following example of a Biceps Curl using offset weight is a good demonstration of the superior muscle development provided
by the SelectTech
®Dumbbell.
Side 1
Side 2
Total dumbbell weight
Weight settings selected
20 lbs (9 kg)
30 lbs (13.6 kg)
25 lbs (11.4 kg)
Weight difference
10 lbs (4.5 kg)
Weight distribution
10 lbs (4.5 kg)
15 lbs (6.8 kg)
25 lbs (11.4 kg)
Weight offset
+ 5 lbs (2.27 kg)
The dumbbell weight has been set to 20 lbs (9 kg) on one side and 30 lbs (13.6 kg) on the other. The total weight of the dumbbell
is therefore 25 lbs (11.4 kg). This 25 lb (11.4 kg) dumbbell has the weight distributed such that there are 10 lbs (4.5 kg) on one side,
and 15 lbs (6.8 kg) on the other, for a total of 25 lbs (11.4 kg).
With the dumbbell weight configured as defined above, the user should grip the dumbbell with 20 lbs (9 kg) on the thumb side of
the hand and the 30 lbs (13.6 kg) on the little finger side of the hand.
Operation
Difference
Offset
2.5 lbs
+ 1.25 lbs
5 lbs
+ 2.5 lbs
7.5 lbs
+ 3.75 lbs
10 lbs
+ 5 lbs
12.5 lbs
+ 6.25 lbs
15 lbs
+ 7.5 lbs
17.5
+ 8.75 lbs
20 lbs
+ 10 lbs
22.5 lbs
+ 11.25 lbs
25 lbs
+ 12.5 lbs
30 lbs
+ 15 lbs
35 lbs
+ 17.5 lbs
40 lbs
+ 20 lbs
5 Indicates weight setting on adjustment knob
7.5 6.25 10 7.5 8.75 12.5 8.75 10 11.25 15 10 11.25 12.5 13.75 17.5 11.25 12.5 13.75 15 16.25 20 12.5 13.75 15 16.25 17.5 18.75 22.5 13.75 15 16.25 17.5 18.75 20 21.25 25 15 16.25 17.5 18.75 20 21.25 22.5 23.75 30 17.5 18.75 20 21.25 22.5 23.75 25 26.25 27.5 35 20 21.25 22.5 23.75 25 26.25 27.5 28.75 30 32.5 40 22.5 23.75 25 26.25 27.5 28.75 30 31.25 32.5 35 37.5 45 25 26.25 27.5 28.75 30 31.25 32.5 33.75 35 37.5 40 42.5 50 27.5 28.75 30 31.25 32.5 33.75 35 36.25 37.5 40 42.5 45 47.5 52.5 28.75 30 31.25 32.5 33.75 35 36.25 37.5 38.75 41.25 43.75 46.25 48.75 51.25 5 7.5 10 12.5 15 17.5 20 22.5 25 30 35 40 45 50 52.5
Offset weight selections.
The chart to the right is a quick reference to determine the amount of weight offset to
one side of the dumbbell.
The amount of weight listed in the Difference column indicates the difference
between the two weights selected with the dumbbell adjustment knob.
The symbol “+” indicates the amount of offset weight on the heavier side of the
dumbbell.
Although you can continue to increase the amount of weight offset, it is not generally
necessary to offset the weight more than 20 lbs (9 kg).
Start the biceps curl with a neutral wrist and forearm position (palm facing leg). As the curl progresses
from the start to finish position, the wrist should be rotated progressively outward (palm up). During this
curl the user will be lifting the weight of the dumbbell (25 lbs [11.4 kg]) with the biceps but also lifting
the offset weight of 5 lbs (2.27 kg) with wrist rotation (supination). Unlike a conventional dumbbell that
is balanced end to end, this offset weight will require more muscle activation and therefore develop the
forearm and wrist.
Maintenance
Bowflex
®SelectTech
®Dumbbell maintenance:
The Bowflex
®SelectTech
®Dumbbell is a very low maintenance product. However, there are steps that you should take to keep
the product performing and looking its very best.
1. Should your SelectTech
®Dumbbell handle assembly, plates or base become soiled you may clean them with a cloth lightly
dampened with warm water and a small amount of mild soap. Wipe dry with a separate cloth.
2. The SelectTech
®Dumbbell is internally lubricated and will not require further internal lubrication. The contact between
weight plates and selection discs is not lubricated but has naturally low friction. This generally will not require any
lubrication. Should you feel it necessary to lubricate the weight plates and/or selection discs, use only a silicon lubricant,
preferably “food grade”.
Do not use any solvents, harsh detergents, chemicals or bleach on this product − doing so may damage the materials,
resulting in degradation of the product’s performance or strength.
Do not attempt to disassemble the dumbbell handle or base assembly. These items are not designed to be user serviced.
Doing so will void the manufacturers warranty. Contact Nautilus, Inc. directly for service.
Troubleshooting
problem
Solution
Dumbbell handle does not fully insert into base
when no plates are selected (handle has no
plates attached).
1. Make certain that both adjustment knobs are set directly to the
num-ber 5.
Dumbbell handle does not fully insert into base
when plates are selected (handle has plates
attached).
1. Check to see if you have selected different weights on each side of the
dumbbell (for example one adjustment knob is set to 2 and the other is
set to 3). If this is the case, you must replace the dumbbell in the base
with the same orientation in which it was was withdrawn. This is to
allow the plates to settle back into the correct and vacant openings in
the base.
2. Verify that the plates not selected (those plates remaining in the
dumb-bell base) are in their correct spots and have not been moved to
differ-ent support slots. This may be blocking the dumbbell from fitting back
into the base.
Adjustment knob will not turn while handle is in
base.
1. Check to assure that the dumbbell handle is fully depressed into the
dumbbell base. If not fully depressed, the locking mechanism will not
be released and may prevent the adjustment knobs from rotating.
2. Check to see if any weight plates have been put into the base
assem-bly backwards with the “Locking Tab” facing the grip of the dumbbell
handle. All weight plates must have the selection tongue facing away
from the grip of the dumbbell handle.
3. Check to see if there is any dirt, debris or other obstruction in the
dumbbell base. You may need to remove the weight plates from the
base to accomplish this check. Remember to put each weight plate
back in its appropriate location with the selection tongue facing away
from the dumbbell grip.
Plates are not secured to the handle and drop out.
1. Confirm that all of the weight plates have the “Locking Tab” facing
away from the dumbbell grip. If one or more of the weights are inserted
backwards with “Locking Tab” facing inward toward the grip, the
handle can get blocked, and the plates may wedge into the handle.
2. Verify that the plates not selected (those plates remaining in the
dumb-bell base) are in their correct spots and have not been moved to
differ-ent support slots. This may be blocking the dumbbell from fitting back
into the base.
Optional Accessories
Optional exercise bench and mat are available separately.
Additional products are available from nautilus, inc. at www.nautilusinc.com
Bowflex
®SelectTech
®2-in-1 Dumbbell Stand
This attractive stand features an ergonomic design to enhance the functionality of the SelectTech
®dumbbells.
• The V-shape “step-in” design allows the user to maintain proper upper body position while lifting or replacing the dumbbells
in the base.
• The dumbbell handles are positioned in a natural orientation providing a comfortable and secure lifting position.
• Large adjustable stabilizer feet assure maximum stability.
• Includes wheels for easy transport.
• Includes fastening straps to secure dumbbells to the base.
• Integrated towel rack.
Leg Exercises
Wide Squats
STArT
AcTiOn
STArT
• Grab the dumbbell with both hands and stand with you feet slightly wider than shoulder width apart.
• Slightly rotate your hips outward, feet and knees should be lined up in that outward position as well.
• Stabilize your torso by lifting your chest, tightening your abs and maintaining a slight arch in your lower back.
• Under control, slowly squat down by sticking the hips back as the knees start to bend.
• Keep the chest up and the back flat as the hips continue to move backward.
• Lower to approximately 90 degrees at the knees, unless otherwise determined.
• Return to the starting position. • Do not lockout the knees at the
top of the squat.
finiSH
calf raises
STArT
AcTiOn
STArT
• Stand with your feet about shoulder width apart, feet facing straight forward.
• Hold the dumbbells at your sides with your palms facing in. • Keep your chest lifted, abs tight
and a slight curve in your lower back.
• Slowly rise up on the balls of your feet, lifting your heels as high as you can off the floor. • Slowly return to the starting
position, keeping tension on the calf muscles.
finiSH
Muscles worked
Quadriceps, glutes, hamstrings and adductors
Success tips:
• Keep the knees pointed in the same direction as the toes.
• Keep the head and neck in line with the trunk.
• Pay close attention to all alignment and stabilization issues on every part of each and repetition.
Muscles worked
Gastrocnemius and soleus
Success tips
• Do not change your hip or knee position during the exercise. • Rise up as high as you can,
maintaining your balance, on the balls of your feet.
Note:
Optional accessories shown in photos.Stationary Lunges
Stiff-leg Dead Lift
STArT
AcTiOn
STArT
• Stand with your feet approximately shoulder width apart.
• Hold the dumbbells down in front of your thighs with your palms facing back.
• Maintaining your knee position, slowly bend forward at the hips moving your butt backward. • Stop as your hamstings begin
to get taut and before your back
finiSH
STArT
AcTiOn
STArT
• Stand with one foot forward and one foot backward in a position so when you move to the bottom of the lunge, your front foot is under your knee and your back knee is directly under you hip.
• Hold the dumbbells at your sides with your palms facing inward. • Keep the chest lifted, abs tight
and a slight arch in the lower back.
• Slowly lower your body bending at both knees, simultaneously keeping the front knee in line with the toes.
• Move down and stop just before the back knee is going to touch the floor.
• Reverse the motion and come back up to the starting position.
finiSH
Muscles worked
Quadriceps, glutes, hamstrings and adductors
Success tips
• Place feet in a position so that when you lunge down, your front foot is directly under your knee and your back leg lines up under your hip. • Keep your head and chest lifted, with
a slight arch in the lower back during the movement.
• Do only one side to fatigue, then switch to the other side.
Muscles worked
Hamstrings, glutes and spinal erectors
Success tips
• Your torso should move from standing vertical to leaning forward at the hips without rounding your spine during any part of the movement.
• Keep the knees slightly bent. • Only move as far as you can
correctly.
• It is critical that you keep the chest lifted and do not allow your spine to round at any time during the movement.
Leg Exercises
reverse Lunge
STArT
AcTiOn
STArT
• Stand with your feet together. • Hold the dumbbells at your sides
with your palms facing inward. • Keep the chest lifted, abs tight
and a slight arch in the lower back.
• Initiate the movement by tightening your glutes and slowly pivoting your leg from your hip. Move your entire leg backward, keeping your knee steady at a 90 degree angle.
• Slowly move your leg as far as you can, without allowing any movement at the waist, knee or lower back.
• Slowly return to start position.
finiSH
Muscles worked
Quadriceps, glutes, hamstrings and adductors
Success tips
• Place feet in a position so that when you lunge back, your front foot is directly under your knee and your back leg lines up under your hip. • Keep your head and chest lifted, with
a slight arch in the lower back during the movement.
• Do only one side to fatigue and then switch to the other side.
Chest Exercises
flat chest press
incline chest press
STArT
AcTiOn
Muscles worked
Pectoralis major, deltoids and triceps
Bench position
Inclined to 45 degrees
Success tips
• Maintain a 60-90 degree angle between your upper arms and torso at the start of the motion and slightly more than 90 degrees from your torso at the top.
• Keep knees bent so your feet are positioned flat on the floor directly under your knees.
• Do not let your elbows travel behind your shoulders when you are lowering the dumbbells.
STArT
• Grab the dumbbells and lie back on the bench.
• Bend your elbows back, keeping your arms at approximately
60-90 degrees away from your sides,
• Slowly press the dumbbells upward, straightening your arms while moving the dumbbells toward each other, directly over the center of your chest.
finiSH
STArT
AcTiOn
Muscles worked
Pectoralis major, deltoids and triceps
Bench position
Flat
Success tips
• Maintain a 60-90 degree angle between your upper arms and torso at the start of the motion, and a 90 degree angle from your torso at the top.
• Keep knees bent so your feet are positioned flat on the floor directly under your knees.
• Do not let your elbows travel behind your shoulders when you are lowering the dumbbells. • Keep shoulder blades pinched
together and maintain good spinal alignment.
STArT
• Grab the dumbbells and lie back on the bench.
• Bend your elbows back keeping your arms at approximately 60-90 degrees away from your sides, and your elbows equal to your shoulder. • Keep your arms directly in line with
the dumbbell, over your wrists and elbows.
• Raise your chest, pinch your shoulder blades together and maintain a comfortable arch in your lower back.
• Slowly press the dumbbells uprward, straightening your arms while moving the dumbbells toward each other, directly over the center of your chest. • Don’t lock out your elbows, keep
the tension on the chest. • Slowly return to the starting
position, keeping your wrists steady and your movements slow and controlled.
Chest Exercises
flat chest fly
incline chest fly
STArT
AcTiOn
STArT
• Grab the dumbbells and lie back on the bench.
• Rotate your upper arms away from your torso so that your elbows and palms are pointing upward.
• Maintain a slight bend at the elbow and stabilize your wrist in a neutral position. • Raise your chest, pinch your shoulder
blades together and maintain a comfortable arch in your lower back.
• Slowly move the dumbbells forward, then upward, keeping your arms stable at the elbow. Move the dumbbells toward each other directly over the center of your upper chest.
• Keep the tension on the chest throughout the movement. • Slowly return to the starting
position.
finiSH
STArT
AcTiOn
STArT
• Grab the dumbbells and lie back on the bench.
• Rotate your upper arms away from your torso so that your elbows and palms are pointing upward.
• Maintain a slight bend at the elbow and stabilize your wrist in a neutral position.
• Raise your chest, pinch your shoulder blades together and maintain a comfortable arch in your lower back.
• Slowly move the dumbbells forward, then upward, keeping your arms stable at the elbow, while moving the dumbbells toward each other directly over the center of your chest. • Keep the tension on the chest
throughout the movement. • Slowly return to the starting
position, keeping your wrists steady and your movement slow and controlled.
finiSH
Muscles worked
Pectoralis major and deltoids
Bench position
Flat
Success tips
• Maintain a 60-90 degree angle between your upper arms and torso at the start of the motion, and slightly more than 90 degrees from your torso at the top.
• Keep knees bent so your feet are positioned flat on the floor directly under your knees.
• Do not let your elbows travel behind your shoulders when you are lowering the dumbbells. • Keep shoulder blades pinched
together and maintain good spinal alignment.
Muscles worked
Pectoralis major and deltoid
Bench position
Inclined 45 degrees
Success tips
• Maintain a 60-90 degree angle between your upper arms and torso at the start of the motion, and slightly more than 90 degrees from your torso at the top.
• Keep knees bent so your feet are positioned flat on the floor directly under your knees.
• Do not let your elbows travel behind your shoulders when you are lowering the dumbbells. • Keep shoulder blades pinched
together and maintain good spinal alignment.
Chest Exercises
Decline chest press
STArT
AcTiOn
STArT
• Grab the dumbbells and lie back on the bench.
• Bend your elbows back, keeping your arms at approximately 60-90 degrees away from your sides, and your elbows equal to your shoulder.
• Raise your chest, pinch your shoulder blades together and maintain a comfortable arch in your lower back.
• Slowly press the dumbbells upward, straightening your arms while moving the dumbbells toward each other, directly over the center of your chest. • Don’t lock out your elbows, keep
the tension on the chest. • Slowly return to the starting
position, keeping your wrists steady and your movements slow and controlled.
finiSH
Muscles worked
Pectoralis major, deltoids and triceps
Bench position
Declined
Success tips
• Maintain a 60-90 degree angle between your upper arms and torso at the start of the motion, and 90 degree angle from your torso at the top.
• Keep knees bent so your feet are positioned flat on the floor directly under your knees.
• Do not let your elbows travel behind your shoulders when you are lowering the dumbbells. • Keep shoulder blades pinched
together and maintain good spinal alignment.
• Keep your arms directly in line with the dumbbell over your wrists and elbows.
Arm Exercises
Standing curls
concentration curls
STArT
AcTiOn
STArT
• Sit on the bench sideways and place your feet flat on the floor slightly wider than shoulder width.
• Grab the dumbbell and rest the back of your upper arm against the inside of your leg just above the knee. • The arm holding the dumbbell
should be slightly bent maintaining tension on the biceps.
• Maintain a good spinal alignment.
• Curl the forearm toward the upper arm, keeping your upper arm and shoulder blade completely still.
• Slowly return to the starting position without relaxing the biceps.
finiSH
STArT
AcTiOn
STArT
• Hold the dumbbells with your hands facing forward.
• Stand with your upper arms by your sides, lift your chest, tighten your abdominals and maintain a very slight arch in your lower back.
• Curl the dumbbells forward, then upward, and then toward your shoulders while keeping your elbows at your sides and your upper arms completely still. • Slowly lower to the starting
position by performing the same arcing motion.
finiSH
Muscles worked
Biceps and other elbow flexors
Success tips
• Keep elbows at your sides. • Keep your wrists straight.
• Keep your trunk muscles tight and maintain a very slight arch in your lower back.
Muscles worked
Biceps and other elbow flexors
Bench position
Flat
Success tips
• Do not rock the upper body while bending the elbow.
• Keep your wrist straight.
• Keep your chest lifted, trunk muscles tight and maintain a very slight arch in your lower back.
Arm Exercises
incline Bench curls
Scott curls — Standing concentration curls
STArT
AcTiOn
STArT
• Grab the dumbbell and rest the back of your upper arm against the upper portion of the bench pad. • The arm holding the dumbbell
should be slightly bent maintaining
• Curl the forearm toward the upper arm, keeping your upper arm and shoulder blade completely still.
• Slowly return to the starting
finiSH
STArT
AcTiOn
STArT
• Grab the dumbbells and sit on the inclined bench and place your feet flat on the floor directly under your knees.
• Hold the dumbbell with a slight bend at the elbow maintaining tension on the biceps.
• Maintain a good spinal alignment with the chest lifted and the abs tight.
• Curl the forearms toward the upper arm, keeping your upper arm and shoulder blade completely still.
• Slowly return to the starting position without relaxing the biceps.
finiSH
Muscles worked
Biceps and other elbow flexors
Bench position
Inclined to 45 degrees
Success tips
• Keep tension on the biceps throughout the movement, don’t allow the arm to go to full extension. • Keep your wrist straight.
• Keep your chest lifted, trunk muscles tight and maintain a very slight arch in your lower back.
Muscles worked
Biceps and other elbow flexors
Bench position
Inclined to 60 degrees
Success tips
• Do not rock the upper body while bending the elbow.
• Keep your wrist straight.
• Keep your chest lifted, trunk muscles tight and maintain a very slight arch in your lower back.
• Stop the arm motion at the top of the movement slightly before your arm is straight up.
• Keep feet slightly wider than shouder width.
Arm Exercises
Overhead Triceps extension
Triceps Kickback
STArT
AcTiOn
STArT
• Kneel with one leg on the bench, bend forward at the hips and place one hand on the bench. • Support yourself with one arm
on the bench and hold the dumbbell with the other with your palm facing in.
• Keeping your elbow bent, bring your upper arm to your side, parallel to the ground.
• Straighten the elbow while keeping your upper arm completely still.
• When the arm is completely straight, slowly return to the starting position.
finiSH
STArT
AcTiOn
STArT
• Stand with your knees slightly bent and feet shoulder width apart.
• Place both hands over the inside edge of one side of the dumbbell weights.
• Bring the arms up over your head with an approximate 90 bend at the elbow.
• Keeping your upper arms stable, slowly straighten your elbows moving your arms in a arcing motion upward, over your head. • Stop the motion before your
arms are completely straight, and then reverse the motion, slowing returning to the starting position, keeping tension on the muscle.
finiSH
Muscles Worked
Triceps
Success tips
• Keep your knees slightly bent with your feet approximately shoulder width apart. • Keep your chest lifted, shoulders
pinched together and a very slight arch in your lower back.
• Keep your upper arms and shoulders motionless and your wrists straight. • Tighten your triceps throughout the exercise, using a controlled motion.
Muscles Worked
Triceps
Bench position
Flat
Success tips
• Maintain spinal alignment.
• Keep your arm at your side and your wrist straight throughout the entire motion.
• Tighten your triceps throughout the exercise and control the motion.
Arm Exercises
Lying Triceps extension
Hammer curls
STArT
AcTiOn
STArT
• Stand with your feet shoulder width apart and knees slightly bent.
• Curl the dumbbells forward, then upward, then in toward the shoulder, keeping the upper arm
finiSH
STArT
AcTiOn
STArT
• Lie back on the bench with your head supported on the bench. • Grab the dumbbells and move
your upper arm up to a position that your elbow is facing upward and your hands holding the dumbbells are just over your forehead.
• Raise your chest and pinch your shoulder blades together. • Maintain a very slight arch in the
lower back.
• Keep the upper arms stationary while moving the hands in an arcing motion upward.
• Stop the motion slightly before locking out the elbows. Do not lock out the elbow!
• Slowly reverse the arcing motion back to the starting position.
finiSH
Muscles worked
TricepsBench position
FlatSuccess tips
• Keep the upper arm motionless. • Keep the wrists straight.
• Tighten your triceps throughout the exercise and control the motion all the way down.
• Keep the knees bend and the feet planted on the floor directly under your knees.
Muscles worked
Biceps, brachioradialis and brachialis
Success tips
• Keep the upper arms motionless and your wrists straight throughout the entire exercise.
• Keep the chest lifted, spine straight and a slight arch in the low back.
Back Exercises
Single Arm row — Alternating rows
Wide rows
STArT
AcTiOn
STArT
• While standing holding the dumbbells, lean forward at the hip allowing the arms to extend directly in line with the resistance. • Keep your spine in a stable
position.
• Rotate the shoulder so that you palms are facing behind you.
• Allow your arms to bend as you go, move your elbows outward and backward keeping a 70-90 degree angle between your upper arms and your torso.
• Move until your elbows are slightly behind your shoulders, then slowly reverse the action keeping the rear shoulder muscles tightened during
finiSH
STArT
AcTiOn
STArT
• Put one knee on the bench and place the other foot on the floor directly under your hip.
• Place free hand on the bench slightly in front of you in a position that allows you to stabilize your upper body. • Allow the arm with the dumbbell
to hang straight down, while maintaining control of your back and shoulder.
• Hold dumbbell in a neutral grip with your palm facing the bench.
• Initiate the movement by pinching your shoulder blades back, while simultaneously moving your elbow backward, then upward. • Continue moving the elbow up,
slightly above the height of your trunk while keeping the forearm lined up under the elbow. • While controlling the resistance,
lower the arm back to the starting position letting the shoulder blade slide forward without slouching.
finiSH
Muscles Worked
Latissimus Dorsi, teres minor, postier deltoid and biceps
Bench position
Flat
Success tips
• Stabilize your body in position so the effort is focused on your lat as you lead the movement with extending your elbow upward.
• Keep the dumbbell lined up directly under your wrist and elbow when doing the movement.
• Keep your spine aligned, abs tight and a slight arch in your lower back. • Do not let your spine rotate side
to side, keep the shoulder at equal height during the movement.
Muscles worked
Rear deltoid, rear portion of the middle deltoid, postier rotator cuff, upper lats and teres minor
Success tips
• Place the feet in a comfortable shoulder width position.
• Keep the chest lifted, abs tight and a very slight arch in the lower back. • Lean forward slightly at the hip while
keeping the upper body in alignment. • Your forearms should always point in
Back Exercises
Dead Lifts
STArT
AcTiOn
STArT
• Position your feet in line with the dumbbell about shoulder width apart.
• Point your toes outward slightly and direct the thighs to the same outward angle as the feet. • Hold the dumbbells with your
palms facing backward.
• Under control, slowly squat down by sticking the hips out as the knees start to bend.
• Keep the chest lifted and back flat as the hips continue to move backward.
• Lower to approximately a 90° bend at the knees, unless otherwise determined. • Move back to the starting
position, keeping the chest lifted while moving the hips forward and extending the knee.
finiSH
Muscles worked
Glutes, adductors, hamstrings, quads, spinal erectors and traps
Success tips
• Keep knees pointed in the same direction as the feet.
• Keep head and neck in line with the trunk.
• Pay close attention to all the
alignment and stabilization issues on every part of each repetition.
• Keep pressure through the middle of the arches/feet, not the toes or heels.
Abdominal Exercises
Ab crunch
reverse crunch
STArT
AcTiOn
STArT
• Lie on your back with your head resting on the bench.
• Bend your knees fully.
• Determine these positions and maintain throughout the exercise. • Reach over the head and grasp the
bench with each hand. • Relax the neck.
• Tighten your abs and slowly curl your hips toward your rib cage. • Move as far as you can
without using your legs to get momentum, and do not curl up onto your shoulder blades. • Slowly reverse the action and
return to the starting position
finiSH
STArT
AcTiOn
STArT
• Grab a dumbbell with both hands, as shown.
• Lie flat on the bench holding the dumbbell over your upper chest. • Place your legs behind the
roller pads, as shown, for added support, with your feet flat on the floor.
• Your lower back can start out flat or in a normal arch.
• Tighten your abs and only curl your torso, slowly moving your lower ribs toward your hips. • Move as far as you can without
moving the hips and neck. • The lower back should not lose
contact with the bench when fully crunched.
• Slowly reverse the action, returning to the start position keeping tension on the abs throughout the movement.
finiSH
Muscles worked
Rectus abdominus and obliques
Bench position
Flat
Success tips
• Do not lift your head or chin. Your head should follow the rib motion, rather than lead it.
• Maintain normal neck posture. • Move slowly to eliminate momentum. • Allow exhalation up and inhalation
down, without exaggerating breathing.
Muscles worked
Abdominal area, including the rectus abdominus and the obliques
Bench position
Flat
Success tips
• Tighten your abs before you move. • Keep knees and hips stationary. • Allow exhalation up and inhalation
down, without exaggerating breathing.
• Contract as far into the movements as possible.
• Lower under control.
• The amount of bend in your hips based upon desired difficulty. • Beginners should be fully bent,
Abdominal Exercises
Lying Trunk rotation
Twisting Side crunch
STArT
AcTiOn
STArT
• Lie back flat on the bench and place one hand behind the head of the involved side.
• Tighten your abs and move in a diagonal direction, slowly moving your ribs to the opposite hip.
finiSH
STArT
AcTiOn
STArT
• Lie flat on the bench. • Bend your hips and knees to
approximately 90 degrees. • Keep your chest lifted, abs tight
and a slight arch in your low back.
• Hold onto the sides of the bench.
• Tighten the entire abdominal area and slowly rotate your legs and hips to one side.
• Move slow and controlled, being careful not to let your legs and hips rotate uncontrolled to the side.
• Move back to the starting position.
• Work one side to fatigue and then do the opposite side.
finiSH
Muscles worked
Deep spinal and trunk muscles
Bench position
Flat
Success tips
• This is an important exercise but can become high risk if done incorrectly. • Keep the chest lifted and always
maintain a good spinal alignment with a very slight arch in the lower back. • More range of motion is not
necessarily better, especially in this exercise.
• Move only as far as your muscles can take you. Try to eliminate uncontrolled momentum.
Muscles worked
Obliques and rectus abdiminus
Bench position
Flat
Success tips
• Allow exhalation up and inhalation down.
• Your head should follow the motion of the rib cage. Maintain normal neck posture.
• Move slowly to eliminate momentum. • Move as far as you can without
Abdominal Exercises
Lying Leg raise
STArT
AcTiOn
STArT
• Lie on your back with your head resting on the bench.
• Tighten your abs and flatten your back against the bench.
• Bend your knees and hips to 90 degrees.
• Reach to the side and grasp the bench with each hand.
• Relax the neck.
• Tighten your abs and slowly extend your hips and knees. • Move your legs away from you
keeping them parallel to the floor. • Keep your back flat against the
bench for the entire movement. • Slowly reverse the action and
return to the starting position without relaxing.
finiSH
Muscles worked
Abdominal area, including the rectus abdominus, obliques and quadriceps
Bench position
Flat
Success tips
• Tighten your abs before you move. • Allow exhalation up and inhalation
down, without exaggerating breathing.
• Contract as far into the movements as possible.
Shoulder Exercises
Standing Shoulder press
Lateral raise
STArT
AcTiOn
STArT
• Grab the dumbbells with the palms facing each other. • Stand with your feet slightly
wider than shoulder width apart.
• Raise arms directly outward, then upward, to approximately shoulder height.
• Lift your hand and elbow at the same speed.
finiSH
STArT
AcTiOn
STArT
• Grab the dumbbells and stand up straight.
• Keep your chest lifted, abs tight and a slight arch in the lower back.
• Raise the dumbbells to shoulder height, keeping your palms facing forward.
• Upper arms should be 90 degrees away from your torso and your elbows should be bent to 90 degrees, as shown.
• Straighten your arms slowly over your head, focusing on moving your elbows up and inward toward your ears.
• Straighten your arms slowly over your head, focusing on moving your elbows up and inward toward your ears.
• Slowly return to the starting position, keeping tension on your front shoulder muscles through the entire motion.
finiSH
Muscles worked
Front deltoid, upper traps and triceps
Success tips
• Keep knees slightly bent. • Keep abs tight and a good spinal
alignment.
• Do not increase the arch in the lower back as you raise your arms. Keep your spine steady.
Muscles worked
Front and middle deltoids
Success tips
• Do not swing the arms upward or move the trunk during the motion. • Maintain good spinal alignment.
Shoulder Exercises
Seated Overhead press
front raise
STArT
AcTiOn
STArT
• Grab the dumbbells and stand up straight.
• Feet should be approximately shoulder width a part.
• Keep your chest lifted, abs tight and a slight arch in the lower back.
• Hold the dumbbells in front of you with your palms facing back.
• Keep the arms straight and the palms facing down, move your arms forward and then upward to shoulder height.
• Slowly return to the starting position, keeping tension on your front shoulder muscles through the entire motion.
finiSH
STArT
AcTiOn
STArT
• Grab the dumbbells and sit up straight.
• Keep your chest lifted, abs tight and a slight arch in the lower back.
• Raise the dumbbells to shoulder height, keeping your palms facing forward.
• Upper arms should be 90 degrees away from your torso and your elbows should be bent to 90 degrees as shown.
• Straighten your arms slowly over your head, focusing on moving your elbows up and inward toward your ears.
• Slowly return to the starting position, keeping tension on your front shoulder muscles through the entire motion.
finiSH
Muscles worked
Front deltoid
Success tips
• Keep knees slightly bent. • Keep abs tight and a good spinal
alignment.
• Do not increase the arch in the lower back as you raise your arms. Keep you spine steady.
Muscles worked
Front deltoid, upper traps and triceps
Success tips
• Keep feet flat on the floor and directly under your knees.
• Keep abs tight and a good spinal alignment.
• Do not increase the arch in the lower back as you raise your arms. Keep you spine steady.
Shoulder Exercises
rear Delt row
Shrugs
STArT
AcTiOn
STArT
• Grab the dumbbells and stand up straight.
• Feet should be approximately
• Raise your shoulders toward the back of your head, making sure your neck/head position does not
finiSH
STArT
AcTiOn
STArT
• Stand with your feet
approximately shoulder width apart.
• Grab the dumbbells with your palms facing back.
• Bend forward at the knees and hips so that your arms will hang slightly in front of your knees holding the dumbbells.
• Keep your head/neck in line with your spine, as shown.
• Allow your arms to bend as you move your elbows upward keeping a 60-80 degree angle between your arms and your torso.
• Your forearms should always point in the direction of the dumbbells. • Move till your elbows are slightly
behind your shoulders, then slowly reverse the motion, keeping tension on the rear shoulder muscles during the entire motion.
finiSH
Muscles worked
Back of the middle deltoid, the rear del-toid, posterior rotator cuff, trapezius and rhomboids.
Success tips
• Keep your spine and hips stable and do not allow your body to sway during the motion.
• For normal pulling exercises you may choose to let the shoulder blades float forward and backward naturally. However, for more emphasis to the rear deltoid, keep the shoulder blades pinched together throughout the movement.
• Keep your abs tight, chest lifted and maintain a slight arch in your lower back.
Muscles worked
Upper trapezius
Success tips
• Do not bend the neck backward or forward while raising the shoulders. • Keep abs tight and a good spinal
alignment.
• Make sure both shoulders are raised evenly.
Muscle Chart
Sternocleidomastoid Pectoralis Major Anterior Deltoid Medial Deltoid Biceps Brachialis External Obliques Brachioradialis Pronator Teres Flexor Carpi Radialis Tensor Fasciae Latae Iliopsoas Pectineus Rectus Femoris Vastus Lateralis Vastus Medialis Peroneus Longus Extensor Digitorum Longus Tibialis Anterior Posterior Deltoid Infraspinatus Teres Major Triceps Latissimus Dorsi Gluteus Medius Gluteus Maximus Adductor Magnus Biceps Femoris Semitendinosus Semimembranosus Trapezius Serratus Anterior Rectus Abdominus Flexor Digitorum Superficials Adductor Longus Iliotibial Tract Gracilis Sartorius Gastrocnemius SoleusLimited Warranty
All Bowflex
®exercise products are warranted to the
retail purchaser to be free from defects in materials
and workmanship. Warranty coverage valid to the
original purchaser only and proof of the purchase will be
required. Any product sold or placed in an application not
recommended by Nautilus, Inc. (“Nautilus”) will void any
warranty coverage set forth by Nautilus warranty policies
and procedures. This dumbbell set is for home use only.
Time period
This product was designed, warranted, and intended for
residential use only.
Residential Environment:
Parts (including handle assembly, weight plates and base
assembly): 2 years
What this warranty does not cover:
1. Damage to the product due to dropping the dumbbell.
2. Normal wear and tear.
3. Any damage, failure or loss caused by accident, misuse,
neglect, abuse, improper assembly, improper
mainte-nance, Acts of God (such as floods or power surges),
or failure to follow instructions or warnings in Owner’s
Manual.
4. Use of products in a manner or environment for which
they were not designed.
5. Extended warranties: Nautilus, Inc. will not be responsible
for any extended coverage terms offered by a distributor
or service provider.
Limitations
The preceding warranties are the sole and exclusive
express warranties made by Nautilus. They supersede any
prior, contrary or additional representations, whether oral
or written. No agent, representative, dealer or employee
has the authority to alter or increase the obligations
or limitations of this warranty. Any implied warranties,
including the WARRANTY OF MERCHANTABILITY and
any WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE, are limited in duration to the term of the
applicable express warranty provided above, whichever is
longer. Some states do not allow limitations on how long
an implied warranty lasts, so the above limitation may not
apply to you.
procedures:
Warranty service will be performed by the original retailer
(seller) or an authorized Bowflex
®service provider. The
original purchaser must provide proof of purchase. Service
calls assembly, transportation, and/or delivery expenses
are the responsibility of the purchaser.
1. Nautilus will have the option to repair or replace any
exercise product, which requires service.
2. Nautilus will replace any equipment frame that is
structurally defective with a new frame or replace
the unit with a unit of equal value. Nautilus is not
responsible for labor charges in replacing defective
frames.
3. In the event a product cannot be repaired, Nautilus
will apply a limited credit reimbursement toward
another Bowflex® exercise product of equal or
greater value.
4. Nautilus is not responsible for dealer labor charges
for the component change overs completed after
the labor related warranty period stated herein.
5. If you elect to repair an exercise product or part
yourself, using the services of someone other
than an authorized Bowflex
®Dealer or Service
Technician, or use a replacement part not supplied
by Nautilus, Nautilus shall not be liable for any cost,
damage, failure or loss caused by the use of such
unauthorized service or parts.
6. See an authorized Bowflex distributor for more
information or write to us at:
Nautilius, Inc.
16400 SE Nautilus Drive
Please supply the serial number of your machine and the date of purchase when you call Nautilus. Use the space in the boxes below to write down this information. To find the serial number on your machine, refer to the Safety Warning Label information page. Dial the number of the office close to you.
Serial Number
Date of Purchase
Please record the following information for future reference.
Contact Information
uniTeD STATeS OfficeS:
e-mail: [email protected]
TECHNICAL/CUSTOMER SERVICE
Phone: 800-NAUTILUS (800-628-8458)
Fax: (877) 686-6466
E-mail: [email protected]
CORPORATE HEADQUARTERS
Nautilus, Inc.
World Headquarters
16400 SE Nautilus Drive
Vancouver, Washington, USA 98683
Phone: (800) NAUTILUS (800) 628-8458
inTernATiOnAL OfficeS:
For technical assistance and a list of distributors in your
area, please call or fax one of the following numbers.
INTERNATIONAL CUSTOMER SERVICE
Nautilus International S.A.
Rue Jean Prouvé
1762 Givisiez / Switzerland
Tel: (41) (26) 460 77 77
Fax: (41) (26) 460 77 70
E-mail: [email protected]
GERMANY and AUSTRIA
Nautilus Deutschland GmbH
Albin-Köbis-Str. 4
51147 Köln
Tel.: (49) 02203 2020 0
Fax: (49) 02203 2020 45 45
ITALY
Nautilus Italy S.r.l., Via della Mercanzia, 103
40050 Funo di Argelato - Bologna
Tel: (39) 051 664 6201
Fax: (39) 051 664 7461
SWITZERLAND
Nautilus Switzerland SA
Rue Jean-Prouvé 6,
CH-1762 Givisiez
Tel: (41) 026 460 77 66
Fax: (41) 026 460 77 60
UNITED KINGDOM
Nautilus UK Ltd
Nautilus UK, 4 Vincent Avenue,
Crownhill, Milton Keynes, Bucks, MK8 0AB
Tel: (44) 1908 267 345
Fax: (44) 1908 567 346
CHINA
Nautilus Representative Office
Nautilus, Shanghai, 7A No.728, Yan’an Rd(West)
200050 Shanghai, China
Tel: (86) 21 523 707 00
Fax: (86) 21 523 707 09
©2008. Nautilus, Inc. All rights reserved. Nautilus, the Nautilus Logo, Universal, Bowflex, the Bowflex Logo, StairMaster, Pearl Izumi, Nautilus Institute and SelectTech are either registered trademarks or trademarks of Nautilus, Inc. Schwinn is a registered trademark. All other trademarks are owned by their respective companies. Nautilus, Inc., World Headquarters, 16400 SE Nautilus Drive, Vancouver, WA 98683 1-800-NAUTILUS www.nautilus.com
