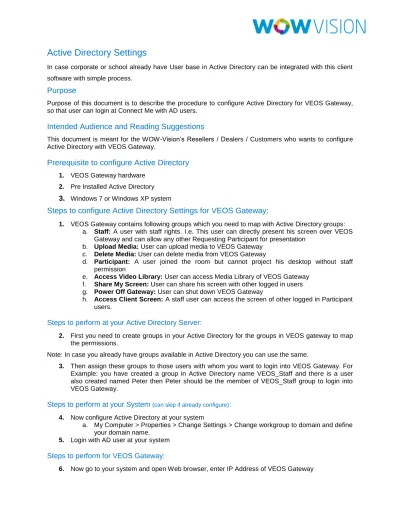

Active Directory Settings
In case corporate or school already have User base in Active Directory can be integrated with this client software with simple process.
Purpose
Purpose of this document is to describe the procedure to configure Active Directory for VEOS Gateway, so that user can login at Connect Me with AD users.
Intended Audience and Reading Suggestions
This document is meant for the WOW-Vision’s Resellers / Dealers / Customers who wants to configure Active Directory with VEOS Gateway.
Prerequisite to configure Active Directory
1. VEOS Gateway hardware2. Pre Installed Active Directory
3.
Windows 7 or Windows XP systemSteps to configure Active Directory Settings for VEOS Gateway:
1. VEOS Gateway contains following groups which you need to map with Active Directory groups: a. Staff: A user with staff rights. I.e. This user can directly present his screen over VEOS
Gateway and can allow any other Requesting Participant for presentation b. Upload Media: User can upload media to VEOS Gateway
c. Delete Media: User can delete media from VEOS Gateway
d. Participant: A user joined the room but cannot project his desktop without staff permission
e. Access Video Library: User can access Media Library of VEOS Gateway f. Share My Screen: User can share his screen with other logged in users g. Power Off Gateway: User can shut down VEOS Gateway
h. Access Client Screen: A staff user can access the screen of other logged in Participant users.
Steps to perform at your Active Directory Server:
2. First you need to create groups in your Active Directory for the groups in VEOS gateway to map the permissions.
Note: In case you already have groups available in Active Directory you can use the same.
3. Then assign these groups to those users with whom you want to login into VEOS Gateway. For Example: you have created a group in Active Directory name VEOS_Staff and there is a user also created named Peter then Peter should be the member of VEOS_Staff group to login into VEOS Gateway.
Steps to perform at your System
(can skip if already configure):
4. Now configure Active Directory at your system
a. My Computer > Properties > Change Settings > Change workgroup to domain and define your domain name.
5. Login with AD user at your system
Steps to perform for VEOS Gateway:
7. Click on Administrator Login
8. Enter valid login credentials: a. Default user name: su b. Default Password: supass
9. Go to Utilities > AD/Security
10. Define Domain Name in Domain Name field and click on Save
11. Enter all Groups (created on Active Directory) for VEOS Groups and click on Update
Steps to configure Connect Me client:
12. Now login at your system with Active Directory user
Note: your computer must be part of same AD which defined at VEOS Gateway. Probably fully qualified domain name is not require e.g. Ad.wow-vision.com is not required just ad will do the job.
13. Open web browser and enter IP Address of VEOS Gateway
14. Click on Windows Client if you wish to install Connect Me at your system else click on Windows Virtual Client
16. Click on Login then close Connect Me client
Note: Here may be you will get a message related to connection, so just click on Ok and close your client.
17. Now again open Connect Me client, your client will login with the same user with whom you have logged in at Windows through Active Directory.
Note: If you already installed and configure location in Connect Me at your system then go to Profile manager and double click on the location name to get latest configuration settings from server.
You will find the same user in user Name with whom you have logged in to windows and same Active Directory name which you have defined at the web page of VEOS Gateway
Troubleshooting:
1. Check you have configured correct Domain name at web page of VEOS Gateway.
2. Make sure the user which you are using to login at windows is created at the same Active Directory.
3. Make sure User is the member of any pre-defined VEOS Group.
4. Please check Presentation log file of Connect Me client for mapped Active Directory name a. My Computer > C:\ > Users > Your User > AppData > Roaming > WOWClient >
- You can reach up to AppData/Roaming folder by typing %appdata% on Start > Run prompt or in Windows Explorer bar. Then look for WOWClient folder.
- Your User is user name.
b. Now open presentation.log file here you can see ad domain value and check the defined ad name on gateway and the ad name coming to your laptop is same. If they are different change on VEOS gateway accordingly. After any change done over VEOS gateway open profile manager on Client PC and double click on selected location again to re-download latest settings.
c. It will also list the groups belong to that user as shown in log. Make sure they are correctly defined on VEOS unit.
