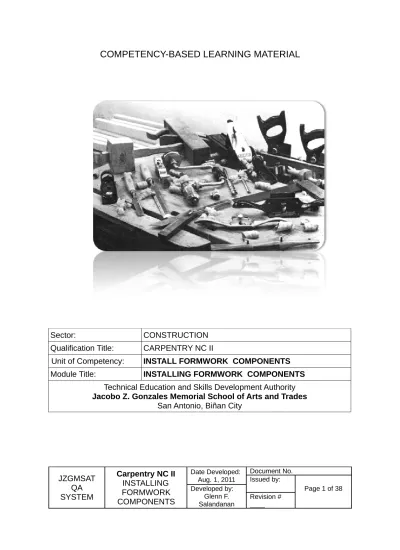

COMPETENCY-BASED LEARNING MATERIAL

Sector: CONSTRUCTION

Qualification Title: CARPENTRY NC II

Unit of Competency: INSTALL FORMWORK COMPONENTS

Module Title: INSTALLING FORMWORK COMPONENTS

Technical Education and Skills Development Authority

Jacobo Z. Gonzales Memorial School of Arts and Trades

(2)

HOW TO USE THIS COMPETENCY BASED LEARNING

MATERIAL

Welcome to the module in Installing Formwork Components. This module contains training materials and activities for you to complete.

You are required to go through a series of learning activities in order to complete each learning outcome of the module. In each learning outcome are Information Sheets, Self-Checks, Operation Sheets and Job Sheets. Follow these activities on your own. If you have questions, don't hesitate to ask your facilitator for assistance.

The goal of this course is the development of practical skills. To gain these skills, you must learn basic concepts and terminology. For the most part, you'll get this information from the Information Sheets and multimedia materials

This module was prepared to help you achieve the required competency, in "Installing Formwork components".

This will be the source of information for you to acquire knowledge and skills in this particular competency independently and at your own pace, with minimum

supervision or help from your instructor. Remember to:

Work through all the information and complete the activities in each section. Read information sheets and complete the self-check. Suggested references are included to supplement the materials provided in this module.

Most probably your trainer will also be your supervisor or manager. He/she is there to support you and show you the correct way to do things.

You will be given plenty of opportunity to ask questions and practice on the job. Make sure you practice your new skills during regular work shifts. This way you will improve both your speed and memory and also your confidence.

Use the Self-checks, Operation Sheets or Job Sheets at the end of each section to test your own progress.

When you feel confident that you have had sufficient practice, ask your Trainer to evaluate you. The results of your assessment will be recorded in your Progress Chart and Accomplishment Chart.

JZGMSAT QA SYSTEM Carpentry NC II INSTALLING FORMWORK COMPONENTS Date Developed: Aug. 1, 2011 Document No. Issued by: Page 2 of 38 Developed by: Glenn F. Salandanan Revision # ____

(3)

UNIT OF COMPETENCY : INSTALL FORMWORK COMPONENTS

MODULE TITLE : INSTALLING FORMWORKS

MODULE DESCRIPTOR : This module covers the knowledge, skills and attitude in selecting and preparing materials and tools for installing formworks, Laying-out/assembling scaffolds and braces, setting/fixing form panels of building components.

NOMINAL DURATION : 32 hrs.

CERTIFICATE LEVEL : NATIONAL CERTIFICATE LEVEL II

PREREQUISITE :

SUMMARY OF LEARNING OUTCOMES:

Upon completion of this module, the trainee/student must be able to: LO 1. Select and prepare materials and tools for installing formworks LO 2. Lay-out/assemble scaffolds and braces

(4)

ASSESSMENT CRITERIA:

1. Plans and details are correctly identified and interpreted according to job requirements

2. Materials, hand and power tools and equipment are selected and prepared consistent with job requirements

3. Materials are re-checked for defects and in accordance with plans and specifications

4. Housekeeping is performed according to safety regulations

5. Work areas are cleared for safe laying-out and assembling of scaffolds and braces

6. Scaffolds and braces are assembled with tolerance of + 3mm for all measurements and squareness, plumbness and levelness

7. Connectors, locks and screws are properly secured according to job requirements

8. Formworks components/form panels are laid-out, set/fixed with tolerance of ± 3 mm for measurement, alignment, squareness, levelness and plumbness with form oil

9. Braces are properly installed to support the formworks according to job requirements

10. Formworks components/form panels are re-checked for squareness, levelness and plumbness

11. Appropriate PPE is used according to job requirements and safety regulations

12. Unexpected situations are responded to in line with company rules and regulations JZGMSAT QA SYSTEM Carpentry NC II INSTALLING FORMWORK COMPONENTS Date Developed: Aug. 1, 2011 Document No. Issued by: Page 4 of 38 Developed by: Glenn F. Salandanan Revision # ____

(5)

LEARNING OUTCOME NO. 1 Select and prepare materials and tools for installing formworks

CONTENTS:

• Materials, power and hand tools and equipment uses and specifications • Properties of Wood

• Housekeeping

ASSESSMENT CRITERIA

1. Plans and details are correctly identified and interpreted according to job requirements

2. Materials, hand and power tools and equipment are selected and prepared consistent with job requirements

3. Materials are re-checked for defects and in accordance with plans and specifications

4. Appropriate PPE is used according to job requirements

5. Unexpected situations are responded to in line with company rules and regulations

6. Housekeeping is performed according to safety regulations

CONDITIONS:

You must be provided with the following:

1. WORKPLACE LOCATION

2. TOOLS AND EQUIPMENT

• Claw Hammer • Pencil/Marking pen • Pull-Push Rule • Nylon String • Steel Square • Try-square • Hand Saw • Chalk Line 3. TRAINING MATERIALS Leaning Packages Bond paper Ball pens • Personal Protective Equipment

• Portable Circular Saw • Plan and working drawings • Lumber • Nails • Plywood Manuals Related References ASSESSMENT METHOD Portfolio

(6)

Learning Experience

SELECT AND PREPARE MATERIALS AND TOOLS FOR INSTALLING FORMWORKS

Learning Activities Special Instructions Read Information Sheet No. 3.1-1 on

Materials, power and hand tools and equipment uses and specifications

Refer to Information Sheets No. 1.1-2 and 1.1-4

Read Information Sheet No. 3.1-2 on

Properties of wood Refer to Information Sheet No. 2.1-3

Housekeeping

Answer Self-Check No. 3.1-3 Compare your answer to the answer _key

(7)

INFORMATION SHEET NO. 3.1-1

MATERIALS, POWER AND HAND TOOLS AND EQUIPMENT USES

AND SPECIFICATIONS

Review Information Sheet No. 1.1-2 on Material Specifications, Information Sheet No. 1.1-4 on Tools, Materials and Equipment for Staking out Building Lines

(8)

INFORMATION SHEET NO. 3.1-2

PROPERTIES OF WOOD

Read Information Sheet No. 2.1-3 on Mechanical Properties of Wood.

(9)

INFORMATION SHEET NO. 3.1-3

HOUSEKEEPING

LEARNING OBJECTIVE:

Upon completing this section, you should be able to KNOW and APPLY

HOUSEKEEPING at all times.

Formwork construction because of its constantly changing work environment, restricted access through frames and formwork supports and a large volume of material and waste, requires ongoing monitoring of housekeeping practices.

A. Access

Clear access is important for the safe movement of materials, equipment and persons on site. Designated access ways must be provided. Persons must be instructed to use the access ways and keep them clear of any excess wastes, plant or materials. In some situations, it may be necessary to use hazard taping or other visual methods to clearly show where access ways are located. This is particularly important where access is required through formwork frames.

Emergency access and egress must be considered and provided to all parts of the workplace where persons are required to work.

B. Material storage

1. Materials must be stored so as to minimize manual tasks hazards, trip hazards and the potential for falling objects.

2. It is preferable to lay wall forms flat on the ground instead of leaning them against structures or other forms.

3. Timbers, or another effective means, must be provided under the forms where slings are to be placed under the forms for crane lifting.

4. Wall forms must be stacked in such a way that they cannot move away or rotate from the surface they are placed against.

5. Incorrect materials delivery and storage can create significant manual handling tasks. Safe work practices to minimize exposure to these risks include:

• ensuring the formwork materials are delivered as close as possible to the job

(10)

platform to load ply and other components

• ensuring mechanical aids are used to handle loads wherever possible • storing loads on trolleys to minimize double handling or on raised

platforms to minimize manual lifting from ground level

• having adequate storage space or lay down area to safely store materials and equipment and to minimize double handling

C. Storing and Disposing of Waste Materials at the Workplace

Waste material storage and removal for formwork may include the provision of garbage skips and wheel barrows that are moved as work progresses. However, garbage skips should only be positioned where the supporting structure has adequate strength to support the total weight of the bin and likely contents.

(11)

LEARNING OUTCOME NO. 2 Lay-out/assemble scaffolds and braces

CONTENTS:

• Types of scaffolds

• Different scaffold fittings and their uses • Scaffolds safety rules

• Assemble scaffolding

1. Work areas are cleared for safe laying-out and assembling of scaffolds and braces

2. Scaffolds and braces are assembled with tolerance of +3mm for all measurements and squareness, plumbness and levelness

3. Connectors, locks and screws are properly secured according to job requirements

4. Appropriate PPE is used according to job requirements

CONDITIONS:

• Claw Hammer • Pencil/Marking pen • Pull-Push Rule • Nylon String • Steel Square • Try-square • Hand Saw • Chalk Line 3. TRAINING MATERIALS • Leaning Packages • Bond paper • Ball pens • Personal Protective Equipment

• Portable Circular Saw • Plan and working drawings • Lumber • Nails • Plywood • Manuals • Related References ASSESSMENT METHOD Portfolio

(12)

Learning Experience

LAY-OUT/ASSEMBLE SCAFFOLDS AND BRACES

Learning Activities Special Instructions Read Information Sheet No. 3.2-1 on

Types of scaffolds

Answer Self-Check No. 3.2-1 Compare your answer to the answer _key Read Information Sheet No. 3.2-2 on

Different scaffold fittings and their uses

Answer Self-Check No. 3.2-2 Compare your answer to the answer _key Read Information Sheet No. 3.2-3 on

Scaffolds safety rules

Answer Self-Check No. 3.2-3 Compare your answer to the answer

key

Assemble scaffolds

Perform Operation Sheet No. 3.2-4 on

Assemble scaffolds

Evaluate your own work using the Performance Criteria Checklist Present your work to your trainer for evaluation

Keep a copy of your work for the next activities JZGMSAT QA SYSTEM Carpentry NC II INSTALLING FORMWORK COMPONENTS Date Developed: Aug. 1, 2011 Document No. Issued by: Page 12 of 38 Developed by: Glenn F. Salandanan Revision # ____

(13)

INFORMATION SHEET NO. 3.2-1

TYPES OF SCAFFOLDS

Upon completing this section, you should be able to KNOW the definition of

SCAFFOLDS and SCAFFOLDINGS and RECOGNIZE the different MATERIALS and TYPES of SCAFFOLDING

Scaffold–A temporary structure from which persons can gain access to a

place in order to carry out building operation

Scaffolding–Method of construction of scaffolds is called scaffolding.

Scaffold can be made of the following materials: a. Tubular steel

• 3 times heavier than aluminum alloy tubes but far stronger

• longer span can be used

• galvanized steel tubes and ungalvanized steel tubes are types of steel scaffolds b. Tubular aluminum alloy

• Needs protective treatment when used in contact with damp line, wet cement and sea water

• Coating the tube with bituminus paint before using it as protective treatment

c. Timber

• Extensively used in the developing countries

• Members are lashed together with wire or rope instead of coupling fittings used with metal scaffolds

(14)

Following are the types of scaffolds

Single Scaffolds Double Scaffolds Ladder Scaffolds

Cantilever Scaffolds Suspended _Scaffolds Steel or Tubular Scaffolds

(15)

SELF- CHECK NO. 3.2-1

Check your mastery in types of scaffolds by completing the tasks below.

Identification: Identify the types of scaffold used based from the following

statement. Choose from the answers below by writing the letter of your answer on the space provided before the number.

a. Tubular steel

b. Tubular aluminum alloy c. Timber

1. Coated with bituminus paint before using it as protective treatment 2. Three (3) times heavier than aluminum alloy tubes but far stronger 3. Longer span can be used

4. Members are lashed together with wire or rope instead of coupling fittings used with metal scaffolds

5. Extensively used in the developing countries

6. Needs protective treatment when used in contact with damp line, wet cement and sea water

7. Galvanized steel tubes and ungalvanized steel tubes are types of scaffolds

(16)

ANSWER KEY 3.2-1

Check your answer with the answer key below. If you fail to get it right, refer back to corresponding resources until you make it perfect.

1. B 2. A 3. A 4. C 5. C 6. B 7. A JZGMSAT QA SYSTEM Carpentry NC II INSTALLING FORMWORK COMPONENTS Date Developed: Aug. 1, 2011 Document No. Issued by: Page 16 of 38 Developed by: Glenn F. Salandanan Revision # ____

(17)

INFORMATION SHEET NO. 3.2-2

DIFFERENT SCAFFOLD FITTINGS AND THEIR USES

Upon completing this section, you should be able to RECOGNIZE the

DIFFERENT SCAFFOLD FITTINGS and their USES. Scaffold fittings

1. Double Coupler–It joins ledgers and standards.

2. Swivel Coupler–Composed of two single couplers and used to join two scaffolds at any angle.

3. Putlog Coupler–Used to join putlogs with transom. 4. Base Plate–Used at the base of the standards.

5. Split joint Pin–It’s a connection fitting used to join scaffold tubes. 6. Reveal Pin–It fit in to the end of a tube to form an adjustable strut.

(18)

(19)

SELF- CHECK NO. 3.2-2

Check your mastery in different scaffold fittings and their uses by completing the tasks below.

Identification: Identify the types of scaffold fitting from the following statement.

Choose your answer from the fittings below by writing the answer on the space provided before the number.

DOUBLE COUPLER SWIVEL COUPLER PUTLOG COUPLER

BASE PLATE SPLIT JOINT PIN

REVEAL PIN PUTLOG END

_____________________1. A flat plate used at the end of a scaffold to convert it in to a putlog.

_____________________2. Used at the base of the standards. _____________________3. It joins ledgers and standards.

_____________________4. Composed of two single couplers and used to join two scaffolds at any angle.

_____________________5. It fit in to the end of a tube to form an adjustable strut.

_____________________6. It’s a connection fitting used to join scaffold tubes. _____________________7. Used to join putlogs with transom.

(20)

ANSWER KEY 3.2-2

1. Putlog end 2. Base Plate 3. Double Coupler 4. Swivel Coupler 5. Reveal Pin 6. Split joint Pin 7. Putlog Coupler JZGMSAT QA SYSTEM Carpentry NC II INSTALLING FORMWORK COMPONENTS Date Developed: Aug. 1, 2011 Document No. Issued by: Page 20 of 38 Developed by: Glenn F. Salandanan Revision # ____

(21)

INFORMATION SHEET NO. 3.2-3

SCAFFOLDS SAFETY RULES

Upon completing this section, you should be able to APPLY SAFETY RULES

in ERECTING SCAFFOLDS at all times

These safety rules cover generalized situations only and should not be used to replace any other additional safety and precautionary measures that may be necessary to cover the many usual or unusual conditions encountered during installation or dismantling.

1. Follow safe practice of the safety rules and comply with OH&S laws and other federal, state and local rules, codes and regulations pertaining to

scaffolding during any use of the equipment.

2. The potentially hazardous nature of scaffolding assembly makes it important that all personnel assigned to this work be instructed in theses safety rules, safe practices and procedures and be under the supervision of an experienced person. Ensure that these Safety rules are posted and that all assemblers and users of the scaffold are aware of and follow them.

3. Report any unsafe conditions to supervisors. Do not work or allow persons to work on scaffolds when sick or suffering from dizziness,

unsteadiness or any other physical symptom which could affect their ability to work safe.

4. Inspect all equipment before use. Never use any equipment which is damaged, defective, or deteriorated in any way.

5. Inspect assembled scaffold frequently and be sure that it is maintained in a safe condition, ensure that the scaffold connection have not become loosened and that components have not been improperly released or removed.

6. Maintain all equipment in good repair. Never use corroded or excessively rusted equipment; the strength of such equipment is not known.

7. Consult your scaffolding supplier when in doubt. Never take chances. 8. Always read these safety rules in conjunction with all safety regulations. 9. Always place scaffolds on a sound, stable surface and assure that it is

adequate to support the intended scaffold loads. Never place scaffolds on unstable where loose objects could tip, break or become dislodged.

10.Lift and lower components carefully and safely. Use tag lines where appropriate to the handling method. Never allow excessive quantities of components to be stockpiled on partially complete scaffolds. Stock only sufficient components consistent with the progress of the work. Lower dismantled components as soon as possible. Never drop components deliberately.

(22)

stability and safety of the scaffold. Assure that the structure to which the scaffold is tied or anchored is capable of safely supporting all loads imposed by the scaffold.

12.Free standing scaffolds other than wall scaffolds must be restrained from tipping by guying or other means or otherwise stabilized as appropriate, recognizing that stability is essential to the safety of the scaffold.

13.Install guardrails, midrails, and toeboards at all openings, open sides, and ends of every work platform

14.Never use ladders or makeshift devices on tops of scaffold to increase the height. Never place plank on or stand on guardrails and mid-rails.

15.Power lines near scaffolds are dangerous. Use extreme caution and consult the electrical company to have the lines de-energized, insulated, or otherwise rendered safe. Never allow any installation or use of scaffolds until this is completed.

16.Proper care and precautions must be taken when using cantilevers to prevent tripping of the scaffold

17.For mobile scaffolds following these additional safety rules

a) Never ride mobile scaffolds.

b) Remove all materials and equipment from the scaffold before moving. c) Lock castor and outrigger brakes when scaffold is not being moved. d) Do not attempt to move mobile scaffold without sufficient help and roll on

even surfaces only.

e) The maximum platform height of a mobile scaffold must not be exceeded. All OH &S laws must comply when using mobile scaffold.

f) Move the scaffold using the bottom frame. Never attempt to move the scaffold when on top.

g) If mobile scaffolds are used outdoors, care must be taken to assure that they cannot become unstable due to wind or other conditions.

18.Do not overload scaffolds. Refer to and do not exceed the scaffold load

capacities. JZGMSAT QA SYSTEM Carpentry NC II INSTALLING FORMWORK COMPONENTS Date Developed: Aug. 1, 2011 Document No. Issued by: Page 22 of 38 Developed by: Glenn F. Salandanan Revision # ____

(23)

SELF- CHECK NO. 3.2-3

Check your mastery in scaffolds safety rules by completing the tasks below.

Identification: Read the statement carefully. Supply the missing word or group of

words by writing it on the space provided. Choose your answer from the list below. Components Inspect Ladders OH&S Overload Power lines Stable Supervisors Tieing Toeboards 1. Always place scaffolds on a sound, __________ surface. 2. Do not _______________ scaffolds.

3. _____________ near scaffolds are dangerous. 4. _____________ assembled scaffold frequently. 5. Report any unsafe conditions to _____________.

6. Install guardrails, midrails, and _____________ at all openings. 7. Never use _____________ or makeshift devices on tops of scaffold.

8. The ___________ of the scaffold to the structure is of great importance to the stability and safety of the scaffold.

9. Follow safe practice of the safety rules and comply with ___________ laws. 10.Lift and lower ______________ carefully and safely.

(24)

ANSWER KEY 3.2-3

1. Stable 2. Overload 3. Power lines 4. Inspect 5. Supervisors 6. Toeboards 7. Ladders 8. Tieing 9. OH&S 10.Components JZGMSAT QA SYSTEM Carpentry NC II INSTALLING FORMWORK COMPONENTS Date Developed: Aug. 1, 2011 Document No. Issued by: Page 24 of 38 Developed by: Glenn F. Salandanan Revision # ____

(25)

INFORMATION SHEET NO. 3.2-4

ASSEMBLE SCAFFOLDING

Upon completing this section, you should be able to ERECT SCAFFOLDS.

Procedures in Assembling Scaffolds Step 1 Attach side brace B to two frames A

• Pull L-shape lock pin at each end of side brace to the disengaged position. • While holding L-shape pin in disengaged position, place U-channel on

each end of side brace B around leg of frame A at desired platform height. • Release lock pin and be sure that pin fully engages into hole in frame A

leg.

Step 2 Attach second brace B to two frames A. Repeat instructions in Step 1.

WARNING:

• Both side braces must be positioned at the same height on the frames so that the platform will be level.

• Be sure all 4 L-shape lock pins are fully engaged in holes of frames. • Be sure all 4 L-shape lock pins are in the locked position.

Step 3 Install platform C on side braces B so that the platform is fully seated within

inner channel on top of side braces.

Step 4 Rotate the platform clips into the engaged position.

Step 5 Install 4 castors D into legs of frame A and pin with lock pins E. Step 6 Install 4 outriggers into legs of bottom frame.

Step 7 While standing on first platform, insert third frame A into top of first mobile

scaffold frame. Then insert fourth frame A into top of first mobile scaffold frame.

Step 8 Attach second side brace B to two frames A ensuring the L-shape lock pin

attach end of side brace is engaged. And repeat other side.

Step 9 Install platform as per Step 3 and 4. Step 10Install guardrail.

WARNING:

• Recheck all side brace lock pins for full engagement before accessing platform.

• Recheck platform to be sure it is properly seated within side brace channel and the platform clips are fully engaged before accessing.

• When accessing platform, climb over top of frame ladder – DO NOT SWING AROUND SIDE FRAME.

(26)

OPERATION SHEET NO. 3.2-4

Title: _{Assemble Scaffolds}

Performance Objective: Given the necessary materials, you should be able to assemble scaffolds

Supplies and Materials: Working Drawing/ Mudsill (boards)

Tools and Equipment: • H-frame

• Cross bracing • Connectors • Screw jacks • Catwalk • Spirit level • Plumb bob PPE Steps/Procedure:

1. Prepare the site for the assembly. Work area should be cleared for safe lay-outing and assembling of scaffolds and braces

2. Ready all the equipment, tools and materials.

3. Assemble the scaffolds based on your trainer’s instruction. 4. Carefully follow the assembling procedure.

5. Check the squareness, plumbness and levelness of the scaffolds.

6. Acknowledge your teacher to check your work if you are done with the task. 7. Perform housekeeping after the operation.

Precautions:

1. Always observe scaffold safety rules while working/performing.

2. Appropriate body protection must be worn during the performance of the task. Assessment Method: Portfolio Demonstration JZGMSAT QA SYSTEM Carpentry NC II INSTALLING FORMWORK COMPONENTS Date Developed: Aug. 1, 2011 Document No. Issued by: Page 26 of 38 Developed by: Glenn F. Salandanan Revision # ____

(27)

PERFORMANCE CRITERIA CHECKLIST

OPERATION SHEET NO. 3.2-4

Name of Trainee:_____________________________ Date: __________________

CRITERIA

CRITERIA YESYES NONO

1. Did I clear the work area first before laying out and assembling scaffolds and braces for safety?

2. Are all scaffolds and braces laid-out and assembled with ±3 mm tolerance for:

• All measurements? • Squareness? • Plumbness? • Levelness?

3. Did I use proper and correct personal protective equipment when assembling scaffolds and braces? 4. Did I secure all the connectors, braces, locks and

(28)

LEARNING OUTCOME NO. 3 Set/fix formworks components/form panels

CONTENTS:

• Formwork components assembly

1. Formworks components/form panels are laid-out, set/fixed with tolerance of ±3 mm for measurement, alignment, squareness, levelness and plumbness with form oil

2. Braces are properly installed to support the formworks according to job requirements

3. Formworks components/form panels are re-checked for squareness, levelness and plumbness

4. Appropriate PPE is used according to job requirements and safety regulations

CONDITIONS:

• Claw Hammer • Pencil/Marking pen • Pull-Push Rule • Nylon String • Steel Square • Try-square • Hand Saw • Chalk Line 3. TRAINING MATERIALS • Leaning Packages • Bond paper • Ball pens • Personal Protective Equipment

• Portable Circular Saw • Plan and working drawings • Lumber • Nails • Plywood • Manuals • Related References ASSESSMENT METHOD Portfolio JZGMSAT QA SYSTEM Carpentry NC II INSTALLING FORMWORK COMPONENTS Date Developed: Aug. 1, 2011 Document No. Issued by: Page 28 of 38 Developed by: Glenn F. Salandanan Revision # ____

(29)

Learning Experience

SET/FIX FORMWORKS COMPONENTS/FORM PANELS Learning Activities Special Instructions Read Information Sheet No. 3.3-1 on

Formwork components assembly

Perform Operation Sheet No. 3.3-1a on

Install column form

Keep a copy of your work for the next activities

Perform Operation Sheet No. 3.3-1b on

Install beam form

Keep a copy of your work for the next activities

(30)

INFORMATION SHEET NO. 3.3-1

FORMWORK COMPONENTS ASSEMBLY

Upon completing this section, you should be able to APPLY the STEPS IN

ASSEMBLING FORMWORK COMPONENTS

The method and sequence of erecting formwork may vary depending on the availability of lifting equipment and whether reinforcing cages are available. Forms are usually handled manually, by small derrick, or by crane. The erect formwork activity includes the process of lifting, positioning, and aligning the different formwork elements. This activity also includes the process of applying the form release agent or coating that prevents bonding of concrete to forms. The concrete life cycle starts after the erect formwork activity is finished with placing inserts and reinforcement activity.

A. Constructing a Wall/Column Form

Construct column forms from the lowest point to the highest point. Follow these steps when constructing a concrete form:

1. Ensure to get the column form inside dimensions and height. 2. Ensure that the following materials are available:

• Sheathing • Yokes • Battens

• Yoke locks

• No. 4 reinforcing material • Tie wire

3. Build the footing form (refer to Information sheet no. 2.2-1).

4. Build the column-form sides (refer to Information sheet 2.2-1).

4.1 Fasten the column sides. After the four sides of the column form have been constructed, fasten them together and set them in place.

NOTE: The column form should have

a clean-out hole in the bottom to remove construction debris. The

pieces of lumber removed from the clean-out hole should be nailed to the form so they can be replaced right before placing concrete in the column.

4.2 Install the yoke locks.

(31)

4.2.1 Sheathing-type yoke lock. Fasten this type of lock to the yokes with nails or screws.

4.2.2 Bolt-type yoke lock. Drill holes where the yokes intersect and insert bolts, washers, and nuts.

4.2.3 Tighten until they are snug. If available, wing nuts work the best. 4.2.4 Scab-type yoke lock. Cut scabs out of scrap 2- by 4-inch lumber and secure with wood fasteners.

B. Constructing an Overhead Form

1. Construct a concrete-overhead-beam form 1.1 Set the form bottom.

1.1.1 Make the width of the soffit out of 2-inch material, exactly like that of the member being formed, and its length equal to the distance

between the columns or the spans.

1.1.2 Cut the two ends of the form bottom at a 45-degree angle to produce a chamfer at the junction of the beam bottom and column.

1.2 Nail the chamfer strips with beveled ends to the beam-form bottom, flush with the outside edge.

NOTE: Chamfer strips are small pieces of wood (about 1 inch by 1 inch). 1.3 Cut the studs to the length called for in the specifications. 1.4 Cut and fasten the sheathing.

1.4.1 Use either 1-inch tongue and groove lumber or plywood.

1.4.2 Cut the sheathing should be cut to the length called for in the specifications and fasten it to the studs to create both side panels.

1.4.3 Nail sheathing sides so that they overlap the bottom piece of the form.

1.5 Cut and install the temporary spreaders.

1.5.1 Cut the temporary spreaders to the beam as stated in the specifications.

1.5.2 Install the temporary spreaders by using double-headed forming nails.

1.6 Install the shoring.

1.6.1 Use a large quantity of shoring to offset the downward hydrostatic pressure placed on the form bottom. Commercial adjustable-metal forms are available and are probably the best and easiest type of shoring to use on beam and girder forms (Figure 052-236-1165-2). Heavy timber such as 4- by 4-inch lumber is normally available and works fine. 1.6.2 Install shoring so that the beam form remains level.

(32)

Beam and Girder Form

C. Constructing a Concrete-Slab Form

1. Construct a wooden-form slab

1.1 Construct the formwork. Measure and mark the side-form material to the required lengths.

1.1.1 Make two pieces the actual length of the slab and two pieces length of the slab plus two times the thickness of the material. 1.1.2 Nail the form sides together at the corners.

1.2 Place and secure the formwork.

1.2.1 Place the formwork at the specified location. 1.2.2 Square the forms

by using the diagonal method.

1.2.3 Drive the stakes at all the corners and

approximately 3 feet along the entire perimeter of the form. 1.2.4 Level the

formwork, then nail the forms to the stakes. 1.3 Cut and place

polyethylene plastic in the bottom of the form as a vapor barrier. JZGMSAT QA SYSTEM Carpentry NC II INSTALLING FORMWORK COMPONENTS Date Developed: Aug. 1, 2011 Document No. Issued by: Page 32 of 38 Developed by: Glenn F. Salandanan Revision # ____

(33)

OPERATION SHEET NO. 3.3-1a

Title: _{Install Column Forms}

Performance Objective: Given the necessary materials, you should be able to install column forms

Supplies and Materials: Working Drawing/ Plan Lumber, plywood, fasteners

Tools and Equipment: • Hammer

• Marking Tools • Measuring Tools • Steel Square • Try-square • Hand Saw • Chalk Line • Water Hose Level • Plumb Bob • PPE • Circular Saw Steps/Procedure:

1. Prepare the necessary tools, equipment and materials to be used. 2. From the given working drawing, stake-out building lines and batter

boards (refer to Job Sheet No. 1.2-1 on staking out building lines)

3. Fabricate the column-form sides (refer to Operation Sheet No. 2.2-4 and 2.3-2 regarding the fabrication of formworks)

4. Erect scaffolding. Observe safety in installing scaffoldings. 5. Install column-form panels reinforcement.

6. Fasten the column sides. After the four sides of the column form have been constructed, fasten them together and set them in place. Check the plumbness, levelness and squareness using appropriate tools. 7. Install column-form reinforcement

8. Install ties.

9. Provide bracing for column-form sides 10. Place secondary and main reinforcement

(34)

Working Drawing of Column Footing Detail Assessment Method: Portfolio Demonstration JZGMSAT QA SYSTEM Carpentry NC II INSTALLING FORMWORK COMPONENTS Date Developed: Aug. 1, 2011 Document No. Issued by: Page 34 of 38 Developed by: Glenn F. Salandanan Revision # ____

(35)

PERFORMANCE CRITERIA CHECKLIST

OPERATION SHEET NO. 3.3.1a

CRITERIA

1. Did I secure the formworks using braces for stability? 2. Did I always check/recheck the squareness,

measurement, levelness and plumbness of installed formwork components?

3. Did I use proper and correct personal protective equipment when working in installing formworks?

(36)

OPERATION SHEET NO. 3.3-1b

Title: _{Install Beam Forms}

Performance Objective: Given the necessary materials, you should be able to install column forms

Supplies and Materials: Working Drawing/ Plan Lumber, plywood, fasteners

Tools and Equipment: • Hammer

• Marking Tools • Measuring Tools • Steel Square • Try-square • Hand Saw • Chalk Line • Water Hose Level • Plumb Bob • PPE • Circular Saw Steps/Procedure:

1. Prepare the necessary tools, equipment and materials to be used. 2. Fabricate the beam-form sides (refer to Operation Sheet No. 2.2-4 and

2.3-2 regarding the fabrication of formworks)

3. Set the form bottom. The width of the soffit is based on the drawing, exactly like that of the member being formed on the column form, and its length equal to 3 feet (36 inches)

4. Nail the beam-form bottom, flushed with the column form opening. 5. Nail sheathing sides so that they overlap the bottom piece of the form.

(37)

6. Cut and install the temporary spreaders as stated in the specifications. Install the temporary spreaders by using 2-inch nails.

7. Install the shoring so that the beam form remains level. Use a large quantity of shoring to offset the downward hydrostatic pressure placed on the form bottom.

Assessment Method:

Portfolio

(38)

PERFORMANCE CRITERIA CHECKLIST

OPERATION SHEET NO. 3.3.1b

CRITERIA

1. Did I secure the formworks using braces for stability? 2. Did I always check/recheck the squareness,

measurement, levelness and plumbness of installed formwork components?

3. Did I install the shoring so that the beam form remains level?

4. Did I use proper and correct personal protective equipment when working in installing formworks?
