BMK_1250

(1)

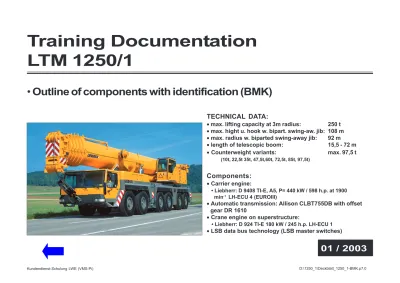

Training Documentation

LTM 1250/1

• Outline of components with identification (BMK)

TECHNICAL DATA:

• max. lifting capacity at 3m radius:

250 t

• max. hight u. hook w. bipart. swing-aw. jib: 108 m

• max. radius w. biparted swing-away jib:

92 m

• length of telescopic boom:

15,5 - 72 m

• Counterweight variants:

max. 97,5 t

Components:

• Carrier engine:

• Liebherr: D 9408 TI-E,A5, P= 440 kW/ 598 h.p. at 1900 min-1 _{LH-ECU 4}_(EUROIII)

• Automatic transmission: Allison CLBT755DB with offset

gear DR 1610

• Crane engine on superstructure:

• Liebherr: D 924 TI-E 180 kW / 245 h.p. LH-ECU 1

• LSB data bus technology (LSB master switches)

(2)

(3)

BMK components

CARRIER

UW-13

Training Documentation

LTM 1250/1

(4)

(5)

CONTENTS: BMK

Carrier: ... 9

Front view, lighting and mirrors ... 9

Rear view, lighting... 10

Outrigger control panel, side marking lights left ... 11

Outrigger control panel, side marking lights right ... 12

Driver’s cab: ... 13

Doors and windows ... 13

Windscreen wiper, heater ... 14

Control elements ... 15

Batteries ... 16

Centre console - components and modules ... 17

Centre console - fuses ... 18

Centre console - relays ... 19

Centre console - equipment module ... 20

Pneumatic system: ... 21

Pressure sensors driver’s cab ... 21

Bulkhead plate ... 22

Air drier, compressor ... 23

Pneumatic valves 1 ... 24

Pneumatic valves 2 ... 25

Diesel engine D 9408 TI - E 440 KW: ... 26

Starter, generator, needle-type displacement sensor, ... 26

compressor - air-conditioning system ... 26

Speed sensors ... 27

Flame glow plug, sensors ... 28

Sensors ... 29

Air and coolant sensors ... 30

Cooler drive ... 31

Fuel reservoir sensor ... 32

EDC actuator, sensor ... 33

Allison transmission: ... 34

Allison CLBT755 DB ... 34

Hydraulic pumps: ... 35

Steering circuit I, steering circuit II,... 35

Suspension, outrigger system ... 36

Power train: ... 37

Transfer case VG 2100 / 300 -Steyr Puch (ZF) ... 37

Transfer case VG 2001 /300 ... 38

Longitudin. and transv. differential locks ... 39

Transv. differential locks ... 40

Eddy current brake TELMA ... 42

Steering: ... 43

Steering gear, lack control ... 43

Steering support ... 44 Rear-axle steering ... 45 Rear-axle lock ... 46 Suspension: ... 47 Level sensors ... 47 Suspension left ... 49 Suspension right ... 50

(6)

Outrigger and supporting ram valves: ... 52

Front left ... 52

Rear left ... 53

Front right ... 54

Rear right ... 55

Rotary slip-ring unit, inclination sensor: ... 56

Optional equipment: ... 57

Supporting ram supporting pressure sensors ... 57

Air-conditioning system ... 58

Additional heater ... 59

External supply ... 62

(7)

-A Sub-assemblies, partial sub-assemblies

-A8 Display unit ... 15

-A9 Keyboard unit ... 15

-A10 E / A module 1, ZE 1, LSB 2, address 2 ... 18

-A17 LH engine ECU 4 ... 18

-A23 Transmission, Allison ECU ... 18

-A24 Transm. actuator, temper., pneumatic and speed sensors ... 34

-A26 Interval relay front wiper ... 19

-A29 Relay box Telma... 42

-A31 Flame starting device, ON < 20° C ... 16

-A33 Timing relay for interior lighting... 19

-A50 Control unit, SG 1577 for static heater ... 59

-A51 Heater Thermo 90 S ... 59

-A57 Fuel preheating 150W ... 26

-A62 Distribution box, external supply 230V ... 62

-A72 DGS module 015 / engine ECU / transmission TPS- Signal ... 19

-A73 Outrigger control panel, R ... 12

-A74 Outrigger control panel, L ... 11

-A75 EDC actuator, EDC connector ... 33

-A90 Equipment module ... 20

-A91 Diode module ... 19

-B Converters, electric / non electric -B2 Pneumatic connection, crane hydraulics ON ... 33

-B5 Pressure sensor, supply service brake, brake circuit 1 ... 21

-B6 Pressure sensor, supply service brake, brake circuit 2 ... 21

-B7 Pressure sensor, supply parking brake ... 22

-B8 Pressure sensor, service brake, brake circuit 1 ... 21

-B9 Pressure sensor, service brake, brake circuit 2, (stop light) ... 22

-B10 Gas pedal, sensor ... 15

-B10 Sensor gas pedal position, steering wheel adjustment ... 21

-B11 Pressure sensor 4, supporting force sensor 4-20mA rear left .... 57

-B12 Pressure sensor 3, supporting force sensor 4-20mA front left ... 57

-B13 Pressure sensor 1, supporting force, 4-20mA rear right ... 57

-B14 Pressure sensor 2, supporting force sensor 4-20mA, front right 57 -B19 Inclination sensor, driving direction: ... 56

-B35 Inductive speed sensor (engine speed) ... 27

-B36 Inductive speed sensor (OT-sensor) ... 27

-B37 Sensor charge pressure ... 28

-B38 Negative pressure sensor, air filter, 0 to -0,8bar / 4,5V -0,5 V .... 30

-B46 Needle-type displacemenet sensor ... 25

-E Lighting devices -E1 Blinker, R/R ... 10

-E2 Blinker, R/L ... 10

-E3 Stop light, R/L ... 10

-E4 Stop light, R/R ... 10

-E5 Parking light, FR/L ... 9

-E6 Tail light R/L ... 10

-E9 Parking light, FR/R ... 9

-E10 Tail light, R/R ... 10

-E13 Backing lamp, R/L ... 10

-E14 Blinker, L ... 9 -E15 High-beam, FR/L ... 9 -E16 Low-beam, FR/L ... 9 -E17 Low-beam,FR/R ... 9 -E18 High-beam, FR/R ... 9 -E19 Blinker, R ... 9

-E20 Parking light, L ... 11

-E21 Parking light, L ... 12

-E24 Fog tail lamp, R/L ... 10

-E25 Backing lamp, R/R ... 10

-E29 Contour light, HR ... 10

-E30 Contour light, R/L ... 10

-E31 Contour light, FR/L ... 9

-E32 Contour light,FR/R ... 9

-E33 Fog tail lamp, R/R ... 10

-E36 Interior light, L ... 13

-E37 Interior light, centre ... 13

-E38 Interior light, R ... 13

-E39 Cigarette lighter, 24V ... 15

BMK - Table (-A8 to -E39)

(8)

-E40 Mirror heating, 40W ... 9

-E41 Mirror heating, 40W ... 9

-E43 Side marking light, L ... 11

-E51 Blinker, side, L ... 9

-E52 Blinker,side, R ... 9

-F Fuses -F 1 -F6 / Fuses ... 18 -F 7 -F12 / Fuses ... 18 -F13 -F18 / Fuses ... 18 -F19 -F24 / Fuses ... 18 -F25 -F30 / Fuses ... 18 -F31 -F36 / Fuses ... 18 -F37 -F42 / Fuses ... 18 -F43 -F48 / Fuses ... 18 -F49 -F54 / Fuses ... 18 -F55 -F60 / Fuses ... 18

-F79 Fuse, battery box, 50A ... 16

-F80 Fuse, battery box, 80A ... 16

-F87 Overvoltage protection ... 16

-G Generators -G1 Battery... 16

-G2 Battery... 16

-G3 Generator ... 26

-G4 Pulser for tachygraph transfer case ... 38

-G6 24VDC, battery charger ... 16

-H Optic and acoustic signalization devices -H101 Horn ... 43

-H102 Horn ... 43

-H105 Warning signal during backing ... 10

-K Relays, contactors -K50 Relay air-flap ... 19

-K51 Relay operates K50 at option air-flap ... 19

-K53 Timing relay pick-up delayed for 12V consumers ... 19

-K56 Dolly mode display device, driver’s cab ... 19

-K57 Dolly mode ... 19

-K58 Equalization axles 1-4 / 3-6 ... 19

-K59 Inversion axle equalization normal mode / dolly mode ... 19

-K64 Relay, fuel preheating 130A / 20A ... 19

-L Inductivities -L5 Eddy current brake Telma ... 42

-M Electric motors -M1 Starter 9KW ... 26

-M2 Motor windscreen wiper ... 14

-M4 Drive ventilator, heat exchanger ...14

-M10 Windscreen washer pump ... 14

-M11 Motor window lifter left ... 13

-M12 Motor window lifter left ... 13

-M17 Fuel pump ... 32

-M19 Actuator, circulating / fresh air ... 14

-M20 Actuator air for foot space / windscreen ... 14

-M21 Actuator water circulation ... 14

-M23 Drive mirror adjustment vert. ... 9

-M24 Drive mirror adjustment horiz. ... 9

-M25 Drive mirror adjustment vert. ... 9

-M26 Drive mirror adjustment horiz. ... 9

-N Slip-ring transmitters -N1 Slip-ring unit ... 56

-P Measuring instruments, test devices -P11 Tachygraph ... 15

-P12 Control panel for dismantable outrigger case ... 61

-P14 Working hour counter ... 15

BMK - Table (-E40 to -P14)

(9)

-R Resistances

-R6 Fuel level sensor, fuel reservoir 0% - 100% / 2,0V - /,8V ... 32

-R9 Flame glowing plug, left ... 28

-R10 Flame glowing plug, right ... 28

-R11 Sensor, charge temperature ... 28

-R14 Resistance ... 29

-R18 Resistance ... 29

-R28 Temperature sensor gear oil ... 34

-S Switches, push-buttons, limit switches -S17 Ignition switch ... 15

-S19 Mirror adjustment ... 15

-S65 Window lifter, for left window ... 13

-S66 Window lifter, for right window ... 13

-S69 Window lifter, for right window ... 13

-S82 Displacement switch centre console ... 18

-S103 Steering column switch, L, windscreen wiper, horn, low beam ... 15

-S105 Steering column switch, R, cruise controller ... 15

-S106 Battery main switch ... 16

-S110 Contact switch, off-road speed ON ... 38

-S114 Pressure switch 5,6 A, parking brake. ... 22

-S116 Pressure witch 0,5E, service brake ... 21

-S118 Flow indicator steering pump, steering circuit 1 ... 43

-S119 Flow indicator emergency steering pump ... 43

-S121 Inductive sensor crane hydraulics OFF, pneumatic connection .. 33

-S122* Contact switch, activation axle 3 ... 41

-S123* Contact switch, transverse differential axle 3 ... 41

-S131 Acknowledgement, rear-axle release ”released“ (Y21 = 1) ... 46

-S134 Door contact switch, left ... 13

-S135 Door contact switch, right ... 13

-S142 Proximity switch, acknowledgement suspension,axle 1 L ... 47

-S144 Proximity switch, acknowledgement suspension, axle 1 R ... 47

-S146 Proximity switch, acknowledgement suspension, axle 6 L ... 47

-S148 Proximity switch, acknowledgement suspension, axle 6 R ... 47

-S151 Acknowledgement, rear-axle release ”locked“ (Y21 = 0)... 46

-S161 Contact switch, transv. differ. lock, axle 1 (ON = 1) ... 39

-S163 Contact switch, transv. differ. lock, axle 5 (ON =1) ... 40

-S164 Contact switch, transv. differ. lock, axle 6 m (ON =1) ... 40

-S168 Axle equalization, axles 1-4 right ... 50

-S172* Axle equalization, axles 3-6 left ... 49

-S173* Axle equalization, axles 3-6 right, axles 3-4 right. ... 50

-S177 Contact switch, longit. differ. transfer case, acknowledgement .. 38

-S180 Contact switch, longit. differ. lock, axle 5 (ON = 1) ... 39

-S202* Battery charger, inversion UW - OW... 15

-S204* Dolly mode ... 15

-S232 Diagnostic ... 18

-S236 Free-wheel, transfer case ... 19

-S313 Coolant level sensor ... 30

-S386 Manom. switch, >120 bar = acknowledgement, axles 3+4 top ... 51

-S871* Pressure switch, air-conditioning system ... 58

-U Modulators / converters -U50 Voltage converter, 24V / 12V 3A, radio ... 17

-U51* Voltage converter, 24V / 12V 24A for radio, socket 12V ... 18

-X Terminals, connectors, sockets -X35 Socket trailer, 24V ... 10

-X49 Connector interval relay windscreen wiper ... 19

-X57 Connector, drive ventilator heat exchanger ... 14

-X81 Socket, 24V ... 15

-X102 Connector, negative pressure sensor air filter ... 30

-X135* Connector, dismantable outrigger case ... 60

-X137A Connector, dismantable outrigger case ... 60

-X165 Motor window lifter, left ... 13

-X166 Motor window lifter, right ... 13

-X170 Connector fuel preheating ... 26

-X205* Socket, 12V ... 15

-X215 Actuator circulating / fresh air ... 14

-X217 Actuator, engine / driver’s cab, anticlockwise rotation ... 14

-X246 Socket, supply 230V ... 62

-X270 Fuel initial filter, coolant filter, fuel fine filter ... 26

-X277 Inductive speed sensor ... 127

-X278 Inductive speed sensor 2, (OT - sensor) ... 27

-X280 Sensor charge pressure ... 28

BMK - Table (-R6 to -X280)

(10)

-X281 Sensor, oil pressure ... 33

-X283 Sensor, coolant temperature, oil filter ... 29

-X284 Plug-in connection to EDC actuator (injection pump) ... 28

-X287 Connector, temperature sensor gear oil ... 34

-X293 Connector, coolant level sensor ... 30

-X295 Sensor, oil temperature ... 29

-X339 Needle-type displacement sensor, cylinder head 1 ... 26

-X342* Bushing for control panel, dismantable outrigger case ... 61

-X653.1 Connector, E/A module 5 / transmission Allison ECU ... 17

-X653.2 Connector, emergency mode Allison ... 17

-X875 Connector, clutch air-conditioning system ... 58

-X1037 Connector in outrigger case ... 54

-Y Electric-operated mechanical devices -Y3 Auxiliary drive, supporting pump ON ... 25

-Y4 Air-drier, heater, compressor pneumatic system ... 23

-Y5 Longit. diff. transfer case, (activation axle 3, optional) ... 24

-Y6 Longit. differ. axle 5, transv. diff. axles 5+6 ... 24

-Y7 Transv. differential axle 1 (+3) ... 24

-Y9A Suspension (1 = locked) ... 48

-Y9B Suspension (1 = activated) ... 48

-Y10 Filling, front left ... 49

-Y11 Evacuating, front left ... 49

-Y12 Filling, front right ... 50

-Y13 Evacuating, front right ... 50

-Y14 Axles 3+4 lowering, (evacuating ring area) ... 51

-Y15 Axles 3+4 lowering, (evacuating ring area) ... 51

-Y16 Filling, rear left ... 49

-Y17 Evacuating, rear left ... 49

-Y18 Filling, rear right ... 50

-Y19 Evacuating, rear right ... 50

-Y21 Rear-axle release, 1 = released ... 24

-Y26 Outrigger, rear right ... 53

-Y27 Outrigger, front right ... 52

-Y28 Outrigger, rear left ... 55

-Y29 Outrigger, front left ... 54

-Y30 Supporting ram, front left ... 52

-Y31 Supporting ram, rear left ... 53

-Y32 Supporting ram, front right... 54

-Y33 Supporting ram, rear right ... 55

-Y34 Fuel dosing pump, additional heater 40 Ohm at 20° ... 59

-Y35 Engine brake ... 25

-Y48 Solenoid valve, fuel release, flame starting device ... 28

-Y50 Valve, additional heater, engine running, 0 = open ... 59

-Y62 Free-wheel ... 24

-Y63 Off-road speed ... 24

-Y64 Off-road speed ... 24

-Y65* Inversion, brake pressure reduct., bladder-type accum.,1=with . 24 -Y66* Inversion, brake pressure reduct., bladder-type accum. 1=with . 24 -Y68A Dolly mode, equalization axles 3-6 (1 = without equalization) ... 48

-Y68B Dolly mode, equalization axles 3-6 (1 = with equalization) ... 48

-Y69A Axle equalization OFF, axles 1-4 (1 = OFF)... 48

-Y69B Axle equalization ON, axles 1-4 (1 = ON) ... 48

-Y70 Circulation suspension ... 51

-Y72 Steering inversion, axles 5+6 ... 46

-Y74 Release, steering axle 3 ... 45

-Y75 Release, steering axle 3 ... 45

-Y78A Wheel lock left, rear-axle steering ... 46

-Y78B Wheel lock right, rear-axle steering ... 46

-Y81 Steering support, axle 5 right ... 44

-Y82 Steering support, axle 6 right ... 44

-Y83 Steering support, axle 6 left ... 44

-Y84 Steering support, axle 5 left ... 44

-Y85* Air-conditioner, clutch compressor ... 58

-Y88 Axles 3+4, lifting, (filling ring area) ... 51

-Y89 Axles 3+4, lifting, (evacuating piston area) ... 51

-Y90 Axles 3+4, lifting (filling ring area) ... 51

-Y91 Axles 3+4, lifting (evacuating piston area) ... 51

-Y92 Auxiliary output drive, supporting pump OFF ... 25

-Y107 Circulation, valve 1 ... 54

BMK - Table (-X281 to -Y109)

(11)

-Y136 Brake pressure reduction, automatic ... 24

-Y163 Retarder actuator ... 24

-Y164 Retarder actuator ... 24

-Y208 Longitudinal differential, axle 3, optional ... 24

-Y328 Crculation, releasing / locking, dismantable outrigger case. ... 61

-Y329a Dismantable outrigger case, locking ... 60

-Y329b Dismantable outrigger case, releasing ... 60

-Y872* Clutch compressor, air-conditioner ... 58

BMK - Table (-Y136 to -Y872)

(12)

(13)

Carrier:

Front view, lighting and mirrors

-E52*

blinker, side, R

-E19

blinker, R

-E17

low beam, FR/R

-E9

parking light, FR/R

-M23

drive mirror ad-justment vert.

-E18

high beam, FR/R

-E31

contour light, FR/L

-E51*

blinker, side, L

-E14

blinker, L

-E5

parking light, FR/L

-E16

low beam, FR/L

-E15

high beam, FR/L

-M24

drive mirror ad-adjustment horiz

-E40

mirror heating 40W

-M25

drive mirror ad-adjustment vert.

-M26

drive mirror ad-justment horiz

-E41

mirror heating 40W

-E32

Contour light, FR/R

(14)

Carrier:

Rear view, lighting

-E30

contour light, R/L

-E2

blinker, R/L

-E6

tail light, R/L

-E24

fog tail light, R/L

-E3

stop light, R/L

-E4

stop light, R/R

-E13

backing lamp, R/L

-E29

contour light, R/R

-E1

blinker, R/R

-E10

tail light, R/R

-E33

fog tail light, R/R

-E25

backing light, R/R

-H105

warning signal during backing

-X35

socket trailer 24V

(15)

Carrier:

Outrigger control panel, side marking lights left

-A74

outrigger control panel, L

-E20

side marking light, L

-E57

-E76

-E78

-E81

-E109

-E43

-A13

E / A module 4 ZE 1, LSB 2 address 5

(16)

Carrier:

Outrigger control panel, side marking lights right

-E83

-E77

-E58

-E44

-E21

parking light, L

-E110

-E82

-A73

outrigger control panel, R

-A12

(17)

Driver’s cab:

Doors and windows

-S134

door contact switch left

-S135

door contact switch right

-E 36

interior light, L

-E 37

interior light, centre

-E 38

interior light, R

-M11

-X165

motor window lifter left

-M12

-X166

motor window lifter right

-S65

window lifter for left window

-S66

window lifter for right window

-S69

window lifter for right window

(18)

Driver’s cab:

Windscreen wiper, heater

-M10

windscreen wash pump

-M21

-M20

actuator air for foot space / windscreen

-X217

actuator water circulation engine / driver’s cab anticlockwise rotation

-X215

actuator circulating / fresh air

-X57

drive ventilator heat exchanger

-M19

-M4

-M2

motor windscreen wiper

(19)

Driver’s cab:

Control elements

-E39

cigarette lighter

-X81

socket 24V

-S19

mirror

-S17

ignition switch

-P14

working hour counter

-X205*

socket 12V

-P11

tachygraph display unit

-A8

-S105

steering column switch, R cruise controller

-A9

keyboard unit

-S204*

dolly mode

-S202*

battery charger inversion UW -OW

-S103

steering column switch, L windscreen wiper, horn, low and high-beam

-B10

gas pedal, sensor

(20)

Driver’s cab:

Batteries

-G6

24VDC battery charger

-S106

battery main switch

-F87

overvoltage protection

-A31

flame starting device ON < 10° C

-F79

fuse battery box 50A

-F80

fuse battery box 80A

-G1

battery

-G2

battery

(21)

Driver’s cab:

Centre console - components and modules

-U50

voltage converter 24V / 12V 3A radio

-U51*

voltage converter 24V / 12V 24A for radio, socket 12V

-A17

LH engine ECU 4

-A14

-A11

-A10

-A23

transmission Allison ECU

-X209

programm connector

-X225

diagnostic DGS module connector

-X653.2

Emergency mode Allison connector

-X653.1

connentor, E / A module 5 Allison transmission ECU

-X292

diagnostic motor ECU connector

-A38

voltage converter 24V / 12V, 24A für Allison Getrie-be

(22)

Driver’s cab:

Centre console - fuses

axle pressure axles 1 and 2 right axle pressure axles 4 and 5 right (at axle equalization axles 3 to 5) axle pressure axles 1 and 2 left axle pressure axles 4 and 5 left (at axle equalization axles 3 to 5)

-F43 to F48

-F37 to F42

-F25 to F30

-F19 to F24

-F13 to F18

-F7 to F12

-F1 to F6

-F61 to F66

-F49 to F54

-F55 to F60

-S82

displacement controller centre console R = reverse N = neutral D = forward

(-F31 to F36)

-S232

diagnostics

-S236

free-wheel transfer case

(23)

Driver’s cab:

Centre console - relays

-K50*...relay air flap

-K51*...relay operates K50 at option air flap

-K53 ...timing relay - pick-up delayed for 12V consumers

-K56*...dolly mode / display unit driver’s cab

-K57*...dolly mode

-K58 ...equalization axles 1-4 / 3-6

-K59*...inversion axle equalization / dolly mode -K64 ...relay fuel preheating 130A / 20A -A26... interval relay front wiper

-A33 ...timing relay interior lighting

-A72 ...DGS module 015 / engine ECU / transmission TPS- signal -A91 ...diode module

-K64

-K57

-X49

-A26

interval relay windscreen wiper

-K56

-K58

-K59

-K53

-A33

-A91

-A72

(24)

-A90

equipment module voltage divider resistances, limitation to 12V

ECU Allison transmission / displacement controller emergency mode resistance 500 Ohm 3W power source LSB resistance 500 Ohm 3W speed setter resistance transmission E/A module 5 transmission dual mode

Driver’s cab:

(25)

Pneumatic system:

Pressure sensors driver’s cab

-B10

sensor

gas pedal position

steering wheel adjustment

-B 8

pressure sensor service brake brake circuit 1

-S116

manom. switch 0,5E service brake at P > 0,5 bar = 1 = stop light ON

-B 6

pressure sensor supply service brake brake circuit 2

-B 5

pressure sensor supply service brake brake circuit 1

(26)

Pneumatic system:

Bulkhead plate

-B9

pressure sensor service brake brake circuit 2 (stop light)

-B7

pressure sensor supply parking brake

-S114

manom. switch 5,6 A parking brake at P < 5,6 bar = 1 = service brake applied. (break contact)

(27)

Pneumatic system:

Air drier, compressor

-Y4

air drier heater compressor

pneumatic system AIR DRIER

(28)

Pneumatic system:

Pneumatic valves 1

-Y208*

longitudinal differentiel. axle 3

-Y6

longit. diff. axle 5, transv differ. axles 5+6

-Y64

road speed

-Y62

free-wheel

-Y63

off-road speed

-Y7

transv. differ. axle 1 (+3)

-Y5*

longit. differ. transf. case (activation axle 3 )

-Y21

rear-axle release 1 = released

-Y66*

inversion brake power reduction bladder-type accumulator 1 = with

-Y65*

inversion brake power reduction bladder-type accumulator 1 = with

-Y136*

brake power reduction automatic

-Y164*

retarder actuator

-Y163*

retarder actuator

* = optional

(29)

Pneumatic system:

Pneumatic valves 2

-Y35

engine brake

-Y3

auxiliary output outrigger pump ON

-Y92

auxiliary output outrigger pump OFF

(30)

Diesel engine D 9408 TI - E 440 KW:

Starter, generator, needle-type displacement sensor,

compressor - air-conditioning system

-B46

-G3

generator

-X339

needle-type displacement sensor cylinder head 1

-M1

starter 9 KW

-X270

fuel initial filter coolant filter fuel fine filter

-Y872*

clutch compressor air-conditioning system (optional)

driving

direction

-X170

-A57

fuel preheating 150W

driving direction

* = optional

(31)

Diesel engine D 9408 TI - E 440 KW:

Speed sensors

-B36

-X278

inductive speed sensor 2 (OT - sensor)

-B35

-X277

inductive speed sensor 1 (engine speed)

driving

direction

(32)

Diesel engine D 9408 Ti-E A5:

Flame glow plug, sensors

-Y48

solenoid valve fuel release flame glow plug

-B37

-R11

sensor charge temperature

-X284

plug-in connector to EDC actuator (injection pump)

-X280

sensor charge pressure

-R9

flame glow plug, left

-R10

flame glow plug, right

(33)

Diesel engine D 9408 Ti-E A5:

Sensors

-R14

-R18

-X295

sensor oil temperature

-X283

sensor coolant temperature oil filter driving direction

(34)

Diesel engine D 9408 Ti-E A5:

Air and coolant sensors

-X102

-B38

negative pressure sensor, air filter 0 to -0,8bar / 0,5V - 4,5V

-X293

-S313

coolant level sensor

(35)

Diesel engine D 9408 Ti-E A5:

Cooler drive

charge cooler coolant cooler driving direction hydraulic motor ventilator drive

variable displacement pump ventilator drive pump L A10V045

heat exchanger

(36)

Diesel engine D 9408 Ti-E A5:

Fuel reservoir sensor

-R6

fuel level sensor fuel reservoir

0% - 100% / 2,0V - /,8V

-M17

fuel pump

fuel check valve flow direction

fuel level sensor

(37)

Diesel engine D 9408 Ti-E A5:

EDC actuator, sensor

-X281

sensor oil pressure

-B2

pneumatic connection crane hydraulics ON

-S121

inductive sensor crane hydraulics OFF pneumatic

connection

crane hydraulics OFF

-A75

EDC actuator

EDC connector

(38)

Allison transmission:

Allison CLBT755 DB

with offset gear (dropbox) DR 1610

-R28

temperature sensor gear oil driving direction driving direction

-X287

-A24

transmission actuator with integrated trasnmission control, temperature sensor, pneumatic sensor and speed sensor (transmission input) offset gear

speed sensor

back valve,

oil cooler

(39)

Hydraulic pumps:

Steering circuit I, steering circuit II,

emergency steering pump, ventilator-drive

emergency hydraulic steering pump

gear pump SMLP-S 351S

hydraulic pump - steering circuit 2 gear pump SMLP-S 351

hydraulic pump - steering circuit 1 variable displacement pump ventilator drive

(40)

Hydraulic pumps:

Suspension, outrigger system

driving direction outrigger control pump LPF 045 gear pump suspension

(41)

Power train:

Transfer case VG 2100 / 300 -Steyr Puch (ZF)

emergency steering pump output

front axle drive

output rear axle drive 12 x 6 (standard): axles 1, 5 and 6 driven

drive 12 x 8 (option) axles 1, 3, 5 and 6 driven axle 3 activatable engine drop-box transfer case driving direction

back valve,

0,2 bar

back valve,

0,2 bar

(42)

Power train:

Transfer case VG 2001 /300

* = optional

-S110

contact switch off-road speed ON

-S177

contact switch longit. diff. transfer case acknowledgement

-G4

pulser for tachygraph transfer case

(43)

Power train:

Longitudin. and transv. differential locks

-S161

contact switch transv. differ. lock axle 1 ON = 1

-S180

contact switch longitudin. differ. lock axle 5

(44)

Power train:

Transv. differential locks

-S163

contact switch transv. different. lock axle 5

ON =1

-S164

contact switch transv. different. lock axle 6 ON =1

(45)

Power train:

Activatable drive axle 3

-S122*

contact switch activation axle 3

-S123*

contact switch transv. differential. axle 3

(46)

Power train:

Eddy current brake TELMA

-L5

eddy curent brake TELMA

-A29

Relay box TELMA

ENGINE BRAKE _{EDDY CURRENT BRAKE}

(47)

Steering:

Steering gear, lack control

ZF semi-integral steering gear

-S118

flow indicator steering pump steering circuit 1

-S119

flow indicator

-H102

horn

-H101

horn

(48)

Steering:

Steering support

-Y81

steering support, axle 5, right

-Y82

steering support, axle 6, right

-Y84

steering support, axle 5, left

-Y83

steering support, axle 6, left

(49)

Steering:

Rear-axle steering

-Y74

release steering axle 3

-Y75

release steering axle 3

(50)

Steering:

Rear-axle lock

-S131

acknowledgement rear axle release „released“ (Y21 = 1)

-S151

acknowledgement rear-axle release „locked“ (Y21 = 0)

-Y78B

wheel lock right rear-axle steering (speed limited)

-Y78A

wheel lock left rear-axle steering (speed limited)

-Y72

steering inversion, axles 5+6 (speed limited)

(51)

Suspension:

Level sensors

adjustment at axles 1 and 6 to Pos. 5

(adjustments are independent from the tyre size)

-S142

proximity switch acknowledgement suspension axle 1 left

-S146

proximity switch acknowledgement suspension axle 6 left

-S148

proximity switch acknowledgement suspension axle 6 right

-S144

proximity switch acknowledgement suspension axle 1 right proximity switch

(52)

-Y9A

suspension (1 = locked)

-Y68A*

dolly mode axle equalization axles 3-6 (1 = without equalization)

-Y9B

suspension (1 = activated)

-Y69B

axle equalization ON axles 1-4 (1 = ON)

-Y68B*

dolly mode axle equalization axles 3-6 (1 = with equalization)

-Y69A

axle equalization OFF axles 1-4 (1 = OFF)

Suspension:

* = Kundenwunsch

-S166

contact switch suspension (activated)

-S165

contact switch suspension (locked)

(53)

Suspension:

Suspension left

-S167

axle equalization axles 1-4 left

-Y10

filling front left

-Y11

evacuating front left

-Y16

filling rear left

-Y17

lowering rear left

-S172*

axle equalization axles 3-6 left

(54)

Suspension:

Suspension right

-Y18

filling rear right

-Y19

evacuating rear right

-S173*

axle equalization, axles 3-6 right (only with dolly) axles 3-4 right

-Y12

filling front right

-Y13

evacuating front right

-S168

axle equalization, axles 1-4 right

(55)

Suspension:

Axle 3 +4, lifting / lowering

-Y90

axles 3+4 lifting (ring area filling)

-Y15

axles 3+4 lowering (ring area

-Y91

axles 3+4 lifting (piston area evacuating)

-Y14

axles 3+4 lowering (ring area

-Y89

axles 3+4 lifting (piston area evacuating)

-Y88

axles 3+4 lifting (ring area filling)

-S386

manom. switch, >120 bar = acknowledgement axles 3+4 top

-Y70

circulation suspension

(56)

Outrigger and supporting ram valves:

Front left

-Y30

supporting ram front left

-Y27

outrigger front right

-X1039

(57)

Outrigger and supporting ram valves:

Rear left

-Y31

supporting ram rear left

-Y26

outrigger rear right

-X1040

(58)

Outrigger and supporting ram valves:

Front right

-Y29

outrigger front left

-Y32

supporting ram front right

-Y107

circulation valve 1

-Y109

-Y108

-X1037

VALVE IDENTIFICATION FUNCTION

SUPPORTING RAM EXTEND

OUTRIGGER EXTEND

OUTRIGGER RETRACT SUPPORTING RAM RETRACT

(59)

Outrigger and supporting ram valves:

Rear right

-Y28

outrigger rear left

-Y33

supporting ram rear right

-X1038

(60)

Rotary slip-ring unit, inclination sensor:

-N1

slip-ring unit

-B19

inclination sensor driving direction

X/Y INCLINATION SENSOR INCLINATION ANGLE

OUTPUT OUTPUT

(61)

-B13*

pressure sensor 1 supporting force sensor 4-20mA rear right

-B14*

pressure sensor 2 supporting force sensor 4-20mA front right

-B11*

pressure sensor 4 support. force sensor 4-20mA rear left

-B12*

pressure sensor 3 support. force sensor 4-20mA front left

Optional equipment:

Supporting ram supporting pressure sensors

(62)

Optional equipment:

Air-conditioning system

* = optional

-Y85*

air-conditioner clutch compressor

-X875*

-S871*

manom. switch air-conditioner heat exchanger air-conditioning system

-Y872*

clutch compressor air-coditioner see Diesel engine

(63)

Optional equipment:

Additional heater

-

A50

control unit SG 1577 for static heater

-

A51

heater Thermo 90 S

-Y50

valve additional heater engine running 0 = open

-Y34

Diesel dosing pump additional heater 40 Ohm at 20°

(64)

Optional equipment:

Dismantable outrigger case

-X135*

-X136*

-X138*

-X137A*

-X137*

* = optional

-Y329a*

locking dismantable outrigger case

-Y329b*

releasing dismantable outrigger case

(65)

Optional equipment:

Dismantable outrigger case

-X342*

bushing for control panel dismantable outrigger case

-Y328*

circulation releasing / locking at dismantable outrigger case

-P12

control panel for dismantable outrigger case

(66)

Optional equipment:

External supply

-X246

socket supply 230V

-G6

24V DC battery charger

(67)

Index_UW

A

A 8 15 A 9 15 A10 17 A11 17 A12 12 A13 11 A14 17 A17 17 A23 17 A24 34 A26 19 A29 42 A33 19 A38 17 A57 26 A72 19 A73 12 A74 11 A75 33 A90 20 A91 19

B

B 2 33 B 5 21 B 6 21 B 7 22 B 8 21 B 9 22 B10 15, 21 B11* 57 B12* 57 B13* 57 B14* 57 B35 27 B36 27 B37 28 B38 30 B46 26

E

E 1 10 E 2 10 E 3 10 E 4 10 E 5 9 E 6 10 E 9 9 E10 10 E13 10 E14 9 E15 9 E16 9 E17 9 E18 9 E19 9 E20 11 E21 12 E24 10 E25 10 E29 10 E30 10 E31 9 E32 9 E33 10 E36 13 E37 13 E38 13 E39 15 E40 9 E41 9 E43 11 E44 12 E51* 9 E52* 9 E57 11 E58 12 E76 11 E77 12 E78 11 E81 11 E82 12 E83 12 E109 11 E110 12

G

G3 26 G6 62

H

H101 43 H102 43 H105 10

K

K50*. 19 K51* 19 K53 19 K56 19 K57 19 K58 19 K59 19 K64 19

L

L5 42

M

M 1 26 M 2 14 M 4 14 M10 14 M11 13 M12 13 M17 32 M19 14 M20 14 M21 14 M23 9 M24 9 M25 9 M26 9

N

N1 56

P

P11 15 P12 61 P14 15

R

R 6 32 R 9 28 R10 28 R11 28 R14 29 R18 29 R28 34

S

S17 15 S19 15 S65 13 S66 13 S69 13 S103 15 S105 15 S110 38 S114 22 S116 21 S118 43 S119 43 S121 33 S122* 41 S123* 41 S131 46 S134 13 S135 13 S142 47 S144 47 S146 47 S148 47 S151 46 S161 39 S163 40 S164 40 S167 49 S168 50 S172* 49 S173* 50 S177 38 S180 39 S202* 15 S204* 15 S232 18 S236 18 S313 30 S386 51 S871* 58

U

U50 17 U51* 17

X

X35 10 X49 19 X57 14 X81 15 X102 30 X135* 60 X136* 60 X137* 60 X137A* 60 X138* 60 X165 13 X166 13 X170 26 X205* 15 X209 17 X215 14 X217 14 X225 17 X246 62 X270 26 X277 27 X278 27 X280 28 X281 33 X283 29 X284 28 X287 34 X292 17 X293 30 X295 29 X339 26 X342* 61 X653.1 17 X653.2 17 X875* 58 X1037 54 X1038 55 X1039 52 X1040 53

Y

Y 3 25 Y 4 23 Y 5 24 Y 6 24 Y 7 24 Y 9A 48 Y 9B 48 Y10 49 Y11 49 Y12 50 Y13 50 Y14 51 Y15 51 Y16 49 Y17 49 Y18 50 Y19 50 Y21 24 Y26 53 Y27 52 Y28 55 Y29 54 Y30 52 Y31 53 Y32 54 Y34 59 Y35 25 Y48 28 Y50 59 Y62 24 Y63 24 Y64 24 Y65* 24 Y66* 24 Y68A* 48 Y68B* 48 Y69A 48 Y69B 48 Y70 51 Y72 46 Y74 45 Y75 45 Y78A 46 Y78B 46 Y81 44 Y82 44 Y83 44 Y84 44 Y85* 58 Y88 51 Y89 51 Y90 51 Y91 51 Y92 25 Y107 54 Y108 54 Y109 54 Y136* 24 Y163* 24 Y164* 24 Y208 24 Y328* 61 Y329a* 60 Y329b* 60

(68)

(69)

Training Documentation

LTM 1250/1

Outline of components with identification (BMK)

OW-11

BMK components

SUPERSTRUCTURE

(70)

(71)

CONTENTS: BMK

BMK - Table (-A1 to -H611) ... 3 BMK - Table (-H612 to -R52) ... 4 BMK - Table (-S1 to -S903) ... 5 BMK - Table (-S904 to -Y19a) ... 6 BMK - Tabelle (-Y19b bis -ZE3) ... 7

Instruments cabin: ... 9

Liccon monitor, pedal ... 9 Master switches ... 10 Roof console ... 11

Crane cabin: ... 12

Heater, additional heater ... 12 Additional heater ... 13 Wipers, miscellaneous ... 14 Swing frame / relays ... 15 Swing frame / relays, fuses ... 16 Swing frame, components for EMERGENCY MODE without LICCON ... 17 Swing frame / diode board, relays ... 18

Control cabinet: ... 19

Control ON, voltage converters ... 19 Participants on CAN and LSB ... 20

Electric equipment: ... 21

Battery box ... 21

Diesel engine D924 TI-E 180KW: ... 22

Components ... 22 Sensors... ... 23 Temperature-, pressure sensors ... 24 Cooling system ... 25

Hydraulic equipment: ... 26

Outline hydraulic pumps (without HW II) ... 26 Pump 1 (winch 1), Pump 2 (winch 2), Pump 3 (slewing gear) ... 27 Pump 4, pump 5 (luffing, tele) ... 28 Pump 6 (secondary consumers) ... 29 Telescoping, luffing ... 30 Secondary consumers ... 31 Hoist gear 1 ... 32 Hoist gear 2 with variation block, left ... 33 Hoist gear 2 with variation block, right ... 34 Ballasting ... 35 Centralized lubricating system ... 36 Fuel level sensor, air-drier, hydraulic oil cooler ... 37 Slewing gear ... 38 Superstructure interlocking,... 39 boom direction ... 39 Superstructure in general: ... 40 Lighting superstructure ... 40 Telescoping boom: ... 41

Cable drums, angle and length sensors ... 41 Boom head ... 42 Biparted swing-away jib, auxiliary winch ... 43 Biparted swing-away jib ... 44 Luffing jib - pulley head ... 45 Luffing jib / position acknowledgement ... 46 Luffing jib - position acknowledgement „bottom“... 47 Luffing jib base section ... 48 Luffing jib - retainer ram ... 49 Tele interlocking ... 50 Tele interlocking, gripper interlocking ... 51

Optional equipment: ... 52

Dolly ... 52 Nato socket, air-conditioner, external supply ... 53

(72)

(73)

-A Sub-assemblies, partial sub-assemblies

-A1 Control unit SG 1577 ... 13

-A2 Heater Thermo 90S ... 13

-A11 Filter heating, fuel preheating ... 23

-A14 Diode and resistance support ... 19

-A20 Flame starting device ... 20

-A50 Diode board ... 18

-A64 Neutral point ... 20

-A417 Additional supply for LSB ... 42

-B Converters, electric / non electric

-B1 Anemometer ... 43

-B2 Pressure sensor 0 - 400 bar, luffing ram - piston area ... 28

-B4 Angle sensor tele base section ... 41

-B6 Angle sensor tele boom head ... 42

-B7 Length sensor tele boom ... 41

-B11 Pressure sensor, pump 1, 0 - 400 bar ZE2 ... 27

-B12 Pressure sensor, pump 2, 0 - 400 bar ZE3, ... 27

-B13 Pressure sensor, pump 4 u. 5 ... 30

-B13 Pressure sensor, 0 - 400 bar, pumps 4 and 5, ZE1, ... 28

-B17 Pressure sensor 0-360° ... 39

-B22* Pressure sensor, retainer ram jib ... 50

-B25 Loudspeaker right ... 14

-B26 Pressure switch, brake slewing gear ... 52

-B26 Loudspeaker left ... 14

-B27 Pressure switch, lowering brake luffing ... 52

-B28 Pressure switch pump ... 52

-B29 Sensor gas pedal superstructure ... 9

-B30 Sensor footbrake slewing gear ... 9

-B31 Speed sensor n / L (0-70V) ... 23

-B32 (without fig.) OT sensor 2 ) ... 23

-B34 Charge pressure, 0-5bar / 0-5V ... 24

-B35 Cooling water temperature ... 24

-B36 Charge temperature ... 24

-B37 Coolant level sensor ... 25

-B39 Öil temperature ... 23

-B55 Angle sensor , luffing jib, base section ... 48

-B56 Angle sensor, luffing jib pulley head ... 45

-E Lighting devices

-E6 Contour light 5W ... 40

-E7 Contour light 5W ... 40

-E10 Flashing light boom head ... 43

-E11 Warning beacon 70W ... 40

-E12 Warning beacon 70W ... 40

-E17 Working projector, base section 42W ... 40

-E18 Working projector, base section 42W ... 40

-E60 Working projector, superstructure 70W ... 40

-E96 Projector, cabin left 70W ... 40

-EP0 Input board ZE0, LSB1 ... 20

-F Fuses -F1 -F6 / Fuses ... 16 -F7 -F12 / Fuses ... 16 -F13 -F18 / Fuses ... 16 -F19 -F24 / Fuses ... 16 -F25 -F30 / Fuses ... 16 -F31 -F36 / Fuses ... 16 -F37 -F42 / Fuses ... 16 -F43 -F48 / Fuses ... 16 -F60 Overvoltage protection ... 21

-F61 Fuse 50A, starter ... 21

-F62 Fuse 50A, battery + ... 21

-G Generators

-G1 Generator ... 22

-G2 Battery 12V ... 21

-G3 Battery 12V ... 21

-H Optic and acoustic signalization devices

-H21 Flashing light cabin ... 14

-H80 Warning bell / bell superstructure ... 37

-H95 Radio ... 14

-H105 Charge control indicator superstructure ... 9

-H106 Preheating indicator superstructure ... 9

-H599 Interval horn ballasting ... 14

(74)

-H612 Indicator / manual pressure control “ON” ... 11

-H613 Indicator / emergency mode ... 11

-H614 Indicator / central lubrification “ON” ... 11

-H627 Indicator / air-conditioning system “ON” ... 11

-H628 Indicator / additional heater “ON” ... 11

-K Relays, contactors

-K1 Control ON ... 19

-K11 Slewing gear free-wheel ... 15

-K12 Setting switch “OFF” ... 15

-K13 Luffing ram retracting (tele resetting) ... 15

-K14 Emergency mode without Liccon ... 15

-K15 Working hour counter ... 15

-K16 Water circulation heater ... 15

-K17 Heater cabin, warm ... 15

-K18 Horn ... 15

-K19 Fresh air blower... 15

-K20 Tele RELEASE ... 15

-K21 Water circulation ... 15

-K22 Aux. contactor, emergency mode with Liccon ... 15

-K23 Aux. contactor, gripper released (at emergency mode) ... 15

-K24 Hydraulic oil cooler -M2 “ON“ ... 15

-K25 Static brake slewing gear ... 15

-K26 Fuel preheat. filter heat.. 130A / 40A 150W optional assignment . 15

-K27 Seat heating “ON” ... 15

-K28 Lighting superstructure -E4 and -E5 ... 15

-K29 Y 14 at tele resetting ... 15

-K30 Y13 at tele resetting ... 15

-K31 Interlocking -Y47b against -Y47a (secondary consumers) ... 15

-K32 Cut-off air-drier ... 15

-K33 Central lubrification “OFF” ... 15

-K34 42W working projector boom head -E16 ... 15

-K35 Air-conditioner clutch compressor high-pressure -Y137 ... 15

-K36 Air flap engine -Y56 (1 = open) ... 15

-K37 Retracting tele -Y9 and pre-charge pressure ring area -Y49 ... 15

-K38 Light -H613, gripper in position at EMERGENCY MODE ... 15

-K39 Electr.-operated hydraulic pump -M13 (Dolly) ... 15

-K51 Hoist gear 1 ... 16

-K52 Extending tele / hoist gear 2 ... 16

-K53 Luffing up ... 16 -K54 R etracting tele ... 16 -K56 Luffing down ... 16 -K57 Slewing gear ... 16 -K58 Releasing gripper ... 16 -K59 -K59 .... releasing gripper ... 18 -K60 EMERGENCY MODE ... 18

-K651 Interval relay windscreen wiper motor / front ... 11

-K652 Interval relay screen wiper motor / skylight ... 11

-M Electric motors

-M1 Starter ... 22

-M2 Motor hydraulic oil cooler ... 37

-M3 Wiper motor front screen ... 14

-M4 Wiper motor skylight ... 14

-M5 Heat exchanger ... 12

-M6 Front screen washer pump ... 14

-M7 Skylight washer pump ... 14

-M9 Circulation pump, water circulation engine /heat exchanger ... 12

-M13 Electric-operated hydraulic pump ... 52

-M14 Ventilator cabin ... 12

-M23 Actuator, adjustment working projector base section ... 40

-N Slip-ring transmitters

-N1 Slip-ring energy cable tele ... 41

-N2 Cable drum ... 41

-NT Power pack ... 20

-P Measuring instruments, test devices

-P2 Incremental sensor, winch 1 ... 32

-P3 Incremental sensor, winch 2 ... 33

-P654 Preselector dial, additional heater ... 11

-P655 Working hour counter ... 11

-R Resistances

-R4 Fuel level sensor, reservoir ... 37

-R9 Flame glow plug 1 ... 23

-R50 Series resistance, 47R at emergency mode lifting and luffing ... 17

-R51 Series resistance, 56R at emergency mode telescoping ... 17

-R52 Series resistance 68R at emergency mode slewing ... 17

(75)

-S Switches, push-buttons, limit switches

-S1 Main switch battery box ... 21

-S4 Contact switch ± 5° ... 39

-S26 Plunger-operated switch, ballast left “bottom” ... 35

-S27 Plunger-operated switch, ballast right “bottom” ... 35

-S28 Pressure switch >200 bar, ballast left “top” ... 35

-S29 Pressure switch >200 bar, ballast right “top” ... 35

-S30 Contact switch superstructure interlocking pin bottom ... 39

-S31 Temperature switch hydraulic oil ... 37

-S32 Contact switch superstructure interlocking pin top ... 39

-S34 Incremental sensor slewing gear ... 37

-S35 Incremental sensor slewing gear ... 37

-S38 Supply pressure control, winch 1 ... 32

-S39 Supply pressure control, winch 2 ... 34

-S44 Jib variation limit stop ... 34

-S46 Proximity switch winch 2 mounted ... 33

-S47 Proximity switch TN variation block ... 33

-S69 Proximity switch, distributor ... 36

-S70 Variation block, erecting “UP” ... 33

-S71 Variation block, erecting “DOWN” ... 33

-S72 Swinging out biparted swing-away jib ... 44

-S73 Swinging in biparted swing-away jib ... 44

-S74* Swinging out variation block ... 33

-S75* Swinging in variation block ... 33

-S77* High-pressure switch air-conditioner ... 53

-S81 Key-operated switch EMERGENCY MODE with LICCON ... 16

-S83 Thermoswitch, water circulation ... 12

-S89 Step switch, blower heat exchanger ... 12

-S90 Heater switch ... 12

-S92 Push-button, slewing free-wheel ... 9

-S104 Ignition switch, superstructure ... 9

-S107 Engine stop ... 9

-S301 Master switch 1 right, luffing, telescoping, hoist gear ... 10

-S320 Swinging swing-away jib ... 10

-S320 Terminal box ... 40

-S322 Preselection luffing / not telescoping ... 10

-S324 Acoustic warning “OFF” ... 10

-S326* Seat heating ... 10

-S401 Master switch 2 left, slewing, hoist gear 2 ... 10

-S413 Terminal box ... 41

-S418 Terminal box, luffing jib base section ... 48

-S419* Terminal box, luffing jib ... 45

-S420 Tilting cabin ... 10

-S421 Terminal box, swing-away jib ... 43

-S422 Slewing brake, release ... 10

-S424 Luffing up at overload ... 10

-S602 Screen wiper skylight ... 11

-S604 Screen wiper / wipe-wash / skylight ... 11

-S606 Screen wiper / front ... 11

-S608 Screen wiper / wipe-wash / front ... 11

-S610 Manual pressure control / tele setting ... 11

-S618 Releasing ram / releasing tele ->manual mode ... 11

-S620 Manual pressure control ... 11

-S622 Displacement selector at emergency mode without Liccon ... 11

-S626 Additional heater “ON” / “OFF” ... 11

-S630 Air-conditioner “ON” ... 11

-S632 Working projector roof / to front ... 11

-S634 Lighting winch ... 11

-S636 Working projector roof / to rear... 11

-S638 Working projector base section 70W ... 11

-S640 Working projector base section 42W ... 11

-S642 Working projector setting mode ... 11

-S644 Warning beacon, flashing light ON / OFF ... 11

-S646 Erection winch, auxiliary winch UP / DOWN ... 11

-S648 Extending / retracting platform ... 11

-S650 Instrument lighting... 11

-S656 Setting “OFF” ... 11

-S657 Setting switch ... 11

-S658 Ballasting “UP” / “DOWN” ... 11

-S660 Superstructure interlocking ... 11

-S900 Proximity switch, swing-away jib swung in ... 44

-S901 Inductive sensor tele 1 ... 50

-S902 Inductive sensot tele 2 ... 50

-S903 Inductive sensor tele 3 ... 50
