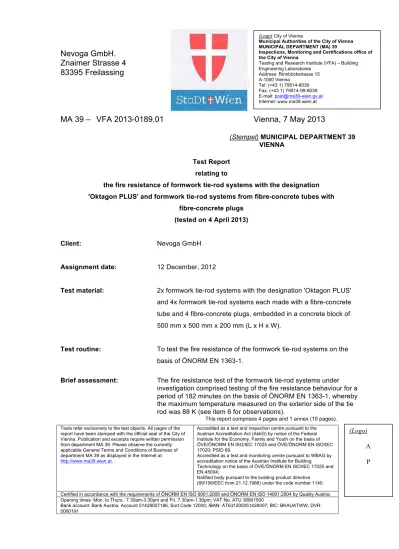

Test Report relating to
the fire resistance of formwork tie-rod systems with the designation 'Oktagon PLUS' and formwork tie-rod systems from fibre-concrete tubes with
fibre-concrete plugs (tested on 4 April 2013)
Client: Nevoga GmbH
Assignment date: 12 December, 2012
Test material: 2x formwork tie-rod systems with the designation 'Oktagon PLUS' and 4x formwork tie-rod systems each made with a fibre-concrete tube and 4 fibre-concrete plugs, embedded in a concrete block of 500 mm x 500 mm x 200 mm (L x H x W).
Test routine: To test the fire resistance of the formwork tie-rod systems on the basis of ÖNORM EN 1363-1.
Brief assessment: The fire resistance test of the formwork tie-rod systems under investigation comprised testing of the fire resistance behaviour for a period of 182 minutes on the basis of ÖNORM EN 1363-1, whereby the maximum temperature measured on the exterior side of the tie rod was 88 K (see item 6 for observations).
This report comprises 4 pages and 1 annex (10 pages).

Tests refer exclusively to the test objects. All pages of the report have been stamped with the official seal of the City of Vienna. Publication and excerpts require written permission from department MA 39. Please observe the currently applicable General Terms and Conditions of Business of department MA 39 as displayed in the Internet at http://www.ma39.wien.at.
Accredited as a test and inspection centre pursuant to the Austrian Accreditation Act (AkkG) by notice of the Federal Institute for the Economy, Family and Youth on the basis of ÖVE/ÖNORM EN ISO/IEC 17025 and ÖVE/ÖNORM EN ISO/IEC 17020; PSID 69.
Accredited as a test and monitoring centre pursuant to WBAG by accreditation notice of the Austrian Institute for Building Technology on the basis of ÖVE/ÖNORM EN ISO/IEC 17025 and EN 45004;
Notified body pursuant to the building product directive (89/106/EEC from 21.12.1988) under the code number 1140.
Certified in accordance with the requirements of ÖNORM EN ISO 9001:2008 and ÖNORM EN ISO 14001:2004 by Quality Austria.
Opening times: Mon. to Thurs.: 7.30am-3.30pm and Fri. 7.30am-1.30pm; VAT No. ATU 36801500
Bank account: Bank Austria, Account 51428007186, Sort Code 12000; IBAN: AT631200051428007; BIC: BKAUATWW, DVR:
0000191
(Logo) City of Vienna
Municipal Authorities of the City of Vienna MUNICIPAL DEPARTMENT (MA) 39
Inspections, Monitoring and Certifications office of the City of Vienna
Testing and Research Institute (VFA) – Building Engineering Laboratories
Address: Rinnböckstrasse 15 A-1000 Vienna
Tel: (+43 1) 79514-8039 Fax: (+43 1) 79514-99-8039 E-mail: [email protected] Internet: www.ma39.wien.at
(Logo) A
P
M 39 – VFA 2013-0189.01
Vienna Municipal Department 39
Testing and Research Institute (VFA) – Building Engineering Laboratories
Page 2 / 4
(Stempel) MUNICIPAL DEPARTMENT 39 VIENNA
1 General
By letter dated 12 December 2012, MA 39 was assigned by the client to perform fire-resistance testing of formwork tie-rod systems.
Following the placement of the assignment, an arrangement was made with MA 39 concerning the construction to be tested (selection of the test object).
2 Test conditions
The test method for determining the fire resistance duration is laid down by ÖNORM EN 1363-1, which states that the test object is to be exposed to temperatures of the unit temperature-time curve.
In the current case, the assessment is made on the basis of the maximum temperatures reached on the surface of the test object facing away from the fire.
3. Test objects
The test objects were provided by the client and installed in the aperture of the test furnace on 4 April 2013.
The following formwork tie-rod systems were installed for the test:
2x: - Oktagon PLUS with
- Oktagon plugs
4x - Fibre-concrete tube with - Fibre-concrete plugs
Description of test objects:
- Oktagon PLUS
The formwork tie-rod system is made from a single piece of polyethylene (HD-PE, PVC-free).
Internal diameter 24 mm, diameter of formwork support 44 mm, length 200 mm.
- Oktagon plugs
Sealing plugs for watertight and flush sealing of Oktagon cones.
Two plugs are used for each spacer.
- Fibre-concrete tube and fibre-concrete plug
Internal diameter of tube: 22 mm
Length of plug: 20 mm
M 39 – VFA 2013-0189.01
Inspections, Monitoring and Certifications office of the City of Vienna
Municipal Department 39
Testing and Research Institute (VFA) – Building Engineering Laboratories
Page 3 / 4
(Stempel) MUNICIPAL DEPARTMENT 39 VIENNA
Composition: Cement CEM III / A 32.5 N HSR Heidelberg Cement Group Quartz sand 0 to 2 mm
Quartz sand 0.3 to 0.8 mm Lime powder
Fibre PP 18 mm approx. 2.5 kg/m⇡
Water
For each spacer, 4 pieces were used
The fibre-concrete plugs were sealed with 'NEVO-FBK 1' single-component fibre-concrete adhesive.
The Oktagon plugs were knocked into the plastic tube using a hammer.
The distance from one formwork tie rod to the next was approx. 150 mm.
The concrete component was made from B2 concrete of strength class C25/30.
Overall dimensions of the test object: 500 mm x 500 mm x 200 mm
Datasheets for the test object can be found on pages 1-3 of the annex.
4 Test apparatus
The test object was placed vertically into the test frame of the firing chamber with a clear test aperture of 550 mm x 550 mm (W x H). The gaps between the test object and the test aperture were sealed with mineral wool strips.
The overall conditioning of the test object was conducted in line with ÖNORM EN 1363-1.
5 Performance of the test
The firing chamber was fired by means of an oil burner (heating oil extra-light as per ÖNORM C 1109). The temperature in the firing chamber was regulated pursuant to the mean value of the firing chamber temperature measuring points in accordance with the unit temperature-time curve.
The test was conducted on 4 April 2013.
Monitoring and control of the furnace pressure was performed in line with ÖNORM EN 1363-1.
To measure the temperature in the firing chamber, four thermal plate elements were placed inside it
at approximately 10 cm distance from the test object (see Annex, page 4). Six thermal elements were
attached to the surface of the test body facing away from the fire (see Annex, page 5).
M 39 – VFA 2013-0189.01
Vienna Municipal Department 39
Testing and Research Institute (VFA) – Building Engineering Laboratories
Page 4 / 4
6 Results
Observations during the test:
29 minutes: Emission of moisture from measuring point 2 29 minutes: Emission of moisture from measuring point 6 42 minutes: Smoke build-up at measuring point 6
60 minutes: Heat insulation and integrity exist 90 minutes: Heat insulation and integrity exist
116 minutes: Formation of gaps in the vicinity of measuring points 5 and 6 120 minutes: Heat insulation and integrity exist
180 minutes: Heat insulation and integrity exist 182 minutes: Heat insulation and integrity exist End of test (at request of client)
The temperatures measured in the course of the test (firing chamber temperatures, temperatures of the test object surface facing away from the fire) are given on pages 6-8 of the Annex, along with records of the pressure measurement.
Photographic documentation is located on pages 9-10 of the Annex.
7 Assessment of the test results
The construction in question was exposed to the temperatures of the unit temperature-time curve for a test duration of 182 minutes; the maximum temperature increase measured on the surface of the test object facing away from the fire was 88 K, which remains below the maximum permitted temperature increase of 180 K according to ÖNORM EN 1363-1.
On the basis of the test results, the tested formwork tie-rod systems with the designation 'Oktagon PLUS' and 'Fibre-Concrete Tube' with 'Fibre-Concrete Plug' have satisfied the criteria of heat insulation and integrity over a test duration of 182 minutes, on the basis of ÖNORM EN 1363-1.
Testing officer . Laboratory head and authorised signatory
(Unterschrift) (Unterschrift)
Dipl.-HTL-Ing. Kurt Danzinger, MSc Dipl. Ing. Dr. Techn. Christian Pöhn
Techn. Amtsrat Senatsrat
(Stempel)
Inspections, Monitoring and Certifications office of the City of Vienna Municipal Department 39
City of Vienna
Head of the Inspections, Monitoring and Certifications Dept.
(Unterschrift)
Dipl. Ing. Georg Pommer
Senatsrat
M 39 – VFA 2013-0189.01
Inspections, Monitoring and Certifications office of the City of Vienna
Municipal Department 39
Testing and Research Institute (VFA) – Building Engineering Laboratories
Annex Page 1 / 10
(Stempel) MUNICIPAL DEPARTMENT 39 VIENNA
Datasheet
Oktagon-PLUS formwork tie-rod system
The OKTAGON-PLUS formwork tie-rod system is the result of consistent improvements to traditional systems. OKTAGON-PLUS is a formwork tie-rod system of particularly generous dimensions, made from HDPE. It is resistant to the kinds of acids and alkalis commonly found on construction sites.
Material:
Polyethylene (HD-PE)
Customs tariff number:
3925080
INFO:
All information was compiled at the current state of the art and to the best of our knowledge and judgement.
Nevoga GmbH does not guarantee the accuracy or completeness of the information.
All changes, errors, typesetting and printing errors reserved The use of texts and illustrations or the duplication thereof is only permitted with the written permission of Nevoga GmbH.
M 39 – VFA 2013-0189.01
Vienna Municipal Department 39
Testing and Research Institute (VFA) – Building Engineering Laboratories
Annex Page 2 / 10
(Stempel) MUNICIPAL DEPARTMENT 39 VIENNA
Technical Datasheet
Fibre-Concrete Tube
Article No.
Internal Ø mm
Length mm
FBRO22/12 22 120
FBRO22/14 22 140
FBRO22/15 22 150
FBRO22/18 22 180
FBRO22/20 22 200
FBRO22/22 22 220
FBRO22/23 22 230
FBRO22/24 22 240
FBRO22/25 22 250
FBRO22/28 22 280
FBRO22/30 22 300
FBRO22/33 22 330
FBRO22/34 22 340
FBRO22/35 22 350
FBRO22/36 22 360
FBRO22/38 22 380
FBRO22/40 22 400
Fibre-Concrete Plug
Article No.
For Ø mm
Length mm
FBRST22/20 22 20
FBRST22/50 22 50
Composition:
Cement CEM III / A 32.5 N HSR Heidelberg Cement Group Quartz sand 0 to 2 mm
Quartz sand 0.3 to 0.8 mm Lime powder
Fibre PP 18 mm approx. 2.5 kg/m⇡
Water
No asbestos fibres or substances marked as toxic are used.
No materials are used for packaging that are made from PVC and contain halogen.
Free from environmentally problematical flame-retardants.
INFO:
All information was compiled at the current state of the art and to the best of our knowledge and judgement.
Nevoga GmbH does not guarantee the accuracy or completeness of the information.
All changes, errors, typesetting and printing errors reserved The use of texts and illustrations or the duplication thereof is only permitted with the written permission of Nevoga GmbH.
Nevoga GmbH 08.04.2013
M 39 – VFA 2013-0189.01
Inspections, Monitoring and Certifications office of the City of Vienna
Municipal Department 39
Testing and Research Institute (VFA) – Building Engineering Laboratories
Annex Page 3 / 10
(Stempel) MUNICIPAL DEPARTMENT 39 VIENNA
'NEVO-FBK 1' Single-Component Fibre-Concrete Adhesive Article Designation Quantity/bucket Kg/
No. kg pallet
FBA/1 NEVO-FBK 1 1.5 144
Benefits:
- Single-component adhesive
- Very large opening to allow easy submergence of plug - Can be applied immediately
- Can even be applied with damp substrates
- Can be stored for approx. 12 months in the original container (cool and dry) - Temperature resistance approx. –40°C to +80°C
- Set comprises 3 tube bags of 500 grams each Quantity consumed for 1,000 plugs: approx. 3 kg
M 39 – VFA 2013-0189.01
Vienna Municipal Department 39
Testing and Research Institute (VFA) – Building Engineering Laboratories
Annex Page 4 / 10
(Stempel) MUNICIPAL DEPARTMENT 39 VIENNA
Firing-chamber temperature-measuring points
1 – 4 Measuring points for firing-chamber temperature D Pressure measuring point
Nevoga GmbH
Test performed on 4 April 2013 Side view
Test object
Burner
M 39 – VFA 2013-0189.01
Inspections, Monitoring and Certifications office of the City of Vienna
Municipal Department 39
Testing and Research Institute (VFA) – Building Engineering Laboratories
Annex Page 5 / 10
(Stempel) MUNICIPAL DEPARTMENT 39 VIENNA
Position of thermal elements on the side facing away from the fire Plan view
Approx. 150
1-6 Thermal elements
Nevoga GmbH
Test performed on 4 April 2013 Concrete block
Section A-A
Fibre-concrete tube With fibre concrete plug
Oktagon-Plus
Formwork tie-rod system
Firing chamber side
M 39 – VFA 2013-0189.01
Vienna Municipal Department 39
Testing and Research Institute (VFA) – Building Engineering Laboratories
Annex Page 6 / 10
(Stempel) MUNICIPAL DEPARTMENT 39 VIENNA
Firing Chamber Temperatures / As overtemperatures in []K] / Temperature at start of test: 12°C Test duration: Minutes 2-90
Thermal element No. Mean value
Test duration
[min] 1 2 3 4 Actual Target Deviation
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90
0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*)
492 515 516 528 547 609 682 736 754 763 779 787 792 804 808 814 823 834 833 838 847 850 861 866 867 876 880 885 889 903 893 913 908 914 919 918 948 951 958 967 972 976 983 985 976
587 596 591 598 600 672 797 889 894 902 905 910 917 922 928 935 938 943 945 953 956 957 959 964 971 975 982 979 984 1005 981 1009 994 1009 1011 1005 1048 1046 1046 1062 1063 1070 1075 1078 1064
314 408 433 443 481 522 562 626 657 671 682 692 700 710 717 725 733 740 750 755 760 769 774 780 787 792 799 804 810 820 818 833 834 836 841 847 873 881 889 895 902 907 912 918 917
464 506 513 552 580 601 680 750 768 779 789 796 803 812 818 825 831 839 843 849 854 859 865 870 875 881 887 889 894 909 897 918 912 920 924 923 956 959 964 975 979 984 990 994 986
445 544 603 645 678 705 728 748 766 781 796 809 820 832 842 851 860 869 877 885 892 899 906 912 918 924 930 935 940 945 950 955 960 964 968 973 977 981 985 988 992 996 999 1003 1006
19 -38 -90 -93 -98 -104 -48 2 2 -2 -7 -13 -17 -20 -24 -26 -29 -30 -34 -36 -38 -40 -41 -42 -43 -43 -43 -46 -46 -36 -53 -37 -48 -44 -44 -50 -21 -22 -21 -13 -13 -12 -9 -9 -20
Test duration: Minutes 92-182
Thermal element No. Mean value
Test duration
[min] 1 2 3 4 Actual Target Deviation
92 94 96 98 100 102 104 106 108 110 112 114 116 118 120 122 124 126 128 130 132 134 136 138 140 142 144 146 148 150 152 154 156 158 160 162 164 166 168 170 172 174 176 178 180 182
0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*) 0*)
977 981 983 990 990 993 998 1011 1017 1003 1003 1005 1008 1009 1011 1015 1017 1019 1024 1023 1025 1025 1031 1034 1034 1038 1041 1044 1044 1048 1048 1052 1052 1055 1062 1061 1063 1064 1066 1082 1087 1088 1096 1093 1091 1095
1064 1072 1066 1075 1079 1082 1082 1102 1107 1084 1080 1087 1089 1089 1091 1091 1094 1099 1096 1100 1107 1101 1107 1107 1110 1114 1118 1115 1123 1126 1122 1130 1128 1135 1138 1136 1134 1144 1148 1161 1167 1170 1173 1173 1166 1171
916 920 923 927 931 935 938 950 958 950 952 953 956 959 962 967 969 972 974 977 981 983 987 990 993 996 997 1001 1004 1006 1009 1011 1015 1018 1021 1023 1026 1028 1030 1042 1047 1051 1054 1057 1059 1060
986 991 991 997 1000 1003 1006 1021 1027 1012 1012 1015 1018 1019 1021 1024 1027 1030 1031 1033 1038 1036 1042 1044 1046 1049 1052 1053 1057 1060 1060 1064 1065 1069 1074 1073 1074 1079 1081 1095 1100 1103 1108 1108 11058 1109
1009 1012 1016 1019 1022 1025 1028 1030 1033 1036 1039 1041 1044 1047 1049 1052 1054 1056 1059 1061 1063 1066 1068 1070 1072 1074 1076 1078 1080 1082 1084 1086 1088 1090 1092 1094 1096 1098 1099 1101 1103 1105 1106 1108 1110 1111
-23 -21 -25 -22 -22 -22 -22 -9 -6 -24 -27 -26 -26 -28 -28 -28 -27 -26 -28 -28 -25 -30 -26 -26 -26 -25 -24 -25 -23 -22 -24 -22 -23 -21 -18 -21 -22 -19 -18 -6 -3 -2 2 0 -5 -2
Grafik
Firing chamber temperature
Test duration (min)
Temperatur (°C)
M 39 – VFA 2013-0189.01
Vienna Municipal Department 39
Testing and Research Institute (VFA) – Building Engineering Laboratories
Annex Page 7 / 10
(Stempel) MUNICIPAL DEPARTMENT 39 VIENNA
Temperatures on the side of the test object facing away from the fire As overtemperatures in []K]
Temperature at start of test: 12°C Test duration: Minutes 2-90
Thermal element No.
Test duration
[min] Meas. pt.1 Meas. pt. 2 Meas. pt. 3 Meas. pt. 4 Meas. pt. 5 Meas. pt. 6 2
4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90
1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 1 1 2 3 4 7 10 14 18 22 26 32 38 40 59 71 64 70 72 60 63 60 60 62 60 60 59
0 0 0 0 0 1 1 0 0 0 1 0 0 0 16 16 19 22 24 26 35 56 67 73 81 82 80 79 81 79 80 79 79 79 80 80 80 79 79 79 80 81 80 80 81
1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 1 1 3 4 6 8 8 10 12 14 16 17 19 21 23 26 28 31 33 35 37 40 42 44 46 47 50 52 53 55
0 0 0 0 1 1 1 0 0 0 1 1 0 0 0 2 2 2 2 2 3 4 5 6 7 8 9 11 12 14 16 18 20 22 24 26 29 31 33 35 36 38 40 41 43
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 3 5 7 10 12 13 14 16 17 19 20 22 23 24 25 26 28 29 31 32 33 35 37 38 39 40 41
1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 1 1 3 4 8 12 14 17 19 22 25 29 32 35 37 36 38 39 40 43 45 44 44 47 49 50 50 52 53
Test duration: Minutes 92-182 Thermal element No.
Test duration
[min] Meas. pt. 1 Meas. pt. 2 Meas. pt. 3 Meas. pt. 4 Meas. pt. 5 Meas. pt. 6 92
94 96 98 100 102 104 106 108 110 112 114 116 118 120 122 124 126 128 130 132 134 136 138 140 142 144 146 148 150 152 154 156 158 160 162 164 166 168 170 172 174 176 178 180 182
59 58 57 59 60 59 59 66 68 64 59 59 59 58 59 57 60 57 57 57 58 59 61 65 64 64 62 66 67 61 71 68 73 72 79 80 80 81 80 79 81 78 77 78 80 80
81 81 80 80 80 80 80 80 80 80 80 80 80 80 80 80 80 81 81 81 81 81 81 81 82 82 82 82 82 82 82 82 82 83 84 84 84 84 85 85 85 85 85 86 86 87
56 57 58 59 60 61 62 64 66 67 69 70 72 73 75 76 78 79 81 81 82 83 83 84 84 85 85 85 85 85 85 85 86 86 86 86 86 86 86 86 86 86 87 86 87 87
44 46 47 49 50 51 51 52 54 56 58 59 60 62 63 64 66 67 68 69 70 71 71 72 73 73 74 74 75 76 76 77 78 78 79 79 80 81 82 82 83 84 86 87 88 88
43 44 45 46 48 49 49 50 51 52 53 53 54 56 56 57 58 59 60 60 61 62 63 64 65 65 66 67 68 68 68 69 69 69 70 70 71 71 71 72 73 73 74 74 74 75
54 55 56 57 58 59 60 61 62 63 63 64 65 66 67 68 69 69 69 70 70 70 71 71 71 72 72 72 73 73 74 74 74 74 75 75 76 76 76 76 77 80 80 80 82 82
Grafik
Temperatures on the side of the test object facing away from the fire
Test duration (min)
M 39 – VFA 2013-0189.01
Vienna Municipal Department 39
Testing and Research Institute (VFA) – Building Engineering Laboratories
Annex Page 8 / 10
(Stempel) MUNICIPAL DEPARTMENT 39 VIENNA
Fire resistance test
(Measured at middle height to the test object)
Fire resistance duration in minutes Pressure in Pascal
0 0.5
5 0.5
10 0.5
15 0.5
20 0.5
25 0.8
30 0.8
35 0.8
40 0.8
45 0.8
50 0.8
55 0.8
60 0.5
65 0.5
70 0.0
75 0.0
80 0.0
85 0.0
90 0.0
95 0.0
100 0.2
105 0.2
110 0.3
115 0.5
120 0.3
125 0.1
130 0.5
135 0.1
140 0.2
145 0.2
150 0.2
155 0.2
160 0.5
165 0.8
170 0.8
175 0.8
180 0.8
