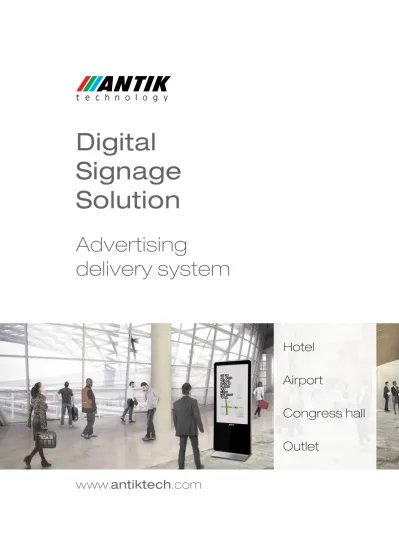

Digital
Signage
Solution
Advertising
delivery system
Hotel
Airport
Congress hall
Outlet
www.antiktech.com
CUSTOMIZ
ABLE
DESIGN
& BRANDING
ANTIK
Digital Signage Solution
Key Features
● complex advertising delivery system
● combination of live TV streams
with standard multimedia designing
components available
● large variety of indoor & outdoor
LED TV panels
● low power consumption
● HD & Full HD resolution
● low operational costs
Comprehensive Multimedia Advertising Delivery System
Built on more than 20 years of our experience in dig-ital TV and many years in IPTV, we created low-in-vestment and low operational costs LED panel system controlled by state-of-art ANTIK DS Management Sys-tem. You can either upload ready to publish campaign delivered by your advertising clients or build the cam-paign for him using ANTIK DSS Producer. To design the campaign, all standard multimedia components can be used – pictures, music, video (even in com-bination with live TV channel broadcasting) all mixed with many eye-catching effects.
TV panels itself are controlled by low-power Antik DS set-top boxes. In comparison to Intel PC based pan-els, in each project you save significant investment money, not mentioning dramatically lower power consumption and quiet operation (no fan on set-top box necessary). There is wide range of panels which differs in size and usage for indoor or high contrast displays for outdoor. For low-cost operation, our Antik DS set-top boxes can be also utilized together with standard HD TV sets.
Inputs / Outputs
● DVB-C/T/T2/S2/ISDB-T Tuner Input (optional) ● HDMI 1.4
● TOSLINK Digital Audio Interface
● CVBS (3,5 mm jack for SCART/RCA cable connection) ● 1x USB 2.0
● 1x, 2x, 4x RJ45 (Ethernet 10/100 base Tx or 10/100/1000 base Tx)
● infrared receiver
● Embedded WiFi 802.11n (optional) ● external IR input
Highlights
● Full HD (1080p) video support ● Interactive TV support
– multicast TV ● EPG, VOD, Mosaic
● Segment streaming and buffering for OTT delivery even in low-speed networks
● Hybrid broadcast-broadband TV support
● Intelligent low power consumption management
ANTIK Mini2 – Set-Top Box for Digital Signage
H W specification for DSS Management server
CPU: Intel Core i5 RAM: 2 GB
HDD: 250 GB SATA Ethernet: 100 Mbit OS: Linux Debian 7 64 bit
DSS Producer
OS: Windows 7 CPU Intel Core i5 RAM: 4G
Energy protection class:
Typical power consumption:
Screen size:
Resolution:
Technology:
Inputs:
Weight:
Dimensions:
Totem 55” vertical
ADS1055V
A+
250 W (in operation), 0,3 W (standby)
139 cm (55”)
Full HD (1920×1080)
LED
HDMI, CVBS, DVI, TOSLINK
95 kg
Energy protection class:
Typical power consumption:
Screen size:
Resolution:
Technology:
Inputs:
Weight:
Dimensions:
Totem 42” vertical
ADS1042V
A+
240 W (in operation), 0,3 W (standby)
106 cm (42”)
Full HD (1920×1080)
LED
HDMI, CVBS, DVI, TOSLINK
70 kg
Energy protection class:
Typical power consumption:
Screen size:
Resolution:
Technology:
Inputs:
Weight:
Dimensions:
Leaflet holder 26” vertical
ADS1026V
A+
65 W (in operation), 0,3 W (standby)
66 cm (26”)
Full HD (1920×1080)
LED
HDMI, CVBS, DVI, TOSLINK
50 kg
Energy protection class:
Typical power consumption:
Screen size:
Resolution:
Technology:
Inputs:
Weight:
Dimensions:
Wall-mount 42” horizontal panel
ADS1042H
A+
240 W (in operation), 0,3 W (standby)
106 cm (42”)
Full HD (1920×1080)
LED
HDMI, CVBS, DVI, TOSLINK
38 kg
Energy protection class:
Typical power consumption:
Screen size:
Resolution:
Technology:
Inputs:
Weight:
Dimensions:
Wall-mount 19” horizontal panel
ADS1019H
A+
35 W (in operation), 0,3 W (standby)
48 cm (19”)
Full HD (1920×1080)
LED
HDMI, CVBS, DVI, TOSLINK
11 kg
467x315x42 mm
FULLy
CUSTOMIZ
ABLE
DESIGN
ANTIK Hospitality IPTV
* Content Management System
* Internet apps + Mediaplayer
* Quick setup
* In-room WiFi
● Effective x-sell toolfor hotel marketing ● Impressive presentation of hotel services with sale opportunities
Top-level entertainment for your guests
* Crystal clear HD TV channels
* All guest services on TV screen
* Hotel bill, Food ordering,
Messages and more
* On-demand movies
High-Definition TV, latest entertainment options, top guest experience
Antik Hospitality delivers easy to set-up turnkey head-end and room premises equipment for live TV integrated with all premises related services and entertainment options. Using Antik HD set-top boxes you can be sure about future-proof media solution fulfiling highest guest expectations.
All Guest Services on TV screen
Antik Hospitality IPTV brings all your hospitality offers on your guests TV Screen. 24/7 available, easy understandable multilanguage interface increases the chance to sell your food service, relaxation, sightseeing and business guest products. All easy to setup and modify without any need of complicated coding or development.
Top-Notch Fun Features
Perfect to keep your guest entertained any time of the day. Latest HD movies, local sightseeing information, or using DLNA mediaplayer to share hotel entertainment database or guests USB storage to allow them to view latest pictures from the busy day spent on attractions. Instant access to web browser and most viewed apps - youtube, facebook, etc.
Reception User Interface
All guest requests and messages are easily collected and managed directly from reception desk and/or other hotel departments using unified user interface.
Content Management System and Integration
Feature-rich CMS allows the hotel to bring all new guest offers and services to the TV screens instantly – without expensive technical support or development – from new room service options, through special promotions to 3rd party offers. Nothing is easier than to add or remove menus, submenus and specific items, all ready within minutes to give you enough time to spend time with your guests not with technology.
www.antiktech.com
Košice / Singapore / New Jersey / Hong Kong / Shenzhen / Dubai / Perth / Brasil Carskeho 10
04001 Kosice
Slovakia (European Union) Tel.: +421 55 30 12345 Fax: +421 55 623 4401 E-mail: [email protected] Skype: juiceiptv
