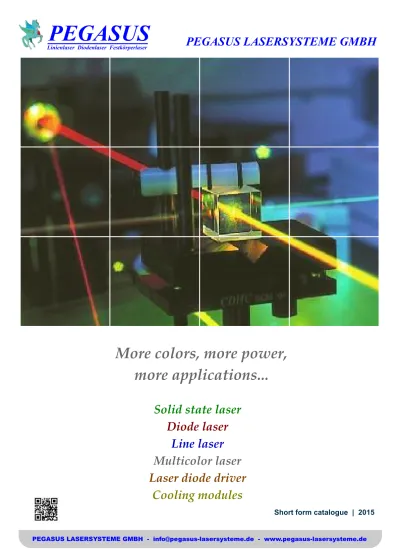

More colors, more power, more applications... Solid state laser Diode laser Line laser Multicolor laser Laser diode driver Cooling modules

(1)

PEGASUS

Linienlaser Diodenlaser Festkörperlaser

More colors, more power,

more applications...

PEGASUS LASERSYSTEME GMBH - [email protected] - www.pegasus-lasersysteme.de

Solid state laser

Diode laser

Line laser

Multicolor laser

Laser diode driver

Cooling modules

Short form catalogue | 2015

PEGASUS LASERSYSTEME GMBH

(2)

PEGASUS LASERSYSTEME

About us

Since it’s start in 1993 PEGASUS OPTIK GMBH has steadily expanded his

sphere of activity. While in the beginning the main emphasis was put on the

sales of acousto-optic components another branch of the business had been

built up in the course of increasing expansion. This business sphere - lasers

and laser optics - is handled by PEGASUS LASERSYSTEME GMBH. Located

nearby the town of Osnabrück, ensures the label “Made in Germany” for all

laser products.

Today, with more than 15 years of experience in development and

manufacturing of laser systems for industry, research and development

PEGASUS LASERSYSTEME GMBH becomes a partner for all OEM- and

university customer requirements. The laser product line covers diode and

solid state lasers from the VIS to the near IR wavelength range. Meanwhile

PEGASUS is specialist in high power line laser as solution for high speed

triangulation systems.

The product range is completed by laser equipment as windows, lenses,

prisms, filters, mirrors and other optical components according individual

customers specifications.

Some applications have special requirements or specifications on the laser,

which can not be fulfilled by standard systems. With a skilled team of

physicists and engineers PEGASUS can also respond to those special

requests and provide customized solutions for design and prototype as well as

series in small quantity.

Prototype design

Series production

100% quality control

Concept engineering

(3)

PEGASUS laser systems

Typical applications

PEGASUS LASERSYSTEME GMBH - Marie Curie Straße 23 - D-49134 Wallenhorst - Tel.: +49(0)5407-31230 - Fax: +49(0)-5407-31236

High speed machine vision

Triangulation systems are the basis of industrial machine vision for 2D- and 3D scanning. High power linelaser from PEGASUS with output powers in the W range at different VIS and IR wavelengths show excellent results in 3D scanning of large volumes, for example truck loads.

Spectroscopy

Many biophotonic fluorescence dyes have an absorption band in the VIS or NIR spectral range. Due to its different available wavelengths in same mechanical housing, the PEGASUS diodelaser series serve as flexible tool for laser induced fluorescence (LIF), Raman spectroscopy and resonance spectroscopy. The high optical output power also allows the detection of multiphoton processes.

Digital printing

Exposure with high power 532 nm laser light allows the direct digital patterning of photopolymers in stamping press. Thanks to the excellent beam profile of the PEGASUS THOR laser, the beam can be highly focussed in order to reach a high printing resolution.

Forensic illumination

Via fluorescence processes, due to laser light illumination, the sensitivity for detection of latent fingerprints, body fluids, hairs and fibers and other samples could be enhanced at least 10 times, compared to conventional methods. Different color bands in the UV , visible range or IR is utilized for for detection on different surfaces textures or backgrounds. Therefore the PEGASUS multicolor systems with up to six color channels could be used as extremely versatile illumination source to give detailed evidences which are invisible under normal white light.

Laser display / Entertainment

Typical professional laser display and entertainmant systems are a combination of laser modules with different colors via difficult beam forming, for example different lens and mirror components. The compact PEGASUS multicolor laser have high quality internal beam shaping optics for each color channel, in order to be directly used for integration in scanner set-up. Beside the very compact housing, the system becomes nearly maintenance-free.

Long range alignment

During manufacturing process of large alloy plates, the rolled sheets or slabs with lengths > 20 m have to be precisely aligned to each other, in order to continue the production process, e.g. the cutting to correct dimension. This often needs the positioning and alignment over distances > 50 m. The PEGASUS high power line laser serve as ideal tools, because the preferable green or blue line is well visible for the worker, even under extremely bright environment conditions.

Ophthalmology

The DPSS laser ist a commonly used tool in ophthalmology. Especially in photocoagulation applications, e.g. thermal eye treatment, 532 nm laser with optical power between 500 mW and 3 W are widely used, to illuminate the damaged tissue.

(4)

PEGASUS LASERSYSTEME

Product program

PEGASUS

Solid state laser

(DPSS)

Universal “Plug and Play” systems up to 4 W at 532 nm. Compact OEM modules for easy integration in customized machines. Applications:

Spectroscopy, optical pumping or digital printing.

Diode laser

405 nm (violet), 450 nm (blue), 520 nm (green), 635 nm und 660 nm (red), 810 nm (IR) bis 4 W. Dot- and line laser versions.

Applications:

“High speed” triangulation, laser display or fluorescence excitation.

Line laser

Different wavelengths between 405 nm and 810 nm with highest optical power up to 3 W (vis) and 12 W (IR). Line lengths > 100 m.

Applications:

High speed triangulation and alignment at extreme bright environments.

Multicolorlaser

Up to 6 different colors between 405 nm and 810 nm with same optical axis. Dot- and line laser versions are available.

Applications:

Laser display, entertainment, triangulation or biophotonics.

PEGASUS LASERSYSTEME GMBH - Marie Curie Straße 23 - D-49134 Wallenhorst - Tel.: +49(0)5407-31230 - Fax: +49(0)-5407-31236

Multicolor laser

Line laser

Diode laser

Solid state laser

Cooling modules

Air, TEC and water cooler

Electronics driver

OEM and Benchtop

(5)

www.

pegasus-lasersysteme

.de

CONTENT

PEGASUS

SOLID STATE LASER SYSTEMS

PLUTO Dot and line laser, 400 mW and 800 mW at 532 nm

High speed triangulation, long range alignment, scanning in bright environment ...

page 7

PLUTO-F Dot and line laser, 2 W and 3 W at 532 nm

Flow visualisation, high speed machine vision, spectroscopy...

page 8

THOR 532 nm , 4 W, TEM

00

Spectroscopy, TiSa pumping, digital printing ...

page 9

MICRO 532 nm OEM module, 0.8 W and 1.6 W for easy integration

Laser display, fluorescence excitation, optical pumping ...

page 10

DIODE LASER SYSTEMS

MINI Small line laser, high power up to 1 W, different wavelengths (violet, VIS, NIR, IR)

Hot steel inspection, SMD surface scanning, meat alignment...

page 13

MINI-C Line laser, industrial design with integrated driver

Road and rail track inspection, hot metal scanning, outdoor alignment...

page 14

MICRO-LD High power LD OEM module

Forensic illumination, road and rail track inspection, laser display ...

page 15

MULTICOLOR LASER SYSTEMS

MICRO-LD High power dual color laser

Forensic measurement, Fluorescence illumination...

page 19

TRIUS Multi color high power line laser, 3 colors simultaneously

Machine vision, alignment, surface scanning...

page 20

TIGER Multi color high power line laser, 4 colors simultaneously

Laser display, entertainment ...

page 21

SIXTUS Multi color high power line laser, 6 colors simultaneously

Fluorescence excitation, spectroscopy, biophotonic excitation ...

page 23

LASER DIODE DRIVER AND CONTROL ELECTRONICS

1-channel driver LD driver with TEC controller... page 27

2-channel driver Control of 2 LD simultaneously... page 28

3-channel driver . Control of 3 LD simultaneously... page 29

4-channel driver Control of 4 LD simultaneously... page 31

6-channel driver Control of 6 LD simultaneously... page 32

(6)

(7)

Solid state laser systems

• 532 nm up to 4 W

• “Plug and Play” systems and OEM

modules

• Dot- and line laser versions

Frequency doubled diode pumped solid state laser systems (DPSS) with up to 4 W

at 532 nm are widely used in different measurement applications, such as machine

vision, biophotonics illumination or digital printing. For professional laser display and

ophthalmology, the OEM modules are ideal componenets for integration.

(8)

www.

pegasus-lasersysteme

.de

Specifications

Wavelength 532 nm ---Optical power 400 mW, 800 mW ---Spatial mode Low multimode

---M2 < 2 ---Beam diameter < 2 mm ---Divergence < 1 mrad ---Power stability (over 1 h) < +/- 5 %

---Polarisation > 100:1

---Modulation (via 0 - 5 V) DC - 50 kHz (-3dB)

---Power supply voltage 9 VDC

---Operation current < 5 A (400 mW) < 8 A (800 mW)

---Laser head dimension 120 x 60 x 30 mm3

---Power supply 207 x 127 x 28 mm3

---Solid state laser systems

With its compact footprint, the DPSS laser PLUTO is especially designed for applications where small space for integration in machine systems and high optical power is requested. With TEM00

beam quality it is an ideal tool for most illumination applications. Via external analog trigger (0-5 V), the output intensity can be modulated DC - 50 kHz.

In “stand alone” operation the laser can be controlled by a remote control panel to switch ON and OFF the laser by interlock button. The output power can be set by potentiometer.

Model Power (mW) Beam shape Laser class

________________________________________________________ PL.P532.400 400 Dot 3B ________________________________________________________ PL.P532.800 800 Dot 4 ________________________________________________________ PL.P532.400-Lzz 400 Line 3B ________________________________________________________ PL.P532.800-Lzz 800 Line 4 ________________________________________________________

PLUTO

Compact, high power

High speed triangulation Spectroscopy Optical pumping

Typical applications

532 nm

400 - 800 mW

Laser head

OEM driver

PEGASUS

(9)

www.

pegasus-lasersysteme

.de

Solid state laser systems

Model Power (mW) Beam shape Laser class

________________________________________________________ PL.PF532.2000 2000 Dot 4 ________________________________________________________ PL.PF532.3000 3000 Dot 4 ________________________________________________________ PL.PF532.2000-Lzz 2000 Line 4 ________________________________________________________ PL.PF532.3000-Lzz 3000 Line 4 ________________________________________________________

PLUTO-F

Low heat dissipation

High speed Triangulation Spectroscopy Flow visualisation

Typical applications

Specifications

Wavelength 532 nm ---Optical power 2 W, 3 W ---Spatial mode Low multimode

---M2 < 2 ---Beam diameter < 2 mm ---Divergence < 1 mrad ---Power stability < +/- 5 % ---Polarisation > 100:1 ---Modulation (via 0 - 5 V) DC - 15 kHz (-3dB) ---Power supply voltage +24 / + 5 VDC

---532 nm

2000 - 3000 mW

The diode pumped solid state laser system PLUTO-F is especially designed for applications, where small space and high power up to 3 W is requested. Despite high power the laser shows near TEM00 beam

profile with typical M2 < 2.

As the pumping diode is located inside the electronics driver housing, there is only low cooling requirement for the laser head.

In “stand alone” operation the laser can be controlled by a remote control panel as option to switch on and off the laser via interlock button and to adjust output power via potentiometer.

PEGASUS

(10)

www.

pegasus-lasersysteme

.de

Solid state laser systems

THOR

4 W “Plug and Play”

Digital printing TiSa pumping Spectroscopy

Typical applications

Specifications

Model PL.T532.4000 ---Wavelength 532 nm ---Optical power 4 W ---Spatial mode TEM00

---M2 < 1.15 (typ. < 1.13) ---Beam diameter < 2 mm ---Divergence < 0.5 mrad ---Power stability < +/- 3 % ---Polarisation > 100:1 ---Power supply voltage +24 / + 5 VDC

---Operation current < 25 A

---Laser class (EN 60825-1) 4

---The temperature stabilized system maintains long-term power stability < 3% (typ. < 2% over 8 h) for constant current operation and at constant environment temperature T = 22°C

532 nm / 4 W

Features

• “Plug and Play” system easy to operate

• Long lifetime

• No fiber fed laser head / highest flexibility

• Beam profile with M

2

< 1.15

The diode pumped solid state laser system THOR unifies high output power with near diffraction limited beam quality and low divergence.

As the pumping diode is located inside the laser head, there is no fiber connection between laser head and power supply, which maximizes the laser system in flexibility and portability. As universal and cost effectice light source, the laser covers a large variety of industrial and university applications.

In "stand alone" operation the laser can be controlled by a remote control panel to switch on and off the laser by interlock button.

PEGASUS

(11)

www.

pegasus-lasersysteme

.de

Solid state laser systems

Model Power (mW) Operation current (A) M2

________________________________________________________ PL.M532.800 800 < 5 (typ. < 4) < 2 ________________________________________________________ PL.M532.1600 1600 < 9 (typ. < 8) < 4 ________________________________________________________

MICRO532

532 nm OEM module

532 nm

800 mW - 1600 mW

The DPSS modules of the MICRO series are especially designed for easy integration in OEM systems. A small footprint leads to minimized volume of customers system.

With divergence < 1 mrad (800 mW version) and < 1.5 mrad (1.6 W version) and near TEM00 mode shape, the beam can be directly used for

most applications without any additional optics.

Dependent on customers driver the output power can be directly modulated > 50 kHz (-3 dB). In "stand alone" operation the laser can be controlled by an optional available laboratory driver.

Features

• Low operation current < 8 A at 1.6 W

• Compact housing for OEM integration

• Low cooling required

• Direct modulation > 50 kHz (depending on driver)

Laser display

Optical pumping

Spectroscopy

Typical applications

PEGASUS

Specifications

Wavelength 532 nm

---Optical power 800 mW, 1600 mW

---Spatial mode Low multimode

---Beam diameter (aperture) < 2 mm

---Divergence < 1.5 mrad

---Power stability (over 1 h) < +/- 5 %

---Polarisation > 100:1 (horizontal)

---Fiber coupling efficiency > 70 % (50 µm)

---Modulation DC - 50 kHz (-3dB)

---LD operation current < 9 A

---Laser head weight 340 g

---Laser class (EN 60825-1) 4

---The module can be directly modulated with fast customers driver via a 0 - 5 VDC trigger signal. With rise times < 5 µs, the laser output power can be modulated nearly analog up to 50 kHz.

This allows the user to trigger the laser with detection system.

Laser power Trigger

10 kHz 50 kHz

(12)

(13)

Diode Laser Systems

• 405, 450, 520, 638, 650, 785, 810 nm

• Power up to 12 W

• Dot- and line laser versions

The diode laser systems in the VIS / IR wavelength range are provided with internal

temperature stabilization in order to guarantee a high wavelength and power

stability dedicated to high precision surface inspection or optical pumping

applications.

(14)

www.

pegasus-lasersysteme

.de

Diode laser systems

MINI- Series

Compact housing

405 ,

450 ,

520 , 532,

638 ,

650 ,

810 nm

200 mW - 1000 mW

The MINI is a series of medium output power laser modules, available with different wavelengths from VIS to NIR.

Exactly the same mechanical dimensions of all models allows to easy exchange from one model with one wavelength to another without any additional adjustment. This makes it easy to find the best suitable laser wavelength, especially for flourescence excitation or scanning on different colored background.

Via external trigger signal 0-5 VDC, the output power can be directly modulated DC - 200 kHz. With temperature stabilization the laser can be operated wtih high power stability in different environments.

Features

• High power with small housing dimension

107 x 45 x 25 mm

3

• Temperature / wavelength stabilized

• OEM integration

• Dot or line laser version

PEGASUS

Option: Line generating optics - 15°, 30°, 45°, 60°

PL.MI405.400 PL.MI450.1200 PL.MI520.800 PL.MI532.200 PL.MI532.300 PL.MI638.300 PL.MI660.500 PL.MI808.3000 Wavelength (1) nm 405 450 520 532 532 638 660 808

Optical power mW 400 1200 800 200 300 300 500 3000

Type Diode Diode Diode DPSS DPSS Diode Diode Diode

Beam shape rectangular rectangular rectangular circular circular rectangular rectangular rectangular

Beam diameter mm < 3.5 x 3.5 < 3.5 x 3.5 < 3.5 x 3.5 < 2.0 < 2.0 < 4.5 x 3.5 < 4.5 x 3.5 < 3.0 x 5.0

Divergence (full angle) mrad < 2.5 x 1.5 < 1.0 x 1.0 < 1.0 x 1.0 < 1.0 < 1.0 < 2.5 x 1.5 < 2.5 x 1.5 < 5.0 x 0.5

Stability % +/- 1 +/- 1 +/- 1 +/- 5 +/- 5 +/- 1 +/- 1 +/- 1

Polarisation > 100 : 1 > 40 : 1 > 100 : 1 > 100 : 1 > 100 : 1 > 40 : 1 > 40 : 1 > 40 : 1

Internal TEC control Yes Yes Yes Yes Yes Yes Yes Yes

Operation current A < 2 < 3 < 3 < 3 < 5 < 3 < 5 < 6 Modulation kHz Housing dimension mm3 Cooling Laserclass 3B 4 3B 3B 4 3B 4 4 (1) Center wavelenght > 200 (-3dB)

Laser head: 107 x 45 x 25 / Adapted driver: 111 x 61 x 28 has to be attached to external heatsink

At factory, the focus distance of the beam or the line can be adjusted to the required projection distance. With standard focussing, it has < 0.5 mm line thickness at 1 m distance.

(15)

www.

pegasus-lasersysteme

.de

Diode laser systems

405 ,

450 ,

520 , 532,

638 ,

650 ,

810 nm

200 mW - 1000 mW

PL.MIC405.400 PL.MIC450.1200 PL.MIC520.800 PL.MIC532.200 PL.MIC532.300 PL.MIC638.300 PL.MIC660.500 PL.MIC808.3000 Wavelength (1) nm 405 450 520 532 532 638 660 808

Optical power mW 400 1200 800 200 300 300 500 3000

Type Diode Diode Diode DPSS DPSS Diode Diode Diode

Beam shape rectangular rectangular rectangular circular circular rectangular rectangular rectangular

Beam diameter mm < 3.5 x 3.5 < 3.5 x 3.5 < 3.5 x 3.5 < 2.0 < 2.0 < 4.5 x 3.5 < 4.5 x 3.5 < 3.0 x 5.0

Divergence (full angle) mrad < 2.5 x 1.5 < 1.0 x 1.0 < 1.0 x 1.0 < 1.0 < 1.0 < 2.5 x 1.5 < 2.5 x 1.5 < 5.0 x 0.5

Stability % +/- 1 +/- 1 +/- 1 +/- 5 +/- 5 +/- 1 +/- 1 +/- 1

Polarisation > 100 : 1 > 40 : 1 > 100 : 1 > 100 : 1 > 100 : 1 > 40 : 1 > 40 : 1 > 40 : 1

Internal TEC control Yes Yes Yes Yes Yes Yes Yes Yes

Operation current A < 2 < 3 < 3 < 3 < 5 < 3 < 5 < 6 Modulation kHz Housing dimension mm3 Cooling Laserclass 3B 4 3B 3B 4 3B 4 4 (1) Center wavelenght > 200 (-3dB) 130 x 60 x 48

has to be attached to external heatsink

PEGASUS line laser are set-up with special Powell line optics to achieve homogeneous intensity distribution typ. < +/-20 % along the line.

Option: Line generating optics - 15°, 30°, 45°, 60°

The MINI-C is a compact laser with high output power up to 500 mW, available with different wavelengths in the "red", "green" or "blue" spectral range. IR wavelenghts are available on request.

The optical specifications are similar to the MINI series, but the MINI-C includes the electronic driver in the laser housing. To make the laser an universal stand alone tool mainly for industrial measurement application. With line generator the laser is very easy to use for high speed bright image processing.

Via trigger signal 0 - 5 VDC, the output power can be directly modulated DC - 200 kHz. With temperature stabilization, the laser can be operated with high power stability in different environments.

PEGASUS

Features

• Integrated driver

• Rugged industrial housing

• Temperature / wavelength stabilized

• Dot or line laser version

Long range alignment

Hot steel inspection

Fluorescence measurement

Typical applications

Amplitude modulation DC - 200 kHz

Most of the machine vision

set-ups require a

modulating light source to

synchronize with the

camera. For high speed image capture, the MINI-C laser can be modulated via anloge 0 - 5 V trigger (lower curve), up 200 kHz.

MINI-C- Series

Integrated driver

(16)

www.

pegasus-lasersysteme

.de

Diode laser systems

405 ,

450 ,

520 ,

638 ,

650 ,

810 nm

With optional available OEM driver, the laser could be modulated DC > 200 kHz. Overtemperature protection shut down of the sytem is indicated with red LED.

PL.M405.800 PL.M450.2800 PL.M450.5000 PL.M520.1500 PL.M638.1000 PL.M660.1000 PL.M810.12000 Available wavelengths (1) nm 405 450 450 520 638 660 810

Optical power (1) mW 800 2800 5000 1500 1000 1000 12000

Beam shape Multimode Multimode Multimode Multimode Multimode Multimode Multimode

Beam diameter mm < 3.5 x 4.5 < 3.5 x 3.5 < 4.5 x 4.5 < 3.5 x 3.5 < 4.5 x 4.5 < 4.5 x 3.5 < 4.5 x 4.5

Divergency (full angle) mrad < 1.0 < 1.0 < 1.5 < 1.0 < 1.0 < 1.5 < 1.5

Stability (over 1 h) % Internal TEC control A Modulation (2) kHz Housing dimension mm3 Cooling

Laserclass

(1) Other wavelengths and power on request (2) depending on driver (not included)

> 200 (-3dB) 105 x 60 x 25

baseplate must be attached to external heatsink < +/- 1

Yes

4

PEGASUS

Specifications

Wavelengths / max. power 405 nm / 0.8 W 450 nm / 5.0 W 520 nm / 1.5 W 638 nm / 1.0 W 660 nm / 1.0 W (others on request) ---Beam size depends on model

---Power stability < +/- 1 % (over 1 h)

---Spatial mode Multimode

---Height of optical axis 14.5 mm

---Operation current < 10 A (depends on model) ---Modulation DC - 200 kHz ---Laser head dimension 105 x 60 x 25 mm3

---Weigh laser head 360 g

---OEM driver dimension 207 x 99 x 30mm3

---Laser class (EN 60825-1) 4

---Note: Specifications are given for T = 20°C constant environment.

The PEGASUS MICRO-LD is a high power diode laser module. It is provided with "red" (638 nm), "green" (520 nm) "blue" (450 nm) and “violet” (405 nm) or other wavelengths on request.

The internal temperature stabilization confirms beside a high power stability, also a high wavelength stability, even for changing environment temperatures.

Optical power up to 5 W in the blue range at 450 nm in combination with its very compact OEM housing provides an ideal solution for forensic illumination application.

MICRO-LD- Series

Highest optical power

(17)

(18)

(19)

Multicolor laser systems

• Systems with up to 6 color channels

• Dot- and line laser versions

For applications with changing illumination requirements or changing environments,

PEGASUS provides multiline laser modules with up to 6 wavelengths output. Mainly

for biophotonics excitation and machine vision setups the detection efficiency could

be optimized with one device.

(20)

www.

pegasus-lasersysteme

.de

Multicolor laser systems

The PEGASUS MICRO-LD is a high power “two color”diode laser module. It is provided with "red" (638 nm), "green" (520 nm) "blue" (450 nm) and “violet” (405 nm) or other wavelengths on request.

With optional adapted electronics driver (OEM or laboratory version), the intensity of each color channel can be controlled simultaneously, independently. Mainly for laser display applications any mixed color in the VIS range can be received at the output, with same laser.

The combination with high optical power, makes it also the easiest solution for high speed triangulation systems with different colored samples to reach highest contrast.

• Very compact dualcolor system

• High power up to 2.5 W multiline

• Industrial housing

• Direct modulation DC - 200 kHz (depending on

driver)

MICRO LD series

Dual color OEM module

Blue + Green

Green + Red

Red + Blue

Laser display Fluorescence excitation Optical pumping

Typical applications

Model Wavelength / Power* Beam size Divergence (mm x mm) (mrad x mrad) _______________________________________________________________ PL.MI.BG-01 450 nm / 1.4 W 520 nm / 0.8 W <4.5 x 4.5 <1.5 x 0.5 _______________________________________________________________ PL.M.BR-01 450 nm / 2.0 W 638 nm / 0.5 W <3.5 x 4.5 <1.0 x 0.5 _______________________________________________________________ PL.M.GR-01 520 nm / 0.8 W 638 nm / 0.5 W <4.5 x 4.5 <1.5 x 0.5 _______________________________________________________________ PL.M.BG-02 405 nm / 0.3 W 520 nm / 0.8 W <4.5 x 4.5 <1.0 x 0.5 _______________________________________________________________

*Other combinations are available on request.

PEGASUS

Specifications

Wavelengths / output power 405 nm / 300 mW

450 nm / 1.4 W 520 nm / 800 mW 638 nm / 500 mW 660 nm / 500 mW (others on request) ---Beam size depends on model

---Operation current < 4 A (depends on model) ---Modulation DC - 200 kHz (50 kHz at 532 nm) ---Laser head dimension 105 x 60 x 25 mm3

---OEM driver dimension 207 x 127 x 24 mm3

---Laser class (EN 60825-1) 4

(21)

---www.

pegasus-lasersysteme

.de

Multicolor laser systems

Specifications

Wavelengths / power 450 nm / 1.4 W 520 nm / 800 mW 532 nm / 500 mW 638 nm / 500 mW (others on request) ---Beam size < 4.5 x 4.5 mm ---Divergence (half angle) < 0.5 mrad

---Power stability < +/-3 % ---Modulation DC - 200 kHz (50 kHz at 532 nm) ---Option: line optics 15, 30, 45, 60°

---Dimension laser head 170 x 90 x 25 mm3

---Weight laser head 360 g

---Dimension OEM driver 207 x127 x 24 mm3

---Laser class (EN 60825-1) 4

---The PEGASUS TRIUS is a high power laser module with 3 color channels, combined to same optical axis at the output. The VIS RGB version is provided with "red" (638 nm), "green" (520 nm or 532 nm) and "blue" (450 nm), other wavelengths are available on request.

Model Wavelength / power * Beam shape

_______________________________________________________ PL.TR.BGR-01 405 nm / 0.3 W 4.5 x 4.5 mm 532 nm / 0.5 W 638 nm / 0.3 W _______________________________________________________ PL.TR.BGR-02 450 nm / 0.5 W 4.5 x 4.5 mm 520 nm / 0.5 W 638 nm / 0.3 W _______________________________________________________ PL.TR.BGR-01/Lzz 450 nm / 1.4 W line 520 nm / 0.8 W 638 nm / 0.5 W _______________________________________________________ PL.TR.GB-01/Lzz 450 nm / 1.4 W line 520 nm / 0.8 W _______________________________________________________

* other wavelengths and powers on request

TRIUS

3 color channels

For triangulation applications, highest contrast can be received for every kind and color of sample or projection surface, via intensity adjustment or modulation of each separate channel.

Adapted with a Powell optics, the laser is the first high power RGB line laser with homogeneous line distribution

Laser head

Option: OEM driver

Features

• Dot or line laser version

• High power RGB multiline

• Industrial housing

• Intensity modulation up to 200 kHz for each channel

separately

Blue

/ 450 nm

Green

/ 520 nm

Red

/ 638 nm

PEGASUS

(22)

www.

pegasus-lasersysteme

.de

Multicolor laser systems

The PEGASUS TIGER is a high power multicolor diode laser module. It is provided as as "two color" version with up to 3.5 W multiline or as full RGB version with "red" (638 nm), "green" (520 nm) and "blue" (450 nm).

With optional adapted electronic driver (OEM or laboratory version), the intensity of each color channel can be controlled simultaneously, independently. Mainly for laser display applications any mixed color in the VIS range can be received at the output, with same laser.

The combination with high optical power, makes it also the easiest solution for high speed triangulation systems with different colored samples to reach highest contrast.

• Very compact RGB system

• High power up to 3.5 W multiline

• Industrial housing

• Direct modulation up to 200 kHz (depending on

driver)

TIGER

Compact multicolor module

Red / 635, 638 nm

Green / 520 nm

Blue / 450 nm

Laser display Fluorescence excitation Optical pumping

Typical applications

Model Wavelength / Power* Beam size Divergence (mm x mm) (mrad x mrad) _______________________________________________________________ PL.TI.BGR-01 450 nm / 1.4 W 520 nm / 0.8 W <4.5 x 4.5 <1.5 x 0.5 638 nm / 0.5 W _______________________________________________________________ PL.TI.BG-01 450 nm / 2.0 W 520 nm / 1.5 W <3.5 x 4.5 <1.0 x 0.5 _______________________________________________________________ PL.TI.BGR-02 405 nm / 0.4 W 520 nm / 0.8 W <4.5 x 4.5 <1.5 x 0.5 638 nm / 0.5 W _______________________________________________________________ PL.TI.BGR-03 450 nm / 1.4 W 520 nm / 0.8 W <4.5 x 4.5 <1.0 x 0.5 660 nm / 0.5 W _______________________________________________________________

*Other combinations are available on request.

PEGASUS

Specifications

Wavelengths / output power 405 nm / 300 mW

450 nm / 1.4 W 520 nm / 800 mW 638 nm / 500 mW 660 nm / 500 mW (others on request) ---Beam size depends on model

---Operation current < 5 A

---Modulation / channel DC - 200 kHz

---Laser head dimension 122.7 x 46 x 65 mm3

---OEM driver dimension 129 x 61 x 28 mm3

---Laser class (EN 60825-1) 4

(23)

---Multicolor laser systems

TIGER

Multicolor module

Laser head

Option: OEM driver

Amplitude modulation

DC - 200 kHz

Back view

Note: The baseplate of the laser head must be actively cooled to 20°C.

With the PEGASUS OEM driver (option), each color channel of the TIGER can be controlled simultaneously, independently. Via analog 0 - 5 V signal, it can be directly modulated DC - 200 kHz (-3dB).

Power control for each

channel via 0 - 5 V

Front view

All dimensions are given in mm

4 PIN connector

---Pin 1 NTC Temp (baseplate) Pin 2 NTC Temp (baseplate) Pin 3 ---Pin 4 ---8 PIN connector ---Pin 1 LD+ (channel 3) Pin 2 LD+ (channel 1) Pin 3 LD+ (channel 2) Pin 4 LD+ (channel 4) Pin 5 LD- (channel 4) Pin 6 LD- (channel 1) Pin 7 LD- (channel 3) Pin 8 LD- (channel 2) Mod In trigger (VDC) O ut pu tp ow er 0 VDC (OFF) (Pmax)5 VDC 0 Pmax www.

pegasus-lasersysteme

.de

(24)

www.

pegasus-lasersysteme

.de

Multicolor laser systems

The PEGASUS SIXTUS is the most compact optical engine with up to 6 different wavelengths channels. All channel outputs are combined and coupled into one multimode fiber (singlemode on request) to have a most versatile system for any kind of biotechnical and life science illumination applications.

Depending on specimen, the customer can choose combination of wavelengths in order to achieve maximum excitation efficiency for a large variety of fluorescence molecules with only one device.

SIXTUS

6-channel optical engine

Features

• Up to 6 different wavelengths in the

VIS/NIR range

• High power version with up to 3

wavelengths

• Analog modulation > 200 kHz / channel

• Very compact housing

With optional adapted electronic benchtop driver, the intensity of each color channel can be controlled simultaneously, independently via analogue 0 - 5 VDC trigger signal. It allows high speed modulation and fast switching between individual laser wavelengths.

405 ,

450 , 520,

638 ,

660 ,

810 nm

PEGASUS

Specifications

Available wavelengths 405 nm 450 nm 520 nm 638 nm 660 nm 785 nm 810 nm (others on request) ---Power stability < +/- 2 % (over 1 h)

---MM fiber coupling 50, 100, 200, 400, 800 µm (SM fiber on request) ---Analog modulation DC - 200 kHz ---Laser head dimension 220 x 125 x 48 mm3

---Laser class (EN 60825-1) 4

---Power control for each channel via 0 - 5 V Mod In trigger (VDC) O ut pu tp ow er 0 VDC (OFF) (Pmax)5 VDC 0 Pmax Available wavelengths * nm 405 450 520 638 660 785 810

Maximum optical power mW 400 1200 700 500 500 150 1000

Type Diode Diode Diode Diode Diode Diode Diode

Beam shape Multimode Multimode Multimode Multimode Multimode Multimode Multimode Beam diameter (1/e2) ** mm < 3.5 x 4.5 < 3.5 x 4.5 < 3.5 x 4.5 < 3.5 x 4.5 < 3.5 x 4.5 < 3.5 x 4.5 < 3.5 x 4.5 Divergency (full angle) ** mrad < 1.0 < 1.0 < 1.0 < 1.0 < 1.0 < 1.0 < 1.0 Fiber coupling Stability (over 1 h) % Operation current A Modulation *** kHz Housing dimension mm3 Cooling Laserclass * Center wavelenght ** Freespace version

*** depending on driver (not included)

> 200 (-3dB) 220 x 125 x 48

must be attached to external heatsink

Multimode 50µm, 100µm, 200µm, 400µm, 800µm / NA 0.22 / SMA fiber connector < +/- 3

< 15

(25)

Multicolor laser systems

SIXTUS

6-channel optical engine

Option: 6-channel benchtop driver

Option: Fiber collimator

Option: Cooling modules

Remark

1 2 3 4 5 6

PL.SI.BGRI-01 405 / 300 450 / 500 520 / 500 638 / 300 660 / 300 808 / 500 6 different channels

PL.SI.BGRI-02 405 / 300 462 / 500 520 / 500 638 / 300 638 / 300 808 / 1000 doubled red

PL.SI.BGR-01 450 / 500 450 / 500 520 / 500 520 / 500 638 / 500 638 / 500 3 different colors; doubled blue, green and red

Channel wavelengths (nm) / power (mW)

The adapted benchtop driver model PL.LD230/6C/2T with 6 LD power supplies and TEC controller provides a “turn key” solution for operation of the SIXTUS laser module.

Amplitude modulation DC - 200 kHz

Via potentiometer, the intensity of each channel can be controlled between 0 and Imax. External trigger signal allows independent modulation of each channel DC - 200 kHz.

Fixed SMA fiber collimators are available with output diameters on customers requirement.

For variable projection distances, focus adjustable collimators are provided.

The laser base plate must be conductively cooled via air- or water coolier.

Adapted PEGASUS air cooling aggregates are available with fan diameter 30 mm or 60 mm, depending on operation environment.

Models can be chosen from combinations of 10 different wavelengths and different power levels.

Note: Only popular combinations are shown.

(26)

(27)

Laser diode driver and control electronics

• OEM drivers for integration and benchtop

drivers for “Plug and Play” applications

• Controller for up to 6 LD channels

simultaneously

• Analog modulation input for external

control

(28)

Diode driver assemblies

For easy operation as “turn key” laser system of PEGASUS laser PLUTO or MICRO series, the laser head could be adapted with laboratory benchtop driver.

Depending on application, the laboratory driver is available with internal frequency generator as option. It provides rectangular signals up to 100 kHz. Via control panel, the user can switch between internal frequency

generation or external trigger input 0 -5 V.

Features

Model PL.LD230/10-1

---LD current source 0 - 6 A or 0 - 10 A (2 versions) ---Adjustable output current limit

---External analog MOD IN 0 - 5 VDC

---External modulation bandwidth DC - 15 kHz ---2 TEC controller

Channel 1 +/- 2.0 A (heating / cooling) Channel 2 +/- 1.2 A (heating / cooling) ---Temperature stability < +/-0.1°C

---NTC 10 kOhm at 25°C ---Power supply voltage 90 - 240 VAC

---Key switch

---Safety interlock ON/OFF

---12 VDC output for laser air cooler

---Option: internal frequency generator (DC - 100 kHz)

(Model PL.LD230/10-F1) ---PLUTO series MINI series MICRO series

Combination to

Laser Diode controller

1 LD channel output

Laser Diode driver

including 2 TEC controller

OEM versions:

I(LD) 0 - 2.5 A

Power supply voltage 9 VDC

Dimension 129 x 61 x 28 mm3

I(LD) 0 - 6 A

I(LD) 0 - 10 A

Power supply voltage 5 / 9 VDC

Laboratory version

The OEM drivers are dedicated to industrial applications with limited space. The baseplate of the OEM modules have to be adequately heatsinked. To prevent the laser from overheating, the driver inhibits overtemperature switch off, indicated by red LED.

(29)

www.

pegasus-lasersysteme

.de

Diode driver assemblies

Dual channel LD driver

including TEC controller

The PEGASUS dual channel driver, allows the user to control the current of 2 laser diodes up to 2 A. In combination with integrated controller for thermo electric cooler (TEC), the benchtop device is an ideal accessorie for a “plug and play” laser system. The temperature controller is compatible with standard thermistors.

The front panel offers a very easy operation with current adjustment potentiometer and information display for each channel.

MICRO LD dual line series

Combination to

2 channel

Laser Diode controller

Features

Model PL.LD230-2C-1

---2 LD current sources 0 - 2 A (each channel) ---Adjustable output current limit for each channel ---External analog MOD IN 0 - 5 VDC

---Modulation frequency DC - 200 kHz ---TEC controller +/- 2.0 A (heating / cooling) ---NTC 10 kOhm at 25°C ---Temperature stability < +/-0.1°C ---Power supply voltage 90 - 240 VAC

---Key switch

---12 VDC output for laser air cooler

---Laboratory version

OEM version:

9 PIN power connector

---Pin 1 ---Pin 2 ---Pin 3 MOD IN / 0 - 5 V (CH 2) Pin 4 ---Pin 5 MOD IN / 0 - 5 V (CH 1) Pin 6 + 9 VDC Pin 7 + 9 VDC Pin 8 GND Pin 9 GND 15 PIN connector ---Pin 1 NTC Pin 2 NTC Pin 3 ---Pin 4 ---Pin 5 ---Pin 6 TEC+ Pin 7 LD+ (CH 1) Pin 8 LD+ (CH 2) Pin 9 NTC Pin 10 NTC Pin 11 ---Pin 12 ---Pin 13 TEC-Pin 14 LD- (CH1) Pin 15 LD- (CH 2)

(30)

www.

pegasus-lasersysteme

.de

Diode driver assemblies

Multichannel LD driver

including 2 TEC controller

3 Channel

Laser Diode Controller

Features

Model PL.LD230-3C-1 ---3 LD current sources Channel 1 0 - 6 A Channel 2 and 3 0 - 1.2 A ---Adjustable output current limit for each channel ---External analog MOD IN 0 - 5 VDC / channel ---Modulation frequency DC - 200 kHz ---2 TEC controller

Channel 1 +/- 2.0 A (heating / cooling) Channel 2 +/- 1.2 A (heating / cooling) ---NTC 10 kOhm at 25°C ---Temperature stability < +/-0.1°C

---Power supply voltage 90 - 240 VAC

---Key switch

---Adjustable maximum output current

---12 VDC output for air cooler

---Laboratory version

TRIUS series

Combination to

The PEGASUS multichannel driver PL.LD230-3C-1, allows the user to control the current of 3 laser diodes up to 6 A. In combination with integrated controller for thermo electric cooler (TEC), the benchtop device is an ideal accessorie for a “plug and play” laser system. The temperature controller is compatible with standard thermistors. The front panel offers a very easy operation with current adjustment potentiometer and information display for each channel.

OEM version:

(see also following page) Power supply voltage 9 VDC

(31)

www.

pegasus-lasersysteme

.de

Diode driver assemblies

Multichannel LD driver

including 2 TEC controller

3 Channel

Laser Diode Controller

Features

Model PL.TRD.9V ---3 LD current sources Channel 1 0 - 6 A Channel 2 and 3 0 - 1.2 A ---Adjustable output current limit for each channel ---External analog MOD IN 0 - 5 VDC / channel ---Modulation frequency DC - 200 kHz ---2 TEC controller

Channel 1 +/- 2.0 A (heating / cooling) Channel 2 +/- 1.2 A (heating / cooling) ---NTC 10 kOhm at 25°C ---Temperature stability < +/-0.1°C

---Power supply voltage 9 VDC

---Adjustable maximum output current / channel ---Dimension 207 x 127 x 24 mm3

---Channel 1 Channel 2 Channel 3

Via 3 separate analogue 0 - 5 VDC modulation inputs, the current of each channel can be controlled separately with external triggers.

OEM version

In industrial applications the OEM controller model PL.TRD.9V-** can be used to operate the PEGASUS TRIUS or customer laser with up to 3 LD channels.

To protect each laser diode from overheating, the driver inhibits an overtemperature switch off, which is indicated with red LED at the front panel.

---Pin 1 GND

Pin 2 + 5 VDC out

Pin 3 MOD IN / 0 - 5 V (CH 1) Pin 4 Overtemp read out Pin 5 + 9 VDC Pin 6 GND Pin 7 MOD IN / 0 - 5 V (CH 2) Pin 8 MOD IN / 0 - 5 V (CH 3) Pin 9 + 9 VDC 15 PIN connector ---Pin 1 LD- (CH 2) Pin 2 LD- (CH 2) Pin 3 LD+ (CH 2) Pin 4 LD+ (CH 2) Pin 5 TEC+ (CH 2) Pin 6 TEC+ (CH 2) Pin 7 TEC- (CH 2) Pin 8 TEC- (CH 2) Pin 9 LD- (CH 3) Pin 10 LD+ (CH 3) Pin 11 TEC+ CH 1, 3) Pin 12 LD- (CH 1) Pin 13 LD+ (CH 1) Pin 14 NTC Pin 15 NTC Pin 16 ---Pin 17 ---Pin 18 ---Pin 19 ---Pin 20 ---Pin 21 NTC (CH 2) Pin 22 NTC (CH 2) Pin 23 NTC (CH 1, 3) Pin 24 NTC (CH 1, 3) Pin 25 TEC- (CH 1, 3) An optional remote control panel allows the user to adjust the intensity of all 3 channels simultaneously via potentiometer.

(32)

www.

pegasus-lasersysteme

.de

Diode driver assemblies

TIGER

Combination to

4 channel

Laser Diode controller

Features

Model PL.LD230-4C-1

---4 LD current sources 0 - 2 A (ech channel) ---Adjustable output current limit for each channel ---External analog MOD IN 0 - 5 VDC

---Modulation frequency DC - 200 kHz ---Power supply voltage 90 - 240 VAC

---Key switch

---Adjustable maximum output current

---OEM version

The PEGASUS multichannel driver PL.LD230-4C-1, allows the user to control the current of 4 laser diodes up to 2 A. The benchtop device is an ideal accessorie for a “plug and play” laser system.

The front panel offers a very easy operation with current adjustment potentiometer and information display for each channel.

Laboratory version

---Pin 1 MOD IN / 0 - 5 V (CH 1) Pin 2 MOD IN / 0 - 5 V (CH 2) Pin 3 MOD IN / 0 - 5 V (CH 3) Pin 4 MOD IN / 0 - 5 V (CH 4) Pin 5 ---Pin 6 + 12 VDC Pin 7 + 12 VDC Pin 8 GND Pin 9 GND 15 PIN connector ---Pin 1 LD+ (CH 1) Pin 2 LD+ (CH 2) Pin 3 LD- (CH 2) Pin 4 ---Pin 5 ---Pin 6 LD+ (CH 3) Pin 7 LD- (CH 3) Pin 8 LD+ (CH 4) Pin 9 LD- (CH 1) Pin 10 ---Pin 11 ---Pin 12 ---Pin 13 ---Pin 14 ---Pin 15 LD- (CH 4)

OEM version:

(33)

www.

pegasus-lasersysteme

.de

Diode driver assemblies

6 channel

Laser Diode controller

Features

Model PL.LD230/6C/2T/A

---6 LD current sources 0 - 2 A (each channel) ---Adjustable output current limit for each channel ---External analog MOD IN 0 - 5 VDC

---Modulation frequency bandwidth DC - 200 kHz ---2 TEC controller

Channel 1 +/- 2.0 A (heating / cooling) Channel 2 +/- 1.2 A (heating / cooling) ---Temperature stability < +/-0.1°C

---Overtemperature switch off

---Key switch

---SIXTUS series

TIGER series

MICRO LD series

Combination to

The PEGASUS multichannel driver PL.LD230/6C/2T/A, allows the user to control the current of 6 different high power laser diodes up to 2 A (constant current) each. With 2 integrated TEC controller, different channels can be set at factory to different temperature set points in order to optimize LD wavelengths and efficiencies. The temperature controller is compatible with standard thermistor 10 kOhm = 25°C. To prevent the adapted laser from overheating, the driver inhibits overtemperature switch off.

The front panel offers a very easy operation with current adjustment potentiometer and information display for each channel. Overtemperature switch off is indicated by red LED.

Via front panel switch, the device provides different operation modes: In internal mode, the current of each channel can be directly controlled with potentiometer. In external mode, analoge modulation up to 200 kHz for each channel is possible, supplied by external trigger signal to BNC connectors at the rear panel.

Trim potis allow the setting of minimum and maximum current limit to reduce the risk of accidental adjustment.

Front panel

Rear panel

Multichannel LD driver

including 2 TEC controller

(34)

(35)

Cooling accessories

• Air cooling modules

• Water cooling modules

• TEC cooling modules

(36)

PEGASUS ACCESSORIES

Cooling modules

For each laser PEGASUS laser head and electronics driver, adapted cooling modules are available. Depending on environmental temperature, cooling modules can be provided either as air cooling or as water cooling versions.

TEC cooling modules

• Combined modules with TEC and fans

• Active TEC controller

• Stability < +/- 0.5°C

• Operation for environment up to 35°C

• Overtemperature control

• Fastening threads adapted to PEGASUS laser

• Power supply voltage 12 VDC

Water cooling modules

• For high environment temperature

• Small height 20 mm for “low space” setup

• Fastening threads, adapted to PEGASUS

laser

• Standard water connectors 1/4’’

• Flow rate typ. < 2 l/min

Air cooling modules

• Powerful, low vibrational fans

• Fan diameter 30 mm or 60 mm (2 versions)

• Operation for environment up to 30°C

• Fastening threads adapted to PEGASUS laser

• Power supply voltage 24 VDC or 12 VDC

(37)

PEGASUS

Order information

Specifications

Technical specifications are subject to change without notification. The suitability of a product for its intended

use should be checked through the customer before ordering.

Shipping

Unless given a written instruction PEGASUS shall select the carrier. PEGASUS will select the most efficient

and economical method. In case of a preferred shipping carrier the customer has to give the name, address,

phone number of the shipper. The delivered goods have to be checked without delay. Obvious defects must be

written presented to PEGASUS within 10 days after receipt of the goods.

Price

All prices listed are in EUR and subject to change without notification. All products are shipped from respective

factory. All additional costs as packaging, customs duty, VAT and insurance will be added on invoice.

Payment

The invoices are billed in EURO and should be paid within 30 days net. PEGASUS reserves the right to

require full or particular payments in advance.

Returns

The customer has to return the product prepaid and insured to PEGASUS, under PEGASUS RMA number. If

the complaint is in time and rightful it is subject to PEGASUS to select according guarantee to improve the

goods or to deliver other perfect goods. Where any product is returned without any itemized statement of

claimed defects PEGASUS will not evaluate the product but will return it to the customer at the customer

expense.

……..

Errors excepted. All sales are based on our present business terms and sales conditions.

(38)

PEGASUS

Notes

(39)

PEGASUS

Notes

(40)
