Capture / Streaming: V-Tizer Series

Summary

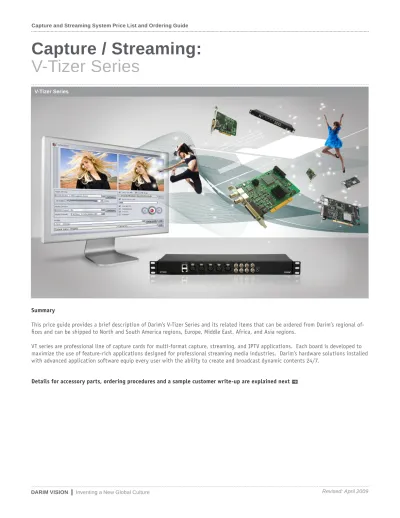

This price guide provides a brief description of Darim’s V-Tizer Series and its related items that can be ordered from Darim’s regional of-fices and can be shipped to North and South America regions, Europe, Middle East, Africa, and Asia regions.

VT series are professional line of capture cards for multi-format capture, streaming, and IPTV applications. Each board is developed to maximize the use of feature-rich applications designed for professional streaming media industries. Darim’s hardware solutions installed with advanced application software equip every user with the ability to create and broadcast dynamic contents 24/7.

V-Tizer Series

V-Tizer: The basic software bundled with all VT series capture cards for recording and streaming multimedia files into WM9 format.

VT Capture:Advanced multi-format capture application for capturing audio and video data using DV, DVCPRO, M-JPEG, I-frame MPEG2, IBP MPEG2 codec into .avi file or several .avi files

VT Title Designer:Multilayer titling and CG insertion

- Suitable for creating various titling elements & overlays including static and dynamic logo for branding, crawl lines, banners, caption, flash, video, and other elements used for overlays.

VT OnAir:Automated playout application with scheduling, titling, and playback features . Main Product Offerings:

Compatible Application Software:

Capture Board VT 210 VT300 VT500 VT600

Product Package

Highlight ASI Titling 2 Ch. Streaming High Performance

VGA / DVI Capture High-End Broadcast FormatsExternal USB Device for

The widely popular Adobe® Flash® Media Live Encoder/Server, Microsoft® Windows® Media Encoder/Server, Microsoft® Expression® Encoder technologies are also supported by all capture cards of VT series.

Encoder

VT210 VT300 VT500 VT600

Video Inputs On-board:

SDI(SMPTE 259M-C, 270 Mbps) ASI

Break-out cable,box: CVBS(1.0 Vp-p, 75 Ohm) S-Video (4-pin mini-DIN) YUV ( Y : 1.0 Vp-p, 75 Ohm; U/V: 0.7 Vp-p, 75 Ohm) with Int. or Ext. sync

RGB (BNC): up to 3 (R/G/B: 1.0 Vp-p, 75 Ohm) with Int. or Ext. sync

Break-out cable,box: Dual CVBS (BNC): (1.0 Vp-p, 75 Ohm)

Dual S-Video (4-pin mini-DIN): (Y: 1.0 Vp-p, 75 Ohm; C: 0.286 or 0.3 Vp-p at burst level, 75 Ohm) Dual RGB (BNC): (R/G/B: 1.0 Vp-p, 75 Ohm) with Int. or Ext. sync Dual YUV (BNC): (Y: 1.0 Vp-p, 75 Ohm; U/V: 0.7 Vp-p, 75 Ohm) with Int. or Ext. sync

SDI (BNC): (SMPTE 259M-C, 270 Mbps) optional via add-on module.

On-board:

Digital DVI or analog RGB 1Vp-p (DVI-I connector)

On-board:

SDI (SMPTE 259M-C, 270 Mbps) CVBS (1.0 Vp-p, 75 Ohm) S-Video (Y/C BNC) YUV (Y: 1.0 Vp-p, 75 Ohm; U/V: 0.7 Vp-p, 75 Ohm)

Video

De-interlacing Yes Yes No Yes

Video Output On-board:

SDI or ASI loopback (BNC) Break-out cable,box: CVBS ASI (via add-on module)

Break-out cable,box: Possible combinations Y/C+CVBS, YUV+CVBS, YUVS/ RGBS, YUV+Key/Alpha channel; SDI Fill/Key optional via add-on module No output On-board: SDI CVBS S-Video YUV loopback (BNC) Resolution 720x480i, 720x480p, 29.97 fps (NTSC), 720X576i, 720X576p, 25 fps (PAL). All in Full (D1), Half (half-D1) and CIF

720x480, 29.97 fps (NTSC), 720x576 25 fps (PAL/SECAM). All in Full (D1), Half (half-D1) and CIF

SVGA (800x600), XGA (1024x768), SXGA (1280x1024) WXGA+ (1280x960)

Frame rates: 1-30, depends on PC speed and PCI bus (130 Mbps) and video resolution

720x480, 29.97 fps (NTSC), 720x576 25 fps (PAL/SECAM). All in Full (D1), Half (half-D1) and CIF

Audio Input On-board:

SDI embedded stereo 2 channels Break-out cable,box:

Analog stereo 2 channels (XLR balanced or unbalanced) AES/EBU stereo 1 channel (XLR)

Break-out cable,box: Analog stereo 2 channels (XLR balanced or unbalanced) mic level or line level; up to 6 mono / 3 stereo channels

AES/EBU stereo 1 channel (XLR)

No Audio On-board:

SDI embedded stereo 2 channels Analog stereo 2 channels (XLR balanced or unbalanced) AES/EBU stereo 1 channel (XLR) Audio Formats Uncompressed PCM 16 bit

from 8 to 48 kHz Uncompressed PCM 16 bitfrom 8 to 48 kHz No Audio Uncompressed PCM 16 bit48 kHz Physical /

Electrical Power requirements:12V/0.3A, 5V/1.1A or 3.3V/1.8A Dimensions: 100x165x18 mm PCI 2.2 card (32-bit, 5V/3.3V universal)D-Sub DB-44 High Density connector for for break-out cable, box connection

Power requirements: 12V/0.3A, 5V/1.1A or 3.3V/1.8A Dimensions: 104x210x18 mm PCI 2.2 card (32-bit, 5V/3.3V universal) D-Sub DB-62 High Density connector for break-out cable, box connection

Power requirements: +/-12V/0.1A DC, +3.3 V/0.7A DC,-3.3V/0.15A DC, +5V/0.07A DC

Dimensions: 95x165x18 mm PCI 2.2 card (32-bit, 5V/3.3V universal)

Power requirements: 12V DC 1.5A Dimensions: (480x75x45 mm) USB standalone device

Supported OS Windows 2000 / XP / Vista Windows 2000 / XP / Vista Windows 2000 / XP / Vista Windows XP / Vista APPLICATION SOFTWARE

Windows Media Encoder / Flash Media Encoder Compatibility

Yes Yes Yes Yes

V-Tizer Yes Yes Yes Yes

VTCapture Yes Yes Yes TBD

VTTitleDesigner Yes Yes TBD TBD

The unit supports:

- 2 video inputs, 1 output (composite, component; BNC) - 2 audio inputs, 1 output (stereo, balanced audio; XLR) - 1 audio input, 1 output (stereo, unbalanced audio; RCA) - 1AES/EBU input, 1 output (digital audio, XLR)

V-Tizer Series

Itemized Accessory Parts List

1u Active Breakout Box (FD-BOB1)

Ordering Steps

This product line is for broadcasters, users in production & streaming media industry, and System Integrators. Assigned distributors may place an initial order on minimum quantity, or the order can be made in volume with scheduled delivery dates.

V-Tizer series consists of VT board and V-Tizer basic software package that enables configuration and preview utility. Each board type is selected based on AV information and special requirements by the customer. For example, VT600 is recommended if external capture device is preferred.

VT boards are recommended for various customer types including OEM and System Integrators. Along with the board order, purchase of application-specific software is suggested for the best performance. (To assist OEM developers in creating custom software applications based on VT300 hardware, SDK is available. Please consult with regional sales representative.)

For additional information, please refer to our web site for product details and specifications. Questions specifying model line must be confirmed with users prior to place an order.

STEP

01

Determine what kinds of functionalities are required with a capture board from above comparative table. Identify customer’s input/output AV options to determine if customers need to have a specific board type.

STEP

03

Check if additional 1U Breakout Box is needed by the customer.

STEP

04

Prepare purchase order with identified model name and forward purchase order to regionally representing office to have this customized system ready.

STEP

02

Identify or select applicable software by checking the compatibility. In addition to the basic V-Tizer encoding software, if the scheduling functionality is needed for customer’s systems, VT300 (or VT210) and VT OnAir application software is recommended.

Example Customer Order write-up for Videotizer with tracking system option.

Item Description QTY. List Price Ext. List Price

VT300 2 ch streaming solution 1 $51,300 $51,300

1u BOB Additional 1u BOB (replacing Cable) 1 $0 $0

VT OnAir Scheduling & Automated Playout 1 $15,000 $15,000

Training 3 day training requested 1 $5,000 $5,000

S&H Sample shipping cost $500 $500

V-Tizer Series: Price Listings

Table Mapping Products and Prices

Main Category Product Choices MSRP PROMO

MSRP Description

V-Tizer Boards

VT210 V-Tizer standard

software $1,450 ASI titling solution

Card compatible with all applications (optional) VT300 V-Tizer standard

software $1,900 Multi-channel streaming solution

Card compatible with all applications (optional) VT500 V- Tizer standard

software $790 High performance VGA / DAI solution

Card compatible with V-Tizer and VT Capture applications

VT600 V- Tizer standard software $1,400 High quality external USB capture

device

Card compatible with V-Tizer All other applications - TBD Accessories

OEM Cable Breakout cable Free with

system purchase

Optional 2 inputs, 1 output cable (composite, S-Video),

unbalanced audio 1u Breakout Box 1U Active breakout box

with cable

$750 Additional 1U BOB for 2 inputs,

1 output (composite, component), AES / EBU and balanced audio support

Application Options

VT Capture VT Capture TBD Advanced multi-format capture

application VT Title

Designer VT-Titling TBD Multilayer Titling and CG Insertion
