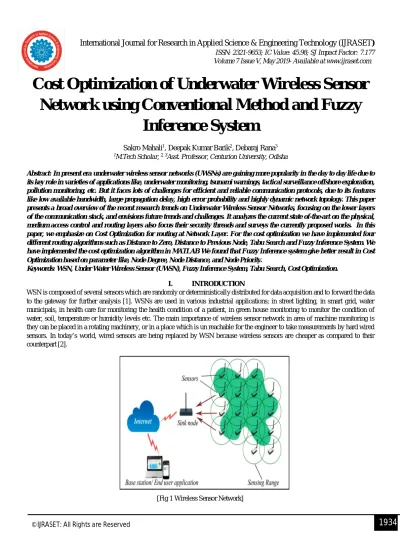

Cost Optimization of Underwater Wireless Sensor
Network using Conventional Method and Fuzzy
Inference System
Sakro Mahali
1, Deepak Kumar Barik
2, Debaraj Rana
31M.Tech Scholar, 2, 3Asst. Professor, Centurion University, Odisha
Abstract: In present era underwater wireless sensor networks (UWSNs) are gaining more popularity in the day to day life due to its key role in varieties of applications like, underwater monitoring, tsunami warnings, tactical surveillance offshore exploration, pollution monitoring, etc. But it faces lots of challenges for efficient and reliable communication protocols, due to its features like low available bandwidth, large propagation delay, high error probability and highly dynamic network topology. This paper presents a broad overview of the recent research trends on Underwater Wireless Sensor Networks, focusing on the lower layers of the communication stack, and envisions future trends and challenges. It analyzes the current state of-the-art on the physical, medium access control and routing layers also focus their security threads and surveys the currently proposed works. In this paper, we emphasize on Cost Optimization for routing at Network Layer. For the cost optimization we have implemented four different routing algorithms such as Distance to Zero, Distance to Previous Node, Tabu Search and Fuzzy Inference System. We have implemented the cost optimization algorithm in MATLAB We found that Fuzzy Inference system give better result in Cost Optimization based on parameter like, Node Degree, Node Distance, and Node Priority.
Keywords: WSN, Under Water Wireless Sensor (UWSN), Fuzzy Inference System, Tabu Search, Cost Optimization.
I. INTRODUCTION
WSN is composed of several sensors which are randomly or deterministically distributed for data acquisition and to forward the data to the gateway for further analysis [1]. WSNs are used in various industrial applications; in street lighting, in smart grid, water municipals, in health care for monitoring the health condition of a patient, in green house monitoring to monitor the condition of water, soil, temperature or humidity levels etc. The main importance of wireless sensor network in area of machine monitoring is they can be placed in a rotating machinery, or in a place which is un reachable for the engineer to take measurements by hard wired sensors. In today’s world, wired sensors are being replaced by WSN because wireless sensors are cheaper as compared to their counterpart [2].
II. UNDERWATER WIRELESS SENSOR NETWORK
Recently, with the development of wireless communication and the low power RF (Radio Frequency) designs widely used in sensor nodes, wireless sensor networks (WSNs) have received great attention due to their wide usage in environmental monitoring, transportation, disaster rescue and homeland security [3-4]. At the end of the twentieth century, wireless sensor networks became a hot research area. At the beginning, these networks covered only terrestrial applications. However, the earth is known to be a water planet, with 70% of its surface being covered with water (principally oceans). Only less than of the ocean volume has been investigated, while the volume majority remains unexplored. With the increasing role of oceans in human life, discovering all of the ocean parts became of prime importance. On one side, traditional approaches formerly used for underwater monitoring missions have several drawbacks [5] and on the other side, these harsh environments are not feasible for human presence as unpredictable underwater activities, high water pressure, predatory fish and vast areas are major reasons for unmanned exploration. Due to these reasons, Underwater Wireless Sensor Networks (UWSNs) attract the interest of many researchers lately, especially those working on terrestrial sensor networks [6].
Over the last three decades, significant contribution has been made in the area of scientific, commercial, and military applications [7]. In particular, highly precise real-time continuous-monitoring systems are essential for vital operations such as offshore oil field monitoring, pollution detection, disaster prevention, assisted navigation, mine reconnaissance, and oceanographic data collection. All these significant applications call for building Underwater Wireless Sensor Networks (UWSNs).
[Fig 2 Underwater wireless sensor network]
The work done in [8] is considered as the pioneering effort towards the deployment of sensor nodes for underwater environments. Though there exist many network protocols for terrestrial wireless sensor networks, the underwater acoustic communication channel has its unique characteristics, such as limited bandwidth capacity and high delays which require new efficient and reliable data communication protocols [9].
III. ROUTING PROTOCOLS
Actually, there are many routing protocols that have been proposed for terrestrial wireless sensor networks (TWSNs). However, these are not suitable for UWSNs, mainly because of specific characteristics of UWSNs, such as dynamic structure, narrow bandwidth, rapid energy consumption, and high transmission latency. Therefore, many novel routing protocols have been specifically proposed for UWSNs [10]. In this article we survey some of these routing protocols and provide a comparison table of the most important ones.
Usually, sensor nodes in UWSNs are mobile and freely float with the ocean current. There-fore, the established routing paths need regular updating and maintenance, which obviously introduces high energy consumption. However, it is generally known that all sensor nodes are energy limited, and hence it is challenging to build energy efficient routing protocols for UWSNs. In routing protocols for UWSNs,
A. Distance Vector Algorithm
A router transmits its distance vector to each of its neighbors in a routing packet. Each router receives and saves the most recently received distance vector from each of its neighbors. A router recalculates its distance vector when: It receives a distance vector from a neighbor containing different information than before. It discovers that a link to a neighbor has gone down. The DV calculation is based on minimizing the cost to each destination [11]
B. Tabu Search Algorithm
Tabu Search is a Global Optimization algorithm and a Metaheuristic or Meta-strategy for controlling an embedded heuristic technique. Tabu Search is a parent for a large family of derivative approaches that introduce memory structures in Metaheuristics, such as Reactive Tabu Search and Parallel Tabu Search. The objective for the Tabu Search algorithm is to constrain an embedded heuristic from returning to recently visited areas of the search space, referred to as cycling. The strategy of the approach is to maintain a short term memory of the specific changes of recent moves within the search space and preventing future moves from undoing those changes. [12]
Tabu search is a me la-heuristic that guides a local heuristic search procedure to explore the solution space beyond local optimality [13]. TS goes beyond local search by solutions with improved objective function values are permitted. The key aspect of Tabu search approach is the use of special memory structures, which serves to determine N*(x). and hence to organize the way in which the space is explored. To avoid cycling. Tabu search prohibits certain moves from being re-instantiated for a period of time by utilizing a special short-term memory structure called recency-based memory, which is implemented by means of a Tabu list. The span of iterations during which an attribute is maintained as Tabu is called the Tabu.
[Fig 3 Tabu Search Algorithm]
C. Fuzzy Inference System
Fuzzy Inference System is the key unit of a fuzzy logic system having decision making as its primary work. It uses the “IF…THEN” rules along with connectors “OR” or “AND” for drawing essential decision rules. [13]
Following are some characteristics of FIS-
The output from FIS is always a fuzzy set irrespective of its input which can be fuzzy or crisp. It is necessary to have fuzzy output when it is used as a controller. A defuzzification unit would be there with FIS to convert fuzzy variables into crisp variables.
The working of the FIS consists of the following steps −
1) A fuzzification unit supports the application of numerous fuzzification methods, and converts the crisp input into fuzzy input. 2) A knowledge base - collection of rule base and database is formed upon the conversion of crisp input into fuzzy input. 3) The defuzzification unit fuzzy input is finally converted into crisp output.
IV. EXPERIMENTAL RESULT
The comparative analysis of cost optimization for different method has been analyzed with the experimental data resulted from the MATLAB implementation. The discussed method have been implemented with MATLAB R2014b. Matlab has the capacity of mimicking submerged condition for three dimensional organize arrangement and executed as a fix over. It embraces a sensible model of the submerged acoustic channel, including multipath impacts, time-fluctuating deferral, weakening, and Doppler scaling The experimental result as follows:
[Fig 5 Base Network with (a) 30 Nodes (b) 50 Nodes]
[Fig 6 (a) Cost optimization with Distance to Zero (n=50) (b) Distance to previous node (n=50)]
[Fig 8 Cost optimization using Tabu Search]
0 10 20 30 40 50 60
0 10 20 30 40 50 60 Base Network
x [m]
y [ m ] 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
0 10 20 30 40 50 60 70 80 90 100
0 10 20 30 40 50 60 70 80 90 100 Base Network
x [m]
y [ m ] 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
0 10 20 30 40 50 60 70 80 90 100
0 10 20 30 40 50 60 70 80 90 100
Distance to Zero
x [m]
y [ m ] 1 2 3 4 5
6 7 8 9 10 11 12 13 14 15 1617 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 3839 40 41 42 43 44 45 4647 48 49 50
0 10 20 30 40 50 60 70 80 90 100
0 10 20 30 40 50 60 70 80 90 100
Distance to previous nodes
x [m]
y [ m ] 1 2 3 4 5 6
7 8
9
1011 12
13
14 15 16
17 18 19 20 21 22 23 24 25 2627 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
0 10 20 30 40 50 60 70 80 90 100
0 10 20 30 40 50 60 70 80 90 100
Tabu Search (TS)
x [m]
y [ m ] 1 2 3 4
5 6 7 8 9 10 11 12 13
14 1516 1718
[Fig 9 Cost optimization using Fuzzy Inference System]
[Fig 10 Fuzzy Inference System with 2 input and 1 output]
[Fig 11: Input 1, Input 2 and Output membership Function
0 10 20 30 40 50 60 70 80 90 100 0
10 20 30 40 50 60 70 80 90 100
Fuzzy Inference System (FIS)
x [m]
y
[
m
]
1 2
3 4
5
6 7
8 9
10
11
12 1314 15
16
17 18
19
20
21 22
23
24 25
26
27 28
29
30 31 32 33
34 35
36
37
38 39
40
41 42
43
44
45
46
47 48
49
50
Sy s tem Optimiz ation: 2 inputs , 1 outputs , 9 rules Dis tanc e (3)
Degree (3)
Priority (3) Optimiz ation
(mamdani)
9 rules
Fuzz y Inference Sy stem
0 5 10 15 20 25 30 35 40 45 50
0 0.2 0.4 0.6 0.8 1
Distance
D
e
g
re
e
o
f
m
e
m
b
e
rs
h
ip
low medium high
Memberships Functions of Input1
0 2 4 6 8 10 12 14 16 18 20 22
0 0.2 0.4 0.6 0.8 1
Degree
D
e
g
re
e
o
f
m
e
m
b
e
rs
h
ip
low medium high
Memberships Functions of Input2
0 5 10 15 20 25 30 35 40 45 50
0 0.2 0.4 0.6 0.8 1
Priority
D
e
g
re
e
o
f
m
e
m
b
e
rs
h
ip
First Second Third
[Fig 12 Cost Comparison among between all the methods]
In the experiments we have implemented cost optimization techniques have been implemented. The evaluation has been done based on Distance to zero. Distance to past Node, Tabu Search and Fuzzy Inferenece system. From the experimental result we found that among the calculations utilized. Fuzzy Inference System demonstrates the good results among the methods compared in the means of Cost Optimization in Under Water Sensor Networks (UWSN).
V. CONCLUSION
UWSN has becomes the most recent research area among the researches. In spite of limitation like low available bandwidth, large propagation delay, high error probability and highly dynamic network topology, still it getting focus from the researches. In this paper emphasize has been given on Cost Optimization for routing at Network Layer. For the cost optimization four different routing algorithms such as Distance to Zero, Distance to Previous Node, Tabu Search and Fuzzy Inference System has been implemented. The overall comparison has been drawn on the basis of experimental result simulated in MATLAB.
The experimental result from MATLAB reveals that the Fuzzy inference based system optimized the cost to a minimum values in an underwater wireless sensor network. From the experiments fuzzy inference based system gives approximately 609 unit cost which is lower than other method in a 50 nodes underwater wireless sensor network (UWSN).
REFERENCE
[1] S.Ramakrishnan and Ibrahicm M,, Wireless sensor networks from theory to applications. , United states: CRC Press, 2013, pp. 10-50.
[2] Kazcm Sohraby. Daniel Minoli and Taicb Znati. Wireless sensor networks technology, protocols and applications, r cd.. New York: John Wiley, 2007, pp.
20-60.
[3] Liu X. A Survey on Clustering Routing Protocols in Wireless Sensor Networks. Sensors. 2012;12:11113–11153. DOI: 10.3390/s120811113.
[4] Nokhanji N., Hanapi Z.M., Subramaniam S., Mohamed M.A. An Energy Aware Distributed Clustering Algorithm Using Fuzzy Logic for Wireless Sensor
Networks with Non-uniform Node Distribution. Wirel. Pers. Commun. 2015;84:395–419.
[5] Sozer E. M., Stojanovic M, and Proakis J. G., "Underwater Acoustic Networks," IEEE Journal of ocean engineering, vol. 25, pp. 72-83, Jan.2000.
[6] Ayaz M., Baig I., Abdullah A., and Faye I., "A Survey on Routing Techniques in Underwater Wireless Sensor Networks," Journal of Network and Computer
Applications, vol. 3, no. 4, pp. 1908-1927, 2011.
[7] Ayaz M. and Abdullah A., "Underwater Wireless Sensor Networks: Routing Issues and Future Challenges," In Proceedings of the 7th international conference
on ad\>ances in mobile computing and multimedia. ACM, pp. 370-375, Malaysia, 2009
[8] Akyildiz I. F., Pompili D., and Melodia T., "Underwater Acoustic Sensor Networks: Research Challenges," Journal of Ad Hoc Networks, vol. 3, no. 3, pp.
257-279, March. 2005.
[9] Pompili D., Melodia T., and Akyildiz I. F., "Distributed Routing Algorithms for Underwater Acoustic Sensor Networks, " IEEE Trans. On wireless
communications, vol. 9, no. 9, pp. 2934-3944, Sept. 2010
[10] Guangjie Han, Jinfang Jiang, Na Bao, Liangtian Wan, and Mohsen Guizani, “Routing Protocols for Underwater Wireless Sensor Networks, Underwater
Wireless Communications and Networks: Theory and Application
[11] https://www.geeksforgeeks.org/computer-network-routing-protocols-set-1-distance-vector-routing/
[12] http://www.cleveralgorithms.com/nature-inspired/stochastic/tabu_search.html
[13] Glover, F. (1989). Tanu search—Part I. ORSA Journal on Computing, /(l), 190-206.
[14] Hamed Orojloo • Abolfazl T. Haghighat,” A Tabu search based routing algorithm for wireless sensor networks, Springer Science+Business Media New York
2015
[15] https://www.tutorialspoint.com/fuzzy_logic/fuzzy_logic_inference_system.htm
0 10 20 30 40 50 60
600 800 1000 1200 1400 1600 1800 2000 2200 2400 2600
Type of Optimization
D
is
ta
n
c
e
(
m
)
Cost of Optimization Methods
C1
C2
C3
C4
C1 Cost of Default Network = 2584.6253
C2 Cost of Distance of Each Nodes to Zero = 1490.8758
C3 Cost of Distance of Each Nodes to Previous Nodes = 761.6529
