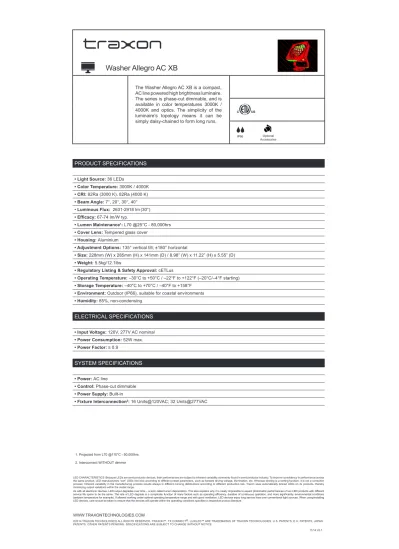

washer allegro ac xb
the washer allegro ac xb is a compact, ac line powered high brightness luminaire.
the series is phase-cut dimmable, and is available in color temperatures 3000k / 4000k and optics. the simplicity of the luminaire’s topology means it can be simply daisy-chained to form long runs.
product specifications
• Light Source: 36 leds
• Color Temperature: 3000k / 4000k
• CRI: 82ra (3000 k), 82ra (4000 k)
• Beam Angle: 7°, 20°, 30°, 40°
• Luminous Flux: 2631-2918 lm (30°)
• Efficacy: 67-74 lm/w typ.
• Lumen Maintenance
1: l70 @25°c - 80,000hrs
• Cover Lens: tempered glass cover
• Housing: aluminium
• Adjustment Options: 135° vertical tilt; ±180° horizontal
• Size: 228mm (w) x 285mm (h) x 141mm (d) / 8.98” (w) x 11.22” (h) x 5.55” (d)
• Weight: 5.5kg/12.1lbs
• Regulatory Listing & Safety Approval: cetlus
• Operating Temperature: –30°c to +50°c / –22°f to +122°f (–20°c/–4°f starting)
• Storage Temperature: –40°c to +70°c / –40°f to +158°f
• Environment: outdoor (ip66), suitable for coastal environments
• Humidity: 85%, non-condensing
electrical specifications
• Input Voltage: 120v, 277v ac nominal
• Power Consumption: 52w max.
• Power Factor: ≥ 0.9
system specifications
• Power: ac line
• Control: phase-cut dimmable
• Power Supply: built-in
• Fixture Interconnection
2: 16 units@120vac; 32 units@277vac
1. projected from l70 @110°c - 50,000hrs 2. interconnect without dimmer
Optional Accessories
