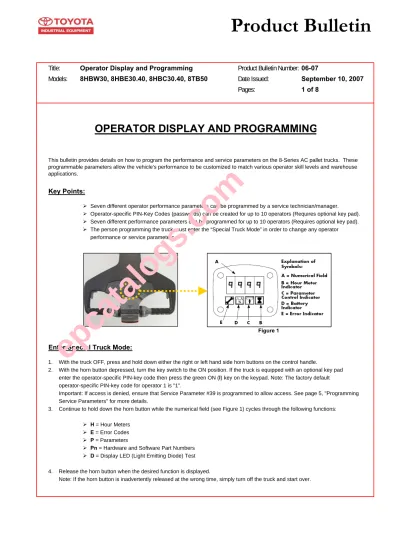

Operator Display and Programming Product Bulletin Number:
Models: 8HBW30, 8HBE30.40, 8HBC30.40, 8TB50 Date Issued:
Pages:
¾ Seven different operator performance parameters can be programmed by a service technician/manager.
¾ Operator-specific PIN-Key Codes (passwords) can be created for up to 10 operators (Requires optional key pad).
¾ Seven different performance parameters can be programmed for up to 10 operators (Requires optional key pad).
¾ The person programming the truck must enter the “Special Truck Mode” in order to change any operator performance or service parameters.
1. With the truck OFF, press and hold down either the right or left hand side horn buttons on the control handle.
2. With the horn button depressed, turn the key switch to the ON position. If the truck is equipped with an optional key pad enter the operator-specific PIN-key code then press the green ON (I) key on the keypad. Note: The factory default operator-specific PIN-key code for operator 1 is "1".
Important: If access is denied, ensure that Service Parameter #39 is programmed to allow access. See page 5, "Programming Service Parameters" for more details.
3. Continue to hold down the horn button while the numerical field (see Figure 1) cycles through the following functions:
¾ H = Hour Meters
¾ E = Error Codes
¾ P = Parameters
¾ Pn = Hardware and Software Part Numbers
¾ D = Display LED (Light Emitting Diode) Test
4. Release the horn button when the desired function is displayed.
Note: If the horn button is inadvertently released at the wrong time, simply turn off the truck and start over.
Product Bulletin
Title:
1 of 8 06-07
September 10, 2007
Enter Special Truck Mode:
Key Points:
OPERATOR DISPLAY AND PROGRAMMING
This bulletin provides details on how to program the performance and service parameters on the 8-Series AC pallet trucks. These programmable parameters allow the vehicle's performance to be customized to match various operator skill levels and warehouse applications.
Figure 1
epcatalogs.com
Operator Display and Programming Product Bulletin Number:
Models: 8HBW30, 8HBE30.40, 8HBC30.40, 8TB50 Date Issued:
Pages:
1. Enter the Hour Meters (H) Function by following the steps provided on page one 1 --- "Enter Special Truck Mode"
2. Continue to hold the horn button until "H" is displayed then release the button. The Hour Meter indicator is illuminated (see figure 1 on page 1)
3. Rotate the directional/speed control to cycle through the different hour meter times. The display indicates the number of hours for each function.
¾ A = Key time
¾ b = Activity time (drive, lift and lower)
¾ c = Drive motor time
¾ d = Coast time (defined as time accrued while in Coast Control mode)
4. To exit the Hour Meters (H) Function, turn the truck OFF.
When an error occurs, a code is displayed in the numeric field. Consult the service manual for description of the error codes.
1. Enter the Error Code (E) Function by following the steps provided on page 1 --- “Enter Special Truck Mode”.
2. Continue to hold the horn button until "E" is displayed then release the button. The Error Indicator is illuminated (see figure 1 on page 1).
3. Up to 50 error codes can be displayed. The error codes are divided into 2 groups: C = Caution and E = Error.
Use the directional/speed control handle to scroll through the last 50 error codes.
Note: The error code will be display on the left hand side of the display. Rotate the directional/speed control handle towards the forks to scroll through error codes 1 through 50. Rotate the directional/speed control handle away from the forks to scrolls through error codes 50 through 1.
4. When the handle is released at a chosen history number (1-50), the display first shows the caution or error code and then the activity hour (hour meter "b") the fault occurred.
5. To exit the Error Code (E) Function, turn the truck OFF.
1. Enter the Part Numbers (Pn) Function by following the steps provided on page 1 --- "Enter Special Truck Mode".
2. Continue to hold the horn button until "Pn" is displayed then release the button.
3. Use the directional/speed control to scroll through the following information:
¾ PA = Power Amplifier = Software version and build No. of Controller (for example: 3.00 = Version 3, build 000)
¾
¾ SPn = Software Part Number (for example: /701-/750 = Walkie, 751-/800 = End Rider, 851-/900 = Center Rider/Tow Tractor
¾ HPN = Hardware Part Number
Product Bulletin
2 of 8
Title: 06-07
September 10, 2007
г
EL= Software version (for example: TEL 1.0 = Release Version)OPERATOR DISPLAY AND PROGRAMMING (CON'T)
Hour Meters (H) Function:
Error Code (E) Function:
Hardware and Software Part Numbers (Pn) Function:
epcatalogs.com
Operator Display and Programming Product Bulletin Number:
Models: 8HBW30, 8HBE30.40, 8HBC30.40, 8TB50 Date Issued:
Pages:
1. Enter the Display LED Test (D) Function by following the steps provided on page 1 --- "Enter Special Truck Mode".
2. Continue to hold the horn button until "D" is displayed then release the button.
This function will illuminate each LED segment by automatically scrolling a number "8" through the display.
Verify that all segments illuminate within the display.
3. To exit the Display LED Test (D) Function, turn the truck OFF.
Programming Operator Performance Parameters (P) Function:
1. Enter the Parameter (P) Function by following the steps provided on page 1 ----"Enter Special Truck Mode".
2. Continue to hold the horn button until "P" is displayed then release the button. The Parameter Control Indicator is illuminated (see figure 1 on page 1).
3. Rotate the directional/speed control to cycle through the operator performance parameters (See table 1 "Truck (Operator) Performance Parameters" on page 4).
Release the directional/speed control to neutral when the desired parameter number and value is displayed.
4. Press the horn button once. The Parameter Control Indicator light (see figure 1 on page 1) will begin flashing indicating that the controller is in "edit mode".
5. Change the parameter value by rotating the directional/speed control forward or reverse.
Release the directional/speed control to neutral when the desired parameter value is displayed.
6. Press the horn button again to confirm the change. The Parameter Control Indicator on the display will stop flashing and remain illuminated. The truck parameter change is complete.
7. To exit the Truck Parameter (P) Function, turn the truck OFF.
The new parameter will take effect the next time the truck is powered ON.
Product Bulletin
Title:
OPERATOR DISPLAY AND PROGRAMMING (CON'T)
Display LED (Light Emitting Diode) Test (D) Function:
Note: All truck parameters can be viewed; however, not all parameters can be changed. Access to Operator Performance Parameters (1 through 7) shown on page 4 is governed by the value set in Service Parameter #39. For more details, see
"Programming Service Parameter" on page 5.
06-07
September 10, 2007 3 of 8
epcatalogs.com
Operator Display and Programming Product Bulletin Number: 06-07
Models: 8HBW30, 8HBE30.40, 8HBC30.40, 8TB50 Date Issued: September 10, 2007
Pages: 4 of 8
Table 1: Truck (Operator) Performance Parameters:
0 = Lowest speed 42 = Fastest speed 8HBE30.40
8HBC30.40
0 = Lowest speed 100 = Fastest speed 8HBE30.40
8HBC30.40 8TB50
1 = Fastest acceleration rate 5 = Slowest acceleration rate 8HBW30
8HBE30.40 8HBC30.40 8TB50
1 = Shortest coasting distance 5 = Longest coasting distance
8HBE30.40 8HBC30.40 8TB50
0 = Lowest speed 66 = Fastest speed Truck Log-Off
Mode) (Requires optional keypad)
8HBE30.40
1 to 5 (1) 8HBW30
8HBE30.40 8HBC30.40
8HBW30 8TB50
Acceleration Rate for Walking
Speed Mode 07
06 0 to 66% (2%)
8HBW30 8HBE30.40 8HBC30.40
1 to 5 (1) Max Speed,
Riding Speed Mode
3 This parameter controls the truck's acceleration rate from 0 mph to maximum speed (Coast Control or Turtle Speed engaged mode on models 8HBE30.40, 8HBC30.40).
Product Bulletin
This Parameter controls the time until the truck is powered OFF. Time is counted while the truck is at idle and the brake is applied. When set to 0 the truck never powers OFF. If parameter #39 is set to 1 or 2 (the truck has key switch option) the truck never powers off.
66%
This parameter controls the truck's acceleration rate from 0 mph to maximum preset speed.
4 This parameter controls the truck's braking characteristics when the directional/speed control handle is returned to the neutral position (no demand for opposite direction).
NOTE: To program the operator performance parameters listed below, Service Parameter #39 must be preset to a value of either 1 or 3 if the truck is equipped with an optional keypad.
This parameter controls the truck's maximum speed in walking speed mode (Coast Control or Turtle Speed engaged mode on models 8HBE30.40, 8HBC30.40).
Description
0 min.
2 1 to 5 (1)
0 to 42% (2%)
This parameter controls the maximum speed when in "rabbit" speed mode.
42%
0 to 100% (2%) 100%
Title:
04 Neutral Braking (Coast Deceleration
Rate) Acceleration rate for Riding Speed
Mode 03
Name 01
02
Max Speed, Walking Speed
Mode
Max Speed, Rabbit Mode
This parameter controls the maximum speed when in riding speed mode.
OPERATOR DISPLAY AND PROGRAMMING (CON'T)
Default
Programming Operator Performance Parameters (P) Function (Continued):
Parameter No. Range (Step)
05 0 to 20 min. (1)
Model
epcatalogs.com
Operator Display and Programming Product Bulletin Number:
Models: 8HBW30, 8HBE30.40, 8HBC30.40, 8TB50 Date Issued:
Pages:
Programming Service Parameters (P) Function:
1. Connect the service key into the Service Key Connection Port (see figure 3 on page 8).
2. Enter the Parameter (P) Function by following the steps provided in the section on page one 1 ---- "Enter Special Truck Mode".
3. Continue to hold the horn button until "P" is displayed then release the button. The Parameter Control Indicator is illuminated, (see figure 1 on page 1).
4. Rotate the directional/speed control to cycle through the service parameters (See table 2 "Truck Service Parameters" on page 7)
Service Parameter Display (Keypad Only)
Example:
Service Parameter Number Operator Number
Release the directional/speed control to neutral when the desired parameter number and value is displayed.
5. Press the horn button once. The Parameter Control Indicator light (see figure 1 on page 1) will begin flashing indicating that the controller is in "edit mode".
6. Change the parameter value by rotating the directional/speed control forward or reverse. Release the directional/speed control to neutral when the desired parameter value is displayed.
7. Press the horn button again to confirm the change. The Parameter Control Indicator on the display will stop flashing and remain illuminated. The truck parameter change is complete.
8. To exit the Truck Parameter (P) Function, turn the truck OFF.
The new parameter will take effect the next time the truck is powered ON.
In order to program the Service Parameters (parameters 10 through 39 shown on page 7), a special service key is required (see figure 2 on page 8). Consult the service manual for directions on how to connect the service key to the truck.
Title:
OPERATOR DISPLAY AND PROGRAMMING (CON'T)
Product Bulletin
06-07
September 10, 2007 5 of 8
When parameters 1 through 7, and 10 are viewed with the service key, the Service Parameter Number (left side of display) and the Operator Number (right side of display) are shown. (See example below).
Note: All truck parameters can be viewed; however, not all parameters can be changed. Access to operator performance parameters (1 through 7) shown on page 4 is governed by the value set in Service Parameter #39.
As the Service Parameter Number display progresses through parameters 1 and 2 through 10, the display will roll over to the next operator number. After all operators numbers and service parameters numbers are scrolled through, service parameters number 11 through 40 will follow).
(Up to 10 Operator Numbers can be displayed)
(Up to 7 Operator Performance Parameters can be programmed)
10 = PIN-code key 2 = Operator #2
Note: To quickly display a service parameter, rotate the directional/speed control away from the forks (sequence backwards through the parameters). Rotating the directional/speed control towards the forks will display parameters 1 through 10 only.
