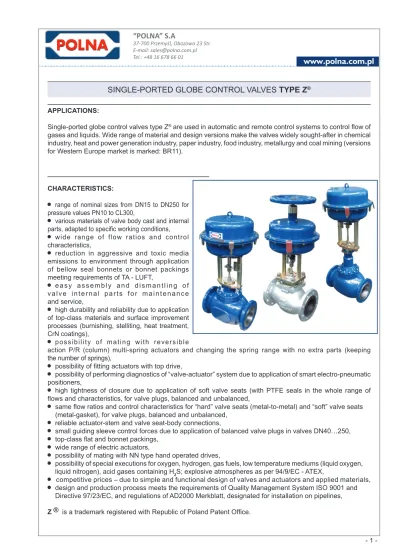

SINGLE-PORTED GLOBE CONTROL VALVES TYPE Z

SINGLE-PORTED GLOBE CONTROL VALVES TYPE Z

^®

APPLICATIONS:

Single-ported globe control valves type Z^® are used in automatic and remote control systems to control flow of gases and liquids. Wide range of material and design versions make the valves widely sought-after in chemical industry, heat and power generation industry, paper industry, food industry, metallurgy and coal mining (versions for Western Europe market is marked: BR11).

CHARACTERISTICS:

•

range of nominal sizes from DN15 to DN250 for pressure values PN10 to CL300,

•

various materials of valve body cast and internal parts, adapted to specific working conditions,

•

wide range of flow ratios and control characteristics,

•

reduction in aggressive and toxic media emissions to environment through application of bellow seal bonnets or bonnet packings meeting requirements of TA - LUFT,

•

easy assembly and dismantling of valve internal parts for maintenance and service,

•

high durability and reliability due to application of top-class materials and surface improvement processes (burnishing, stelliting, heat treatment, CrN coatings),

•

possibility of mating with reversible

action P/R (column) multi-spring actuators and changing the spring range with no extra parts (keeping the number of springs),

•

possibility of fitting actuators with top drive,

•

possibility of performing diagnostics of “valve-actuator” system due to application of smart electro-pneumatic positioners,

•

high tightness of closure due to application of soft valve seats (with PTFE seals in the whole range of flows and characteristics, for valve plugs, balanced and unbalanced,

•

same flow ratios and control characteristics for “hard” valve seats (metal-to-metal) and “soft” valve seats (metal-gasket), for valve plugs, balanced and unbalanced,

•

reliable actuator-stem and valve seat-body connections,

•

small guiding sleeve control forces due to application of balanced valve plugs in valves DN40…250,

•

top-class flat and bonnet packings,

•

wide range of electric actuators,

•

possibility of mating with NN type hand operated drives,

•

possibility of special executions for oxygen, hydrogen, gas fuels, low temperature mediums (liquid oxygen, liquid nitrogen), acid gases containing H₂S; explosive atmospheres as per 94/9/EC - ATEX,

•

competitive prices – due to simple and functional design of valves and actuators and applied materials,

•

design and production process meets the requirements of Quality Management System ISO 9001 and Directive 97/23/EC, and regulations of AD2000 Merkblatt, designated for installation on pipelines, Z ® is a trademark registered with Republic of Poland Patent Office.

Body (1): single-ported, flanged, cast in cast iron or cast steel. Nominal sizes: DN15; 20; 25; 32; 40; 50; 65; 80; 100; 125*⁾; 150; 200; 250

*⁾ special execution, technical data according to individual inquiries.

Nominal pressure: PN10; 16; 25; 40 (as per PN-EN 1092-1:2010 and PN-EN 1092-2:1999);

CL150; CL300 (as per PN-EN 1759-1:2005).

Steel flanges CL150; CL300 are so designed that they can be assembled with flanges executed per American standards ANSI/ASME B16.5 and MSS SP44. In American standards flanges are identified with nominal values in “Classes”, to which nominal pressure (PN) values as per PN-ISO 7005-1:2002 correspond.

Equivalent identification as per PN are: CL150: PN 20 and CL300: PN 50. Table 1. Flanged end connections

DESIGN AND TECHNICAL SPECIFICATION:

Material Nominal pressure

Facing of flange types

Raised face Groove Recess Ring - joint

Identification

Grey iron PN10; 16

B ²⁾

- - -

Spheroidal iron PN10; 16; 25; 40 - - -

Cast steel

PN10; 16; 25; 40 D F -

CL150 - -

J (RTJ)

CL300 DL ( D1 ¹) F ( F1)

1) - only for CL300; ²) - B1 – (Ra=12.5 mm, concentric surface structure “C”), B2 – (Ra as agreed with the customer); () - identification of connections as per ASME B16.5

Possible execution of flanges per specification and indicated standards

Fig. 1. Bonnets DN15…100

Face-to-face dimensions: as per PN-EN 60534-3-1; 2000r. - Fig. no. 7 ; Table 19 and 20. Series 1 - for PN10; 16; 25; 40; series 37- for CL150; series 38 - for CL300

Bonnet (2) - non-cast - assembled to body via assembly plate (DN15-100)

- cast (DN150-250): a) standard, b) extension (for cast steel valves), c) bellows (for cast steel valves).

Standard Extension Bellow seal

DN15…50 DN65…100

TA LUFT packing (all types)

Valve plug (3) - contoured, balanced, unbalanced

•

control characteristics: - linear (L)

- equal percentage (P)

- quick-opening (S)

•

rangeability: - 50:1

Fig. 2. Valve plugs Kvs 0,01…1

DN15…50

Unbalanced valve plugs

Standard Extension Bellow seal

Fig. 1a. Bonnets DN125…250

Balanced valve plugs Kvs 0,01…16 (DM/DW)

DN15…50 ^{Kvs 25…160}DN40…100 ^{Kvs 63…630}DN125…250

Kvs 25…160

DN40…100 Kvs 250…630

DN125…250

Valve seat (4) - screwed in, with centering cone, sealing and preventing unscrewing:

•

hard version,

•

soft version (PTFE packing).

Valve plug stem (5) - burnished or quenched and tempered, polished sealing contact surface Drain plug (6) - steel or stainless steel: allows cleaning of body interior (delivered separately) Body gasket (7) - asbestos-free:

•

flat – aramid and hardened graphite (1.4571); in metallic casing (1.4571), multiple edges

•

bonnet: - packings formed in various materials (PTFE-V; PTFE+graphite;

expan ded graphite; braided graphite);

- with TA Luft compression springs (PTFE-V; graphite)

Table 2. Packing types with application ranges.

Leakage class: - basic: Class IV as per PN-EN 60534-4 - hard valve seat

- bubble-tight Class VI as per PN-EN 60534-4 - soft valve seat

Table 3. Listing of components with materials

NOTE:

Hardening method used for hardening of valve internal parts comprises: a) stelliting – padding of surfaces with stellite: ~40HRC

b) CrN coating – introducing chromium nitride to external layer of detail, to the depth of ca.0.1 mm;~950HV c) heat treatment: plug (~45HRC), seat (~35HRC), stem (~35HRC), guide sleeve (~45HRC)

d) Maximum working temperature -200…+250°C (for KEFLOY 25 material), higher temperatures: upon con- sultation with the manufacturer.

Packing PN / CL Temperature [°C]

Bonnet

Standard Extension Bellow

PTFE-V

PN10…CL300 ^-46...+200

-198...-46

+200...+300 -100...+200

PTFE + Graphite PTFE-V / TA-LUFT

Graphite +200...+300 +300...+450 +200...+400

Graphite / TA-LUFT

Item Component Materials

1 Body (EN-JL 1040)^{EN-GJL 250} EN-GJS 400-18 LT

(EN-JS 1025) ^{GP 240 GH}(1.0619) ^WCB GX5CrNiMo 19-11-2

(1.4408) ^CF8M

2 Bonnet ^DN15…100 S 355 J2G3 (1.0570) X6CrNiMoTi 17-12-2 (1.4571)

DN125…250 EN-GJL 250(EN-JL 1040) EN-GJS 400-18 LT

(EN-JS 1025) ^{GP 240 GH}(1.0619) ^WCB GX5CrNiMo 19-11-2

(1.4408) ^CF8M

3 Plug X6CrNiMoTi 17-12-2; (1.4571)

X6CrNiMoTi 17-12-2; (1.4571) + stellite + CrN X17CrNi 16-2 ; (1.4057) + heat treatment

4 Seat

X6CrNiMoTi 17-12-2; (1.4571) X6CrNiMoTi 17-12-2; (1.4571) + stellite X6CrNiMoTi 17-12-2; (1.4571) + PTFE X17CrNi 16-2; (1.4057) + heat treatment

5 Stem X6CrNiMoTi 17-12-2; (1.4571)

X6CrNiMoTi 17-12-2; (1.4571) + stellite + CrN X17CrNi 16-2 ; (1.4057) + heat treatment

6 Drain plug S 355 J2G3 (1.0570) X6CrNiMoTi 17-12-2; (1.4571)

7 Body gasket in metal casing X6CrNiMoTi 17-12-2 (1.4571) ; NOVATEC PREMIUM; SIGRAFLEX HOCHDRUCK; MWK-50 SPETOMET

8 Guiding sleeve X6CrNiMoTi 17-12-2; (1.4571) + CrN

X6CrNiMoTi 17-12-2; (1.4571) + stellite + CrN X17CrNi 16-2 ; (1.4057) + heat treatment 9 Compression plate C45 (1.0503); X30Cr13 (1.4028); X6CrNiMoTi 17-12-2; (1.4571)

10 Bolt 8.8 A4 - 70

11 Nut 8 A4 - 70

12 Packing PTFE + GRAFIT; PTFE - „V”; GRAPHITE

13 Spring 12R10 (SANDVIK)

14 O-ring Fluorine rubber (FKM)

15 Guiding sleeve X6CrNiMoTi 17-12-2; (1.4571) + CrN

X6CrNiMoTi 17-12-2; (1.4571) + stellite + CrN X17CrNi 16-2 ; (1.4057) + heat treatment

16 Seal ring PTFE + X6CrNiMoTi 17-12-2 (1.4571); TURCON + X6CrNiMoTi 17-12-2 (1.4571)

17 Bellow X6CrNiMoTi 17-12-2; (1.4571)

Relevant materials standards

Material Standard

EN-GJL 250 ; (EN-JL 1040) PN-EN 1561

EN-GJS 400-18 LT ; (EN-JS 1025) PN-EN 1563

GP 240 GH ; (1.0619) PN-EN 10213-2

WCB ASTM A 216

GX5CrNiMo 19-11-2 ; (1.4408) PN-EN 10213-4

CF8M ASTM A 351

S 355 J2G3 ; (1.0570) PN-EN 10025

X6CrNiMoTi 17-12-2 ; (1.4571) PN-EN 10088

X17CrNi 16-2 ; (1.4057) PN-EN 10088

C45 (1.0503) PN-EN 10083-1

X30Cr13 (1.4028) PN-EN 10088

Table 4. Working parameters for special executions of valves.

Fig. 3. Control valve DN15-100 a) with standard valve plug

b) with balanced valve plug

Valve execution Working temperature [°C] Max working pressure [bar]

Min. Max.

With balanced plug -50

+200 ⁴⁰

With soft valve seat (PTFE) -100 35

With bellow seal bonnet -100 +400 35

Fig. 4. Control valve DN125-250 a) with standard valve plug

b) with balanced valve plug

Table 8. Material: GX5CrNiMo 19-11-2 (1.4408) as per PN-EN 10213-4

PN / CL Standard

Temperature [°C]

-10…50 100 150 200 250 300 350 400 425 450

Allowable working pressure [bar]

PN10 EN 1092-1 ^{10 10 9 8,4 7,9 7,4 7,1 6,8 - 6,7}

PN16 16 16 14,5 13,4 12,7 11,8 11,4 10,9 - 10,7

CL150 PN-EN 1759-1 17,9 16,3 14,9 13,5 12,1 10,2 8,4 6,5 5,6 4,7

PN25 EN 1092-1 ^{25 25 22,7 21 19,8 18,5 17,8 17,1 - 16,8}

PN40 40 40 36,3 33,7 31,8 29,7 28,5 27,4 - 26,9

CL300 PN-EN 1759-1 46,7 42,5 38,9 35,3 32,9 30,5 28,8 27,6 27,2 26,9

Table 5…11. Allowable working overpressure for materials at proper temperatures

Table 7. Material: GP240GH (1.0619) as per PN-EN 10213-2

PN / CL Standard

Temperature [°C]

-10…50 100 150 200 250 300 350 400

Allowable working pressure [bar] PN10

EN 1092-1 ^{10 9,2 8,8 8,3 7,6 6,9 6,4 5,9}

PN16 16 14,8 14 13,3 12,1 11 10,2 9,5

CL150 PN-EN 1759-1 17,3 15,4 14,6 13,8 12,1 10,2 8,4 6,5

PN25 EN 1092-1 ^{25 23,2 22 20,8 19 17,2 16 14,8}

PN40 40 37,1 35,2 33,3 30,4 27,6 25,7 23,8

CL300 PN-EN 1759-1 45,3 40,1 38,1 36 32,9 29,8 27,8 25,7

NOTES:

1. It is allowed to apply spheroidal iron, carbon steel and acid proof cast steel for temperatures lower than given in Tables 5...11, provided that working pressure is reduced respectively, working temperature impact tests are performed and cast is heat treated. Details are to be consulted with manufacturer.

2. Working pressure for intermediate temperature values can be calculated by interpolation.

Table 10. Material: WCB as per ASTM A216

PN / CL Standard

Temperature [°C]

-10…50 100 150 200 250 300 350 375 400

Allowable working pressure [bar]

PN10 EN 1092-1 ^{10 10 9,7 9,4 9 8,3 7,9 7,7 6,7}

PN16 16 16 15,6 15,1 14,4 13,4 12,8 12,4 10,8

CL150 PN-EN 1759-1 19,3 17,7 15,8 14 12,1 10,2 8,4 7,4 6,5

PN25 EN 1092-1 ^{25 25 24,4 23,7 22,5 20,9 20 19,4 16,9}

PN40 40 40 39,1 37,9 36 33,5 31,9 31,1 27

CL300 PN-EN 1759-1 50 46,4 45,1 43,9 41,8 38,9 36,9 36,6 34,6

Table 11. Material: CF8M as per ASTM A351

PN / CL Standard

Temperature [°C]

-10…50 100 150 200 250 300 350 375 400 425 450

Allowable working pressure [bar]

PN10 EN 1092-1 ^{8,9 7,8 7,1 6,6 6,1 5,8 5,6 5,5 5,4 5,4 5,3}

PN16 14,3 12,5 11,4 10,6 9,8 9,3 9 8,8 8,7 8,6 8,5

CL150 PN-EN 1759-1 18,4 16 14,8 13,6 12 10,2 8,4 7,4 6,5 5,6 4,6

PN25 EN 1092-1 ^{22,3 19,5 17,8 16,5 15,5 14,6 14,1 13,8 13,6 13,5 13,4}

PN40 35,6 31,3 28,5 26,4 24,7 23,4 22,6 22,1 21,8 21,6 21,4

CL300 PN-EN 1759-1 48,1 42,3 38,6 35,8 33,5 31,6 30,4 29,6 29,3 29 29

Table 5. Material: EN-GJL 250 as per PN-EN 1561

PN Standard

Temperature [°C]

-10…120 150 180 200 230 250 300

Allowable working pressure [bar]

PN10 PN-EN 1092-2 ^{10 9 8,4 8 7,4 7 6}

PN16 16 14,4 13,4 12,8 11,8 11,2 9,6

Table 6. Material: EN-GJS 400-18 LT as per PN-EN 1563

PN Standard

Temperature [°C]

-10…120 150 200 250 300 350

Allowable working pressure [bar] PN10

PN-EN 1092-2

10 9,7 9,2 8,7 8 7

PN16 16 15,5 14,7 13,9 12,8 11,2

PN25 25 24,3 23 21,8 20 17,5

PN40 40 38,8 36,8 34,8 32 28

Table 9. Material: G20Mn5 (1.6220) wg PN-EN 10213-3

PN / CL Standard

Temperature [°C]

-40 100 150 200 250 300

Allowable working pressure [ [bar] PN10

-

6 6 3,8 3,6 3,48 3,4

PN16 16 16 10,1 9,6 9,28 9,07

PN25 25 25 15,8 15 14,5 14,2

PN40 40 28 28 27 26 25

Table 12. Flow ratios Kvs [m³/h] for unbalanced valve plugs

Table 13. Flow ratios Kvs [m³/h] for balanced valve plugs

NOTE:

Valve seat diameter for balanced valve plug flow ratio Kvs 250 is 126.95 mm.

*)DN125 - special execution, technical data according to individual inquiries.

[mKvs³/h] ^Stroke[mm] Valve

seat diameter

D [mm]

F_D [kN] Nominal size DN Characteristics

Hard valve

seat Soft valve

seat ^{15 20 25 32 40 50 65 80 100 125*)} 150 200 250 L P S

0,010

20

6,35 0,1 0,16

0,016 0,025 0,040 0,063 0,10 0,16 0,25 0,40 0,63 1,0

1,6 9,52 0,15 0,25

2,5 12,7 0,2 0,3

4,0

6,3 19,05 0,3 0,5

10 20,64 0,35 0,5

16 25,25 0,4 0,6

25 31,72 0,5 0,8

40 41,25 0,7 1,0

63 38

50,8 0,8 1,3

94 66,7 1,1 1,7

125 88,9 1,4 2,2

160

250 50 ^{107,92 1,7 2,7}

320 126,95 2,0 3,2

500 63 ^{158,72 2,5 4,0}

630 195 3,1 4,9

Calculated ratios: F_L = 0,9 ; X_T = 0,72 ; Fd = 0,46 ; xFz = 0,65

[mKvs³/h] ^Stroke[mm]

Valve nominal size DN Characteristics

40 50 65 80 100 125^*) 150 200 250 L P S

25 20

40 63 94 38 125 160

250 50

320

500 63

630

Table 14. Available force F_S [kN] of pneumatic actuators

NOTE:

1. For direct actuators P adopted spring range is 20 – 100 kPa

2. For electric and other actuators Δp value can be calculated using above formula and data from Tables 12 and 14, taking nominal load capacity as available force F_S, as per actuator catalog chart.

3. For balanced valve plugs available force Fs at least equal to F_D value for soft valve seats in Table 12 should be adopted.

ALLOWABLE PRESSURE DROPS ∆p.

Pressure drops ∆p [bar] in Tables 15 and 16 apply to closed valve and they are calculated for valve drive poten- tial. Actual pressure drops should not exceed 70% of allowable working pressure for given nominal pressure, material execution and working temperature, as per tables 5…11.

where

∆

p [bar] - calculated pressure drop

Fs [kN] - actuator available force (Table 14)

F_D [kN] - valve plug to valve seat pressure (Table 12) D - valve seat diameter [mm] (Table 12)

Fs = 0,785 • 10^{- 4} • D² •

∆

p + F_D +F_T

∆_{p =} ^{Fs - FD - FT}

0,785 • 10^{- 4} • D^{2 or}

Actuator size

Direct actuator P Reverse actuator R

Supply pressure [kPa] Spring range [kPa]

140 250 400 20 - 100 ^{40 - 120;}_{40 - 200} 60 - 140 80 - 240 120 - 280 180 - 380

250 1,0 3,8 7,5 0,5 1,0 1,5 2,0 3,0 -

400 1,6 6,0 12,0 0,8 1,6 2,4 3,2 4,8 -

630 2,5 9,5 18,9 1,3 2,5 3,8 5,0 7,6 11,3

1000 4,0 15,0 30,0 2,0 4,0 6,0 8,0 12,0 18,0

Table 15. Allowable pressure drops ∆p [bar] for valves with unbalanced valve plugs and hard valve seats, with pneumatic actuators.

Flow ratio Kvs [m³/h]

Valve nominal diameter

DN

Stroke [mm]

Air – to – close Air – to – open

Actuator ∆p [bar] Actuator

[bar]∆p Size Spring range

[kPa] Supply pressure [kPa] _Size Spring range [kPa]

140 250 400

do 4 15; 20; 25; 32; 40; 50

20

250

20-100

40 - -

250

20-100

40-200 ²³40 6,3 20; 25; 32;

40; 50 ^{24 40 -}

20-100 40-200 60-140

247 40

10 25; 32; 40; 50 20 40 -

20-100 40-200 60-140 80-240

205 3440

16

32; 40; 50 12 40 -

20-100 40-200 60-140 80-240 120-280

122 2232 40 65

400

24 40 -

400

20-100 40-200 60-140

248 40

25 40; 50; 65; 80 14 40 -

20-100 40-200 60-140 80-240 120-280

144 2434 40

40 50; 65; 80; 100; 125 6,5 38 40

40-200 60-140 80-240 120-280

126 1829

63

65; 80; 100; 125

38

630 8,5 40 - 630

40-200 60-140 80-240 120-280 180-380

159 2134 40

150 1000 16 40 - 1000 ^40-20080-240

120-280

1636 40

94

80; 100; 125 630 4 24 40 630

40-200 60-140 80-240 120-280 180-380

48 1118 29

150; 200 1000 8 32 40 1000

40-200 80-240 120-280 180-380

208 3140

125; 160

100; 125 630 2 13 28 630

40-200 60-140 80-240 120-280 180-380

24 106 16 150; 200; 250

1000

4 22 40

1000

40-200 80-240 120-280 180-380

104 1726

250 150; 200; 250 50

2,5 14 30

40-200 80-240 120-280 180-380

2,56,5 17,511

320 150; 200; 250 1,5 10 22

40-200 80-240 120-280 180-380

1,54,5 12,58

500 200; 250

63

- 6 14

40-200 80-240 120-280 180-380

2,5- 7,55

630 250 - 4 9

40-200 80-240 120-280 180-380

1,5- 35

*)DN125 - special execution, technical data according to individual inquiries.

Table 16. Allowable pressure drops ∆p [bar] for valves with unbalanced valve plugs and soft valve seats, with pneumatic actuators. Note: 1. In Table 15, theoretical acceptable pressure drops are included. Actual pressure drops with consideration of tolerance of

spring manufacture and friction of internal parts of the actuator are lower than those given by 20%. Pressure drops chosen that way guarantee internal tightness of closing of the valves.

2. In air-to-open valves actuator with spring range of 40-200 [kPa] can be replaced with actuator with spring range of 40-120 [kPa], at the same pressure drops.

3. In valves with balanced valve plugs and hard valve seats for pressure drops up to Δp=40 [bar], actuators are to be selected as below:

- for air-to-close action: spring range 20-100 [kPa], supply pressure 140 [kPa] - for air-to-open action: spring range 40-120 [kPa], or 40-200 [kPa]

Flow ratio Kvs [m³/h]

Valve nominal diameter

DN

Stroke [mm]

Air – to – close Air – to – open

Actuator ∆p [bar] Actuator

[bar]∆p Size Spring range

[kPa] Supply pressure [kPa] _Size Spring range [kPa]

140 250 400

do 4 15; 20; 25; 32; 40; 50

20

250

20-100

35 - -

250

20-100

40-200 ¹⁵35 6,3 20; 25; 32;

40; 50 ^{17 35 - 40-200}60-140 ¹⁷35

10 25; 32; 40; 50 12 35 - ^40-20060-140

80-240

1226 35

16

32; 40; 50 6 35 -

40-200 60-140 80-240 120-280

166 2635 65

400

18 35 -

400

40-200 60-140 80-240

1834 35

25 40; 50; 65; 80 10 35 -

40-200 60-140 80-240 120-280

1020 3035

40 50; 65; 80; 100; 125 3,5 35 -

40-200 60-140 80-240 120-280

3,59 1526

63

65; 80; 100; 125

38

630 6 35 - 630

40-200 60-140 80-240 120-280 180-380

126 1931 35

150 1000 13 35 1000 ^40-20080-240

120-280

1333 35

94

80; 100; 125 630 3 23 35 630

40-200 60-140 80-240 120-280 180-380

37 1018 28

150; 200 1000 7 35 - 1000

40-200 80-240 120-280 180-380

197 3035

125; 160

100 630 - 11 26 630

40-200 60-140 80-240 120-280 180-380

2- 48 14 150; 200; 250

1000

2,5 20 35

1000

40-200 80-240 120-280 180-380

29 1525

250 150; 200; 250 50

1,2 13 29

40-200 80-240 120-280 180-380

15 1016

320 150; 200; 250 - 9 21

40-200 80-240 120-280 180-380

3,5- 11,56,5

500 200; 250

63

- 5 8

40-200 80-240 120-280 180-380

2- 47

630 250 - 3 8

40-200 80-240 120-280 180-380

1- 24

*)DN125 - special execution, technical data according to individual inquiries.

VALVE DRIVES:

1. Diaphragm multi-spring pneumatic actuators w/o manual drive type P/R or with top-mounted handweel type P/R-N – as per Tables 17 and 20.

Table 17. Pneumatic actuators

CHARACTERISTICS:

- complete reversibility of operation allows changing function P (direct action) and R (reverse action) with no additional parts,

- option of changing spring range (tension) with no additional parts, - option of pre-tensioning of springs,

- option of fitting with top-mounted handweel. DESIGN AND TECHNICAL SPECIFICATION: As per Fig. 5.

CONSTRUCTION:

Actuator diaphragm cases (1) and (2) of steel sheets making pressure chamber

Diaphragm (3) of constant effective area, linear relationship between control actuator pressure and plug movement. Executed in neoprene with polyester spacer.

Diaphragm plate (4) stamped from steel sheet, with spring seats. Support (6) is used for tightening and operating the stem.

Springs (7) of construction spring steel. There are 3, 6 or 12 springs regarding the required range.

Bushing (8) and spacers (9) – used for altering actuator action from direct to reverse and altering spring range.

Warning plates (10) with information on safe disassembly. TECHNICAL SPECIFICATION:

Control air connection: NPT 1/4”, NPT 1/2” Pipe diameter: ∅ 6x1, ∅ 8x1, ∅ 10x1, ∅ 12x1

Spring ranges: 20…100 kPa; 40…120 kPa; 60…140 kPa - 3 springs, 40…200 kPa; 80…240 kPa; 120…280 kPa - 6 springs,

180…380 kPa - 12 springs; (only sizes 630-1000).

Max supply pressure: actuator size 250…630 - 600 kPa, for actuator size 1000 - 500 kPa. Actuator ambient temperature range: -40…+80°C

Optional accessories: - top-mounted handweel, - pneumatic positioner, - electro-pneumatic positioner, - air-set,

- three-way solenoid valve, - lock-up,

- limit switches, - quick exhaust valve.

Note:

1. In Table 16, theoretical acceptable pressure drops are included. Actual pressure drops with consideration of tolerance of spring manufacture and friction of internal parts of the actuator are lower than those given by 20%.

Pressure drops chosen that way guarantee internal tightness of closing of the valves.

2. In air-to-open valves actuator with spring range of 40-200 [kPa] can be replaced with actuator with spring range of 40-120 [kPa], at the same pressure drops.

3. In valves with balanced valve plugs and soft valve seats for pressure drops up to ∆p=35 [bar],actuators are to be selected as below:

- for air-to-close action: spring range 20-100 [kPa], supply pressure 140 [kPa] - for air-to-open action: spring range 40-120 [kPa], or 40-200 [kPa]

4. For rotary actuators – R, supply pressure is to be 40 kPa higher than upper spring range [kPa].

Size Diaphragm effective area [cm²] Stroke [mm] Rev per rated stroke (P/R-N)

250 250 20 5

400 400 20 5

630 630 38 9

1000 1000 38; 50; 63 8; 10; 13

Fig. 5. P/R multi-spring actuator

EXTERNAL DIAMETERS AND CONNECTION DIAMETERS, WEIGHTS OF VALVES, PNEUMATIC ACTUATORS AND MANUAL DRIVES

Table 19. Valve connection diameters [mm]

Fig. 6. Valve connection dimensions Note:

1) R and ∅P can be as per customer request 2) R=160 - for electrical actuators

3) L and L₁ - for valve plug location – valve closed 4) L=138 - for electric actuators

2. Electric actuators

There is a possibility of employing any electric or electro-hydraulic actuator following adjustment of connecting elements. Details and technical specifications of electric actuators as per separate catalog charts.

3. NN manual drives

Drives allowing manual operation of valve, adapted to direct assembly on valve (with no extra parts). Table 18. Drive sizes.

Size Stroke [mm] Rev per rated stroke

250 20 5

400 20 5

630 38 9

1000 38; 50; 63 8; 10; 13

DN d₁ d₃ E L L₁ P R

15…25

M12x1,25

12 44

125 111 _{12,5 110}

32…50 118 102 16,5 132

20,5 160

65…100 16 50 122 104 ^{16,5 132}

20,5 160

125…250 M16x1,5 20 ^{95 200 180}

98 138 118 24,5 216

Type R Type P

*)DN125 - special execution, technical data according to individual inquiries.

Fig. 7. Valve external dimensions

Standard bonnet valve with pneu-

matic actuator Expansion or bellows seal valve with pneumatic

actuator Manual drive valve NN

Table 20. Valve dimensions incl. drives [mm].

Note: Dimension A for CL150 and CL300 refers to bodies with valve face B or RF. For other body versions you can calculated A₁ dimension using formulas in Table 21.

Table 22. Valve weights w/o drives [kg]. Table 23. Actuator weights [kg] Table 24. Manual drive weights [kg]

Table 21.

Body _PN ^Marking _ANSI A 1

Groove CL300 D1 GF _A

1= A + 5 x 2

Recess CL300 F1 FF

Ring-joint CL300 DN15

J RTJ

A 1= A + 5,5 x 2

Ring-joint CL150 _A

1= A + 6,5 x 2 Ring-joint CL300 DN20…40

Ring-joint CL300 DN50…250 A 1= A + 8 x 2

Drive Weight NN - 250 5,5 NN - 400 6,5 NN - 630 8,5 NN - 1000 40 DN Standard ^Valve

bonnet Extended and bellow seal bonnet

15 6 9

20 7 10

25 7,5 11

32 9,5 13

40 11,5 16

50 14,5 20

65 20 28

80 28,5 36,5

100 42 50

125 110 135

150 120 135

200 180 195

250 320 335

DN

A G D

PN10…40 Standard _bonnet. H Ext. and

bellow seal bonnet

P/R250 ^P/R400 ^P/R630 1000^{P/R NN}250 400^{NN NN}630 1000^NN 160^{P/R P/R}250 ^P/R400 ^P/R630 1000^{P/R NN}250 ^NN400 ^NN630 1000^NN

15 184 190 130 107 241 306 - - - 290 - - - 210 240 - - - 225 - - - 162

20 184 194 150 107 241 306 - - - 290 - - - 210 240 - - - 225 - - - 162

25 184 197 160 107 241 306 - - - 290 - - - 210 240 - - - 225 - - - 162

32 200 213 180 114 243 306 - - - 290 - - - 210 240 - - - 225 - - - 162

40 222 235 200 118 253 306 312 - - 290 290 - - 210 240 305 - - 225 225 - - 162

50 254 267 230 122 257 306 312 - - 290 290 - - 210 240 305 - - 225 225 - - 162

65 276 292 290 166 410 - 312 402 - - 290 308 - - 305 375 - - 225 305 - 162

80 298 317 310 166 410 - 312 402 - - 290 308 - - 305 375 - - 225 305 - 162

100 352 368 350 173 417 - 312 402 - - 290 308 - - 305 375 - - 225 305 - 162

125 special execution, technical data according to individual inquiries.

150 451 473 480 305 510 - - - 585 - - - 510 - - - 477 - - - 450 240

200 543 568 600 458 623 - - - 585 - - - 510 - - - 477 - - - 450 240

Actuator Weight P / R - 250 10 P / R - N - 250 14,5

P / R - 400 16 P / R - N - 400 20,5

P / R - 630 30 P / R - N - 630 37 P / R - 1000 74 P / R - N - 1000 100

Leakage class:

- basic: class IV 4

- bubble: class IV 6 Valve plug:

- unbalanced 7

- balanced 8

Choke cages:

- no choke cages 0

Plug characteristics and type:

- linear, contoured L

- equal percentage P

- quick-opening, (on-off) S

- other X

Body material:

- grey iron 1

- spheroidal iron 2

- carbon steel 3

- stainless steel 5

- other X

MARKING EXAMPLE:

Control valve type Z with reverse action pneumatic actuator with top-mounted handweel, extension bonnet, expanded graphite stem sealing, leakage class IV, equal percentage contoured plug, execution in stainless steel:

RN-Z-2E470P5 Marking is shown on valve nameplate.

Additional information: - nominal size [DN], - nominal pressure [PN],

- max working temperature [TS], - max working pressure [PS], - test pressure [PT],

- flow ratio [Kvs], - plug stroke [H],

- plug stroke fluid group [1 or 2],

- serial number and year of manufacture. ORDERING:

The order should contain all information as per data questionnaire. Full information can be obtained from the Sales and Marketing Department or Technical and Development Department.

PARTITION AND MARKING

Type and action:

- pneumatic with direct action: P - pneumatic with reverse action: R - pneumatic with top manual drive: PN; RN

- electric: E

- manual: NN

Bonnet:

- standard: 1

- extension: 2

- bellow seal: 3

- other: X

Packing:

- PTFE, braided A

- PTFE, typ V B

- PTFE, for oxygen C

- graphite, braided D

- graphite, expanded E

- TA-Luft, PTFE F

- TA-Luft, graphite G

- Z - ₀

NOTES:
