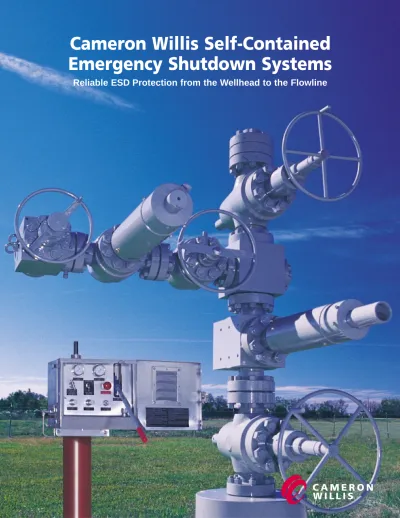

Cameron Willis Self-Contained
Emergency Shutdown Systems
C
ameron Willis Self-Contained Emergency Shutdown (ESD) Systems are used to hydraulically actuate gate valves in remote locations. As the nameimplies, these systems are totally self-contained and operate as ESD to automatically shut-in production in an emergency situation. Such systems
are ideal for use in on production well-heads or pipelines in remote locations such as deserts, rain forests, arctic envi-ronments, jungles or any area where supervision is minimal or no additional power source is available.
Cameron Willis Self-Contained ESD Systems feature reliable, field-proven Cameron Willis Saf-T-Gard™ hydraulic actuators mounted on Cameron FLS gate valves. The Cameron Willis con-trol system contains the sensors and hydraulic power source necessary to close the valve when an abnor-mal condition detected. For example, when the system is in automatic mode and flowline pressure increases above or below the pres-sure sensors “high” or “low”
set-tings, the system automatically closes the valve and shuts in the well.
Or, if a fire occurs, the eutectic on the fusible plug melts and the system automatically closes the valve and shuts in the well. The system can also be operated in manual mode where simple operation of a needle valve opens or closes the valve.
Cameron Willis Self-Contained ESD Systems are available in 1-13/16” through 7” nominal
valve sizes and work-ing pressures up to 15,000 psi. Two
ver-sions are available, a single pump and a double pump type which can be used when control of a master valve and subsurface safety valve (SSV) is required from
one control box. Options include actuator-mounted or stand-mounted installation, enclosed panel or non-enclosed
panel, anti-theft shroud, panel-mounted or field-mounted pressure sensors, electric position indicators and first-out indicators. In addition, fusible plugs are available in temperature ranges 160°F, 212°F and 283° F. Solar
powered pneumatic and solar powered hydraulic systems are also available.
Features and Benefits
•System incorporates reliable, field-proven Cameron FLS gate valves, Cameron Willis Saf-T-Gard actuators and control panel from a single source.
•Automatic control for master valves and subsurface safety valves provides safety in remote locations. •Self-contained power source is ideal for remote areas,
wells without power, or sites with minimal supervision. •Available in single-and double-pump configurations to
control a single gate valve or a gate valve and SSV. •Closed loop hydraulic circuitry ensures
contaminant-free, long lasting supply of operating fluid.
•Field-proven in extreme warm and cold environments.
•High/low pressure sensors provide flowline pressure monitoring to preset values.
•Hydraulic accumulator accommodates temperature induced volume changes of the fluid contained in the closed circuit.
•Fusible plug ensures shutdown in case of fire.
•All components housed in secure stainless steel enclo-sure which meets the requirements for operation in hazardous locations without the need to purge the box. •Control panel can be mounted to the actuator or to
a nearby stand to accommodate a variety of field situations.
N2 A-1 L-1Fusible Plug 6T D-1 PSH PSL Flowline Sense 6T 6T SSV E-1 M -1 C -1 N-1 J -1 P-1 K-1 G -1 H -1 B-1 Set @ 5,000 psi F -1 900 PSI Pre-Charge ESD Pull to Shut In Set @ 150 PSI Set @ 100 PSI N2 N2 A-1 N-1 4T 6T SSV SCSSV E-1 M-1 M-2 Q-1 H-1 C-1 K-1 P-1 S-1 P-2 B-1 R-1 K-2 G-1 F-1 J-1 D-1 E-2 6T 6T PSH PSL L-1 Fusible Plug Flowline Sense ESD Pull to Shut In Set @ 5,000 psi Set @ 100 psi Set @ 150 psi 900 psi Pre-Charge 900 psi Pre-Charge Set @ 5,000 psi N2 N2 N-1 4T 6T SSV SCSSV E-1 M-1 M-2 Q-1 H-1 C-1 K-1 P-1 S-1 P-2 B-1 K-2 G-1 F-1 J-1 D-1 E-2 6T 6T PSH PSL L-1 Fusible Plug Flowline Sense ESD Pull to Shut In Set @ 5,000 psi Set @ 100 psi Set @ 150 psi 900 psi Pre-Charge 900 psi Pre-Charge Set @ 10,000 psi A-1 A-2 B-1
Self-Contained SSV Control System Standard Arrangement
Operating Procedure
Place (K-1) the hydraulic dump valve in bypass, by turn-ing the handle in the bypass position. Hand pump (B-1) to the required actuator operating pressure. This pressure can be seen on pressure gauge (E-1). When the flowline pressure is between the low (F-1) ad the high (G-1) pressure sensor set points, the 100 regulated pressure from (C-1), which can be seen on pressure gauge (D-1) will flow through the low sen-sor (G-1) and high sensen-sor (F-1) allowing the 100 psi to hold (K-1) hydraulic dump valve closed. Now take (K-1) out of bypass by turning the handle to the in-service position. The system is now in service. If an ESD, fire, or PSHL occurs, the pilot pressure from (K-1) dump valve will be removed, allowing (K-1) to dump the fluid from the actuator back into the reservoir, closing the surface safety valve (SSV).
A. Suction Strainer B. Hand Pump C. Regulator D. Pressure Gauge, 0-200 psi E. Pressure Gauge, 0-6000 psi F. High Pressure Sensor
G. Low Pressure Sensor H. Relief Valve J. ESD Valve K. 2 Way N. O. Dump
Valve with Manual Override
L. Hydraulic Fusible Plug
M. 5000 psi Accumulator N. Filler/Breather P. Relief Valve Q. Flow Control R. 10,000 psi Hand Pump S. Low Pressure Accumulator Material List A. Suction Strainer B. Hand Pump C. Regulator D. Pressure Gauge, 0-200 psi E. Pressure Gauge, 0-6000 psi
F. High Pressure Sensor G. Low Pressure Sensor H. Relief Valve J. ESD Valve K. 2 Way N. O. Dump
Valve with Manual Override
L. Hydraulic Fusible Plug M. 5000 psi Accumulator N. Filler/Breather P. Relief Valve Material List A. Suction Strainer B. Hand Pump C. Regulator D Pressure Gauge, 0-200 psi E. Pressure Gauge, 0-6000 psi F. High Pressure Sensor
G. Low Pressure Sensor H. Relief Valve J. ESD Valve K. 2 Way N. O. Dump
Valve with Manual Override
L. Hydraulic Fusible Plug
M. 5000 psi Accumulator N. Filler/Breather P. Relief Valve Q. Flow Control R. 3-Way Valve S. Low Pressure Accumulator Material List
Self -Contained SSV and SCSSV 5000 psi Control System Standard Arrangement
Self-Contained SSV and SCSSV Control Systems
Self -Contained SSV and SCSSV 10,000 psi Control System Standard Arrangement
SSV Control Panel
The control system for a typical Cameron Willis Self-Contained ESD System is incorporated into a 316 stain-less steel enclosure with a mounting bracket. Connectors are mounted on the side of the panel for ease of installa-tion in virtually any field layout.
A typical controls system enclosure includes the fol-lowing components: Hydraulic hand pump to provide the
necessary output pressure to the actuator. Closed loop hydraulic circuitry for maintenance of hydraulic pressure. Hydraulic accumulator with 900 psi nitrogen pre-charge for thermal expansion. Relief valves on both high pres-sure and low prespres-sure hydraulic circuits. ESD valve for emergency shutdown. Pressure gauges to monitor output pressures for the high pressure and low pressure circuit.
SSV PRESSURE PILOT SUPPLY REGULATOR HIGH PILOT LOW PILOT ESO PULL TO CLOSE PLOT PRESSURE PLOT PRESSURE PLOT PRESSURE HAND PUMP PILOT MODE SELECTOR IN SERVICE psi 3000 1000 2000 4000 5000 6000 0 psi 100 140 60 40 160 20 180 200 0 Actuator Bonnet
Wing Valve Flow Line Control Panel EMERGENCY SHUTDOWN Fusible Plug ESD Station Needle Valve Sense Line
Typical Cameron-Willis ESD Control System
Cameron-Willis ESD System wit Pole-Mounted Control Panel Controlling Single SSV 2 3 4 7 8 9 5 6 1
SSV Control Panel Features
Item Schematic Name
Reference
1 D-1 Pilot Pressure
2 E-1 SSV Pressure
3 K-1 Turn Clockwise to Override Pilots
4 K-1 Turn Counterclockwise for
Normal Operation
5 Q-1 Pilot Mode Sector In-Service/Test
6 J-1 ESD Pull to Close
7 G-1 Low Pilot
8 F-1 High Pilot
9 C-1 Pilot Supply Regulator
10 B-1 Hand Pump
10
The Cameron Willis self-powered control system provides a hydraulic power to remote areas.
The Cameron-Willis ESD System Brings Customers the Cameron Single Source Advantage
From the wellhead to the control panel, from installation to field serv-ice, Cameron Willis Self-Contained ESD Systems bring the full support of Cameron’s vast product knowl-edge and technical expertise.
Each system starts with Cameron’s highly successful S and IC Wellhead Systems. Next, Cameron offers a choice of popular gate valves including the rugged FLS Gate Valve. The addition of
Cameron-Willis H2 Production Chokes and a full line of Saf-T-Gard™ Actuators com-pletes the Christmas tree assembly. The addition of the Cameron Willis ESD Control System completes the all-Cameron ESD system with reliable compo-nents from just one source.
Additional benefits come from Cameron’s CAMSERV™
Aftermarket Services Program that provides a full range of installation, maintenance and repair services any time, anywhere in the world.
No one can match the ability of Cameron to provide such complete solutions for such a wide variety of applications.
One Source. One Choice.
Cameron Willis.
