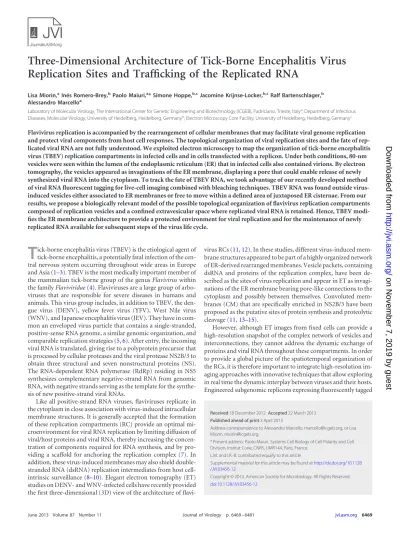

Replication Sites and Trafficking of the Replicated RNA
Lisa Miorin,aInés Romero-Brey,bPaolo Maiuri,a* Simone Hoppe,b,cJacomine Krijnse-Locker,b,cRalf Bartenschlager,b Alessandro Marcelloa
Laboratory of Molecular Virology, The International Center for Genetic Engineering and Biotechnology (ICGEB), Padriciano, Trieste, Italya
; Department of Infectious Diseases, Molecular Virology, University of Heidelberg, Heidelberg, Germanyb
; Electron Microscopy Core Facility, University of Heidelberg, Heidelberg, Germanyc
Flavivirus replication is accompanied by the rearrangement of cellular membranes that may facilitate viral genome replication and protect viral components from host cell responses. The topological organization of viral replication sites and the fate of rep-licated viral RNA are not fully understood. We exploited electron microscopy to map the organization of tick-borne encephalitis virus (TBEV) replication compartments in infected cells and in cells transfected with a replicon. Under both conditions, 80-nm vesicles were seen within the lumen of the endoplasmic reticulum (ER) that in infected cells also contained virions. By electron tomography, the vesicles appeared as invaginations of the ER membrane, displaying a pore that could enable release of newly synthesized viral RNA into the cytoplasm. To track the fate of TBEV RNA, we took advantage of our recently developed method of viral RNA fluorescent tagging for live-cell imaging combined with bleaching techniques. TBEV RNA was found outside virus-induced vesicles either associated to ER membranes or free to move within a defined area of juxtaposed ER cisternae. From our results, we propose a biologically relevant model of the possible topological organization of flavivirus replication compartments composed of replication vesicles and a confined extravesicular space where replicated viral RNA is retained. Hence, TBEV modi-fies the ER membrane architecture to provide a protected environment for viral replication and for the maintenance of newly replicated RNA available for subsequent steps of the virus life cycle.
T
ick-borne encephalitis virus (TBEV) is the etiological agent of tick-borne encephalitis, a potentially fatal infection of the cen-tral nervous system occurring throughout wide areas in Europe and Asia (1–3). TBEV is the most medically important member of the mammalian tick-borne group of the genusFlaviviruswithin the familyFlaviviridae(4). Flaviviruses are a large group of arbo-viruses that are responsible for severe diseases in humans and animals. This virus group includes, in addition to TBEV, the den-gue virus (DENV), yellow fever virus (YFV), West Nile virus (WNV), and Japanese encephalitis virus (JEV). They have in com-mon an enveloped virus particle that contains a single-stranded, positive-sense RNA genome, a similar genomic organization, and comparable replication strategies (5,6). After entry, the incoming viral RNA is translated, giving rise to a polyprotein precursor that is processed by cellular proteases and the viral protease NS2B/3 to obtain three structural and seven nonstructural proteins (NS). The RNA-dependent RNA polymerase (RdRp) residing in NS5 synthesizes complementary negative-strand RNA from genomic RNA, with negative strands serving as the template for the synthe-sis of new positive-strand viral RNAs.Like all positive-strand RNA viruses, flaviviruses replicate in the cytoplasm in close association with virus-induced intracellular membrane structures. It is generally accepted that the formation of these replication compartments (RC) provide an optimal mi-croenvironment for viral RNA replication by limiting diffusion of viral/host proteins and viral RNA, thereby increasing the concen-tration of components required for RNA synthesis, and by pro-viding a scaffold for anchoring the replication complex (7). In addition, these virus-induced membranes may also shield double-stranded RNA (dsRNA) replication intermediates from host cell-intrinsic surveillance (8–10). Elegant electron tomography (ET) studies on DENV- and WNV-infected cells have recently provided the first three-dimensional (3D) view of the architecture of
flavi-virus RCs (11,12). In these studies, different virus-induced mem-brane structures appeared to be part of a highly organized network of ER-derived rearranged membranes. Vesicle packets, containing dsRNA and proteins of the replication complex, have been de-scribed as the sites of virus replication and appear in ET as invagi-nations of the ER membrane bearing pore-like connections to the cytoplasm and possibly between themselves. Convoluted mem-branes (CM) that are specifically enriched in NS2B/3 have been proposed as the putative sites of protein synthesis and proteolytic cleavage (11,13–15).
However, although ET images from fixed cells can provide a high-resolution snapshot of the complex network of vesicles and interconnections, they cannot address the dynamic exchange of proteins and viral RNA throughout these compartments. In order to provide a global picture of the spatiotemporal organization of the RCs, it is therefore important to integrate high-resolution im-aging approaches with innovative techniques that allow exploring in real time the dynamic interplay between viruses and their hosts. Engineered subgenomic replicons expressing fluorescently tagged
Received18 December 2012Accepted22 March 2013
Published ahead of print3 April 2013
Address correspondence to Alessandro Marcello, [email protected], or Lisa Miorin, [email protected].
* Present address: Paolo Maiuri, Systems Cell Biology of Cell Polarity and Cell Division, Institut Curie, CNRS, UMR144, Paris, France.
L.M. and I.R.-B. contributed equally to this article.
Supplemental material for this article may be found athttp://dx.doi.org/10.1128 /JVI.03456-12.
Copyright © 2013, American Society for Microbiology. All Rights Reserved.
doi:10.1128/JVI.03456-12
on November 7, 2019 by guest
http://jvi.asm.org/
nonstructural proteins (16–18) have been exploited to investigate the distribution and dynamics of HCV replicase proteins. How-ever, the only available tool to explore flaviviral RNA trafficking has been reported for TBEV (19). The method is based on TBEV replicons containing multiple high-affinity binding sites for the phage MS2 core protein fused to an autofluorescent protein. Rep-licated viral RNA could then be visualized in living cells, thus providing the first description of flavivirus RNA dynamics in liv-ing cells (19).
In this work, we took advantage of immunoelectron copy (immuno-EM), thin-section transmission electron micros-copy (TEM), and high-resolution ET in combination with live-imaging approaches for TBEV RNA to identify replication compartments in infected and replicon-transfected cells. We pre-cisely mapped the spatial organization of virus-induced mem-branes and vesicles and studied the mobility of replicated viral RNA. We propose a model where replication vesicles and the ex-travesicular space form an optimized environment to support ef-ficient virus replication.
MATERIALS AND METHODS
Cells, viruses, and plasmids.Baby hamster kidney (BHK-21) and African green monkey (Vero E6) cell lines were grown under standard conditions in Dulbecco’s modified Eagle medium (DMEM) supplemented with 10% fetal bovine serum. BHK21-enhanced yellow fluorescent protein (EYFP)-MS2nls cells are a cell pool stably expressing EYFP-(EYFP)-MS2nls and blasticidin S-deaminase, and they were cultured in the presence of 10g/ml blasti-cidin. Lentiviral particles for the transduction of the EYFP-MS2nls gene were prepared in 293T cells exactly as described previously (20) using pWPI-BLR-EYFP-MS2nls and packaging constructs pCMVR8.91 and pMD.G (provided by Didier Trono). Working stocks of TBEV strain Neu-doerfl were propagated and titrated on Vero E6 cells. pWPI-BLR-EYFP-MS2nls was used to generate a cell line constitutively expressing the MS2nls protein suitable for immuno-EM studies. The EYFP-MS2nls gene was isolated from pEYFP-EYFP-MS2nls (21) by XbaI digestion and then inserted into the multiple cloning site (MCS) of the pWPI-BLR vector (provided by Volker Lohmann) via the SpeI restriction site. The construct pTNd/⌬ME_24⫻MS2, the replication-deficient TNd/ ⌬ME_24⫻MS2_GAA replicon carrying the GDD-to-GAA mutation in the viral NS5 protein, and the pMS2-EYFP, pEYFP-MS2nls, and pCherry-MS2nls vectors used for visualization purposes were previ-ously described (19,21).
RNA transcription and transfection.Subgenomic replicon RNAs were transcribedin vitroas described in detail elsewhere (19,22). A total of 4⫻106cells were resuspended in 400l ice-cold phosphate-buffered
saline (PBS) and mixed in a 0.4-cm gene-pulser cuvette with 10g of RNA to be electroporated with a Bio-Rad Gene Pulser apparatus at 0.25 kV with a capacitance of 960F (19). After electroporation, cells were washed in complete growth medium without antibiotics and seeded in the same medium.
Sample staining and imaging for indirect immunofluorescence analysis.Immunofluorescence (IF) analysis was performed 24 h upon infection or transfection. Cells were washed with PBS, fixed with 4% para-formaldehyde (PFA) for 15 min, incubated for 5 min with 100 mM gly-cine, and permeabilized with 0.1% Triton X-100 for 5 min. Subsequently, the cells were incubated at 37°C for 30 min with PBS, 1% bovine serum albumin (BSA), and 0.1% Tween 20 before incubation with antibodies. The coverslips were rinsed three times with PBS-0.1% Tween 20 (washing solution) and incubated for 1 h with secondary antibodies. Donkey anti-bodies specific for rabbit or mouse immunoglobulin G and conjugated to Alexa Fluor 594 or Alexa Fluor 488 (Molecular Probes) were used for this analysis. Coverslips were finally washed three times with washing solution and mounted on slides using Vectashield mounting medium (Vector Lab-oratories). For the detection of viral antigens, we used the following
anti-bodies: mouse monoclonal antibody detecting NS1 (provided by Connie Schmaljohn), polyclonal rabbit anti-TBEV serum that can be used for both structural and nonstructural protein detection (23) (provided by Franz X. Heinz), and polyclonal rabbit anti-prM serum (provided by Franz X. Heinz). The J2 mouse monoclonal anti-dsRNA antibody (Eng-lish and Scientific Consulting, Szirak, Hungary) was used to detect repli-cation complexes, whereas for the ER staining we used the mouse mono-clonal anti- protein disulfide isomerase (PDI; AB2792; Abcam) antibody. Fluorescent images of fixed cells were captured on a Zeiss LSM510 META confocal microscope with a 63⫻Plan-Apochromat oil objective having a 1.4 numerical aperture (NA). The pinhole of the microscope was adjusted to get an optical slice of less than 1.0m for any wavelength acquired.
Epoxy embedding of cells for transmission electron microscopy. BHK-21 cells grown on 10-cm-diameter dishes were infected with TBEV at a multiplicity of infection (MOI) of 2 or transfected within vitro tran-scribed TNd/⌬ME_24⫻MS2 replicon RNA. After 24 h, cells were washed 3 times with prewarmed PBS and fixed for 30 min with 2.5% glutaralde-hyde (GA) in 50 mM Na-cacodylate buffer (pH 7.4) containing 1 M KCl, 0.1 M MgCl2, 0.1 M CaCl2, and 2% sucrose. Cells were washed 5 times for
5 min each with 50 mM Na-cacodylate buffer and postfixed on ice in the dark with 2% OsO4in 50 mM Na-cacodylate buffer for 40 min. After the
cells were washed overnight in distilled water, they were treated with 0.5% uranylacetate (UA; dissolved in water) for 30 min, rinsed thoroughly with water, and dehydrated in a graded ethanol series at room temperature (40%, 50%, 60%, 70%, and 80%, 5 min each; then 95% and 100%, 20 min each). Cells were immersed in 100% propylene oxide and immediately embedded in an Araldite-Epon mixture (Araldite 502/Embed 812 kit; Electron Microscopy Sciences). After polymerization at 60°C for 2 days, embedded cells were sectioned using a Leica Ultracut UCT ultrami-crotome and a 35° diamond knife (Diatome, Biel, Switzerland). Sections with a thickness of 60 nm were collected onto 100-mesh copper grids that had been coated with Formvar (Plano, Wetzlar, Germany) and coated with carbon. Sections were counterstained with 2% lead citrate in H2O for
2 min. Samples were analyzed by using a Biotwin CM120 Philips electron microscope (100 kV) equipped with a bottom-mounted 1K charge-cou-pled-device (CCD) camera (Keen View; SIS, Münster, Germany).
Immunolabeling of thawed cryosections.TBEV-infected and repli-con-transfected cells were fixed by adding an equal amount of 8% PFA and 0.2% GA in 0.2 M PHEM buffer (120 mM Pipes, 100 mM HEPES, 4 mM MgCl2, 40 mM EGTA, pH 6.9) to the culture medium for 1 h at room
temperature. Cells were then fixed for 1 h with 4% PFA and 0.1% GA in 0.1 M PHEM at room temperature. The fixative was removed and the cells were stored at 4°C in 4% PFA in 0.1 M PHEM until further processing. After extensive washing with 0.1 M PHEM, remaining aldehyde groups were blocked with 30 mM glycine in 0.1 M PHEM. Cells were scraped off the plate, embedded in 10% gelatin, and infiltrated in 2.3 M sucrose over-night at 4°C. Cell pellets were mounted onto sample holder pins, frozen, and stored in liquid nitrogen. Cryosections (60 nm) were prepared using a Leica Ultracut UC6 microtome (Leica Microsystems, Wetzlar, Ger-many) and a diamond knife (Diatome, Biel, Switzerland). Sections were picked up with a mixture of 2% methylcellulose and 2.3 M sucrose (1:1) and, after being thawed, were transferred to 100-mesh Formvar- and car-bon-coated grids. Labeling of thawed cryosections was performed essen-tially as described elsewhere (24). In brief, sections were molten by float-ing on 2% gelatin for 30 min at 37°C and incubated in 30 mM glycine in PBS for 10 min and then at 30 min at room temperature in blocking solution (PBG; 0.8% [wt/vol] BSA [Sigma], 0.1% [wt/vol] fish skin gelatin [Sigma] in PBS). Sections were then incubated with primary antibody diluted in blocking buffer, for 30 min at room temperature. After being washed 5 times, for 5 min each time, in blocking buffer, sections were incubated with rabbit anti-mouse antibody followed by protein A coupled to 10-nm gold particles (Cell Microscopy Center, Utrecht, The Nether-lands) diluted in blocking solution. After being washed with PBS and distilled water, grids were contrasted with a mix of 2% methylcellulose and 3% UA (1:6) for 10 min on ice.
Miorin et al.
on November 7, 2019 by guest
http://jvi.asm.org/
Electron tomography.Sections of 250-nm thickness were collected on palladium-copper slot grids (Science Services, Munich, Germany) coated with Formvar (Plano, Wetzlar, Germany). Protein A-gold (10 nm) was added to both sides of the sections as fiducial markers. Single- and dual-axis tilt series were acquired with an FEI Tecnai TF30 microscope operated at 300 kV and equipped with a 4k FEI Eagle camera (binning factor 2, on the specimen level) over a⫺65° to 65° tilt range (increment of 1°) and at an average defocus of⫺0.2m. Tomograms were recon-structed using the weighted back projection method implemented in the IMOD software package (version 3.11.5) (25). Rendering of the three-dimensional surface of the tomograms was performed by using the AMIRA visualization software package (version 5.4.2; Visage Imaging, Berlin, Germany). Models were generated from unfiltered and 2⫻binned tomograms by manually masking areas of interest, thresholding, and smoothing labels.
Microscopy and live imaging acquisition.BHK-21 cells were electro-porated with the TBEV replicons’ RNA and plated on glass-bottom plates (MatTek, Ashland, MA). For the visualization of the viral RNA, cells were cotransfected either with MS2-EYFPnls, expressing a hybrid protein com-posed by the core protein of the MS2 bacteriophage fused to EYFP and to a nuclear localization signal (NLS), or with the same construct without the NLS. At the appropriate time point posttransfection, cells were trans-ferred on a humidified and CO2-controlled on-stage incubator (PeCon
GmbH, Erbach, Germany) at 37°C in complete DMEM without phenol red for live cell imaging. For fluorescence recovery after photobleaching (FRAP) experiments, images of 512 by 512 pixels (29.25 by 29.25m) and optical thickness of 1m were acquired using 1% or less of the power of the 514-nm laser line. EYFP was bleached at 514 nm (Argon laser; maxi-mum output of 500 of milliwatts) in a circle of 30 pixels of diameter, at full laser power, for 10 passages. For fluorescence loss in photobleaching (FLIP) measurements, images were acquired as described above, and bleaching was performed at every acquisition. Images were analyzed with ImageJ (W. S. Rasband, ImageJ; National Institutes of Health, Bethesda, MA;http://rsb.info.nih.gov/ij/).
RESULTS
Subcellular localization of TBEV proteins and dsRNA in
in-fected cells.As a first step to study the organization of TBEV
replication sites, we characterized by immunofluorescence the subcellular localization of proteins and dsRNA in virus-infected BHK-21 cells. At 24 h postinfection (hpi), viral proteins detected with a polyclonal TBEV-specific antiserum (predominantly rec-ognizing the structural protein E and NS1) were localized in the perinuclear region and in discrete and irregularly shaped foci (Fig. 1A). As expected, these structures partially colocalized with NS1-containing cytoplasmic foci (Fig. 1A) as well as with the dsRNA replication intermediate (Fig. 1B), a well-accepted marker for flaviviral replication vesicles (11,12,15,26). A similar distri-bution pattern was observed with the prM-specific antibody that also showed partial colocalization with NS1 cytoplasmic foci (Fig. 1C). In addition, coimmunolocalization studies of viral pro-teins and the rER marker protein disulfide isomerase (PDI) sug-gested that ER-derived membranes provide the framework for the membranous TBEV replication compartments (Fig. 1D). These data are in agreement with our previous observations for the MS2-tagged TBEV replicon where newly synthesized viral RNA associ-ates with viral proteins and dsRNA replication intermediassoci-ates in rER-derived cytoplasmic compartments (8,19).
Electron tomography analysis of TBEV-induced membrane
alterations.To reveal the three-dimensional organization of
vi-rus-induced membrane alterations, we performed a detailed ET analysis of TBEV-infected cells. At 24 hpi, BHK-21 cells were fixed, resin embedded, and sectioned as described in Materials and
Methods. Tomograms from 250-nm-thick sections were acquired and reconstructed. As shown inFig. 2, TBEV infection induced membrane alterations reminiscent of those previously described for mosquito-borne flaviviruses like DENV and WNV (11,12,27) and more recently also for Langat virus (LGTV), a naturally atten-uated tick-borne flavivirus (28). Virus-induced single-membrane vesicles (Ve) with a diameter of 80 nm (⫾10.6 nm;n⫽70) were observed in the lumen of a dilated rER and appeared to be part of an elaborate reticulovesicular network of interconnected mem-branes (Fig. 2AandB). ER-derived cisternae filled with viral par-ticles in the proximity of virus-induced vesicles, as well as individ-ual virions trafficking throughout the secretory pathway, could also be detected (see Movie S1 in the supplemental material). In addition, during our studies, we frequently noticed virus particles with a diameter of about 40 nm (Fig. 2AandC, yellow arrow-heads) and TBEV-induced vesicles sharing the same ER lumen (Fig. 2B; see also Movie S1 in the supplemental material). This finding supports the notion that replication, occurring in vesicles, and assembly of new virions takes place in very close proximity (11).
In agreement with earlier reports (11,12,28,29), detailed to-mographic analysis revealed pore-like structures (Fig. 2C; yellow arrowheads) connecting the lumen of the vesicles to the cytosol. These pore-like openings could be detected in approximately 50% of the vesicles included in these tomograms (n⫽14) (Fig. 2D). In addition, we found that adjacent/neighboring vesicles were fre-quently tightly packed, but pore-like openings between them were not observed (Fig. 2E). This observation differs from what has been previously reported for WNV (12) or LGTV (28). Whether this depends on the virus or the cell type or the sample preparation method remains to be established.
Association of viral proteins with ER-derived membrane
al-terations induced in infected cells.To further characterize the
ultrastructural modifications induced by TBEV infection and to allocate viral proteins to specific membrane alterations, we per-formed immuno-EM experiments on TBEV-infected BHK-21 cells. Thawed cryosections labeled with antibodies against the ER marker PDI clearly showed that virus-induced vesicles as well as newly assembled immature virions (Vi; arrowheads) localize in the lumen of a dilated and rearranged ER compartment (Fig. 3A), thus supporting our earlier immunofluorescence microscopy studies (Fig. 1D) (19). A monoclonal antibody to the NS1 protein (30) was used to mark TBEV-induced replication vesicles. As shown inFig. 3B andC, gold particles predominantly labeled 80-nm virus-induced vesicles that were frequently located in the proximity of ER cisternae containing progeny virions (arrow-heads). However, NS1 could also be detected in the lumen of the ER or within the Golgi compartment, consistent with its putative roles in different steps of the viral life cycle (data not shown). TBEV-induced vesicles were also efficiently labeled with the rabbit polyclonal anti-TBEV serum we previously used for immunoflu-orescence analysis of infected BHK-21 cells, which recognizes both NS1 and the structural protein E (Fig. 3D). Attempts to label replication sites in immuno-EM with the J2 antibody against dsRNA or with other antibodies raised against NS3 or NS5 were unsuccessful. Viral particles trafficking toward the Golgi compart-ment were also labeled with the polyclonal anti-TBEV serum (Vi; arrowheads). In addition, antibodies against the structural protein prM showed specific labeling of TBEV particles (Fig. 3EandF). These particles were either located in the lumen of the ER,
on November 7, 2019 by guest
http://jvi.asm.org/
quently adjacent to virus-induced vesicles, or accumulated within dilated ER cisternae, arguing that they represent newly assembled progeny virions.
Ultrastructural analysis of replicon-transfected BHK-21
cells.The ultimate goal of this study was to address TBEV RNA
trafficking within virus-induced intracellular compartments by exploiting the MS2-based replicon system we previously estab-lished (19). In order to ascertain that transfection of MS2-tagged TBEV-derived subgenomic replicons induces the same character-istic membrane alterations observed upon virus infection, we con-ducted the analogous analysis as described above and compared the morphology of membranous structures by using semithick sections (250 nm) prepared from replicon-transfected or virus-infected cells. For this set of experiments, we used BHK21-EYFP-MS2nls cells transduced with lentiviral vectors expressing the
nu-clear variant of the EYFP-MS2 fusion protein. Previously, in order to tag TBEV replicons, we always used a form of EYFP-tagged MS2 that localized both in the nucleus and in the cytoplasm (8,19,31). However, we noticed that the accumulation of tagged TBEV RNA in the cytoplasm corresponded to a depletion of the MS2 nuclear stain. Therefore, in order to increase the signal-to-noise ratio in the cytoplasm, we exploited an EYFP-MS2 protein with a nuclear localization signal (NLS) for exclusive nuclear localization in the absence of TBEV replication. EYFP-MS2nls remains associated with the replicated TBEV RNA carrying the MS2 binding sites in the cytoplasm against a dark background, offering a better tool for both dynamic and ultrastructural studies. As shown inFig. 4A, extensive colocalization of EYFP-MS2nls with dsRNA was ob-served in the ER-derived perinuclear compartment in cells trans-fected with the TNd/⌬ME_24⫻MS2 wild-type replicon, whereas
FIG 1Localization of TBEV proteins and dsRNA in BHK-21-infected cells. BHK-21 cells were either mock infected (MOCK; right) or infected with TBEV at an MOI of 2 (TBEV; left). After 24 h, cells were fixed and processed for immunofluorescence as described in Materials and Methods. (A) Cells costained with the anti-TBEV antiserum (TBEV; Alexa Fluor 594, red) and with the monoclonal anti-NS1 antibody (NS1; Alexa Fluor 488, green); (B) cells costained with the anti-TBEV antiserum (TBEV; Alexa Fluor 594, red) and with the J2 monoclonal anti-dsRNA antibody (dsRNA; Alexa Fluor 488, green); (C) cells costained with the anti-prM antiserum (prM; Alexa Fluor 594, red) and with the monoclonal anti-NS1 antibody (NS1; Alexa Fluor 488, green); (D) cells costained with the anti-TBEV antiserum (TBEV; Alexa Fluor 594, red) and with the anti-PDI monoclonal antibody (PDI; Alexa Fluor 488, green). The zoomed images shown in the middle panels correspond to boxed regions in the left panels.
Miorin et al.
on November 7, 2019 by guest
http://jvi.asm.org/
[image:4.585.45.541.66.468.2]control cells transfected with the replicon carrying an inactive NS5 RdRp showed only nuclear localization of EYFP-MS2nls (Fig. 4B). Detailed tomographic analysis of cells fixed 24 h after transfection revealed rather small rER cisternae in comparison to infected cells.
These smaller ER tubules form a network of fragmented ER in the perinuclear region of transfected cells (Fig. 4C; see also Movies S3 and S4 in the supplemental material). Nevertheless, vesicles were observed in the rER lumen, having an average diameter of 85 nm

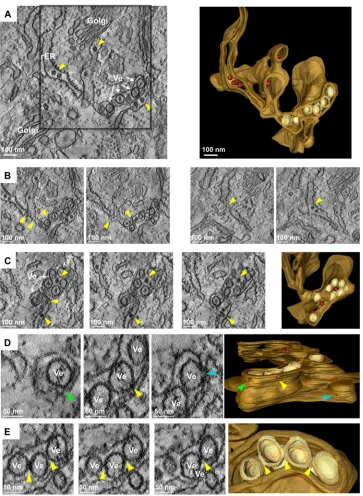

FIG 2Ultrastructural analysis of the membrane alterations induced by TBEV infection. (A) BHK-21 cells were infected with TBEV at an MOI of 2, fixed 24 hpi, and processed for ET as described in Materials and Methods. Left, tomographic slice of a dual-axis tomogram, shown in Movie S2 in the supplemental material. Upon infection, vesicles (Ve) and virions (yellow arrowheads) were observed in the lumen of the rough ER. Right, 3D surface reconstruction of the whole tomogram displaying the TBEV-induced vesicles (in light yellow) in the lumen of the ER (in light brown), as well as virions (in dark red). (B) Two examples (left and right) of tomographic slices through the whole tomogram depicting connections between ER tubules (yellow arrows). (C) Left, tomographic slices of the same dual-axis tomogram depicting several of these vesicles in the lumen of the ER in close proximity to newly assembled virions (yellow arrows), also observed in the Golgi apparatus (see Movie S1); right, 3D surface rendering of the same area displaying the TBEV-associated vesicles (in light yellow) sharing the ER lumen with TBE virions (in dark red) and surrounded by ER membranes (in light brown). (D) Left, serial single slices depicting openings of several TBEV-induced vesicles to the cytosol (green, yellow, and blue arrows); right, XZ view of the 3D reconstruction of the whole tomogram displaying these openings toward the cytosol (arrows with matching colors). (E) Left, slices through the tomogram showing tight contacts of TBEV-induced vesicles with their neighboring vesicles (yellow arrows); right, 3D reconstruction displaying these contacts between vesicles. Note that openings connecting vesicles were not observed in these tomograms.
on November 7, 2019 by guest
http://jvi.asm.org/
[image:5.585.112.475.64.560.2](⫾19.6 nm;n ⫽70). In addition, similar to what we found in infected cells, most of the vesicles (75%;n⫽35) detected in rep-licon-transfected cells had a pore-like opening toward the cytosol (Fig. 4D). Based on the similarity between replicon- and infec-tion-induced membranous structures and by analogy to dengue virus (11), we concluded that TBEV-induced vesicles play a role in virus replication.
Immuno-EM analysis of replicon-transfected BHK-21 cells.
Membrane alterations observed upon transfection of MS2-tagged subgenomic replicons were then further characterized by im-muno-EM (Fig. 5). As already suggested by our detailed three-dimensional analysis of replicon-induced ultrastructural changes (Fig. 4; see also Movies S3 and S4 in the supplemental material), PDI labeling clearly confirmed that TBEV-induced vesicles are part of an intricate network of rearranged intracellular mem-branes that originate from the ER compartment (Fig. 5A). These vesicles were labeled with anti-NS1 antibodies, again supporting their role in virus replication (Fig. 5B). Clusters of vesicles, defined as vesicle packets (14,15,32), could be observed in close proximity to highly rearranged membranous structures most likely repre-senting convoluted membranes (CM), the putative sites for syn-thesis, and processing of the flavivirus polyprotein. As shown in Fig. 5CandD, the TBEV-specific polyclonal antiserum labeled both vesicles and CM (Fig. 5D, arrows). In addition, gold particles for the same antiserum were found also in the lumen of the ER, consistent with our previous findings on TBEV-infected cells.
Replicated viral RNA is not freely diffusible in the cytoplasm.
The MS2-tagging method was then further exploited to study the
dynamic interchange of newly replicated TBEV RNA between MS2-defined perinuclear compartments and the cytoplasm. To this end, we took advantage of the fluorescence recovery after photobleaching (FRAP) technique. FRAP is a method for measur-ing the mobility of fluorescent particles in livmeasur-ing cells (33,34). A defined portion of the system containing mobile fluorescent mol-ecules is exposed to a brief and intense focused laser beam, thereby causing irreversible photochemical bleaching of the fluorophore in that region. The subsequent kinetics of fluorescence recovery in the bleached region, which results from transport of fluorescent proteins into the bleached area from nonirradiated regions of the cell, as well as transport of bleached fluorescent proteins out of the bleached area, provides a quantitative measure of the mobility of the protein of interest. If the fluorescent protein cannot move or is bound to an immobile substrate, the recovery of fluorescence will not reach the prebleach values showing the so-called immobile fraction. In our case, the fluorescent protein is the MS2 phage coat protein fused to EYFP. TBEV-replicated RNA carrying an array of MS2 binding sites previously characterized in our laboratory is detected by high-affinity specific interaction between the RNA stem-loops and the fluorescently labeled MS2 protein (19,34). The viral RNA is continuously synthesized by the viral polymerase and should be able to diffuse in the cytoplasm in complex with EYFP-MS2 unless bound to an immobile structure or limited in its movements by physical barriers. As shown inFig. 6AandBand Movie S5 in the supplemental material, BHK-21 cells expressing the TNd/⌬ME_24⫻MS2 replicon RNA and EYFP-MS2 were sub-jected to FRAP analysis at different time points. Full recovery of

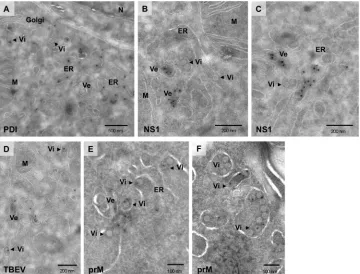

FIG 3Immunogold EM of TBEV-infected cells. BHK-21 cells were infected with TBEV at an MOI of 2 and fixed 24 hpi, and thawed cryosections were labeled with antibodies against PDI (A), NS1 (B and C), and prM (E and F) and with the anti-TBEV serum (D) that predominantly recognizes the structural protein E and the nonstructural protein NS1. Vesicles within the lumen of dilated ER cisternae (A) are specifically labeled with anti-NS1 (B and C) and anti-TBEV antibodies (D). Arrowheads in all panels highlight TBEV virions, specifically labeled with prM (E and F) and TBEV (D) antibodies, in the lumen of the ER or trafficking toward the Golgi apparatus. Abbreviations: M, mitochondria; N, nucleus; ER, endoplasmic reticulum; Ve, vesicles; Vi, virions.
Miorin et al.
on November 7, 2019 by guest
http://jvi.asm.org/

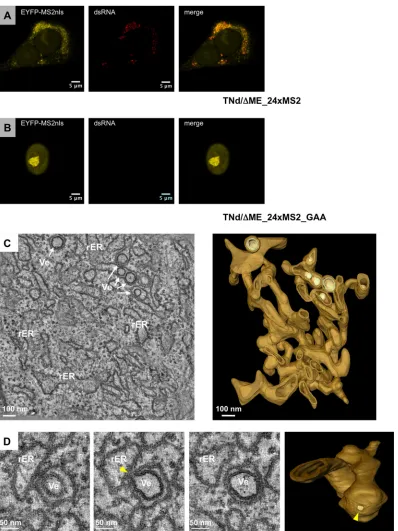

[image:6.585.113.473.67.341.2]FIG 4Ultrastructural analysis of the membrane alterations induced by pTNd/⌬ME_24⫻MS2. (A) BHK21-EYFP-MS2nls cells were electroporated with the TNd/⌬ME_24⫻MS2 replicon RNA. Twenty-four hours postelectroporation (hpe), cells were fixed, permeabilized with Triton X-100, and incubated with an antibody against dsRNA that was then revealed by a secondary antibody conjugated with Alexa-594. The EYFP channel is shown in the left panel, dsRNA in the middle panel, and the merge in the right panel. (B) BHK21-EYFP-MS2nls cells were electroporated with the TNd/⌬ME_24xMS2_GAA replicon RNA and treated as described for panel A. (C) BHK21-EYFP-MS2nls cells were electroporated with TNd/⌬ME_24ⴛMS2, fixed 24 hpe, and processed for ET as described in Materials and Methods. Left, slice of a dual-axis tomogram showing the TBEV-induced vesicles (Ve) in the ER lumen; right, 3D reconstruction of the complete tomogram. ER membranes are depicted in light brown and TBEV-induced vesicles in light yellow. This tomogram and its 3D membrane rendering are shown in Movie S4 in the supplemental material. (D) Left, serial single slices through the same tomogram displaying connections between adjacent ER tubules; right, 3D reconstruction of the whole tomogram showing a network of interconnected ER tubules. Note that the ER is highly fragmented in these cells in comparison to infected cells. (E) Left, serial single slices through the same tomogram displaying an opening toward the cytosol of a TBEV-induced vesicle (yellow arrows); right, 3D surface model showing this opening that connects the interior of the vesicle with the cytosol.
on November 7, 2019 by guest
http://jvi.asm.org/
[image:7.585.96.494.63.594.2]the signal within a few seconds was observed 6 h after electropo-ration, indicating free mobility of EYFP-MS2 at early time points of replicon amplification. In contrast, 12 h after transfection and at later time points, fluorescence recovery was severely impaired. Time points between 12 and 36 h showed very similar recovery profiles, with an initial recovery that quickly tails off and never reaches prebleach values, indicative of the presence of a relevant immobile fraction. The initial portion of the recovery curve rep-resents the unbound EYFP-MS2 that remains free to diffuse in the bleached area. At later time points, the amount of free EYFP-MS2 is reduced, being sequestered by the increasing amount of repli-cated RNA (compare the red curve inFig. 6Ataken at 12 h post-electroporation [hpe] to the blue and green curves taken at 24 to 36 hpe, respectively). These data suggest that the spatial con-straints are established early and maintained thereafter. These re-sults can be interpreted in different ways that were addressed as follows.
The first possibility is that the replicated viral RNA is secluded into compartments that are not accessible by the EYFP-MS2. To address this assumption, we exploited the red-shifted variant Cherry-MS2nls to mark viral RNA while the mobility of free green fluorescent protein (GFP) was monitored by FRAP as previously described (21,34–36). As shown inFig. 6C,D, andEand Movie S6 in the supplemental material, mobility of GFP within the com-partment did not differ significantly from the free mobility of the protein in the cytoplasm. The second possibility is that the viral RNA is only slowly or not at all replicated, resulting in little or no
substrate available for free EYFP-MS2. However, bleaching did not affect virus replication (data not shown), and we have earlier shown that replicated viral RNA accumulates continuously up to 72 h posttransfection (19,31). Therefore, we can exclude that the RCs are inactive with respect to replication. The third possibility is that a slow release of replicated viral RNA bound to bleached EYFP-MS2 residing in the region of interest (ROI) results in an increase of the immobile fraction in the FRAP experiment. To address such a release of replicated, MS2-tagged, viral RNA from this region, we depleted fluorescent EYFP-MS2 from the cyto-plasm and measured loss of florescence at the compartment. This approach is called fluorescence loss in photobleaching (FLIP) and is complementary to FRAP (37,38). As shown in Fig. 6Fand Movie S7 in the supplemental material, we chose a region for bleaching in the cytoplasm distant from the MS2-enriched peri-nuclear compartment and measured loss of fluorescence at a site in the cytoplasm as well as within regions of EYFP-MS2 accumu-lation in order to assess RNA exchange. Both sites were chosen approximately at the same distance from the bleaching area. After each bleaching, the intensity of fluorescence was measured in ev-ery ROI. In principle, each mobile fluorescent molecule that dif-fuses at the bleaching site will be irreversibly bleached. Hence, regions of freely mobile proteins will be losing fluorescence quickly, whereas regions where the proteins are immobile or se-cluded into membrane compartments will resist bleaching. This kind of measurements clearly showed that fluorescent TBEV RNA-bound EYFP-MS2 (blue line) is depleted less efficiently than

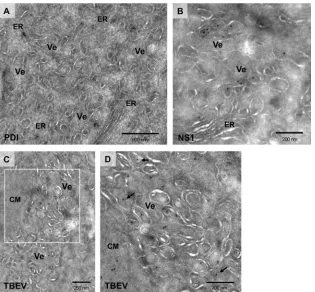

FIG 5Immunogold EM of replicon-induced membrane alteration. BHK21-EYFP-MS2nls cells were electroporated with TNd/⌬ME_24ⴛMS2 and fixed 24 h after, and thawed cryosections were labeled with antibodies against PDI (A) and NS1 (B) and with the anti-TBEV serum (C and D). All images show TBEV-induced vesicles (Ve) that are specifically labeled with anti-NS1 (B) and anti-TBEV (C and D) antibodies. (D) Higher-magnification image of membrane alterations induced by replicon transfection corresponding to the boxed region in panel C. Vesicles (Ve) and convoluted membranes (CM) labeled with anti-TBEV antibodies are shown.
Miorin et al.
on November 7, 2019 by guest
http://jvi.asm.org/
[image:8.585.137.452.65.357.2]freely diffusible EYFP-MS2 (green line). Importantly, as observed for the FRAP experiments (Fig. 6A) where the immobile fraction decreased at later time points, immobilization of trapped TBEV RNA within the MS2-defined compartment is not complete, since 30% depletion is observed after 4 min of FLIP. This clearly points toward a certain degree of TBEV RNA exchange between the com-partments and the cytoplasm.
Free diffusion of viral RNA within interconnected regions of
virus-induced membrane alterations.Finally, we wanted to
in-vestigate the dynamic interchange of TBEV RNA within the area enriched for the EYFP signal. To this end, we took again advantage of the EYFP-MS2nls reporter that, in the presence of replicating TNd/⌬ME_24⫻MS2, accumulates efficiently in the cytoplasm against a dark background, greatly enhancing the signal-to-noise ratio (Fig. 4A). This strategy is also particularly useful when doing
dynamic studies, because it allows to selectively measure viral RNA kinetics without taking into account free diffusion of un-bound MS2 proteins in the cytoplasm. We designed a FLIP exper-iment where the bleached area is located within perinuclear re-gions of EYFP-MS2 accumulation (Fig. 7A, red circle, bottom panels). If the tagged viral RNAs were all interconnected, contin-uous bleaching would have resulted in depletion of fluorescence from the entire compartment. Conversely, as shown inFig. 7Aand Movie S8 in the supplemental material, depletion of fluorescence was restricted to a portion of the compartment, defined as ROI_1 inFig. 7A, leaving the rest unaffected. This experiment indicates that the perinuclear region, where replication of TBEV is likely to occur, is not just a continuous network of virus-induced mem-brane alterations but is rather composed of physically separated subcompartments. Within a subcompartment, the viral RNA is

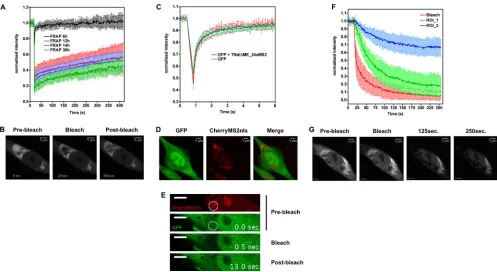

FIG 6TBEV-replicated RNA is not freely diffusible in the cytoplasm. (A) Analysis of TBEV RNA dynamics by FRAP time course. BHK-21 cells were electroporated with the TNd/⌬ME_24ⴛMS2 replicon RNA together with a vector expressing EYFP-MS2. At the indicated time points postelectroporation, the fluorescence recovery of the EYFP-MS2 protein in the area of bleaching was analyzed. The graph shows values of fluorescence intensity normalized to the prebleach values and corrected for the loss of fluorescence due to the imaging procedure (34,36,55). Data represent the averages of acquisitions from at least 10 cells⫾standard deviations. (B) Image sequence from a FRAP experiment performed in BHK-21 cells 14 h after electroporation (29.25 by 29.25m). The bright perinuclear region represents the subcellular compartment into which replicated viral RNA is clustered and where ROIs were drawn. Times were collected before bleaching (prebleach, 0 s), immediately after the bleaching (bleach, 20 s), and at 400 s after the bleaching event (postbleach). A movie is also available as supporting information (see Movie S5 in the supplemental material). (C) Analysis of GFP mobility within the replication compartment. BHK-21 cells were electroporated with a vector expressing CherryMS2nls, to mark the RC, and with a GFP-expressing plasmid (pEGFP-N1), both in the presence (red line, GFP and TNd/⌬ME_24⫻MS2) and in the absence (green line, GFP) of the TBEV replicon RNA. After 24 h, GFP kinetics was investigated by FRAP. In the graph, the recovery curves of the GFP protein in the two different experimental conditions are compared. The values of fluorescence intensity are normalized to the prebleach values and corrected for the loss of fluorescence due to the imaging procedure as already described. Data represent the averages of acquisitions from 10 cells⫾standard deviations. (D) Representative image of BHK-21 cells transfected with GFP and CherryMS2nls in the presence of the TBEV replicating RNA. A z-projection of 41 images 0.5m apart is shown. (E) Image sequence from the FRAP experiment described in panel C (36.56 by 7.14m). Top, prebleach stacks in both channels (0 s). The circle indicates the area of bleach chosen in the RC marked by CherryMS2nls. Middle, time point immediately after the bleaching event (0.5 s); bottom, postbleach stack (13 s). A video is also available as supporting information (see Movie S6 in the supplemental material). (F) BHK-21 cells were electroporated with the TNd/⌬ME_24⫻MS2 replicon RNA together with a vector expressing EYFP-MS2. After 24 h, viral RNA release from the RC was monitored by FLIP. (G) Selected images from a FLIP experiment are shown (36.56 by 36.56m). The region for bleaching (red circle in the bottom panels) was chosen in the cytoplasm away from the clustered TBEV RNA. Loss of fluorescence was then measured in the cytoplasm both within (blue circle, ROI_1) and outside (green circle, ROI_2) the RC. In the top graph, the loss in fluorescence intensity within the three different ROIs (bleach; ROI_1 and ROI_2) is compared. Data are normalized as described for panel A and represent the averages of acquisitions from 10 cells⫾standard deviations. A video is also available as supporting information (see Movie S7 in the supplemental material).
on November 7, 2019 by guest
http://jvi.asm.org/
[image:9.585.43.540.64.336.2]able to freely diffuse (compare decay of ROI_1 inFig. 7Awith ROI_1 inFig. 6F), indicating that most likely the RNA is not com-pletely associated to membranes.
To unambiguously identify the subcellular localization of newly synthesized viral genomes, we selectively labeled the MS2 protein bound to TBEV RNA by using antibodies specific to the fluorescent tag. BHK-21 cells transduced with lentiviral vectors expressing EYFP-MS2nls were either mock electroporated or elec-troporated with the TNd/⌬ME_24⫻MS2 replicon RNA. Twenty-four hours posttransfection, cells were fixed and processed for immuno-EM as described in Materials and Methods. As shown in Fig. 7, immunogold-labeled TBEV RNA specifically localized in the cytoplasm of TNd/⌬ME_24⫻MS2-transfected cells, while, as expected, only nuclear MS2 labeling could be detected in mock-transfected cells (data not shown). Strikingly, detailed analysis of GFP-labeled cryosections revealed that more than 50% of the gold particles localized in the cytosol, frequently surrounding virus-induced vesicles (Fig. 7E). In addition, particles associated or in close proximity to ER-derived membranes (⬃35%), as well as adjacent to vesicle-surrounding membranes (⬃9%), were also observed. To the contrary, labeled TBEV RNA was never detected within the lumen of the vesicles, indicating that either the EYFP-MS2nls protein is too big to translocate into the vesicle or that
actively replicating viral RNA is part of a huge protein/RNA com-plex that shields the RNA from the MS2 protein and/or anti-GFP antibodies.
DISCUSSION
Flaviviruses hijack cytoplasmic membranes in order to build func-tional sites for protein synthesis, processing, and RNA replication (7,39–42). These sites, generally defined as replication compart-ments, are required to efficiently coordinate different steps of the viral life cycle and to protect replicating RNA from innate immu-nity surveillance (8–10). Over the last few years, several electron microscopy studies have revealed important information about the ultrastructural organization of these sophisticated intracellu-lar membrane compartments (11,12,28). However, this infor-mation is rather static and does not provide insights into intra-cellular trafficking of proteins and viral RNA. In this work, we have combined high-resolution ET and immuno-EM with live-cell imagining studies of TBEV RNA dynamics to provide the first comprehensive picture of the spatiotemporal organization of the flaviviral RC.
Our detailed 3D ultrastructural analysis clearly shows that TBEV infection triggers a remarkable alteration of intracellular membranes (Fig. 2). These virus-induced membranes are derived

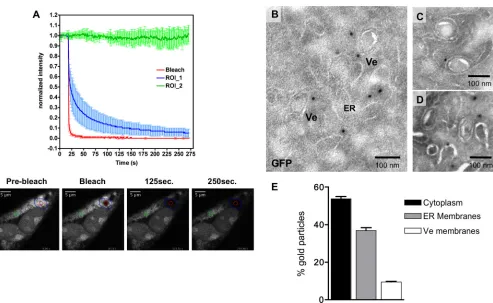

FIG 7TBEV replication compartments are organized in discrete clusters. (A) BHK-21 cells were electroporated with the TNd/⌬ME_24⫻MS2 replicon RNA and with the EYFP-MS2nls reporter. At 24 h after transfection, viral RNA trafficking within the RC was analyzed by FLIP. For this purpose, as shown in the bottom images (29.25 by 29.25m), the area of bleaching (red circle) was located inside the compartment. Loss of fluorescence was then measured in two different regions, one surrounding the bleaching area (blue region; ROI_1) and the other one more distant (green circle; ROI_2). The top panel compares the loss of fluorescence curves of the three selected ROIs. Data are normalized as already described and represent the average of acquisitions from 10 cells⫾standard deviation. A video is also available as supporting information (see Movie S8 in the supplemental material). (B) BHK21-EYFP-MS2nls cells were electroporated with TNd/⌬ME_24ⴛMS2 and fixed 24 h after, and thawed cryosections were immunogold labeled with antibodies against GFP. Selected examples of the different situations are shown in panels C and D. (E) Quantification of GFP-labeled EM cryosections prepared as described inFig. 7B. Counting was performed in triplicate, measuring the distribution of⬎100 gold particles for each grid. Data are plotted as percentages⫾SD.
Miorin et al.
on November 7, 2019 by guest
http://jvi.asm.org/
[image:10.585.46.539.62.365.2]from the ER since they contain viral proteins and the ER-resident chaperone PDI (Fig. 1). PDI did not directly label the vesicles (Fig. 3A), indicating that this protein is not recruited but most likely excluded from virus-induced membranes, as observed for DENV-induced vesicles (11). Interestingly, we consistently ob-served packets of vesicles with a diameter of about 80 nm that appear as invaginations of the ER within a highly organized net-work of interconnected membranes (Fig. 2AandB; see also Mov-ies S1 and S2 in the supplemental material). Attempts to label vesicles with antibodies recognizing dsRNA were ambiguous; al-though we detected immunogold labeling within the vesicles, the signal appeared to be unspecific (data not shown). Nevertheless, labeling of the vesicles with antibodies against the TBEV NS1 pro-tein (Fig. 3B,C, andD) supports the hypothesis that these struc-tures correspond to sites of virus replication. NS1 is an essential gene and modulates early viral RNA replication (13,43), possibly through its ability to regulate negative-strand synthesis of viral RNA (44) and/or by interacting with NS4B (45). NS1 is located in the ER lumen and is associated with the outer side of the replica-tion vesicles through interacreplica-tion with other transmembrane viral proteins. Localization of DENV NS1 at replication vesicles was reported by Mackenzie et al. (13) and more recently by Welsch et al. (11). Finally, immunoprecipitation of dsRNA intermediates was shown to contain NS1 in addition to NS5, confirming previ-ous cosedimentation data (46,47). Therefore, NS1 can be consid-ered a bona fide marker for replication sites. The observation that NS1 is associated to other compartments in addition to replica-tion vesicles may reflect its involvement in different steps of the viral life cycle, beyond RNA replication.
Approximately half of the vesicles showed a single pore-like connection to the cytoplasm. There might be several explanations for this observation. Besides technical problems that may not al-low clear detection of pores in all vesicles, there could be a dy-namic life cycle of virus-induced vesicles, from their formation, function in replication with a pore connection, and eventual late step where the vesicles are not connected with the cytosol by the pore anymore. This pore likely allows recruitment of cellular co-factors to active sites of virus replication as well as for the release of newly synthesized viral RNA to be used for translation and assem-bly (Fig. 2D). However, although the vesicles were frequently closely associated, we could never detect direct connections be-tween neighboring vesicles in the same packet, as described for Kunjin virus and more recently also for the naturally attenuated tick-borne LGTV (12,28). This discrepancy might be due to dif-ferences in the sample preparation. Alternatively, it might impli-cate that the architecture of flaviviral RCs slightly changes based on the specific virus and/or cell line used for the analysis.
We also often observed newly assembled virions sharing the same ER lumen with putative replicative vesicles, suggesting that replication and assembly sites are located in very close proximity. Given the absence of pore-like openings directly connecting vesi-cles with the ER lumen, it is likely that, once synthesized, the viral RNA is released via the pore to the cytosolic side of these invagi-nations. The basic C protein would then interact with progeny RNA genomes to form a nucleocapsid that buds back to the lumen of the ER, acquiring the viral envelope. Thereafter, immature viral particles would be either stored in clusters within dilated ER cis-ternae (Fig. 2A) or transported through the cellular secretory pathway (see Movie S1 in the supplemental material), where
mat-uration occurs, in order to be released to the extracellular milieu (48,49).
In this study, we also compared ultrastructural alterations in-duced by virus infection with those associated with the replication of MS2-tagged TBEV subgenomic replicons. As observed upon TBEV infection, dramatic reorganization of intracellular mem-branes with the appearance of single membrane vesicles could be detected in the perinuclear region of the cell. Although ER tubules hosting replicon-induced vesicles appeared fragmented and smaller than those observed in virus-infected cells, vesicles were similar in size, and our detailed tomographic analysis revealed that they also originated from the ER and were connected to the cyto-plasm via pore-like channels. Interestingly, at variance with virus-infected cells, replicon-induced vesicles did not accumulate in packets but were rather dispersed through the cytoplasm as one or few invaginations of the ER membrane (Fig. 4; see also Movies S3 and S4 in the supplemental material). We also observed a higher fraction of vesicles with pores in replicon-transfected cells. How-ever, the latter observation could be simply related to a better accessibility of dispersed vesicles during ET. These data suggest that replicons, despite the induction of massive ER rearrange-ments, are less efficient at forming vesicles, which is consistent with the lower level of viral replication previously reported (31,50, 51). The induction of membrane rearrangements could be due to the altered expression or regulation of viral proteins resulting from the electroporation of large amounts of genomic RNA. For example, it has been shown that the NS4A protein of mosquito-borne KUNV and DENV viruses possesses the intrinsic capacity to induce membrane rearrangements similar to those induced upon virus infection (52,53). A similar role for TBEV NS4A remains to be clarified.
When we investigated the mobility of viral RNA by FRAP, we found a consistent delay of the recovery of fluorescence within perinuclear regions of EYFP-MS2 accumulation (Fig. 6A). In con-trast, GFP did not show significant differences of mobility within the cytosol compared to that within TBEV-induced replication compartments that are marked with cherry-MS2nls (Fig. 6C), suggesting that these compartments are open to the cytosol and allow exchange of proteins. Interestingly, recovery after 36 h did not differ significantly from that at 12 h after replicon transfection. Although we cannot formally exclude that replication rates slow down at late time points, thus masking an increase of recovery in the FRAP curve due to an increased permeability, we can assume that the mobility of viral RNA is similar at early and late time points. In other terms, at later time points there is not a massive disruption or reorganization of these membranous compart-ments compatible with the liberation of viral RNA. Free accessi-bility of the fluorescent MS2 concomitant with a slow recovery after photobleaching within the compartment suggests an im-paired movement of the genomic RNA out of this area. This could be coupled with a low rate of viral RNA biogenesis and/or with the association of a fraction of the viral RNA to polysomes on ER membranes. To address this hypothesis, we performed a FLIP ex-periment, and we directly measured trafficking of viral RNA be-tween cytosol and sites of virus replication (Fig. 6F). Strikingly, we could observe a slow release of replicated RNA from the compart-ment.
Another important observation relates to the mobility of tagged viral RNA within MS2-defined regions of the cytoplasm. Previous FRAP studies performed with components of the HCV
on November 7, 2019 by guest
http://jvi.asm.org/
replication complex NS4B and NS5A showed that the internal architecture of the membranous web is relatively static, with lim-ited exchange of viral nonstructural proteins between neighboring factories (17,18,54). In the present study, for the first time, we monitored viral RNA dynamics within perinuclear regions of vi-rus replication. By using continuous bleaching of MS2 fluores-cence in the region where the RNA is clustered, we could observe a fast depletion of fluorescence, consistent with a high mobility of the viral RNA (Fig. 7A; see Movie S8 in the supplemental mate-rial). Mobility within this area was indeed higher than mobility between the compartment and the cytosol, confirming that a physical impediment restricts viral RNA egress rather than an in-trinsic slow mobility of the viral RNP (compare the blue lines in Fig. 6Fand7A). However, depletion of fluorescence was clearly restricted only to a discrete region in the cluster, leading us to the conclusion that these TBEV-induced compartments are parti-tioned with respect to viral RNA mobility. In agreement with this finding, specific labeling of the newly replicated RNA clearly re-vealed a high proportion of labeled MS2-tagged RNA genomes localized in the cytosolic space surrounding TBEV-induced mem-brane alterations (Fig. 7E). Therefore, we propose that upon syn-thesis within ER-derived vesicles, progeny genomes must be re-leased to a larger virus-induced extravesicular subcompartment where RNA translation and virus assembly occur. This subcom-partment would be full of viral RNA that travels from replication vesicles to the virion assembly sites and is connected to the cyto-plasm (Fig. 8). Such an extremely organized architecture would certainly help in coordinating genomic RNA recruitment for translation and/or packaging.
In conclusion, we generated a high-resolution structure of the three-dimensional organization of the TBEV-induced replication compartment. In addition, by exploiting the MS2-tagged replicon system, we could combine structural information with dynamic data of newly replicated TBEV-RNA within functional intracellu-lar compartments, providing new insights into the spatiotemporal organization of flavivirus replication compartments.
ACKNOWLEDGMENTS
We thank the Electron Microscopy Core Facility (EMCF) at the Univer-sity of Heidelberg and the EM Facility at the European Molecular Biology Laboratory (EMBL; Heidelberg) for providing access to their equipment, expertise, and technical support. We also thank Anil Kumar for the expert help in handling lentiviral vectors and for useful discussions.
L.M. benefited from a short-term EMBO fellowship (ASTF 217-2012). Work on flaviviruses in A.M.’s laboratory is supported by the Beneficien-tia Stiftung. R.B. is supported by the Deutsche Forschungsgemeinschaft (SFB 638, TPA5, TRR83, TP13).
