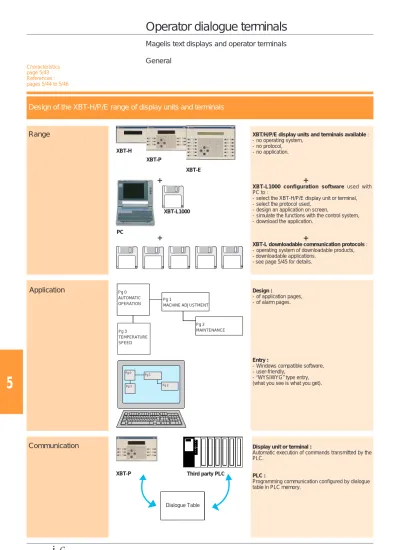

Operator dialogue terminals

(1)

5

Magelis text displays and operator terminals

General

XBT/H/P/E display units and terminals available :

- no operating system, - no protocol, - no application.

+

XBT-L1000 configuration software used with

PC to :

- select the XBT-H/P/E display unit or terminal, - select the protocol used,

- design an application on screen,

- simulate the functions with the control system, - download the application.

+

XBT-L downloadable communication protocols :

- operating system of downloadable products, - downloadable applications.

- see page 5/45 for details.

Design :

- of application pages, - of alarm pages.

Entry :

- Windows compatible software, - user-friendly,

- “WYSIWYG” type entry, (what you see is what you get).

Display unit or terminal :

Automatic execution of commands transmitted by the PLC.

PLC :

Programming communication configured by dialogue table in PLC memory.

Range

Communication

Design of the XBT-H/P/E range of display units and terminals

XBT-H XBT-P XBT-E Pg 2 Pg 1 Pg 0 Pg 3 XBT-P XBT-L1000

+

Dialogue Table Pg 3 TEMPERATURE SPEED Pg 2 MAINTENANCE

Application

PC

+

Pg 0 AUTOMATIC OPERATION Pg 1 MACHINE ADJUSTMENT Third party PLC Characteristics : page 5/43 References : pages 5/44 to 5/46

(2)

5

General

Directive and/or Standard

CE marking Meets the essential requirements of the European Electromagnetic Compatibility Directive 89/336/

EEC and the Low Voltage Directive 73/23/EEC

Conforming to standards IEC 1131-2, EN 61131-2, UL 508, CSA C22-2 n° 14

Product approvals UL File E164866, CSA File LR44087

Environment

Subject Relevant Characteristics

Standard

Electrostatic discharges IEC 801.2 Terminal not powered up 15 kV air discharge

on front panel 8 kV by contact

Terminal powered up 8 kV air discharge 6 kV by contact

Electromagnetic field withstand IEC 801.3 10 V/m

26 MHz to 1 GHz

Fast transients IEC 801.4 1 kV in series

(capacitive coupling) 2 kV supply

Electric surge IEC 255.4/E Between housing and I/O 1.5 kV ; 0.5 J

Between isolated circuits 1.2 / 50 µs Between power supply wires 5 kV ; 0.5 J Between housing and power supply 1.2 / 50 µs

Brief power cuts IEC 1131 Cuts of < 10 ms

duration of cut : 1s

Dielectric withstand IEC 947.5.2 For 24 V products 500 V d.c.

between circuits and For 115 V products 1250 V a.c.

housing For 230 V products 2500 V a.c.

Leakage current < 5 mA

Degree of protection IEC 529 Keypad/Front panel IP 65, NEMA 4, UL 4

NF C 20-010 UL

Rear enclosure IP 20

Temperature Operation (LCD and fluorescent) 0..+ 50 °C

Storage (LCD only) - 20...+ 60 °C Storage (Fluorescent only) - 40...+ 70 °C

Mechanical

Type of mounting and fixing Flush-mounted with 4 or 6 spring clamps (supplied)

(on panel 1 to 6 mm thick)

Material Enclosure : Polyphenylene oxide with 10% fibreglass (PPO GFN1 SE1)

Keypad : Anti-UV coated (Autoflex EB AG) hardened polyester

Vibration resistance IEC 68.2.6 2 to 150 Hz sweep

2 to 11.2 Hz low amplitude : 1 mm

11.2 to 150 Hz low acceleration 1 g

Duration 2 h at resonance frequencies

Electrical

Power supply Voltage 24 V d.c

Voltage limits 18 to 30 V d.c.

Ripple 5 % maximum

Consumption 10 W (20 W for XBT-E014 and XBT-E016

Operating characteristics

(3)

5

264 9,2 18,8 7 182,5 7 13 58 292 202,5 +1 -1 MOD ESC MENU HOME SYST ALARM ENTER SHIFT PRINT DEL 7 8 9 ABC DEF GHI +/– 0 • 1 2 3 STUVWX YZ 4 5 6 JKL MNO PQR 7 89,6 6,2 6,2 ENTER 202 102 183,8 50 12,35 5,85 7,1 133,3 6,2 12,5 +1 -1 MOD ESC MENU HOME SYST ALARM ENTER SHIFT 7 8 9 4 5 6 1 2 3 +/- 0 . DEL PRINT 253 152 234,5 8,5 10 55,4

MAGELIS Text display and operator interface terminals

Multi-protocol communications, multilingual operation, 24 V d.c.

References

MAGELIS XBT-H text displays

Description Reference Weight

kg Back-lit LCD display, 2 x 20 characters, 200 messages XBT-H001010 0.600 Back-lit LCD display, 2 x 20 characters, 4 function keys, XBT-H021010 0.600 1 service key, 200 messages

Back-lit LCD display, 2 x 20 characters, 5 service keys, XBT-H011010 0.600 200 messages

Fluorescent display, 2 x 20 characters, 200 messages XBT-H002010 0.600 Fluorescent display, 2 x 20 characters, 4 function keys, XBT-H022010 0.600 1 service key, 200 messages

Fluorescent display, 2 x 20 characters, 5 service keys, XBT-H012010 0.600 200 messages

Fluorescent display, 2 x 20 characters, 5 service keys, XBT-H012110 0.600 printer link, 200 messages

MAGELIS XBT-P operator terminals

kg Back-lit LCD display, 2 x 20 characters, 8 function keys, XBT-P011010 0.800 9 services keys, 400 messages

Back-lit LCD display, 2 x 20 characters, 12 function keys, XBT-P021010 0.800 10 service keys, Num keypad, 400 messages

Back-lit LCD display, 2 x 20 characters, 12 function keys, XBT-P021110 0.800 10 service keys, Num keypad, printer link, 400 messages

Fluorescent display, 2 x 20 characters, 8 function keys, XBT-P012010 0.800 9 service keys, 400 messages

Fluorescent display, 2 x 20 characters, 12 function keys, XBT-P022010 0.800 10 service keys, Num keypad, 400 messages

Fluorescent display, 2 x 20 characters, 12 function keys, XBT-P022110 0.800 10 service keys, Num keypad, printer link, 400 messages

MAGELIS XBT-E advanced operator terminals

kg Back-lit LCD display, 2 x 40 characters, 24 function keys, XBT-E013010 1.000 10 service keys, Num keypad, 800 messages

Back-lit LCD display, 2 x 40 characters, 24 function keys, XBT-E013110 1.000 10 service keys, Num keypad, printer link, 800 messages

Back-lit LCD display, 4 x 40 characters, 24 function keys, XBT-E015010 1.000 10 service keys, Num keypad, 800 messages

Back-lit LCD display, 4 x 40 characters, 24 function keys, XBT-E015110 1.000 10 service keys, Num keypad, printer link, 800 messages

Fluorescent display, 2 x 40 characters, 24 function keys, XBT-E014010 1.000 10 service keys, Num keypad, 800 messages

Fluorescent display, 2 x 40 characters, 24 function keys, XBT-E014110 1.000 10 service keys, Num keypad, printer link, 800 messages

Fluorescent display, 4 x 40 characters, 24 function keys, XBT-E016010 1.000 10 service keys, Num keypad, 800 messages

Fluorescent display, 4 x 40 characters, 24 function keys, XBT-E016110 1.000 10 service keys, Num keypad, printer link, 800 messages

Message display Operator terminal Operator terminal

XBT-H XBT-P XBT-E

XBT-H

XBT-P

(4)

5

Programming software and PC connection cables

kg

Magelis terminal programming software XBT-L1000 0.650

Requires Windows (see detailed MAGELIS catalogue ICC 1490 for further details)

Cable, Magelis to PC (9-pin male) XBT-Z915 0.200

for downloading program (RS232)

Cable, Magelis to PC (25-pin female) XBT-Z905 0.200

Cable, Magelis to PC (25-pin male) XBT-Z9052 0.200

Communication protocol drivers

kg

Allen Bradley SLC5/PLC (DF1) protocol driver XBT-L1AB01 0.650

Modicon Micro/984/AEG (Modbus/JBus) protocol driver XBT-L1MOD01 0.650

Omron CV/CQM/C200 (SYSMAC) protocol driver XBT-L1OMR01 0.650

Siemens Simatic S5 (3964R & AS511) protocol driver XBT-L1SIE01 0.650 Modicon TSX and Telemecanique (Uni-Telway) protocol driver XBT-L1UTW01 0.650

Technical documentation

kg Magelis technical operating manual, A5 format, English XBT-X000EN 0.200 Magelis technical operating manual, A5 format, German XBT-X000DE 0.200 Magelis technical operating manual, A5 format, Spanish XBT-X000ES 0.200 Magelis technical operating manual, A5 format, French XBT-X000FR 0.200 Magelis technical operating manual, A5 format, Italian XBT-X000IT 0.200

Cables and connection accessories for PLCs

(see selection guide in MAGELIS catalogue)

kg

Cable, Magelis to third party PLC XBT-Z900 0.200

(requires XGVSZ connector for specific PLC)

Cable, Magelis to Siemens PLC XBT-Z909 0.200

(requires XGVSZ connector for specific PLC)

SUB-D connector, 9-pin female XGV-SZ0910 0.035

(for use with XBTZ900 or XBTZ909)

SUB-D connector, 9-pin male XGV-SZ0920 0.035

(5)

5

MAGELIS Text display and operator interface terminals

Multi-protocol communications, multilingual operation, 24 V d.c.

References

Connection accessories specific to Modicon TSX and Telemecanique PLCs

kg Cable, Magelis to Modicon TSX Nano, Micro & Preniun PLC XBT-Z968 0.240 Cable, Magelis to TSXSCA62 Uni-Telway junction box XBT-Z908 0.240

Cable, Magelis to TSXSCM21.6 Uni-Telway module XBT-Z918 0.240

Cable, Magelis to TSXSCG1161 Uni-Telway module for TSX17 XBT-Z928 0.240 Cable, Magelis to TSXLES64 plug on Series 7 CPU module XBT-Z948 0.240

Cable, Magelis to TSX17 programming port XBT-Z958 0.240

Cable, 100 metres of RS485 double sheided twisted pair, TSX-CSA100 5.680 Uni-Telway

TSX 07/37/57 terminal port expansion & connection unit TSX-PACC01 0.690

T-junction box for Uni-Telway module TSX-SCA50 0.520

2-channel junction box for Uni-Telway bus TSX-SCA62 0.570

General accessories for the MAGELIS range

kg Screw terminal connector, current loop/current loop, top hat mounting XBT-Z9011 0.120 Screw terminal connector, current loop/current loop, '_c' rail mounting XBT-Z9012 0.120 Interface Unit, current loop to RS232, SUB-D connector XBT-Z939 0.035 Interface Unit, current loop to RS232, screw terminals XBT-Z961 0.120 24 V d.c., 1A power supply, 110 V a.c./240 V a.c. input voltage TBX-SUP10 0.040

Cable, Magelis to Printer, serial link XBT-Z936 0.200

Magelis labels for 4 function keys (12 labels) XBL-YH4 0.100

Magelis labels for 8 function keys (24 labels) XBL-YP8 0.100

Magelis labels for 12 function keys (24 labels) XBL-YP12 0.100

(6)

5

PLC PLC range Connection details Magelis cable and Protocol Protocol Magelis

manufacturer and/or model (PLC hardware) connection accessories name product status

or brand (see pages 5/45 and 5/46) reference

Allen Bradley PLC5 CPU Channel 0 XBT-Z900 + XGV-SZ2520 DF1 XBT-L1AB01 Master

SLC500 CPU comms. port XBT-Z900 + XGV-SZ0910 DF1 XBT-L1AB01 Master

April S1000 - A5000/A7000 JBU200 comms. module XBT-Z900 + XGV-SZ2510 JBus XBT-L1MOD01 Master

S1000 - A2000/A3000 CPU comms. port XBT-Z900 + XGV-SZ2510 JBus XBT-L1MOD01 Master

PB400 XBT-Z900 + XGV-SZ2510 JBus XBT-L1MOD01 Master

SMC XBT-Z900 + XGV-SZ2510 JBus XBT-L1MOD01 Master

Modicon 984 range 984 Modbus XBT-Z900 + XGV-SZ0920 Modbus XBT-L1MOD01 Master

Omron CQM1 Programming port XBT-Z900 + XGV-SZ0920 SYSMAC XBT-L1OMR01 Master

C200HX Programming port XBT-Z900 + XGV-SZ0920 SYSMAC XBT-L1OMR01 Master

CV range Programming port XBT-Z900 + XGV-SZ0920 SYSMAC XBT-L1OMR01 Master

Siemens SIMATIC S5-90U CPU comms. port XBT-Z909 + XBT-Z939 AS511 XBT-L1SIE01 Master

SIMATIC S5-95U Comms. port XBT-Z900 + XGV-SZ1520 3964R XBT-L1SIE01 Master

SIMATIC S5-95U Programming port XBT-Z909 + XBT-Z939 AS511 XBT-L1SIE01 Master

SIMATIC S5-100U Comms. module XBT-Z900 + XGV-SZ2520 3964R XBT-L1SIE01 Master

SIMATIC S5-115U CP525 comms. module XBT-Z900 + XGV-SZ2520 3964R XBT-L1SIE01 Master

SIMATIC S5-135U CP525 comms. module XBT-Z900 + XGV-SZ2520 3964R XBT-L1SIE01 Master

Telemecanique TSX07 (Nano) Programming port XBT-Z968 Uni-TE (V2) XBT-L1UTW01 Slave

&

Modicon TSX TSX37/57 (Micro/Premium) CPU comms. XBT-Z968 Uni-TE (V2) XBT-L1UTW01 Slave

TSX37/57 CPU comms. + ACC01 +

CSA*** + SCA62 XBT-Z908 Uni-TE (V2) XBT-L1UTW01 Slave

TSX37/57 PCMCIA + SCPCU4030 +

SCA62 XBT-Z908 Uni-TE (V2) XBT-L1UTW01 Slave

TSX17 Programming port XBT-Z958 Uni-TE (V1) XBT-L1UTW01 Master

TSX17 SCG1161 comms. module XBT-Z928 Uni-TE (V1) XBT-L1UTW01 Slave

TSX47/67/87/107 CPU comms. + LES64 XBT-Z948 Uni-TE (V1) XBT-L1UTW01 Slave

TSX47/67/87/107 CPU comms. + LES64 +

CSD100 + SCA62 XBT-Z908 Uni-TE (V1) XBT-L1UTW01 Slave

TSX47/67/87/107 SCM2116 comms. module XBT-Z918 Uni-TE (V1) XBT-L1UTW01 Slave
