Note #6 02/04/2014

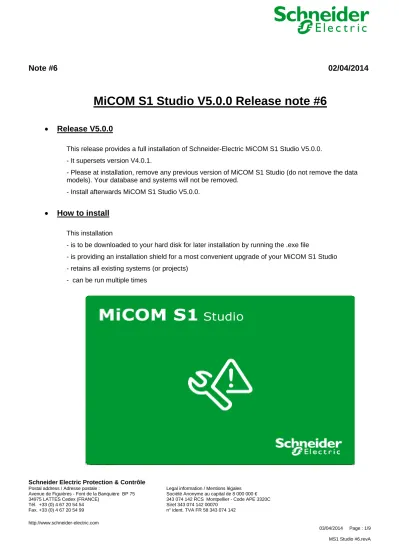

MiCOM S1 Studio V5.0.0 Release note #6
Release V5.0.0
This release provides a full installation of Schneider-Electric MiCOM S1 Studio V5.0.0. - It supersets version V4.0.1.
- Please at installation, remove any previous version of MiCOM S1 Studio (do not remove the data models). Your database and systems will not be removed.
- Install afterwards MiCOM S1 Studio V5.0.0.
How to install
This installation
- is to be downloaded to your hard disk for later installation by running the .exe file
- is providing an installation shield for a most convenient upgrade of your MiCOM S1 Studio - retains all existing systems (or projects)
1. New features
Schneider-Electric MiCOM S1 Studio V5.0.0 provides the following enhancements and features to MiCOM S1 Studio V4.0.1:
1. Downloading Single/part of setting to relay
Capability to send to the relay by a serial communication (local or remote, front and rear communication ports) a single setting or a group of setting (the one(s) that has been changed) to the relay (P10, P20 and P40.
This feature will made MiCOM S1 Studio homogenous with P30 option/features.
2. XML export
Additional export format that could be easily editer and modified with current web tools.
This XML export will export all setting/information/data from any platform relays.
It could be used to customers as archive documents. 3. IEC 61850 configurator
IEC 61850 Configurator will now manage Ed1 and Ed2. Same customer's HMI.
Automatic Ed1 & Ed2 file management and importation (proper edition will be opened automatically)
Fully in ligne with Px4x new hardware platform (P30 will follow in next release)
Schneider Electric Protection & Contrôle 4. Scan function
Discovery feature: a list of device will be provided over any communication support.
The list will provide IED information such as: address.
The list refreshed in life time if a new IED is found or disconnected. From the listed device, the user could peform setting/record/event upload
or place the device in a existing system. 5. Cyber Security
Related on to P40 CS embedded function (P30 is schedule in next release to match with P30 CS relay project).
Default password is set to "AAAA". Impacted module by Cyber Security :
MiCOM S1 Studio
IED configurator
PSL editor
BTC UPTC
P746 remote HMI Tool. Module not "under" Cyber Security :
Courier measurement viewer
Goose Editor
6. Dual Communication
Px4x platform only. New option related to new hardware option for Px4x
7. SFTP communication protocol
Px4x platform alignement. New protocol available for P30 relay ranges.
8. Implementation of function that are available in the S&R 103 communication module at MiCOM S1 Studio level.
List of functions:
Menu Function Description
View / PSL Editor Graphical editor for ALL m-to-n parameters and
list parameters, you can freely switch between graphical editor and the usual text editor without saving or any other user action.
View / Protection Select View of Settings: Protection parameters
shall be displayed or shall hidden
View / Control Select View of Settings: Control parameters shall
be displayed or shall hidden Tool / Design
Version
Define, Extract and Print the hardware configuration of a device
Tools / Copy Parameter Subset
Copy the all parameters of one parameter subset to another one
Context menu:
Menu Function Description
Properties… Display of property details of the selected
Schneider Electric Protection & Contrôle
9. User define Signal Naming (Px3x relays)
Up to date USB driver (computer) has been implemented.
MiCOM S1 Studio will install the corresponding USB driver related to the
PC environment.
10. Px1x USB driver
Px43 platform alignement. New protocol available for P3àrelay ranges.
11. Polish language Support
Installation of Micom S1 Studio in polish language is now available
(menus).
12. MiCOM S1 Studio vulnerability issue.
Issued from the American Agency (NERC) report, the V5.0.0 release is
solving any of vulnerability issues.
After S1 installation file/folder could be remove/deleted or exchange: Folders and files that must be marked “Read” only.
Window service DLL must be marked to “Read” as solution to solve privileges issues.
2. Fixed issues
Issues
Severity Ref. Description Qual. Ref.
Major 1928 COMM1: force signals 2375 MCL file shows blank page while opened with IED configurator(Chinese version OS) 3199 Add new device‐ Exception when the data model for the selected device is bad. 3323 Accepting password level 1 and 2 for extracting Curve 3423 Import MCL file to wrong setting file will crash S&R‐103 3761 Studio will sometimes crash when working long time with Px30 devices 3801 MiCOM S1 Studio: connection password Dev Track ‐ 7690 3822 Message error when opening P92x V12 data model in S1 Studio 3823 MiCOM S1 Studio is crashing when ethernet port is used Devtrack Hotline ‐ ID N° 7881 3894 Micom Studio 3.5.2 does not indicate correctly that download of the settings to the P12x relay was refused because of IED in local mode. PCL10112 3963 S1 Studio: file naming disturbance records Px40 and Px30 Dev Track ‐ 8540 3964 impressions PSL MiCOM S1 Studio Dev Track ‐ 8526 3975 S1 Studio: Px30 ‐ wrong text when sending setting file Dev Track ‐ 8581 3976 Micom S1 studio ‐ Value alignment to step size Dev Track ‐ 7531 4033 Studio Px30 Settings Comparison Fails Dev Track ‐ 8676 4040 Communication issue with Px20 Relay JFAI‐0014 4041 P243 Relay crash Dev Track ‐ 8817 4042 DNP3 Integer Scaling step size For P544 relay Firmware P544____4__540_G Dev Track ‐ 8397 4043 MS1S exception in Quick connection ‐ file transfer mode and Modbus problem 4089 Match factor and EF problem Dev Track ‐ 8392 | Dev Track 8192 4142 P521 Can't open Phase II default file in Studio Dev Track ‐ 9277 4192 Cannot change device address using Studio via Rear port
Schneider Electric Protection & Contrôle Issues
Severity Ref. Description Qual. Ref.
Normal 1385 IEC‐103: Telegram Recording in File 1665 COM4 not visible in connections >> setup parameter dialog 1849 Import SCL – Px30 model numbers inconsistent. 2114 ‘Add Exis ng File’ does not check model number (Courier). 2767 Modbus settings file conversion ‐ invalid report 3004 Modbus settings file isn't refreshed correctly 3277 P126‐7 datamodels: if the values measured by the device are incorrect, they doesn't must be displayed PCL1146 3401 Abort sending setting process failed on modbus device 3672 Studio give wrong message when extract Px20 records was interrupted 3675 S1 Studio MCL file conversion generates false error message DevTrack : 5965 3820 PSL Editor Error communication issue Dev Track ‐ 6836 3954 Ethernet communication not working after disconnect 3989 No detail information about the failure when sending MCL file to Px30 device 3994 P740 Topology Tool incompatible with S1 From v3.5.1 PCL10088 4000 Studio Px30 Settings Comparison Fails Dev Track ‐ 8676 4063 DNP3 integer scaling MJAN‐0030 4086 USB Driver for P10 Platform ‐ Px10 devices connected via USB ‐ change device address 4224 EView data model directory Issues
Severity Ref. Description Qual. Ref.
Minor 2739 Text in French language in .txt files created after 'Convert Settings File...' ,Modbus 4159 Wrong translations in German version of the tool. PCL10134
Issues
Severity Ref. Description Qual. Ref.
Enhance ments 3780 When extracting the settings using S1 Studio, if there are any trip signals on, all the trip signals reset and few ms after the trip signals turn on again PCL10092, DevTrack ‐ 6855 4013 S1 Studio 4.0.1 ‐ Issue with Px30 extended platform Dev Track ‐ 8824
Schneider Electric Protection & Contrôle Other notes
Windows compatibility:
V5.0.0 is qualified with and verified on Windows 7 32 bits. V5.0.0 is not designed or verified on Windows Vista. Eview and GOOSE editor are not Windows 7 qualified
MiCOM S1 Studio is compliant to Windows 7 (64 bits). (qualification planed in next 2014 release).
Px4x Text editor is not functioning on W7 64 bits.
