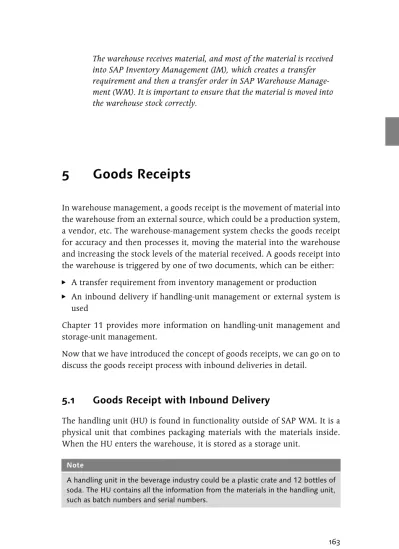

The warehouse receives material, and most of the material is received into SAP Inventory Management (IM), which creates a transfer requirement and then a transfer order in SAP Warehouse Manage-ment (WM). It is important to ensure that the material is moved into the warehouse stock correctly.
5
Goods Receipts
In warehouse management, a goods receipt is the movement of material into the warehouse from an external source, which could be a production system, a vendor, etc. The warehouse-management system checks the goods receipt for accuracy and then processes it, moving the material into the warehouse and increasing the stock levels of the material received. A goods receipt into the warehouse is triggered by one of two documents, which can be either: 왘 A transfer requirement from inventory management or production 왘 An inbound delivery if handling-unit management or external system is
used
Chapter 11 provides more information on handling-unit management and storage-unit management.
Now that we have introduced the concept of goods receipts, we can go on to discuss the goods receipt process with inbound deliveries in detail.
5.1
Goods Receipt with Inbound Delivery
The handling unit (HU) is found in functionality outside of SAP WM. It is a physical unit that combines packaging materials with the materials inside. When the HU enters the warehouse, it is stored as a storage unit.
Note
A handling unit in the beverage industry could be a plastic crate and 12 bottles of soda. The HU contains all the information from the materials in the handling unit, such as batch numbers and serial numbers.
An HU can also be nested, which means that a single unit can be made from several smaller units. For instance, in the beverage industry, a shrink-wrapped crate of soda may be one handling unit, but is made up of 24 soda bottles that are also handling units.
This section will review the goods receipt with inbound deliveries, so we will first discuss inbound deliveries.
5.1.1 Inbound Delivery Overview
An inbound delivery can be created with reference to a number of processes, which are:
왘 Purchase order 왘 Stock transport order 왘 Customer return
There are many reasons to create inbound deliveries. The most useful one is that we can perform some processes in SAP before the material arrives and a goods receipt is posted. The vendor can send information about the inbound delivery, which informs the warehouse of the HUs that are being sent, the information that they contain, and the precise date and time of delivery.
5.1.2 Creating an Inbound Delivery
We can create an inbound delivery using the information from a vendor regarding a single purchase order for which it is supplying the material. The transaction to create a manual inbound delivery is Transaction VL31N. This can be found using the navigation path: SAP폷Logistics폷LogisticsExecution 폷InboundDelivery폷InboundDelivery폷Create폷SingleDocuments.
Figure 5.1 shows the initial screen for the creation of a manual inbound delivery. The vendor number and the purchase order number are required fields. Let’s discuss them here:
왘 Deliverydate
The delivery date is the date the vendor has given for delivery of the mate-rial. This is not necessarily the date stipulated in the purchase order to the vendor.
왘 ExternalID
This is the identification that the vendor has assigned to this delivery. It may be the vendor’s outbound delivery number or any identification that it requires. This field can be up to 35 characters long.
Goods Receipt with Inbound Delivery 5.1
왘 Meansoftrans.
The means of transport is the packaging material type. It can be config-ured using the Transaction VHAR or by using the navigation path: IMG폷 LogisticsExecution폷Shipping폷Packing폷DefinePackagingMaterialType. The packaging material type defines how the materials are shipped. 왘 MeansoftransportID
The field to the right of the Meansoftrans. field is the identification field, where a reference can be entered. For example, if the means of transport was a truck, then the means of transport ID may be the license plate of the truck, or the trailer number or the vehicle VIN number. Up to 20 charac-ters can be entered into this field.
Figure 5.2 shows the item overview for the inbound delivery being created. The delivery quantity and the item number have been entered with the pur-chase order placed into the reference document field. The delivery item cat-egory field has been filled with ELN, which is used for inbound deliveries. The system proposes this value, but it can be changed. The value determines how the line item is processed.
From this screen, the inbound delivery can be processed and an inbound delivery number is returned to the screen after posting.
5.1.3 Creating a Transfer Order for an Inbound Delivery
Once the inbound delivery has been created, the transfer order is created with reference to the inbound delivery document. Use Transaction LT0F to create a transfer order for an inbound delivery. The transaction can be found using the navigation path: SAP 폷 Logistics 폷 Logistics Execution 폷Inbound Process폷GoodsReceiptforInboundDelivery폷Putaway 폷CreateTransfer Order폷ForInboundDelivery.
Figure 5.3 shows the initial screen of Transaction LT0F that shows the selec-tions that can be made to aid the creation of a transfer order. You must have the warehouse number and the inbound delivery when creating the transfer order. The other selection fields shown in Figure 5.3 are optional.
5.1.4 Using the Inbound Delivery Monitor
If the inbound delivery is not known when using Transaction LT0F, you can use the Inbound Delivery Monitor to display open and completed deliveries. You also can use the monitor to process inbound and outbound deliveries.
Goods Receipt with Inbound Delivery 5.1
Figure 5.3 also shows that the Inbound Delivery Monitor can be accessed through Transaction LT0F, by using the Delivery Monitor Inb. Deliveries button on the initial screen. Otherwise the Inbound Delivery Monitor can be executed by Transaction VL06I or by using the navigation path: SAP폷 Logis-tics폷 LogisticsExecution 폷Information System폷 GoodsReceipt폷 Inbound DeliveryLists폷InboundDeliveryMonitor.
In Figure 5.4, the monitor allows a number of selection options. In this sec-tion, we are creating transfer orders based on goods receipts. Therefore, you should select ForGoodsReceipt on the monitor.
Figure 5.4 Initial Selection Screen for Inbound Delivery Monitor: Transaction VL06I
Goods Receipt with Inbound Delivery 5.1
Figure 5.5 shows the selection fields that can be entered to search for partic-ular inbound deliveries based on the following search criteria. These are: 왘 POData
A range for the purchase order and purchase order item 왘 TimeData
The delivery date entered into the inbound delivery document 왘 PutawayData
The storage location and warehouse number
The other two indicators in this area refer to warehouse checks at the header or item level.
If the CheckatHeaderLevel indicator is set, then the system will only find inbound deliveries that have warehouse numbers in the header that meet the selection criteria.
If the CheckatItemLevel indicator is set, then all deliveries that include at least one item that meets the warehouse number criteria are selected. Let’s take a look at these:
왘 PartnerData
The vendor number or a range of vendor numbers of the required inbound deliveries
왘 Doc.Data
The inbound delivery number and the external delivery number 왘 MaterialData
The UPC code or the vendor material number, if these are known
Once all the search criteria have been entered into the search, you can exe-cute the transaction by choosing Program폷Execute from the header menu or by using the F8 function key.
After the data was entered into the selection criteria, the resulting inbound deliveries, shown in Figure 5.6, were found to have met those criteria. A transfer order can be created from a chosen inbound delivery by selecting SubsequentFunctions폷CreateTransferOrder from the header menu. In Figure 5.7 a dialog box will appear requiring an entry of parameters for creation of the transfer order from the inbound delivery. The Adopt Puta-wayQty field can be entered with one of the options shown in Figure 5.7.
Once you have selected a parameter, the process of creating a transfer order is performed in the background. If the transfer order is created, the system will generate a message that the transfer order has been created successfully or has not been.
If the transfer order has been created, you can see the document flow for the inbound delivery by selecting the inbound delivery from Figure 5.6 and choosing Environment폷DocumentFlow from the header menu.
Figure 5.8 shows the original inbound delivery and the handling unit associ-ated with it. The transfer order has been creassoci-ated for the inbound delivery and is shown as an element of document flow.
Figure 5.6 Search Results for Goods Receipt for Inbound Deliveries
from Inbound Delivery Monitor
Figure 5.7 Creating Transfer Order from Inbound Delivery 190000208 —
Goods Receipt with Inbound Delivery 5.1
Transaction LT21 enables display of the transfer order, noted in the docu-ment flow for the inbound delivery.
Figure 5.9 shows the transfer order created for the inbound delivery. The system sets the confirmation flag because the transfer order was confirmed when the transfer order was created in the Inbound Delivery Monitor. Now that we have examined the goods-receipt process with inbound deliv-eries, let us look at what happens when goods receipts are made without inbound deliveries.
Figure 5.8 Document Flow for Inbound Delivery 190000208, Showing Created Transfer
Order Number 22
5.2
Goods Receipt Without Inbound Delivery
A goods receipt for a delivery that is not an inbound delivery occurs when the material is not packed, as it is with an HU. This occurs when material arrives at the receiving dock from the vendor without any containers or pal-lets. The goods receipt occurs in the IM module, and a transfer requirement is created for the movement of the material into the warehouse.
5.2.1 Goods Receipt in Inventory Management
Goods receipts relevant to a warehouse-management system can be pro-duced by the arrival of material at the plant from a purchase order with a vendor. A goods receipt can be defined as a company’s formal acceptance that materials were received from a vendor against a purchase order. Once the material is received and the transaction completed, the value of the mate-rial is posted to the general ledger.
The goods-receipt transaction is accessed through Transaction MIGO. The transaction can be accessed via the navigation path: SAPMenu폷Logistics폷 Materials Management 폷 Inventory Management 폷 Goods Movement 폷 GoodsReceipt폷ForPurchaseOrder폷GRforPurchaseOrder.
Goods Receipt Without Inbound Delivery 5.2
Figure 5.10 shows the goods receipt for a purchase order of Material1905. It also shows the quantity of material that will be receipted into Plant3000 and the GRgoodsreceipt type 101, which represents a goods receipt for a pur-chase order.
5.2.2 Review of the Material Documents
After all the relevant details such as storage location, batch number, etc., have been added to the goods-receipt transaction, the goods receipt can be posted. If the goods receipt does not return any error messages, the transac-tion will post and display the number of the material document for the movement of the material.
To view the material document, use the Transaction MB03. This can be found using the navigation path SAPMenu폷Logistics폷Materials Manage-ment폷InventoryManagement폷MaterialDocument폷Display. On the initial screen, enter the material document number displayed after the goods receipt posted and the year, as shown in Figure 5.11.
After the material document number and the fiscal year have been entered, the material document can be displayed.
Figure 5.12 shows the material document that was created during the process-ing of the goods receipt for a purchase order. The material document shows the material, plant, storage location where the material will be stored, pur-chase order number, the batch number of the material being receipted, and the movement type of the goods receipt that produced the material document. In addition the material document contains an option to show the account-ing documents created because the material was received at the plant and moved into stock. The company therefore assumes financial liability for the material.
Figure 5.13 shows the accounting document relevant to the goods receipt of the material from the purchase order. The two lines of the accounting docu-ment show the financial liability moving from the account 191100 (goods receipt account) to the account 792000, which is the finished goods inven-tory account.
5.2.3 Review of Stock Levels after Goods Receipt
Once the goods receipt of the purchase order into inventory is complete, a stock overview can be performed to show the material in stock. The stock
Figure 5.12 Display of Material Document Created by Goods Receipt for Purchase Order
Figure 5.13 Display of Accounting Document Created as Part
Goods Receipt Without Inbound Delivery 5.2
overview can be executed using the Transaction MMBE. This can be accessed using the navigation path: SAPMenu 폷Logistics폷Materials Management폷 InventoryManagement폷Environment폷Stock폷StockOverview.
The stock overview screen shows the material that has been posted as a result of the goods receipt. The information regarding the material 1905, such as the batch number 505, is shown on the stock overview, shown in ure 5.14. It matches the information in the material document, shown in Fig-ure 5.12.
5.2.4 Display of the Transfer Requirement
The goods receipt of the material from the purchase order has been receipted into stock, as shown by the material documents and the stock overview pro-gram. This information reflects the movement into the stock location rele-vant to IM, but not movement relerele-vant to WM.
When the movement into the storage location was made, a transfer require-ment would have been created, as the storage location is warehouse-man-aged. The transfer requirement can be found by using Transaction LB11 that allows for a search of the transfer requirements by material number. This transaction can be found by using the navigation path: SAPMenu폷Logistics 폷 Logistics Execution 폷 Internal Warehouse Processes 폷 Transfer Require-ment폷Display폷ForMaterial.
Figure 5.15 shows the initial screen of the Transaction LB11. To find all the transfer requirements for the material that has been goods-receipted, you can enter the material number, warehouse number, and plant. Other infor-mation such as shipment type can also be entered. In this example, the Ship-ment Type “E” has been entered, restricting the transfer-requireShip-ment search to stock placements.
Figure 5.15 Display Transfer Requirements for Single Material: Transaction LB11
Figure 5.16 Display of Transfer Requirement Resulting From Search Criteria:
Goods Receipt Without Inbound Delivery 5.2
Figure 5.16 shows the transfer requirement found using the search criteria entered in Figure 5.15. The transfer requirement has been created as a result of the goods receipt for the purchase order. The line item shows the transfer requirement number, movement type, and description that created the transfer requirement, the purchase order number that has been receipted into stock, and the quantity on the transfer requirement.
Now that we have identified the transfer requirement, we can convert it to a transfer order. As Figure 5.16 shows, there are two was to do this. A transfer order can be created in the foreground or the background.
To convert to a transfer order in the foreground, the TOinForeground but-ton can be selected or the Ctrl+Shift+F8 function keys. The transfer order can also be created from the header menu and choosing Environment폷TOin Foreground.
Figure 5.17 shows the first screen displayed after the TOinForeground but-ton is selected. You can review and change the information if necessary. Once it is correct the Generate+NextMat button can be selected to com-plete the line item.
Figure 5.18 shows the transfer order that has been created from the informa-tion that was shown in Figure 5.17. The transfer order can be posted by selecting Transfer Order 폷 Posting from the header menu or the function keys Ctrl+S.
Once the transfer order has been posted, the system returns to the display of transfer requirements, as shown in Figure 5.16, and the transfer order number is displayed at the bottom of the screen.
5.2.5 Display of the Transfer Order
The transfer order that is created by the conversion of the transfer require-ment to a transfer order can be seen using Transaction LT21 if the transfer order number is known. If just the material is known, use Transaction LT24 or follow the navigation menu path: SAPMenu폷Logistics폷Logistics Execu-tion 폷 Internal Warehouse Processes 폷 Stock Transfer 폷 Display Transfer Order폷ForMaterial.
Figure 5.19 shows the initial selection criteria screen for the display of trans-fer orders. All the transtrans-fer orders can be displayed for a material in a ware-house. In this example, the transfer order created for the goods receipt of material 1905 is being searched for, and the selection criteria reflect this.
Goods Receipt Without Inbound Delivery 5.2
Figure 5.20 shows the transfer order that has been created for the purchase order 4500017557 that was receipted into the plant. A transfer requirement has been created to start the putaway in the warehouse. The conversion of the transfer requirement to the transfer order and the confirmation of the transfer order have moved the 23 units of material 1905 into the warehouse storage bin 01–01–01 in storage type 001.
Figure 5.19 Initial Screen for Display Of Transfer Order by Material Number:
Transaction LT24
Figure 5.20 Display of Transfer Orders Available from Selection Criteria:
In the last two sections, we described goods receipts with and without inbound deliveries. Now we shall examine goods receipts that do not involve inventory management.
5.3
Goods Receipt Without Inventory Management
At first glance, this process may appear somewhat abnormal. Normally, materials are receipted into a storage location, and that triggers a transfer requirement and a transfer order in WM. However, there are materials in the warehouse that sometimes do not require a goods receipt in IM, but are required for warehouse operations. An example of this is packaging materi-als, such as pallets and crates. These are used for material storage and ship-ment, but do not have to be goods-receipted into IM.5.3.1 Create the Transfer Order for the Goods Receipt
The transfer order can be created without reference to a goods receipt from IM or a transfer requirement in WM. A transfer order can be created in Transaction LT01 or via the SAP navigation path: SAP Menu 폷 Logistics 폷 LogisticsExecution폷InternalWarehouseProcesses폷StockTransfer폷Create TransferOrder폷NoSourceObject.
Goods Receipt Without Inventory Management 5.3
Figure 5.21 shows the initial screen for creating the transfer order using Transaction LT01. The goods-movement number 501 used here refers to a receipt without a purchase order. In this scenario, a vendor may have dropped off a shipment of 200 pallets to be used in the shipment of parts. Many industries use pallets that are leased to them at a very small charge per day; e.g.,GKN pallets.
Note
A GKN pallet is a series of blue wooden strips and blocks crafted into a square shape, about 1.2 square meters. It is manufactured by CHEP, a division of GKN, and is rented to a company for a few cents per day.
Figure 5.22 shows the detail screen for Transaction LT01. The screen shows that the material putaway will come from the source storage type 902, which is the goods-receipt area. The system will generate the destination storage type and storage bin. To create the transfer order, use the function keys Ctrl +S or TransferOrder폷Posting from the header menu. Once posting is com-plete, the system will return to the initial screen and display the transfer order number it has created.
Figure 5.22 Detail Screen for Creating Transfer Order for Material Receipt Without IM:
5.3.2 Display the Transfer Order for the Goods Receipt
The information in the transfer order can be reviewed by displaying the con-tents of the transfer order using Transaction LT21 or following the SAP nav-igation path: SAP Menu 폷 Logistics 폷 Logistics Execution 폷 Internal Ware-house Processes 폷 Stock Transfer 폷 Display Transfer Order 폷 Single Document. The transaction requires that the just the warehouse number and the transfer order number be entered to display the transfer-order details.
Figure 5.23 shows the detail of the line item in the transfer order created for the goods receipt. The material has been moved from storage type 902, stor-agesection001, and storage bin WE-ZONE to storage type 001, storage sec-tion 001, and storage bin 01–01–01. Note that the quantity of 200 has not been confirmed because the confirmation indicator next to the warehouse number has not been set by the system.
5.3.3 Display the Stock Levels
Prior to the posting of the transfer order and the receipt of the material into the warehouse stock, the stock levels for the material in the warehouse can be reviewed. To do this, use Transaction LS24 or follow the SAP navigation path: SAPMenu폷Logistics폷LogisticsExecution폷InternalWarehouse Proc-esses폷BinsandStock폷Display폷BinStockperMaterial.
Figure 5.23 Display of Transfer Order Created for Material Goods Receipt Without IM:
Goods Receipt Without Inventory Management 5.3
Figure 5.24 shows initial screen for Transaction LS24 that allows selections to be made to report on the stock levels for the material required. In this example, the display for stock levels of material 1920 is limited to the ware-house number 088, but for all storage types.
Figure 5.25 shows the stock levels for material 1920. It shows that the mate-rial is located in receiving area and not yet moved to storage type 001 and
Figure 5.24 Initial Screen for Display of Transfer Order by Material: Transaction LS24
placed in bin 01–01–01. Therefore, the transfer order should be confirmed using Transaction LT12 or by following the navigation menu path: SAP Menu 폷 Logistics 폷 Logistics Execution 폷 Internal Warehouse Processes 폷 StockTransfer폷ConfirmTransferOrder폷SingleDocument폷InOneStep.
Figure 5.26 shows the information required to confirm the transfer order and move the material from the goods receipt area to the storage bin 01–01– 01 in storage type 001.
You can confirm the movement by checking the bin stock using Transaction LS24. Enter the same information in the initial screen as in Figure 5.24. The resulting screen after confirmation of the transfer order shows the material posted into the correct storage bin. The final placement of the material in the warehouse is shown in Figure 5.27.
Summary 5.4
5.4
Summary
Material is receipted into stock using purchase orders or production orders. The material can easily be goods-receipted using inventory management, but a number of steps are needed to move and store the material in SAP WM. This chapter explained procedures required when material is brought into the warehouse, either as a normal receipt or as a receipt that involves han-dling units.
Chapter 6 will examine the opposite of goods receipt: goods issue. Moving the material from the warehouse involves a variety of procedures that you should understand clearly.
Figure 5.27 Stock per Material Report Showing Movement from WE-ZONE
