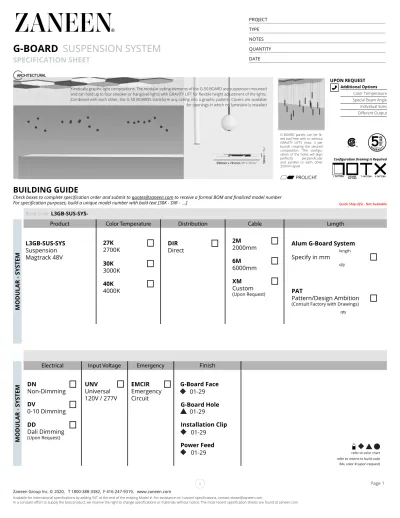

G-BOARD SUSPENSION SYSTEM

(1)

BUILDING GUIDE

Check boxes to complete specification order and submit to [email protected] to receive a formal BOM and finalized model number For specification purposes, build a unique model number with bold text [30K - DIR - ...]

Build Code

L3GB-SUS-SYS-MODULAR - SYSTEM

L3GB-SUS-SYS

Suspension

Magtrack 48V

UNV

Universal

120V / 277V

27K

2700K

Alum G-Board System

Specify in mm

30K

3000K

40K

4000K

length

Product

Color Temperature

Distribution

Length

MODULAR - SYSTEM

Finish

DN

Non-Dimming

DV

0-10 Dimming

Electrical

Emergency

PAT

Pattern/Design Ambition

(Consult Factory with Drawings)

qty

Quick Ship (QS) - Not Available

Configuration Drawing is Required

qty

EMCIR

Emergency

Circuit

DD

Dali Dimming

(Upon Request)

G-BOARD panels can be fit-ted tool-free with or without GRAVITY LIFTS (max. 4 per board) creating the desired composition. The configu-ration of the holes will align

perfectly perpendicular

and parallel to each other 350mm apart

55

YEARYEAR W W

AA RRRRAANNTTLED: 50,000hLED: 50,000hrrs @ DriDrivver: 5yrer: 5yrs @ 770%0% YY Kinetically graphic light compositions. The modular ceiling elements of the G-50 BOARD are suspension mounted

and can hold up to four snooker or hangover lights with GRAVITY LIFT for flexible height adjustment of the lights. Combined with each other, the G-50 BOARDS transform any ceiling into a graphic pattern. Covers are available for openings in which no luminaire is installed

R

Input Voltage

DIR

Direct

Additional Options Color Temperature Special Beam Angle Individual Sizes Different Output 990mm x 745mm 39” x 29 5/16” 50mm 1 15/16”

G-Board Face

01-29

G-Board Hole

X PATTERN T PATTERN SQUARE PATTERN LPATTERN

refer to color chart refer to inserts to build code RAL color # (upon request)

Cable

2M

2000mm

6M

6000mm

XM

Custom

(Upon Request)

01-29

Installation Clip

01-29

Power Feed

(2)

Page 2 990mm 39” ALUMINUM G-BOARD 25mm1” 1280 x 25 MOUNTING GAUGE Dimension H: 30 1 Pair mm 235 x 100 H: 31 Dimension mm qty qty

L3895199

Build Code

L3

(DND1000048EV)-Build Code 235 x 100 H: 31 Dimension mm qty

L380012-Build Code 745 x 990 H: 50 mm2 mm2 350 x 42 H: 105 Dimension mm qty mm2

GRAVITY LIFT 48V NON-DIM (DN) POWER SUPPLY UNIT NON-DIM (DN)

POWER SUPPLY UNIT 0-10V-DIM (DV)

L38954-DN-Build Code 01-29 01-29 includes driv-ers interface

(3)

350 x 42 H: 105 Dimension mm qty

L38954-Build Code mm2 350 x 42 H: 105 Dimension mm qty

L38954-DV-Build Code mm2

GRAVITY LIFT 48V 0-10V-DIM (DV)

(4)

Page 4 6 6.4W 270270lm 27K2700K 30K 3000K 40K 4000K 290 290lm 310 310lm DN Non-Dim DV 0-10V Color Temperature

Wattage Delivered Lumens CRI Dimming

01-29 90 6 6.4W 270270lm 27K2700K SNOOKER SHINE 30K 3000K 40K 4000K 290 290lm 310 310lm DN Non-Dim DV 0-10V Color Temperature

qty 01-29

L38862-Build Code 90 IP20 IP20 EXCLD EXCLD IP20 IP20 EXCLD EXCLD SNOOKER BALL Finish Finish 0.5M 0.5M 0.5M 0.5M Shine Ring 01 Clear 02 Yellow 03 Orange 04 Red 05 Blue 06 Green 0 0.0W 00lm SNOOKER DECOR Color Temperature

qty 01-29

L38818-Build Code IP20 IP20 Finish

(5)

7 7.0W 328328lm 27K2700K HANGOVER PLUG 30 30K 3000K 40K 4000K 363 363lm 386 386lm DN Non-Dim DV 0-10V Color Temperature Wattage Delivered _Lumens CRI Dimming

IP20 IP20 qty

L380039-Build Code 90 EXCLD EXCLD 0.5M0.5M Finish 01-29 01-29 24 24° 32 32° 58 58° 34 34° 55 55° Lens 7 7.0W 328328lm 27K2700K HANGOVER PLUG 30 30K 3000K 40K 4000K 363 363lm 386 386lm DN Non-Dim DV 0-10V Color Temperature Wattage Delivered _Lumens CRI Dimming

IP20 IP20 qty

L380040-Build Code 90 EXCLD EXCLD 0.5M0.5M Finish 01-29 01-29 24 24° 32 32° 58 58° 34 34° 55 55° Lens

LFO lens is an anti-glare solution (micro-dot) LFO lens is an anti-glare solution (micro-dot)

7

7.0W 328328lm 27K2700K

HANGOVER PLUG 30 SHINE

30K 3000K 40K 4000K 363 363lm 386 386lm DN Non-Dim DV 0-10V Color Temperature Wattage Delivered _Lumens CRI Dimming

IP20 IP20 qty

L380041-Build Code 90 EXCLD

EXCLD Lens Shine Ring

01 Clear 02 Yellow 03 Orange 04 Red 05 Blue 06 Green Finish 01-29 01-29 24 24° 32 32° 58 58° 7 7.0W 328328lm 27K2700K

HANGOVER PLUG 30 SHINE

30K 3000K 40K 4000K 363 363lm 386 386lm DN Non-Dim DV 0-10V Color Temperature Wattage Delivered _Lumens CRI Dimming

IP20 IP20 qty

L380042-Build Code 90 EXCLD

EXCLD Lens Shine Ring

01 Clear 02 Yellow 03 Orange 04 Red 05 Blue 06 Green Finish 01-29 01-29 24 24° 32 32° 58 58°

(6)

Page 6

0

0.0W 00lm

HANGOVER PLUG 30 DECOR

Color Temperature

IP20

IP20 _Finish

0

0.0W 00lm

Color Temperature

qty

L380044-Build Code IP20 IP20 _Finish 01-29 01-29 01-29 01-29

HANGOVER PLUG 30 DECOR

9 9.0W 843843lm 27K2700K HANGOVER PLUG 40 30K 3000K 40K 4000K DN Non-Dim DV 0-10V Color Temperature Wattage Delivered _Lumens CRI Dimming

IP20 IP20 qty

L380107-Build Code 90

Finish Reflector Shine Ring

01-29 01-29 INCLD INCLD 40 40° 50 50° 01 Clear 02 Yellow 03 Orange 04 Red 05 Blue 06 Green 00 XX 9 9.0W 843843lm 27K2700K HANGOVER PLUG 40 30K 3000K 40K 4000K DN Non-Dim DV 0-10V Color Temperature Wattage Delivered _Lumens CRI Dimming

IP20 IP20 qty

01-29 01-29 INCLD INCLD 40 40° 50 50° 01 Clear 02 Yellow 03 Orange 04 Red 05 Blue 06 Green 00 XX

(7)

6 6.0W 356356lm 27K2700K HANGOVER 40 MICRO-DOT 30K 3000K 40K 4000K DN Non-Dim DV 0-10V Color Temperature Wattage Delivered _Lumens CRI Dimming

IP20 IP20 qty

L380109-Build Code 90 Finish Reflector 01-29 01-29 INCLD INCLD 34 34° 55 55° 6 6.0W 356356lm 27K2700K HANGOVER 40 MICRO-DOT 30K 3000K 40K 4000K DN Non-Dim DV 0-10V Color Temperature Wattage Delivered _Lumens CRI Dimming

IP20 IP20 qty

L380110-Build Code 90 Finish Reflector 01-29 01-29 INCLD INCLD 34 34° 55 55°

LFO lens is an anti-glare solution (micro-dot)

(8)

Page 8 6 6.0W 432432lm 27K2700K HANGOVER PLUG 75 30K 3000K 40K 4000K DN Non-Dim DV 0-10V Color Temperature Wattage Delivered _Lumens CRI Dimming

IP20 IP20

90

01-29 01-29 INCLD INCLD 9 9° 24 24° 01 Clear 02 Yellow 03 Orange 04 Red 05 Blue 06 Green 00 XX 39 39° 9.5 9.5W 778778lm 27K2700K

HANGOVER PLUG 75 INDIRECT

30K 3000K 40K 4000K DN Non-Dim DV 0-10V Color Temperature Wattage Delivered _Lumens CRI Dimming

IP20 IP20 qty

01-29 01-29 INCLD INCLD 01 Clear 02 Yellow 03 Orange 04 Red 05 Blue 06 Green 00 XX 9 9° 24 24° 39 39° DIR - IND 30K - 27K Ø71

HANGOVER PLUG 75 INDIRECT DIFFUSER

Dimension mm qty

L380106-Build Code Indirect Finish 27K 2700K 30K 3000K 40K 4000K Color Temperature Yellow Orange Red Blue Green Clear

(9)

FINISH COLORS 01-29

Digital: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.

Physical: When texture is involved, there will be variations in color, character and tone within a product series and between product families.

Gun Metal: No Gun Metal finish is alike. It combines a mixture of transparent and black color particles which ensures a highly individual effect and no luminaire being identical. Champagne Cream, Copper Mine, Ancient Bronze + Jazz Gold: These finishes have slight fading from specific powder coating production. Each luminaire will slightly vary.

Sparkling Silver - 01 Black Velvet - 02 Crystal White - 03 Creamy - 04 Hampton Bay - 05 Lagoon - 06

Urban Forest - 07

Mysterious Gray - 13

Kissing Aphrodite - 19

Gun Metal - 25

In the Army - 08 Rusty Angel - 09 Rusty Rush - 10 Milk and Chocolate - 11 Fade to Gray - 12

Twilight - 14 Lost Dream - 15 Purple Sky - 16 Fresh Oh - 17 Funky P. - 18

Poseidon’s Paradise - 20 Blue Sky - 21 Spring Green - 22 Mellow Yellow - 23 Golden Heart - 24

Champagne Cream - 26 Copper Mine - 27 Ancient Bronze - 28 Jazz Gold - 29

RAL Color Upon Request

(10)

Page 10

S S

direct light distribution direct/indirect light distribution

dimmable DP (phase), DV (0-10V), DD (dali), DS (step-dim)

included or excluded LED driver/transformer/ control gear

accessory sensor

wall and ceiling: recessed and surface mounted floor-mounted

ceiling-mounted and wall-mounted wall-mounted

omni-directional light distribution

indirect light distribution asymmetric light distribution aura light distribution round wall or ceiling cut-out square wall or ceiling cut-out

remote control ceiling thickness in mm ceiling thickness selection

luminaire part to be colored (F1) luminaire part to be colored (F2) luminaire part to be colored (F3) luminaire part to be colored (F4) rotating

pivotable illuminate tilted

separately switchable recessed depth

reflector degree selection

shine ring

integrated shine ring with diffuser free individual colors 01-29

individual colors: 00 (free of charge), 01-25 (extra charge)

luminaire part to be colored (F5)

fixture with natural vivid LED (upon request) color rendering index

super spot

ball-proof (upon request)

drive on

Certified for North American Standards

Americans with Disabilities Act (less than 4” off the wall located between 27”-84” from floor)

Unified Glare Rating (UGR) range from 5-40

color of 3-circuit adaptor color of suspension cable length of suspension cable

minimum distance (meters) lamp - object

protection class I, protection insulation protection class II, protection insulation walk on

warm dim / natural dimming LED rechargeable battery powered

lumen (luminous flux) color temperature

the supplied jig specifies the cutout dimensions C

CRI

TM30

D

marine grade (AISI 316 stainless steel)

Dark Sky Compliance efficacy (lumens per watt)

lamp protected against explosion

blown glass using traditional methods by master glass blower indirect diffuser direct diffuser

IP RATING

IK RATING

UGR LM W LM IP20 IP20 IP40 IP40 IP44 IP44 IP65 IP65 IP67 IP67 IP68 IP68 IP66 IP66 IP54 IP54 IK01 IK01 IK02 IK02 IK03 IK03 IK04 IK04 IK05 IK05 IK06 IK06 IK07 IK07 IK08 IK08 IK09 IK09 IK10 IK10 IP33 IP33 IP43 IP43

protected against ingress of solid bodies greater than 12.5mm (finger) protected against ingress of solid bodies greater than 2.5mm

protected against sprays of water up to 60 degrees from the vertical (rain) protected against ingress of solid bodies greater than 1mm (wire) no protection against the ingress of moisture

protected against ingress of solid bodies greater than 1mm (wire) protected against sprays of water up to 60 degrees from the vertical (rain) protected against ingress of solid bodies greater than 1mm (wire) protected against water splashed from all directions

protected against limited ingress of dust (wet rooms/covered outdoor areas) protected against water splashed from all directions

protected against ingress of dust protected against jets of water protected against ingress of dust

protected against powerful jets of water or heavy seas protected against ingress of dust

protected against immersion of water between 15cm - 1m for 30 minutes protected against ingress of dust

protected against immersion of water under pressure for long periods

protected against 0.14 joules impact (equivalent to 0.25kg mass dropped from 56mm above the surface)

protected against 1 joules impact (equivalent to 0.25kg mass dropped from 400mm above the surface)

special LED (upon request) RGB, RGBW, tunable, gold+, meat+, art+, fashion+

available upon request

acoustic material lens pack lens M M Dimmable IN/EXCLD IN/EXCLD DSC DSC

ETL Certified to UL and CSA Standards UL Certified to UL and CSA Standards CSA Certified to UL and CSA Standards

R

(11)

SYSTEM SUMMARY

General

Features

Korona Cone is a glare-reduction cone that sits in front of the reflector - available in 29 standard colors, thus creating a special decorative effect

LFO lenses ensure a glare free downlight without illuminating the luminaries hous-ing and the lowest UGR rathous-ings perfect for residential and hospitality applications Modeling with gravity lift gives you the unlimited freedom to design your own focal arrangement and change it at any time

An ingenious docking system guarantees rapid changing and locking of the differ-ent snooker and hangover modules. The glowing shine ring is available in 6 colors

Custom Requests and Additional Options

Availability depends by insert, system, and configuration

Must consult factory and allow up to 5 business days for an answer Special beam angles, individual sizes, light inserts with different outputs

Configuration

Consult factory for patterns or custom designs Provide configuration drawings

*Shop drawings provided upon receiving purchase order

Warranty

ZANEEN provides a limited warranty from date of purchase to original purchaser

LED Inserts : 5 year tested for 50,000 hours at 70% lumen output (L70) LED Driver : 5 year

Non-Electrical Components : 1 year

*Check boxes to complete specification order and submit to [email protected] to receive a formal BOM and a finalized model number

*In a constant effort to supply the best product, we reserve the right to change specifications or materials without notice. The most recent specification sheets are found at zaneen.com

System

Type

Suspension

Rated for Dry Locations Ceiling Mounted

Approval Status

CSA Certified to CSA and UL Standards

Emission

Refer to emission icon beside each light insert and symbol legend for descriptions

Profile

Measurement

l. 990mm (39”) x w. 745mm (29 5/16”) x ht. 50mm (1 15/16”)

Housing

Anodized extruded aluminum profile available per meter and field-cuttable Profiles have a maximum length of 3000mm (9’ 10 15/16”) and joined together with couplers to ensure uniform appearance and easy installation

Suspension Lengths

Standard lengths include 2000mm and 6000mm Any custom length must be pre-cut on site Maximum custom length available is 10000mm

Electrical

Connections

Luminaries are pre-wired by factory

Power Feed

Located in the center of the ceiling holder 3 Wires - non-dimming or phase dimming

4 Wires - two circuits of non-dimming or phase dimming 5 Wires - 0-10V dimming or dali dimming

LED Driver

Driver Included with Power Supply Unit - mounted in the center of G-Board next to gravity lift units

Electronic Class 2 driver, Universal 120V/277V Non Dimming Driver, Dimming Driver 0-10V (10-100%) Consult factory for driver cutsheet

If a different driver is required, please specify

Emergency Inverter Compatible

To be installed remotely, and provided by others It can be located up to 250m away from the fixture

Emergency circuit wiring is available upon request (Isolated track with dedicated driver used for emergency circuit will connect to emergency battery pack - sup-plied by others) X PATTERN T PATTERN SQUARE PATTERN LPATTERN

(12)

Page 12

Inserts

*Delivered lumens is the maximum possible; using widest lens, optic, or reflector

Pendants

Snooker

Wattage: 6.4W Lumen: 270lm - 310lm

Color Temperature: 27K, 30K, 40K

Shine Ring: Clear, Yellow, Orange, Red, Blue, Green Available in 29 colors

Hangover Plug 30

Wattage: 7.0W Lumen: 328lm - 386lm

Color Temperature: 27K, 30K, 40K LFO Lens Option: 34°, 55° Lens Option: 24°, 32°, 58°

Shine Ring: Clear, Yellow, Orange, Red, Blue, Green Available in 29 colors Hangover Plug 40 Wattage: 6.0W - 9.0W Lumen: 356lm - 843lm Color Temperature: 27K, 30K, 40K Reflector Option: 40°, 50° LFO Lens Option: 34°, 55°

Shine Ring: No Ring, Clear, Yellow, Orange, Red, Blue, Green Available in 29 colors

Hangover Plug 75 (Direct & Direct/Indirect)

Wattage: 6.0W - 9.5W Lumen: 432lm - 778

Color Temperature: 27K, 30K, 40K Lens Option: 9°, 24°, 39°

Shine Ring: No Ring, Clear, Yellow, Orange, Red, Blue, Green Indirect: Yellow, Orange, Red, Blue, Green

(13)

WIRING DIAGRAMS

ALL ZANEEN FIXTURES ARE MANUFACTURED TO NORTH AMERICAN ELECTRICAL STANDARDS

IMPORTANT:

PHASE/NON-DIMMING WIRING DIAGRAM

0-10V DIMMING WIRING DIAGRAM

PHASE/

NON-DIMMING

DRIVER

LED ARRAY

DIMMER/SWITCH

- Follow Wiring

Instructions

LINE

NEUTRAL

DC+

DC-LINE

VOLTAGE

Post Sales Support

HQ 1-800-388-3382 X 625 [email protected]

LED ARRAY

0-10V DRIVER

LINE

NEUTRAL

DIMMER

- Follow Dimmer

Wiring

Instructions

LINE

VOLTAGE

0-10V

+

-DC+

DC-• Do NOT connect directly to line voltage

• There is a minimum and maximum load per driver (See fixture and driver specifications).

• Fixture MUST be connected to LED driver, prior to turning power on
