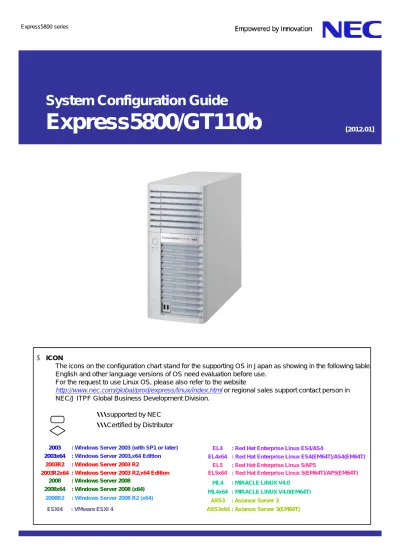

System Configuration Guide

Express5800/GT110b

[2012.01] 2003 2003R2 2003R2x64 2003x64

: Windows Server 2003 (with SP1 or later) : Windows Server 2003,x64 Edition

: Windows Server 2003 R2

: Windows Server 2003 R2,x64 Edition

EL4 : Red Hat Enterprise Linux ES4/AS4

EL4x64 : Red Hat Enterprise Linux ES4(EM64T)/AS4(EM64T)

ML4 : MIRACLE LINUX V4.0

EL5x64

: Red Hat Enterprise Linux 5/AP5 EL5

2008 : Windows Server 2008

: Red Hat Enterprise Linux 5(EM64T)/AP5(EM64T)

 ICON

• The icons on the configuration chart stand for the supporting OS in Japan as showing in the following table. English and other language versions of OS need evaluation before use.

• For the request to use Linux OS, please also refer to the website

http://www.nec.com/global/prod/express/linux/index.htmlor regional sales support contact person in

NEC/J ITPF Global Business Development Division.

・・・supported by NEC ・・・Certified by Distributor

(2)

Specification

 Product overview

 New quad-core CPU and SATA/SAS HDD supported. RAID 0/1/5/6 configurable Entry server.

 Features

 Latest Intel® Xeon® processor 3400 series  High speed DDR3-1333 memory ,max. 16GB  PCI EXPRESS 2.0 x16 slots

 Low acoustic noise level

 20% smaller enclosure than previous model’s

GT110b GT110b GT110b

N8100-1592F N8100-1593F N8100-1594F

Intel® Celeron®processor G1101 intel® Pentium®processor G6950 intel® Xeon®processor X3430

2.26 GHz 2.80 GHz 2.40 GHz

1/1 1/1 1/1

2MB 3MB 8MB

2C/2T 2C/2T 4C/4T

DMI (2GB/s) Intel® 3420 chip set 1GB/16GB (4x4GB) DDR3-1333 SDRAM DIMM, Unbuffered

1066MHz 1066MHz 1333MHz ECC not supported not supported -3.5inch HDD : SATA 8TB (4x2TB)

2.5inch HDD : SATA 2TB (4x 500GB), SAS 1.2TB (4x 300GB) 2.5inch SSD : 400GB (4x 100GB)

(Optional HDD cage is required to use 2.5inch HDD/SSD)

-SATA 3Gb/s : RAID 0/1/10 (standard *1), RAID 5/6(option) SAS 3Gb/s : RAID 0/1/5/6/10(option)

standard : DVD-ROM drive

option : DVDSuperMULTI drive (Do not use with DVD-ROM) option: Flash FDD (1.44MB)

2x 5.25inch device bay (one bay occupied by the standard DVD-ROM drive)

Expansion slot 1x PCI EXPRESS 2.0 (x16 lane, x16 socket) + 1x PCI EXPRESS 2.0 (x4 lane, x8 socket)

+ 1x PCI EXPRESS 2.0 (x2 lane, x4 socket) +1x PCI (32bit/33MHz) XGI Technology Volari™ Z9s/64MB

16,777,216 color : 640 x 480, 800 x 600, 1,024 x 768, 1,280 x 1,024 1x keyboard (mini DIN 6pin), 1x mouse (mini DIN 6pin)

1x analog RGB (mini D-Sub 15pin rear)

1x serial port (RS-232C/D-Sub 9pin, serial port A, rear, It's possible to add in total 2 ports by an option.) 10x USB2.0 (2x front, 4x rear, 4x internal)

1x 1000BASE-T LAN connector (1000BASE-T/100BASE-TX/10BASE-T, RJ-45, rear)

-175 x 418 x 364 mm (protrusion not included), -175 x 430 x 367 mm (including protrusion) 11Kg/16Kg

1x 400W 80 PLUS® power supply (non hot-plug) AC100-240V±10%、50/60Hz±3Hz

21VA/19W 22VA/20W 25VA/23W

65VA/59W 71VA/64W 130VA/128W

98VA/96W 98VA/96W 98VA/97W

226VA/224W 232VA/230W 264VA/262W

36.7dB 35.9dB

During operation: 10 to 35℃ / 20 to 80% (non condensation), When stored: -10 to 55℃ / 20 to 80% (non condensation)

- -

-Microsoft Windows Server 2003 R2 Standard, -Microsoft Windows Server 2003 R2 Standard (x64), Power consumption (Min config, high load)

External Interface

Power consumption (Max config, idle) Power consumption (Min config, idle)

Power consumption (Max config, high load) Power

Supported sllot

Graphics

Redundant power

Color ,Resolution [dot]

Installed OS

External dimension (W x D x H) Weight (std/max)

Redundant fan

Installation Type / Video RAM Model Model Clock frequency L3 Cache N-Code CPU Core(C)/Thread(T) (1CPU) No. of CPU std/max

Connection with controller hub

Storage Error detection/correction Memory sparing Hot plug FDD *2 Drive bay Interface / RAID Memory mirroring Device Bay Chip set Noise level *4

Optical Disk Drive Capacity std/max

Operation Condition (Temperature, Humidity)

Memory Operating frequency

Memory module

Standard capacity

(3)

Outward

1. Front view

Front bezel

3. 3-Way

2. Rear View

PCI #1 PCI #2 PCI #3 PCI #4 Mouse Connector AC inlet Keyboard Connector Serial Port Connector VGA Connector USB connector USB connector LAN connector Access Lump Optical Disk Drive POWER/SLEEP Lump DISK Access Lump USB connector 5.25-inch Device Bay POWER/SLEEP Switch 430.0 418.0 364 .0 367 .0 175.0 Chassis lock Dump switch

(4)

Operations Check OS List (2011 / January)

* Please refer to “Linux on NEC Express5800” (http://www.nec.com/global/prod/express/linux/index.html)

OS

OS check

Red Hat Enterprise Linux 4.8

Red Hat Enterprise Linux 4.8 (EM64T)

Red Hat Enterprise Linux 5.5

Red Hat Enterprise Linux 5.5 (EM64T)

CentOS 4.8 (x86)

CentOS 4.8 (x86_64)

CentOS 5.5 (x86)

CentOS 5.5 (x86_64)

SUSE Linux Enterprise Server 10 SP3 (x86)

SUSE Linux Enterprise Server 10 SP3 (x86_64)

SUSE Linux Enterprise Server 11 (x86)

(5)

Quick configuration sheet

4x memory slot Expansion slot PCI EXPRESS2.0(x16) #1 PCI EXPRESS 2.0(x4) #2 PCI EXPRESS 2.0(x2) #3

CPU

Device bay

Optical disk drive 5inch device bay

32bit/33MHz PCI #4 Disk bay

For OS support, option device connections and functional limitations, refer to the Configuration Guides on the following pages.

4x DDR3-1333 memory slot (standard 1x 1GB) Unbuffered memory (max. 4)

(refer to the following Configuration table)

Processor Xeon® X3430 Pentium® G6950

Celeron® G1101

N-Code

Model

Standard configuration

N8100-1594F

NEC Express5800/GT110b(4C/X3430) 1x Xeon X3430 (2.40GHz, 4core/4Thred)

Mem1GB, No HDD

N8100-1593F

NEC Express5800/GT110b(2C/G6950) 1x Pentium G6950 (2.80GHz, 2core/2Thred)

Mem1GB, No HDD

N8100-1592F

NEC Express5800/GT110b(2C/G1101) 1x Celeron G1101 (2.26GHz, 2core/2Thred)

Mem1GB, No HDD

Server

Device bay Refer to Internal backup device Disk bay 4x 3.5inch HDD cage (Standard) 3.5inch SATA HDD 4x 2.5inch HDD cage (Option) 2.5inch SAS HDD 2.5inch SATA HDD 2.5inch SATA SSD 3x PCI EXRESS 2.0 Slot or 1x PCI slot RAID controller LAN adapter etc.

1GB memory

* #1 slot operates at max. 5Gb/s per lane #2/#3 slots operate at max. 2.5Gb/s per lane

(6)

Configuration Guide <memory / ODD / FDD>

Memory [std. 1 / max.4]

 NOTE

 1x 1GB DIMM is factory-installed.

 The memory module available for the GT110b are DDR3-1333(PC3-10600) Unbuffered type with ECC (but memory of Celeron G1101 model, Pentium G6950 model frequency is 1066MHz)

 Memory extension by one DIMM is possible, but a set of two DIMMs (same capacity) is recommended. (for 2way interleave)

 If there are different capacity DIMMs, larger capacity DIMMs should be installed in the smaller number slots.  For more details about the memory size supported by each OS, please refer to the “Supplementary Notes

<Memory (1)>” at the end of this document.

 Additional memory module (1x 1GB) [N8102-342F]

 Additional memory module (1x 2GB) [N8102-343F]

 Additional memory module (1x 4GB) [N8102-344F]

UP to four memory modules can be installed.

You can expand the memory capacity up to 16GB(4x 4GB) by replacing the standard DIMM.

Optical disk drivemax.1 , not possible to use both two drives in a system)

 DVD-ROM drive standard

Optical disk drive (installed 5inch device bay)

 Flash FDD (USB) [N8160-86]

 1.44MB 2003

R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2

Flash FDD (connect to USB port)

 Notes

 FDD is NOT included as standard. Arrange Flash FDD if needed. For intended uses, refer to the Flash

FDD Supplementary Notes in this guide.

 Only one Flash FDD can be connected in the system.  Six port USB (rear x2, front x4) interface as standard.

SL10x64 SL10

(7)

Configuration Guide < LAN >

LAN (connect to PCI slot)

1Gbps Ethernet 100Mbps Ethernet  100BASE-TX adapter [N8104-111] (32bit/33MHz PCI) Switch, server Etc. LAN cable LAN cable  1000BASE-T adapter [N8104-119] (32bit/33MHz PCI-X)  1000BASE-T adapter [N8104-126] (PCI EXPRESS(x1))  1000BASE-T adapter(2ch) [N8104-121] (PCI EXPRESS(x4))  1000BASE-T adapter(2ch) [N8104-120] (64bit/133MHz PCI-X)

 1000BASE-T adapter(4ch) [N8104-125A] *1

(PCI EXPRESS(x4))

 1000BASE-SX adapter [N8104-112]

(64bit/133MHz PCI-X)

* Do not use 1000BASE-T adapter and 1000BASE-SX adapter at the same time.

*1… Do not use LAN cable with connector cover.

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64

 Note

 There is one 1000BASE-T LAN interface as standard.

 For details about the PCI slot, please refer to the end of this document. (Optional boards and adaptable expansion slots)

 For locally purchased non-NEC LAN adapters, see the "Information of local Procurement" in the Chapter 2. 2008 R2

(8)

Configuration Guide <internal HDD>(3.5inch HDD cage)

Non-RAID RAID RAID0/1/10 RAID5/6 On-board RAID RAID Cache: 128MB SATA HDD Windows OS Not Windows OS Case A Case B Case C Case D

Choices of RAID configuration

Device

 Notes

 The integrated SATA controller is used in case A and B.

 Case C/D/E use the RAID controller of the PCI EXPRESS CARD. (It will occupy one PCI slot.)  For details on the HDD configuration, refer to the to the end of this document.

Select RAID configuration from below. (Mixed configuration is not supported.)

Promise’s card

LSI’s card Case E

3.5-inch HDD cage

[standard]

(Case A/B/C/D/E) Slot 3 Slot 2 Slot 1 Slot 0

Case A. non RAID (connect to on-board SATA connector)

 Integrated SATA controller

Standard  3Gb/s SATA

Case B.

on-board RAID (connect to on-board SATA connector)

 SATA cable x4 Standard

(SATA – SATA cable)

SATA HDD

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2 2003 R2x64 2003R2 2008 2008x64 2008 R2  3.5-inchHDD cageStandard

 Integrated SATA controller Standard

 RAID 0/1/10  3Gb/s SATA

 SATA cable x4 Standard

(SATA – SATA cable)

SATA HDD  3.5-inchHDD cage

Standard

Up to four (non hot-swap)

SL10x64 SL10

(9)

Configuration Guide <internal HDD> (3.5inch HDD cage)

Case D. RAID controller (connect to PCI slot)

 SAS/SATA cable [K410-221(00)]

(Mini-SAS – 4x Fixed SATA cable)

Up to four (non hot-swap)

 RAID controller [N8103-109]  PCI EXPRESS(x8)  RAID 0/1/5/6/10  RAID cache: 128MB  3Gbps SAS/SATA

 RAID Battery Backup Unit [N8103-125]

SATA HDD (3.5inch)  160GB HDD 7,200rpm [N8150-372]  250GB HDD 7,200rpm [N8150-373]  500GB HDD 7,200rpm [N8150-343]  1TB HDD 7,200rpm [N8150-260]  2TB HDD 7,200rpm [N8150-284]

SATA HDD for Case A/B/C/D/E

SATA HDD

Case C. RAID controller (connect to PCI slot)

 SAS/SATA cable [K410- 221(00)]

(Mini-SAS – 4x Fixed SATA cable)

SATA HDD

Up to four (non hot-swap)

 RAID controller [N8103-116A]  PCI EXPRESS(x8)  RAID 0/1/10  RAID cache: 128MB  3Gbps SAS/SATA

 RAID Battery Backup Unit [N8103-121]

 SAS/SATA cable [K410-221(00)]

(Mini-SAS – 4x Fixed SATA cable)

Up to four (non hot-swap)

 RAID controller [N8103-117A]  PCI EXPRESS(x8)  RAID 0/1/5/6/10  RAID cache: 128MB  3Gbps SAS/SATA

 RAID Battery Backup Unit [N8103-121]

SATA HDD

Case E. RAID controller (connect to PCI slot)

 3.5inch HDD cage standard  3.5inch HDD cage standard  3.5inch HDD cage standard 2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2 SL10x64 SL10 2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2 SL10x64 SL10

(10)

Configuration Guide <internal HDD> (2.5inch HDD cage [N8154-23])

Non RAID RAID RAID0/1/10 RAID5/6 On-board RAID RAID cache: 128MB Windows OS Not Windows OS Case F Case G Case H

Choices of RAID configuration

Device SATA HDD SATA SSD SATA HDD SATA SSD or SAS HDD SATA SSD Case I Promise’s card

LSI’s card Case J

2.5inch HDD cage

[option]

(Case F/G/H/I/J) Slot 3 Slot 2 Slot 1 Slot 0

Case F. non RAID (connect to on-board SATA connector)

 On-board SATA controller

standard  3Gbps SATA

 SATA cable x4 standard

(SATA– SATA cable)

Up to four (non hot-swap)

SATA HDD SATA SSD

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2

Case G. on-board RAID (connect to on-board SATA connector)

 On-board SATA controller

standard  RAID 0/1/10  3Gbps SATA

Up to four (non hot-swap)

SATA HDD SATA SSD

2003 R2x64

2003R2 2008 2008x64 2008 R2

Select RAID configuration from below. (Mixed configuration is not supported.)

 Note

 Configuration F and G use the SATA controller of the on-board chip.

 Configuration H, I, and J use the RAID controller of the PCI EXPRESS CARD. (It will occupy one PCI slot.)  For details on the HDD configuration, refer to the end of this document.

 2.5inch HDD cage [N8154-23]

 SATA cable x4 standard

(SATA– SATA cable)

 2.5inch HDD cage [N8154-23]

(11)

Configuration Guide <internal HDD> (2.5inch HDD cage [N8154-23])

Case I. RAID controller (connect to PCI slot)

 RAID controller [N8103-117A]  PCI EXPRESS(x8)  RAID 0/1/5/6/10  RAID cache: 128MB  3Gbps SAS/SATA

 RAID Battery Backup Unit [N8103-121]

SATA HDD SATA SSD

or SAS HDD SATA SSD

Case J. RAID controller (connect to PCI slot)

Up to four (non hot-swap)

 RAID controller [N8103-109]  PCI EXPRESS(x8)  RAID 0/1/5/6/10  RAID cache: 128MB  3Gbps SAS/SATA

 RAID Battery Backup Unit [N8103-125]

SATA HDD SATA SSD or SAS HDD SATA SSD 2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2

Case H. RAID controller (connect to PCI slot)

 SAS/SATA cable

[K410- 220(00)]

(Mini-SAS – 4x Fixed SATA cable)

Up to four (non hot-swap)

 RAID controller [N8103-116A]  PCI EXPRESS(x8)  RAID 0/1/10  RAID cache: 128MB  3Gbps SAS/SATA

 RAID Battery Backup Unit [N8103-121]

SATA HDD SATA SSD

or SAS HDD SATA SSD

Up to four (non hot-swap)

 2.5inch HDD cage [N8154-23]

 SAS/SATA cable [K410- 220(00)]

(Mini-SAS – 4x Fixed SATA cable)

 2.5inch HDD cage [N8154-23]

 SAS/SATA cable [K410- 220(00)]

(Mini-SAS – 4x Fixed SATA cable)

 2.5inch HDD cage [N8154-23]

SATA HDD, SATA SSD for Case H/I/J(1)

SATA HDD (2.5inch)  160GB HDD 7,200rpm [N8150-316]  500GB HDD 7,200rpm [N8150-317]  1TB HDD 7,200rpm [N8150-335] SATA SSD (2.5inch)  100GB SSD [N8150-708]

HDD Connection can select either of following (1) (2).

SAS HDD (2.5inch)

 NOTE

 For more details about SAS HDD and SATA HDD mixed configuration, please refer to the end of this

document.

SAS HDD, SATA SSD for Case H/I/J(2)

2003

R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2 SL10x64 SL10 2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2 SL10x64 SL10

(12)

Configuration Guide <internal backup device>

USB device(1) (connect to 5inch device bay and internal USB)

 Built-in DAT(USB) (DDS3/4/DAT72) (36GB) [N8151-69]  DDS1/DDS2 are not supported.

DAT

2003R2 R2x642003 2008 2008x642008R2

 Built-in DAT(USB) (DDS4/DAT72/DAT160) (80GB) [N8151-78]  DDS1/DDS2/DDS3 are not supported.

 Built-in DAT(USB) (DAT160/DAT320) (160GB) [N8151-99]  DDS1/DDS2/DDS3/DDS4/

DAT72/DAT160 for WORM are not supported.

2003R2 R2x642003 2008 2008x642008R2

2003R2 R2x642003 2008 2008x64 2008R2  Internal USB cable [K410-210(00)]

 Note

 The USB cable of the backup device attachment cannot be used. It is necessary to arrange internal USB cable (K410-210(00)).

 Refer to‘’Software” to check whether your configuration requires backup software.

 Note that the backup utility included in the Windows Server 2008, 2008 R2 does not support tape drives and requires backup software.

Up to one device (USB/SCSI/SAS) can be installed.

EL5 EL5x64 EL4 EL4x64 EL5 EL5x64 EL4 EL4x64 EL5 EL5x64 EL4 EL4x64

(13)

Configuration Guide <internal backup device>

USB device(2) (connect to 5inch device bay and internal USB)

 Built-in RDX(USB) [N8151-86]  RDX data cartridge (160GB) [N8152-20]  RDX data cartridge (320GB) [N8152-26]  RDX data cartridge (500GB) [N8152-27]  RDX data cartridge (640GB) [N8152-30]  RDX data cartridge (1TB) [N8152-33]

RDX

SCSI device(1) (connect to 5inch device bay and PCI slot)

DAT

SCSI controllermandatory option

 SCSI controller Ultra 320 SCSI, PCI EXPRESS(x1) [N8103-107]

Built-in DAT

 Built-in DAT(DDS3/4/DAT72)(36GB) [N8151-51A]  DDS1/DDS2 are not supported.

 SCSI cable [K410-160(00)]

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2

 NOTE

 Four PCI slots as standard. For details on compatible controllers, refer to ”Optional Boards and Adaptable Expansion Slots” at the end of this document.

 Refer to‘’Software” to check whether your configuration requires backup software.

 Note that the backup utility included in the Windows Server 2008/2008 R2 does not support tape drives and requires backup software

 USB cable [K410-210(00)]

 NOTE

 The USB cable of the backup device attachment cannot be used. It is necessary to arrange internal USB cable (K410-210(00)).

 Refer to‘’Software” to check whether your configuration requires backup software.

 Note that the backup utility included in the Windows Server 2008, 2008 R2 does not support tape drives and requires backup software.

2003R2 R2x642003 2008 2008x64 2008R2 EL5 EL5x64 EL4 EL4x64

(14)

Configuration Guide <internal backup device>

 Built-in LTO(LTO2) (200GB) [N8151-59]

SCSI device(2) (connect to 5inch device bay and PCI slot)

LTO

SCSI controller (mandatory option)

 SCSI controller Ultra 320 SCSI, 64bit/66MHz PCI-X [N8103-75]  SCSI controller Ultra 320 SCSI, PCI EXPRESS(x1) [N8103-107]

 SCSI cable [K410-160(00)]  Built-in LTO(LTO3) (400GB) [N8151-76] 2003R2 R2x642003 2008 2008x64 2008R2 2003R2 R2x642003 2008 2008x64 2008R2 2003R2 R2x642003 2008 2008x64 2008R2 2003R2 R2x642003 2008 2008x64 2008R2

EL4 EL4x64 EL5 EL5x64

EL4 EL4x64 EL5 EL5x64

EL4 EL4x64 EL5 EL5x64

 NOTE

 Four PCI slots as standard. For details on compatible controllers, refer to ”Optional Boards and Adaptable Expansion Slots” at the end of this document.

 Refer to‘’Software” to check whether your configuration requires backup software.

 Note that the backup utility included in the Windows Server 2008/2008 R2 does not support tape drives and requires backup software

Up to one device (USB/SCSI/SAS) can be installed.

(15)

Configuration Guide <internal backup device>

SAS device (connect to 5inch device bay and PCI slot)

LTO

SAS controller

 SAS controller PCI EXPRESS(x8) [N8103-104A]

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2

 SAS cable [K410-173(00)]

1x Wide SAS (8484)- 2x Fixed SAS (8482)

 Built-in LTO(LTO4) (800GB) [N8151-90]

 Max.1 2003R2 R2x642003 2008 2008x64 2008R2

EL5 EL5x64 EL4 EL4x64

Up to one device (USB/SCSI/SAS) can be installed.

 Built-in LTO(LTO2) (200GB) [N8151-101]  Max.1  Built-in LTO(LTO3) (400GB) [N8151-102]  Max.1 2003R2 R2x642003 2008 2008x64 2003 2008R2 2003R2 R2x642003 2008 2008x64 2003 2008R2 EL5 EL5x64 EL4 EL4x64 EL5 EL5x64 EL4 EL4x64

(16)

Configuration Guide <internal backup device>

SAS device (connect to 5inch device bay and PCI slot)

 Built-in LTO(LTO4) (800GB) [N8151-90]

2003R2 R2x642003 2008 2008x64 2008R2 EL5 EL5x64 EL4 EL4x64

RAID controllerIt is share for HDD connection. Two RAID cards can not be installed

 RAID controller PCI EXPRESS(x8) [N8103-116A]

 RAID 0/1/10

 RAID cache: 128MB  3Gbps SAS/SATA

 RAID controllerPCI EXPRESS(x8) [N8103-117A]

 RAID 0/1/5/6/10  RAID cache: 128MB  3Gbps SAS/SATA

 RAID controller is supported Case C/E/H/J of internal HDD only.

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2

2003 R2x64 2003R2

EL4 EL4x64 EL5 EL5x64

2008 2008x64 2008 R2

 Note

 When connection via RAID controller, one RAID controller can support both HDD and LTO.

 SAS cable [K410-198(00)]

LTO (connect via RAID controller)

Up to one device (USB/SCSI/SAS) can be installed.

 Built-In LTO (LTO5) (1500GB) [N8151-103]

 Max.1 SAS controller

 SAS controller 6Gb/s SAS,PCI EXPRESS 2.0(x8) [N8103-142]

RHEL version should be RHEL5.5 or later

 SAS cable [K410-217(00)]

 1x Single SATA (7pin)– 1x Fixed SAS (8482)

2003 R2x64 2003R2 2008 2008x64 2008 R2 2003 R2x64 2003R2 2008 2008x64 2008 R2 EL5 EL5x64 EL5 EL5x64

(17)

Configuration Guide <serial port expansion>

Serial Port Connector Kit (connect to PCI slot)

 RS-232C connector kit [N8117-01A]

 NOTE

 One serial port A (RS-232C interface) can be added by inserting this kit to the PCI slot (maximum 1 port is supported).

(18)

Configuration Guide < keyboard / mouse, etc. >

Keyboard (connect to keyboard interface)

 Keyboard (PS/2) Standard

 PS/2 Keyboard interface  104 keyboard

 1.8m cable

Mouse (connect to mouse interface)

 Mouse (PS/2) Standard  PS/2 Mouse interface  Two button  Optical  with wheel  1.8m cable

Rack conversion kit

 Rack conversion kit [N8143-75]

Use the Rack conversion kit to install the GT110b into a 19-inch rack. (height : 4U)  NOTE

 Remove the device cover of the Front bezel before mounting.  Dust filter does not fit to the Front bezel.

(19)

Optional boards and slot positions

 Notes for AFT/SFT/ALB Teaming of network

 You can create a Teaming between the standard LAN interface and N8104-121/125A/126.  Teaming is possible between the same N-code LAN cards.

 Other combinations for Teaming are not supported.  Supplementary notes

 For details of each card, refer to the technical guide.

 The performance described between parenthesis is the max performance of the card itself.

 When the performance of the PCI card is higher than the PCI slot, the PCI card operates with lower performance.

PCI

PCIe #1 PCIe #2 PCIe #3 PCI #4

PCI slot performance *1 x16 lane x4 lane x2 lane 32bit/33MHz

transfer rate(/lane) 5Gb/s 2.5Gb/s 2.5Gb/s

-PCI slot size

PCI board type *1 x16 socket x8 socket x4 socket 5V

board size up to 200mm up to 312mm (long/short) N8103-75 - - - O N8103-107 - O O -N8103-104A O O - -N8103-142 O O - -N8103-116A O O - -N8103-117A O O - -N8103-109 O O -

-for internal HDD, made in Promise.

RAID BBU[N8103-125] can be mounted. N8104-111 - - - O N8104-119 - - - O N8104-120 - - - O N8104-126 O O O -N8104-121 O O O -N8104-125A O O O -N8104-112 - - - O

N8117-01A O O O O for serial (RS-232C) port

max.1

N8103-116A/117A/109 can be mounted either one.

To create an AFT/SFT/ALB be termed with N8104-126 and on-board LAN. 10BASE-T is not supported. Do not use with N8104-112.

To create an AFT/SFT/ALB be termed with N8104-121 and on-board LAN. 10BASE-T is not supported. Do not use with N8104-112.

To create an AFT/SFT/ALB be termed with N8104-125A and on-board LAN. 10BASE-T is not supported.

Do not use LAN cable with connector cover. Do not use with N8104-112.

for additional LAN

Do not use with N8104-121/-125A/-126 for additional LAN

for additional LAN for additional LAN SCSI controller

(64bit/66MHz,PCI-X) SCSI controller (PCI EXPRESS(x1))

Note

for internal/external tape device Do not use with N8103-107 Full Height up to 173.1mm (short) PCI EXPRESS 2.0 1000BASE-T adapter (64bit/133MHz PCI-X) 1000BASE-T adapter(2ch) (64bit/133MHz PCI-X) 1000BASE-T adapter (PCI EXPRESS(x1)) 1000BASE-T adapter(2ch) (PCI EXPRESS(x4))

for internal HDD,made in LSI. RAID BBU[N8103-121] can be mounted.

for internal/external tape device Do not use with N8103-75

max.2

Do not use internal HDD SAS controller

(PCI EXPRESS(x8))

max.2

Do not use internal HDD

RAID controller(128 MB, RAID0/1/5/6) (PCI EXPRESS(x8)) RAID controller(128 MB, RAID0/1/5/6)

(PCI EXPRESS(x8)) SAS controller (PCI EXPRESS 2.0(x8)) RAID controller(128 MB, RAID0/1)

(PCI EXPRESS(x8))

RS-232C connector kit

N Code Product name

1000BASE-T adapter(4ch) (PCI EXPRESS(x4)) 100BASE-TX adapter (32bit/33MHz PCI) 1000BASE-SX adapter (64bit/133MHz PCI-X)

(20)

Optional Device connection image

Connecting on-board SATA controller and internal drive

Connecting RAID controller + internal drive/ SAS device

SATA cable * HDD3 HDD2 HDD1 HDD0 PCI1 PCI2 PCI3 PCI4 SATA cable * (for ODD) SATA3 SATA1 SATA5 SATA2 SATA4 SATA0

Optical disk drive

LED

USB

MB

Internal SAS device

HDD3 HDD2 HDD1 HDD0 PCI1

PCI2 SATA cable *

(for ODD)

SATA3 SATA1 SATA2

SATA0

Optical Disk Drive Internal SAS cable

(K410-198(00)) (option)

Internal SAS cable (K410-221(00))

(option) RAID controller

(N8103-116A/117A)

(option) Internal SAS cable(K410-220(00))

(option) Case of 3.5inch internal drive Case of 2.5inch internal drive Internal LTO (N8151-90) (option) LED MB Battery for DAC

(21)

Optional Device connection image

Connecting RAID controller + internal drive(no internal SAS device)

Internal USB device

HDD3 HDD2 HDD1 HDD0 PCI1 PCI2 PCI3 SATA cable * (for ODD) SATA3 SATA1 SATA2 SATA0

Optical Disk Drive Internal USB cable

(K410-210(00)) (option)

LED

MB

Connecting on-board SATA controller + internal drive,

Internal USB interface + internal USB device

HDD3 HDD2 HDD1 HDD0 PCI1 PCI2 PCI3 PCI4 SATA3 SATA1 SATA5 SATA2 SATA4 SATA0

Optical Disk Drive

RAID controller (N8103-109/116A/117A) (option) LED SATA cable * (for ODD) LED cable * USB

MB Internal SAS cable

(K410-221(00)) (option) Internal SAS cable

(K410-220(00)) (option)

Battery for DAC

Additional battery (N8103-125/121) (option) Battery cable (appended) Case of 3.5inch internal drive Case of 2.5inch internal drive

(22)

Optional Device connection image

Connecting SCSI card

Connecting SAS device(Board connect to PCI slot)

Internal SAS device

HDD3 HDD2 Optical Disk Drive internal SAS cable

(K410-173(00)/217(00)) (option) SAS controller (N8103-104A/142) (option) LED MB

Internal SCSI device

HDD3 HDD2 HDD1 HDD0 PCI1 PCI2 PCI3 PCI4 SATA3 SATA1 SATA5 SATA2 SATA4 SATA0

Optical Disk Drive

RAID controller (N8103-109/116A/117A)

(option) Int. SCSI cable (K410-160(00)) (option) SCSI controller (N8103-107) (option) LED SATA cable * (for ODD) LED cable * USB

MB Internal SAS cable

(K410-221(00)) (option) Internal SAS cable

(K410-220(00)) (option) Case of 3.5inch internal drive Case of 2.5inch internal drive

Battery for DAC

Additional battery (N8103-125/121)

(option) Battery cable

(appended)

(23)

 Hard disk

 Measurement units of the hard disk capacity are 1GB=10003B and 1TB=10004B. The capacity is less when

compared with same capacity figures based on 1GB=10243B and 1TB=10244B.

 PCI expansion slot

 Speed of PCI EXPRESS (unidirectional / lane)  PCI EXPRESS (PCIe): 2.5Gbps

 PCI EXPRESS 2.0(PCIe 2.0): 2.5Gbps (#2/#3 slots) or 5Gbps (#1 slot)  PCIe 2.0 x16 lanes will make a 80Gbps (unidirectional) lane (#1 slot)  “Socket” describes the size of the connector.

 Sockets are capable of connecting cards of the same or smaller size.  e.g. x4 socket -> x1 and x4 cards are supported. x8 card is not supported.

 System Clock

 When stored at a low or high temperature, the system clock may largely deviate from the current time.

 EXPRESSBUILDER

 EXPRESSBUILDER (DVD media) includes the following:

 Server Management Software : NEC ESMPRO Server Manager (Windows), NEC ESMPRO Agent  Users Guide

 RAID system management software: Universal RAID Utility  Various drivers

 OS

 For details as specifications and connections limited by OSs, refer to the (Detailed System Configuration Guide) and "Hw_List".

 CPU

 The functions of the Intel ® Xeon ® processors of this server are as below.

Supplementary Notes <General>

Category

Official Name

Function Overview

Processor

Celero

n

G1101

Pentiu

m

G6950

Xeon

X3430

64 bit

Intel® 64

64 bit function

o

o

o

Energy

consumptio

n

Enhanced Intel® SpeedStep®

Technology,

(Intel®

Demand-Base

Switching)

Power conservation technology

that changes voltage and

frequency according to processor

load.

o

o

o

Performanc

e

Intel®

Turbo

Boost

Technology

Technology that boosts processor

frequency.

-

-

o

Performanc

e

Intel® Hyper-Threading

Technology

A function that delivers

thread-level parallelism on each

processor

-

-

-Virtualizatio

n

Intel®

Virtualization

Technology

Hardware (CPU)-assisted

virtualization technology.

o

o

o

(24)

Supplementary Notes <Memory (1)>

*1 To disable HW-DEP, go to BIOS Setup and disable Execute Disable Bit (XD Bit). XD Bit is enabled by default.

Maximum memory size supported by OS

Maximum available memory

4GB

Microsoft Windows Server 2003 R2, Standard Edition

Microsoft Windows Server 2008 Standard

HW DEP disabled:

*1

About 3.3GB

HW-DEP enabled (default):

*1

4GB

32GB

Microsoft Windows Server 2003 R2, Standard x64

Edition

Microsoft Windows Server 2008 Standard (x64)

Microsoft Windows Server 2008 R2 Standard (x64)

16GB

16GB

RedHat Enterprise Linux ES4 (x86 / EM64T)

RedHat Enterprise Linux 5 (x86)

16GB

(25)

Supplementary Notes <HDD(1)>

HDD Connection/RAID Configuration -- Precautions

Case A/F

Non RAID

Case B/G

On-board RAID (RAID 0/1/10)

Case C/H

N8103-116A RAID controller

(128MB cache)

(RAID 0/1/10)

Case D/I

N8103-109 RAID controller

(128MB cache)

(RAID 0/1/5/6/10/50)

Case E/J

N8103-117A RAID controller

(128MB cache)

(RAID 0/1/5/6/10/50)

 RAID configuration

 For RAID configuration, provide HDDs of same capacity and rotation speed within same group (pack). Also, use the same rotation speed HDDs in the system. (Refer to the next page for SAS/SATA mix configuration)

 Case A/F (Non RAID configuration), Case B/G (On-board RAID)  On-board RAID function (LSI Embedded MegaRAID)

 RAID calculations utilize the CPU on the motherboard.

 Case C/H (N8103-116A RAID controller [LSI MegaRAID])

 Insert RAID controller to PCI slot for RAID configuration. RAID calculations utilize the CPU on the RAID controller.

 For N8103-119 RAID option of adding the upgrade kit for RAID configuration, please refer to below Case D.

 Case D/I(N8103-109 RAID controller [Promise RAID])  Case E/J(N8103-117A RAID controller [LSI MegaRAID])

 Insert RAID controller to PCI slot for RAID configuration. RAID calculations utilize the CPU on the RAID controller.

 When using RAID controller in Case C/D/E/H/I/J - Precautions

 The controller is set to “write-through” by default. For higher performance, it is recommended to install an additional battery and operate in “write-back” mode.For details on how to change settings, refer to the Users Guide attached to the main unit.

 Write Through mode

 A synchronous write to the hard disk occurs when there is a write to a cache memory.  Write Back mode

 When there is a write to a cache memory, the completion notification is issued to the software immediately, while the array controller performs an asynchronous write to the hard disk. In general, the access speed is faster than write-through mode. An UPS or batteries to backup the data is required.

(26)

 Mixed configuration of SATA HDD and SAS HDD

 Mixed configuration of SATA HDD and SAS HDD is not supported.

Supplementary Notes <HDD(2)>

Mixed configuration of 2.5inch internal HDD and SSD

Example:

Install SAS HDD in Slots 0~1, SATA SSD in Slots 2~3

 Mixed configuration of HDD(SATA/SAS) and SSD

 For mixed configuration of SAS HDD and SATA SSD, RAID controller is required.  Mixed configuration within same RAID group (pack) is not supported.

 Mixed configuration of SAS HDDs of different rotation speed is not supported.

 Install HDD (SAS/SATA) in sequence from Slot #0. Remaining slots can be used for installing SSD.

Slot 1 (SAS HDD) Slot 3 (SATA SSD) Slot 0 (SAS HDD) Slot 2 (SATA SSD) Slot 1 (SATA HDD) Slot 3 (SATA SSD) Slot 0 (SATA HDD) Slot 2 (SATA HDD) Example:

Install SAS HDD in Slots 0~2, SATA SSD in Slot 3 Slot 0 Slot 1 Slot 2 Slot 3 2.5inch HDD cage (Option)

(27)

Supplementary Notes <Flash FDD>

 Flash FDD (N8160-86) overview

 USB2.0 compliant FDD emulation feature equipped

in the USB Flash drive.

 Stick type. FD icon/capacity is printed for easy

recognition.

 Capacity: 1.44MB (FAT formatted)

*Same as one FD(2HD)

 Strap hole, Write protect switch.

Flash FDD

Flash FDD is an alternative device of FDD using USB flash drive. This device can be used

as boot device without additional driver. Also, automatically recognized by OS as a Floppy

disk drive after connecting to USB port since this device supports Plug and Play.

*1

*1: Support OS only

 Intended uses of FDD substituted by Flash FDD

 Flash FDD can be used instead of FDD for the following uses. Arrange Flash FDD if

needed for your system.

Intended use Description Notes

In

s

ta

ll

Manual installation Installation of Microsoft Windows Server 2003 R2 or previous Windows Server OS

Create Windows OS OEM-Disk Not required for Windows Server 2008 or later

Linux OS installation Depends on the distribution

M a in te n a n c e

BIOS/FW update Off line update of BIOS or some firmware Not required for the current models, because those support update by CD/DVD and online update. Express report service

registration

Required when the set up of Express Report Service

Backup software When using disaster recovery option of CA ARCserve Backup on Microsoft Windows Server 2008 or later.

Not required on Windows Server 2003/2003 R2

When additional driver is needed for Backup Exec Intelligent Disaster Recovery option or disaster recovery of NetVault.

Not required when there is no additional driver

Replacement/repair of Hardware

Backup/restore of HW information (Serial Number, etc.) when replacement or repair

References

Related documents

• Materiality : An integrated report should disclose information about matters that substantively affect the organization’s ability to create value over the short, medium and

cessfully separated or purified based on the high level of binding of the peptide tag of the present invention to acid- denatured human IgG. The peptide tag of the present inven-

Transmission Distributors Assn ISBN# 9780981733135 (2 Vol Set) No Access Code Required Power Transmission Distributors Assn, Power Transmission Workbook 4 th ed. Puntos

Draw a tree for an initial stock price of 22 and subtract the present value of future dividends at each node?. Draw a tree with an initial stock price of 18 and add the present value

• Test 2: A two-drive, 7200 RPM SATA RAID-1 configuration of spinning drives was used for the operating system and a four-drive RAID-10 configuration of SSDs was used for the 40GB

In conclusion, we have demonstrated that the PSAR code-aided MIMO transmit preprocessing scheme gleans more benefits from the inserted pilots than the classic PSAM technique,

From the Adaptec RAID Confi guration Utility menu, select Disk Utilities from the screen as shown above and press &lt;Enter&gt;.. When the submenu appears, select the desired disk

If you want to create an extra RAID partition, please use the RAID utility under Windows environment to confi gure RAID functions after you install OS. 2.6 Deleting
